kraft paper non woven fabric slitting machine with turret rewind from big to small rolls
kraft paper non woven fabric slitting machine with turret rewind from big to small rolls
kraft paper non woven fabric slitting machine with turret rewind from big to small rolls
kraft paper non woven fabric slitting machine with turret rewind from big to small rolls
kraft paper non woven fabric slitting machine with turret rewind from big to small rolls
kraft paper non woven fabric slitting machine with turret rewind from big to small rolls
kraft paper non woven fabric slitting machine with turret rewind from big to small rolls

kraft paper non woven fabric slitting machine with turret rewind from big to small rolls

Share on (1600818787495):


Price:$12,000.00 - $28,000.00

Quantity:


Product Overview

Description



Products Description




Main Features
1. The whole machine frame is made of iron plate, with extremely high precision and stability.
2. Main motor adopts single-phase asynchronous motor.
3. PhotoelectricEPC system.
4. Inverter : Delta
5. Automatic constant tension of unwinding and rewindingby magnetic powder brake and clutch.
6. Rewinding and unwinding adopts air shaft.
7. Guide roller is plated with hard chromium, which makes the guide roller hard, wear-resistant, mild and corrosion-resistant
8. Electrical equipment

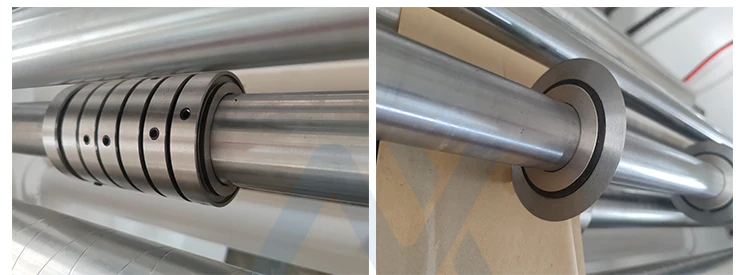

9. The standard machine equipped with 1 set(10 pcs)circular knives, razor knife is optional.
10. The machine has the auto functions like automatic counting meter, emergency stop, alarm etc.

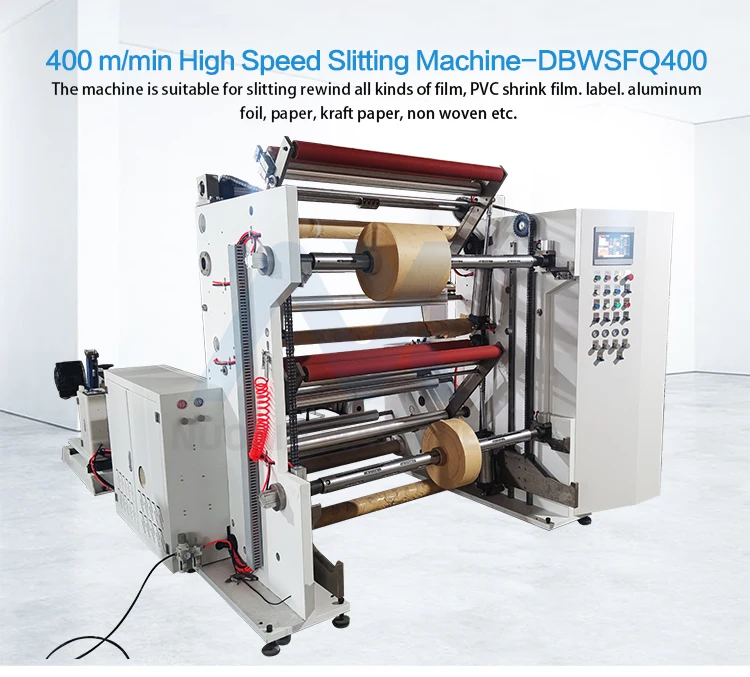

Machine Model
DBWSFQ400
Suitable Slitting material
PE, BOPP,OPP, paper, non woven fabric, and aluminum foil,ect.
Max. Unwinding material width
1100mm
Max. Unwinding dia
1200mm
Slitting width
100mm-1100mm
Slitting speed
10-400m/min (depends on different material)
Max. Rewinding dia
Φ1000mm
Inner dia of paper core
3”
Power
10kw

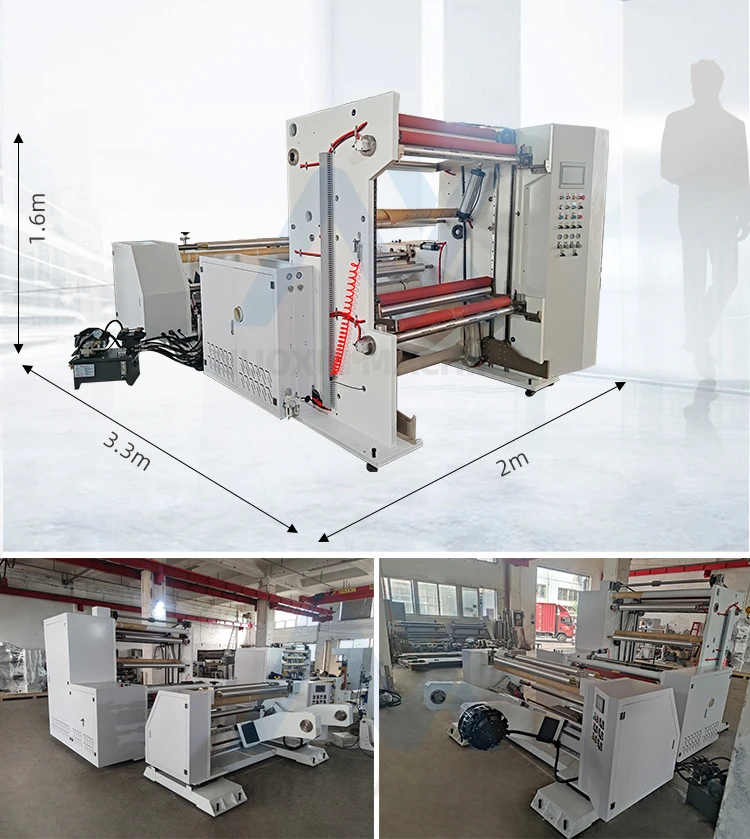

Machine size(L*W*H)
2.0x3.3x1.6m
Machine weight
3200kg
Machine weight
2600kg


Product Paramenters

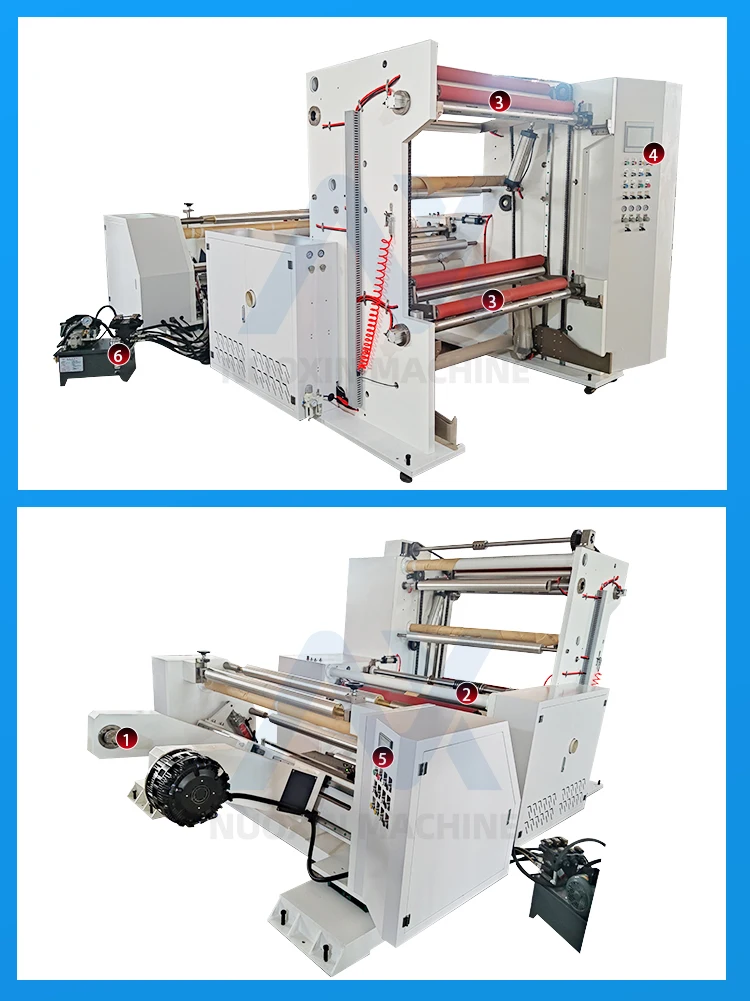

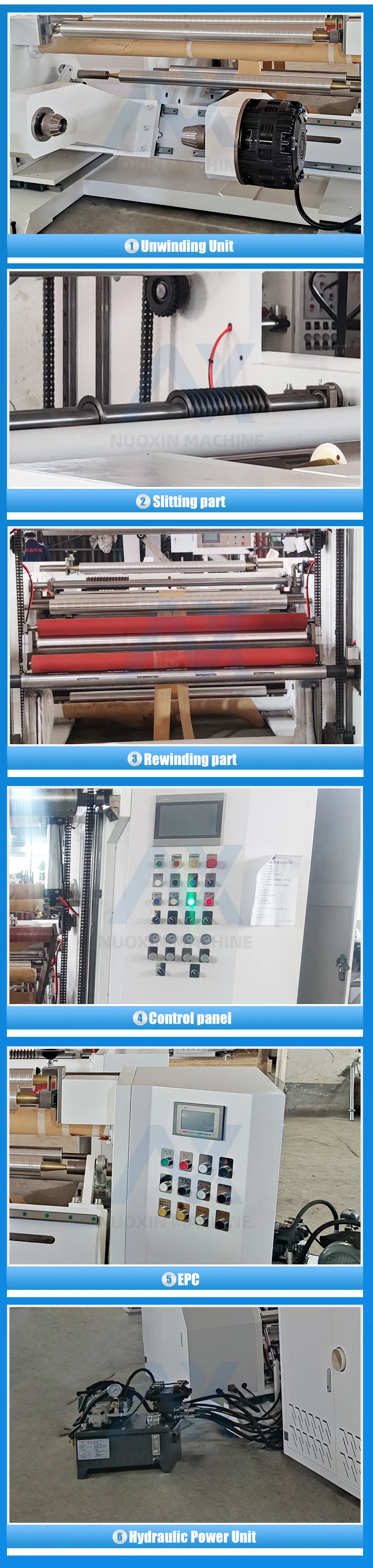

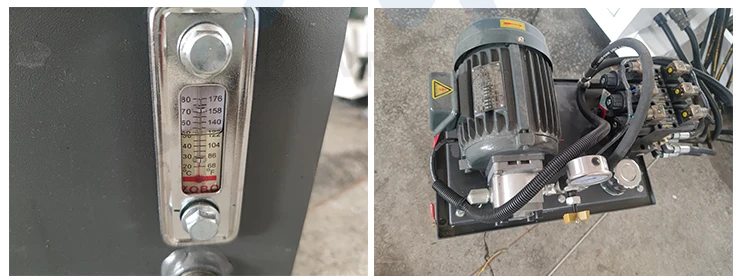

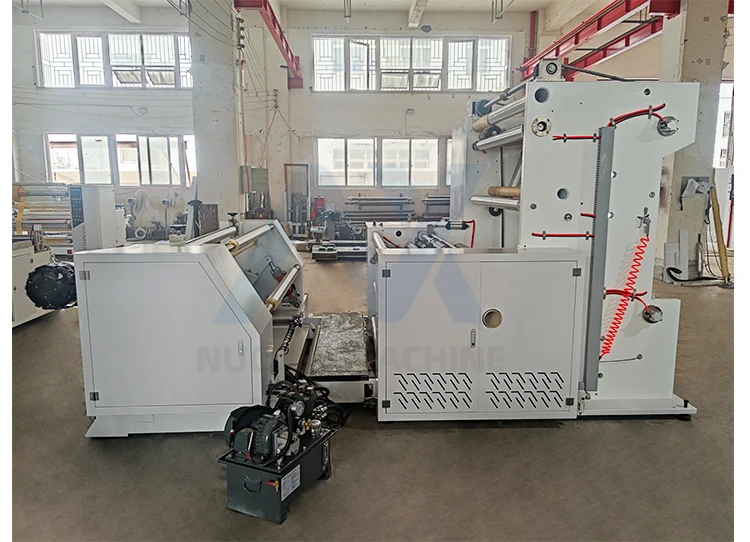

1.Unwinding Unit                     2.Slitting Part                  3.Rewinding Part           4.Contrl Panel                         5.EPC                                 6.Hydraulic Power Unit

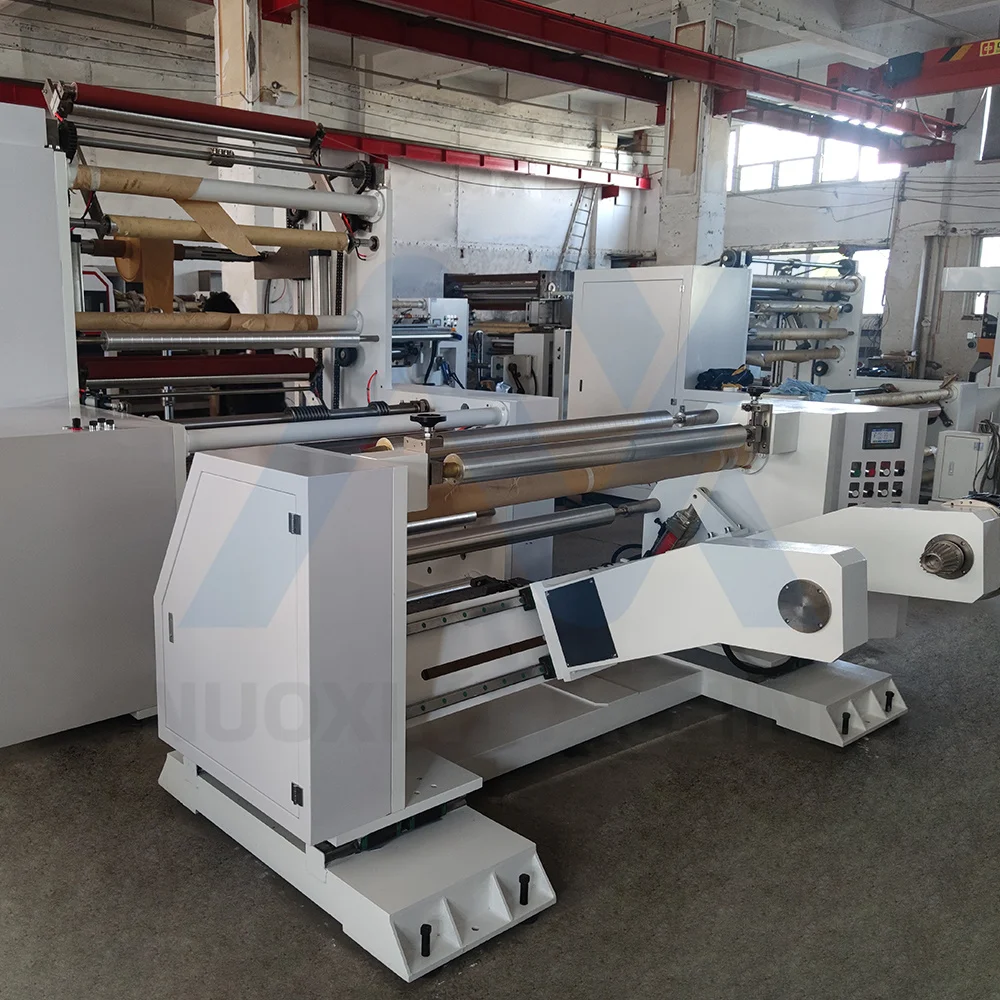

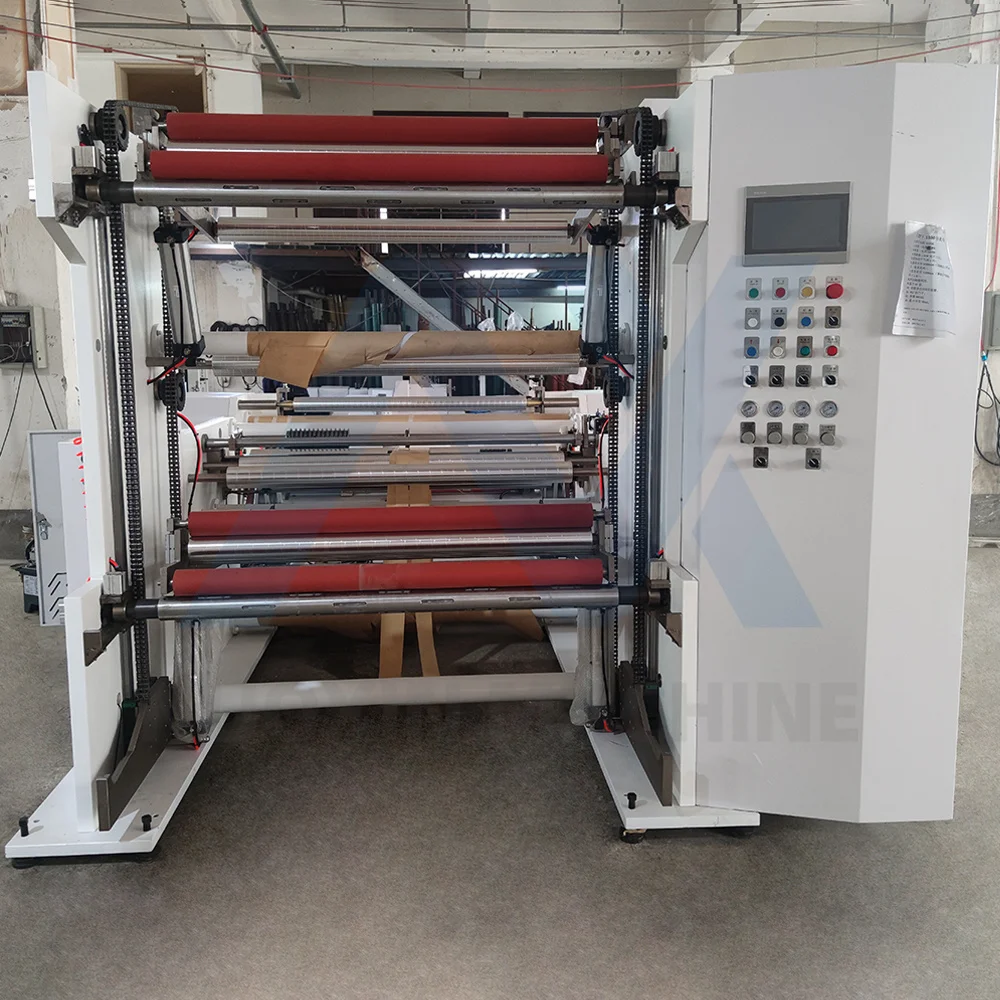

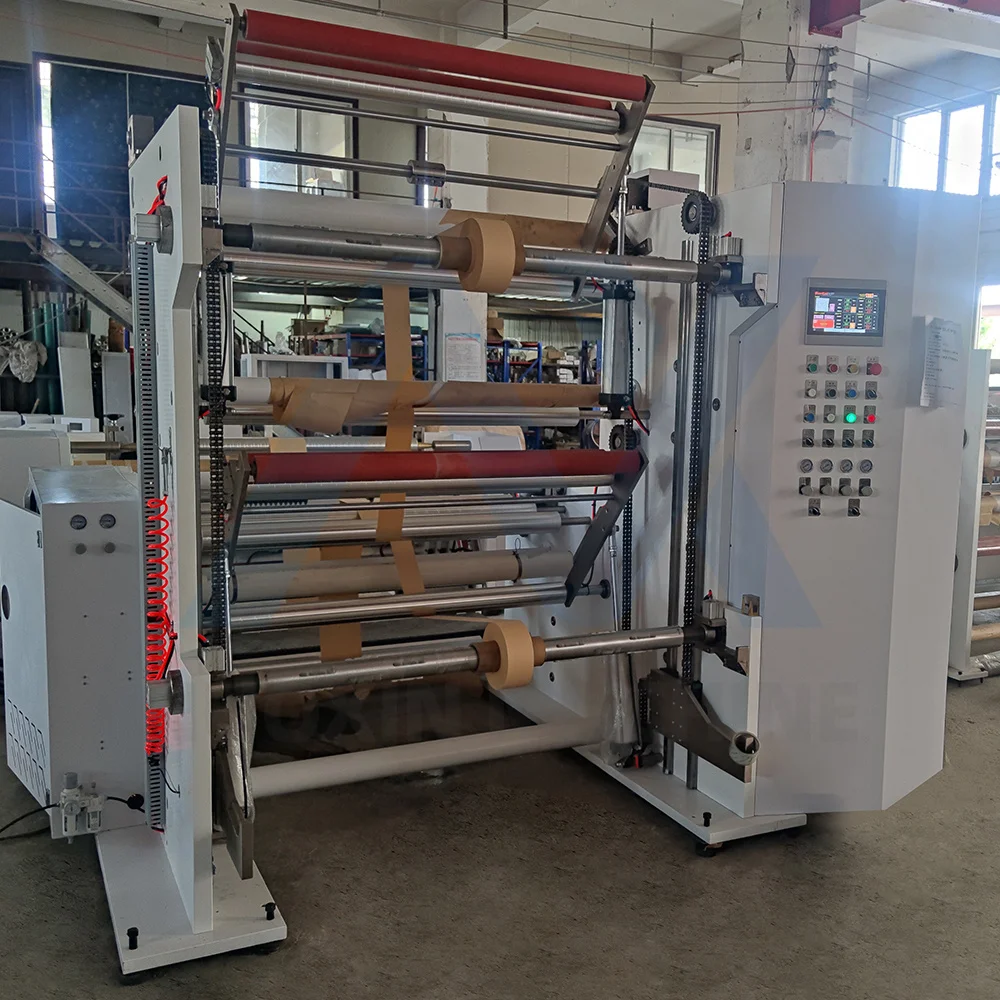

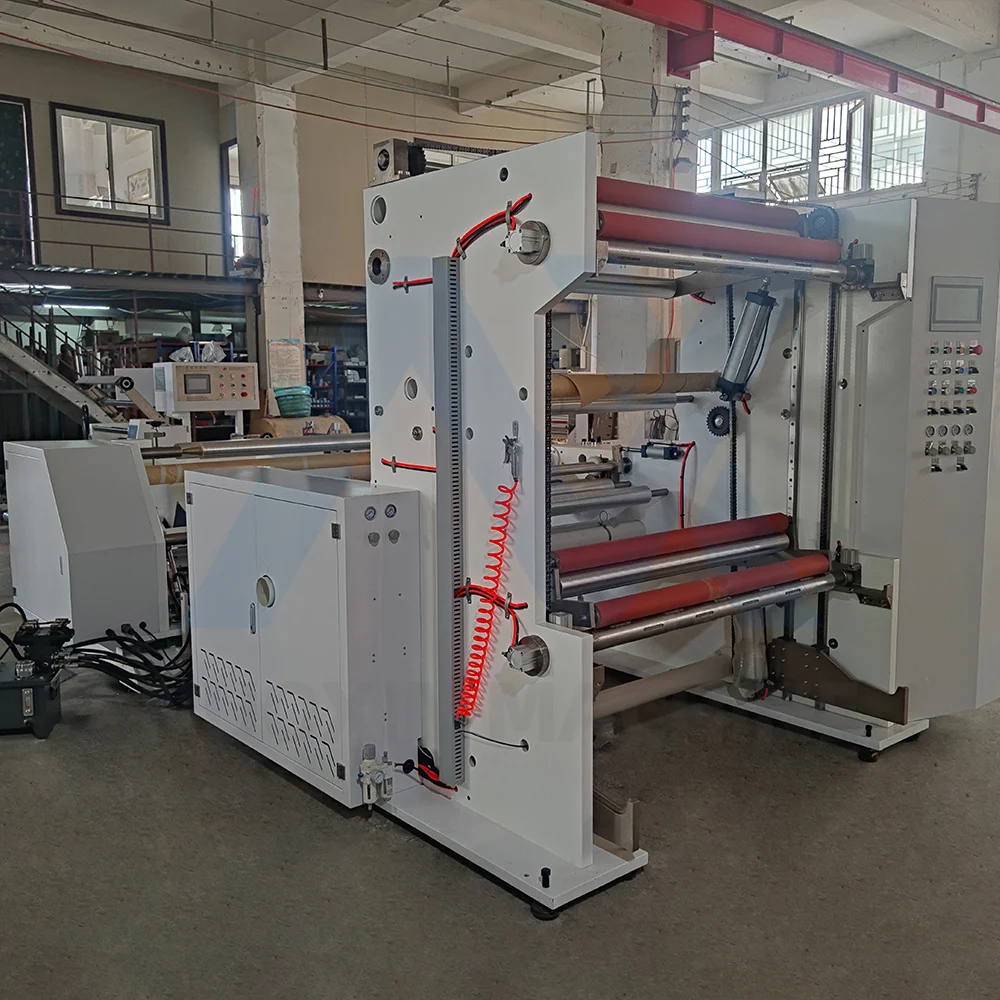

Machine Display

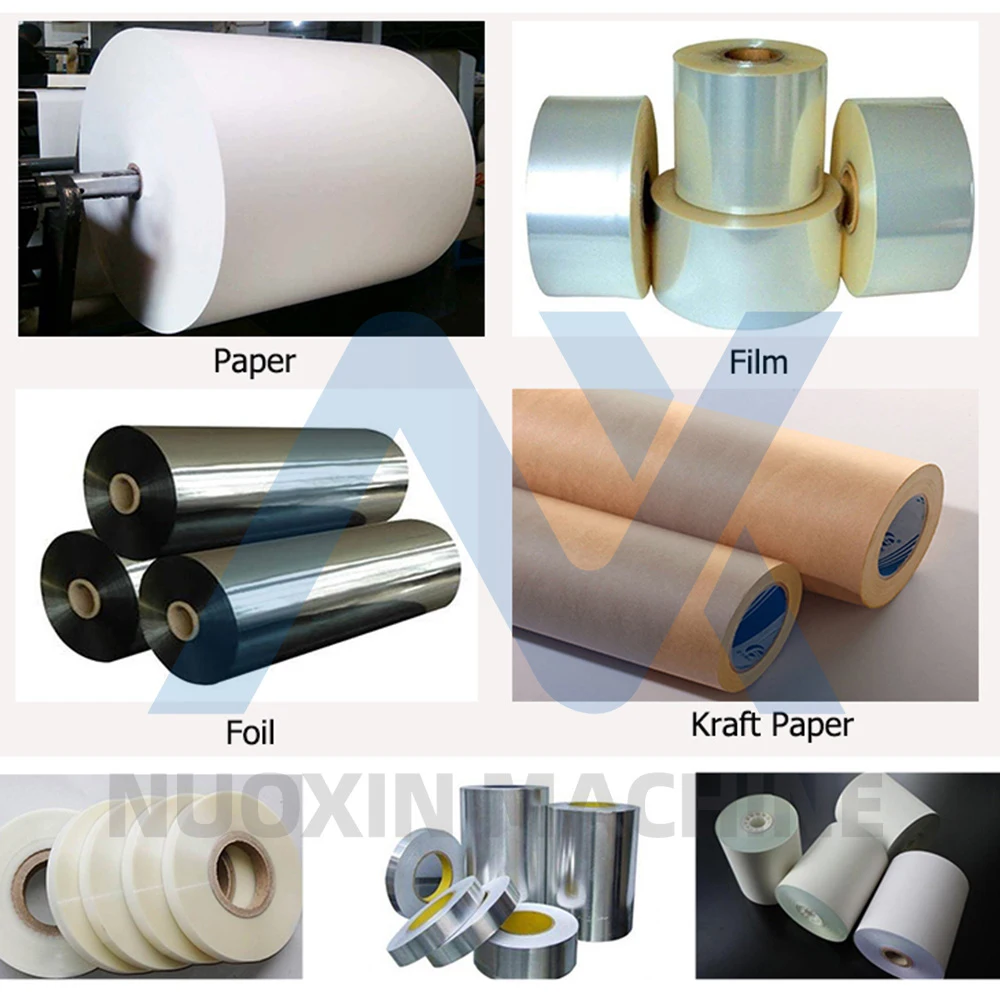

Sample Display






Company Profile




Ruian Nuoxin Machinery Co.,Ltd. which located in the Ruian city Zhejiang province of China,is a professional company specializing in the production of printing machinery.Over the years,we have been engaged in flexo printing machine,for example:wide width printing machine,plastic film printing machine,roll paper printing machine,non-woven fabric printing,sllitting machine etc.Products are widely used in all kinds of drum material printing.
Nuoxin is a manufacture included machine design and manufacture.Now has strong engineering and technical services,with independent ability in the development of new type flexo printing machine. View more＞
