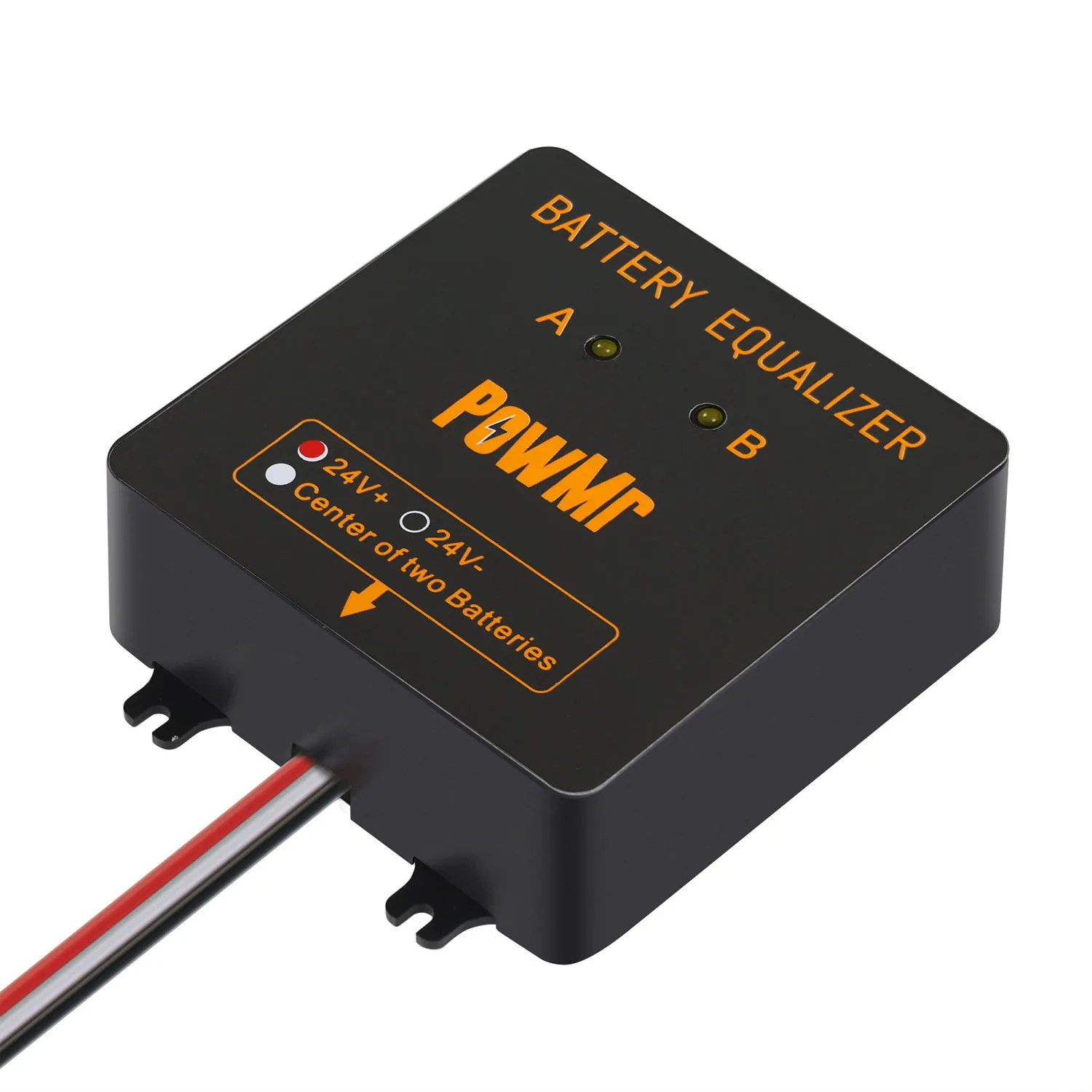

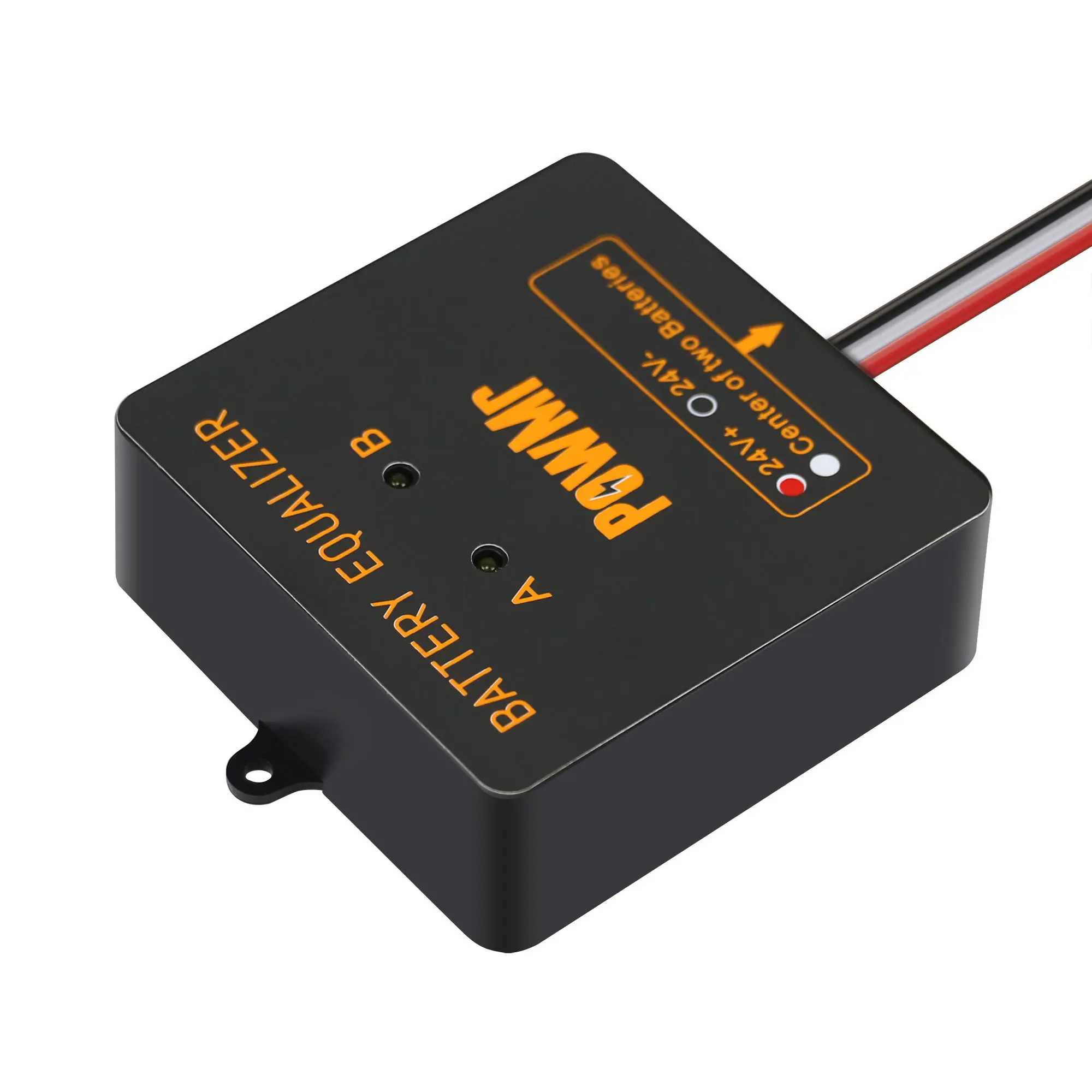

Battery Equalizer 24V Battery Voltage Balancer Max 2 *12V Ce Battery Balancer Solar Energy Storage Systems
- Category: >>>
- Supplier: Hebei Depurui Import And Export Co. Ltd.
Share on (1600818830195):
Product Overview
Description
PRODUCTS DESCRIPTION

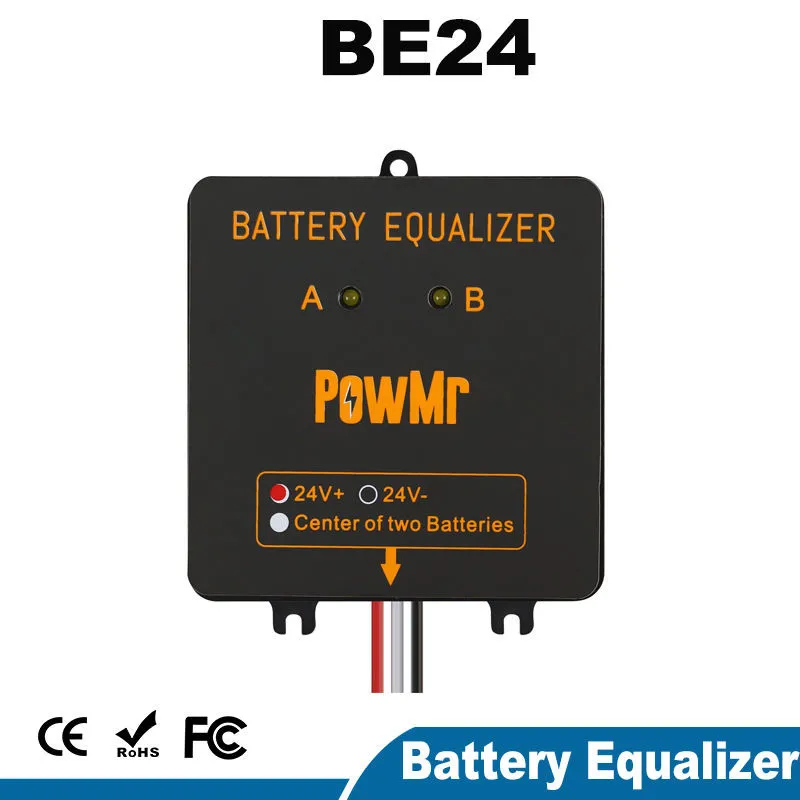

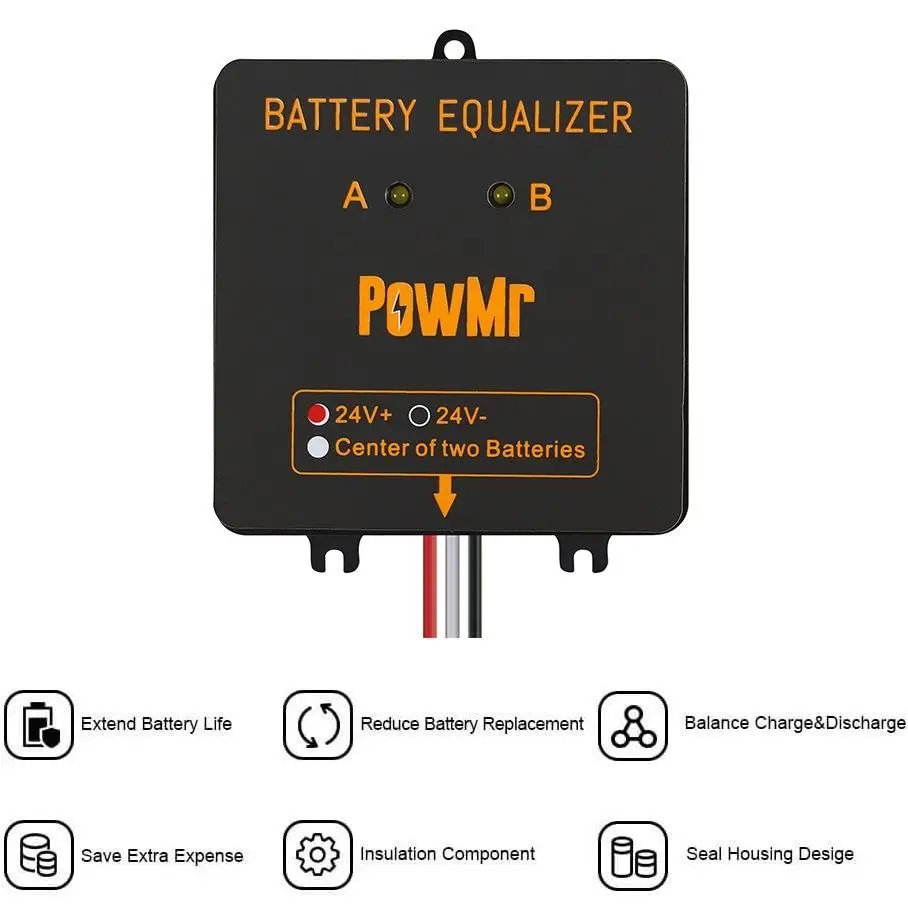

BE24 Battery Balancer Charger Controller 24V Solar System Battery Equalizer for Gel Flood AGM Lead Acid Battery
Model No. | BE24 |
Working Voltage | 2x12V |
Working Current | 0~5A |
Standby Current | less than 3mA |
Temperature Sensor | -20°C~+55°C |
Size | 70*70*27(mm) |
Protection | reverse polarity protection |
Low Voltage Disconnect | 10V |
Overview:
The Battery Equalizer is used for the 12V Gel/Flood/AGM Lead Acid Batteries which are connected in series to keep
battery voltage balance. When two or more in series connected batteries are in charging/discharging/free status.The battery voltages maybe become different. One battery voltage is high and one is low.The battery equalizer will equalize/balance the battery voltage when it detect there are 20mV between two batteries. It will shunt current from one battery (the higher voltage one) to the other battery (the lower voltage one). Until their battery voltage almost becomes same. This will improve battery's performance and extend battery's life time.
Battery equalizer can be used for 24V, 36V, 48V and any other N*12V batery system.
1 pieces for 24V sytem;
2 pieces for 36V sytem;
3 pieces for 48V sytem;
Connection:
1. Black wire connects the negative pole of the series battery pack
2. Red line connects the positive pole of the series battery pack
3. The white line connects the intermediate connection points of the two batteries.
battery voltage balance. When two or more in series connected batteries are in charging/discharging/free status.The battery voltages maybe become different. One battery voltage is high and one is low.The battery equalizer will equalize/balance the battery voltage when it detect there are 20mV between two batteries. It will shunt current from one battery (the higher voltage one) to the other battery (the lower voltage one). Until their battery voltage almost becomes same. This will improve battery's performance and extend battery's life time.
Battery equalizer can be used for 24V, 36V, 48V and any other N*12V batery system.
1 pieces for 24V sytem;
2 pieces for 36V sytem;
3 pieces for 48V sytem;
Connection:
1. Black wire connects the negative pole of the series battery pack
2. Red line connects the positive pole of the series battery pack
3. The white line connects the intermediate connection points of the two batteries.
SHOW DETAILS

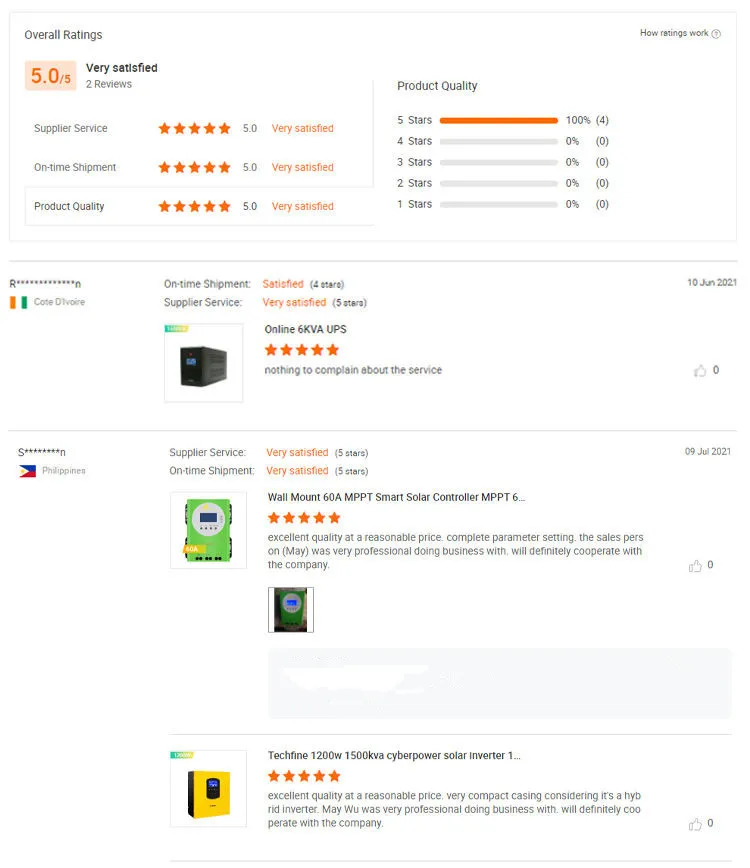

POSTIVE FEEDBACK FROM CLIENTS
DELIVERY AND LOGISTICS

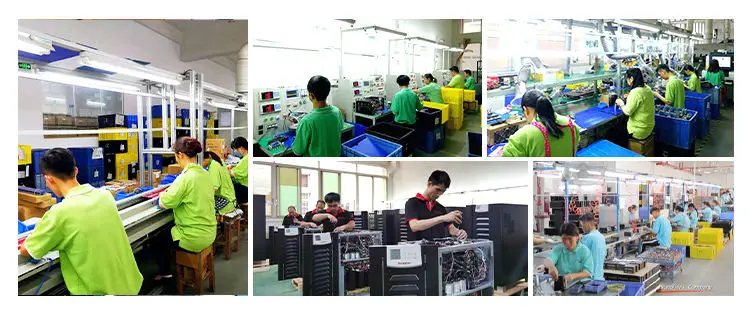

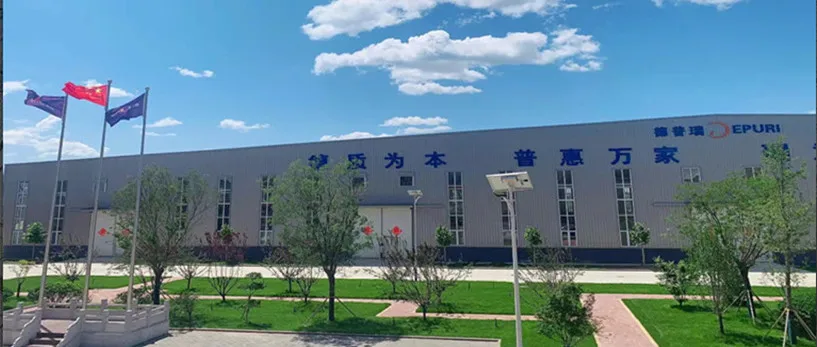

COMPANY PROFILE
Hebei Depurui Import and Export Co.,Ltd is located in ShiJiazhuang City, Hebei Province, China. We are manufacturer of new energy Products: Air source heating and cooling system, Solar Energy Products ( Solar Panels, Solar Inverter, Solar Controller,etc); Wind Power Products (Wind Turbine, Inverter, Controller, etc.) and Energy Storage System (Portable Power Station). New energy has the advantages of cleaning, Environmental friendly, non -pollution, wide distribution, and large reserves. With the continuous progress and development of society, new energy products have been widely recognized by the world. We provide our customers with safe and reliable products, accurate energy-saving system solutions, and make unremitting efforts to improve and protect the human ecological environment.
EXHIBITION
FAQ
Q1: Are you direct manufacturer or only a trade company?
A: Yes. Depuri is a famous manufacturer located in Hebei, China, we have our own factory and have the production experience for more than 10 years. Our products receive love and support from customers at home and abroad.
Q2: Do you accept OEM & ODM?
A: Yes. We can produce standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
A: Yes. Depuri is a famous manufacturer located in Hebei, China, we have our own factory and have the production experience for more than 10 years. Our products receive love and support from customers at home and abroad.
Q2: Do you accept OEM & ODM?
A: Yes. We can produce standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q3: What support do you offer to your clients?
A: We can provide product certification requirements for local markets; provide catalogs, technical and Installation support.
Q4: What is your payment terms?
A: Generally, 30% TT in advance, the balance 70% before delivery. We will send you all the details photos of the goods to make sure the goods situation.
Q5: Can I apply to become your distributor/reseller?
A: We can provide product certification requirements for local markets; provide catalogs, technical and Installation support.
Q4: What is your payment terms?
A: Generally, 30% TT in advance, the balance 70% before delivery. We will send you all the details photos of the goods to make sure the goods situation.
Q5: Can I apply to become your distributor/reseller?
A: Yes, we are currently looking for more distributors/resellers across the globe, who can distribute our products in their local countries.
