control keyboard network analog compatible with a digital monitoring joystick controller
control keyboard network analog compatible with a digital monitoring joystick controller
control keyboard network analog compatible with a digital monitoring joystick controller
control keyboard network analog compatible with a digital monitoring joystick controller
control keyboard network analog compatible with a digital monitoring joystick controller
control keyboard network analog compatible with a digital monitoring joystick controller
control keyboard network analog compatible with a digital monitoring joystick controller

control keyboard network analog compatible with a digital monitoring joystick controller

Share on (1600818831405):


Price:$374.50 - $400.40

Quantity:


Product Overview

Description



Product Introduction


Product characteristic:

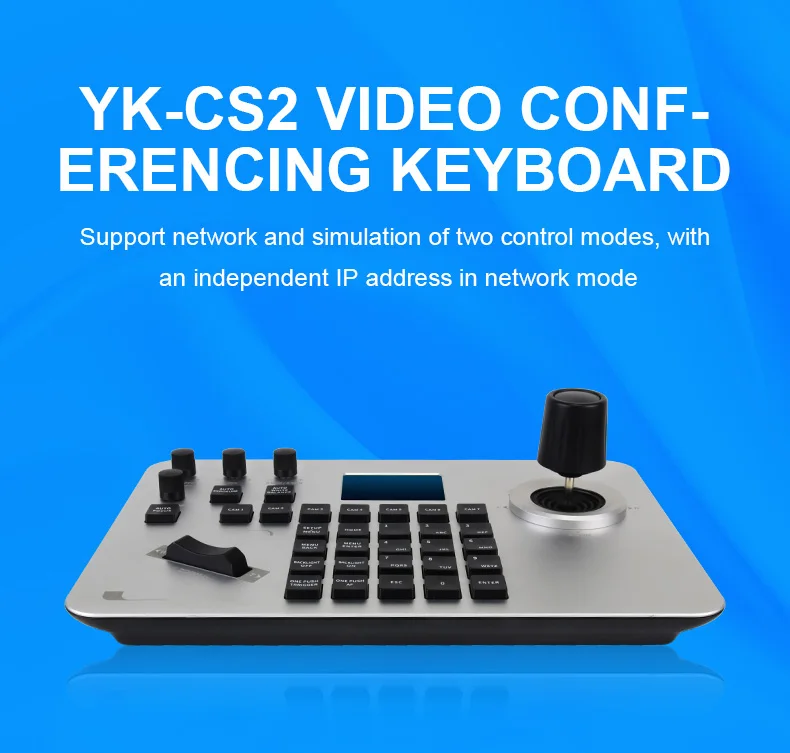

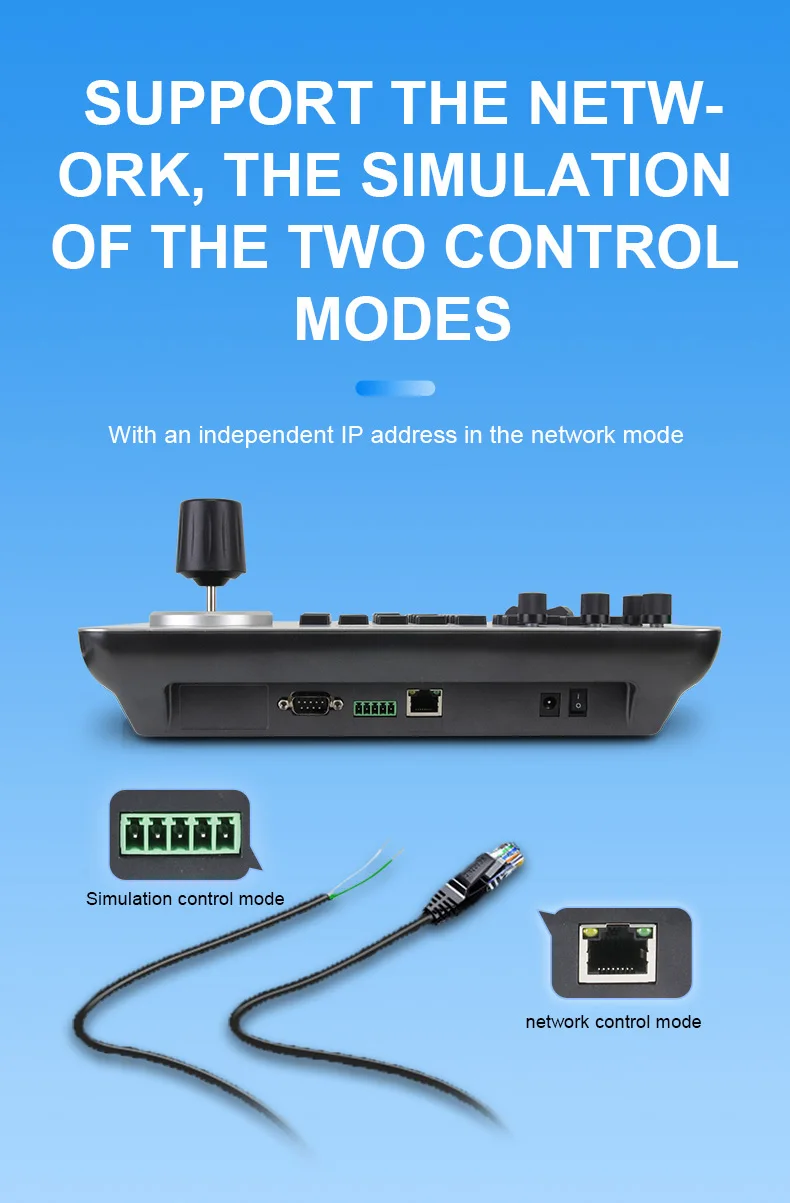

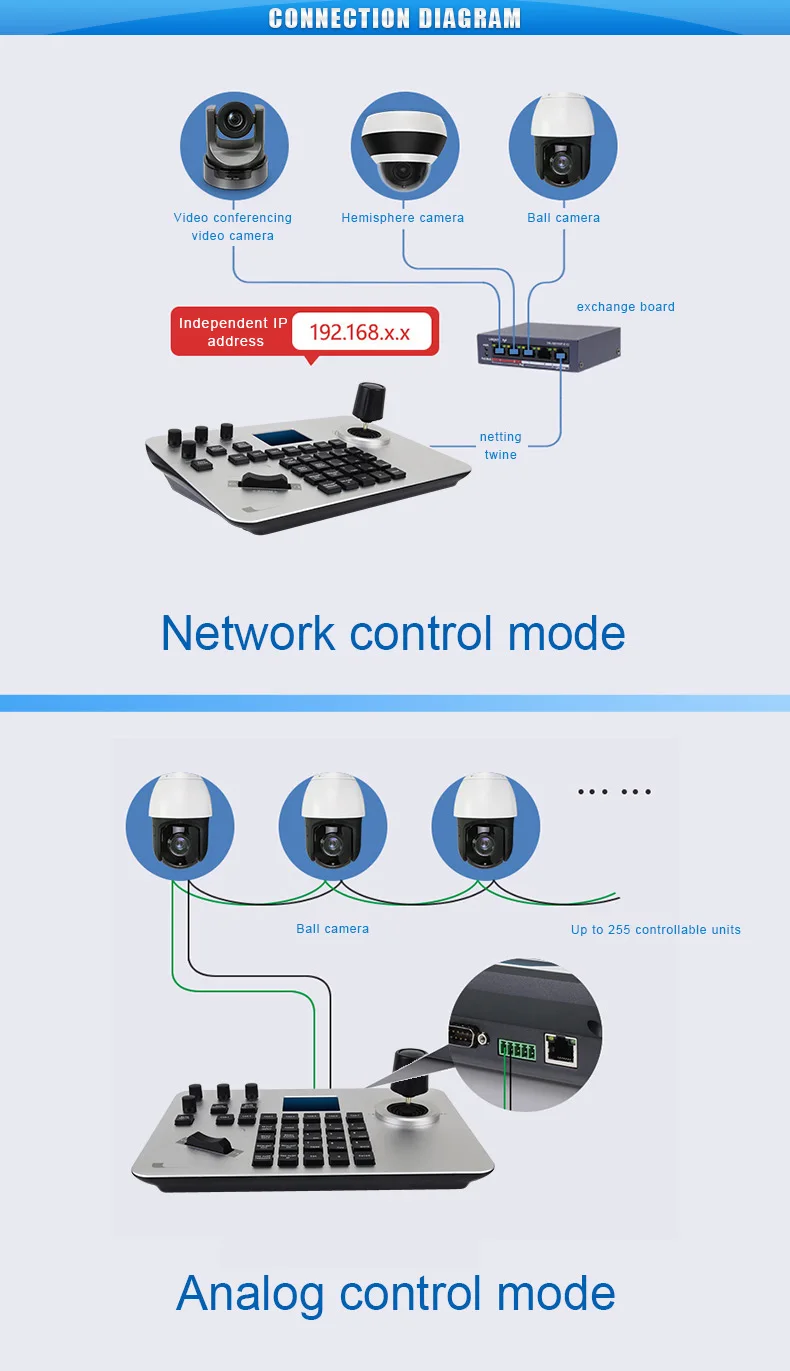

1. Support network and simulation of two control modes, with an independent IP address in network mode
2. VISCA, ONVIF, PELCO-D, and PELCO-P protocols are supported, and VISCA is fully compatible
3. Realize the software function control of the conference camera, with the central control function
4. The imported variable speed four-dimensional rocker for control, feel comfortable and good, twist the rocker can directly control the full rotation of the conference camera, the lens zoom in and reduction, can be controlled according to the strength of the rocker control. Fast and slow rhythm to master at random

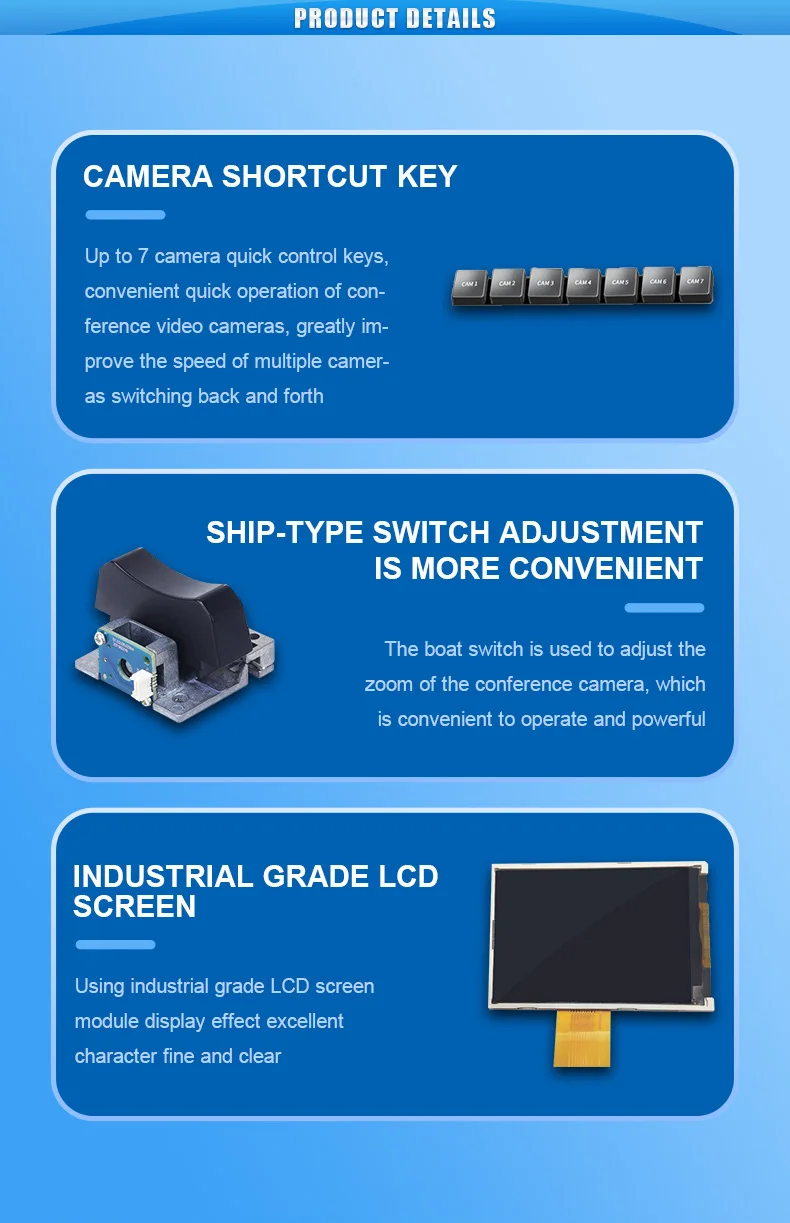

5. The boat switch is used to adjust the zoom of the conference camera, which is convenient to operate and powerful

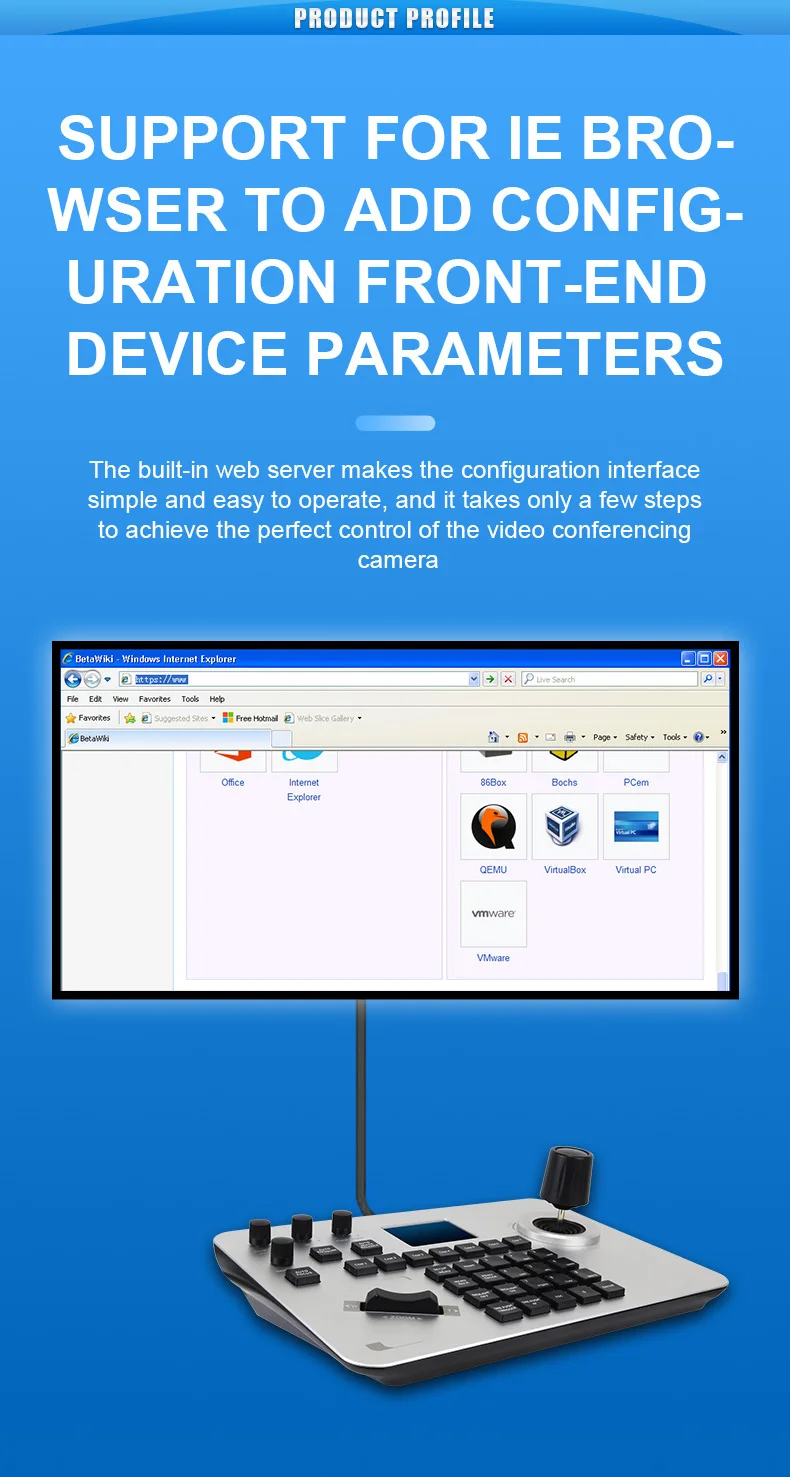

6. Support for IE browser to add configuration front-end device parameters
7. Up to 7 camera quick control keys, convenient fast operation of the conference video camera, greatly improve the speed of multiple cameras back and forth control
8. Support for the standard POE power supply


Product Specifications


Product Model
YK-CS2
Main control chip
Hays 3536 DV 100
operating system
Linux
Support agreement
VISCA Full compatibility、PELCO-D/P、ONVIF

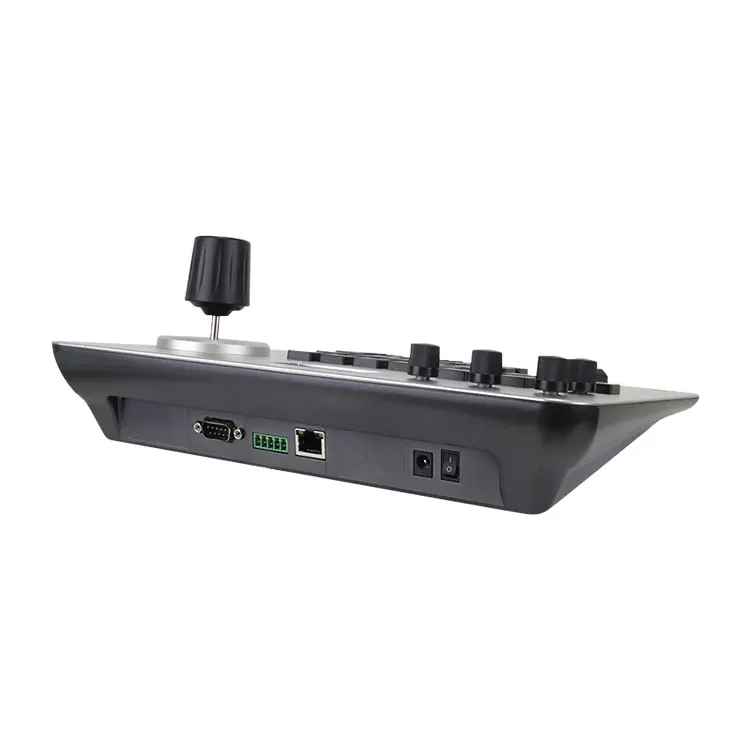

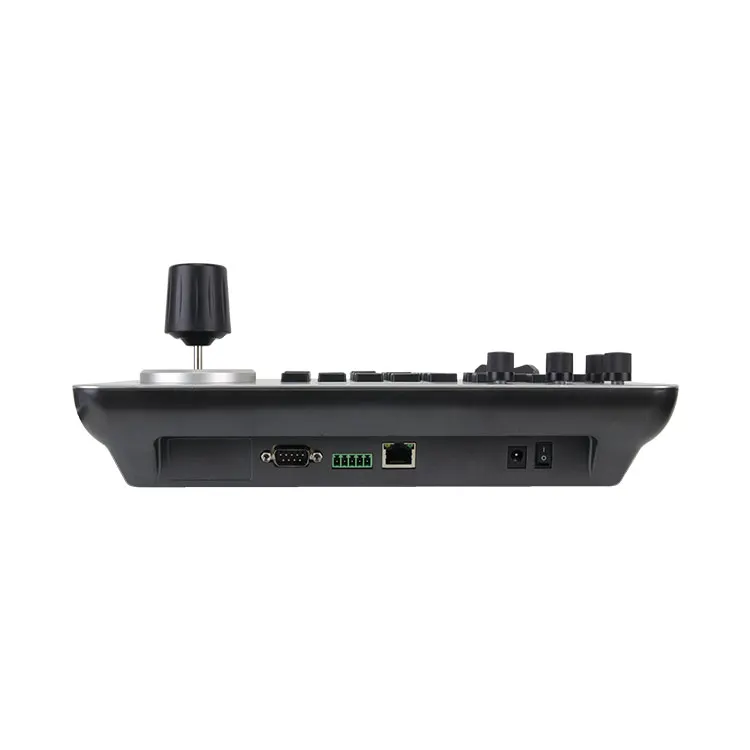

output interface
RS422、RS232、RJ45

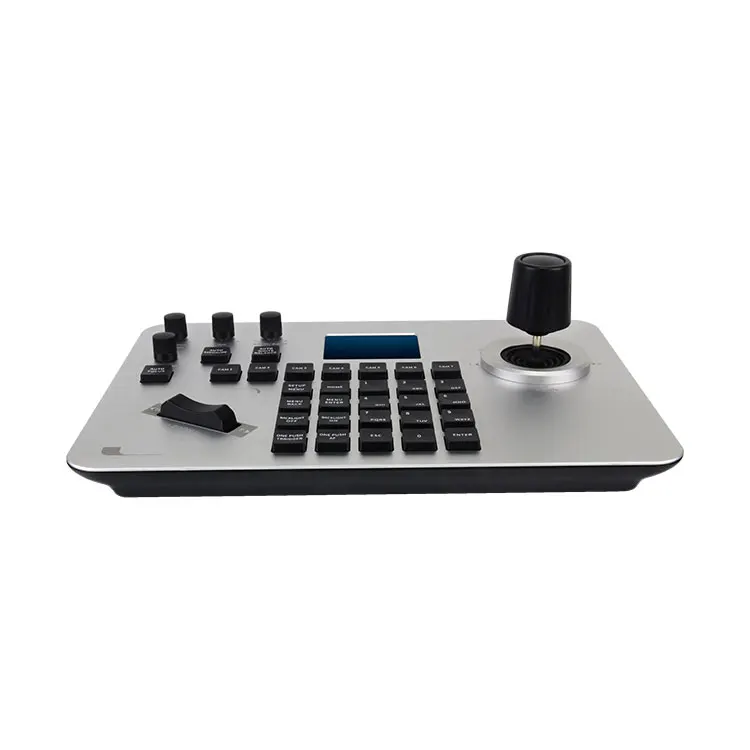

Operating accessories
Boat type switch, knob cap, mechanical keys, four-dimensional joystick
warning tone
Press the key to sound prompt on / off
display mode
TFT LCD 320*240
power dissipation
≤5W
electrical source
DC 12V-2A / internal positive and external negative
working temperature
-10℃~55℃/14℉~131℉
Working humidity
20℃~80℃noncondensing
storage temperature
-10℃-60℃/14℉~140℉
Storage humidity
0℃~90℃ noncondensing
Inner package size
340 * 268 * 140mm (inner size)
Large outer package size / specification
553 * 460 * 350mm (inner size) / 6 units
Net weight
1290g/piece
Click here to consult specific needs to obtain corresponding demand product information and prices
