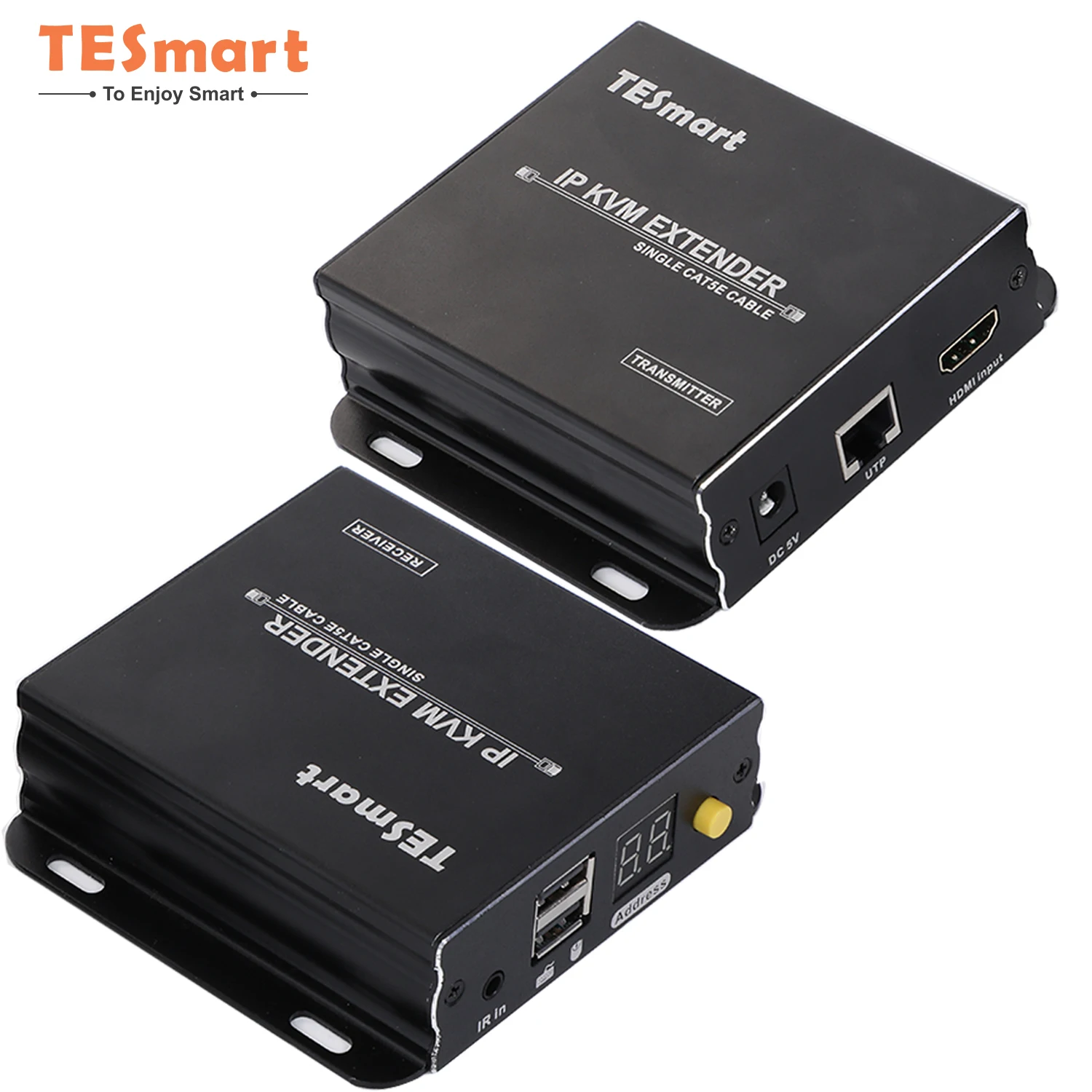

TESmart KVM Extender HDMI over IP Cat5e/6 1with Ir Pass Though Many to Many 120m HDMI KVM Extender
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (1600818844882):
Product Overview
Description
Customized Products
Product Description
#HKE12MMA10
120M HDMI KVM Many to Many Over IP Extender w/ IR.
HDMI KVM Extender can transmit HD video signal over long distance.
With IR pass though, the playback device can be remotely controlled at the receiver end.
Uses single UTP/FTP cable CAT5e/6 to substitute HDMI cable to achieve longer transmission distance.
Application:
This product can be used on remote DVR for Security System, servers in data centre and monitor room.
Features:
✔Support 1920x1080@60Hz resolution transmission via UTP/FTP cable up to 120 meters
✔With IR pass though, the playback device can be remotely controlled at the receiving end via UTP/FTP cable
✔By transmitting keyboard and mouse data via UTP/FTP cable, it is easy to control PC remotely

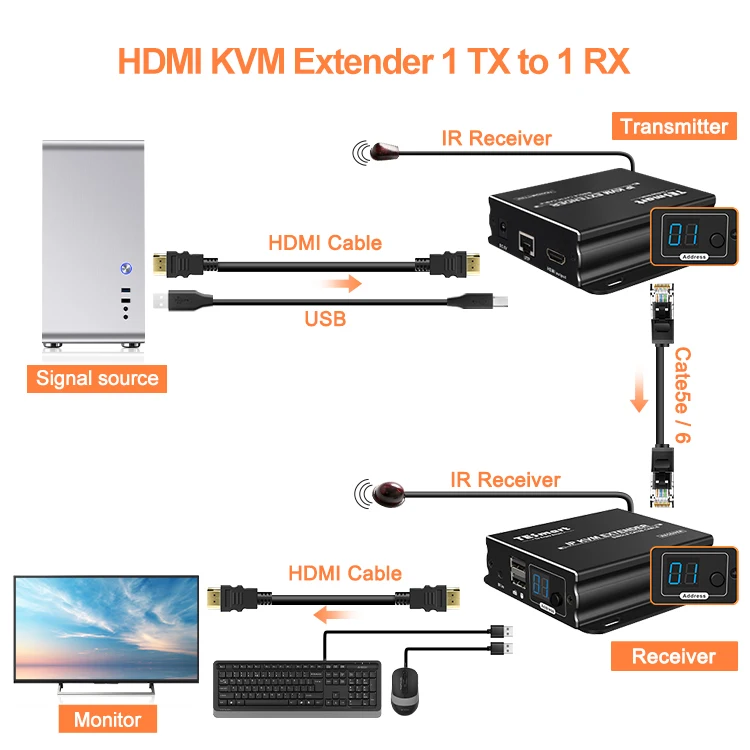

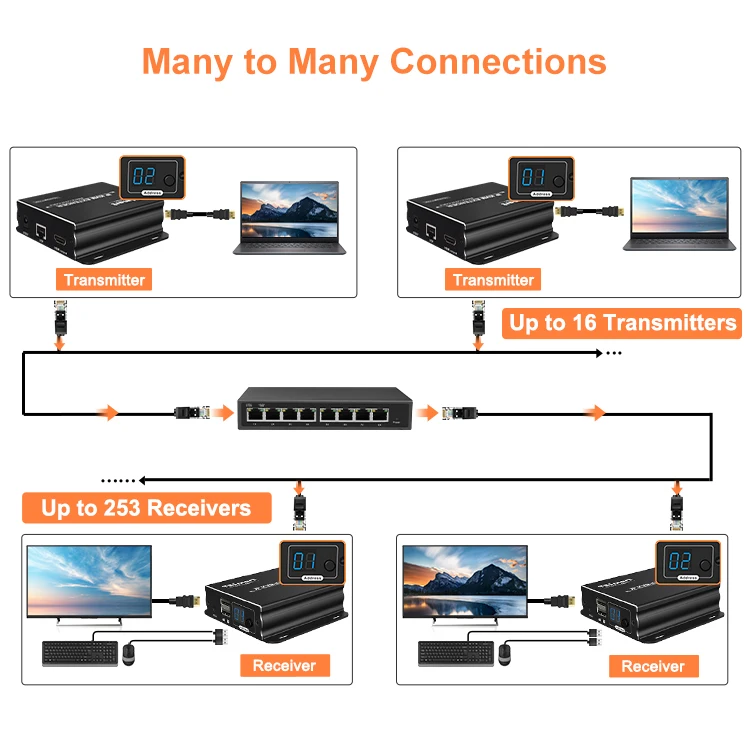

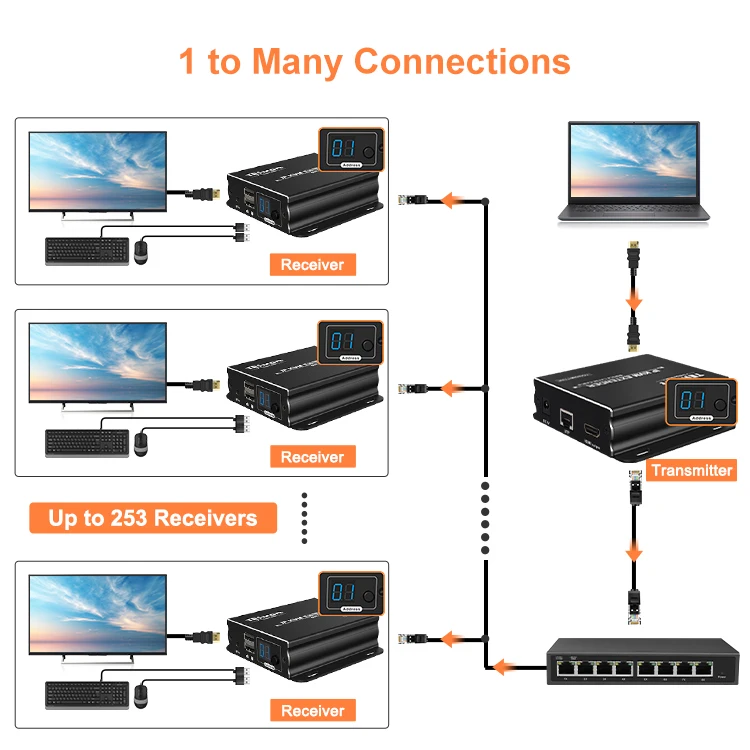

✔Support point-to-point, point-to-multi point, multi-point-to-point, and multi-point-to multi-point administration
✔Via router or network switch, it is available to send data from up to 16 transmitters to 253 receivers
Product Parameters
HKE12MMA20 | 120M HDMI KVM Many to Many Over IP Extender w/ IR | |||
Functionality: | ||||
Over IP | Yes | |||
IR pass through | Yes | |||
Technical | ||||
Resolution | 1920x1080@60Hz | |||

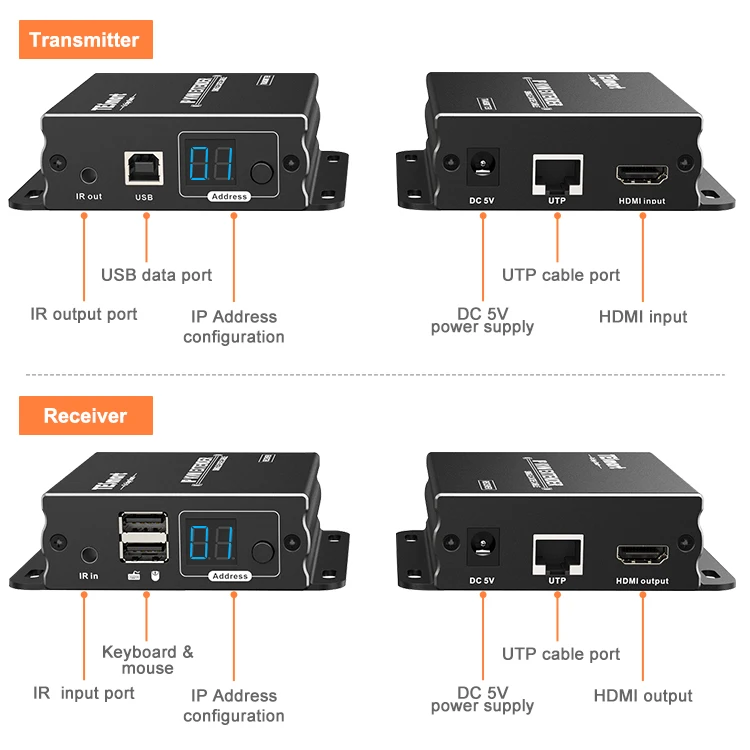

Input | TX*: 1*HDMI Type A | |||
RX*: 1* RJ45, 2* USB Type A, 1* 3.5mm AUX (For IR receiver) | ||||
Output | TX: 1* RJ45, 1* 3.5mm AUX (For IR transmitter) 1* USB Type B | |||
RX: 1* HDMI Type A | ||||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Power supply | DC 5V 1A | |||
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree | |||
Operating Humidity | 10 to 90% RH | |||
Product | Dimension | 103(L) x 93(W) x 29(H) mm | ||
Weight | TX:159g RX:160g | |||
Item | Dimension | 245(L) x 135(W) x 90(H) mm | ||
Weight | 711g | |||
Carton | Dimension | 515(L) x 285(W) x 470(H) mm | ||
Quantity | 20PCS | |||
Total Weight | 15.07kg | |||
