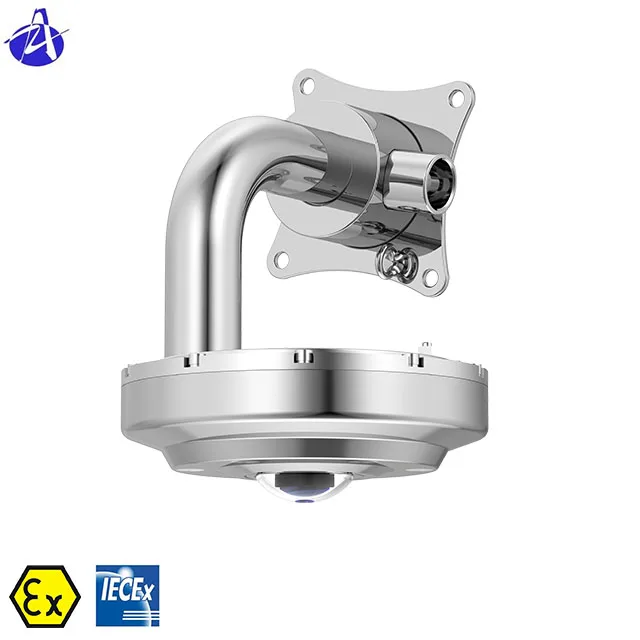

CZ6417 Panoramic Explosion Proof Fisheye Fixed Dome Camera
The ATEX & IECEx certified CZ6417 series are ZUOAN designed classic explosion-proof fisheye camera, which can load various camera. The explosion proof camera can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.


FEATURES AT A GLANCE


ATEX, IECEx certified
Gas zone 1, zone 2; dust zone 21, 22.
Ex d II CT6 Gb/ Ex tD A21 IP68 T80℃
Ultra-wide angle lens, 360° panoramic image
Enclosure Protection: IP68
1/2.8",progressive scan, CMOS
5MP, Max. 2592*1944 resolution


Upward View
Frond View

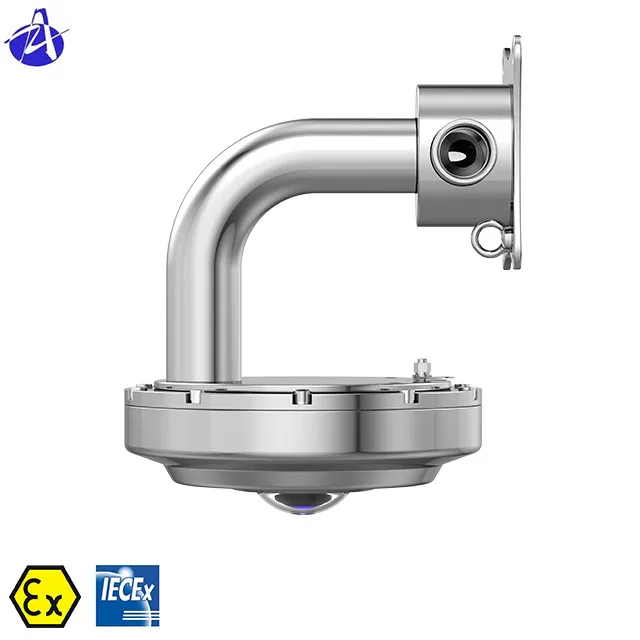

Side View


Specification


Camera
Image sensor
1/2.8", 5.0-megapixel, progressive scan, CMOS
Lens
1.4mm@F2.0
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
1.4
31.5
12.6
6.3
3.2
Angle of View
360°
Shutter
Auto/Manual, shutter time: 1 ~ 1/100000s
Minimum Illumination
Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR
Day / Night
IR-cut filter for day & night function
S/N Ratio
>55dB
IR Range
Up to 10m (33ft)
Defog
Digital Defog
WDR
120dB
Video
Compression
Ultra265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Fisheye Frame Rate
Main Stream: 5MP (2592*1944), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 25fps;
Third Stream: D1(720*576), Max 25fps
BLC
Support
Video Bit Rate
128 Kbps~16 Mbps
ROI
Up to 8 areas
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas


Storage
Edge Storage
Micro SD, up to 256GB
Network Storage
ANR, NAS(NFS)
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,
RTMP, SSH
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
Live View Display
Mount Type
Support table, wall, and ceiling
Interface
Network
1 * RJ45 10M/100M Base-TX Auto-adaptive Ethernet
Video Output
N/A


Certifications
Certification
ATEX, IECEx certified
Explosion proof certification
DNV 22 ATEX 24383X,
IECEx DNV 22.0019X
ATEX Explosion proof marking
With fill light:
Ⅱ 2 G Ex db op is ⅡC T6 Gb
Ⅱ 2 D Ex tb op is ⅢC T80 ºC Db
Without fill light:
Ⅱ 2 G Ex db ⅡC T6 Gb
Ⅱ 2 D Ex tb ⅢC T80 ºC Db
IECEx Explosion proof marking
With fill light:
Ex db op is lIC T6 Gb
Ex tb op is IllC T80°C Db
Without fill light:
Ex db lIC T6 Gb
Ex tb IlIC T80°C Db
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 11.7W
Dimensions (Ø x H)
Φ180 x 239mm
Net Weight
5.2kg
Material
Stainless steel 304 or 316L,
Optional with corrosion proof painting
Working Environment
–40°C～+60°C, Humidity: ≤95% RH
Storage Environment
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH
Ingress Protection
IP68
Bracket
Wall Bracket (CZ6417-B)
Ceiling Bracket (CZ6417-D)

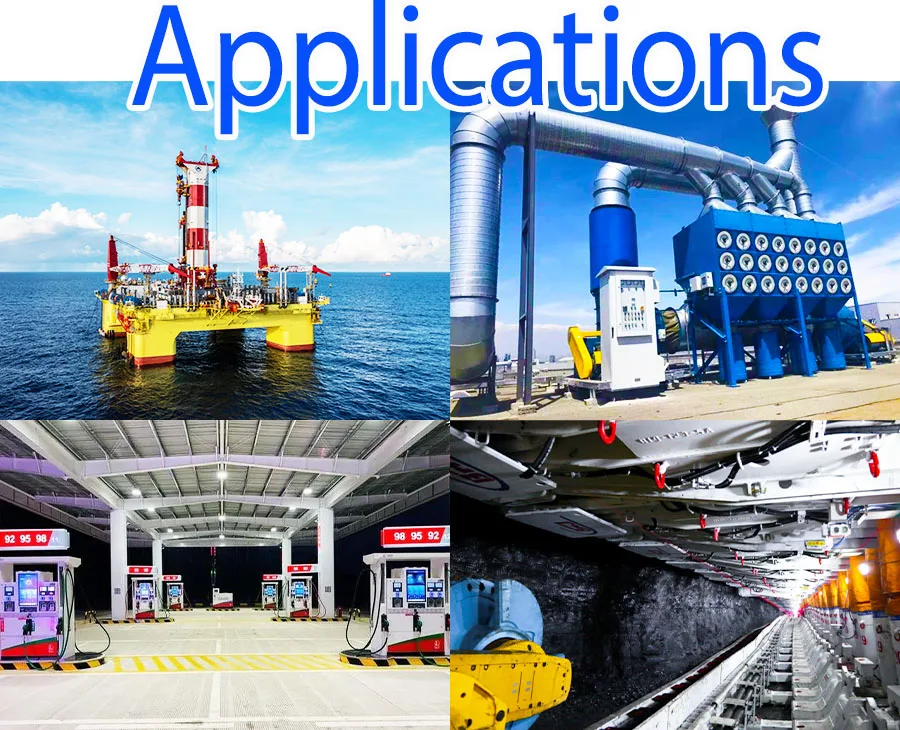

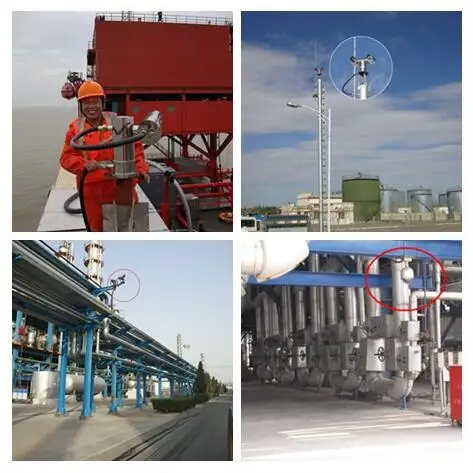

Application




Description
The ATEX & IECEx certified CZ6417 series are ZUOAN designed classic explosion-proof fisheye camera, which can load various camera. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.
