Product Overview
Description

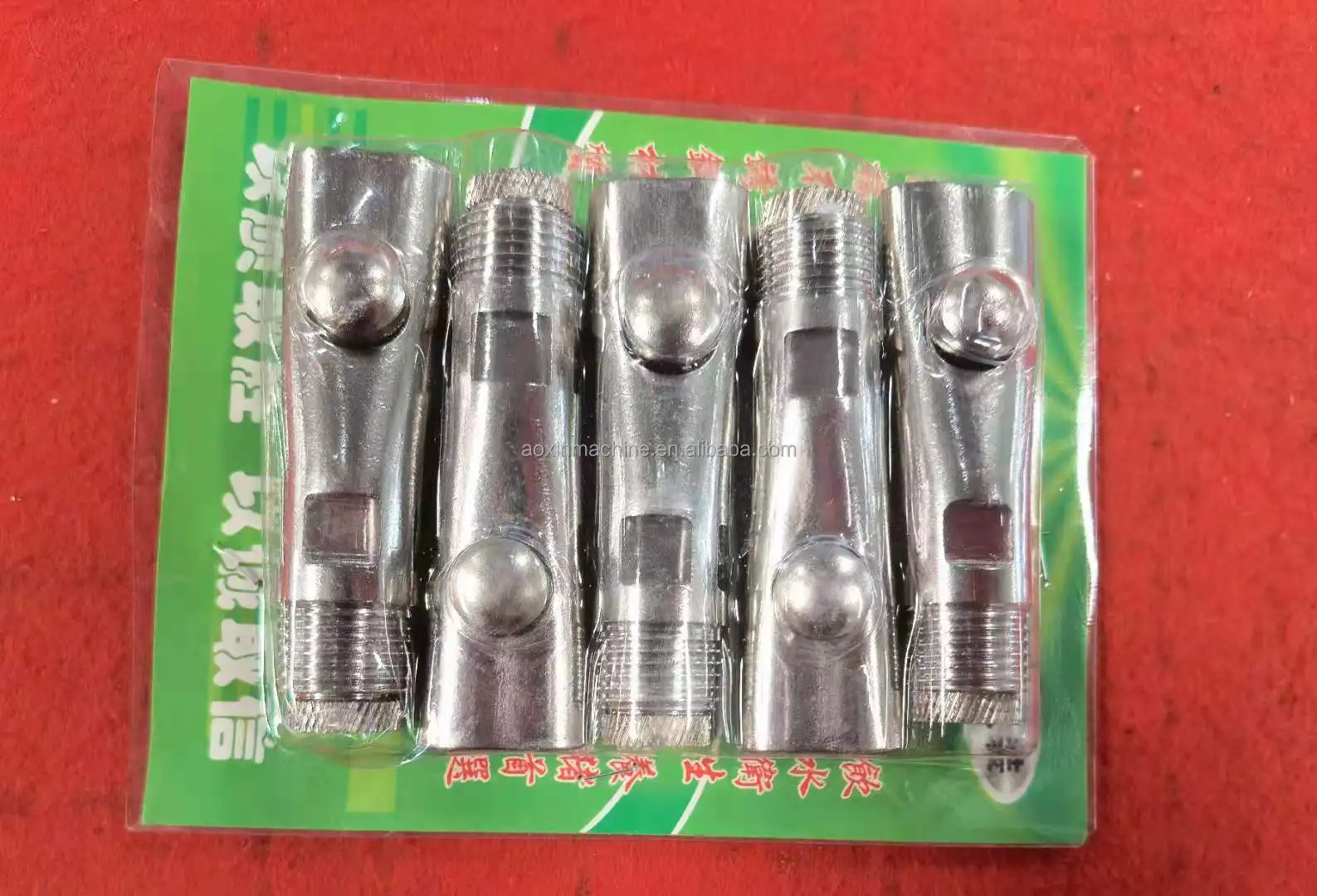

Products Description

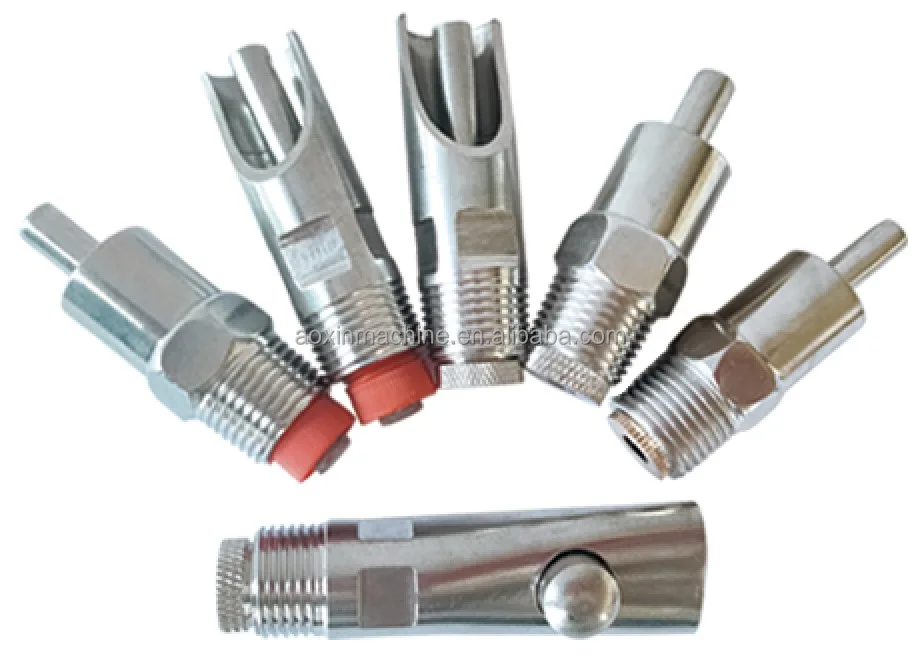

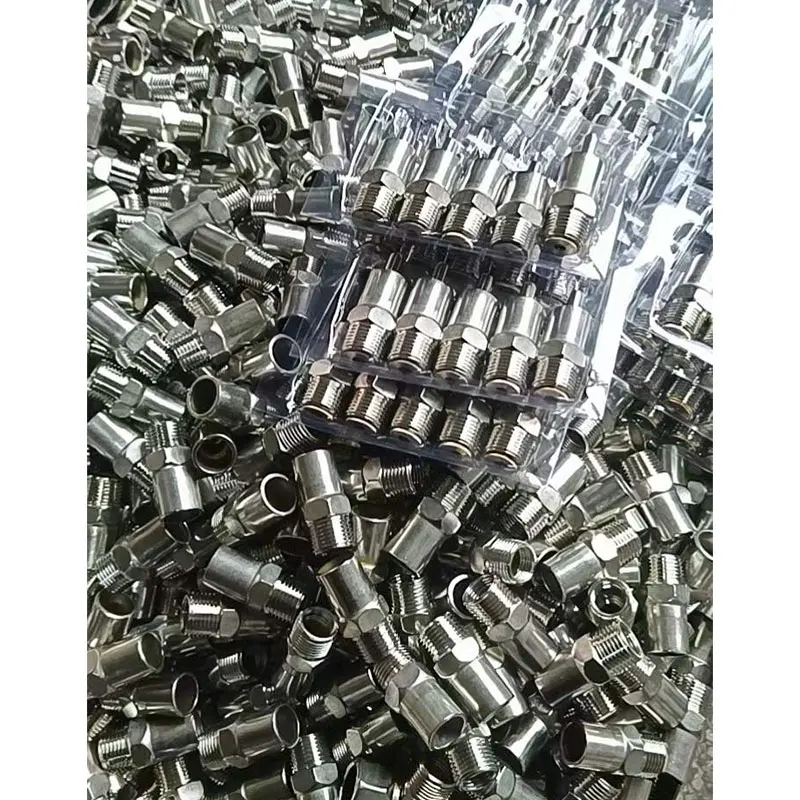

Stainless Steel Automatic Drinker for pig
Water is one of the most overlooked nutrients for pigs. Optimal water management contributes toward raising healthy and profitable pigs. The most common mistakes are irregular testing of the water, too few watering points, and deviating water flow. Stainless Steel Automatic Drinker for pig is the solution to this problem.
Stainless Steel Pig drinking nipple drinker supplied with filter screen and adjustable for water pressure. Unscrews for cleaning. All are adjustable for high or low pressure.
Product Specifications
A001
Diameter:21 mm
Pin: φ8 mm
Length：63.5 mm
Weight：80 G
Material： SUS 304

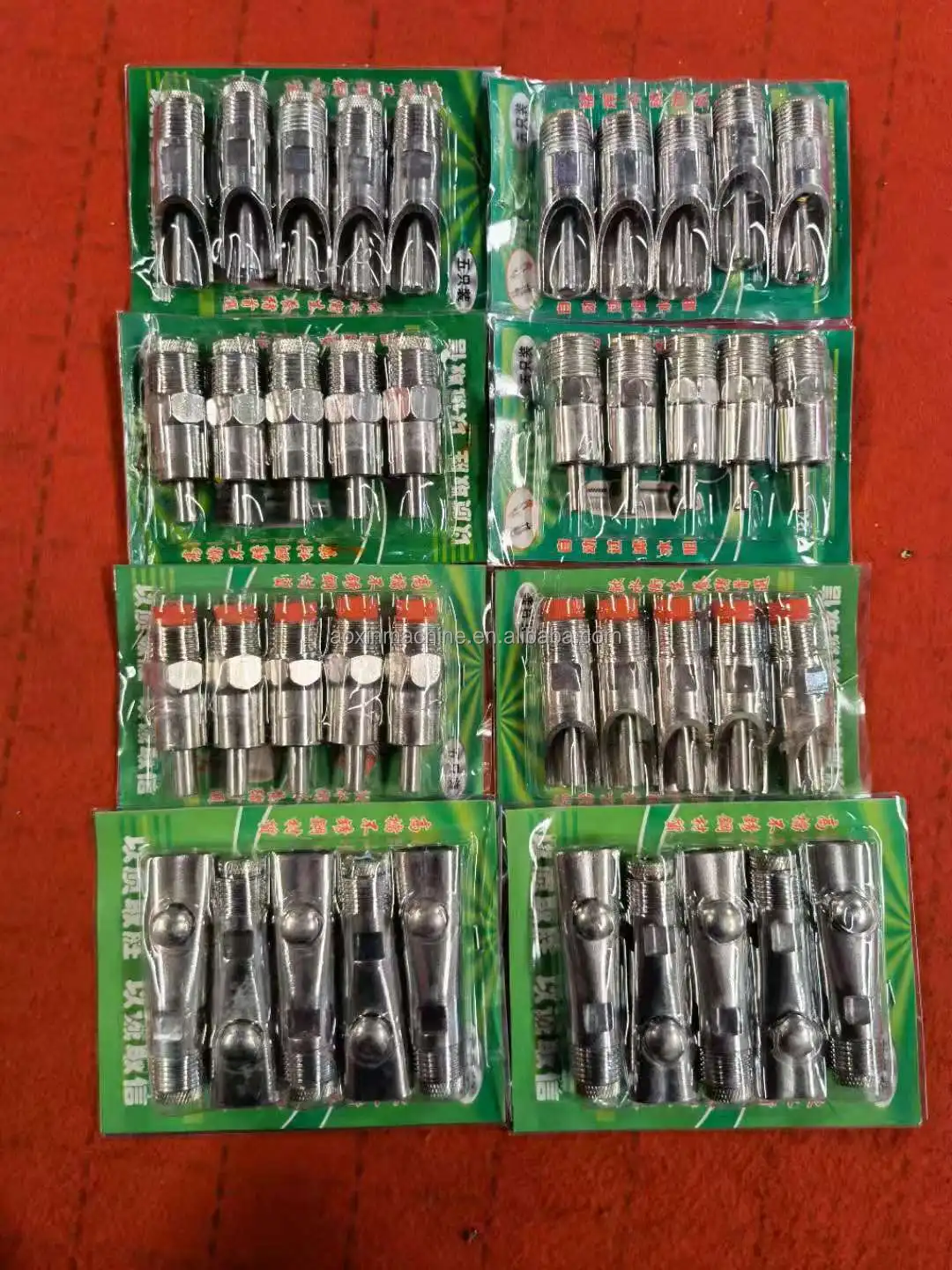

Pcs/Bag：5
Packing size：14*10*3 CM
A001a
Diameter:21 mm
Pin: φ8 mm
Length：55 mm
Weight：65 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3 CM
Length：55 mm
Weight：65 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3 CM
A002
Diameter:22 mm
Pin: φ8 mm
Length：63.5 mm
Weight：83 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3 CM
Length：63.5 mm
Weight：83 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3 CM
A002a
Diameter:22 mm
Pin: φ8 mm
Length：55 mm
Weight：70 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3CM
Length：55 mm
Weight：70 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3CM
A005
Diameter:22 mm
Pin: φ8 mm
Length：63.5 mm
Weight：75 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3 CM
Length：63.5 mm
Weight：75 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3 CM
A006
Diameter:24 mm
Pin: φ8 mm
Length：59.5 mm
Weight：76 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3 CM
Length：59.5 mm
Weight：76 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3 CM
A006a
Diameter:24 mm
Pin: φ8 mm
Length：60 mm
Weight：100 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3CM
Length：60 mm
Weight：100 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3CM
A006c
Diameter:22 mm
Pin: φ10 mm
Length：80 mm
Weight：118 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3CM
Length：80 mm
Weight：118 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3CM
A007
Diameter:22 mm
Pin: φ8 mm
Length：60 mm
Weight：60 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3CM.
Length：60 mm
Weight：60 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3CM.
A008
Diameter: 21mm
Length：80 mm
Weight：113 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3CM
Weight：113 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3CM
A009
Diameter:21 mm
Length：63 mm
Weight：79 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3 CM
Weight：79 G
Material： SUS 304
Pcs/Bag：5
Packing size：14*10*3 CM
A010
Diameter: 21 mm
Length：75 mm
Weight：75 G
Material： SUS 201
Pcs/Bag：5
Packing size：14*10*3CM
Weight：75 G
Material： SUS 201
Pcs/Bag：5
Packing size：14*10*3CM
A011
Diameter: 21mm
Length：68 mm
Weight：79 G
Weight：79 G
Cap material：copper
Material： steel ( Chrome-plated)
Pcs/Bag：5
Packing size：14*10*3CM
Material： steel ( Chrome-plated)
Pcs/Bag：5
Packing size：14*10*3CM
A012
Diameter: 21mm
Length：65 mm
Weight：71 G
Weight：71 G
Cap material： copper
Material： steel ( Chrome-plated)
Pcs/Bag：5
Packing size：14*10*3CM
Material： steel ( Chrome-plated)
Pcs/Bag：5
Packing size：14*10*3CM
A013
Diameter: 27mm
Length：88 mm
Weight：116 G
Cap material： copper
Material： steel ( Chrome-plated)
Pcs/Bag：5
Packing size：14*10*3CM
Weight：116 G
Cap material： copper
Material： steel ( Chrome-plated)
Pcs/Bag：5
Packing size：14*10*3CM
Note: Please note the model in the order, otherwise the default model is A011.
Features |
1. Good sealing performance, reduce water waste, it will not appear leakage when pig does not drink. |
2. Easy installation, directly mounted on metal pipes to supply water to pigs. |
3. Made of high quality metal material, strong, rust resistant, wear resistant and long life. |
4. With strong spring, simple structure and compact size, easy to use and maintain, durable and reliable. |
5. Practical accessory, the drinking nipple is necessary accessory for farm use. |
Note: |
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding. |
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard. |
Choice of drinking water system
When choosing a drinking water system, it is important to consider the environment, housing system, temperature, feed and pig weight. The supply of potable water at temperatures below 20 ° C (68℉) can provide adequate potable water in hot conditions. In addition, it is important to provide adequate drinking opportunities in each pen, with at least two drinkers recommended for pigs in a group.
There are a variety of drinkers to choose from. The most commonly used pig nipple joints are installed in troughs. The bite is installed at an Angle of 15-45 degrees, depending on the height of the pig. Refer to the table
There are a variety of drinkers to choose from. The most commonly used pig nipple joints are installed in troughs. The bite is installed at an Angle of 15-45 degrees, depending on the height of the pig. Refer to the table
Weight in kg | Recommend height （H） | Angle drinker（A） | Optimal water flow rate | Liters per animal per day | |
Piglet | ＞5 KG | 15 cm | 15°-45° | ＞0.4-＜0.6 l/min | 0.7 l |
Weaned piglet | ＞10 KG | 20-25cm | ＞0.4-＜0.6 l/min | 1.0 l | |
Pig | ＞20 KG | 35-40cm | ＞0.8-＜1.0 l/min | 2.0-3.0 l | |
Pig | ＞50 KG | 50-60cm | ＞0.8-＜1.0 l/min | 4.0-8.0 l | |
Pig | ＞100 KG | 70cm | ＞0.8-＜1.0 l/min | 8.0 l-10.0 l | |
Nursing sows | 90cm | ＞2.0-＜2.7 l/min | 15 l+1.5 l(per piglet) | ||
Boars | 90cm | ＞0.8-＜1.0 l/min | 10.0-15.0 l |

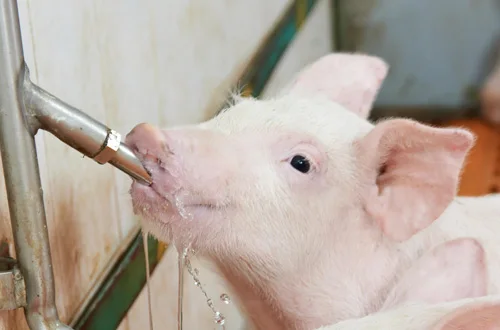

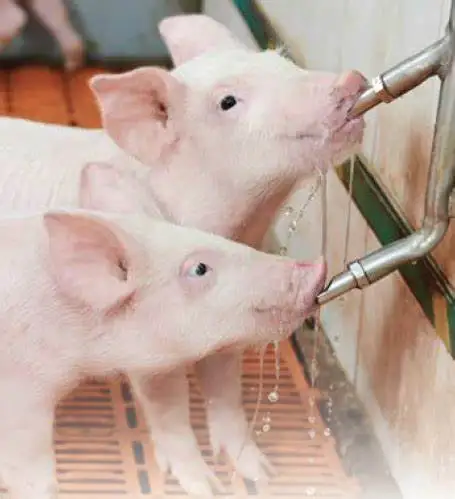

Nipple positions in the pen
The height and position of pig drinkers depend on the type of nipple, type of pig house, and the age of the pigs. Nipples are
generally mounted 5 centimeters above shoulder height for the smallest pig. In practice, however, it is not feasible to measure all the pigs and adapt the height of the nipples continuously. Therefore, bite nipples are mounted on the wall at a fixed height within a given range. In some pig houses, a few pig drinkers are mounted at various heights to make sure that every pig has easy access to the drinkers.You can even manually drink from the pig using a bucket.
generally mounted 5 centimeters above shoulder height for the smallest pig. In practice, however, it is not feasible to measure all the pigs and adapt the height of the nipples continuously. Therefore, bite nipples are mounted on the wall at a fixed height within a given range. In some pig houses, a few pig drinkers are mounted at various heights to make sure that every pig has easy access to the drinkers.You can even manually drink from the pig using a bucket.
