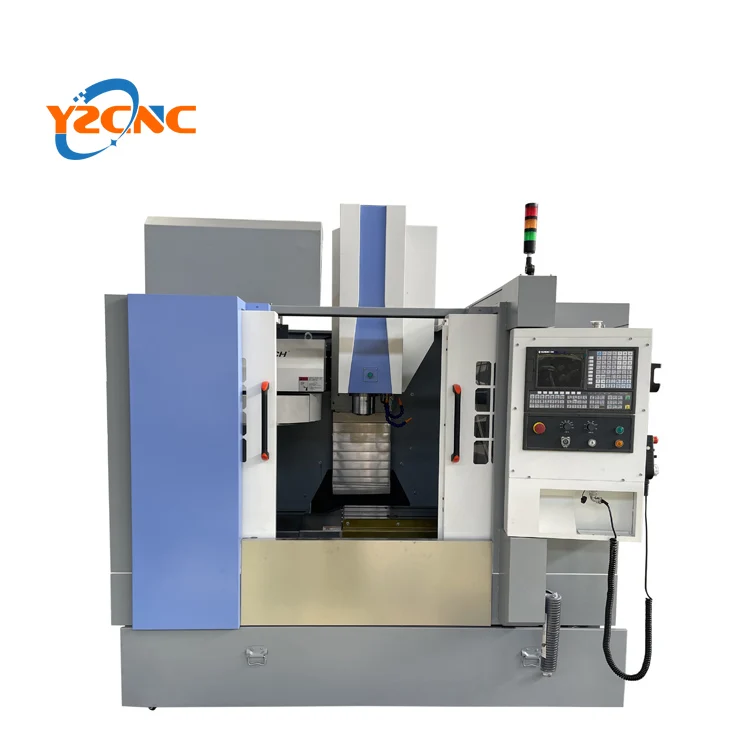

China VMC machine price cheap CNC milling machine 3 axis cnc mil VMC640
- Category: >>>
- Supplier: Taian Yuzhuo Machinery Co. Ltd.
Share on (1600818896319):
Product Overview
Description

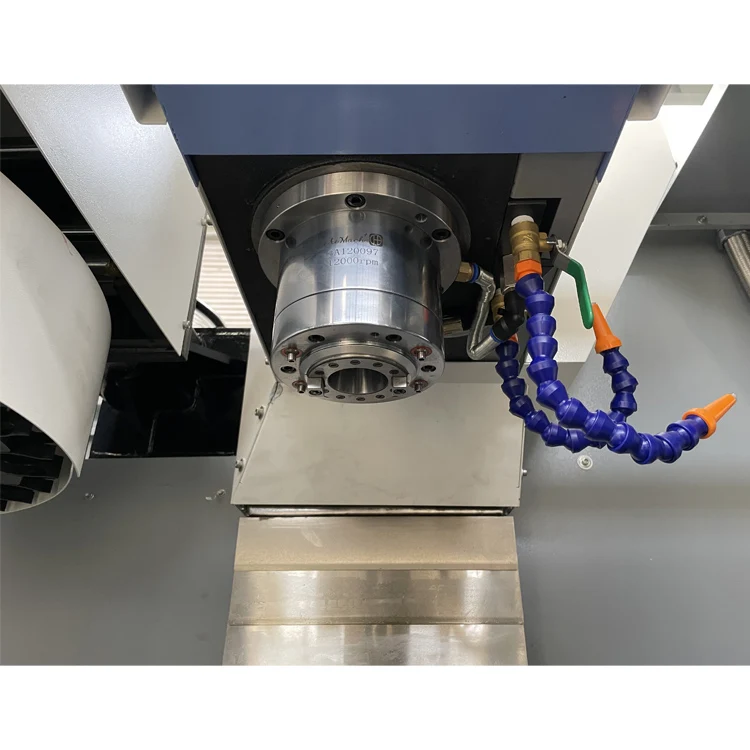

Details Display
The main performance characteristics：
The main performance characteristics：
1. The overall framework is made of high grade casting iron with twice heat treatments and magnetic resonance. The natural aging
relieves internal stress to ensure the lasting best rigidity and high precision.
2. The bed base assembling with the long span coumn design increases the contact area between the column and the base.
3. 3 axis assembled with square guide rails, increase the processing stength and stock resistance significatly. The epoxy
resinstickprocessing and artificial scraping grinding ensure the precision and stability.
4. The spindle assembled with high power servo motor driving,high torque and wide range output.
5. The major outsourced components are all provided by foreign.
6. PRECISION VERTICAL MACHINING CENTER.7.Using ATC24 manipulator automatic tool change magazine,quick changing tools time reaches 1.3seconds.
8. Using original servo motor on 3 axes.Rapid feed speed can reach 48m/min.Motor base contact surface under artificial scraping
griding, increase contact area and lasting stability of machine.
9. Using original Taiwan HIWIN OR PMI c3 class precision ball screw. Specialized japanese Nsk bearing with DB fitting method
provides strong torque on machine processing. The ball screw proper pre-stretching treatment after installation effectively
decreases thermal stretch to guarantee feed position accuracy and machining stability.
10.Spindle head designed with double enclosed structure and increasing slider assembling base distance, effectively guarantee the
machine processing strength.
The main performance characteristics：
1. The overall framework is made of high grade casting iron with twice heat treatments and magnetic resonance. The natural aging
relieves internal stress to ensure the lasting best rigidity and high precision.
2. The bed base assembling with the long span coumn design increases the contact area between the column and the base.
3. 3 axis assembled with square guide rails, increase the processing stength and stock resistance significatly. The epoxy
resinstickprocessing and artificial scraping grinding ensure the precision and stability.
4. The spindle assembled with high power servo motor driving,high torque and wide range output.
5. The major outsourced components are all provided by foreign.
6. PRECISION VERTICAL MACHINING CENTER.7.Using ATC24 manipulator automatic tool change magazine,quick changing tools time reaches 1.3seconds.
8. Using original servo motor on 3 axes.Rapid feed speed can reach 48m/min.Motor base contact surface under artificial scraping
griding, increase contact area and lasting stability of machine.
9. Using original Taiwan HIWIN OR PMI c3 class precision ball screw. Specialized japanese Nsk bearing with DB fitting method
provides strong torque on machine processing. The ball screw proper pre-stretching treatment after installation effectively
decreases thermal stretch to guarantee feed position accuracy and machining stability.
10.Spindle head designed with double enclosed structure and increasing slider assembling base distance, effectively guarantee the
machine processing strength.
Product main technical parameters:
Specifications
Specifications | （Units） | VMC640 |
Table Sise | mm | 800 X 320 |
Table Max Load | kg | 400 |
T-Slot size | mm | 16 X 3 |
X-axis working area | mm | 600 |
Y-axis working area | mm | 400 |
Z-axis working area | mm | 500 |
Spindle nose to table | mm | 130-630 |
Spindle center to z axis guide surface | mm | 430 |
Spindle taper | - | BT40-120 |
Spindle speed | rpm | 8000 |
spindle motor power | kw | 5.5 |
X-axis fast feed | m/min | 24 |
Y-axis fast feed | m/min | 24 |
Z-axis fast feed | m/min | 20 |
X-axis feed motor power | n | 6 |
Y-axis feed motor power | n | 7.5 |
Z-axis feed motor power | n | 15 |
Types tool changers | - | Funnel type tool changer/Arm type tool changer ATC |
Machine size | mm | 2200 X 1900 X 2500 |
Packing dimension | mm | 2400 X 2100 X 2300 |
Weight | kg | 2800 |
Company Profile
Taian Yuzhuo Machinery Manufacturing Co.,Ltd. is a professional manufacturing enterprise en-gaged in the research.development,production,sale and service of manual lathe machine and CNC machine.we have excellent design team,sales team and after-sales service team,and strictly control product quality and performance.Ourmain products are Horizontal lathe machine，Milling Machine，Drilling Machine，Vertical CNC lathe machine,Horizontal CNC Lathe Machine,Slant Bed CNC Lathe Machine,Wheel Repait CNC lathe Machine,Pipe Threading CNC Lathe Machine,CNC Machining center,All the above products have passed CE,SGS certificated，
over 18 years experience supplying manual lathe machine and CNC machine tools to all over the world, especially to Southeast Asia，UK, US, Europe and Middle East countries, Yuzhuo Machinery is renowned for its value, quality and service.
over 18 years experience supplying manual lathe machine and CNC machine tools to all over the world, especially to Southeast Asia，UK, US, Europe and Middle East countries, Yuzhuo Machinery is renowned for its value, quality and service.

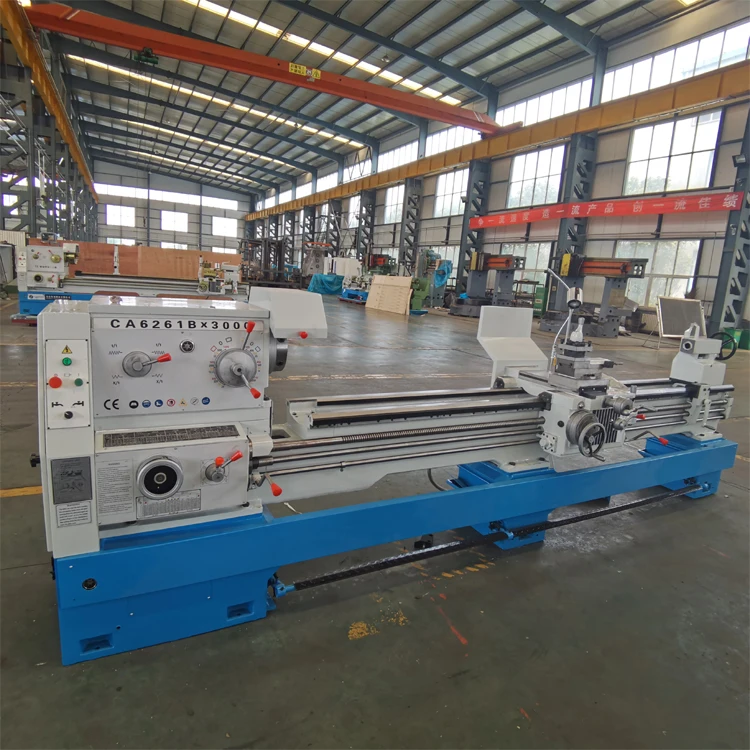

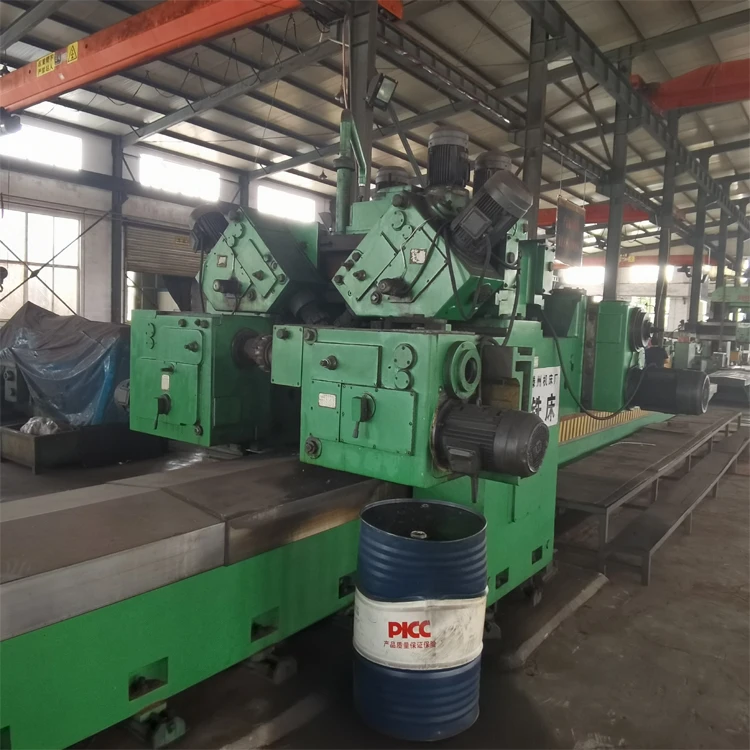

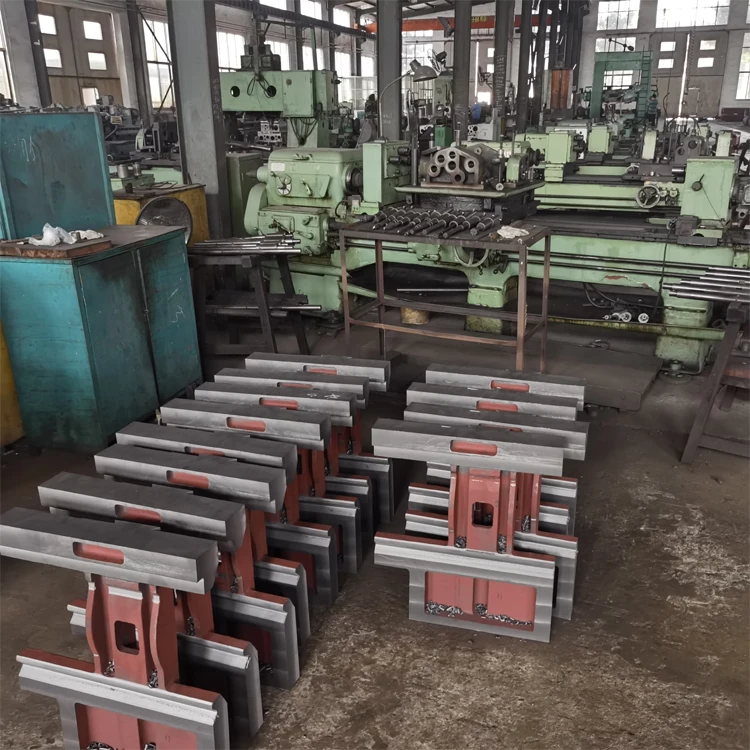

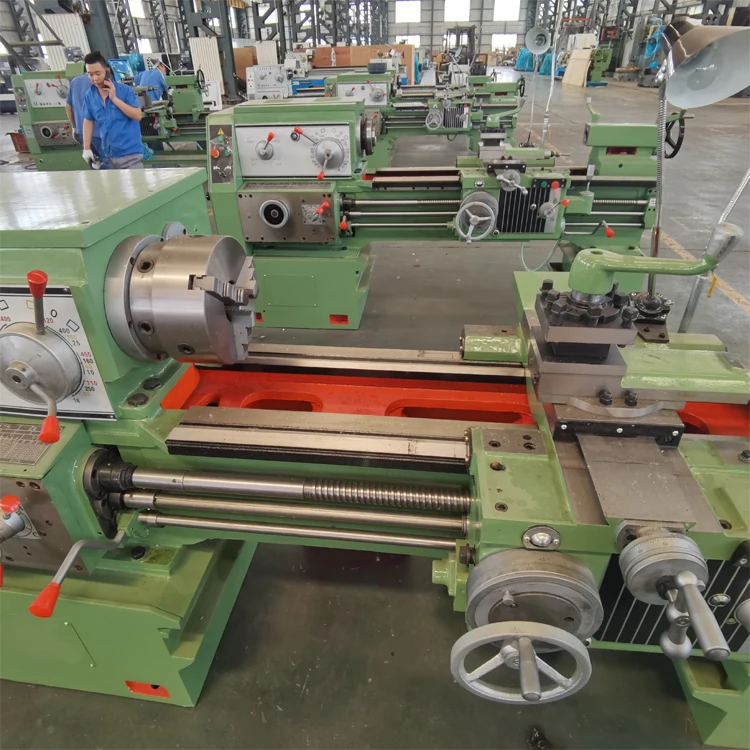

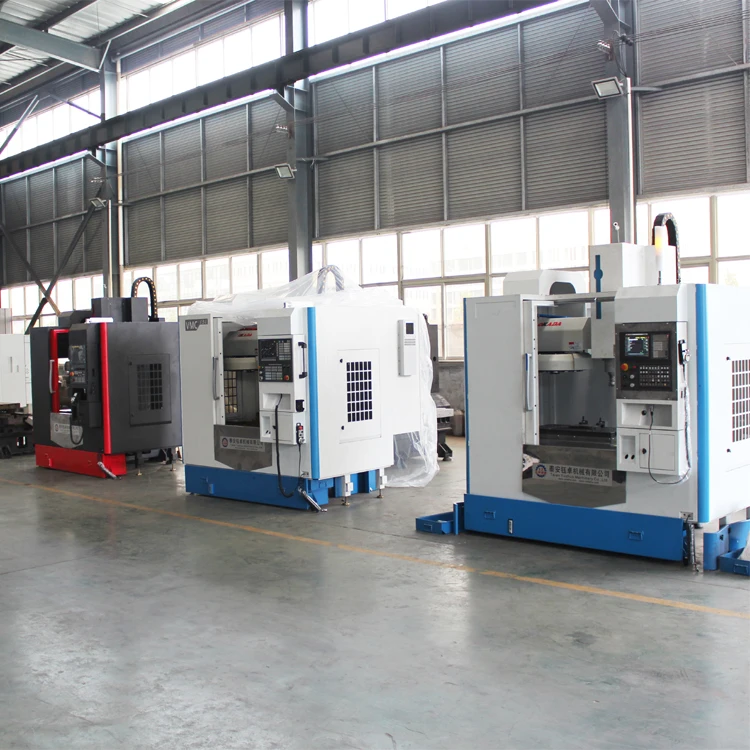

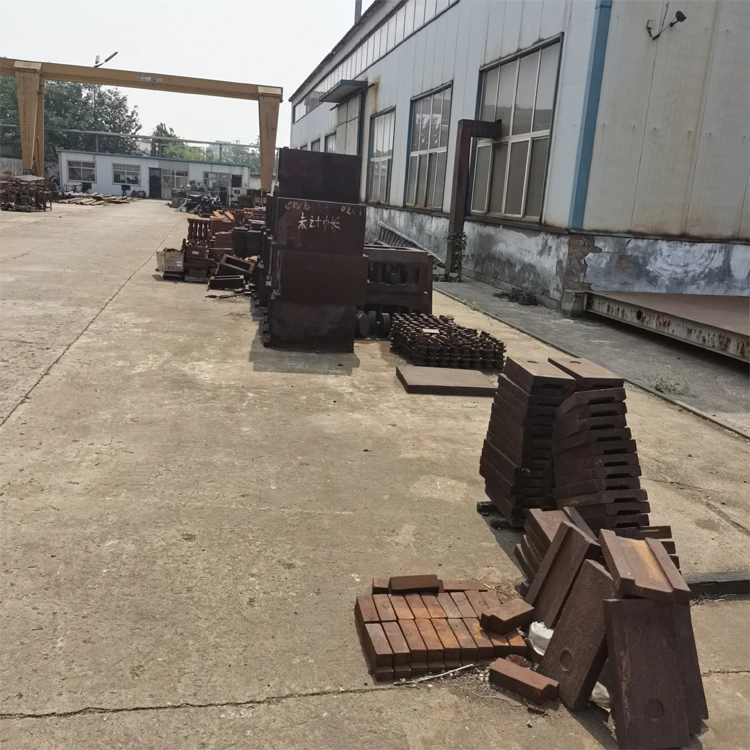

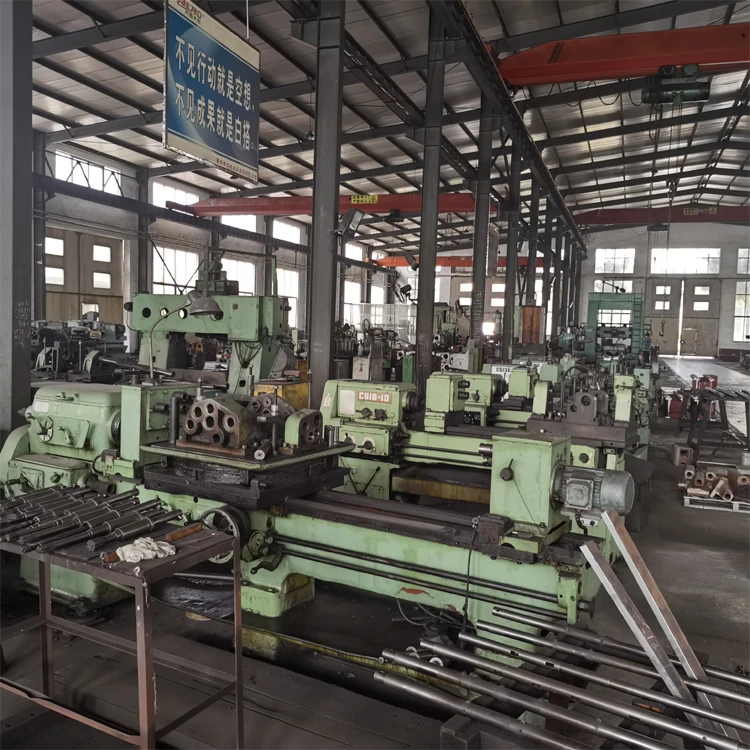

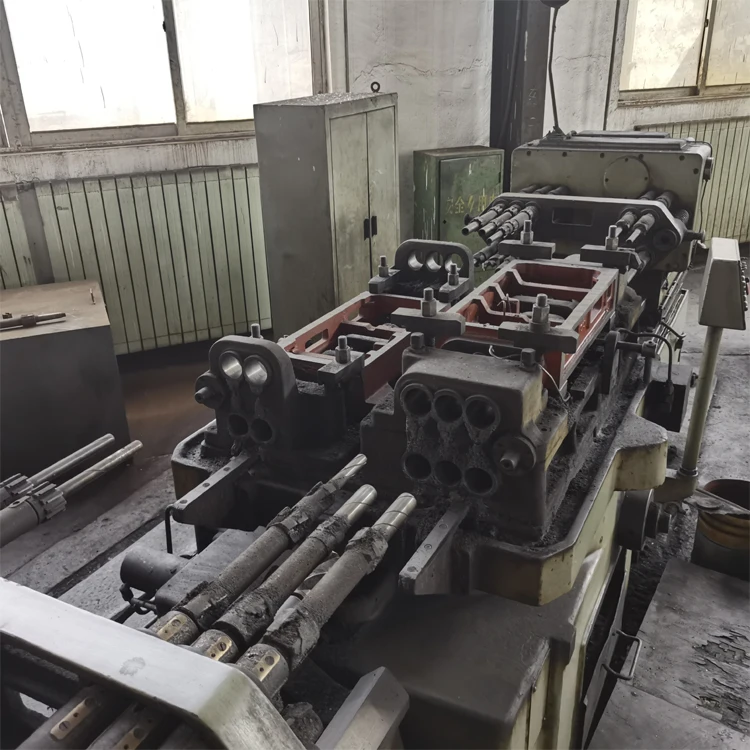

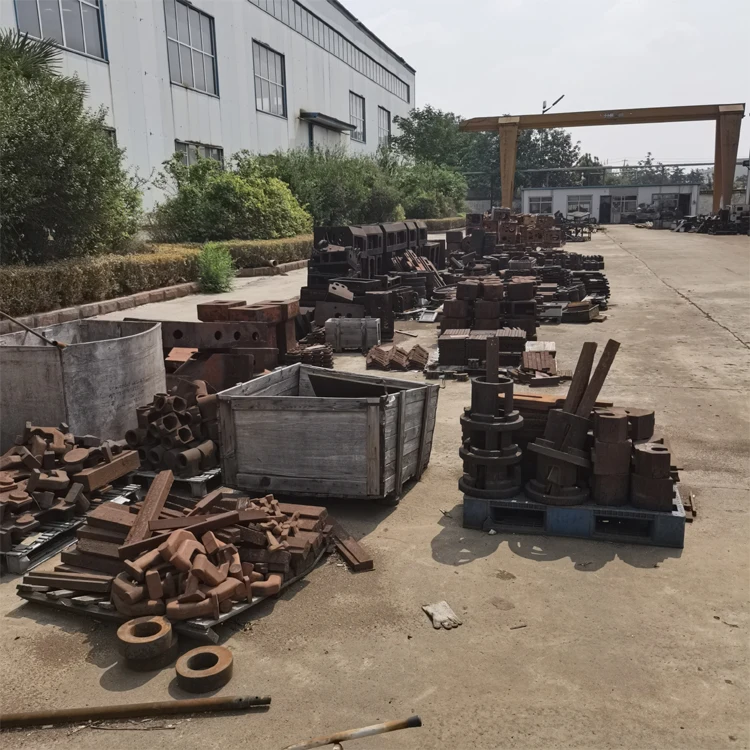

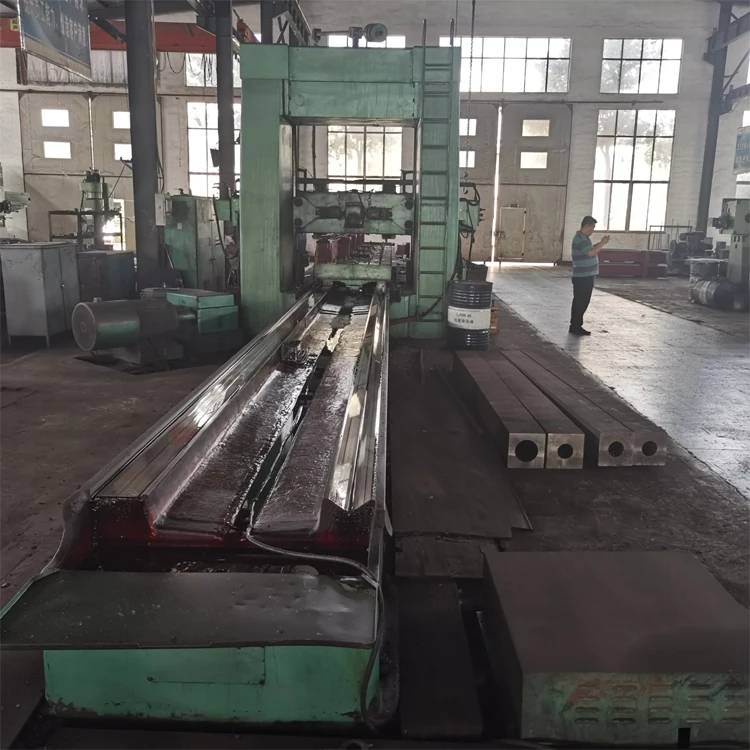

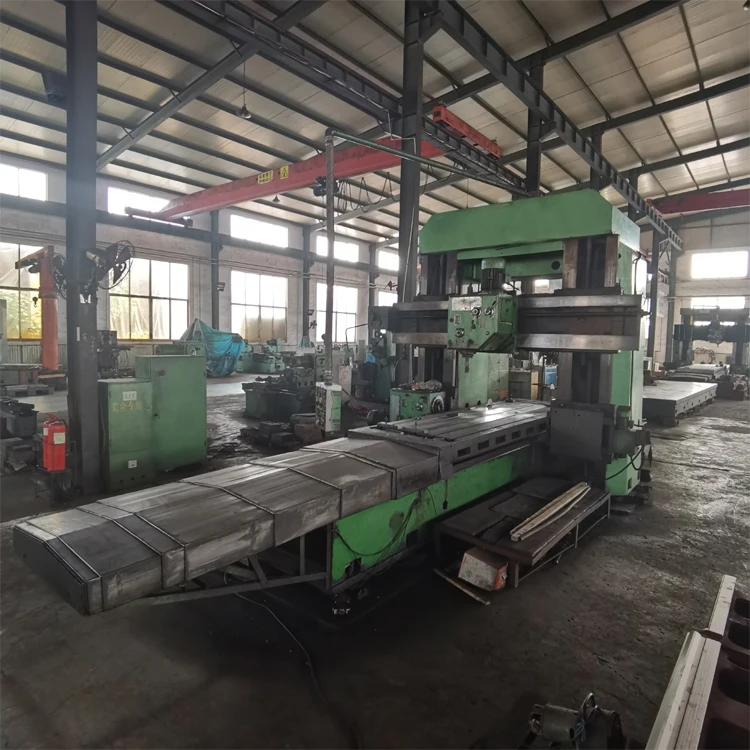

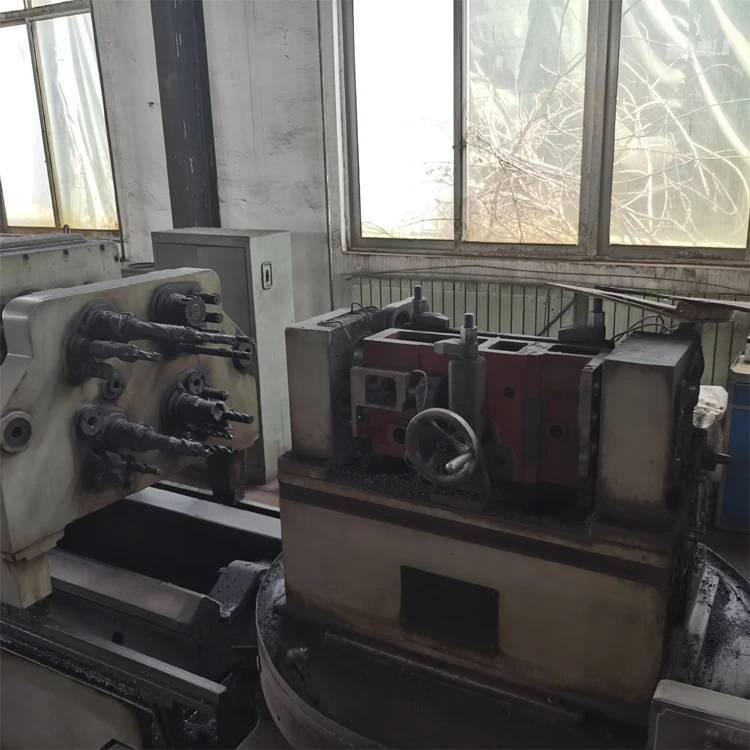

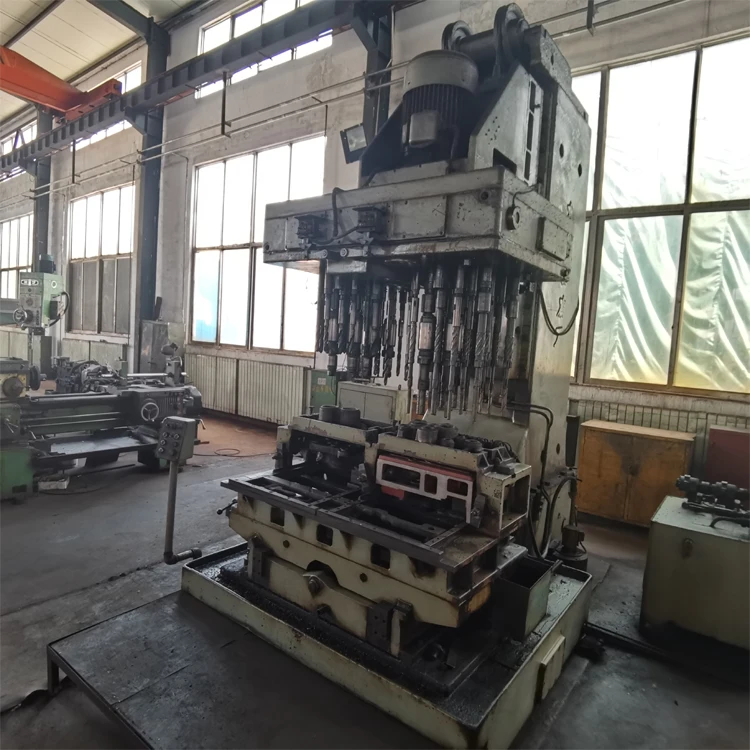

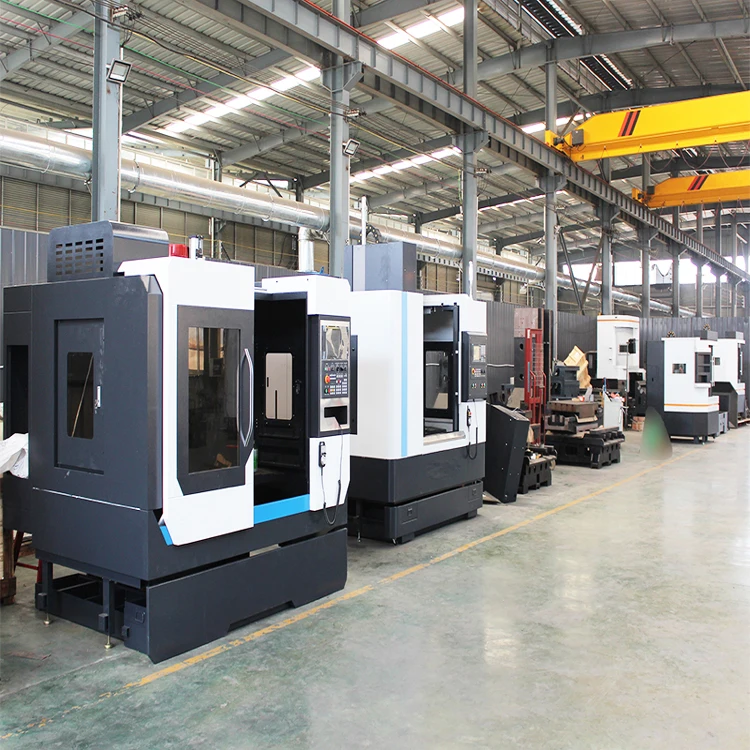

Professional production equipment creates high-quality products

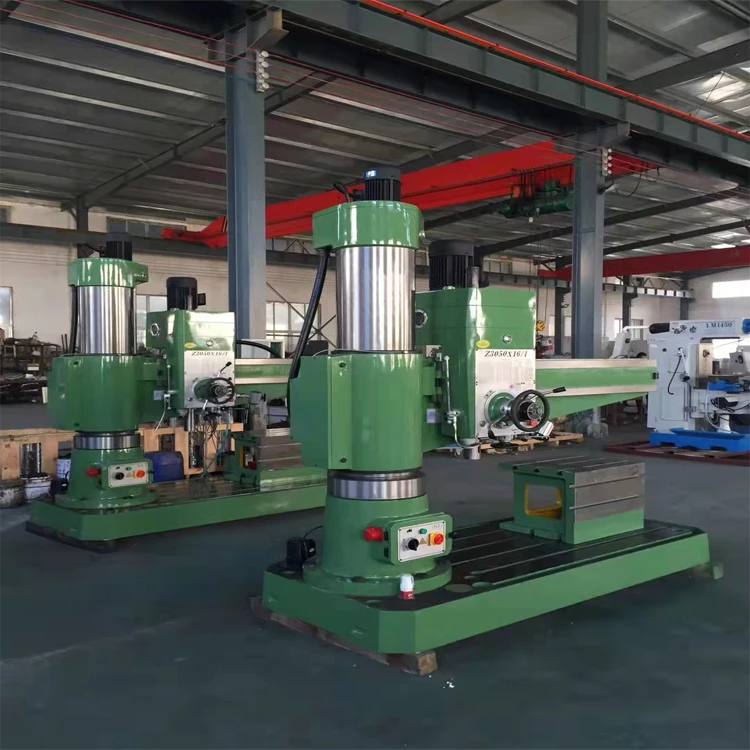

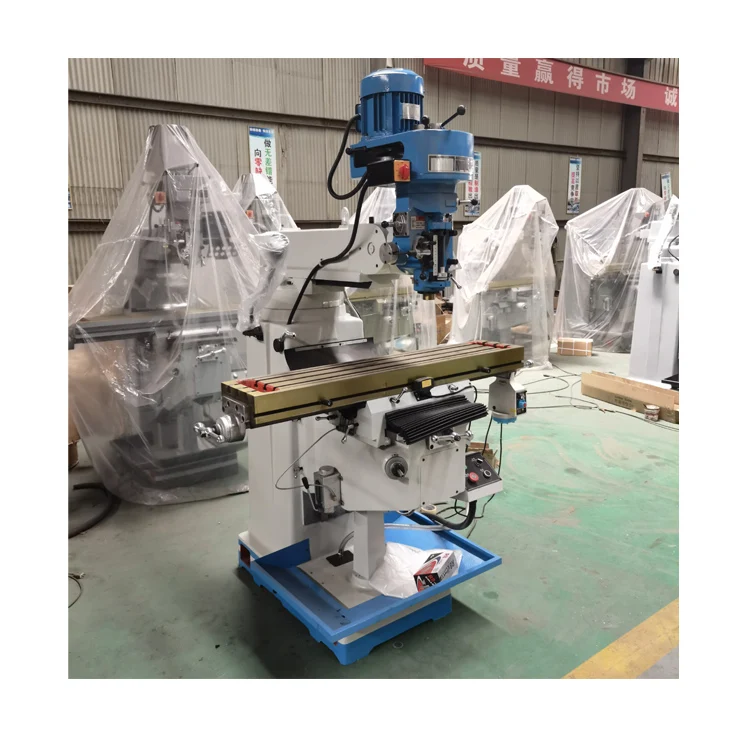

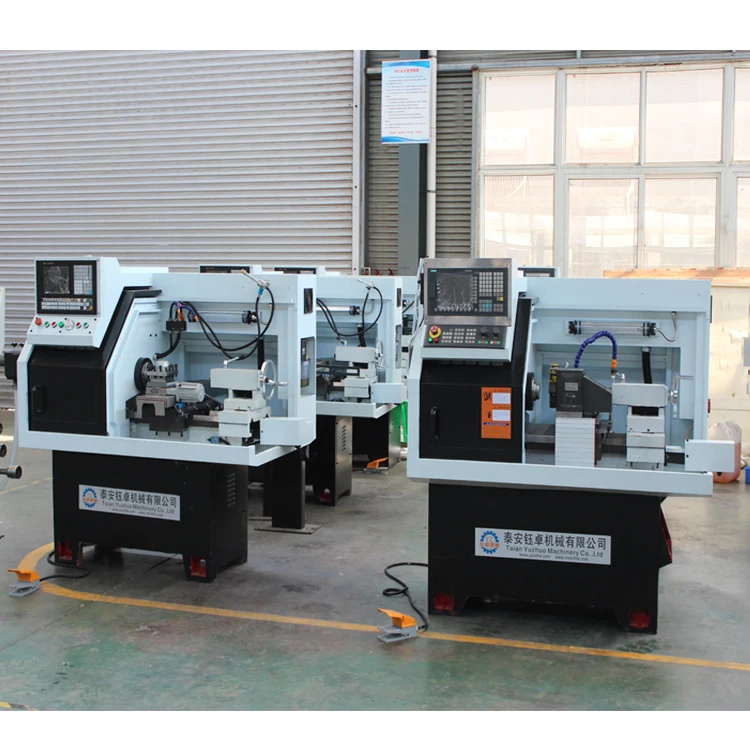

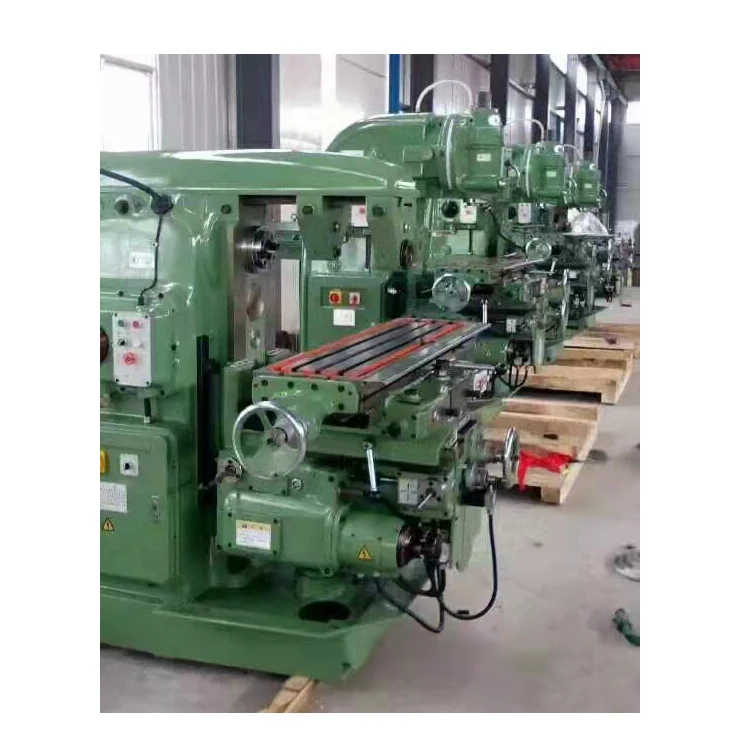

Main Products
Honorary Certificate
Customers
Packing & Delivery
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Taian City ,Shandong Province,271000 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Taian City ,Shandong Province,271000 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
