WELLDE C9370C China High Quality Machine Brake Drum Disc Lathes Good Price
- Category: >>>
- Supplier: Shandong Wellde CNC Machine Tool Co. Ltd
Share on (1600819001320):
Product Overview
Description
Products Description
WELLDE Disc Brake Lathe Machine Disc Brake Lathe Machine C9370C Brake Lathe Machine For Car
Brake Drum Brake Disc Lathe C9370C Applicable for repairing large, medium & small brake disc/drum.3 spindle speed can be adjusted by changing belt position.
Mechanical feeding transmission ensures long working life.

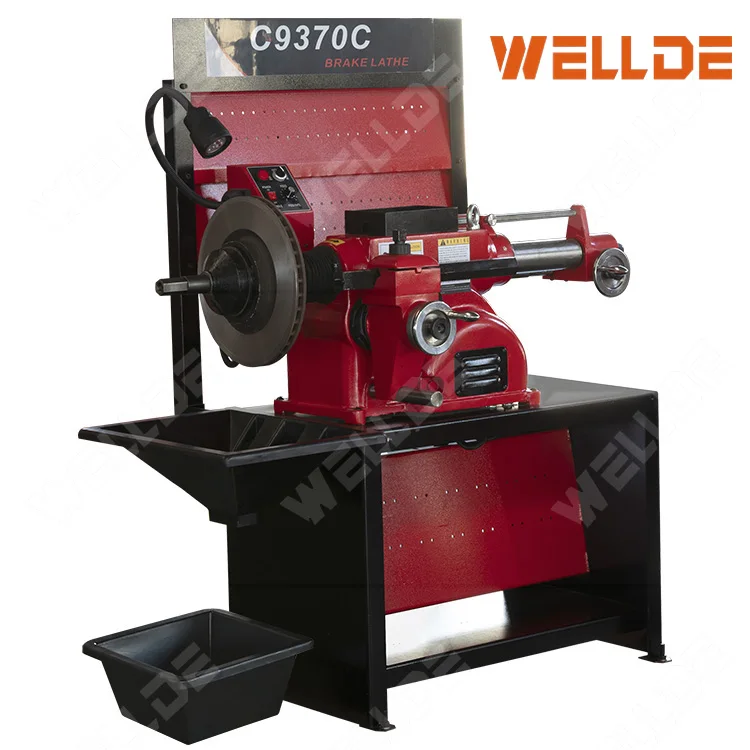

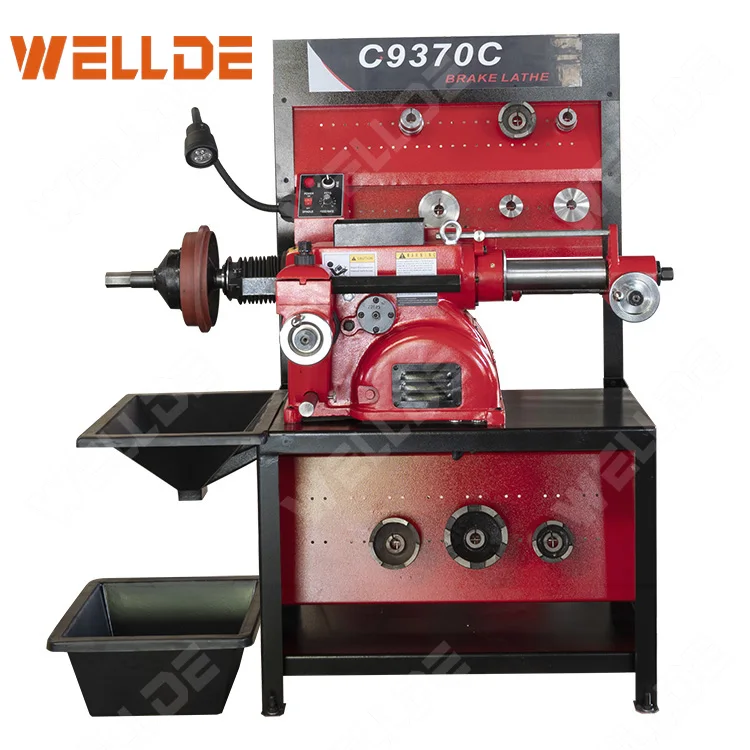

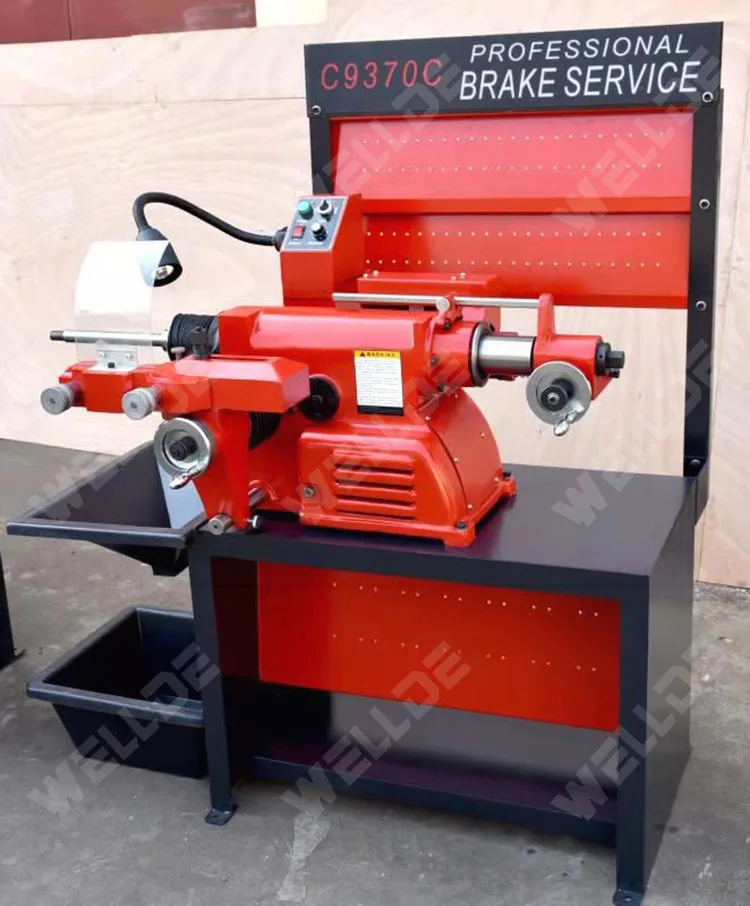

Brake Disc Drum Skimming Lathe Machine C9370C Appearance:
Specification
Model | C9350c | C9370 | C9370C | ||
Brake disc | Diameter mm | 178-368 | 178-457 | 178-457 | |
Thickness mm | 48 | 48 | 48 | ||
Brake drum | Diameter mm | 152-450 | 152-711 | 152-711 | |
Depth mm | 160 | 220 | 220 | ||
spindle speed rpm | 70,88,118 | 70,88,118 | 70,88,118 | ||
Cross feeding capacity mm/r | 0-0.4 | 0.05/0.25 | 0.-0.4 | ||
spindle feeing capaity mm/r | 0-0.4 | 0.05-0.5 | 0-0.4 | ||
Motor power kw | 0.75 | 0.75 | 0.75 | ||
Overall dimensions(L*M*H)mm | 1200*900*1500 | 1280*1100*1445 | 1280*1100*1445 | ||
Weight kg | 290 | 290 | 290 | ||
Recommend Products
Company Profile
Shandong Wellde CNC Machine Tool Co.,Ltd
Is specialized in machine products export, production, sales and after-sales service .In many years of practice, we established a strict quality assurance system.
Our products range cover press machine, CNC lathe, CNC milling machine,automobile service equipment and precision hardware parts and so on.our products have passed CE,ISO,SGS,TUV certificates.
Our principle is product and service first!Our products win high praise for good quality and favorable price.
Our products range cover press machine, CNC lathe, CNC milling machine,automobile service equipment and precision hardware parts and so on.our products have passed CE,ISO,SGS,TUV certificates.
Our principle is product and service first!Our products win high praise for good quality and favorable price.
FAQ
1:How can I choose the most suitable machines ?
Please tell us your requirement of the machine, or you can also send us the
products drawing, our engineer can help to choose the best model for you.
products drawing, our engineer can help to choose the best model for you.
2. What's your main products of your company?
We specialized in all kinds of machines ,such as press machine, CNC lathe, CNC milling machine,automobile service equipment, machine tool accessories, steel wire woven hydraulic hose and rubber pipe and precision hardware parts.
3: What's the Payment Terms ?
A :T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
4.OEM Service?
We accept purchase orders with customers' brand or trade mark.
5: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set )
1 set .(Only some low cost machines will be more than 1 set )
