Replace RUFF toroid winder by (SS300 series) gear type automatic big heavy toroid coil winding machine
- Category: >>>
- Supplier: Xiamen Sanshine Magnetoelectric Device Manufacture Machinery Co. Ltd.
Share on (1600819081638):
Product Overview
Description
Product Description

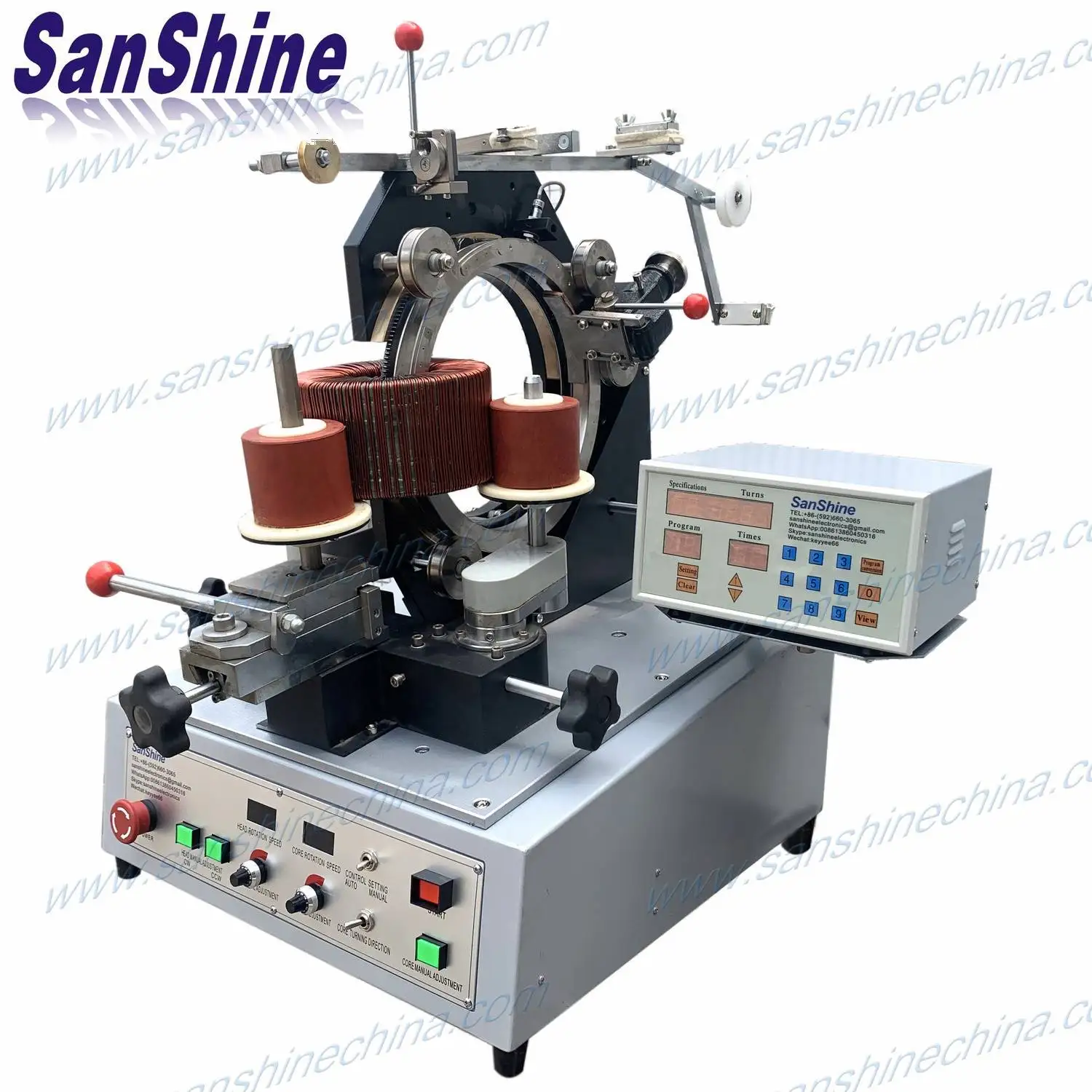

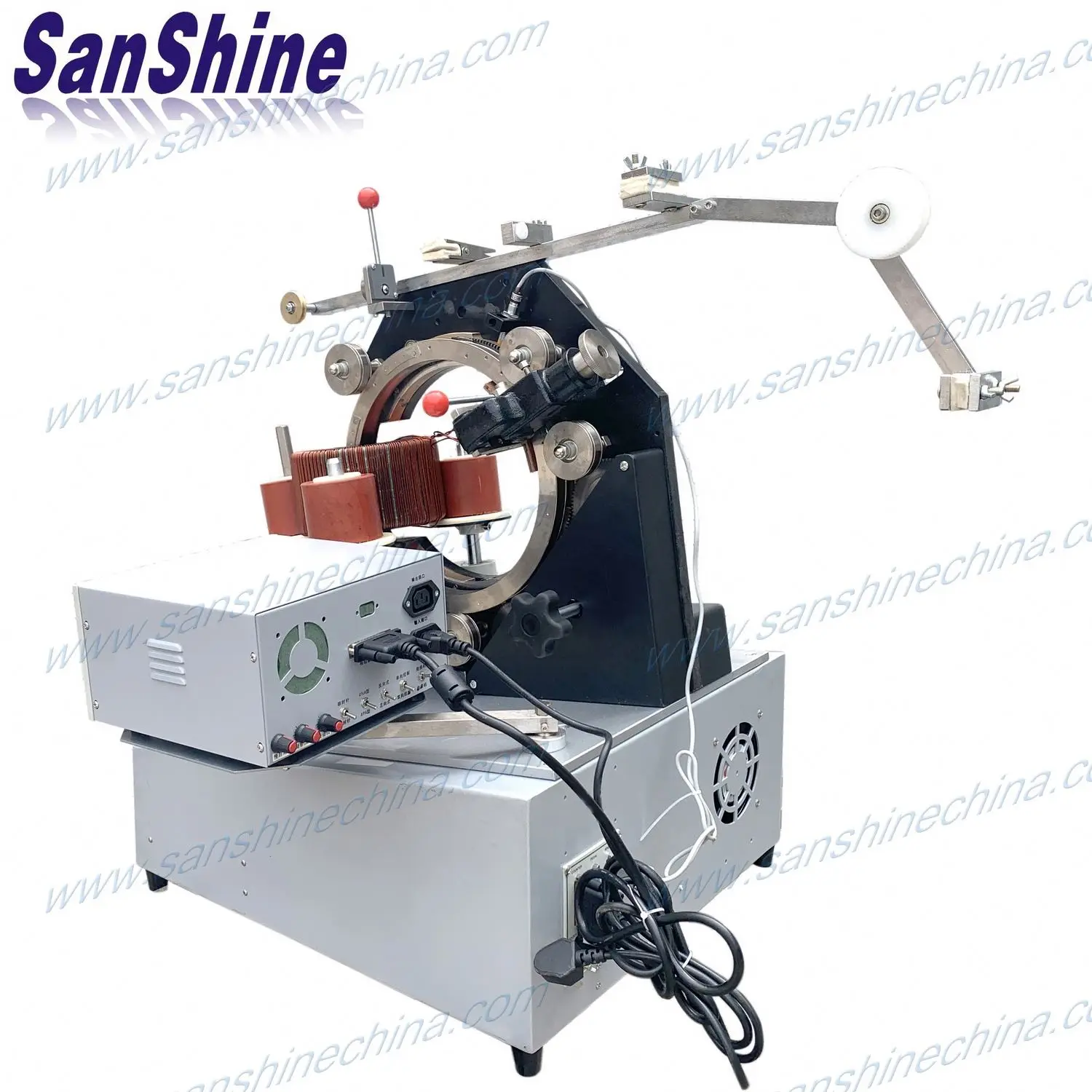

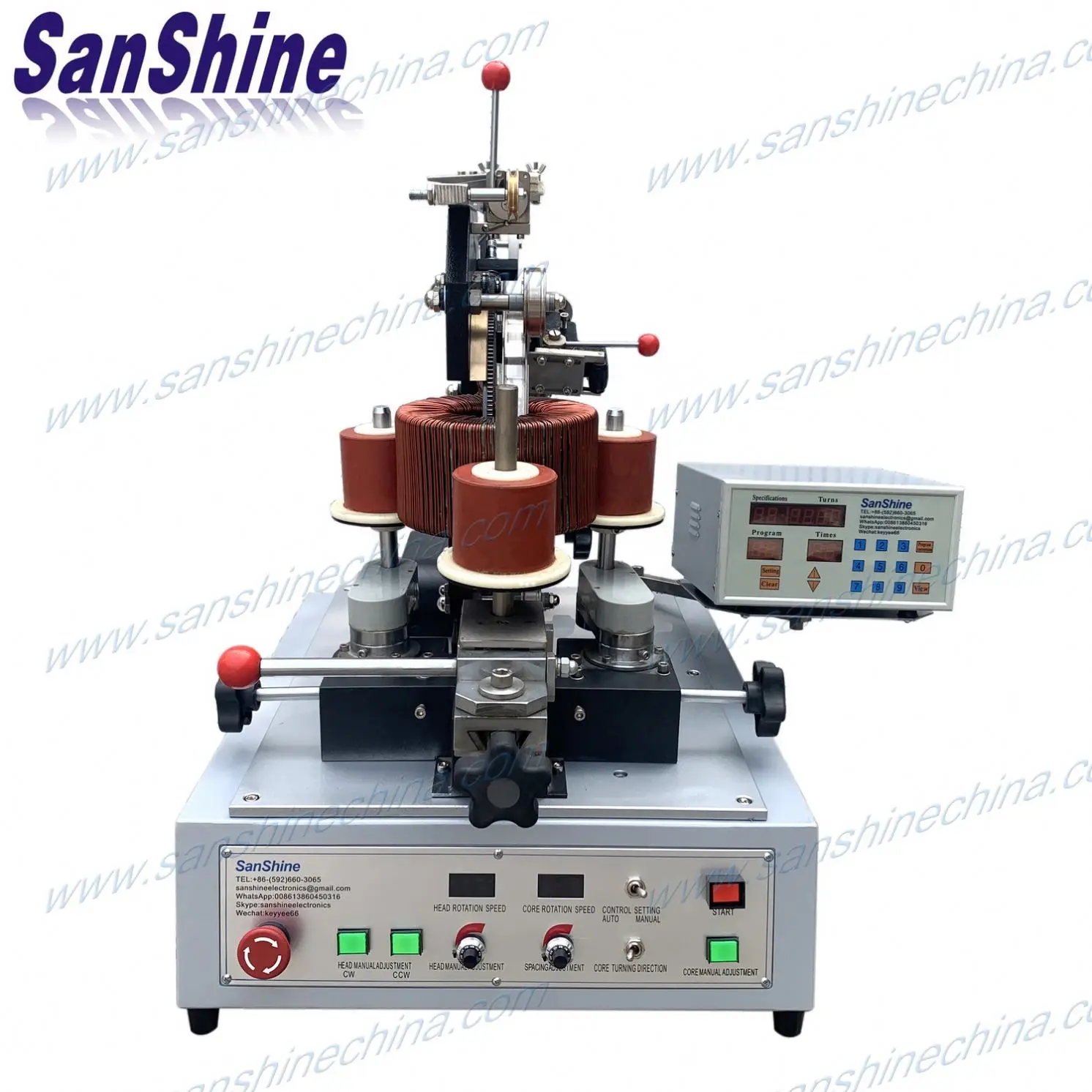

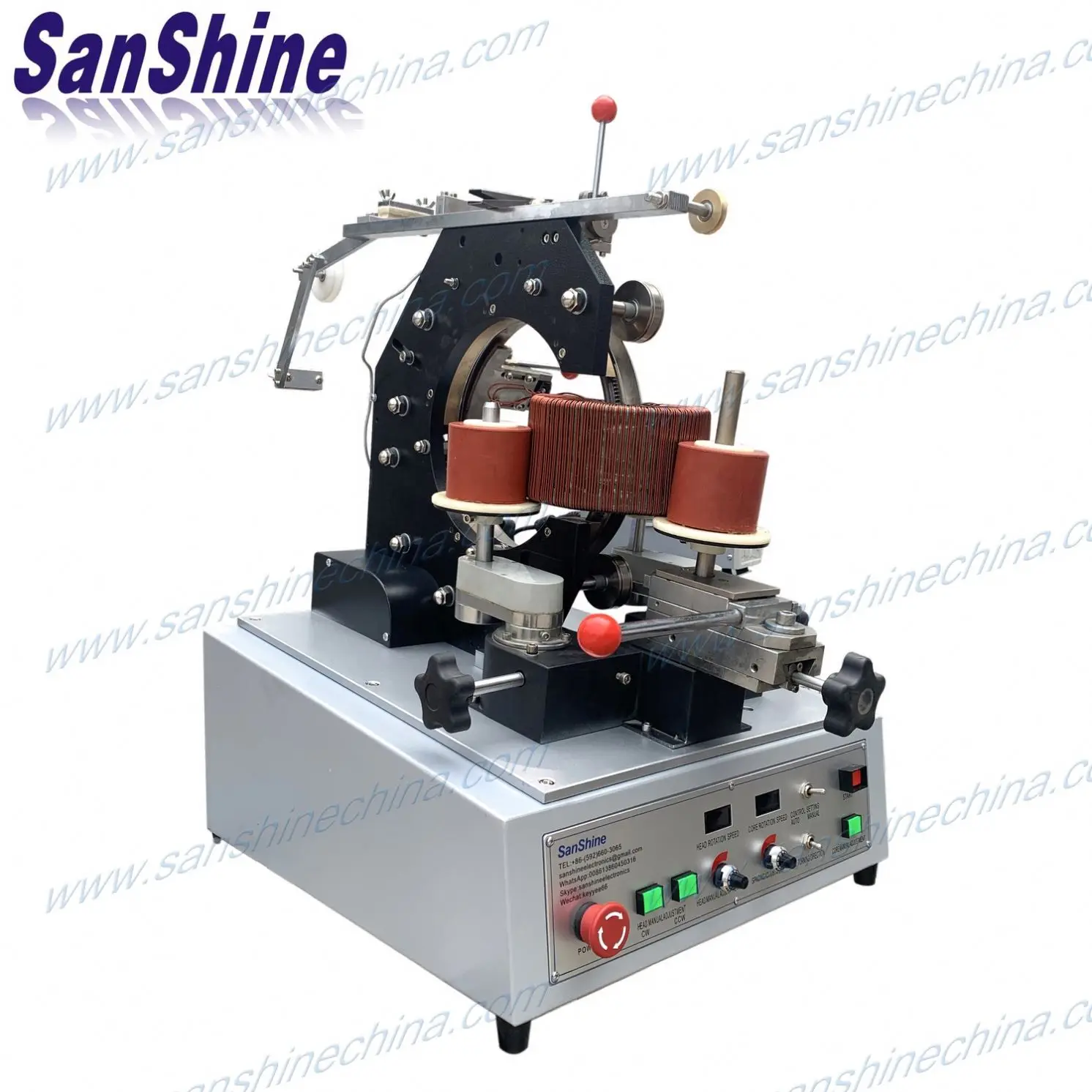

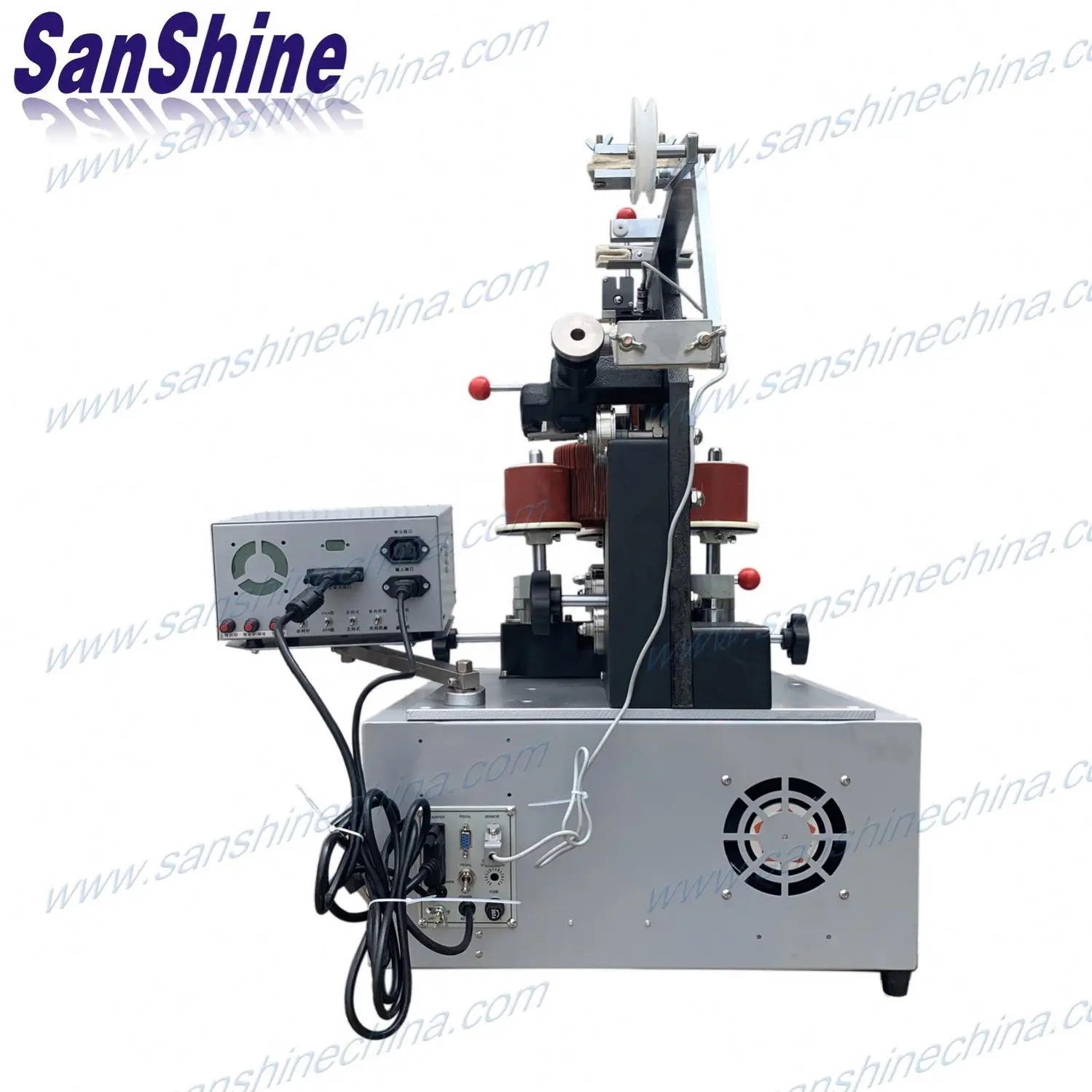

Description of SS300 series gear type automatic big heavy toroid coil winding machine:
SS-300 Series gear type Digital Automatic Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-winding machine. it is used for big toroidal inductor with thick wire, toroidal transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid chock coil, power inductors, power magnetics, UPS inductor with thick wire, converter inductors with thick wire, heavy toroidal core with heavy wire coils,etc.
Features of SS300 series gear type automatic big heavy toroid coil winding machine:
1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size
shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. SS-300 Series gear type Digital Toroid Winding machines adopt precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.
SS300 series gear type automatic big heavy toroid coil winding machine Each model of specification :
SS-300 Series gear type Digital Automatic Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-winding machine. it is used for big toroidal inductor with thick wire, toroidal transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid chock coil, power inductors, power magnetics, UPS inductor with thick wire, converter inductors with thick wire, heavy toroidal core with heavy wire coils,etc.
Features of SS300 series gear type automatic big heavy toroid coil winding machine:
1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size
shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. SS-300 Series gear type Digital Toroid Winding machines adopt precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.
SS300 series gear type automatic big heavy toroid coil winding machine Each model of specification :
Model | SS-300-01 | ||||
Wire diameter | 0.7 -2.0mm | Max. winding speed | 200 rpm | ||
Max. final coil O. D. | Φ 60 -200mm | Wire spacing | stepping motor control | ||
Min. final coil I. D. | Φ 40mm | Supply voltage | AC 220V(50Hz) | ||
Max. final coil height | 100mm | Mechanical dimensions | 550*500*780 | ||
Controller storage capacity programs | 29(set) | Weight | 94kg | ||
Model | SS-300-02 | ||||
Wire diameter | 0.7 -2.5mm | Max. winding speed | 200 rpm | ||
Max. final coil O. D. | Φ 60 -200mm | Wire spacing | stepping motor control | ||
Min. final coil I. D. | Φ 40mm | Supply voltage | AC 220V(50Hz) | ||
Max. final coil height | 100mm | Mechanical dimensions | 550*500*780 | ||
Controller storage capacity programs | 29(set) | Weight | 94kg | ||
Model | SS-300-03 | ||||
Wire diameter | 0.6 -1.6mm | Max. winding speed | 200 rpm | ||
Max. final coil O. D. | Φ 60 -200mm | Wire spacing | stepping motor control | ||
Min. final coil I. D. | Φ 30mm | Supply voltage | AC 220V(50Hz) | ||
Max. final coil height | 80mm | Mechanical dimensions | 550*500*780 | ||
Controller storage capacity programs | 29(set) | Weight | 94kg | ||
Model | SS-300-04 | ||||
Wire diameter | 0.5 -1.3mm | Max. winding speed | 200 rpm | ||
Max. final coil O. D. | Φ 60 -200mm | Wire spacing | stepping motor control | ||
Min. final coil I. D. | Φ 25mm | Supply voltage | AC 220V(50Hz) | ||
Max. final coil height | 80mm | Mechanical dimensions | 550*500*780 | ||
Controller storage capacity programs | 29(set) | Weight | 94kg | ||
Related Products
Packing&Shipping
Package and transport
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
Our customers
Working shop
Our Services & Strength
Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products
are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearan
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products
are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearan
FAQ
How to select the best suited automatic toroid coil winding machine for your toroid coil, Tell us your toroidal coil of data as
below please:
1, toroid core outside diameter before winding?
2, toroid core inside diameter before winding?
3, toroid core height before winding?
4, how many windings on this core?
5, how many turns of each winding?
6, how about the copper wire diameter of each winding?
7, provide pictures of product which is better.
below please:
1, toroid core outside diameter before winding?
2, toroid core inside diameter before winding?
3, toroid core height before winding?
4, how many windings on this core?
5, how many turns of each winding?
6, how about the copper wire diameter of each winding?
7, provide pictures of product which is better.
