Portable UAV detector system 6 band 1.2KM drone signal detector for Public Security
- Category: Other Security & Protection Products >>>
- Supplier: Shenzhen,RdSignal,Technology,Co.,Ltd
Share on:
Product Overview
Description
Product Description

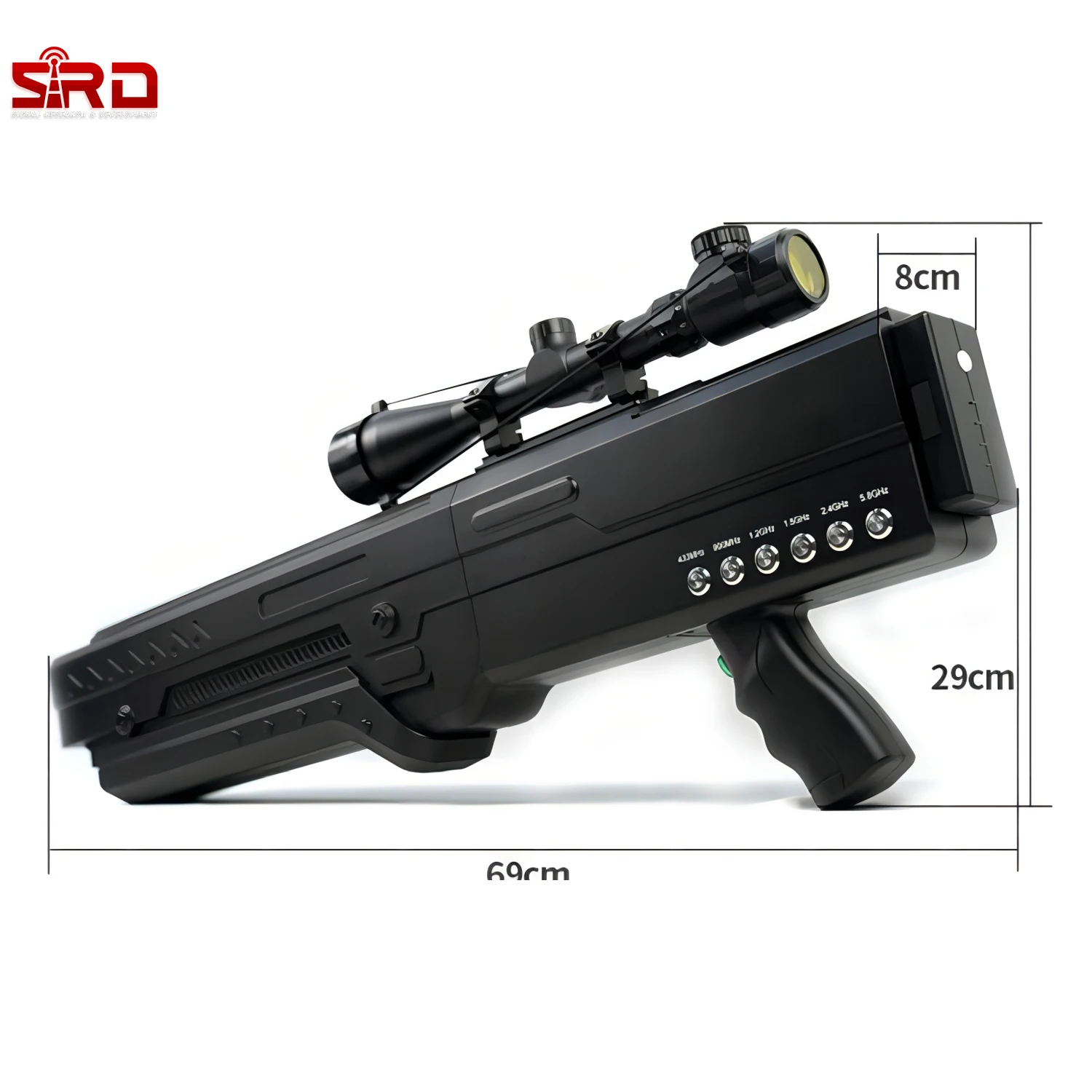

Portable UAV detector system 6 band 1.2KM drone signal detector for Public Security

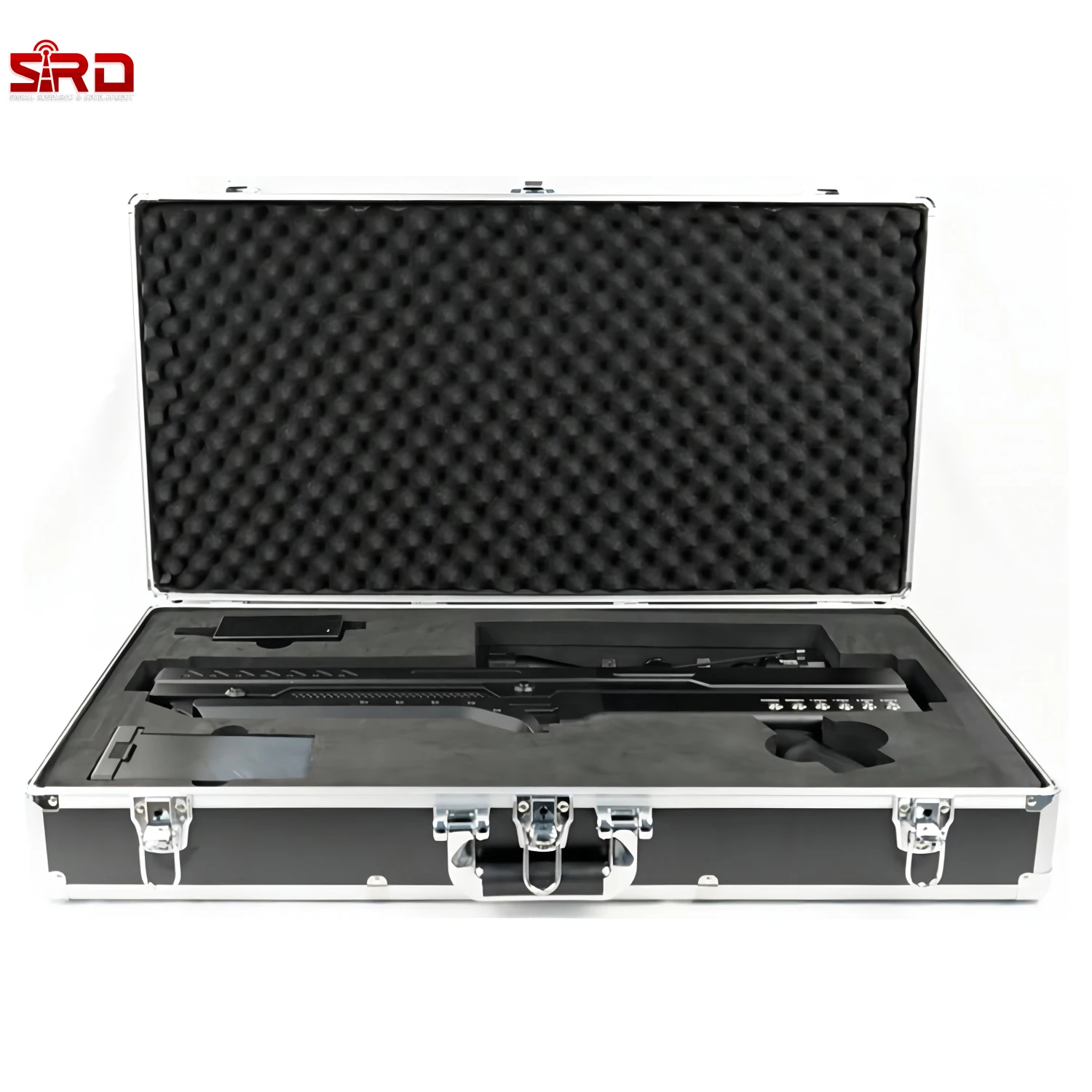

Packing & Delivery
Specification
Channel | Working Frequency | Output power(±1dBm) | |||
CH1 | 433MHz | 400-470MHz | 40 dBm | ||
CH2 | 1200MHz | 1200-1300MHz | 40 dBm | ||
CH3 | 2.4G | 2400-2485MHz | 45 dBm | ||
CH4 | 5.8G | 5725-5850MHz | 44 dBm | ||
CH5 | GPSL1, Glonass, BDS | 1575.4±2.5MHZ(1.5G-GPS) 1602±5MHZ(1.5G-GLONASS) 1561±2.5MHZ(BDS) | 43 dBm | ||
CH6 | 900MHz | 860-930MHz | 43 dBm | ||
Power supply mode | Inside battery: 24V, 5000mAh; Or External battery | ||||
Battery working time | 45 minutes | ||||
Working temperature | -20ºC to +55ºC | ||||
Power consumption | 240W | ||||
Weight | 5.0KG, Packing Weight:13KG | ||||
Size | 277X80X51mm | ||||
Panel Antenna | 10dBi Gain | ||||
Total output power | 120W | ||||
