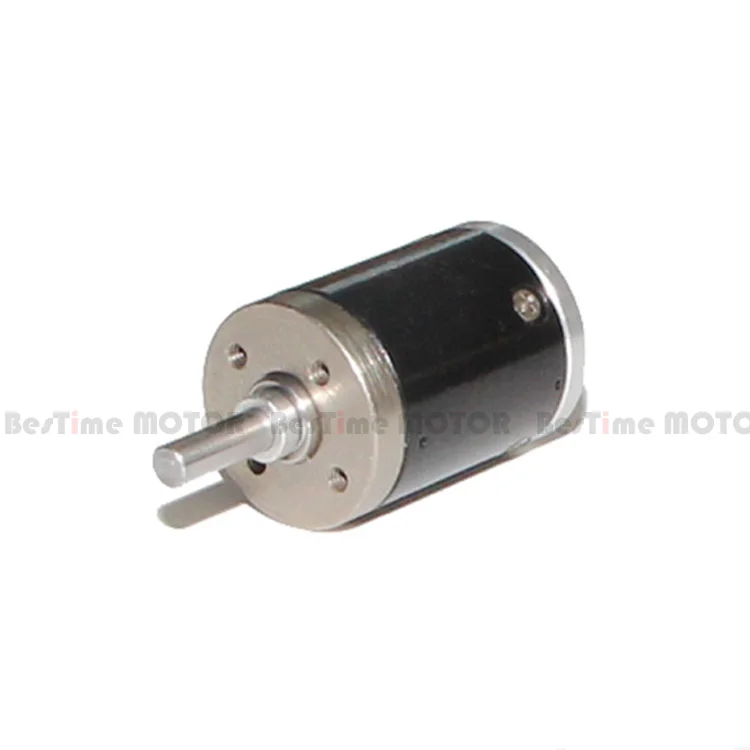

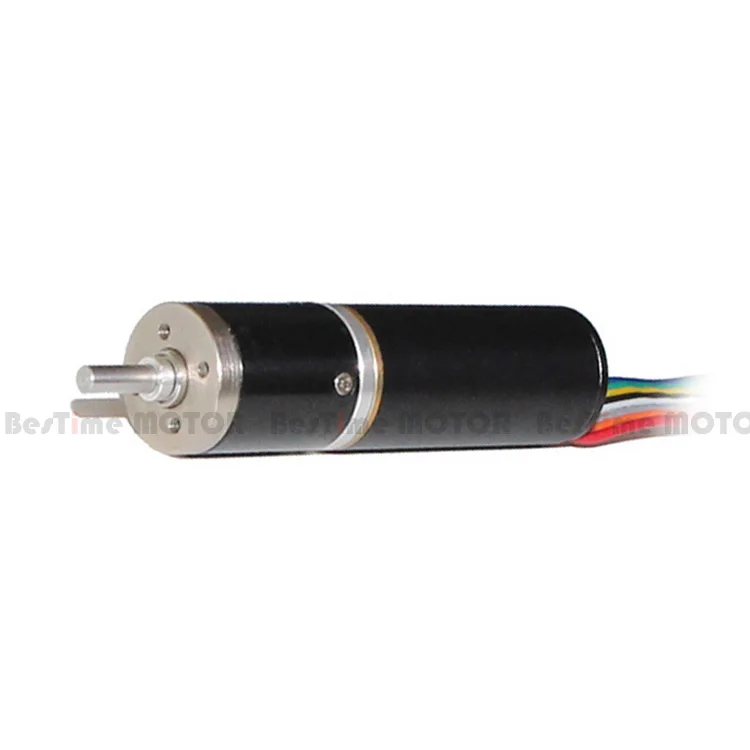

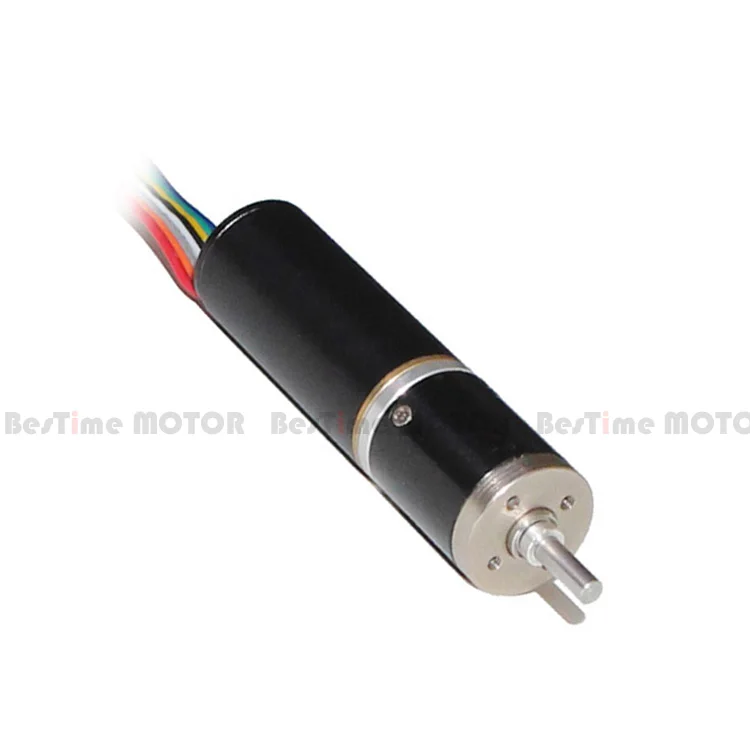

Dia 16mm brushless dc planetary mini gear motor
- Category: >>>
- Supplier: Shenzhen Jiatai Motor Technology Co. Ltd.
Share on (1600819299147):
Product Overview
Description
Product Description

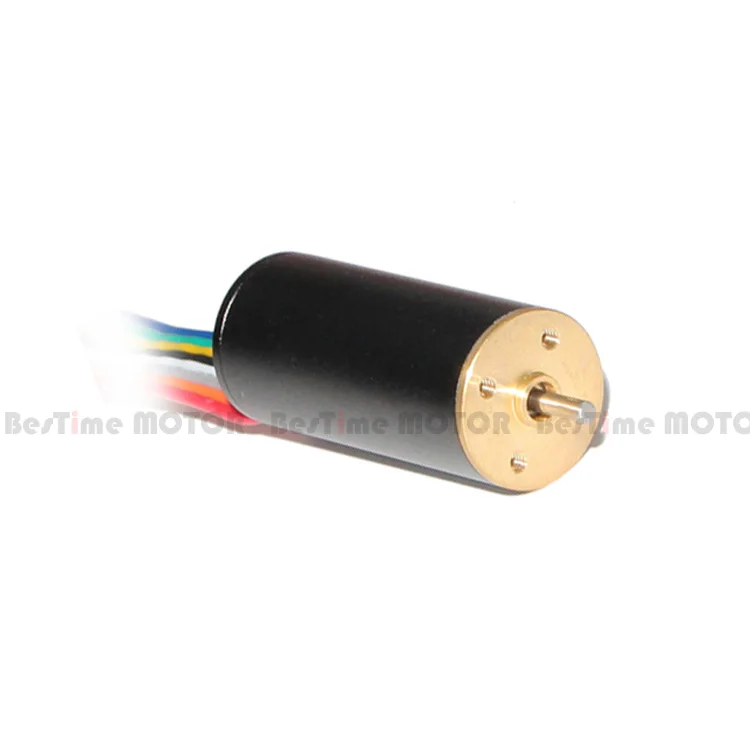

Dia 16mm brushless dc planetary mini gear motor
Characteristics:
- Cup-shaped winding stator, without cogging effect, friction torque is very small
- Nd-Fe-B magnet, high power density
- NMB & NSK ball bearing
- Hall sensor inside, easy to drive
- Aluminium alloy shell, excellent heat dissipation, lower temperature rise
- Novel structure for the covers and frame combination, ensure the installation precision

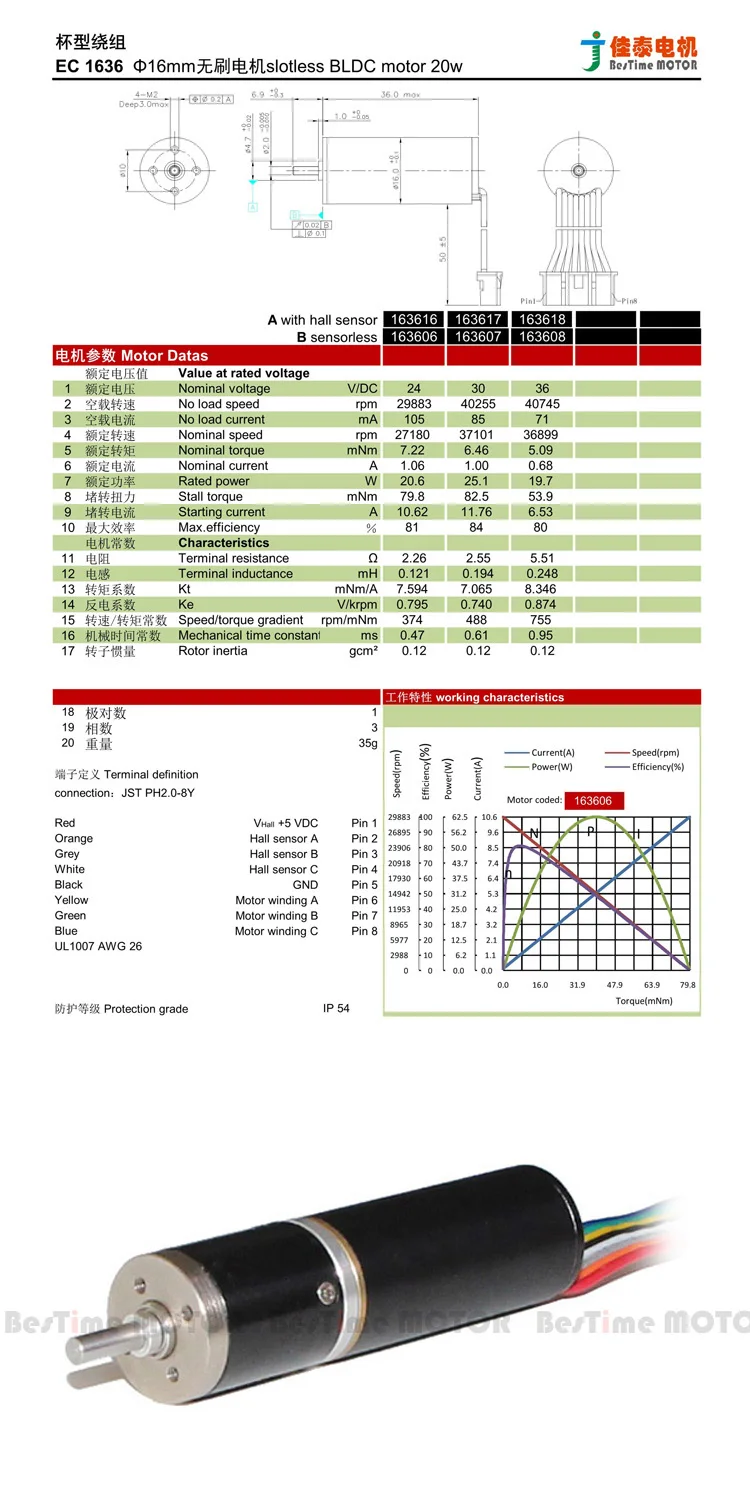

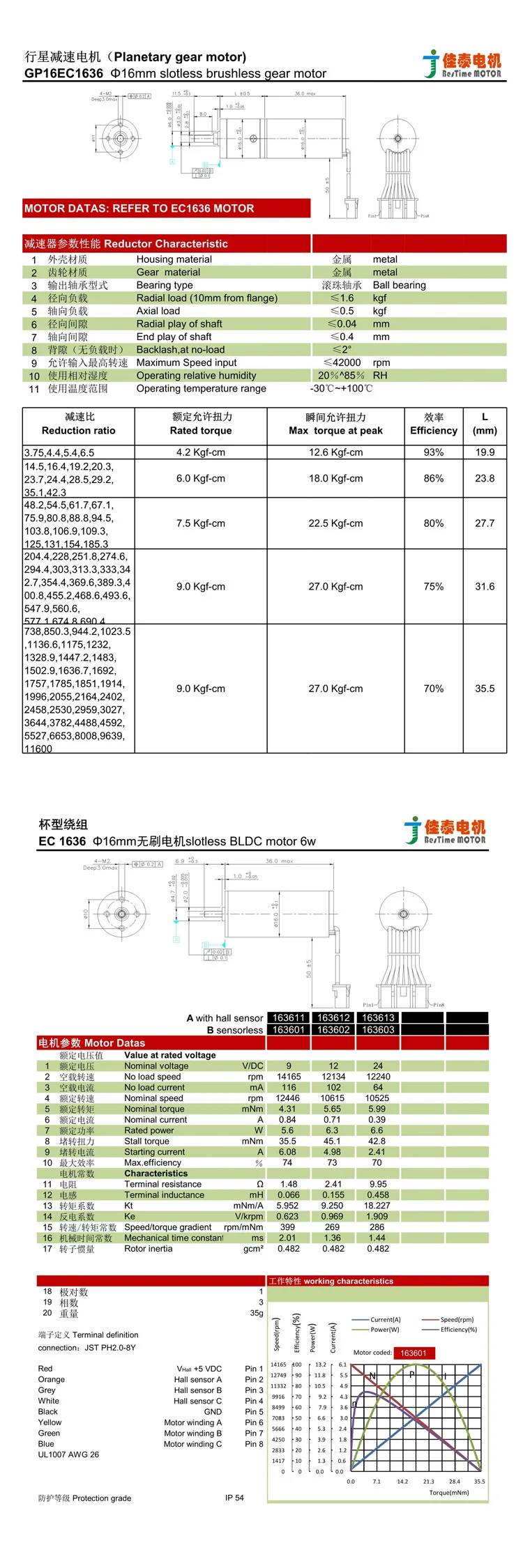

Specifications:
| Product Name: | Slotless brushless dc motor |
| Diameter: | Φ16mm |
| Shaft Diameter: | 3.0mm |
| Input Voltage: | DC 6V 9V 12V 24V 30V 36V |
| Life Time: | 20,000 hours |
| Operation Temperature: | -30℃ to 85℃ |
| Storage Temperature: | -30℃ to 105℃ |
| Number of Pole Pairs: | 1 |
| Number of Phase: | 3 |
| Keywords: | mini gear motor |
Product Application

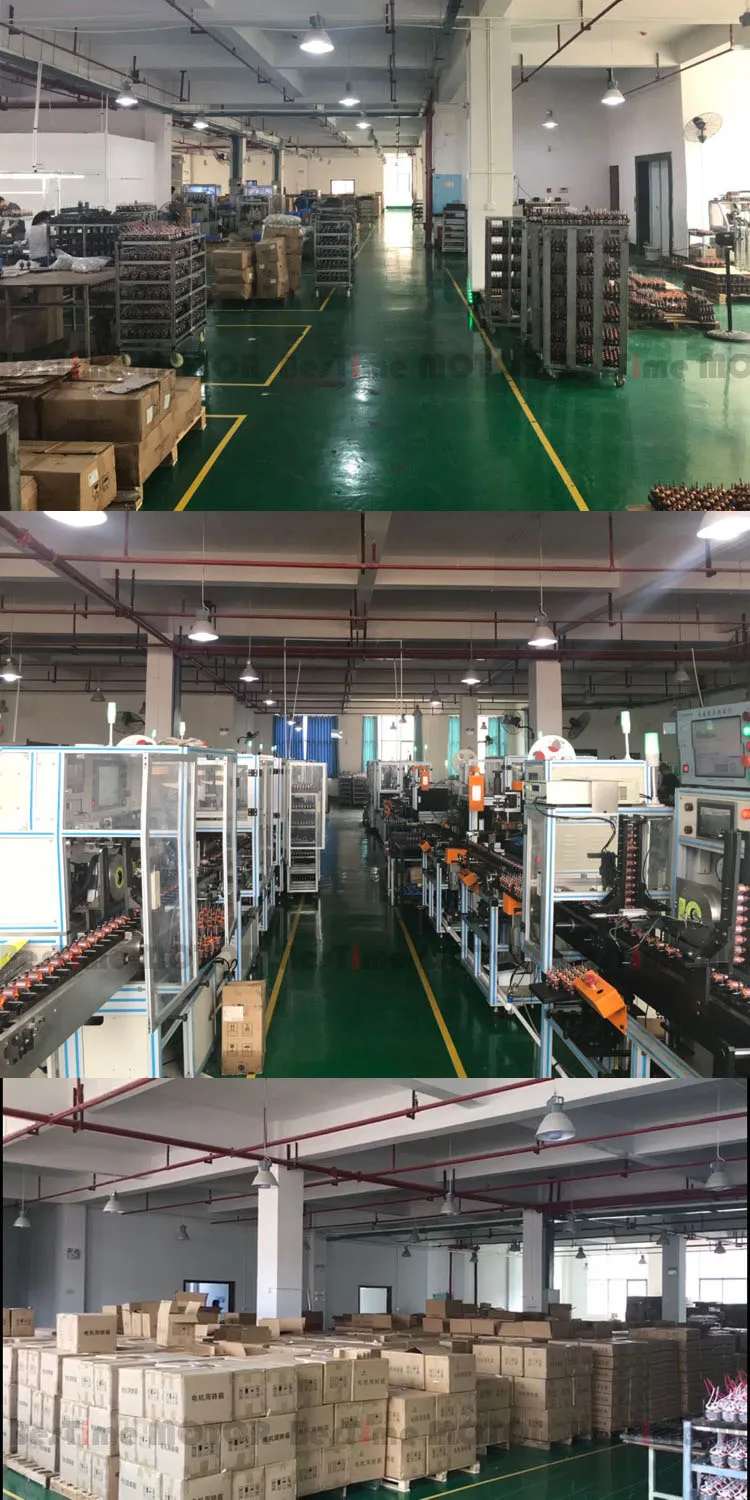

Company Profile
