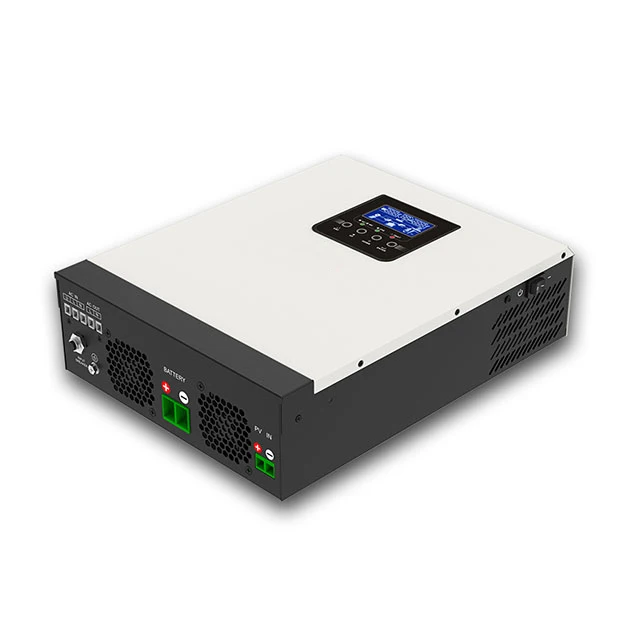

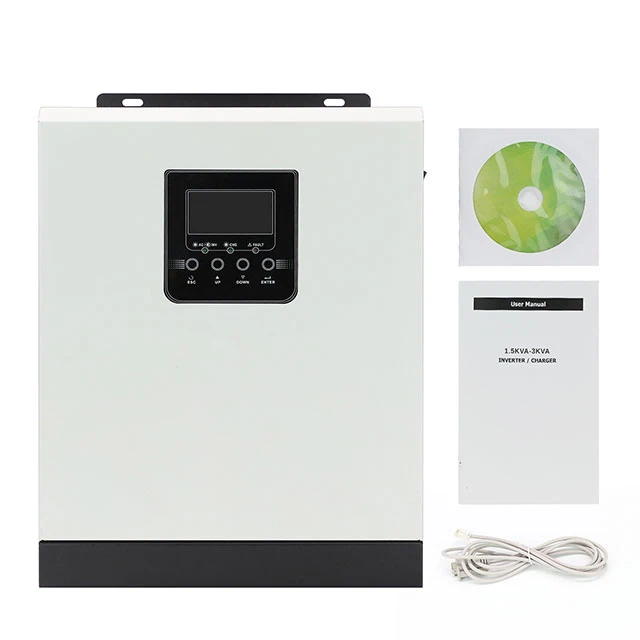

24V To 220V 5000W Pure Sine Wave Toroidal Transformer Inverter Solar Panel With Battery And Inverter
- Category: >>>
- Supplier: XC Technology Co. Ltd.XC Ltd.
Share on (1600819347585):

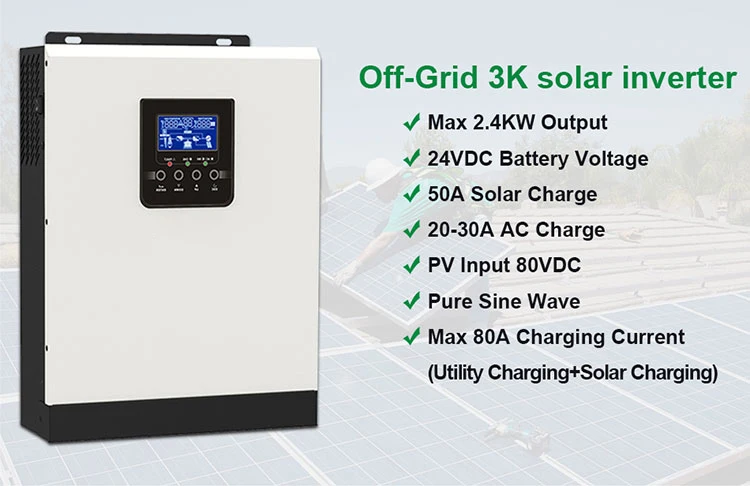

Product Overview
Description

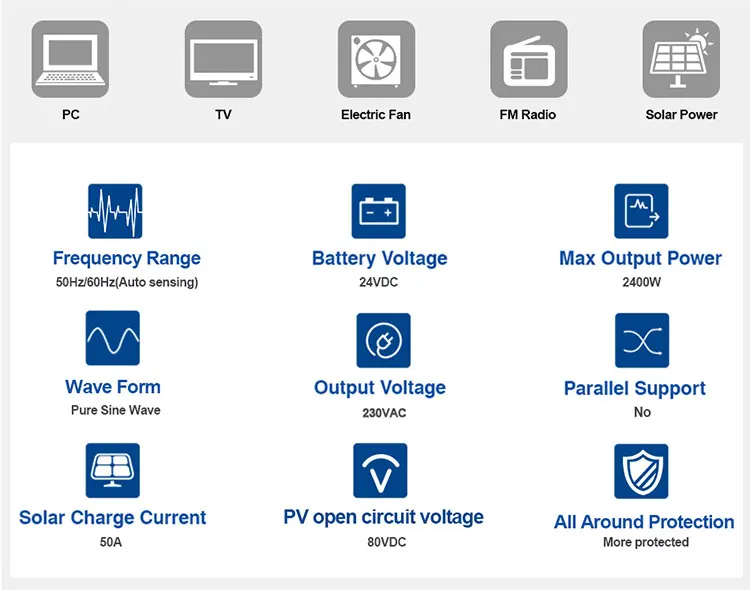

MODEL | Isolar SPH 3KW | |
Rated Power | 3000VA/2400W | |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |
Frequency Range | 50Hz/60Hz (Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |
Surge power | 6000VA | |
Efficiency(Peak) | 93% | |
Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |
Wave form | Pure Sine Wave | |

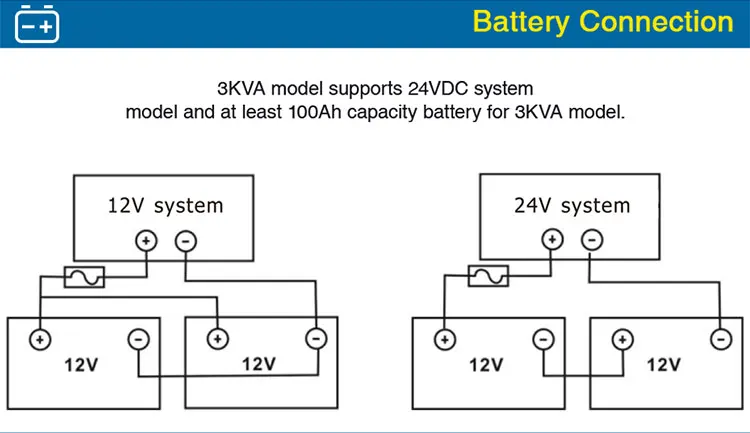

BATTERY | ||
Battery Voltage | 24VDC | |
Floating Charge Voltage | 27VDC | |
Overcharge Protection | 30VDC | |

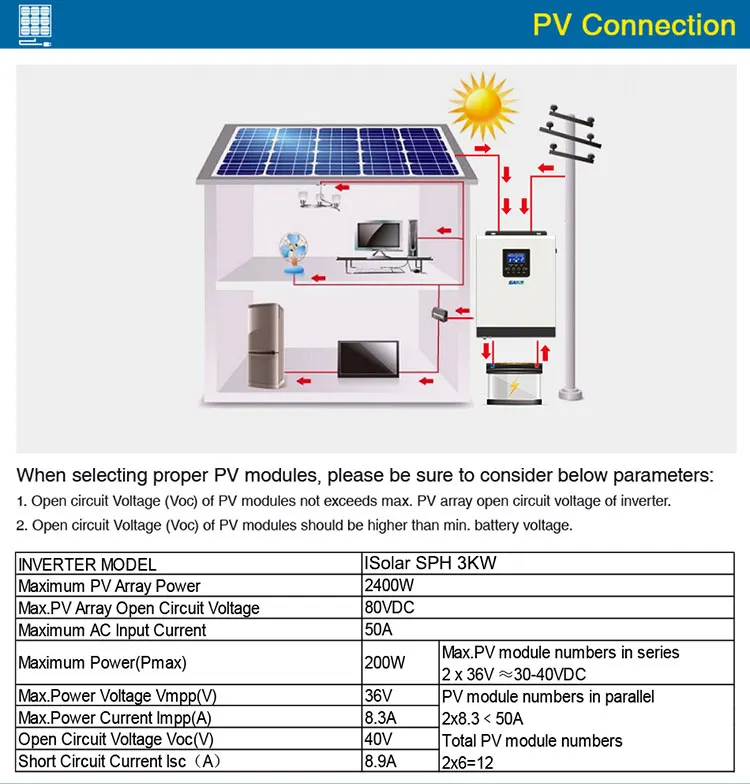

SOLAR CHARGER | ||
Maximum PV Array Open Circuit Voltage | 80VDC | |
MPPT Range @ Operating Voltage | 30-40VDC | |
Maximum Solar Charging Current | 50A | |
Maximum AC Charging Current | 20A or 30A | |
Maximum Charging Current (Utility Charging+Solar Charging) | 80A | |
Standby Power Consumption | 2W | |
PHYSICAL | ||
Dimension.D*W*H(mm) | 305*272*100 | |
Net Weight (kgs) | 5.2kg | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0°C to 55°C | |
Storage Temperature | -15°C to 60°C | |
Our Factory
Product packaging
Certifications
Our Project
FAQ
Q: Can you offer On Grid and Off Grid solar power systems?
A: Yes, we produce On Grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.
Q: What certificate do you offer?
A: CE, IEC, CEC, ISO, TUV. RoHS
Q: what can you buy from us?
A: Solar Panel,Solar System,Battery,Inverter,Mobile power station, solar mounting system
Q: What is the mode of transport?
A: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q: what services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,German,Russian
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,German,Russian
Q: How to become your agent?
A: Contact us through Alibaba, we will give you the best price and look forward to your greetings.
