Coffee tea bag sachet carton packing hot glue sealing food cartoning package machine
- Category: >>>
- Supplier: Sinoped Innovation International (Liaoyang) Co. Ltd.
Share on (1600819386253):
Product Overview
Description
Product Description
Product description

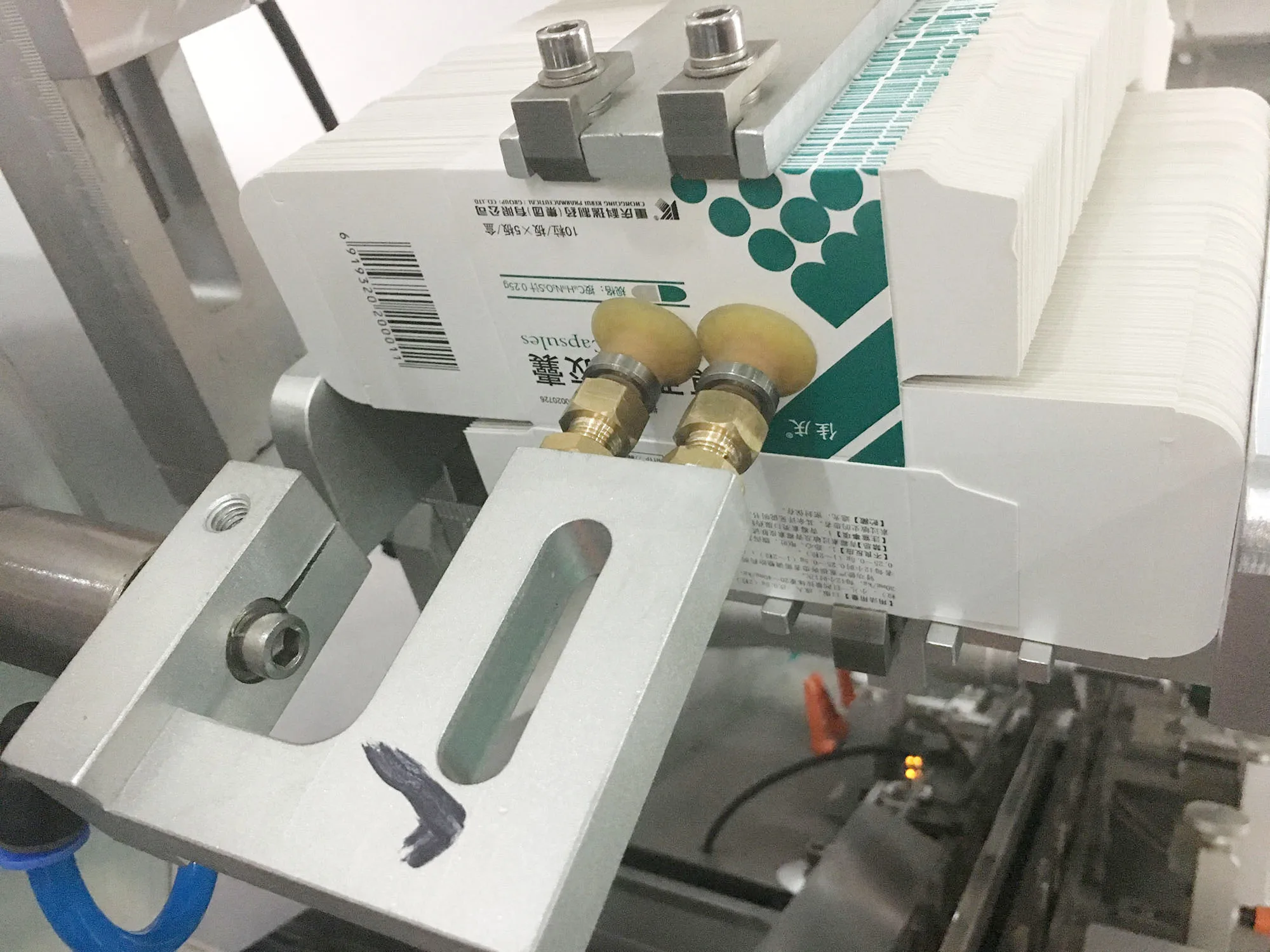

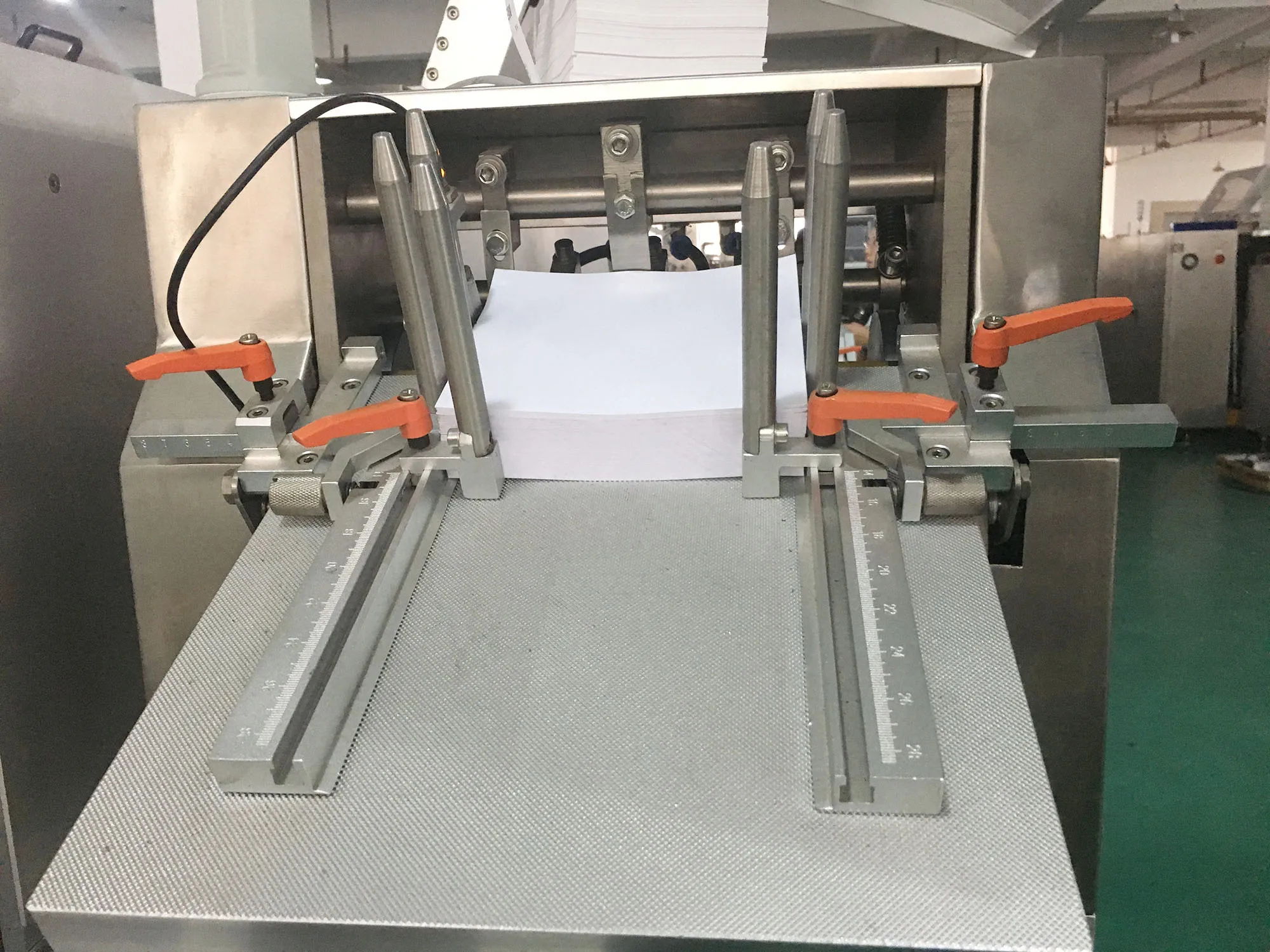

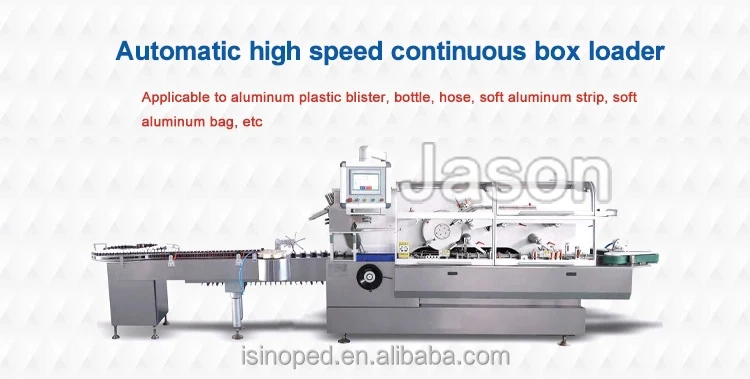

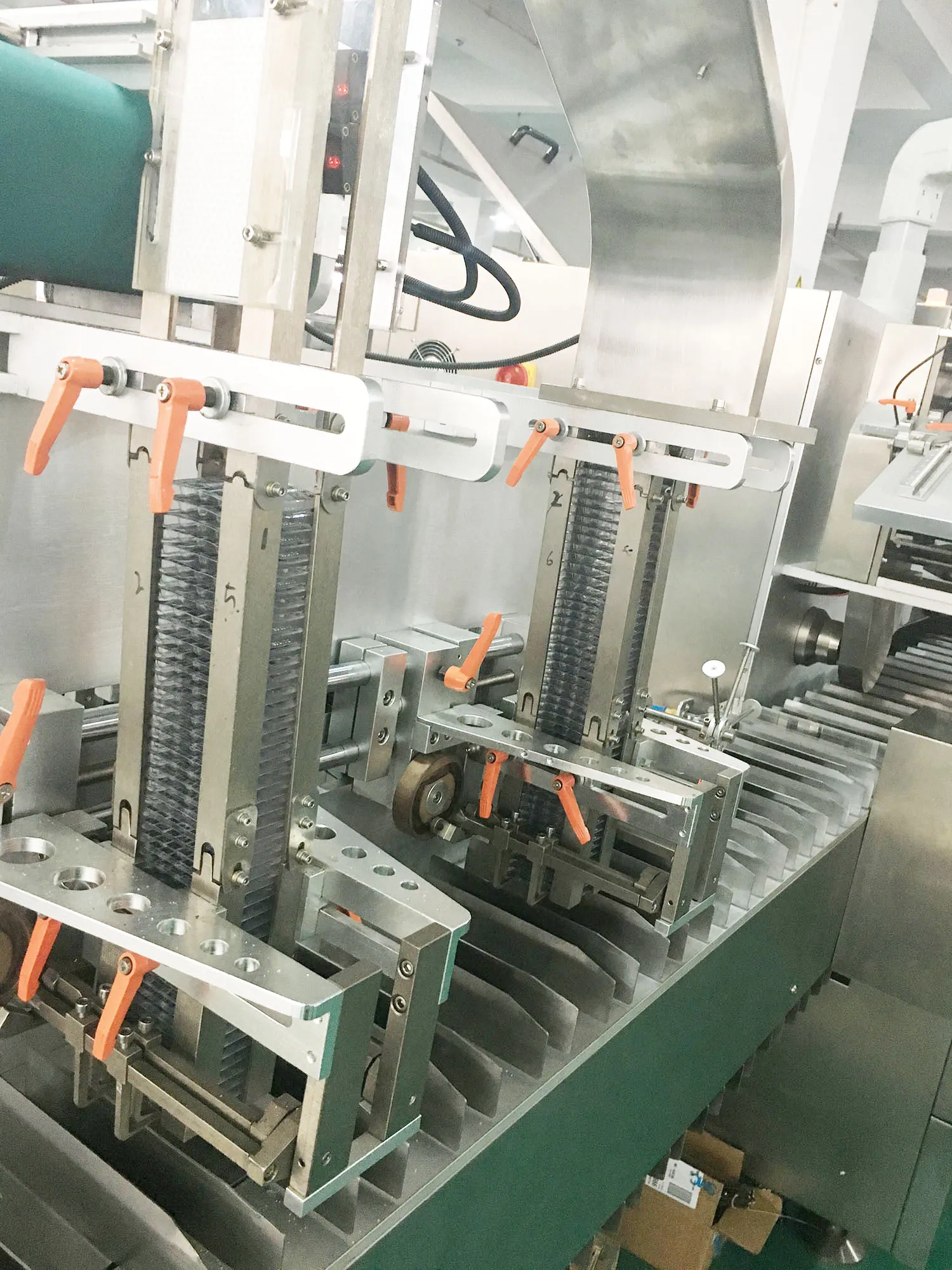

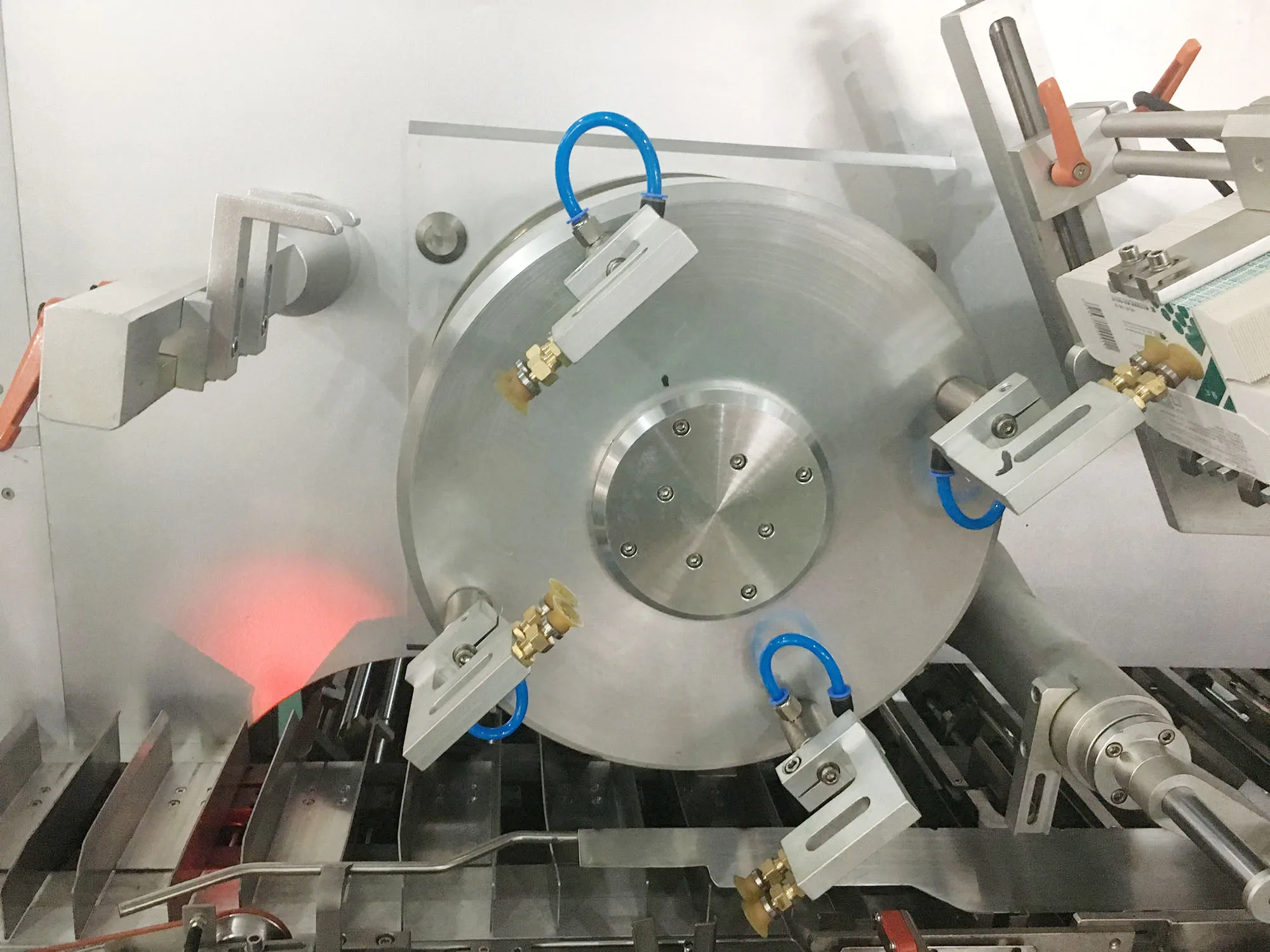

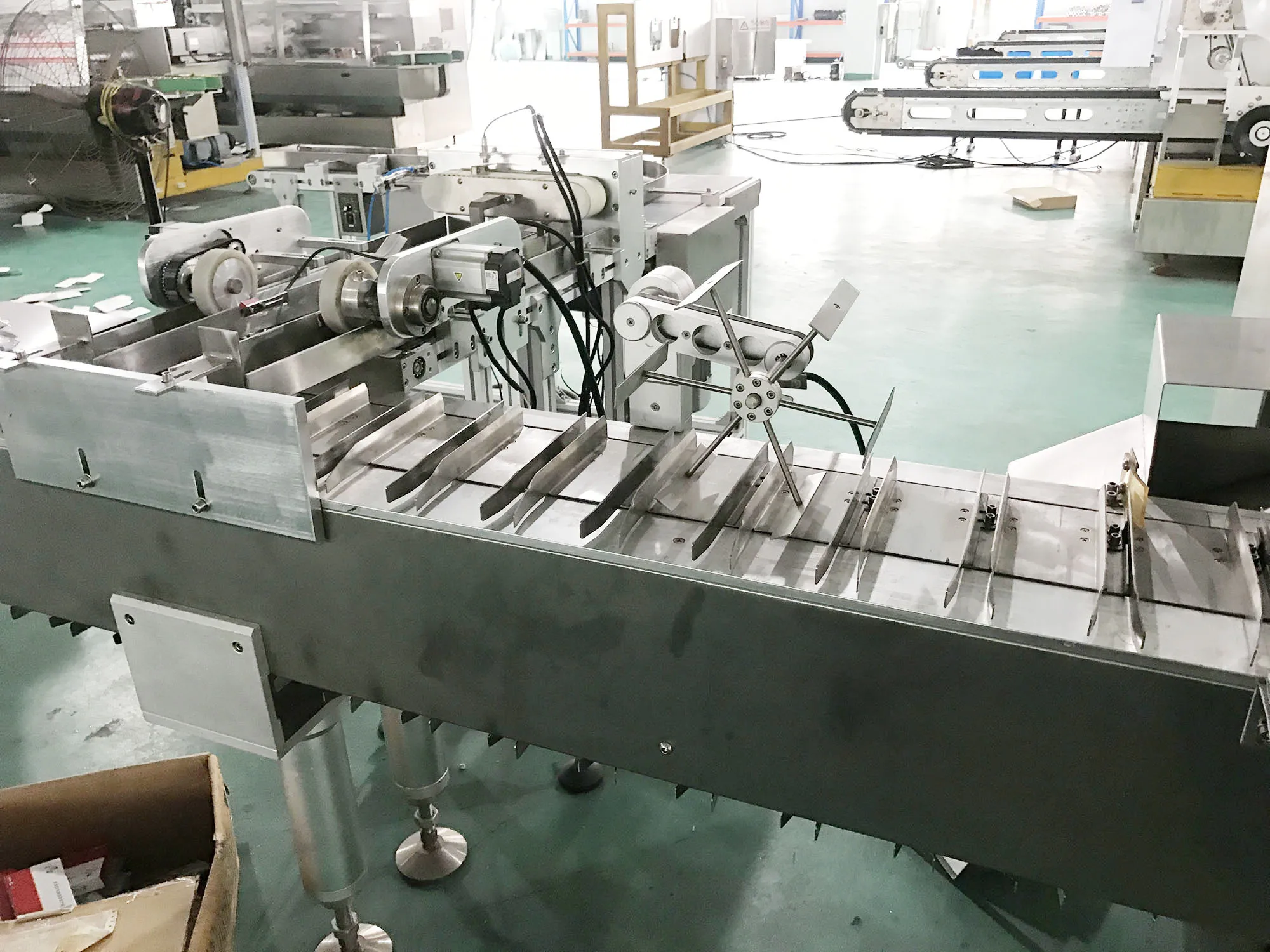

JDZ-260 high speed continuous cartoning machine is suitable for ALU-PVC blister, ALU-ALU blister and similar product. The machine finished running by a series of photoelectric controller to make the machine stability and guarantee the packing quality. It includes 1 to 4 folds leaflet automatic folding, cartons in suction and forming, product and leaflet insert into carton, printing batch number, sealing or option hot-glue device.
The machine can be single used or linked with label machine, tube sealing and filling machine, blister packing machine, shrink machine, over wrapping machine, bundling machine and case packer to form a production line.
Characteristics of Function
Product Paramenters
Main Technical Parameters | ||||
Encasing speed | 260 boxes /min | |||
Box | Quality requirement | 250-350g/㎡【Base on carton size】 | ||
Dimension range | （70-180）mm×（35-80）mm×（14-50）mm | |||
Leaflet | Quality requirement | 60-70g/㎡ | ||
Unfolded leaflet | （80-250）mm×（90-170）mm | |||
Fold range | 【1-4】Fold | |||
Compressed air | Working pressure | ≥0.6mpa | ||
Air consumption | 160-200L/min | |||
Power supply | 380V 50HZ | |||
Main motor power | 5kw | |||
Machine dimension(L×W×H) | 6800mm*1600mm*1860mm | |||
Machine weight | 3400kg | |||
