Product Overview

Description



300Mbps 2.4Ghz Outdoor CPE With SIM Card Slot
CPE2801 is one 4G CPE wifi router for outdoor use, it accesses the Internet through 4G mobile communication dial-up or 100Mbps WAN port,and then shares the Internet network through wireless WiFi 4 and 100Mbps wired LAN.


Noted, the listed price on the web is not including any 3/4G module.

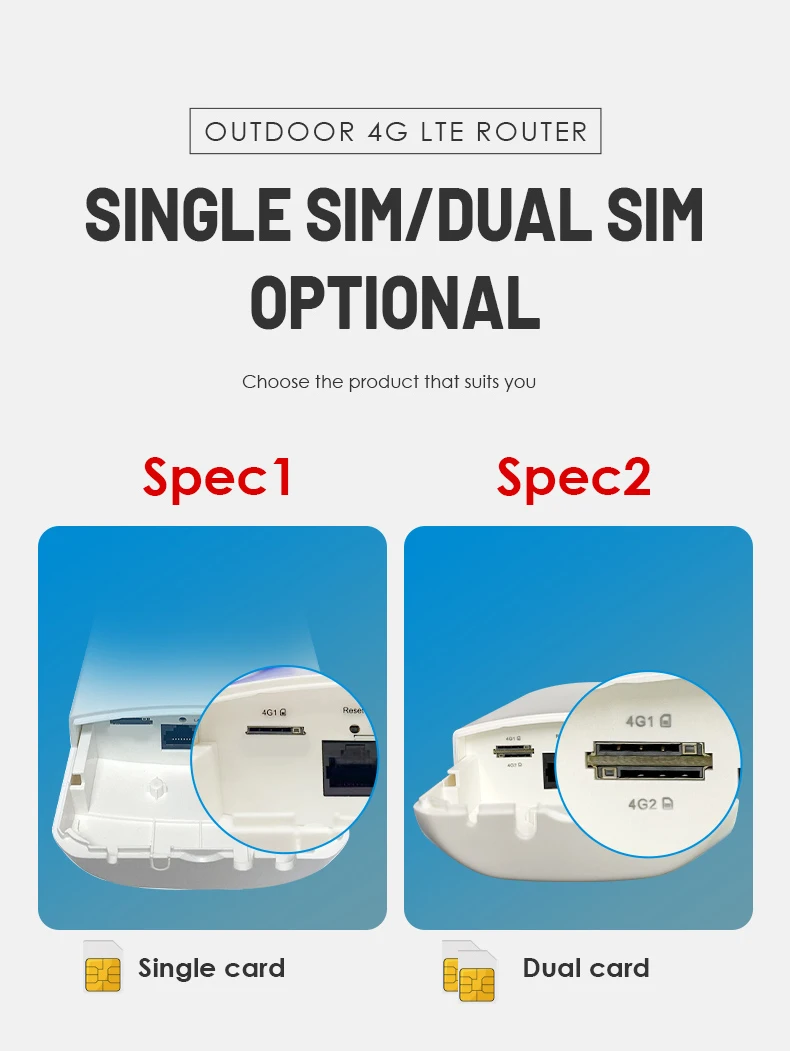

It has two versions,
One is 1*SIM and 1*Module
The other is 2*SIMs and 2*Modules




Adopt MT7628NN scheme，MIPS24KEc CPU，main frequency is up to 580MHZ;
MT7628NN chip integrated 2.4G WIFI ，WiFi speed up to 300Mbps;
Using high speed 128MB DDR2，16MB Nor Flash;
1WAN(Support IEEE802.3af、IEEE802.3at Standard POE), 1LAN full 100M
adaptive network port, support auto flip (Auto MDI/MDIX);
Support "one-key flashing mode", that is, long press the reset button to enter the rescue flashing mode;
Built-in 2pcs mini-PCIe or 2pcs LCC module interface，access 4G dial-up internet from USB2.0 bus;
For internal 2pcs mini-PCIe or LCC interface ， the power supply can be controlled by a independent GPIO;
Dual external NANO Sim card slot and dual internal eSim card slot, support SIM/USIM;
Built-in WiFi and 4G high gain omnidirectional antennas，wireless signal 360 degrees without dead angle;
Device support hardware watchdog function ,routing system would reboot in case of crash;




Chip
MT7628NN MIPS24KEc CPU, main frequency up to 580MHZ
2.4G WIFI chip
MT7628NNintegrated 2.4G WIFI
IEEE 802.11n/g/b,WiFi speed up to 300Mbps
Ram
DDR2 128MB
Flash
Nor Flash 16MB
Not support NAND Flash


Ports

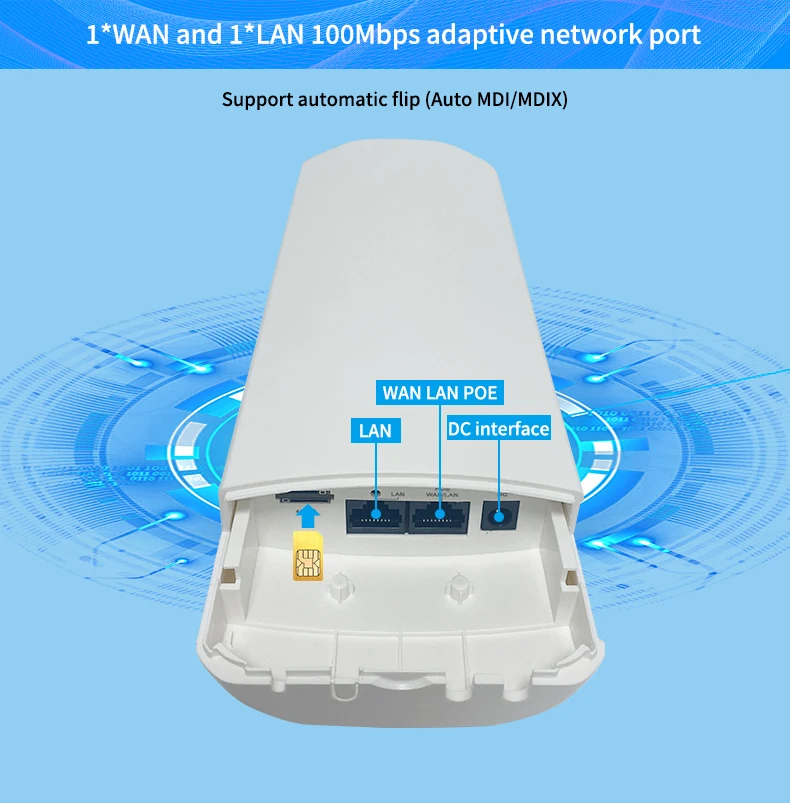

1 Wan port，100Mbps support auto flip(Auto MDI/MDIX)
IEEE 802.3/802.3u
1 Lan port，100Mbps support auto flip（Auto MDI/MDIX）
IEEE 802.3/802.3u
SIM card slot
2pcs external NANO SIM card slot and 2pcs internal eSIM(QFN-8 6mmx5mm),support SIM/USIM
DC power port
DC5.5*2.1MM
Button
1 Reset button
Antenna

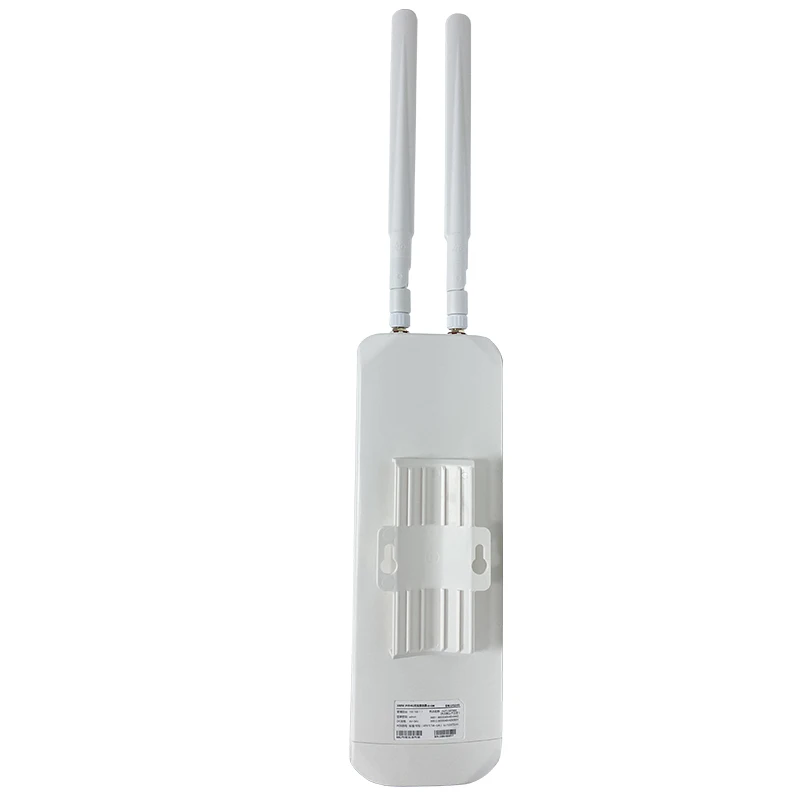

2pcs removable omni-directionl 5dBi 4G mobile communication antennas, comply with 3G/2G mobile communication
2pcs internal 4G 5dBi on-board PIFA antennas
2pcs internal WIFI on-board antennas
4Gmodule interface
2pcs internal mini-PCIe or LCC(alternative) interface, support USB2.0 bus


WAN LED
When connecting the WAN ports, the LED light will be always on, and the LED will flashing when there is data communication
LAN LED
When connecting the WAN ports, the LED light will be always on, and the LED will flashing when there is data communication
NET LED
If device connected internet, the LED will flashing when there is data communication
2.4G WIFI LED
LED light will be always on when 2.4G WiFi is working,will flashing when there is data communication; LED light off when 2.4G Wifi
not work or faulty
4G module 1 LED
LED light will will flashing when 4G mobile communication module 1 have data communication 4G; LED light off when 4G mobile
communication module 1 not detected or faulty
LED power
When connect power supply ,LED light will be always on;LED light off when disconnect power supply or faulty
4G module 2 LED
LED light will will flashing when 4G mobile communication module 2 have data communication 4G; LED light off when 4G mobile
communication module 2 not detected or faulty
