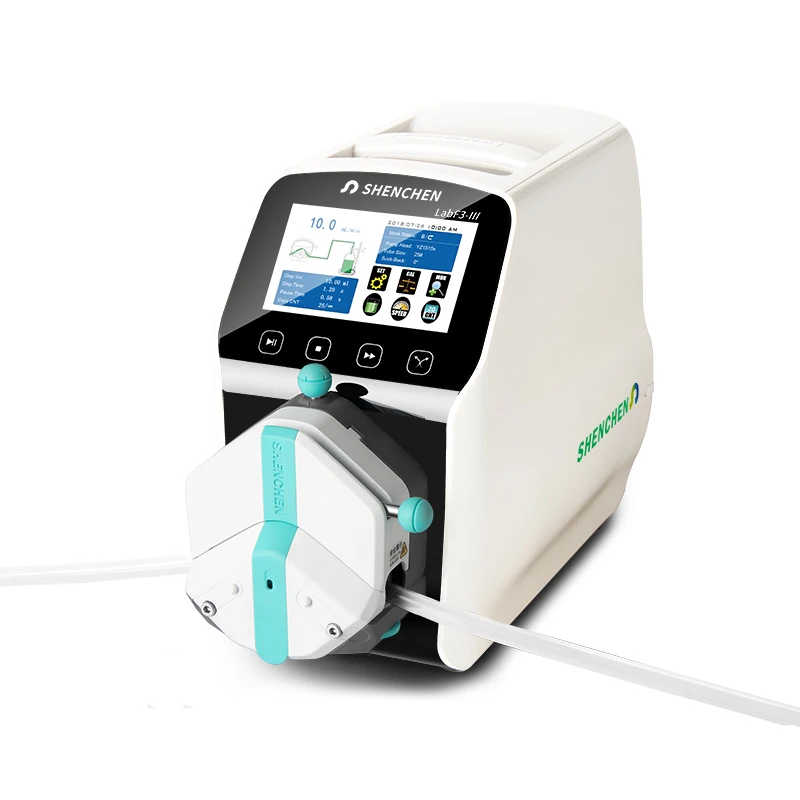

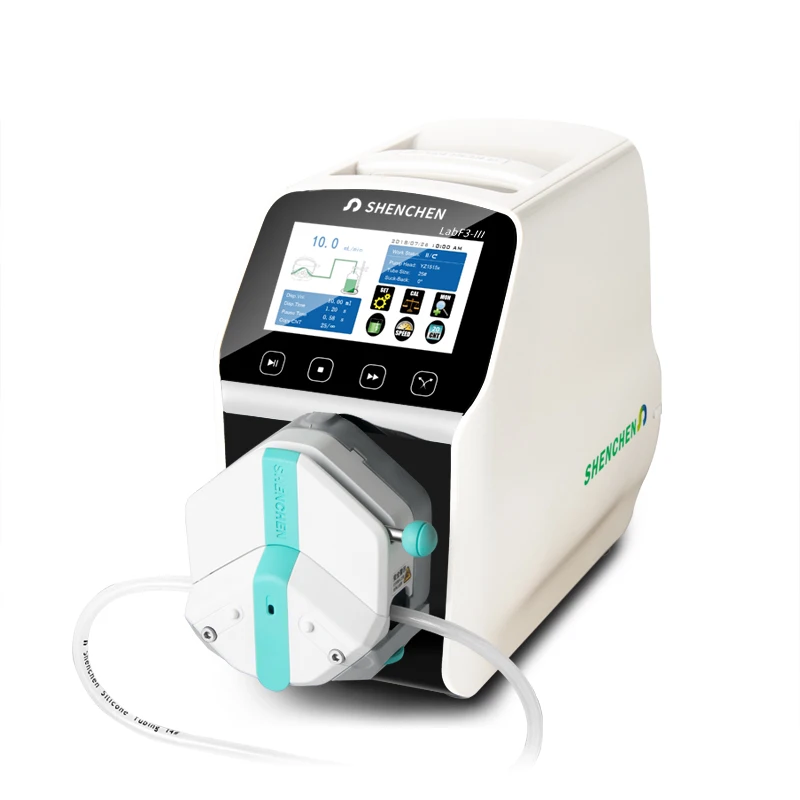

  • Shenchen LabF3 III Dispensing Flow Rate Pump 0.0053 1808ml/Min Laboratory Peristaltic Dosing Pump with Handling Dispenser
Shenchen LabF3 III Dispensing Flow Rate Pump 0.0053 1808ml/Min Laboratory Peristaltic Dosing Pump with Handling Dispenser
Shenchen LabF3-III Dispensing Flow Rate Pump 0.0053-1808ml/Min Laboratory Peristaltic Dosing Pump with Handling Dispenser
Shenchen LabF3-III Dispensing Flow Rate Pump 0.0053-1808ml/Min Laboratory Peristaltic Dosing Pump with Handling Dispenser
Shenchen LabF3-III Dispensing Flow Rate Pump 0.0053-1808ml/Min Laboratory Peristaltic Dosing Pump with Handling Dispenser
Shenchen LabF3-III Dispensing Flow Rate Pump 0.0053-1808ml/Min Laboratory Peristaltic Dosing Pump with Handling Dispenser

Shenchen LabF3 III Dispensing Flow Rate Pump 0.0053 1808ml/Min Laboratory Peristaltic Dosing Pump with Handling Dispenser

Share on (1600819499583):


Price:$993.00

Quantity:


Product Overview

Description



Product Description




LabF3-III Peristaltic Pump Features
● Imported 4.3'' industrial grade color LCD screen dispaly.
● Dispensing volume, dispensing time, pause time and copy numbers can be preset.
● Functions of intelligent calibration and online micro adjusting.
● ABS engineering plastic shell.
● The pump can store 60 commonly used filling modes.
● Back suction angle setting.
● Two dispensing modes: volume dispensing and speed dispensing.

Industry Application
● Pharmaceutical machine, filling machine supporting.
● Medicine, cosmetics, food and beverage dispensing.

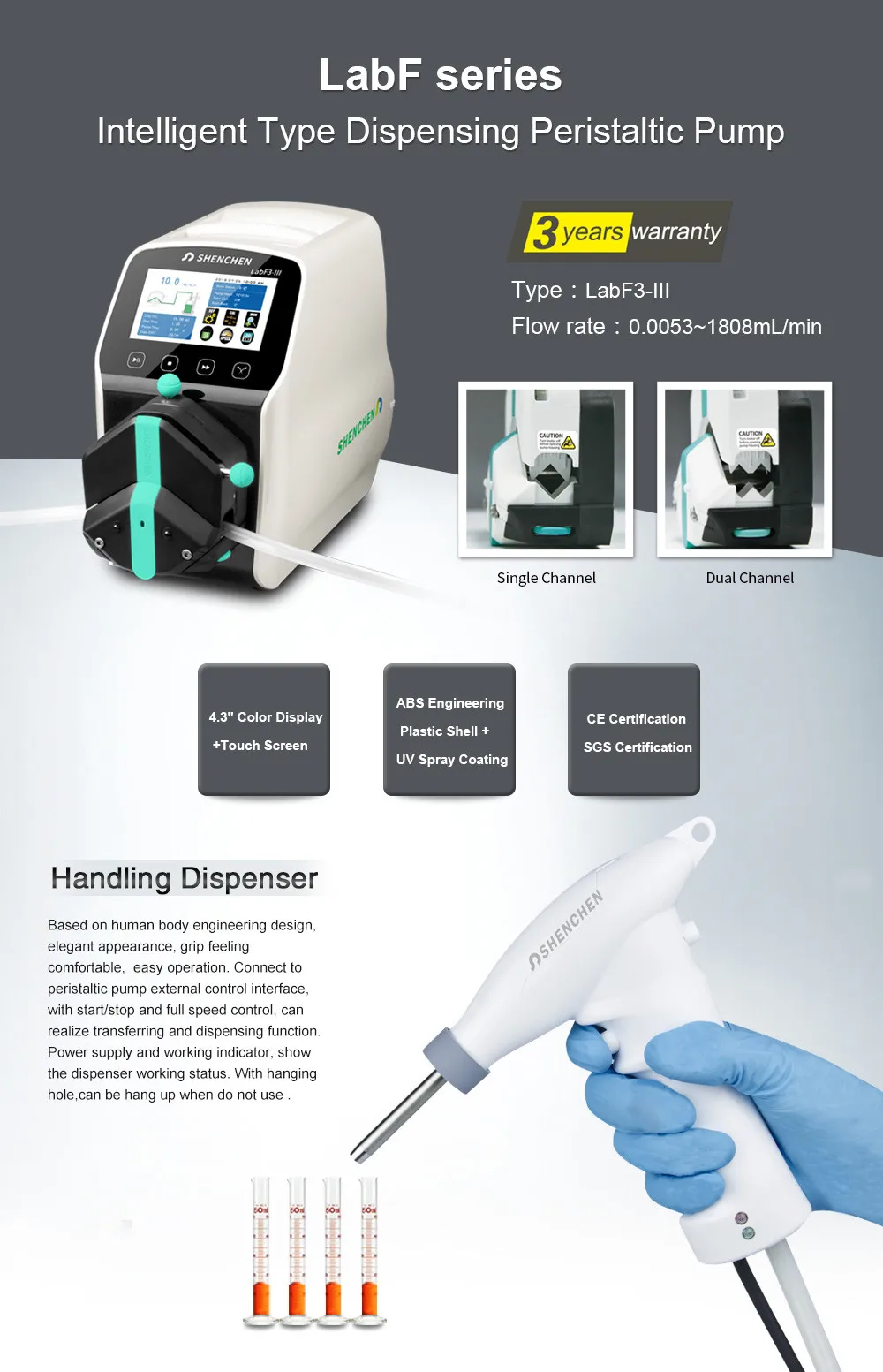

Product Introduction
LabF3-III intelligent type dispensing peristaltic pump, with ABS engineering plastic shell and add UV spray coating to have anti-static function. The working status, dispensing data, setting parameters and system configuration are displayed in the same screen. The pump can be connected with foot pedal switch or switch signal to realize remote control.

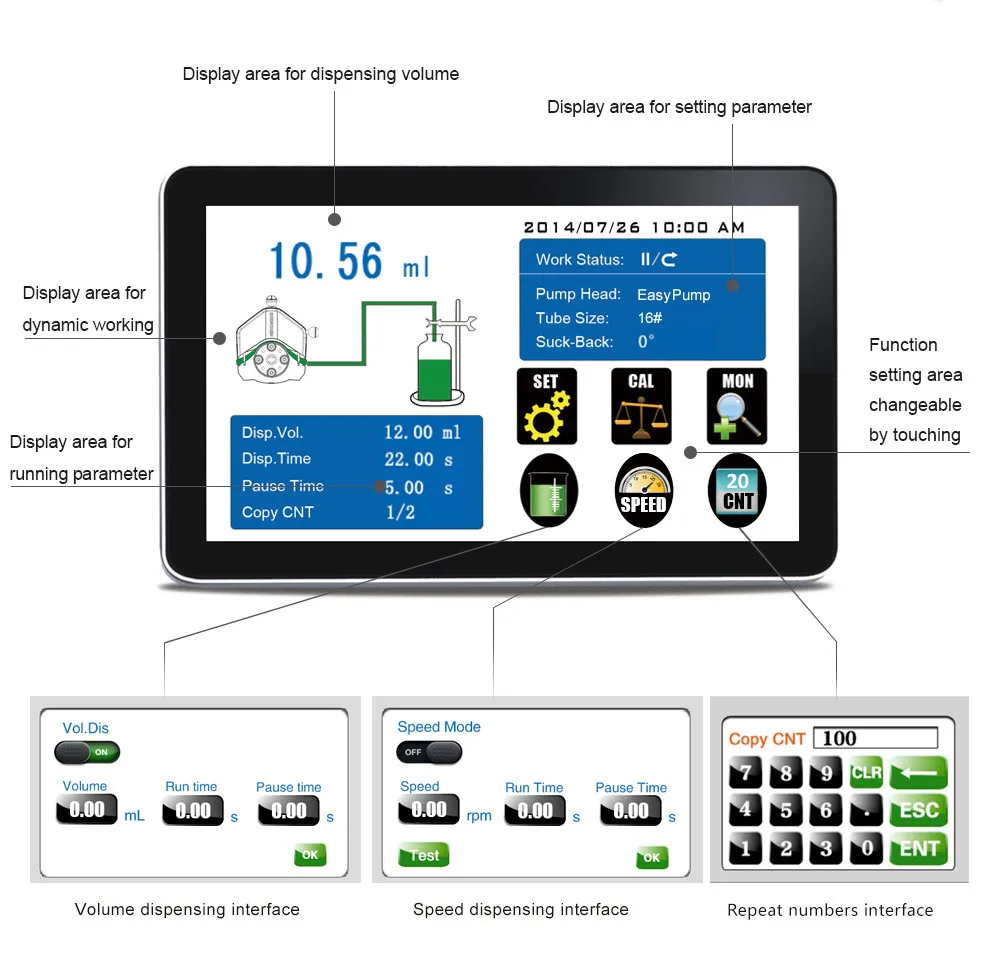

OSD

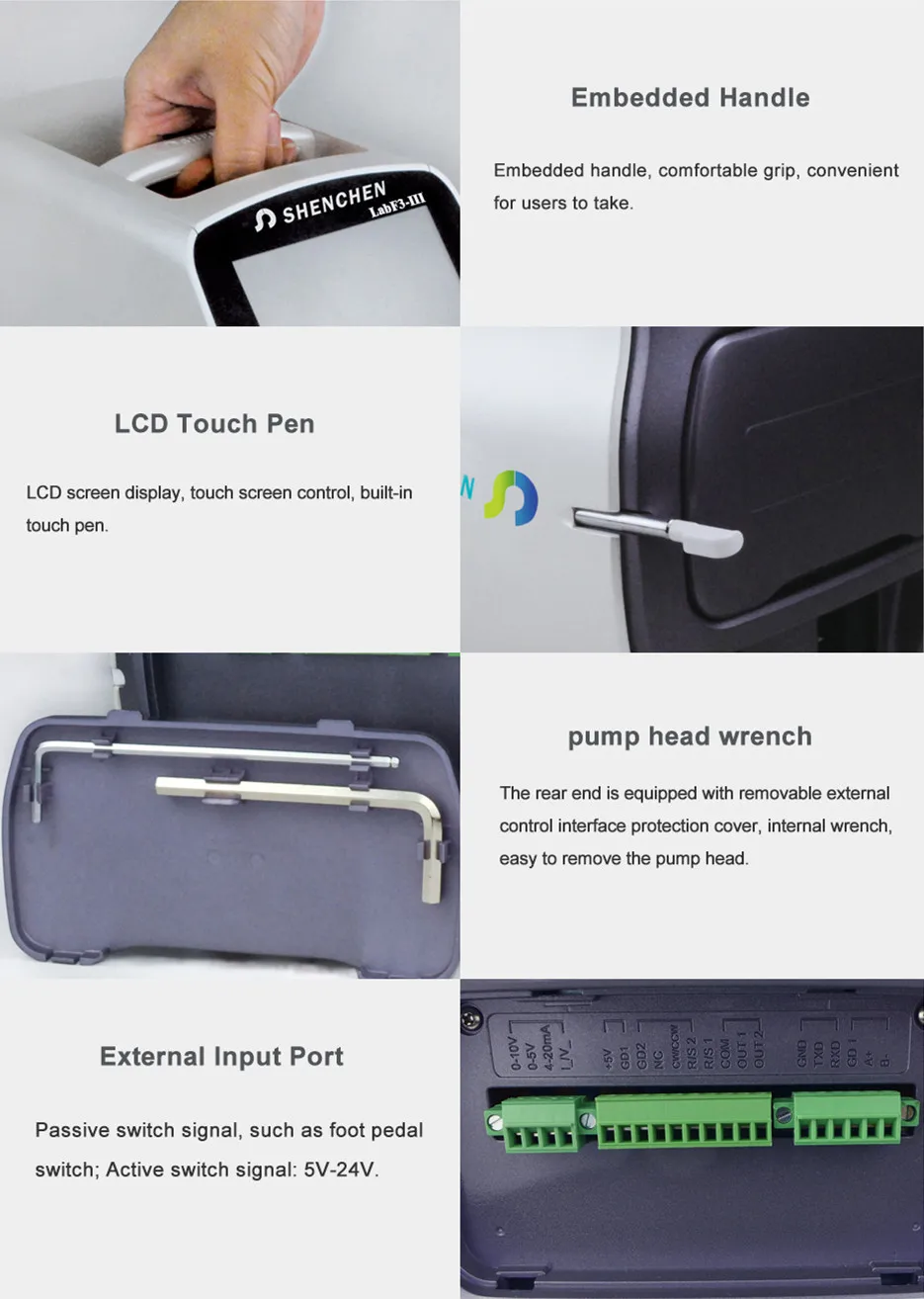

Detail

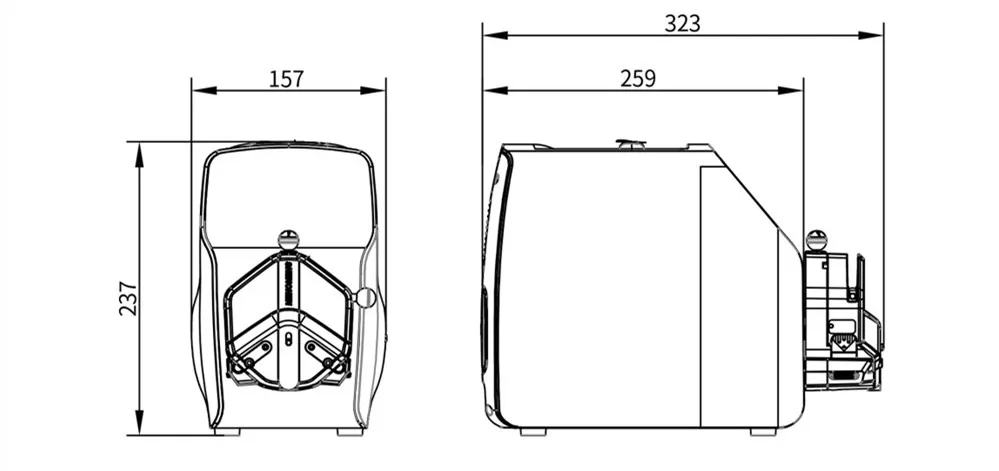

Product Dimension (unit:mm)

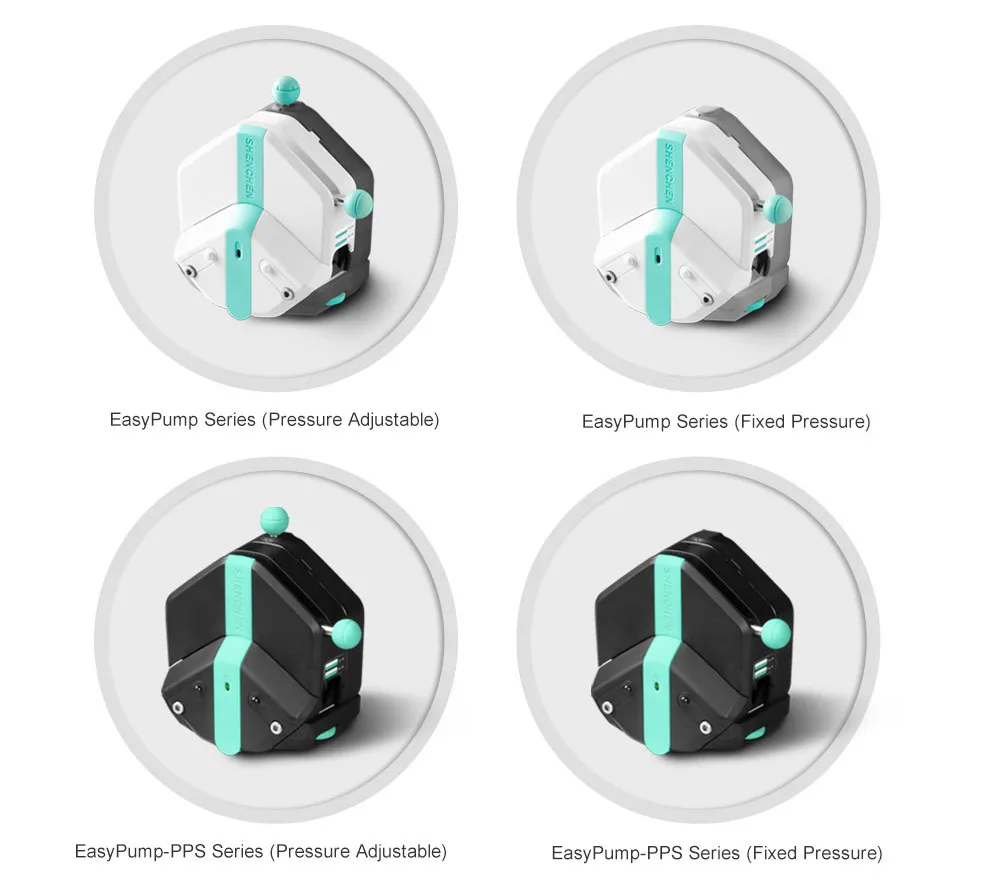

Pump Head





Pump Head


Pump Head

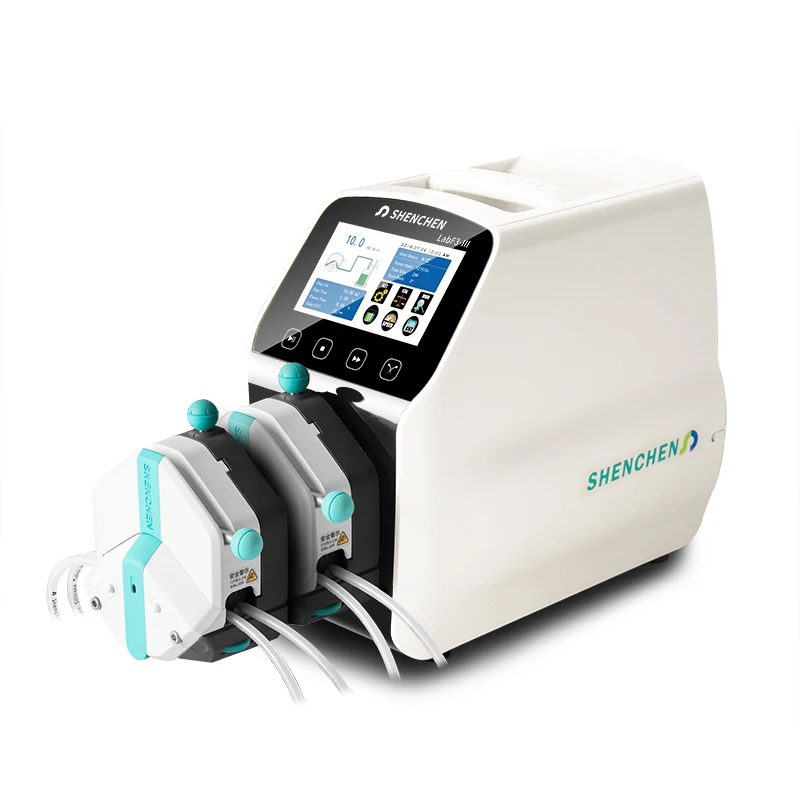

Single/Dual Channel
Tubing Wall Thickness(mm)
Pressure Adjustable
EasyPumpⅠ
Single channel
1.6
No
EasyPumpⅡ
Single channel
2.4
No
EasyPumpⅤ
Dual channel
1.6
No
EasyPumpⅢ
Single channel
1.6
Adjustable
EasyPumpⅣ
Single channel
2.4
Adjustable
EasyPumpⅥ
Dual channel
1.6
Adjustable


Product Parameters


Flow rate
0.0053~1808 mL/min
Speed range
0.1~350 rpm
Speed resolution
0.01 rpm
Dispensing volume range
0.01~9999.99 mL
Dispensing volume resolution
0.01 mL
Dispensing time
0.1-9999.99s
Pause time
0.1-9999.99s
Time resolution
0.01s
Copy numbers
1-9999 numbers, setting "0" means unlimited
Back suction angle
0-360°
Dispensing accuracy
﹤±0.5%
Motor type
Closed-loop stepper motor
Display
4.3 inch industrial grade true color display
Control method
Touch screen and mechanical keypad
Keypad lifetime
300,000 times
Start/stop, direction signal
Passive switch signal, such as foot pedal switch
Active switch signal: 5V, 12V, 24V for option
Output interface
Output motor working status (Open-collector output)
Communication interface
RS232, RS485 support MODBUS protocol (RTU mode)
Power supply
220V±10% 50Hz/60Hz (standard)
110V±10% 50Hz/60Hz (optional)
Drive dimension
259mm×157mm×237mm (L×W×H)
Dirve weight
4.40 kg
Power consumption
﹤80W
Environment temperature
0-40℃
Relative humidity
﹤80%


Related Products




Company Profile


Baoding Shenchen Precision Pump Co., Ltd. is a high-tech enterprise, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. We constantly research and develop advanced technology product and provide whole fluid solution program for our partners.





Shenchen Team is a young and innovative team, with research engineer, application engineer, sales and service team.

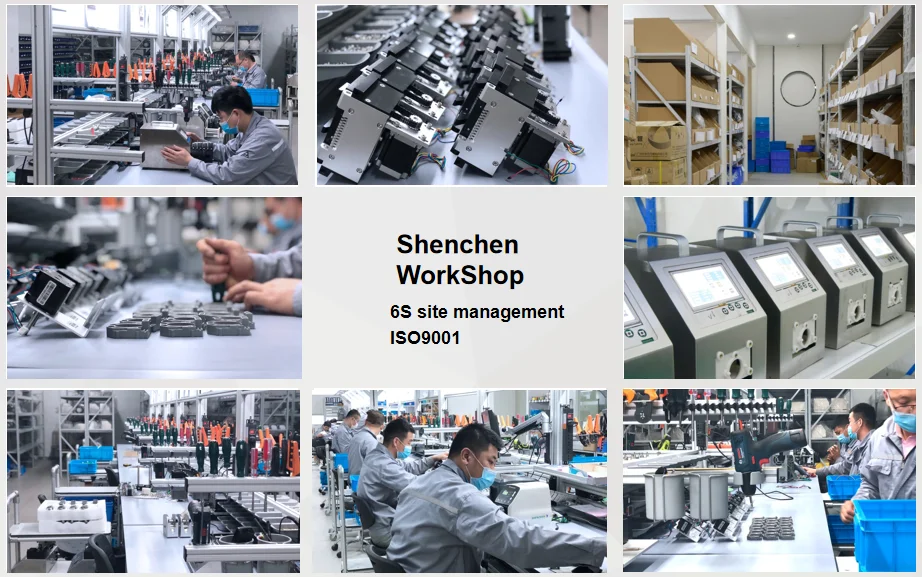

Shenchen Workshop
