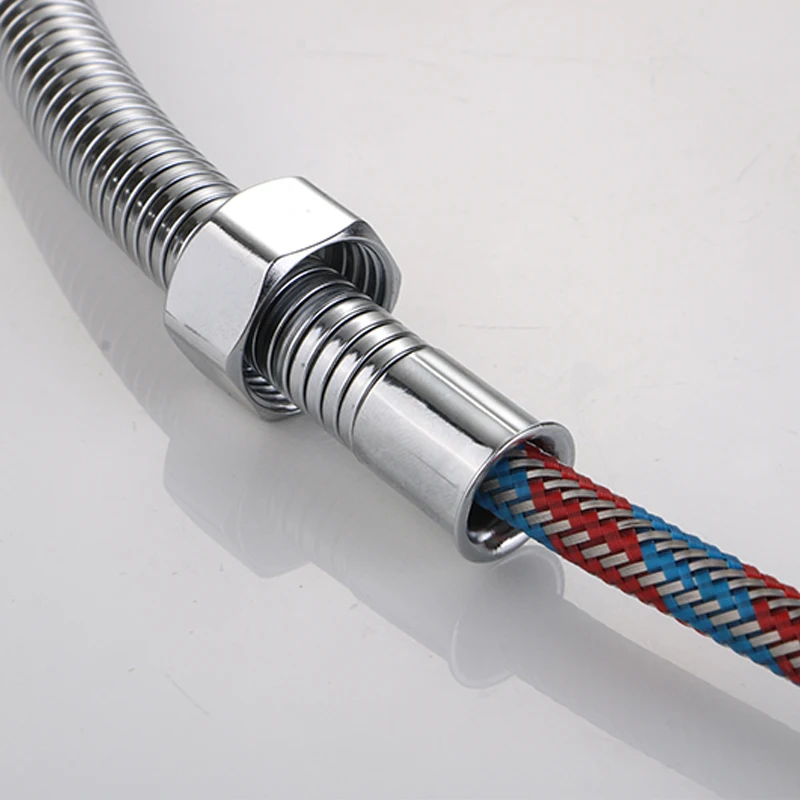

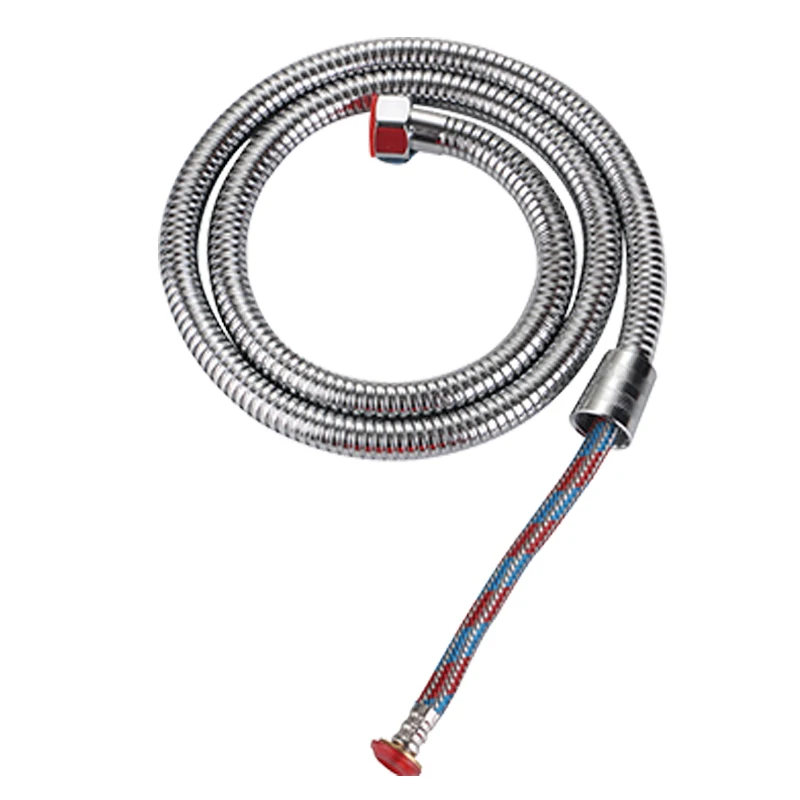

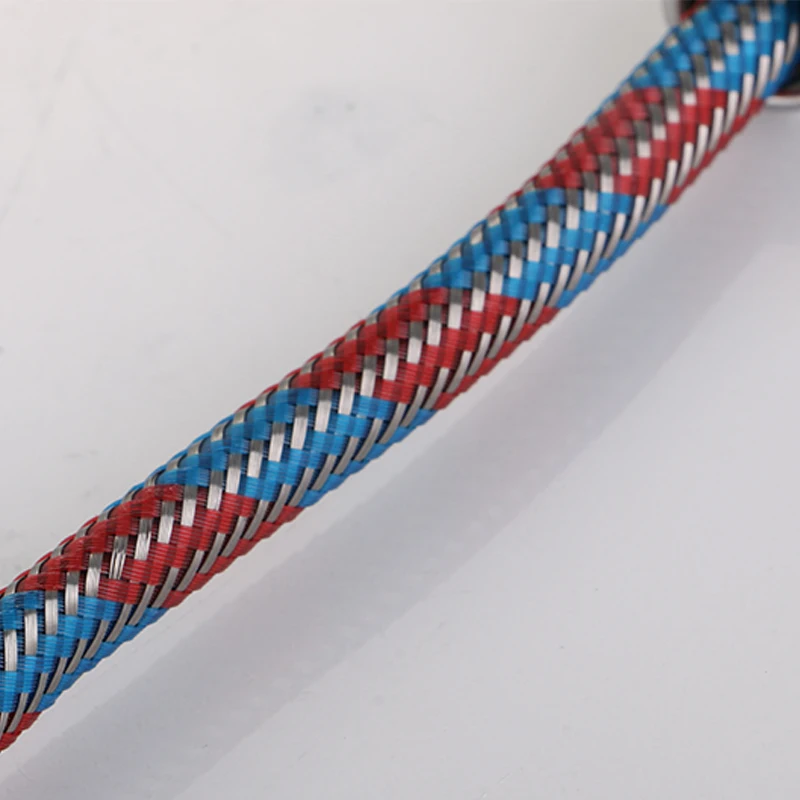

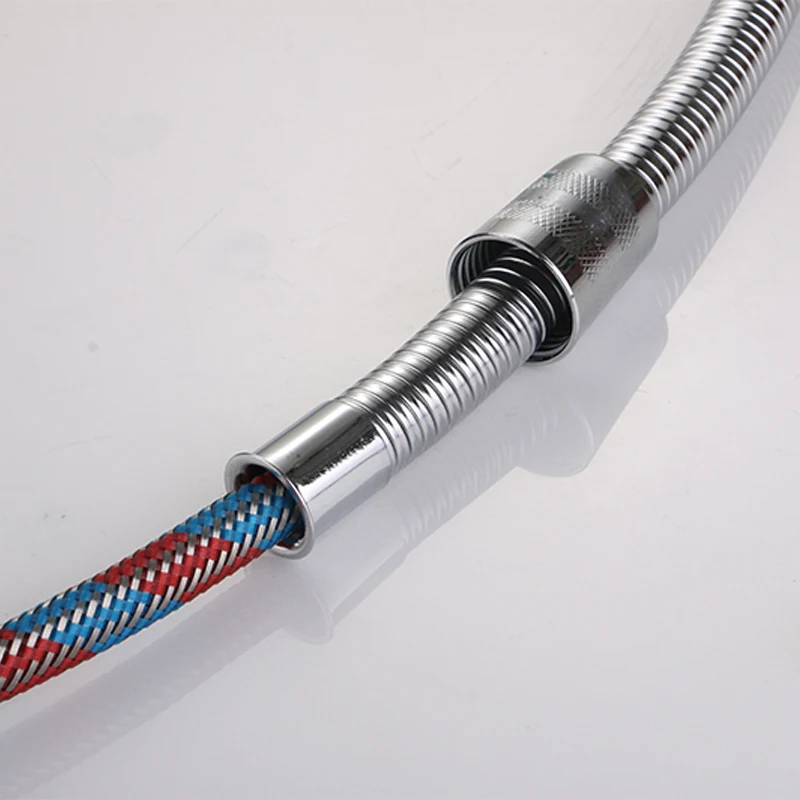

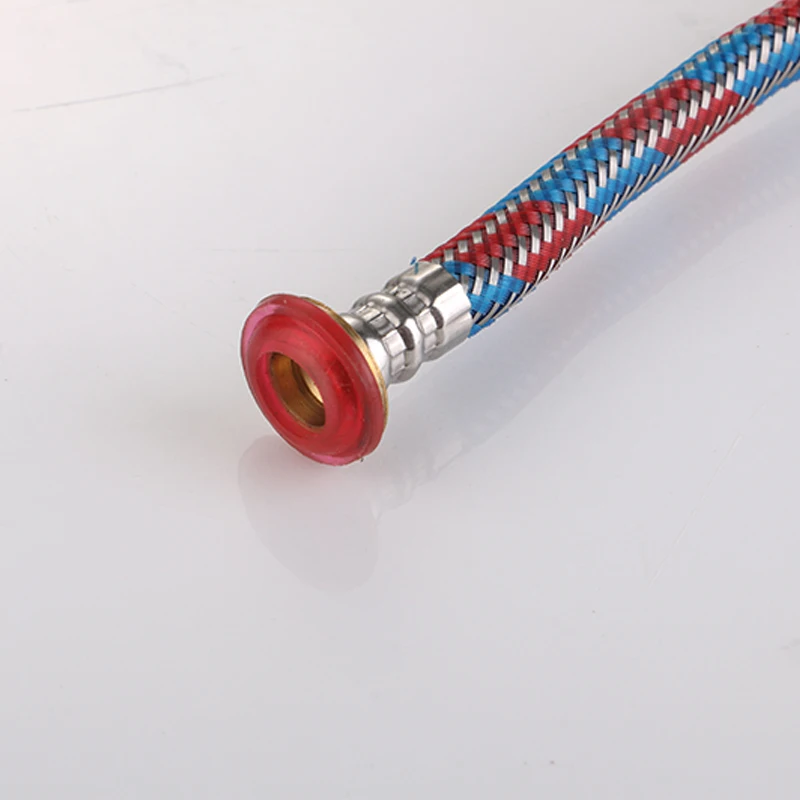

Stainless Steel Extractable Shower Hose with Braided Inner Tube
Technology Parameters Table
| Material | Outer Hose | SUS201 | SUS301 | SUS304 | Brass | |
| Inner Hose | EPDM | Rubber | PVC | |||
| Nut | Brass | SS | Zinc | Iron | Plastic | |
| Insert Core | Brass | Plastic | ||||
| Connector | Plastic | |||||
| Sleeve | SS | Brass | ||||
| Washer | NBR | Rubber | PVC | Silica Gel | ||
| Specification | Length | 120cm | 150cm | 175cm | 200cm | |
| Out Diamater | 13~20mm | |||||
| Nut Shape | Hex | Round | Conical | Knurling | O-ring | |
| Nut Size | F1/2" | F3/4" | M15×1" | |||
| Structure | Outer Hose | Double Lock | Single Lock | Segment | ||
| Extensible | No | Yes | ||||
| Extractable | No | Yes | ||||
| Rotational | No | Yes | ||||
| Surface Treatment | Chrome | Polished | Nickle | Golden | Bronze | |
| Feature | PN | 0.6~1.0 Mpa | ||||
| PB | 3.0~5.0 Mpa | |||||
| Temperature | -20~120 °C | |||||
| Packing | Inner Packing | Polybag | Blister | as Customers' Request | ||
| Outer Packing | Standard Carton | |||||
| Measurement | 120CM | 45×33×23 CM | ||||
| 150CM | 48×33×23.5 CM | |||||
| 200CM | 48×33×27.5 CM | |||||
| Salt Spray Test | 96 hours | |||||
| Tensile Strength | 50 Kgs | |||||
| Certification | ACS | |||||
We are a professional flexible hose manufacture, all our products can meet latest Europe regulations and standard in chemicals. We enjoyed our good reputations both in China and many other countries because of steady qualities and competitive prices.
We are looking forward to a more successful future together with you.
Pls feel free to contact us for further information
