Industrial PCB Automatic Stencil Vacuum plasma cleaning machine/plasma cleaner/Plasma Surface treatment

Share on (1600819560780):


Price:

Quantity:


Product Overview

Description


SMT PCB surface cleaning machine/wash machine/wash PCB machine


pcb cleaning machine2.jpgpcb cleaning machine1.jpg89.jpg


2pcbcleaing machine (2)3 pcb cleaning machine4 pcb cleaning machine


1clean 5.jpg



Product Description

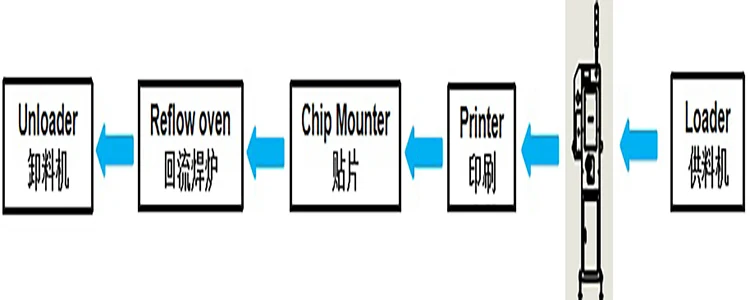

 Online automatic PCB cleaning machine is suitable for online cleaning small debris, dust, fiber, hair, skin debris, metal particles and other foreign matters on the surface of PCB pad before solder paste printing or glue coating, to ensure that the surface of PCB is in a clean state, and eliminate poor welding such as virtual soldering, empty soldering, warping and skewing in advance, so as to reduce hidden dangers and improve product quality.Develop and design special equipment according to PCB cleaning requirements. Standard equipped with electrostatic removal function, completely eliminate electrostatic interference. Contact cleaning method, the cleaning rate is more than 99%, to ensure efficient, stable and lasting cleaning effect









































































Item


Specification


Model


YFX-460C


Overall dimension (mm)


890mmX550mmX1400mm


PCB Size (mm)


50*50 -450*460


Working height


920±30 (std)


Power


AC220V±10V.50/60Hz


Pressure and flow


4-6 bar,Up to 10L/min


Drum speed


0.5-20m/min


Ionizer Function


2 set (Option)


Brush


1 set


Dust roller


2 set


Dust paper roll


1 set


Width adjustment


Manual


Fixed edge


Front (back -optional)


Transmission direction


Left→right
right → left (Optional)


Weight


160kg
