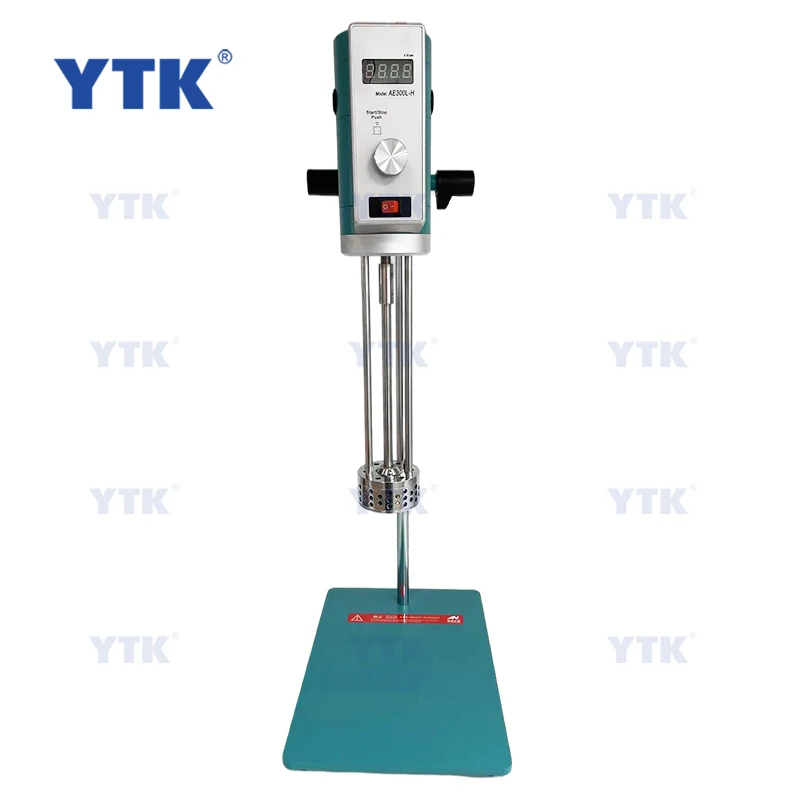

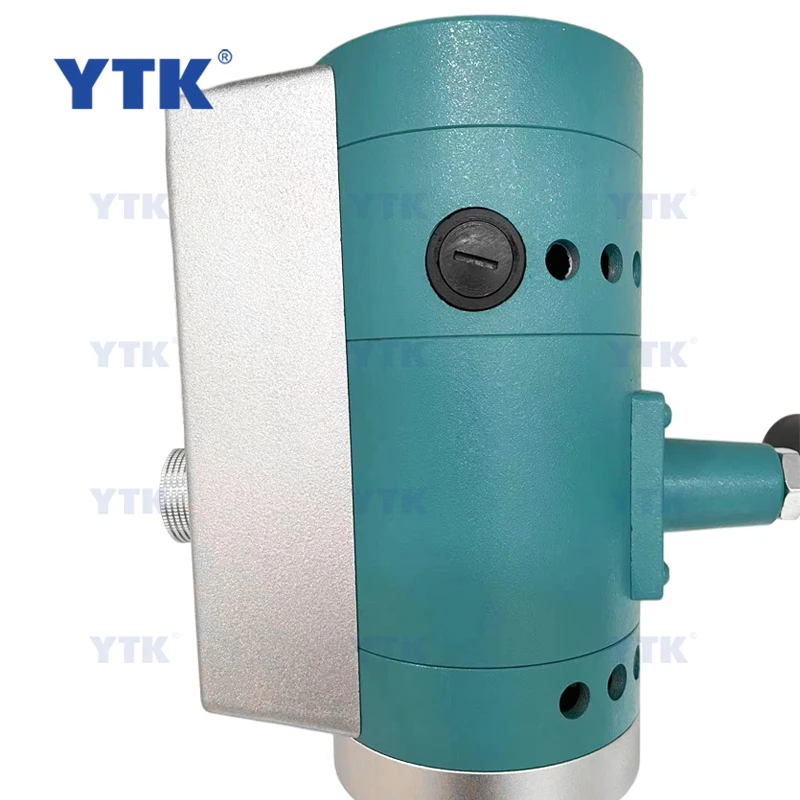

YTK AE300L H Laboratory High Shear Dispersion Homogenizer
- Category: >>>
- Supplier: Shenzhen Yason General Machinery Co. Ltd.
Share on (1600819600962):
Product Overview
Description
Product Description
YTK-AE300L-H laboratory shear emulsifying machine with compact structure series miniature high-speed motor driver, suitable for lab or pilot plant of low to medium and high viscosity liquid mixing, crushing particle material shearing emulsification in liquid medium.

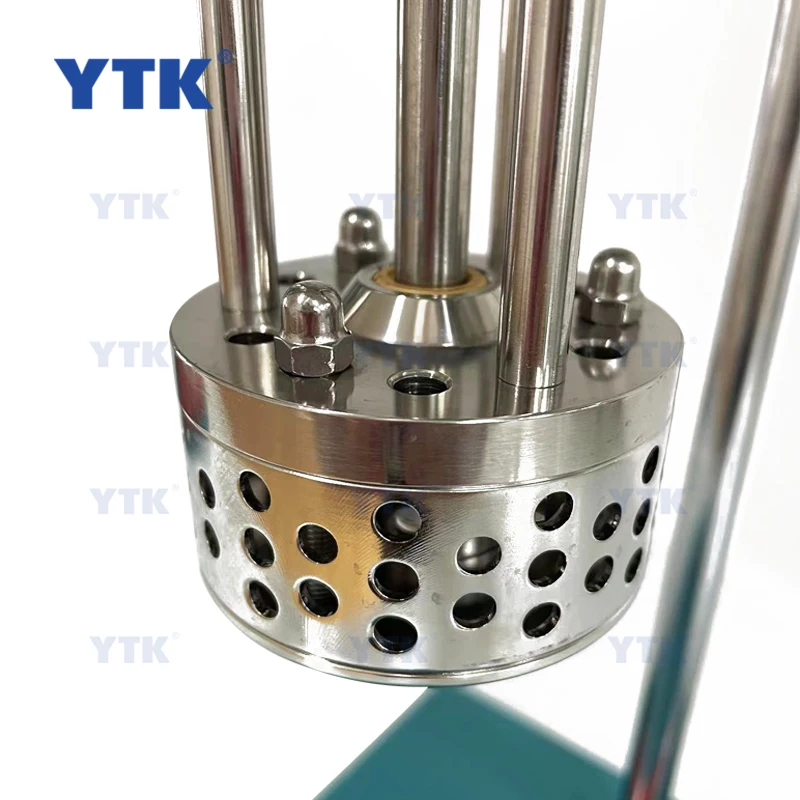

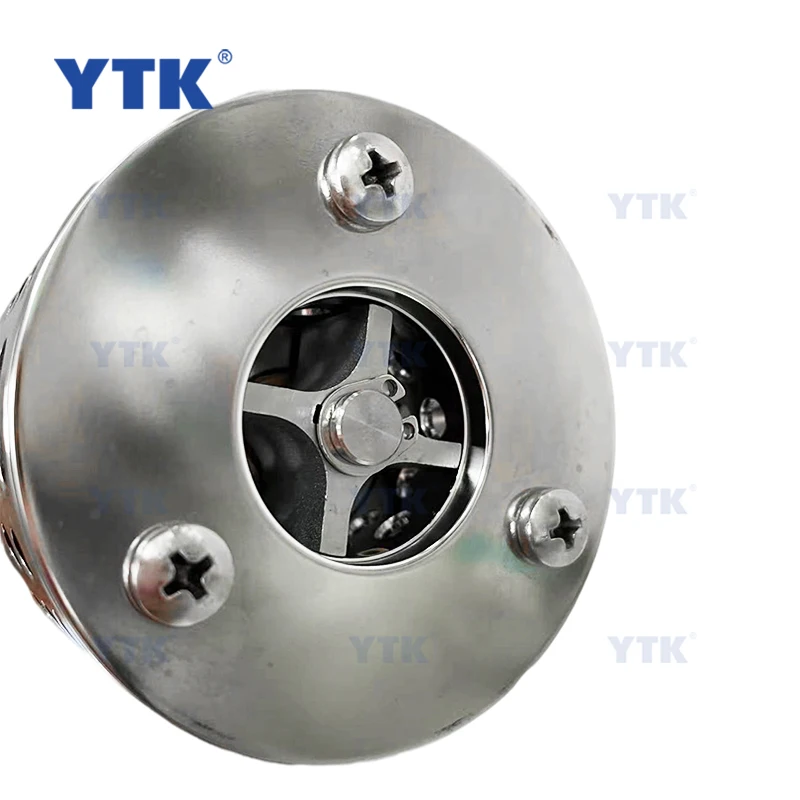

The machine by high die casting aluminum alloy for the drive motor, the high quality stainless steel refined shear emulsifying work head and speed controller, etc.
Speed controller adopts IC speed detection constant power speed regulation technology, instantly effective compensation because of load change and the power supply voltage fluctuation caused by the speed of change.

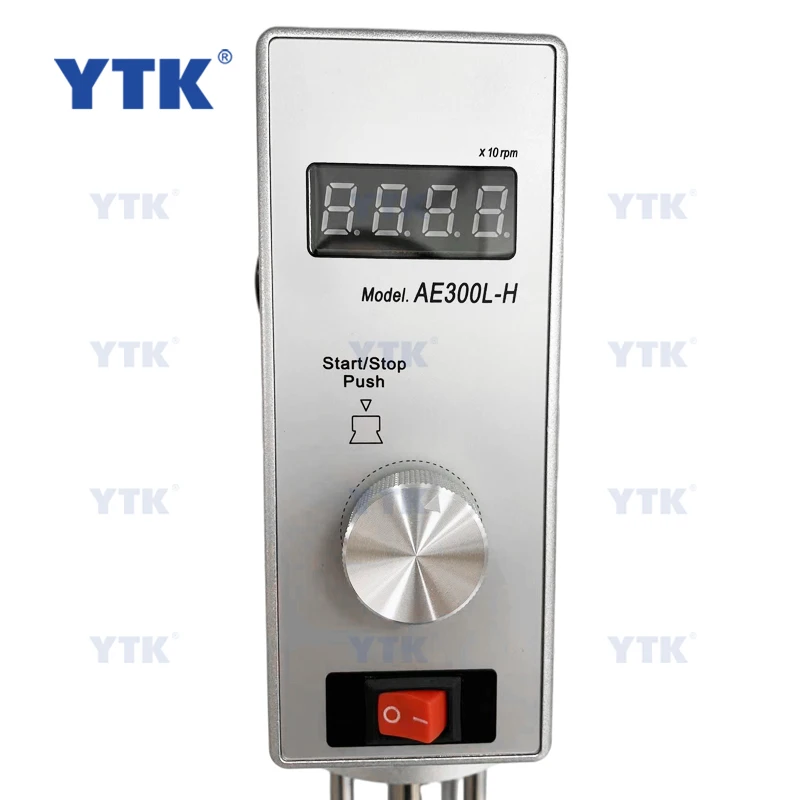

Speed display intuitive digital operation, the operation speed according to the experiment set arbitrary, with soft start, automatic overload protection, compensation, all the constant speed mixing experiment effect is ideal, convenient data acquisition.
The machine by high die casting aluminum alloy for the drive motor, the high quality stainless steel refined shear emulsifying work head and speed controller, etc.
Speed controller adopts IC speed detection constant power speed regulation technology, instantly effective compensation because of load change and the power supply voltage fluctuation caused by the speed of change.
Speed display intuitive digital operation, the operation speed according to the experiment set arbitrary, with soft start, automatic overload protection, compensation, all the constant speed mixing experiment effect is ideal, convenient data acquisition.
Product parameters
Model | YTK-AE300L-H |
Rated voltage | AC 220 V |
Rated Frequency | 50/60 Hz |
Input power | 510 W |
output power | 300 W |
Rated torque | 22.1 N.cm |
Working system | S1 (continuous) |
Operation control mode | Combined control knob |
Rotating speed adjustment range | 2000~13000 rpm |
Speed Control Type | Stepless |
Speed Digital Display | LED |
Timing control range | 1~1000 min |
Dynamic speed detection function | YES |
Speed Memory Function | YES |
Overload protection function | YES |
Maximum Torque of Working Head | 22.0 N.cm |
Maximum Linear Speed of Rotor | 19 m/s |
Head Material | AISI 304 |
Diameter of working head | 70 mm |
Minimum immersion liquid height | 50 mm |
Maximum immersion liquid height | 236 mm |

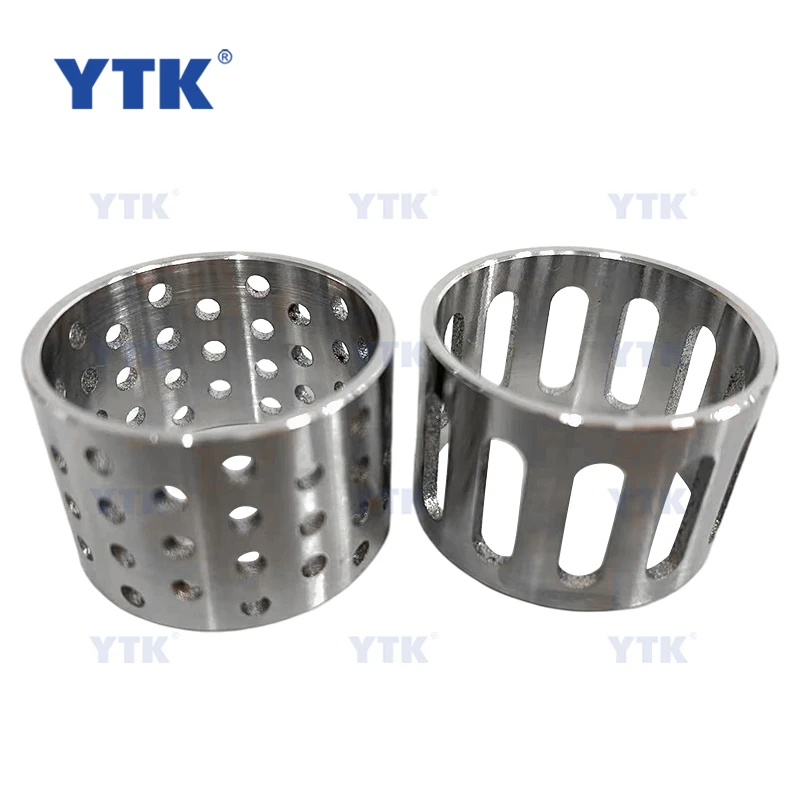

Stator standard configuration | 5mm² 20 mm² 50 mm² |
Mixing capacity (H2O) | 500 ~ 40000 ml |
Maximum Processing Viscosity | 8000 mPa.s |
Permissible ambient temperature | Not more than 40 ℃ |
Permissible relative humidity | Not more than 80 % |
Size of mixing (T x B x H) | 215×310×720 mm |
Weight | 10 kg |
