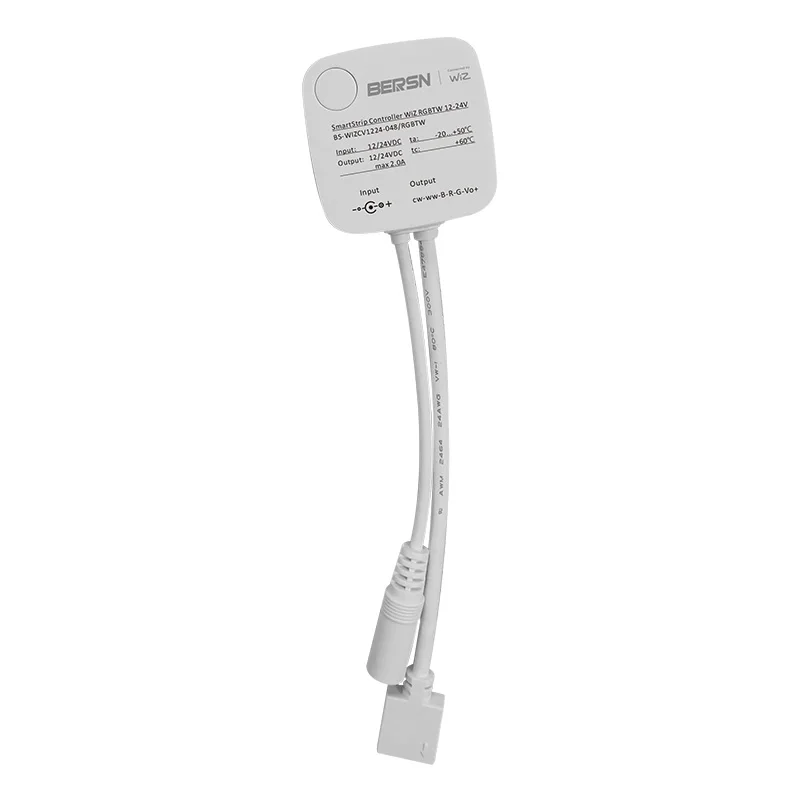

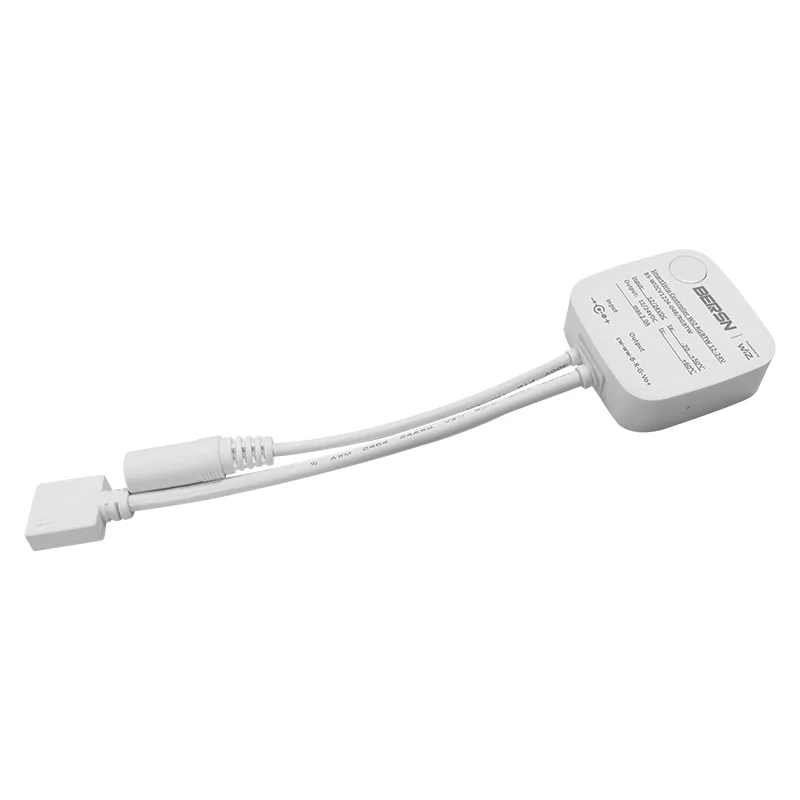

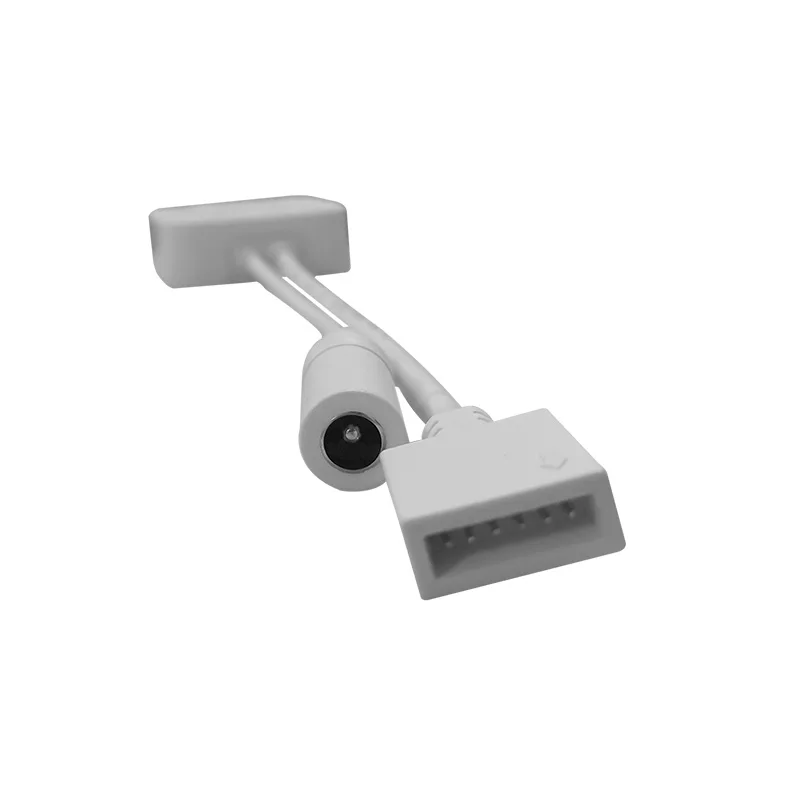

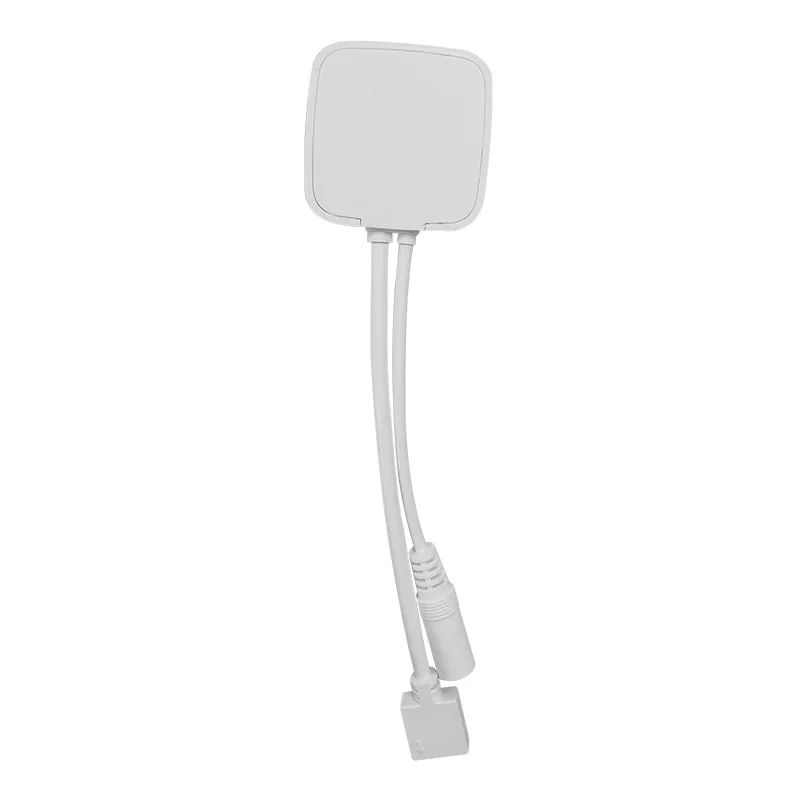

SmartStrip Controller RGBTW 12-24V
BERSN RGBTW controller can work with RGBCW LED Strip to enable color and tunable white control features. It enables simple, cost effective wireless lighting system for energy saving and comfort.




Features
* PWM dimming method with 5 channel outputs

* Suitable for both independent and built-in usage

* Energy metering feature with 10% accuracy

* Max 48W output load

* Wi-Fi + Bluetooth dual protocol module which enable local Bluetooth messages for installation and connectivity to WiZ cloud over Wi-Fi network



Specification
Item
SmartStrip Controller RGBTW 12-24V
Model No.
BS-WIZCV1224-048/RGBTW
Rated input voltage
12…24Vdc
Rated input current
2A @ Max output power
Max input power
48W @ Max output power /@ Max Rated input voltage
Rated output current
2A max total
Standby power
<0.5W @ Rated input voltage
ESD
4KV @ HBM, 8KV @ air
Dimming method
PWM, 2KHz
Dimming range
0-100%
Ambient temperature
-20…+50ºC
Tcase-life
75ºC
Lifetime
50,000 hrs
Mains switching cycles
100,000 Cycles
Connection
Wi-Fi IEEE802.11 b/g, BLE 4.2
Audible noise
<24 dB @ 5cm
Ingress Protection
IP20
Approval Marks
CE-RED








FAQ


Q1. What about the lead time ? A. Sample needs 3-5days, mass production time needs 1-2 weeks for order quantity more than.

Q2. Do you have any MOQ limit for order ?
A. Low MOQ, 1pc for sample checkjing is available

Q3. How do you ship the goods and how long does it take to arrive ?
A. We usually ship by DHL, UPS, Fedex or TNT takes 3-5days to arrive. Airline and sea shipping also optional.

Q4. Is it OK to print my logo on product ?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5. Do you offer guarantee for the products ?
A. Yes, we offer 5 years warranty to led street light.
