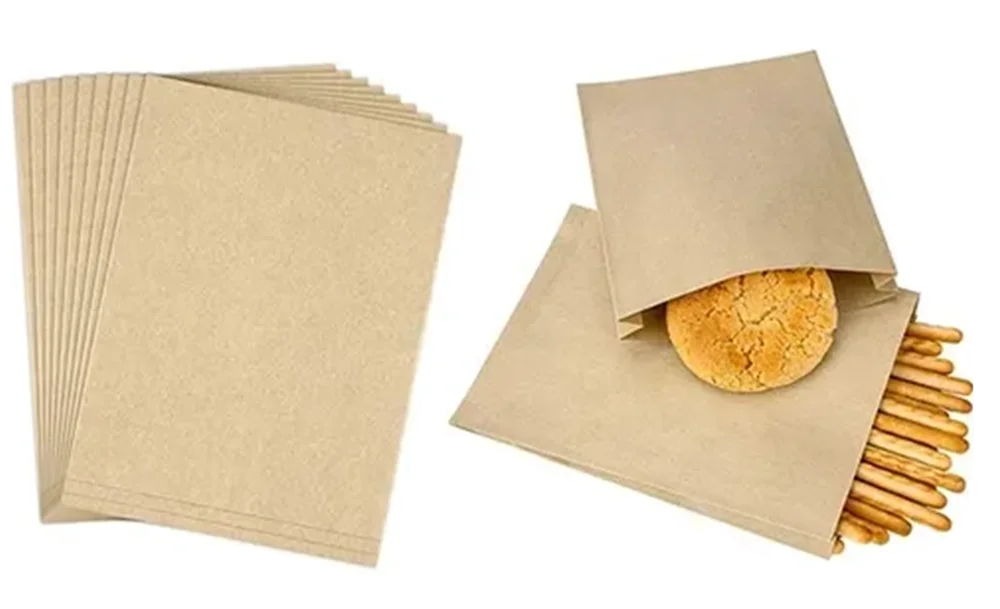

RZJD 250 bag Max size 450*250*120mm Easy to operatePrecise foot kraft v bottom paper bag machine
- Category: >>>
- Supplier: Wenzhou Ruizhi Packing Machinery Co. Ltd.
Share on (1600819611100):
Product Overview
Description
Enterprise Exhibitor Information
Product Paramenters
Mechanical parameters
Model | RZJD-G250 |
Length of cutting bag | 110-460mm |
Bag length | 100-450mm |
Bag width | 70-250mm |
Insert size | 20-120mm |
Bag mouth height | 15/20mm |
Bag speed | 50-320pcs/min |
Paper feed width | 160-780mm |
Paper material diameter | Φ1000mm |
Inner diameter of paper | Φ76mm |
Paper material thickness | 35-80g/m² |
Working Air Current | More than 0.12m³/ minutes, 0.5-0.8MPa |
Machine power | 380V3相(phase)4线(wire) 24kw |
Total weight | 4500kg |

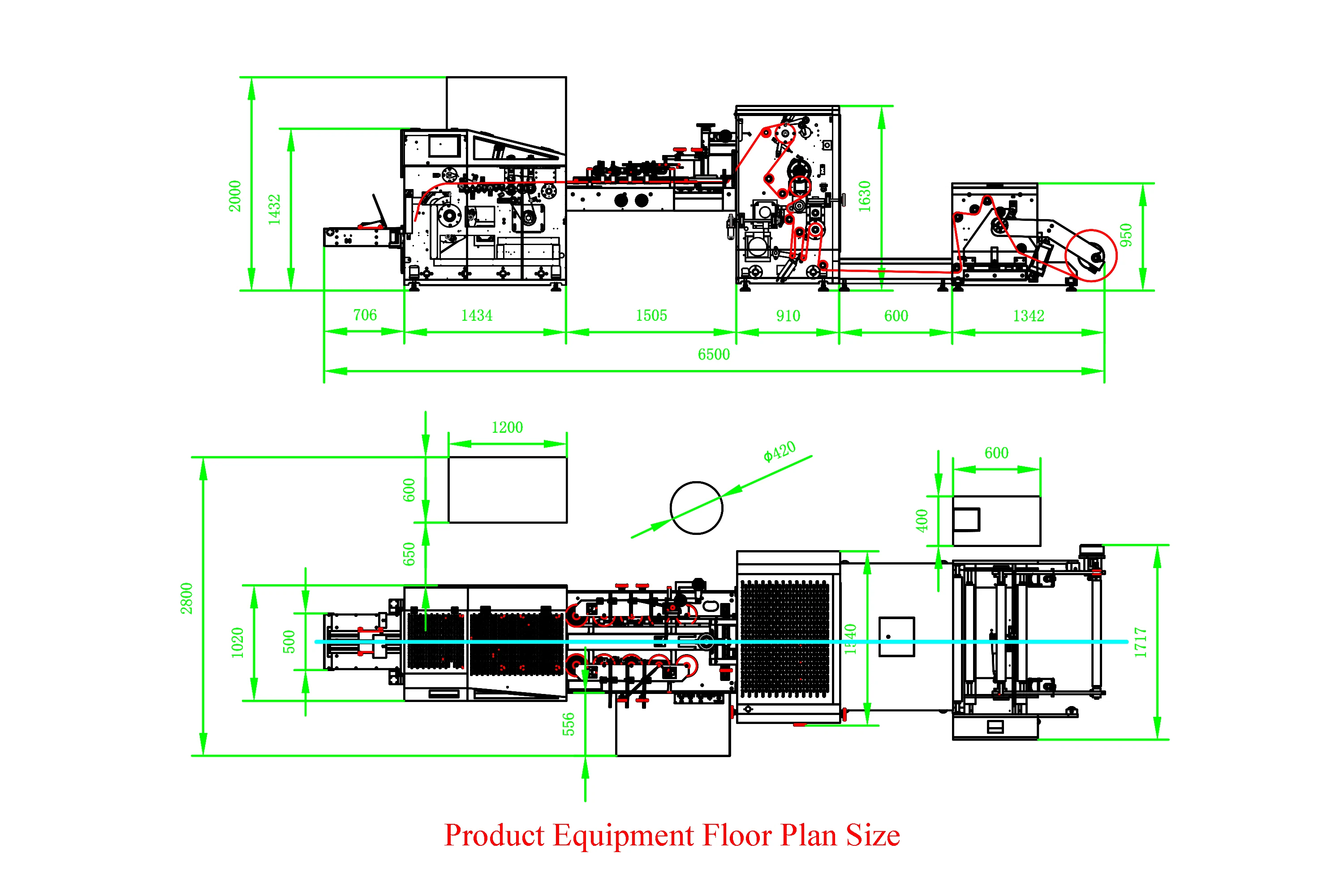

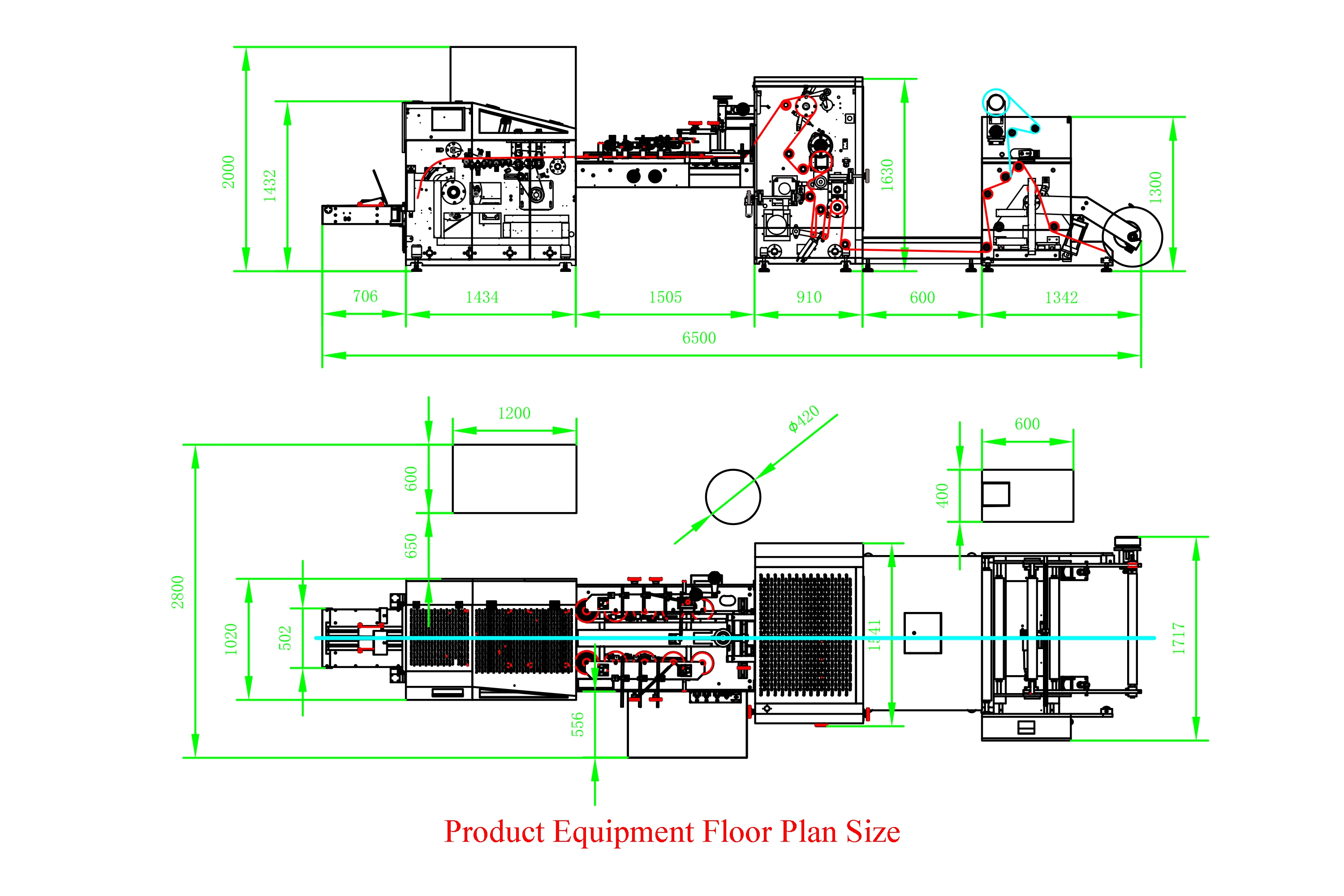

Machine Dimesion | 7100x3000x2200mm |
Main Electrical Components List
Control System | ||||||
Name | Qty | Place of Origin | Brand | |||
Programmable Logic Controller | 1 | England | TRIO | |||
Touch Screen | 1 | France | SCHNEIDER | |||
Servo Motor | 3 | Japan | YASKAWA | |||
Servo Driver | 3 | Japan | YASKAWA | |||
Encoder | 1 | Germany | Posital | |||
Main Motor | 2 | Taiwan | HOUSIN | |||
Frequency Converter | 2 | Switzerland | ABB | |||
Photoelectric Eye Color Code Tracking | 1 | Germany | SICK | |||
Positioning Photoelectric Eye | 1 | Germany | SICK | |||
Low Voltage Electrical Apparatus | 1 | US | EATON | |||
Deviation correction / tension control system | ||||||
Name | Qty | Place of Origin | Brand | |||
Epc | 1 | Taiwan | Pasource | |||
Rectification Motor | 1 | Taiwan | Pasource | |||
Infrared Induction | 1 | Tanwan | Pasource | |||
Automatic Constant Tension Controller | 1 | England | TRIO | |||
Tension Magnetic Powder Brake | 1 | Taiwan | WEIZHENG | |||
Products Description
Properties and Uses

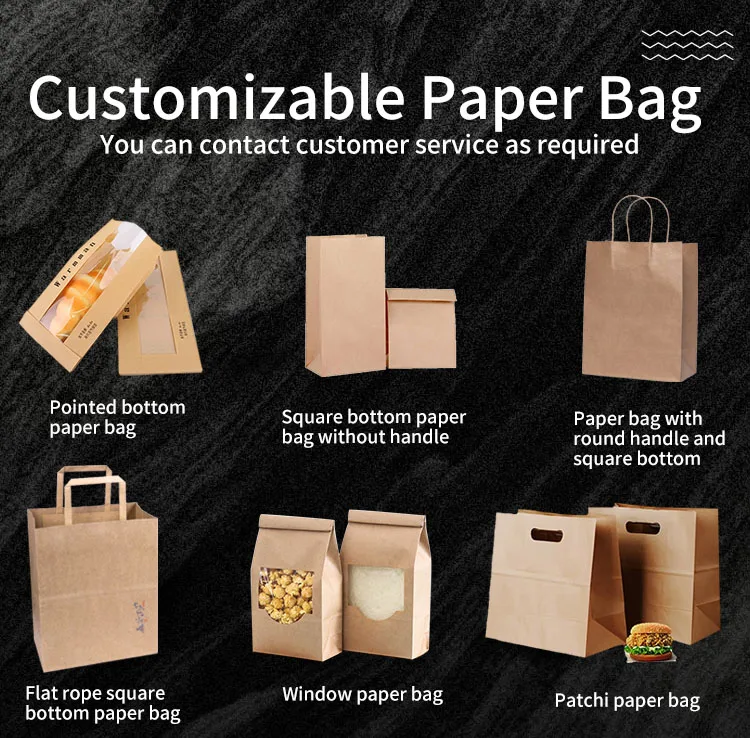

The machine for reel original colored paper or drum paper printing, such as kraft paper, glossy paper, medical paper roll consists of a paper bag process by puncture, center glue, color code length, raw material into a tube, set off long retreat, bottom fold bottom, bottom glue. Pocket bottom forming, complete finished bag finishing a. The machine operation more convenient, more efficient, more stable is in the production of a variety of different paper bags, fenestration bread bags, leisure food bag, bag of bread, dried fruit bags and so on environmental paper bag paper bag machine equipment.

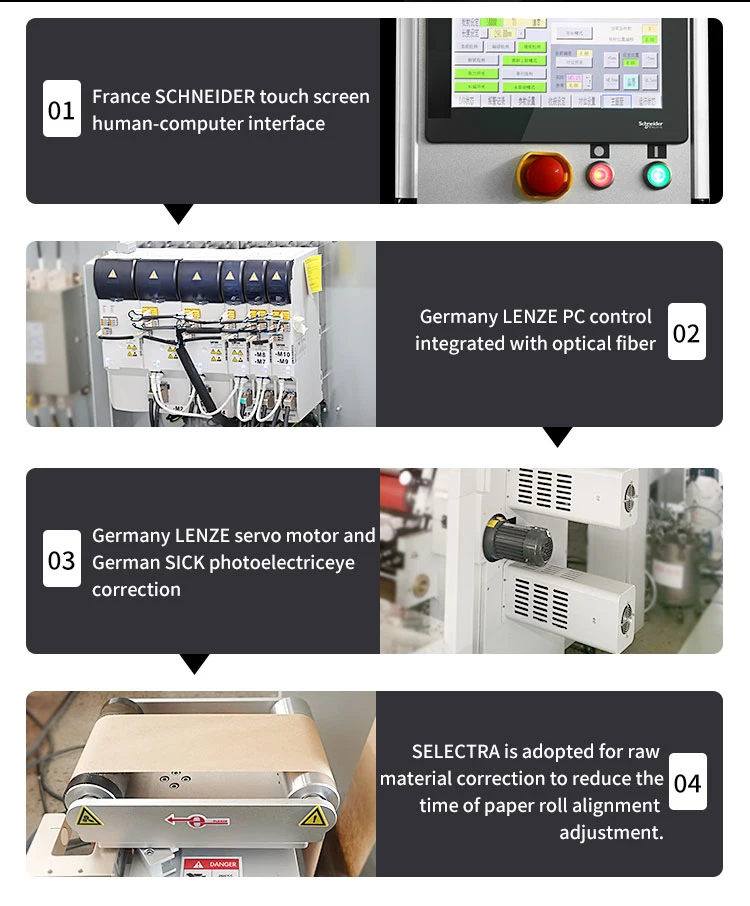

Main features
1.Use France SCHNEIDER touch screen human-computer interface, making the machineeasy to operate and control.
2.Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensurestable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectriceye correction, tracking printing bag accurately.
4.Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts autotension control.
5.Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.
2.Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensurestable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectriceye correction, tracking printing bag accurately.
4.Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts autotension control.
5.Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.

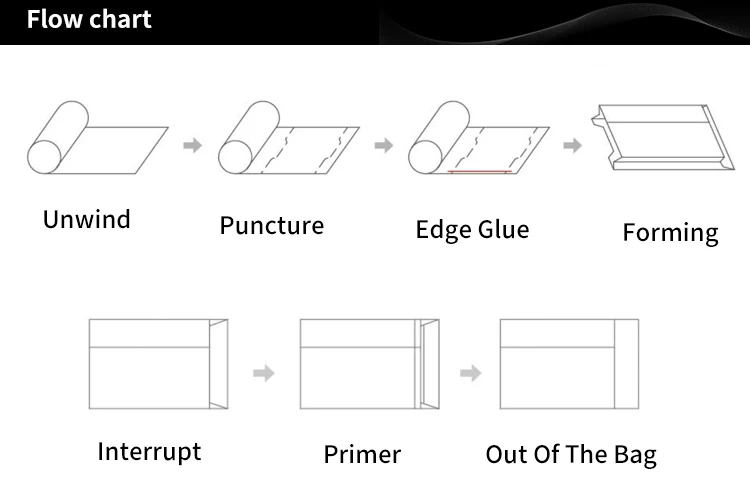

Production Flow Chart
Enterprise Advantage
We will send technician to your factory to install the machine, and teach your workers to use it
Exhibition
Product packaging
FAQ
Q: Are you a factory or trading company?
A：We are a factory, established in 2003, with a professional team to solve various problems of environmentally friendly paper bags for you
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 12 months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to replace，beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in WENZHOU city,. We will provide transporation service during your visit at our factory.
Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper. Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available. Then we will recommend the right machine to you!
A：We are a factory, established in 2003, with a professional team to solve various problems of environmentally friendly paper bags for you
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 12 months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to replace，beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in WENZHOU city,. We will provide transporation service during your visit at our factory.
Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper. Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available. Then we will recommend the right machine to you!
