Pc Controller Payment Terminal Touch Screen Wall Mount Industrial Panel Wireless Bt Keyboard For Tablet And Phone
- Category: >>>
- Supplier: Shenzhen Hystou Technology Co. Limited
Share on (1600819616571):
Product Overview
Description
VR
Company Introduction
Hystou is a professional manufacturer and exporter of desktop mini PC.OEM and ODM orders are welcomed.The more you purchase, the cheaper the prlce.
Details Images

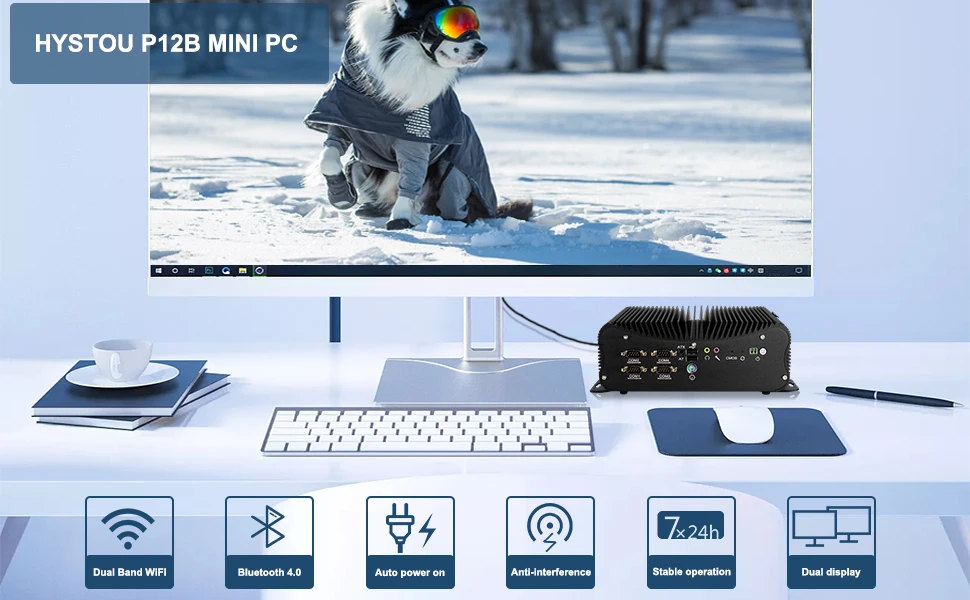

4K HD Dual Screen Display + Auto Power On
Mini PC equipped with HDMI and VGA output, supports dual screen display. Auto power on (BIOS setting). Meanwhile, 4K HD visual home entertainment, HTPC, ideal for home office, light gaming, digital security and surveillance, digital signage, media center, conference room, etc.

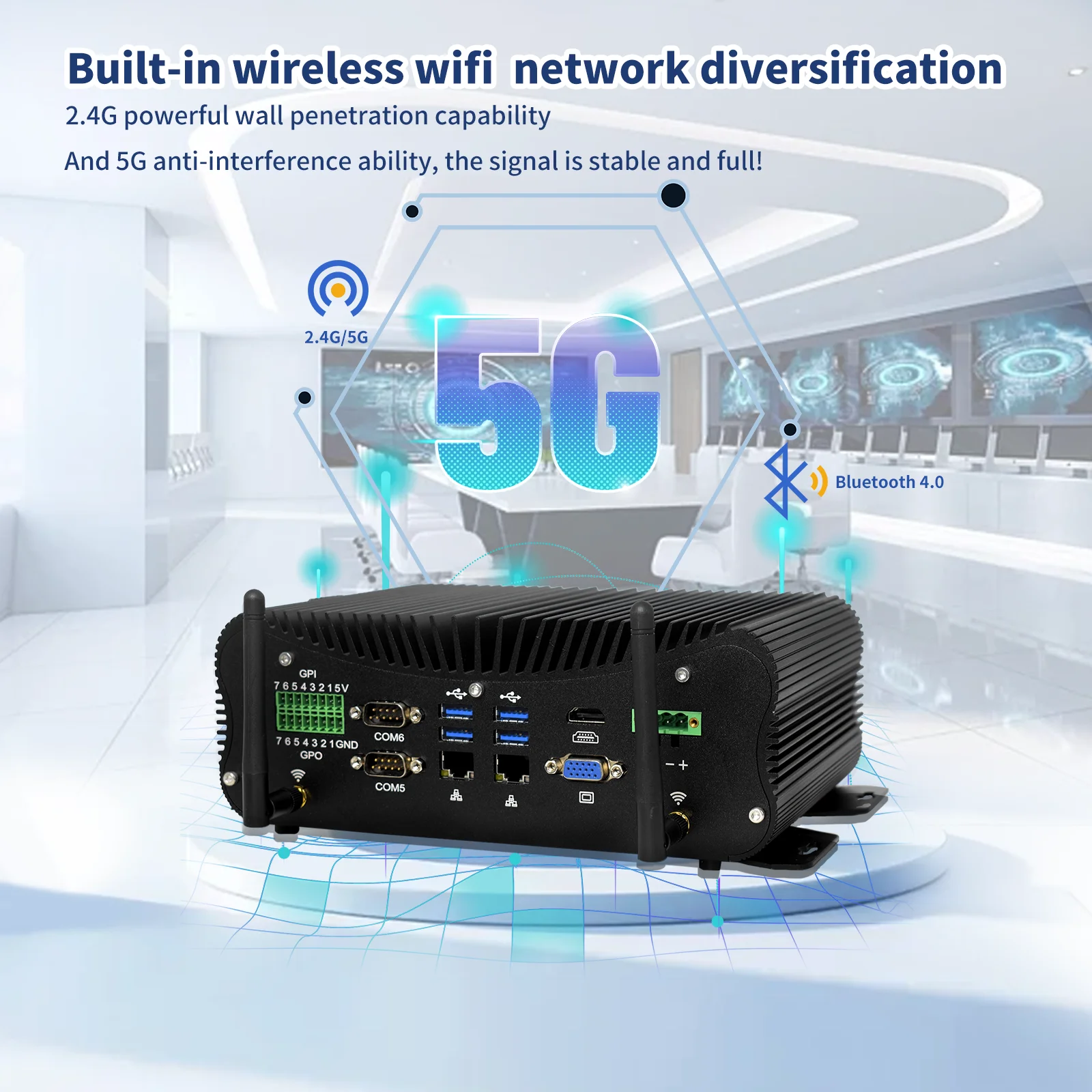

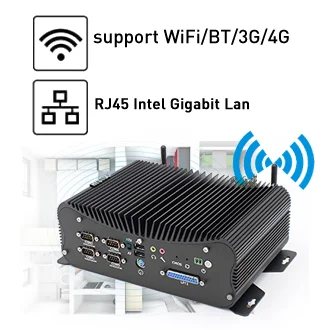

Dual-band 2.4G/5G Wi-Fi
2.4G transmission is farther, and 5G short-distance signal is stronger. Dual-band allows you to get a better signal, more stable connection, and less impact from interference no matter how far away you are.
2.4G transmission is farther, and 5G short-distance signal is stronger. Dual-band allows you to get a better signal, more stable connection, and less impact from interference no matter how far away you are.

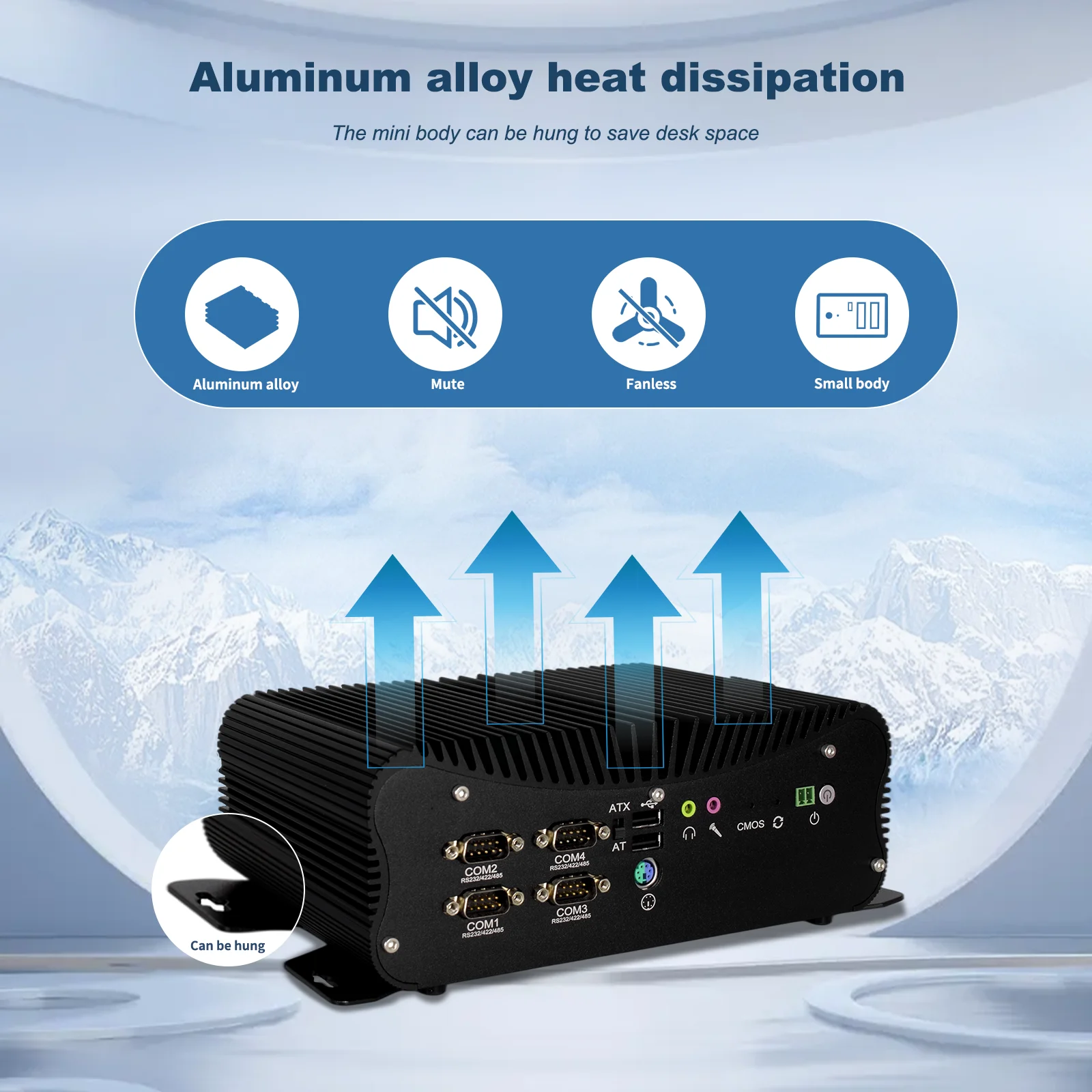

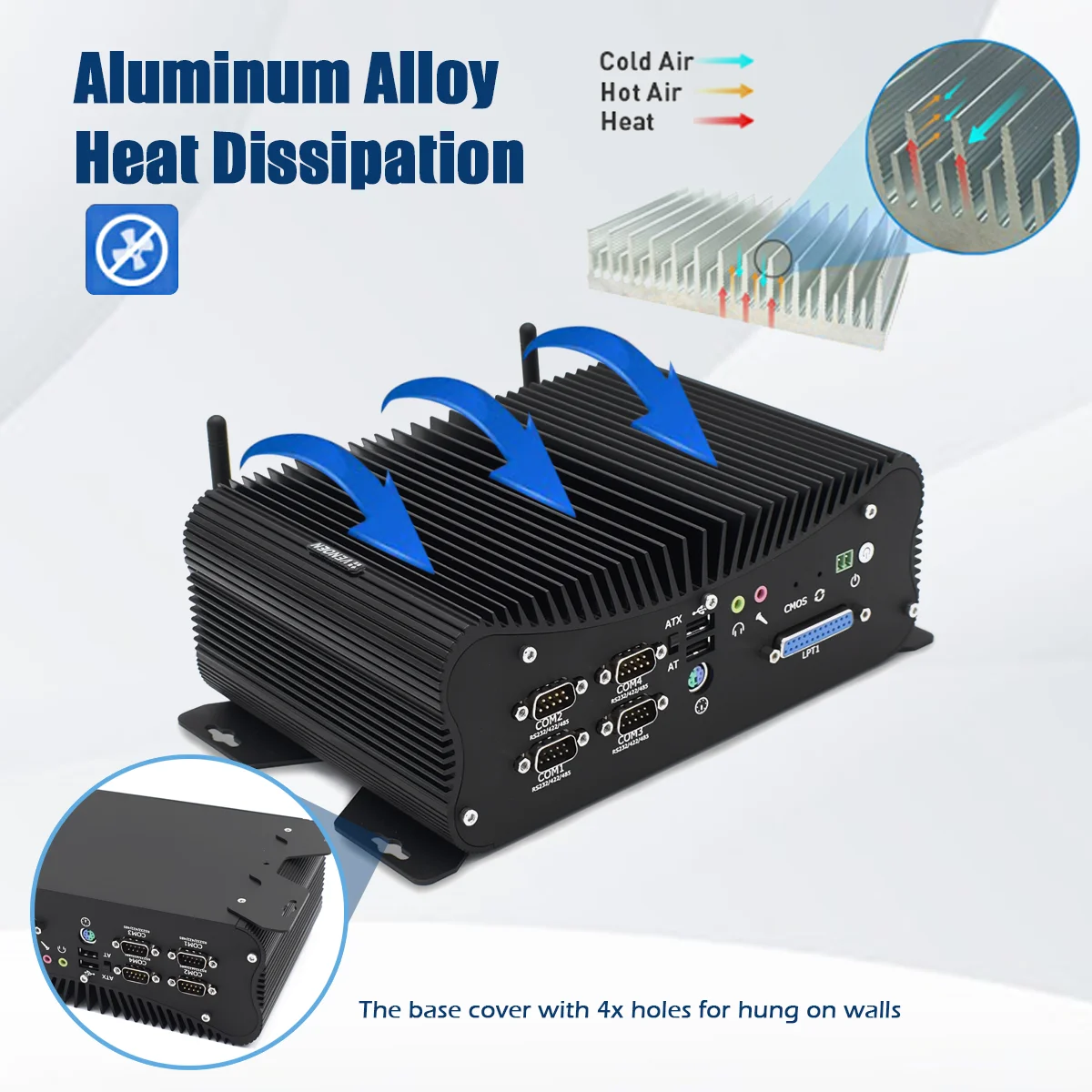

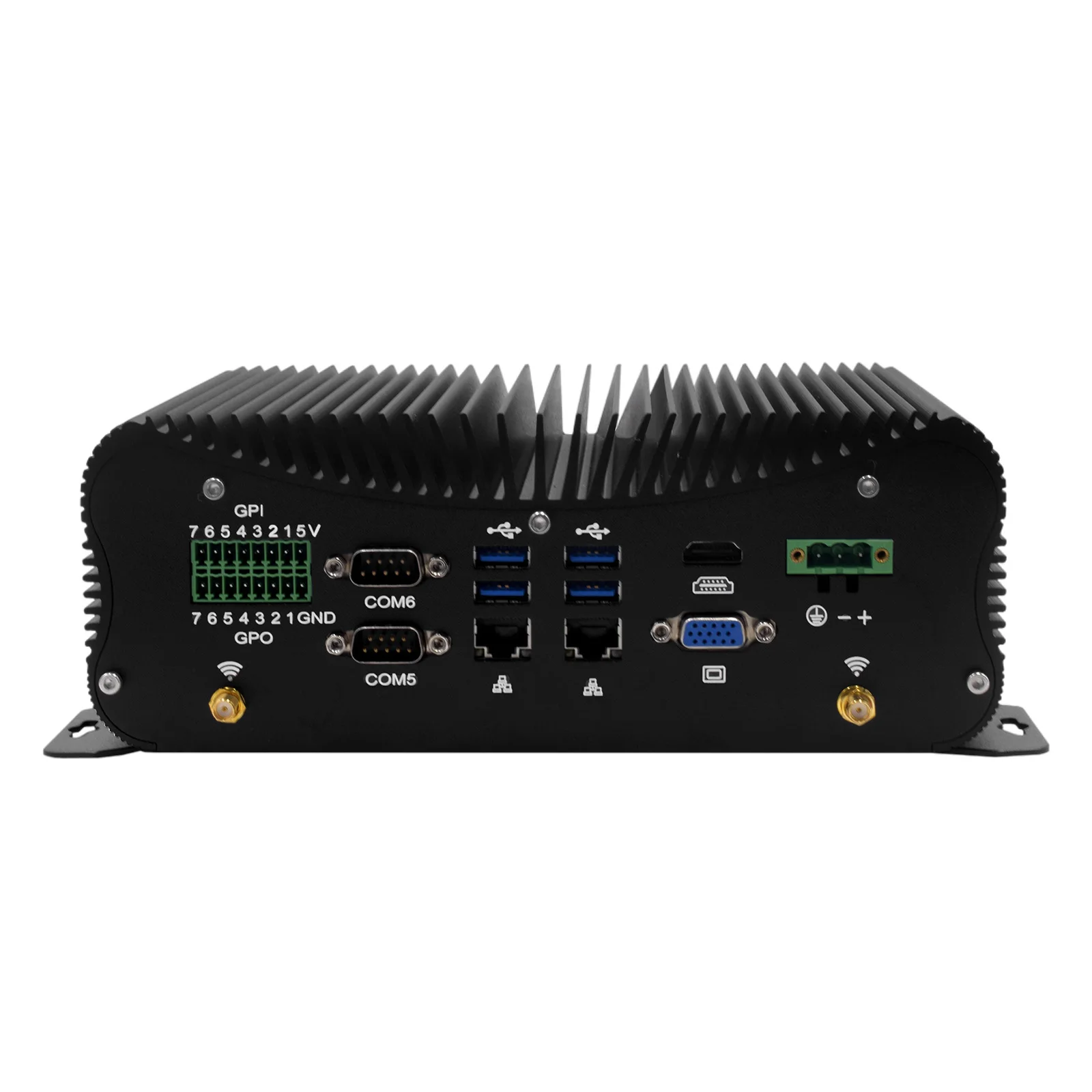

Low Power Consumption, No Fan, Zero Noise Design
This mini industrial computer adopts a fanless, metal casing design, which has stronger heat dissipation, and is more energy-efficient and power-saving than similar touch all-in-one computers. Integrated ports are available for projectors, TVs, monitors, printers and many other devices. This mini PC is perfect for home entertainment, office, factory, and can withstand harsh environments.
To beeter use this HYSTOU P12 Desktop Computer
* Q1: How to set up Dual Screen Display?
* A1: Please click and select Start>Settings>System>Display. Your PC should automatically detect your monitor and display yourdesktop. If you don’t see the monitor, select Detect.
* Q2: What is the maximum expansion SSD?
* A2: P12B supports up to 2T 2.5 inch SSD or HDD for expansion
* Q3: How to enter BIOS?
* A3: Press "delete" to enter the BIOS settings; press "F7" to enter the boot options menu (click continuously immediately after booting
* A1: Please click and select Start>Settings>System>Display. Your PC should automatically detect your monitor and display yourdesktop. If you don’t see the monitor, select Detect.
* Q2: What is the maximum expansion SSD?
* A2: P12B supports up to 2T 2.5 inch SSD or HDD for expansion
* Q3: How to enter BIOS?
* A3: Press "delete" to enter the BIOS settings; press "F7" to enter the boot options menu (click continuously immediately after booting
Product Description
CPU | Intel Core i7-8565U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.8 GHz Turbo Frequency 4.6 GHz) | |||
TDP | 25W | |||
CPU Lithography | 14 nm | |||
Memory Specifications | ||||
Max Memory Size | 64GB | |||
Memory Types | 2*DDR4 SO-DIMM 260 pin | |||
Memory Channels | Dual Channels | |||
ECC Memory | Don’t support | |||

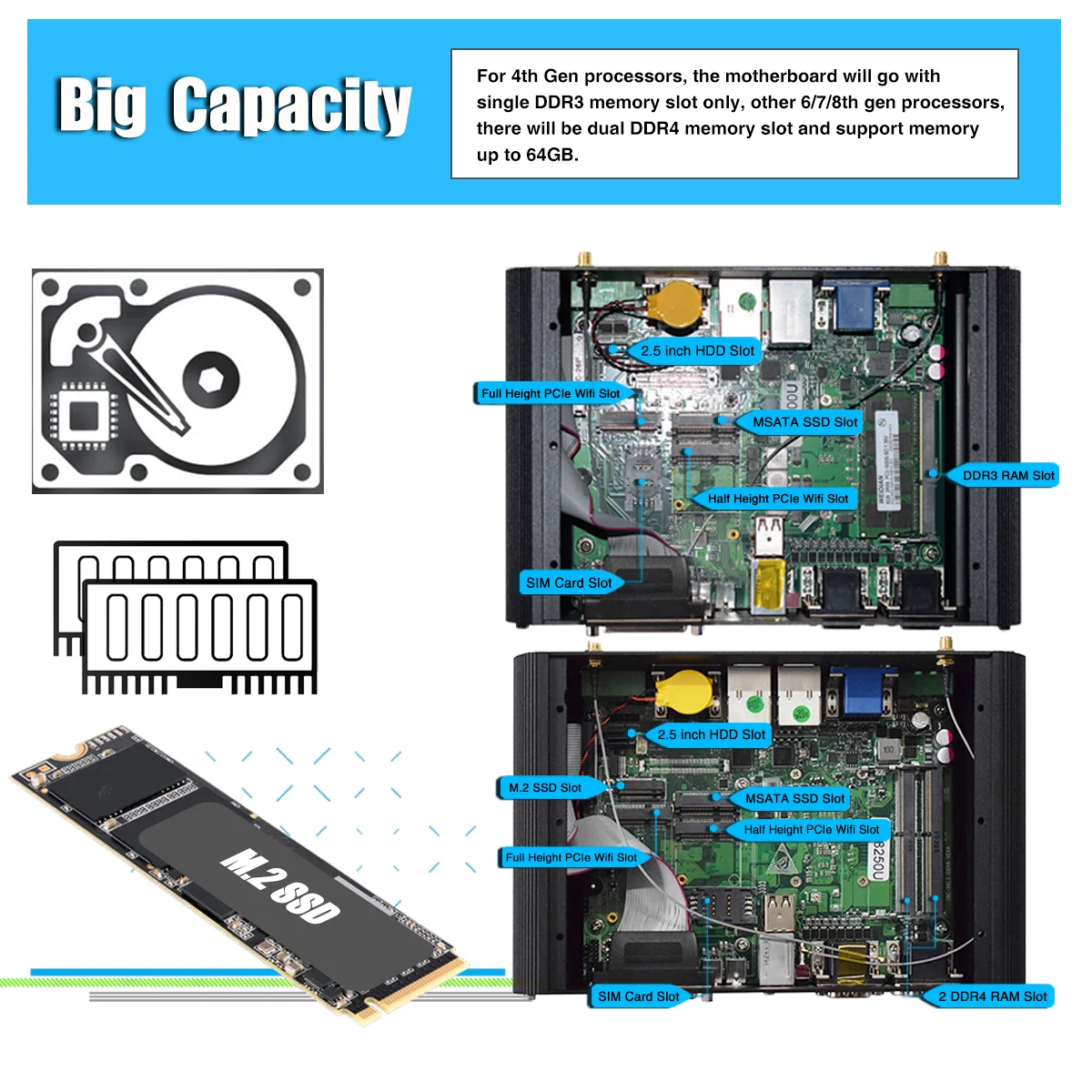

Storage Specification | ||||
m.2 SSD | 1*M.2 2280 M KEY PCIE3.0 | |||
SATA | 1*SATA3.0 Slot for 2.5 inch HDD/SSD | |||
mSATA | 1*mSATA slot | |||
Graphics | ||||
Processor Graphics | Intel UHD Graphics 620 | |||
HDMI | 1*HD-MI 4096*2304@30Hz(4K) | |||
DP | 1*VGA 1920*1080@60Hz(1080P) | |||
Power Specification | ||||
Adapter Output | DC 12V/5A for 7,8th CPU,19V/4.74A for 10th CPU | |||
Adapter Input | AC 110-240V, 50/60HZ | |||
Consumption | 55W~80W | |||
Auto Power On | Support Auto Power On Function | |||

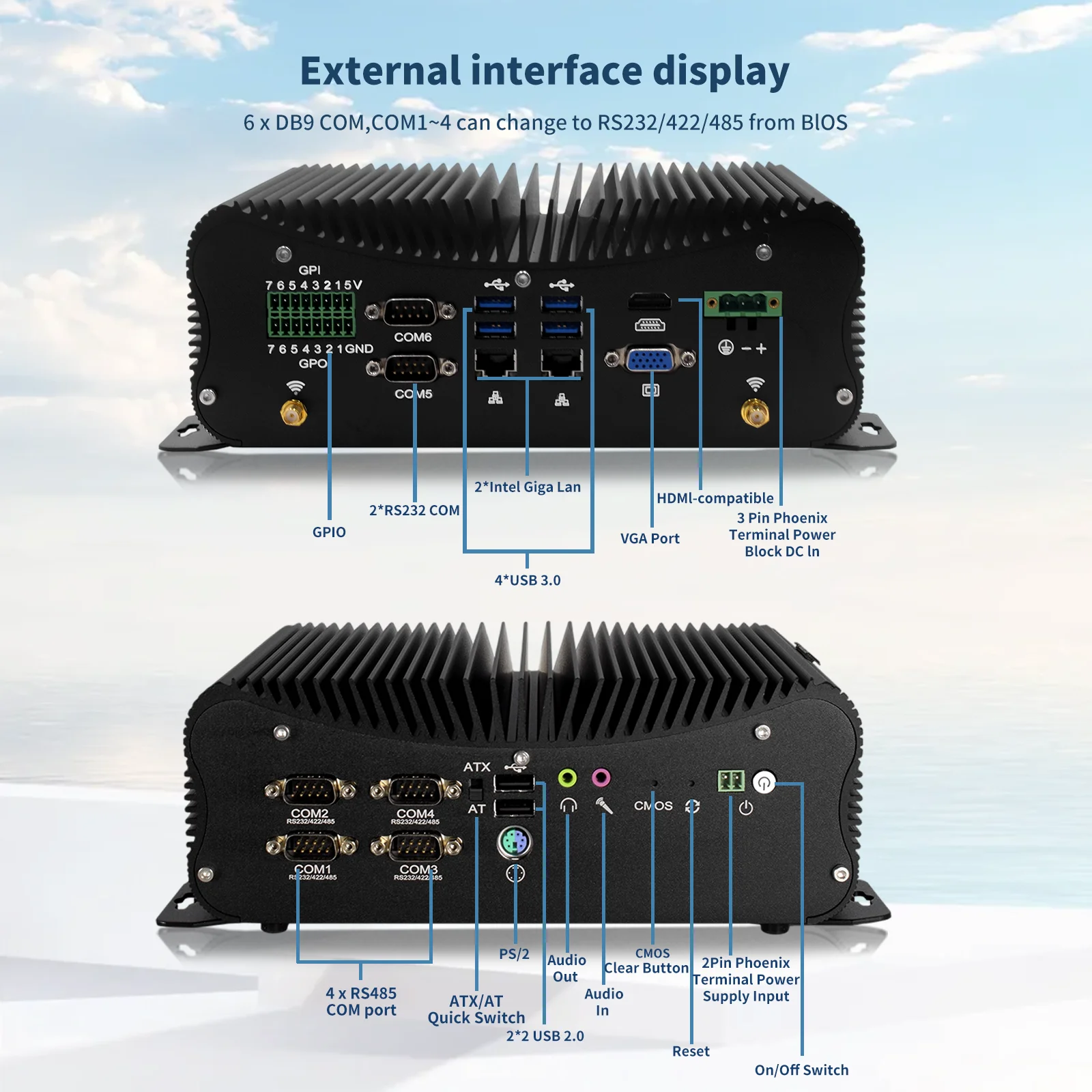

In & Out interfaces | ||||
USB Port | 4*USB 3.0 port,2*USB 2.0 port | |||
Audio | 1*3.5mm MIC in & SPK out | |||
Video | HD-MI 4096*2304@30Hz + VGA 1920*1080@60Hz 2 Display Output | |||
Audio Cards | USB Audio Device/Realtek ALC662 | |||
Lan Port | 2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211/I219-V | |||

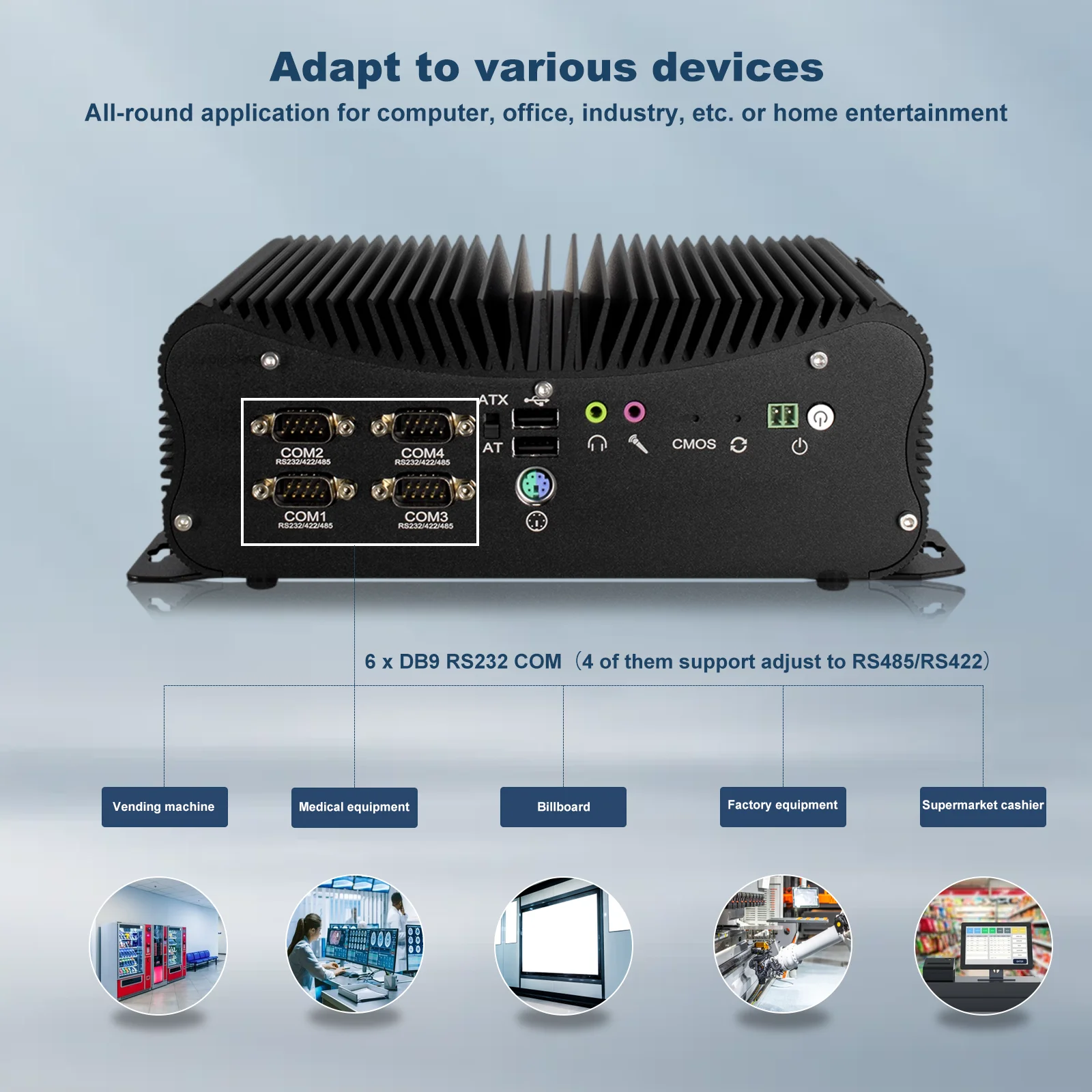

Com Port | 6*RS232 Com port/2*RS232 Com port + 4*RS422 Com port or 4*RS485 Com port(Com1~Com4) | |||
GPIO | 1*18pin GPIO Phoenix Terminal(7*Input 7*Output GPIO) | |||
Other | 1*PS2,1*Power Button,1*2pin power switch,1*Reset Button,1* Clear CMOS Button;1*ATX/AT switch | |||
Wi-Fi | Inside Wifi & Blue-tooth Combo | |||
Others | ||||
System | Support Windows 10, Linux | |||
BIOS | Support RAID,AUTO POWER ON,Wake On LAN,Resume By Alarm,Watch Dog,PXE | |||
SIM | 1*SIM slot | |||
MPCIE | 1*MPCIE,Support 4G/WIFI module | |||
Work Environment | -10℃--60℃(14F~140F) , 30%--90% Humidity | |||
Case Material | Full Brushed Aluminum Alloy | |||
Dimension | PC size 249*150*86mm Package size 315*285*135mm | |||
Weight | Net 2.4kg; Gross 3.3kg | |||

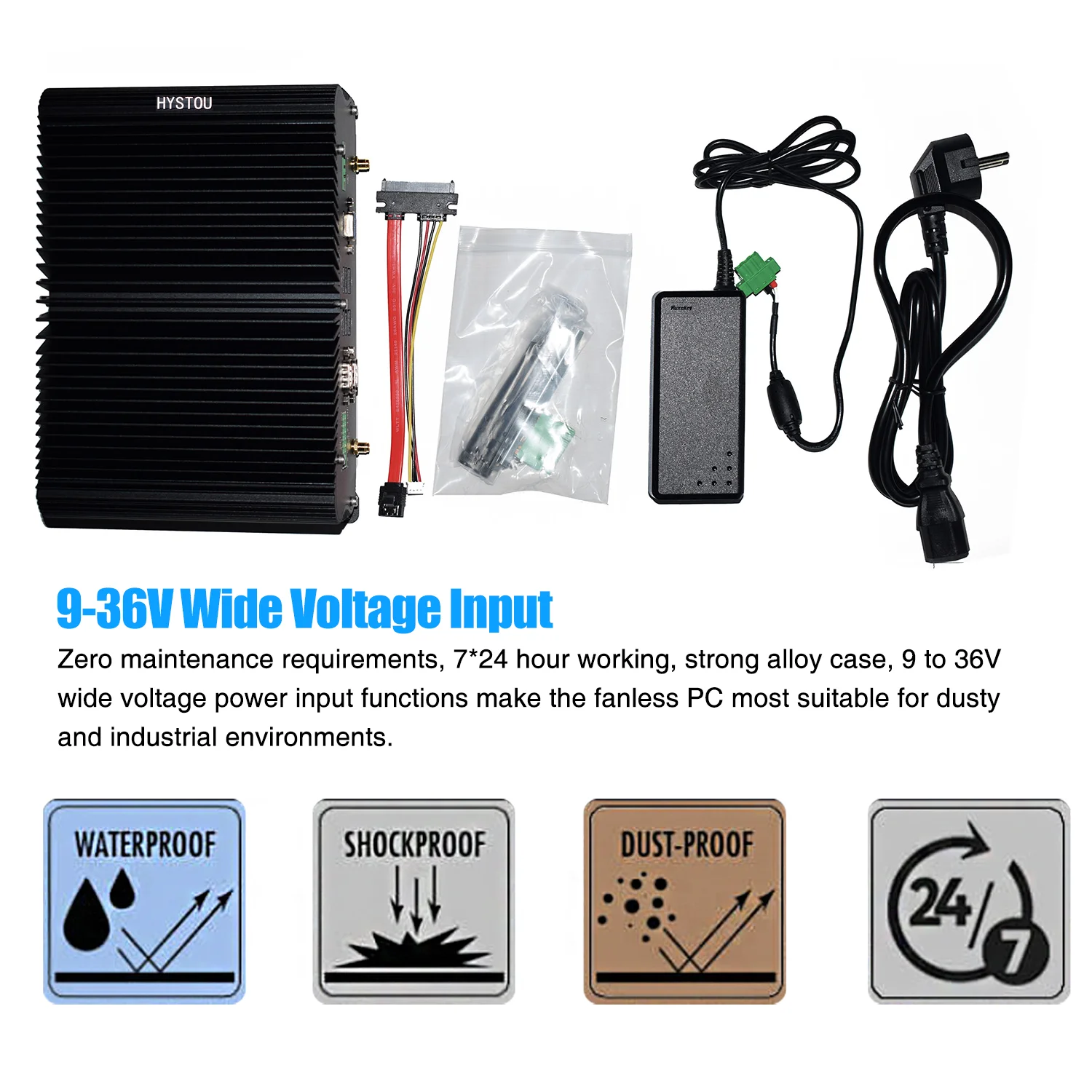

Packing&Shipping

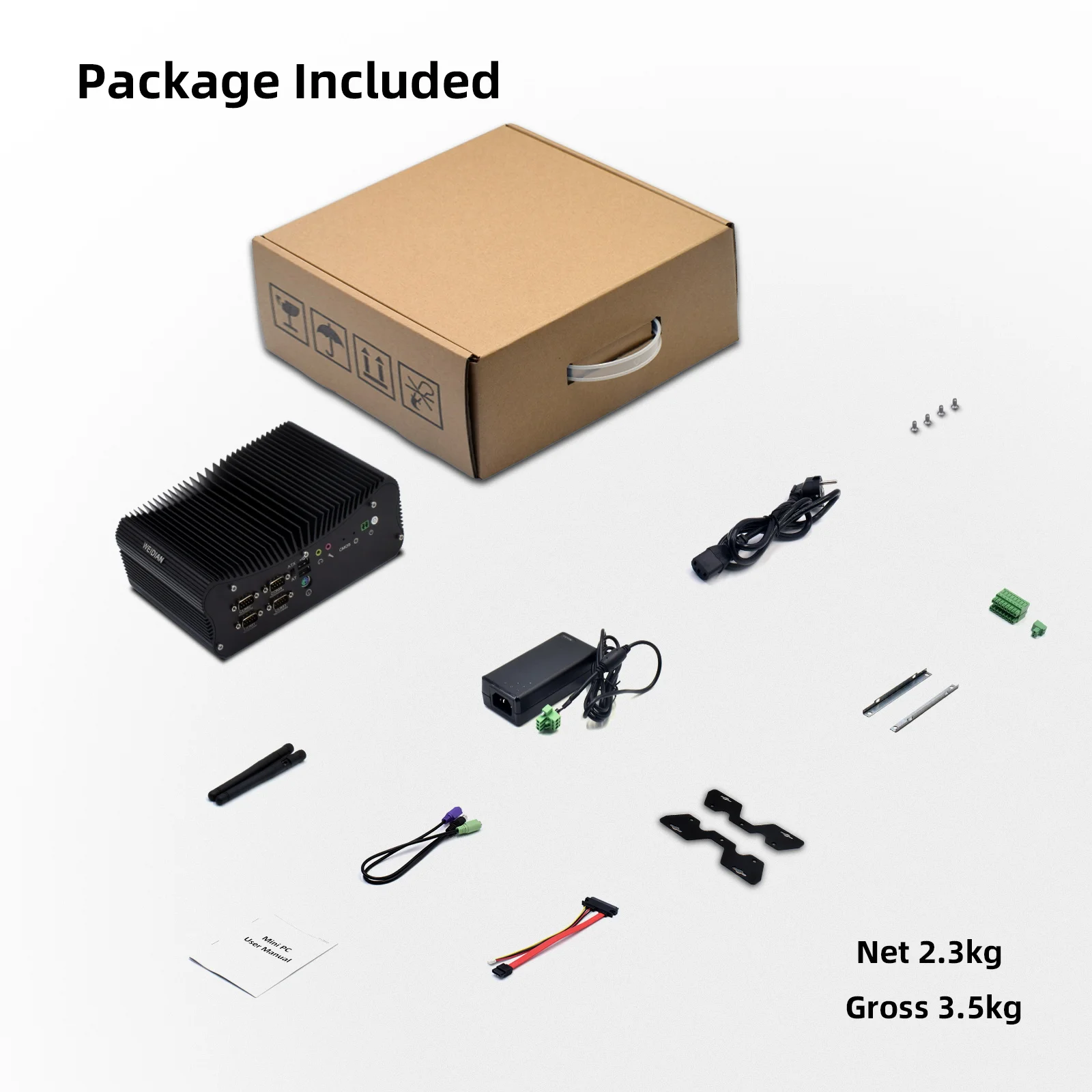

PackIng Llst:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
