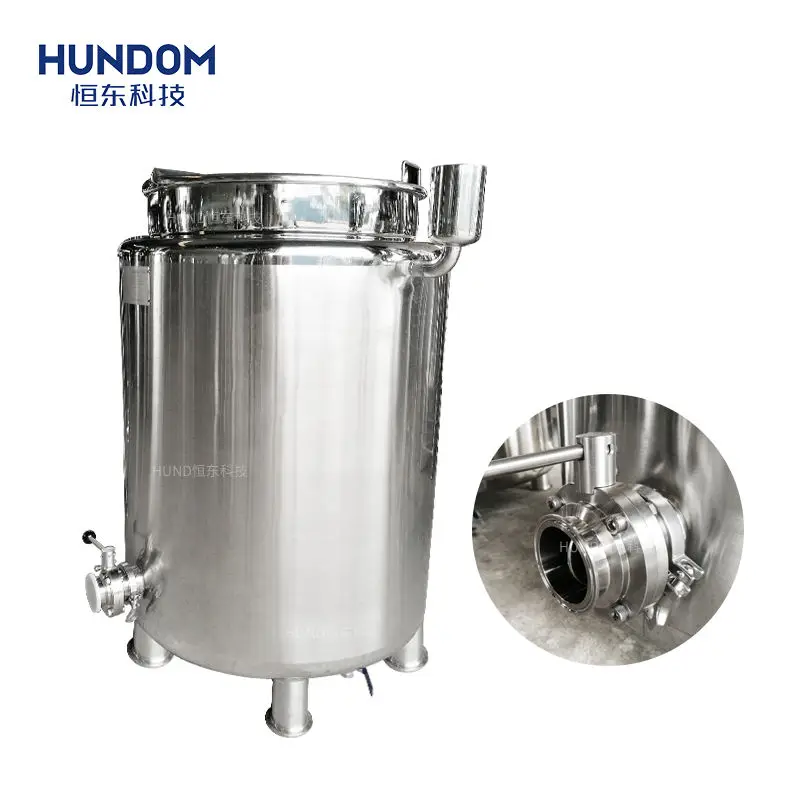

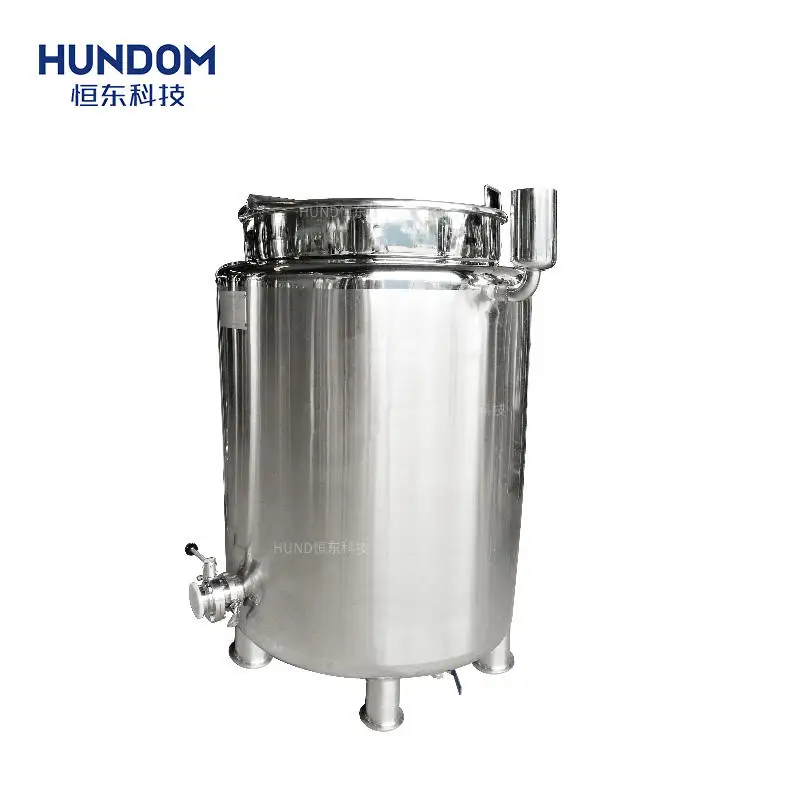

Factory Price Fruit Juice Alcohol Beer heating Cooling Stainless Steel Storage Tank with jacket
- Category: >>>
- Supplier: Zhejiang Hengdong Stainless Steel Co. Ltd.
Share on (1600819617848):
Product Overview
Description
Products Description

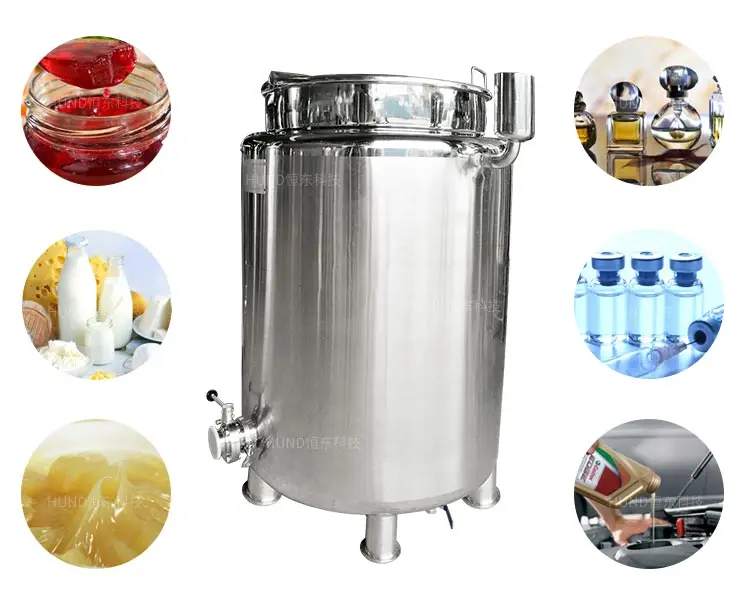

Application:
Stainless steel mixing tanks are widely applied in the beverage, food, dairy,chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards .
Material: SS304 / 316L;
Capacity: 50-5000L （Customized is acceptance）
Jacket: single layer, double jacket, three-layer
Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure);

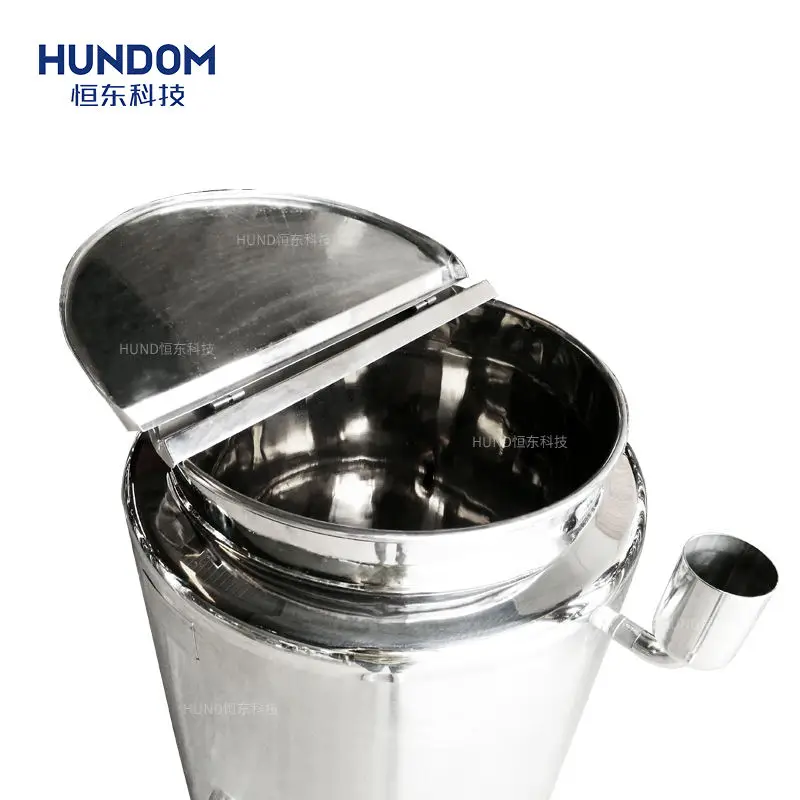

Head: open cover, seal with manhole/handhole etc.;
Shape: cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method: steam, electricity;
Capacity: 50-5000L （Customized is acceptance）
Jacket: single layer, double jacket, three-layer
Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure);
Head: open cover, seal with manhole/handhole etc.;
Shape: cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method: steam, electricity;
Parameters：
Model No. | Volume | Inner Diameter | Interior height | Thickness |
HD-100 | 100L | 550mm | 500mm | 2mm |
HD-200 | 200L | 650mm | 650mm | 2mm |
HD-300 | 300L | 750mm | 750mm | 2mm |
HD-500 | 500L | 900mm | 850mm | 2mm |
HD-1000 | 1000L | 1000mm | 1000mm | 3mm |
HD-2000 | 2000L | 1300mm | 1220mm | 3mm |
HD-3000 | 3000L | 1500mm | 1200mm | 3mm |
Recommend Products
Company Profile
Guangzhou HUNDOM Machinery Equipment Technology Co., Ltd is a high-tech enterprise integrating R&D, manufacture and sales, with more than 18 years of mechanical manufacturing experience. Main production: Stainless steel mixing tank, in-line high shear mixer, transfer pumps, colloid mill etc. HUNDOM has mature technology, professional engineer team and high quality products to meet various requirements in the field of food, pharmaceutical and household chemical industries. We provide a full range of effective solutions and after-sales service for customers, machines are hot sell all over the world. The mature technology and rigorous attitude are the guarantee of HUNDOM Technology’s product quality.
FAQ
1. About Delivery term
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
