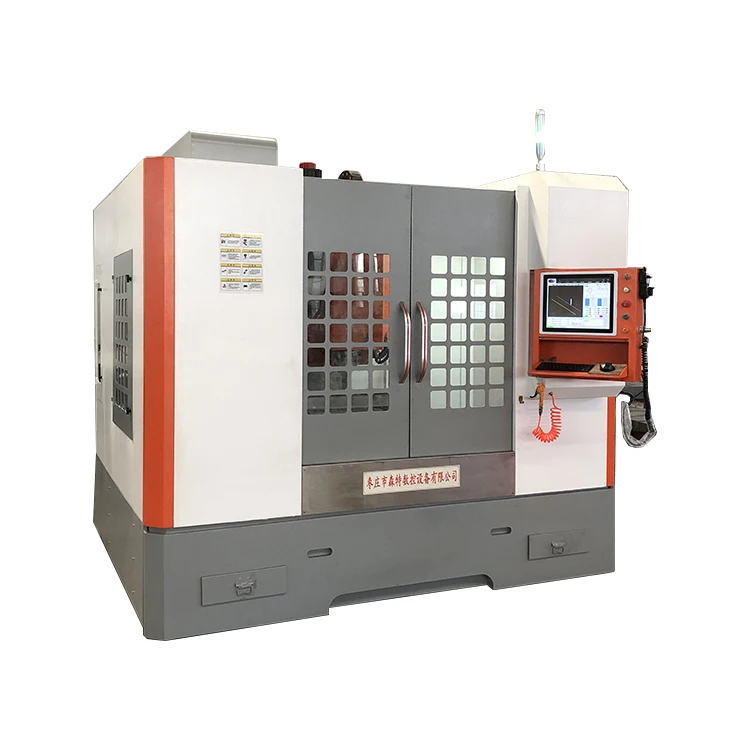

3/4/5 axis OEM/ODM Vertical CNC large machining milling center from manufacturer
- Category: >>>
- Supplier: Zaozhuang Sente Cnc Equipment Co. Ltd.
Share on (1600819627016):
Product Overview
Description

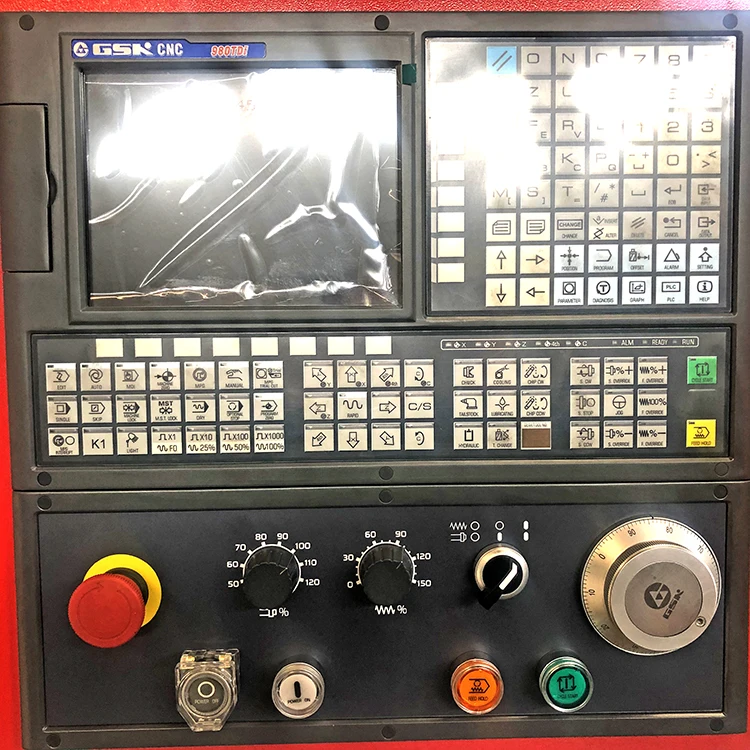

Standard configuration: GSK 980MDI /GSK218M CNC system
The rotary table is equipped with Yantai Global TK13250E indexing table as standard
Automatic intermittent lubrication system Cooling system
The rotary table is equipped with Yantai Global TK13250E indexing table as standard
Automatic intermittent lubrication system Cooling system
Type VMC1160 | Unit | Value | ||||
Max.stroke | Left and right direction, X-axis | mm | 1100 | |||
Front and right direction, Y-axis | mm | 600 | ||||
Up and down direction, Z-axis | mm | 600 | ||||
Spindle nose to processing table | mm | 120-720 | ||||

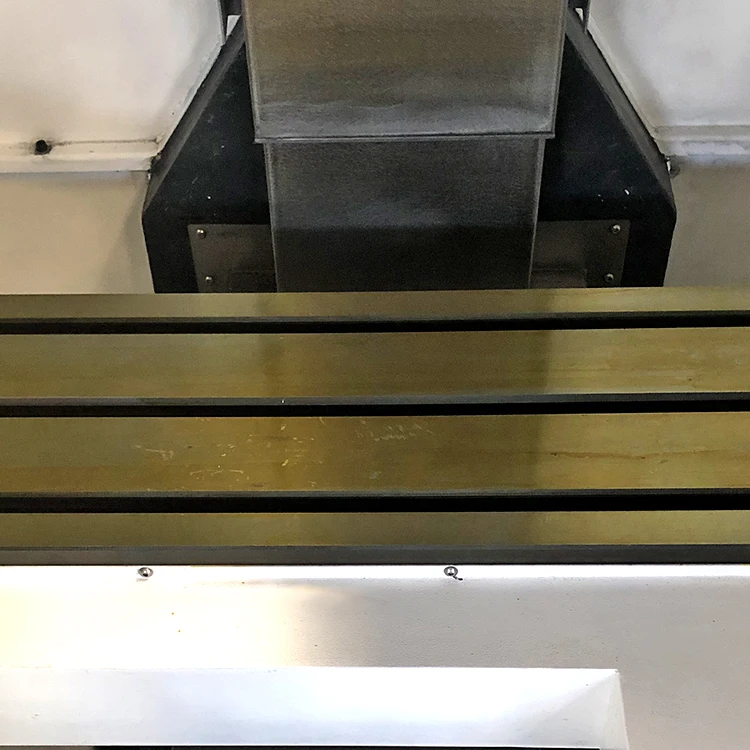

Processing table | Length | mm | 1200 | |||
Width | mm | 600 | ||||
Weight capacity | Kg | 1800 | ||||
T-slot | Width × number of slots | mm | 18*5 | |||
Center distance | mm | 100 | ||||

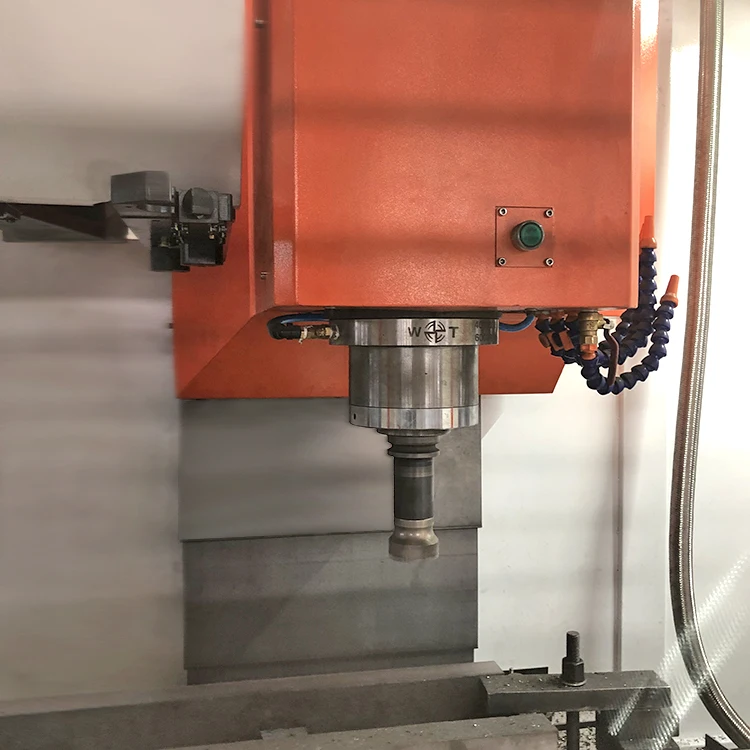

Spindle | Taper | BT40 | ||||
Diameter | mm | 120 | ||||
Rotating speed | rpm | 80--8000 | ||||
Max.speed torque | Nm | 14/19 | ||||
Max. reted power | Kw | 7.5 | ||||
Power drive method | Direct speed belt drive | |||||
Running precision | Positioning precision | mm | ±0.01/300 | |||
Repeat Positioning precision | mm | ±0.005 | ||||
Axial motor | Max. rated power | Kw | XYZ:1.5 | |||
Max. rated torque | Nm | XYZ:6 | ||||
Axial speed | X/Y/Z Max.rapid speed | mm/min | 25000 | |||
X/Y/Z Max.working speed | mm/min | 15000 | ||||
Mini.equivalent | X/Y/Z | mm | 0.001 | |||

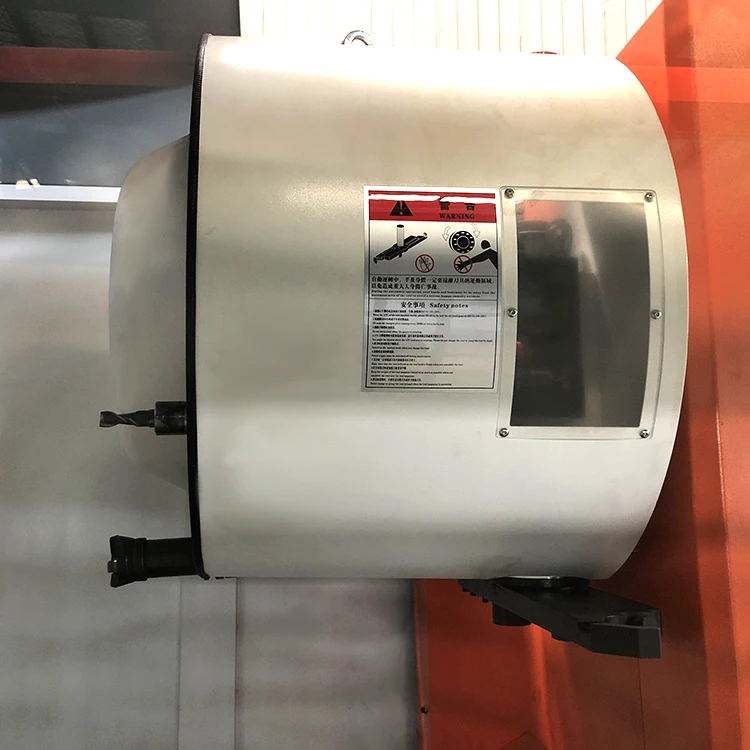

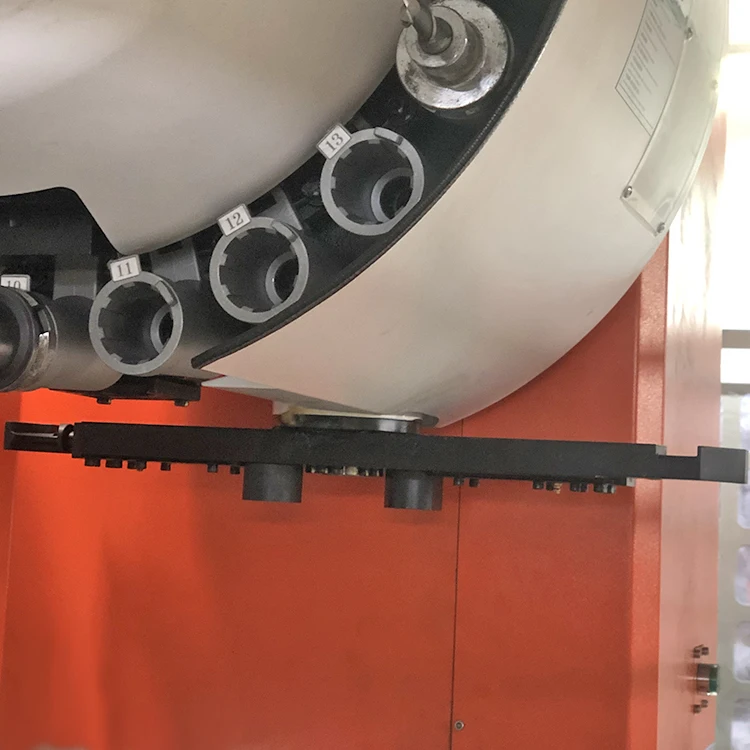

Tool magazine | Type | BT40 | ||||
Quantity | set | 24 | ||||
Max. tool diameter | mm | 110 | ||||
Max. tool weight | Kg | 8 | ||||
Max. tool length | mm | 250 | ||||
Tool change speed (average) | sec | 4-8 | ||||
Trachea connector | mm | 10 | ||||
Tool bolt weight | Kg | 45 | ||||
Basic parameters | Gas source | Kg | 4-6 | |||
Machine weight | Kg | 6450 | ||||
Size L*W*H | mm | 2855*2250*2650 | ||||
Power supply | KVA | 380V/15KVA | ||||

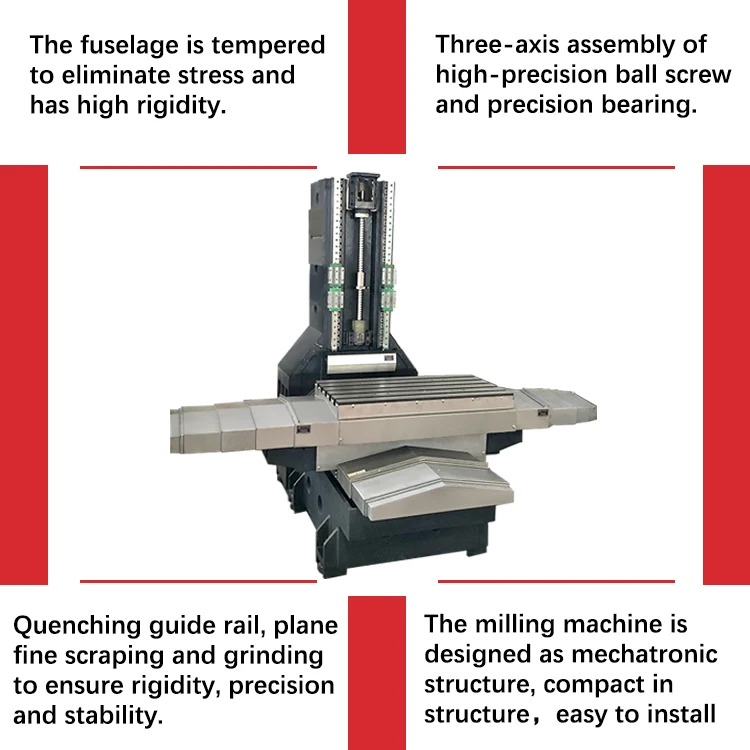

Advanced quenching process to improve strength, hardness and wear resistance
1. Can you provide design customization service?
Yes, we support ODM/OEM, and can design and customize exclusive models according to your needs.
2. How to choose the most suitable machine?
Please tell me your specification, we can choose the best model for you, you can also send us the product drawing, we will choose the most suitable machine for you.
2. How to choose the most suitable machine?
Please tell me your specification, we can choose the best model for you, you can also send us the product drawing, we will choose the most suitable machine for you.
3. What is your payment terms?
30% down payment after the contract, 70% payment
before shipment, can be discussed according to your situation.
before shipment, can be discussed according to your situation.
4: Where is our factory located?
Our factory is located in Tengzhou City, Zaozhuang, China, zip code 277500. Warmly welcome you to visit us.
5. What is your delivery time?
Delivery depends on different machines with different configurations. Please contact us to confirm availability.
