Product Overview
Description

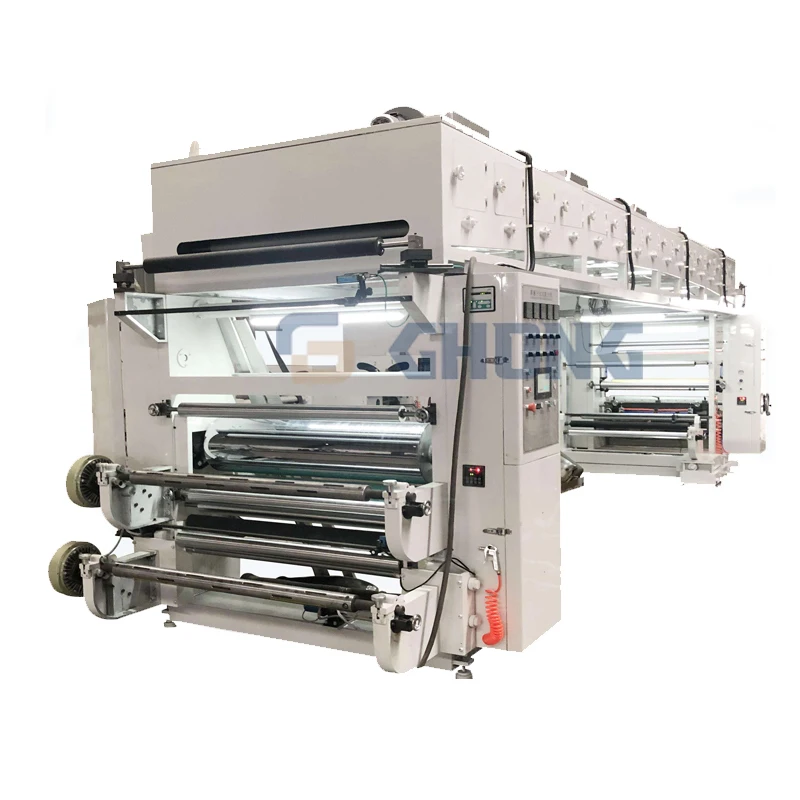

High Speed PVC PP Paper Aluminum Foil Dry Laminating OPP PE Coating Machine
Application
This machine is suitable for multiple lamination of BOPP, PET, PVC, PE, aluminum foil, paper and other coiled film materials to produce high-quality packaging materials with high strength, high freshness and cooking resistance.
Features
1. The first unwind, the second unwind and the winding are all made of inflatable shaft.
2. The first unwind and the second unwind are installed with photoelectric computer deviation correction system.
3. The tension of the first unwind and the second unwind is automatically controlled by the PLC programmable control system.
4. Independent torque motor winding, tension adjustable.
5. The air-topped shaftless anilox roll is glued, and the scraper blade imported from Switzerland is used. A separate motor
is responsible for the left and right swing of the tool holder.
is responsible for the left and right swing of the tool holder.
6. Dual frequency conversion speed regulation technology. The machine is equipped with two frequency converters to
control the main motor and the gluing motor respectively.
control the main motor and the gluing motor respectively.
7. The low friction pneumatic floating roller is installed at the entrance of the oven to realize the full automatic control of the film tension in the oven section.
8. The heat transfer oil inside the composite heat roller is heated, with uniform temperature and power saving.
9. The gluing press roll and composite press roll are pneumatically pressurized, and the pressure can be adjusted.
10. The total length of the oven is 8 meters, the internal guide rollers are arranged in arch shape, and are driven by chain.
11. The oven is electrically heated, divided into four independent temperature control zones, and the temperature of each section can be adjusted independently.
12. The second unwinding adopts duplex position for winding up and down.
13. Sub-PLC programmable control system is adopted, and the tension of the whole machine is automatically controlled by PLC.
14. All aluminum guide rollers are subject to high hardening treatment and dynamic balance treatment.
15. Install ultrasonic deviation correction system at oven outlet.
16. The inside of the oven is a hot air circulation structure, and the hot air circulation can save energy
Specifications
Model | JHFH-B-600 | JHFH-B-800 | JHFH-B-1000 |
Lamination width | 600mm | 800mm | 1000mm |
Lamination layers | 2 layers | 2 layers | 2 layers |
Lamination speed | 10-120m/min | 10-120m/min | 10-120m/min |
Rewind &Unwind diameter | 750mm | 750mm | 750mm |
Oven temperature | 120℃ | 120℃ | 120℃ |
Total power | 58kw | 64kw | 70kw |
Dimension | 9600*2400mm*3300mm | 9600*2650mm*3300mm | 9600*2850mm*3300mm |
Weight | 7500kg | 8200kg | 8900kg |
Details Images

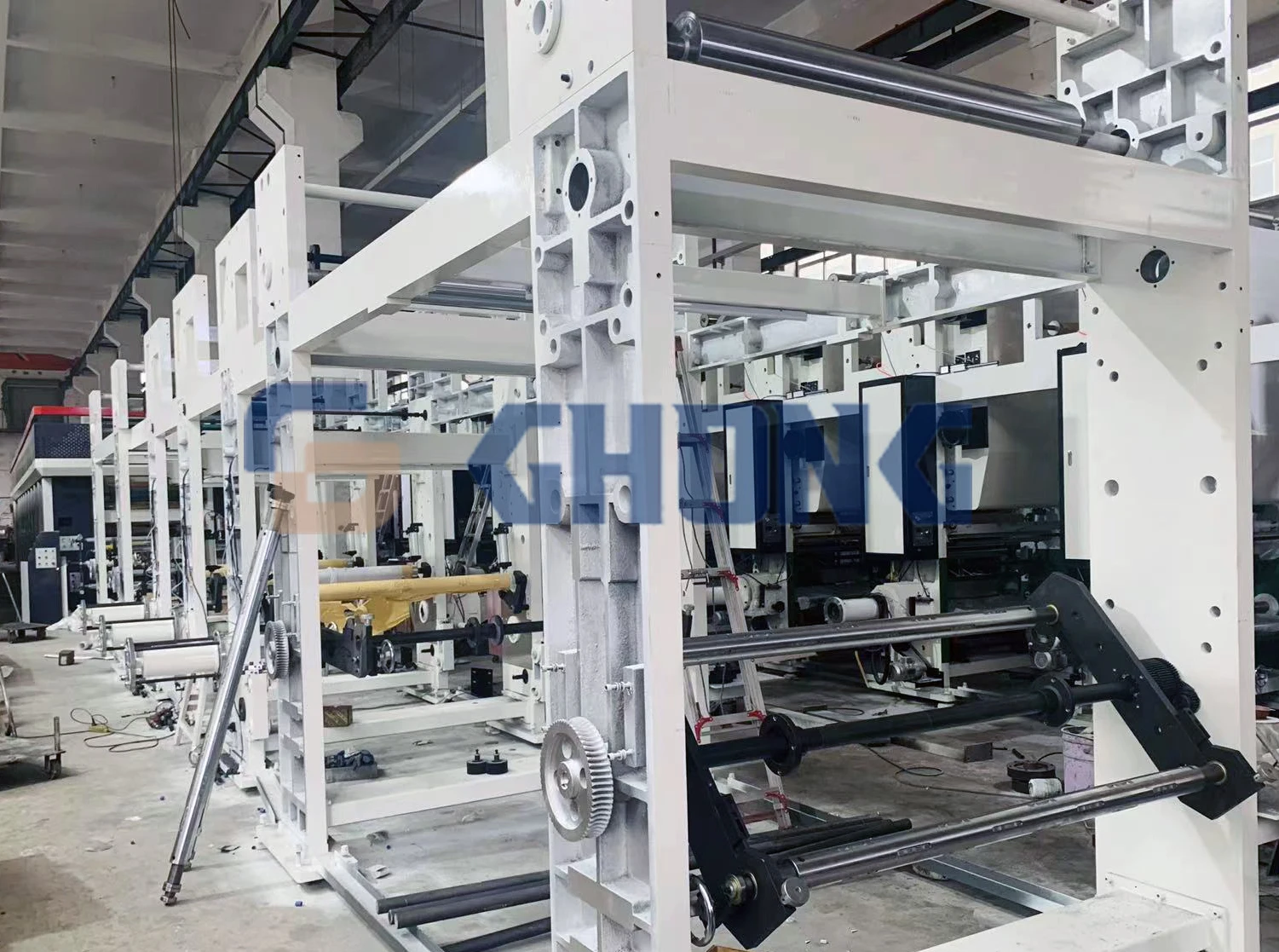

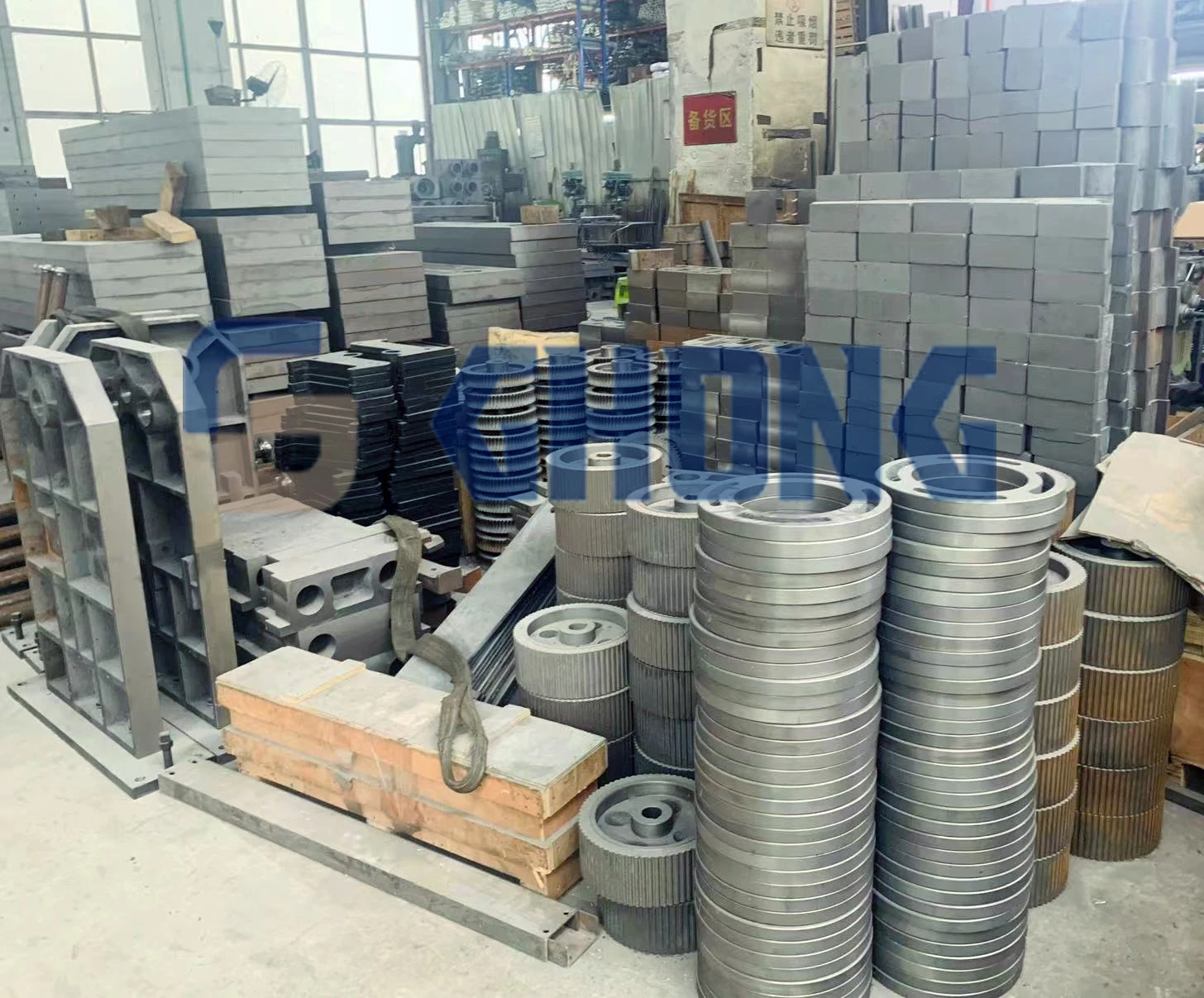

Production
