KTS011 Direct Manufacturer Mini compact Thermostat

Name: KTS011 Direct Manufacturer Mini compact Thermostat
SKU: 1600819646155
Price: $1.60 USD
Availability: InStock

Price:$1.60

Quantity:

Large setting range

Small size

High switching performance

Simpletomoent

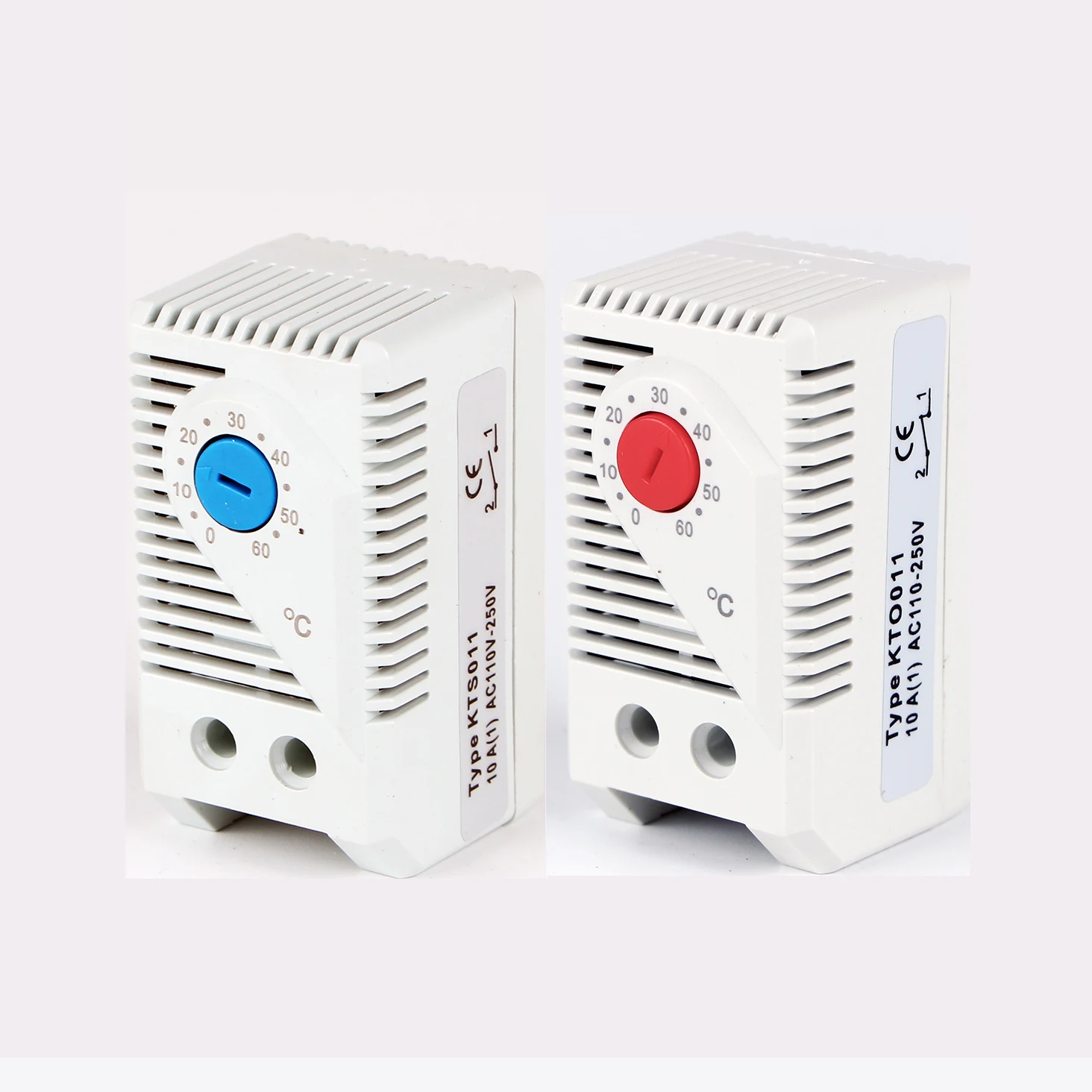

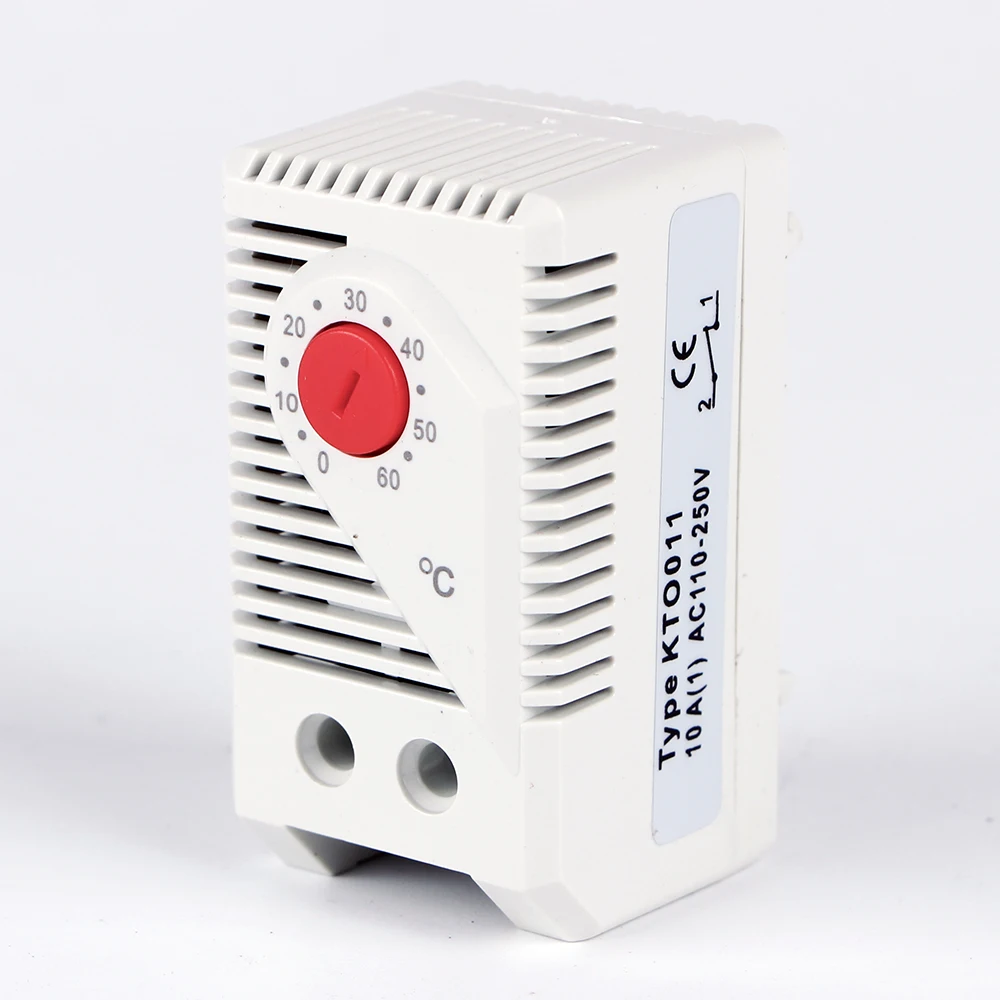

KTO 011:Themostat (normally closed ); contact breaker for regulating heaters.

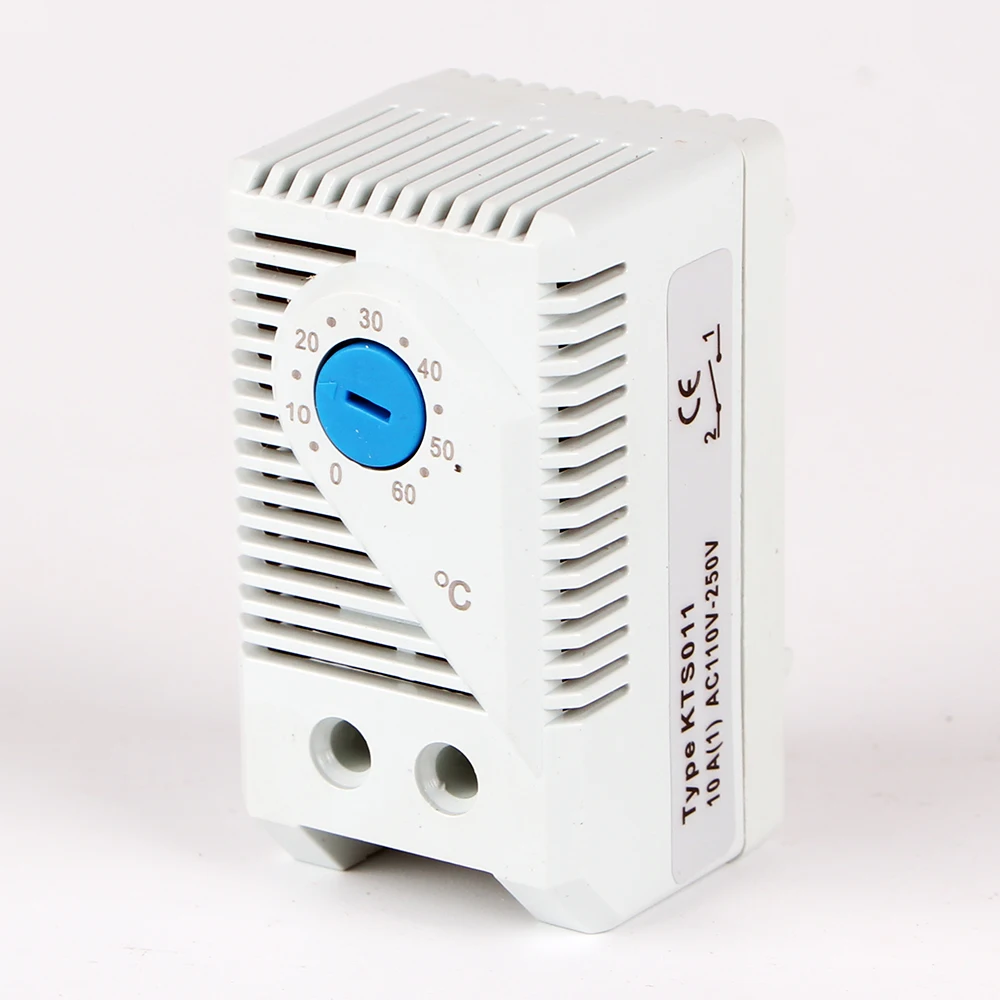

KTS 011:Thermostat (normally open ); contact maker for regulating of filter fans and heat

exchangers or for switcning signal devised wnen temperature limit has been exceeded.

IMG_0246(1).JPG IMG_0259(1).JPG IMG_0259(1)(1).jpg

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	< 10mO
Service life	> 100 000 cycles
Max. switching capacity	250VAC, 10 (2) A ,120VAC, 15 (2) A
Max. switching capacity	DC 30W
Connection	2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)
Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operarting/Storage temperature	-45 to +80°C (-49 to +176°F)
Protection type	IP20
