Factory Price High Pressure Steel Wire Reinforced Hydraulic Steam Rubber 6 wire SAE100 En 853 Series SS Wire Braided Hose
- Category: >>>
- Supplier: Red Cube Hydraulic Equipment Technology (tianjin) Co. Ltd.
Share on (1600819657189):
Product Overview
Description
Product Description
Red Cube Hydraulic offers a large range of hydraulic hose & fittings suitable for use on various applications across multiple industries such as Mine hydraulic support, oil field development, Applicable to engineering construction, hoisting transportation, metallurgical forging, mining equipment, ships, injection machinery, agricultural machinery, all kinds of machine tools and industrial sector mechanization, automatic hydraulic system conveying a certain pressure and temperature of the petroleum base (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil), water-based liquid (such as emulsion, oil-water emulsion, water) and liquid transmission.
We don’t only supply loose hose and hose fittings we can also make bespoke hose assemblies to your given specification, get in touch with our friendly sales team to discuss your hose assembly needs today.
If you’re not sure what type of hose you should be using for your application, please get in touch and we will provide you with the correct hose for the job!
SAE 100 R2 steel wire reinforced hydraulic hose is suitable for delivering petroleum-based hydraulic oils thanks to its oil resistant tube. Besides, it can convey the oils without producing excessive heat and leak. It is mainly used in some mobile equipment, such as farm tractor, dump truck and in-plant hydraulic equipment. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, so it is mainly used to transfer oils. The reinforcement is made from two layers of high tensile braided steel wires, making the hose have solid structure and resistant to high pressure. Therefore, it has excellent performance in high pressure working environment.
Details of SAE 100 R2 steel wire reinforced hydraulic hose:

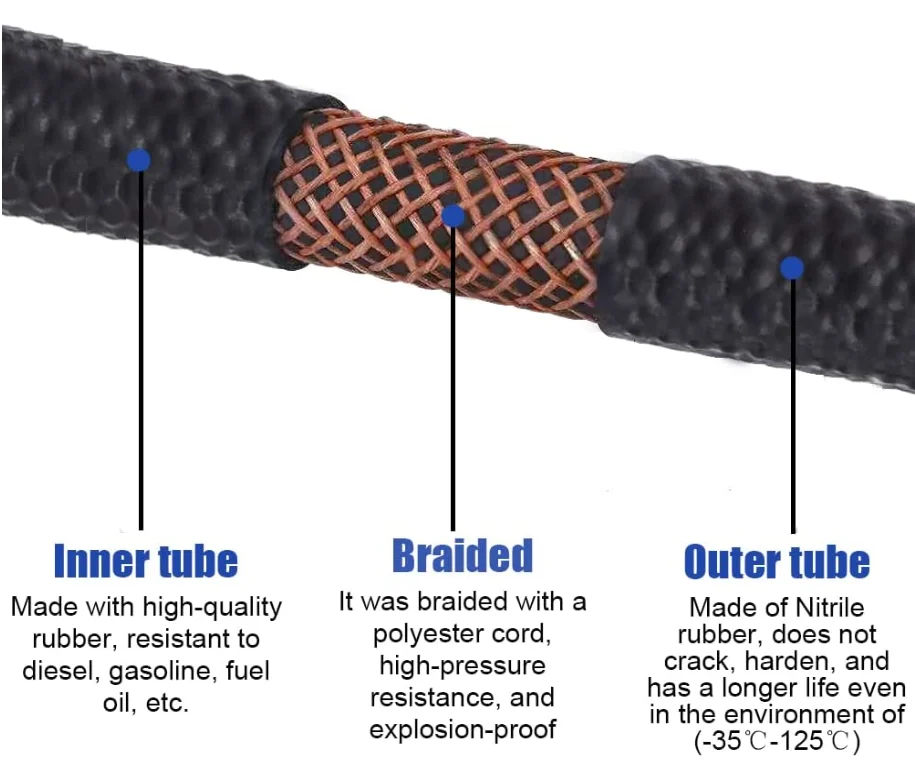

Structure: it is composed of three parts: tube, reinforcement and cover.
Tube：Oil resistant synthetic rubberReinforcement：1 or 2 high tensile steel wire braid
Cover：Black smooth or black corrugate , oil, weather and abrasion resistant synthetic rubber
Safety Factor：4：1
Application：Transmit petroleum base hydraulic fluids or water base hydraulic fluids
Temperature Range：-40℃～+100℃（-40℉～+212℉）
Hose code | Size | Dash size | ID | WD | OD | ||||||||
A | |||||||||||||
mm | inch | min | max | min | max | min | max | ||||||
SAE100R2-01 | 5 | 3/16 | -3 | 4.6 | 5.4 | 10.6 | 11.7 | 15.1 | 16.7 | ||||
SAE100R2-02 | 6.3 | 1/4 | -4 | 6.2 | 7 | 12.1 | 13.3 | 16.7 | 18.3 | ||||
SAE100R2-03 | 8 | 5/16 | -5 | 7.7 | 8.5 | 13.7 | 14.9 | 18.3 | 19.8 | ||||
SAE100R2-04 | 10 | 3/8 | -6 | 9.3 | 10.1 | 16.1 | 17.3 | 20.6 | 22.2 | ||||
SAE100R2-05 | 12.5 | 1/2 | -8 | 12.3 | 13.5 | 19 | 20.6 | 23.8 | 25.4 | ||||
SAE100R2-06 | 16 | 5/8 | -10 | 15.5 | 16.7 | 22.2 | 23.8 | 27 | 28.6 | ||||
SAE100R2-07 | 19 | 3/4 | -12 | 18.6 | 19.8 | 26.2 | 27.8 | 31 | 32.5 | ||||
SAE100R2-08 | 25 | 1 | -16 | 25 | 26.4 | 34.1 | 35.7 | 38.5 | 40.9 | ||||
SAE100R2-09 | 31.5 | 1-1/4 | -20 | 31.4 | 33 | 43.2 | 45.6 | 49.2 | 52.4 | ||||
SAE100R2-10 | 38 | 1-1/2 | -24 | 37.7 | 39.3 | 49.6 | 52 | 55.6 | 58.7 | ||||
SAE100R2-11 | 51 | 2 | -32 | 50.4 | 52 | 62.3 | 64.7 | 68.3 | 71.4 | ||||
Hose code | Working pressure | Proof pressure | Min burst pressure | Min bending radius | Weight | ||||||
MPa | psi | MPa | psi | MPa | psi | mm | kg/m | ||||
SAE100R2-01 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 90 | 0.32 | |||
SAE100R2-02 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 100 | 0.36 | |||
SAE100R2-03 | 29.7 | 4310 | 59.5 | 8630 | 119 | 17255 | 115 | 0.45 | |||
SAE100R2-04 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 125 | 0.54 | |||
SAE100R2-05 | 24.5 | 3550 | 49 | 7110 | 98 | 14210 | 180 | 0.68 | |||
SAE100R2-06 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 205 | 0.8 | |||
SAE100R2-07 | 15.7 | 2280 | 31.5 | 4570 | 63 | 9135 | 240 | 0.94 | |||
SAE100R2-08 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 300 | 1.35 | |||
SAE100R2-09 | 11.3 | 1640 | 22.7 | 3290 | 45.5 | 6600 | 420 | 2.15 | |||
SAE100R2-10 | 8.7 | 1260 | 17.5 | 2540 | 35 | 5075 | 500 | 2.65 | |||
SAE100R2-11 | 7.8 | 1130 | 15.7 | 2280 | 31.5 | 4570 | 630 | 3.42 | |||
Applications
Hydraulic Hose | Reinforcement | Product Name | |
One steel wire braided | SAE R1AT/DIN 1SN,SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17 | ||
Two steel wire braided | SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC | ||
One/two wire braided | SAE R16 | ||
Four steel wire spiral | SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH | ||
High flexibility nylon or thermoplastic | SAE R7, SAE R8 | ||
Industrial Hose | Steam hose, Water/Air hose, Fuel/Oil hose, Washer hose | ||
Product Name | Chief Introduction |
Air Hose | High strength synthetic yarn reinforced |
Water Hose | High strength synthetic yarn reinforced |
Oil Hose | Single/double synthetic yarn braided or spiraled |
Welding Hose | High strength synthetic cord reinforced |
Gas Hose(LPG Hose) | High tensile synthetic yarn braided or spiraled |
Heat Resistent Hose | 1 or 2 piles of fiber braid reinforcement |
Air Condition Hose(Freon Hose) | Strengthen lining is weaving fiber |
