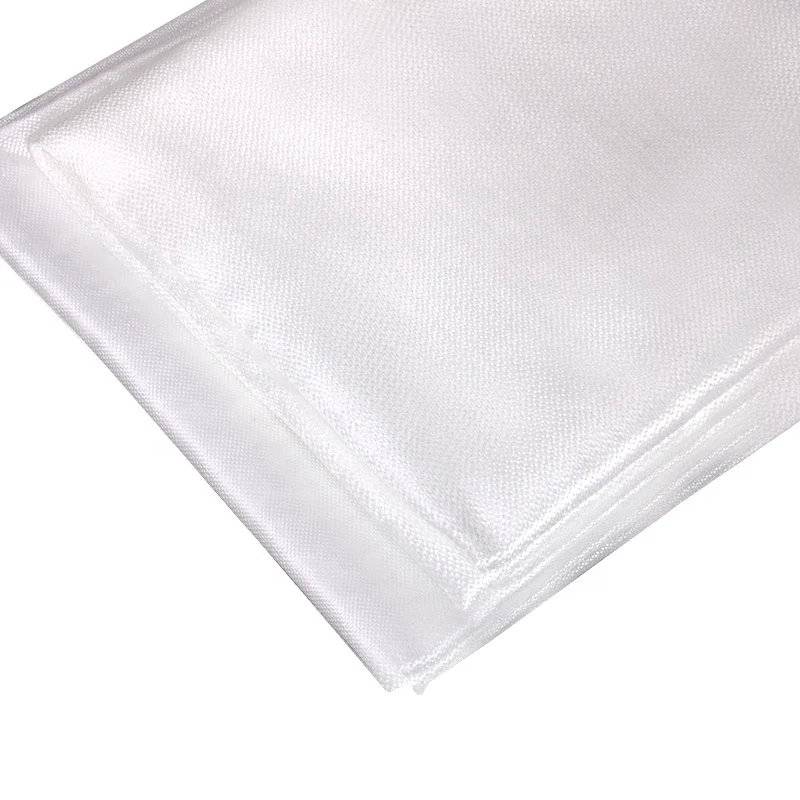

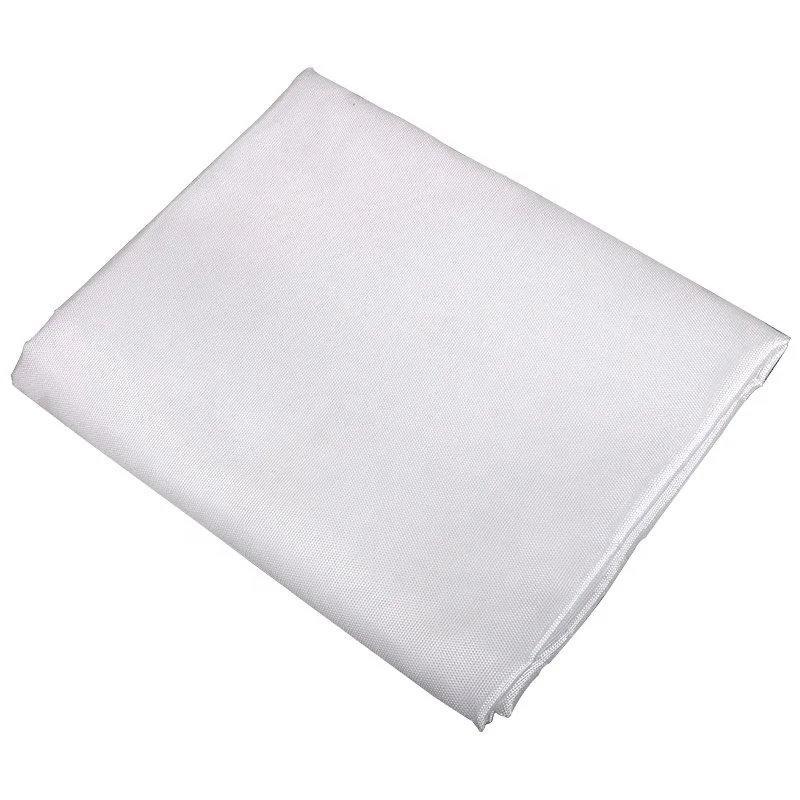

Hot sales plain weave glass fiber fabric bitumen fiberglass cloth 200gsm fiberglass cloth
- Category: >>>
- Supplier: Hebei Xiongan Hengyun Technology Co. Ltd.
Share on (1600819670541):
Product Overview
Description
Product Description
Product Introduction
Fiberglass cloth is mainly divided into two categories: medium-alkali and alkali-free. Alkali-free fiberglass plain cloth is mainly used to produce various types of electrical insulation laminates, printed circuit boards, ships and boats, and molds. Medium-alkali fiberglass plain cloth is mainly used in the construction industry and for the production of plastic-coated packing sheets.
Product Function-Pipeline Wrapping
Anti-corrosion: First, clean the rust on the pipeline; then, wrap the exterior of the pipeline with fiberglass cloth of suitable density and asphalt coating or other products for two or three layers.
Heat insulation: after wrapping the pipeline that has undergone the anti-corrosion process with a heat preservation quilt or insulated pipe, wrap the heat preservation layer with fiberglass cloth of suitable width and density, and then apply the coating or wrap the pipeline with the asphalt cloth directly.
Product Features:
Anti-corrosion, waterproof, sun-proof
Anti-decay if buried in the ground
Anti-weathering when placed in the air
Product Function-Waterproof Cloth
Application scope: Mainly used for building waterproofing in such spaces as bathrooms, basements, warehouses, swimming pools, etc.
Method: First, clean the roof before evenly coating the top surface of the roof with asphalt paint; put the fiberglass cloth on the asphalt when the maximum viscosity is achieved, and then coat the fiberglass cloth with asphalt paint for three or four layers.
Features:
Strong penetration, high tensile strength, anti-weathering, the resin is adhesive, the best waterproof material in the construction industry
Product Function-Fireproof Cloth
Method: apply two layers of fiberglass cloth, fill the interval between the two players with calcium silicate thinner material and wait for several hours to dry naturally
Features: waterproof, fireproof, acid and alkali-resistant, no deformation, anti-corrosion
Fiberglass cloth is mainly divided into two categories: medium-alkali and alkali-free. Alkali-free fiberglass plain cloth is mainly used to produce various types of electrical insulation laminates, printed circuit boards, ships and boats, and molds. Medium-alkali fiberglass plain cloth is mainly used in the construction industry and for the production of plastic-coated packing sheets.
Product Function-Pipeline Wrapping
Anti-corrosion: First, clean the rust on the pipeline; then, wrap the exterior of the pipeline with fiberglass cloth of suitable density and asphalt coating or other products for two or three layers.
Heat insulation: after wrapping the pipeline that has undergone the anti-corrosion process with a heat preservation quilt or insulated pipe, wrap the heat preservation layer with fiberglass cloth of suitable width and density, and then apply the coating or wrap the pipeline with the asphalt cloth directly.
Product Features:
Anti-corrosion, waterproof, sun-proof
Anti-decay if buried in the ground
Anti-weathering when placed in the air
Product Function-Waterproof Cloth
Application scope: Mainly used for building waterproofing in such spaces as bathrooms, basements, warehouses, swimming pools, etc.
Method: First, clean the roof before evenly coating the top surface of the roof with asphalt paint; put the fiberglass cloth on the asphalt when the maximum viscosity is achieved, and then coat the fiberglass cloth with asphalt paint for three or four layers.
Features:
Strong penetration, high tensile strength, anti-weathering, the resin is adhesive, the best waterproof material in the construction industry
Product Function-Fireproof Cloth
Method: apply two layers of fiberglass cloth, fill the interval between the two players with calcium silicate thinner material and wait for several hours to dry naturally
Features: waterproof, fireproof, acid and alkali-resistant, no deformation, anti-corrosion
140g 9*8 fiberglass cloth | ||||||
test items | the measured figure A | the measured figure B | determinant | |||
warp | 80tex | 80tex | eligibility | |||
weft | 90tex | 88tex | eligibility | |||
tension of warp | 1050N±5% | 1020N | eligibility | |||
tension of weft | 1000N±5% | 985N | eligibility | |||
density of warp | 9/cm | 9/cm | eligibility | |||
density of weft | 8/cm | 8/cm | eligibility | |||
width | 1030mm | 1030mm | eligibility | |||
gram | 140g/m2±5 | 143g | eligibility | |||
length of roll | 800-1000m/roll | qualified | eligibility | |||
resist-high temperature | 350℃ | 360℃ | eligibility | |||

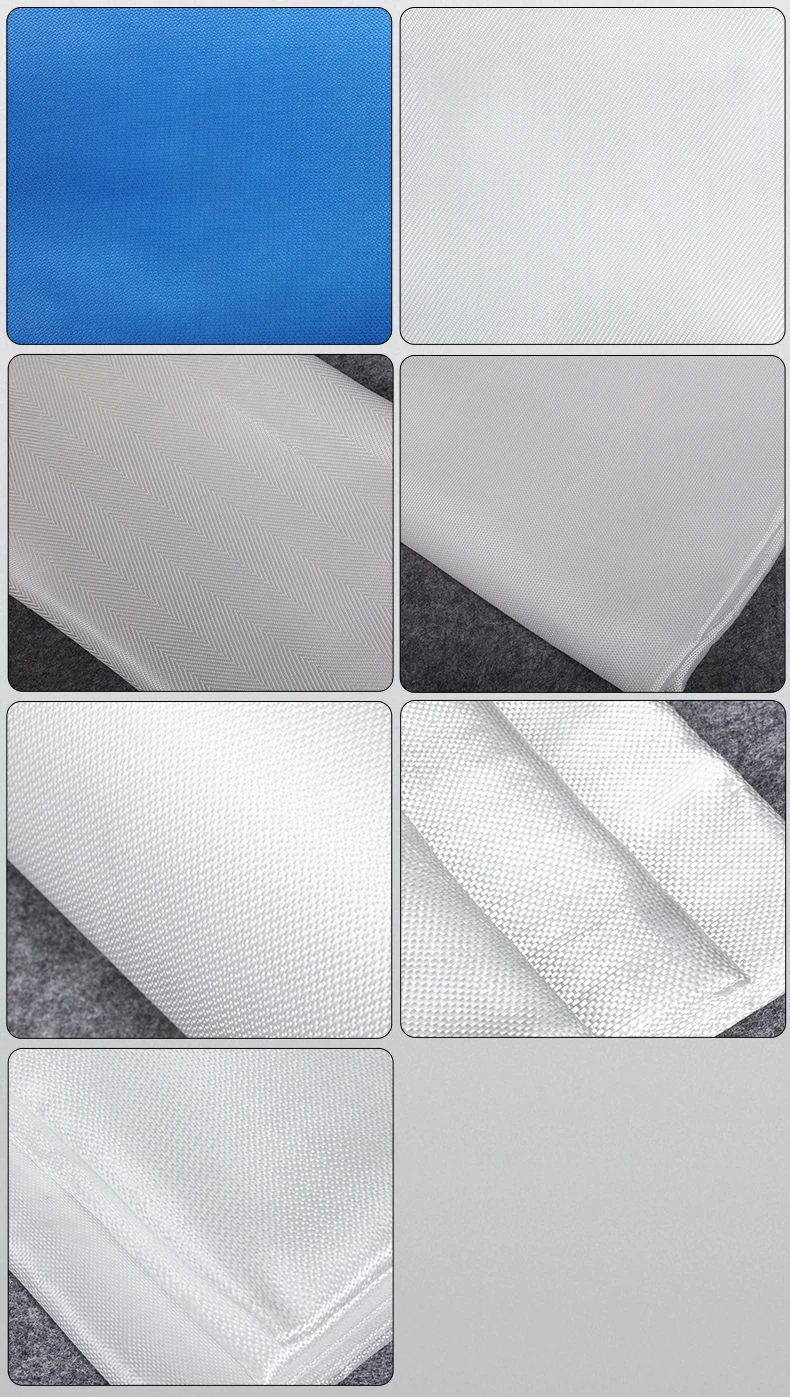

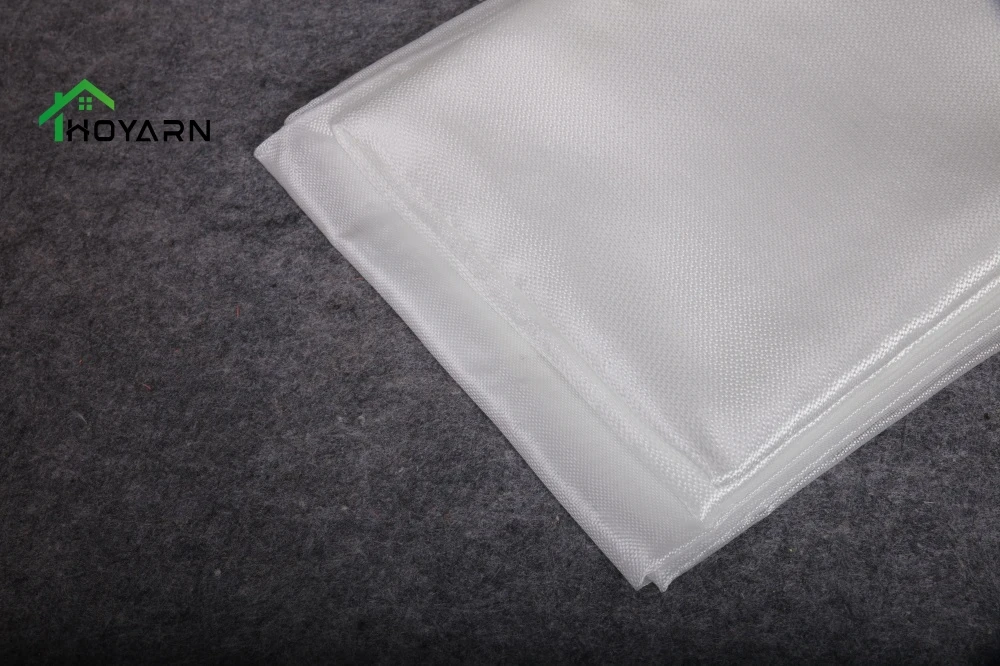

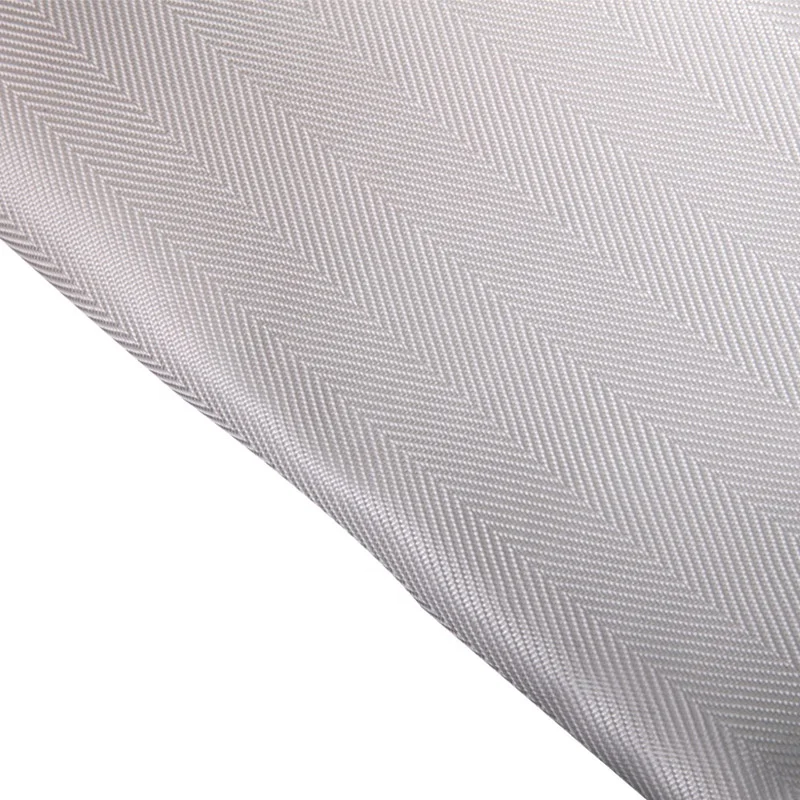

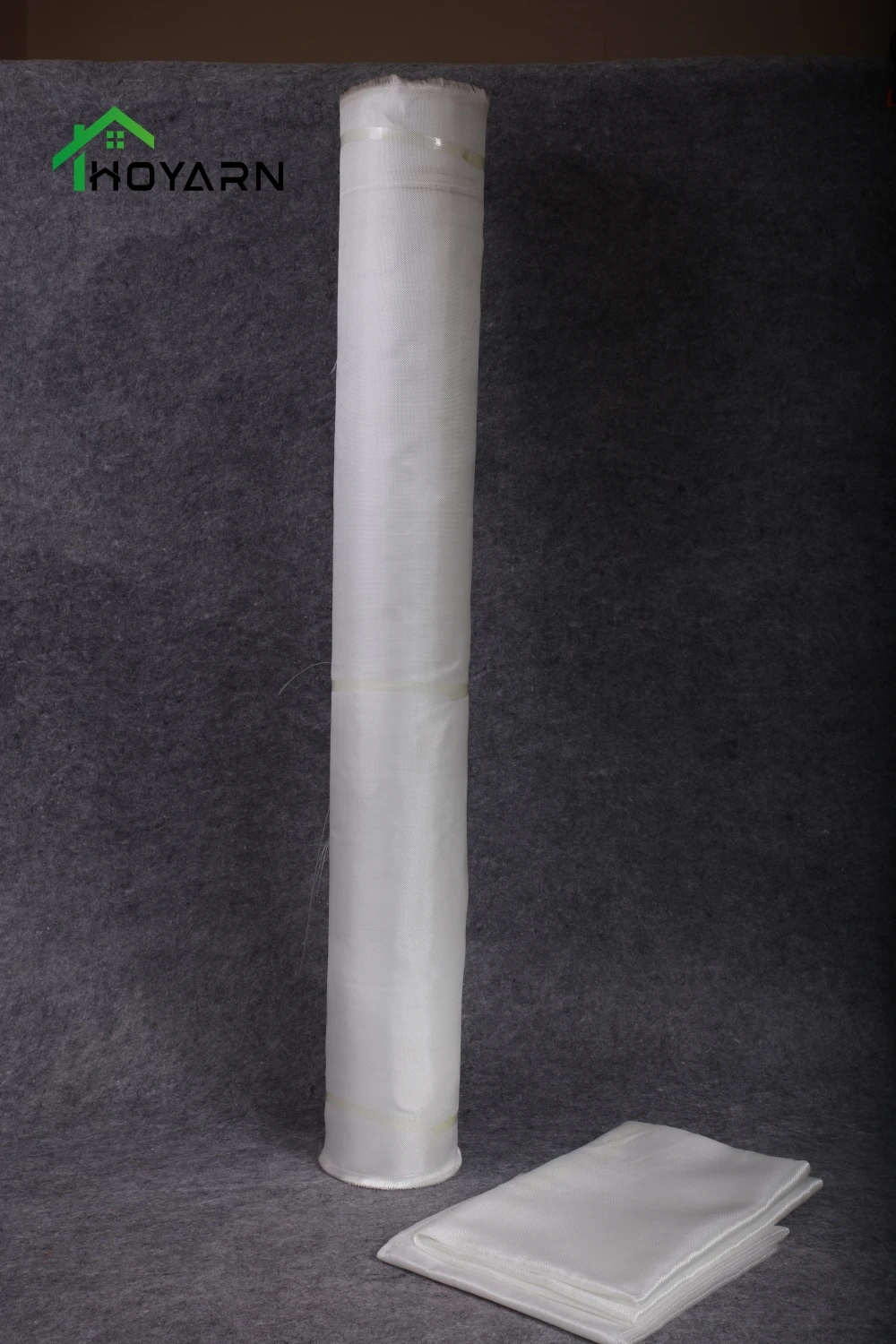

Product Details
Technical Data
Size | 100g | 135g | 160g | 190g |
Yarn Count | 70tex/38tex | 70tex/65tex | 135tex/70tex | 135tex/135tex |
Diameter of Fiber | 11um | 11um | 11um | 11um |
Weight Per Unit Area | 100±3% | 135±3% | 160±3% | 190±3% |
Length of Roll | 100/250/400m±1% | 100/250/400m±1% | 100/250/400m±1% | 100/250/400m±1% |
Width | 1m/2m | 1m/2m | 1m/2m | 1m/2m |
Tension of Warp | 1200N | 1200N | 1380N | 1350N |
Tension of Weft | 900N | 1100N | 1200N | 1350N |
Density of Warp and Weft | 10/cm 8/cm | 10/cm 10/cm | 8/cm 9/cm | 9/cm 9/cm |
Water Content | 0.5% | 0.5% | 0.5% | 0.5% |
Test Report | ||||||
Fiberglass cloth (plain)10*10 | ||||||
Test item | Technical requirements | Test result | Judgment of a single item | |||
Temperature (℃) | 350 | 350 | Qualified | |||
Appearance | No offline, loopholes, impurities, skips, distortion, etc. | Conform to relevant requirements | Qualified | |||
Thickness(mm) | ≥0.1 | 0.1 | Qualified | |||
Warp density (unit/cm) | ≥10±0.5 | 10 | Qualified | |||
Weft density (unit/cm) | ≥10±0.5 | 10 | Qualified | |||
Fracture strength (warp) (N/50mm) | ≥600 | 650 | Qualified | |||
Fracture strength (weft) (N/50mm) | ≥600 | 700 | Qualified | |||
Fiberglass cloth (plain) 9*9 | ||||||
Test item | Technical requirements | Test result | Judgment of a single item | |||
Temperature (℃) | 350 | 350 | Qualified | |||
Appearance | No offline, loopholes, impurities, skips, distortion, etc. | Conform to relevant requirements | Qualified | |||
Thickness(mm) | ≥0.1 | 0.1 | Qualified | |||
Warp density (unit/cm) | ≥9±0.5 | 9.5 | Qualified | |||
Weft density (unit/cm) | ≥9±0.5 | 10 | Qualified | |||
Fracture strength (warp) (N/50mm) | ≥800 | 900 | Qualified | |||
Fracture strength (weft) (N/50mm) | ≥800 | 870 | Qualified | |||
Fiberglass cloth (plain) 8*8 | ||||||
Test item | Technical requirements | Test result | Judgment of a single item | |||
Temperature (℃) | 350 | 350 | Qualified | |||
Appearance | No offline, loopholes, impurities, skips, distortion, etc. | Conform to relevant requirements | Qualified | |||
Thickness(mm) | ≥0.1 | 0.1 | Qualified | |||
Warp density (unit/cm) | ≥8±0.5 | 8.1 | Qualified | |||
Weft density (unit/cm) | ≥8±0.5 | 8.1 | Qualified | |||
Fracture strength (warp) (N/50mm) | ≥600 | 650 | Qualified | |||
Fracture strength (weft) (N/50mm) | ≥600 | 700 | Qualified | |||
Company Profile
Headquartered in Xiong'an, a highland in China, Hebei Xiong'an Hengyun Technology Co., Ltd. borders the country's capital Beijing and the major port of Tianjin in the north. With abundant human, transportation and social resources, it is engaged in the production and import/export trade of fiberglass products, as well as accessories such as waterproof and fireproof materials.
The company established its factory in 1996, with a provincial laboratory and several invention and utility patents. In order to promote the company's development, a public-relations team of a dozen members was formed. Adhering to its original aspiration to realize its dream, the company masters the dynamics of the fiberglass market and keeps making progress and innovation. With the tenet of "constantly satisfying customers' needs", it upholds the principles of "superior quality, scientific management, credibility first and considerate service" to serve customers.

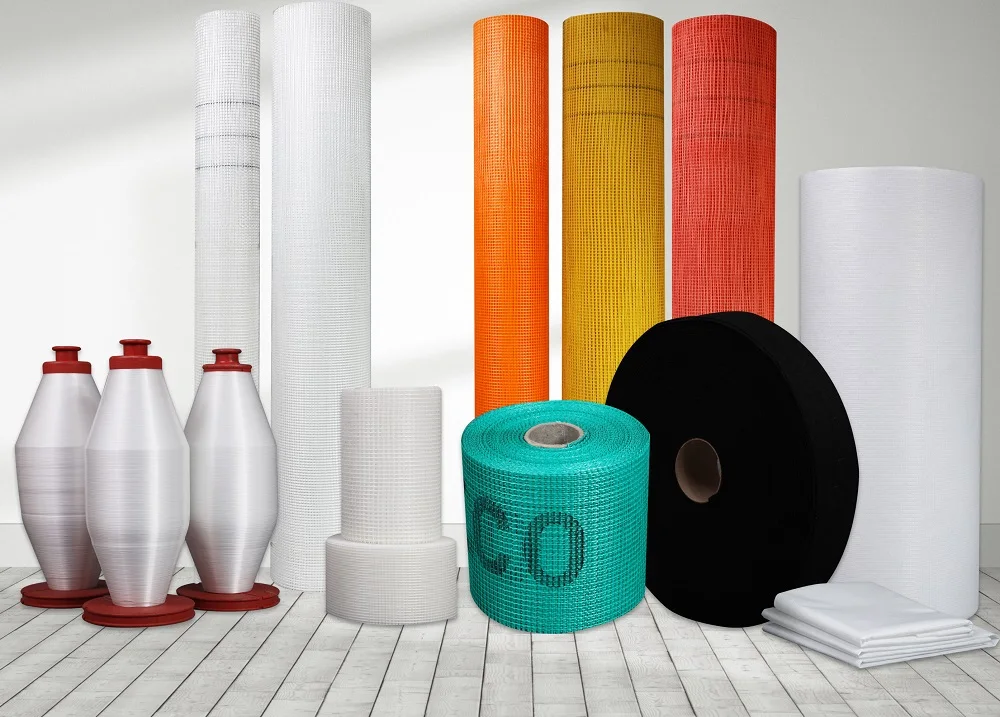

The company offers six series of products, namely fiberglass mesh cloth, woven roving, plain cloth, waterproof and fireproof cloth, fiberglass nonwoven cloth, and aluminum foil cloth. There are dozens of varieties in total, with an annual output of 20 million square meters of fiberglass cloth, 50 million square meters of mesh cloth, 15 million square meters of other fiberglass products, and 5 million meters of new materials.
From 2009 to 2015, the company attended the Canton Fair twice a year, and took part in a variety of international building materials exhibitions and enterprise international suture materials exhibitions, including the YAPI – Turkey Build Istanbul, the International Builders' Show in the United State, the MosBuild in Russia, and the Designbuild in Australia. It visited customers in Central Asia, Northern Europe, South America and the Arab world and receives positive reviews.
The company has a tight quality control network and strictly follows the 6S management system and IS09001 quality assurance system. It has been awarded the titles of Safety Production Standardization Enterprise, Advanced Enterprise, Science and Technology Star Enterprise, Excellent Credit Enterprise, Famous Trademark Enterprise in Hebei Province, and has received a number of honorary certificates!
• 20 years of research and development and production experience, products are guaranteed.
• Mature enterprises, good after-sales, guarantee the security of funds.
• We have our own brand. OED and ODM are on the same production line, so the brand value is guaranteed and the quality is stable.
• The complete production line, from drawing to coating cloth, guarantees quality and delivery time.
• Integrity, protect customer information, ensure the security of funds.
• Mature enterprises, good after-sales, guarantee the security of funds.
• We have our own brand. OED and ODM are on the same production line, so the brand value is guaranteed and the quality is stable.
• The complete production line, from drawing to coating cloth, guarantees quality and delivery time.
• Integrity, protect customer information, ensure the security of funds.
Certifications

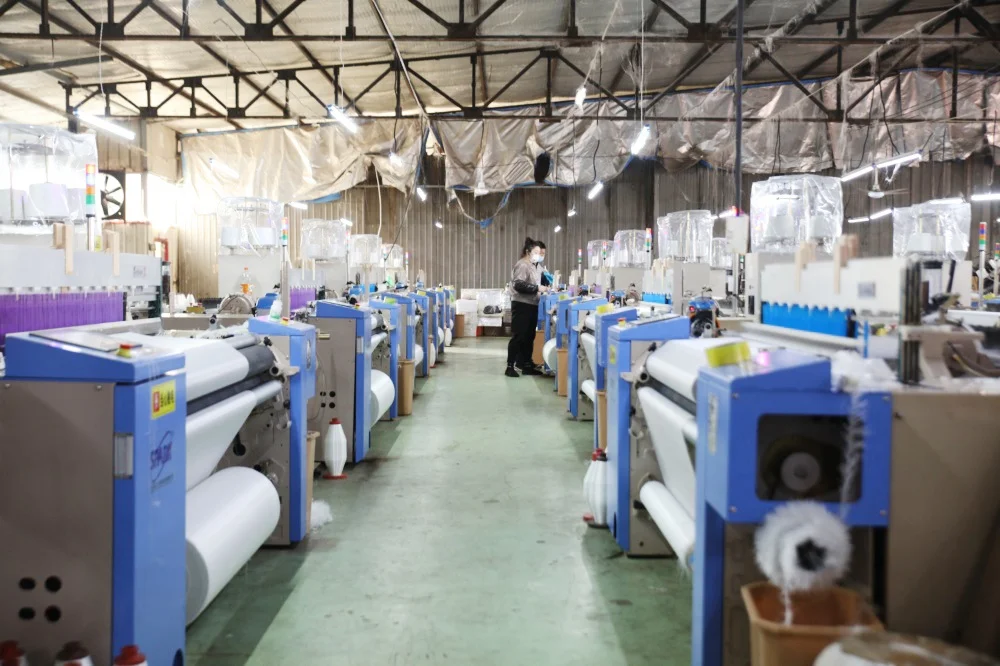

Our Factory

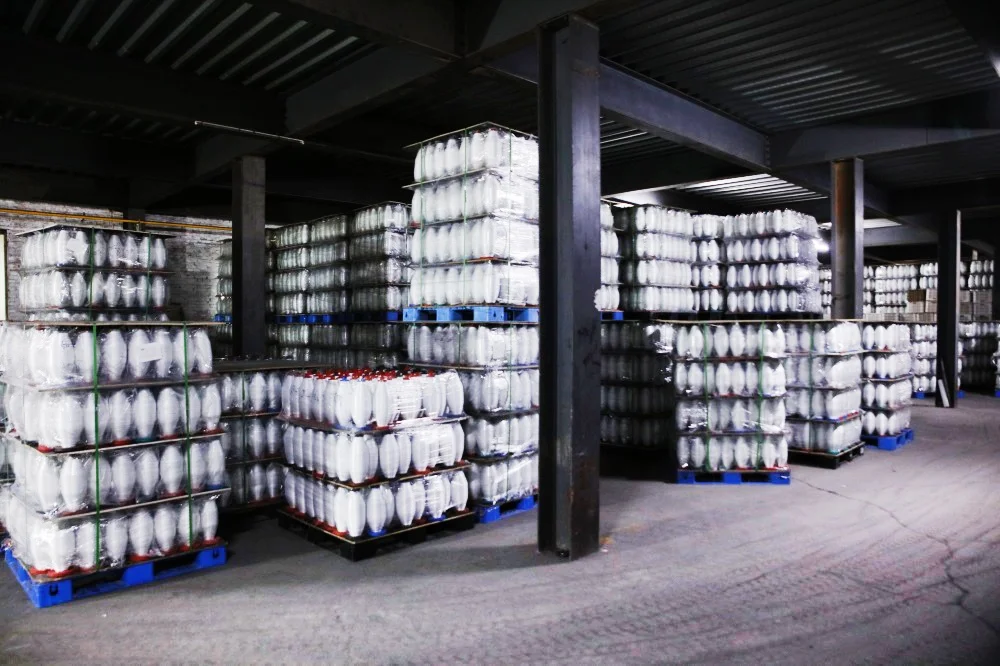

Packing & Delivery
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 7-10 days usually.
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 7-10 days usually.
