Medical Pet Monitores de Signos Vitales Vet Anesthesia Monitor Multiparameter Etco2 Veterinary Vital Signs Monitor With Co2
- Category: >>>
- Supplier: Sino-Hero(shenzhen) Bio-Medical Electronics Co. Ltd.
Share on (1600819682696):
Product Overview
Description
Product Name: | CMS6000-VET heart blood pressure monitor for vet clinics |
Display Mode: | 8.4″ color TFT display LED Screen |
Classification: | Vet heart blood pressure monitor |
Lead type: | 5 Lead cable, input RA; LA; RL; LL; V |
Languages available: | 18 languages (Optional languages: French, German, Italian, Dutch,Turkish, etc.) |
NIBP method: | Oscillometry |
SPO2 measurement range: | 0-100% |
Respiration parameter: | 1. Method: RA-LL impedance 2. Pediatric/Neonatal: 6-150rpm 3. Alarm range: Adult: 6-120rpm 4.Pediatric/Neonatal: 6-150rpm |
Temperature porfermance: | 1. Resolution: 0.1℃ 2. Channel: Dual-channel 3. Alarm range: 0-50℃ |
EtCO2 specification: | 1. Measurement Mode: Side-stream or mainstream 2. Measurement range: EtCO2: 0-99mmHg 3. Accuracy: CO2 concentration 4. Apnea alarm: YES |
IBP specification: | 1.Channel: 2 channels 2. Pressure transducer: Sensitivity: 5( mV/V/mmHg) 3. Transducer sites: ART, PA, CVP, RAP, LAP, ICP 4. Alarm range: -10~300mmHg |
Power Requirement: | AC100-240V, 50/60Hz,140VA,1.4A-0.59A |
Product Description
Medical Pet Monitores de Signos Vitales Vet Anesthesia Monitor Multiparameter Etco2 Veterinary Vital Signs Monitor With Co2
Introduction:

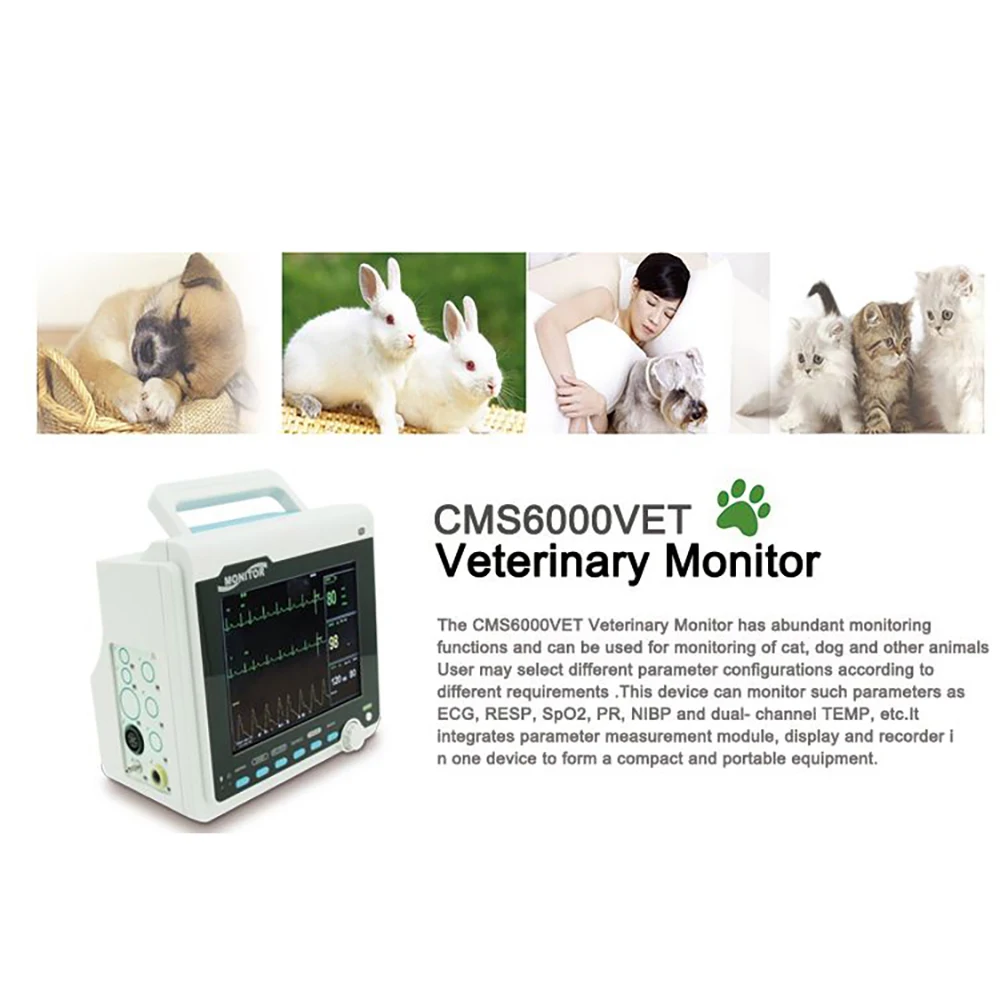

CMS6000-VET Veterinary Animals Patient Monitor The monitor has abundant monitoring functions and is used for monitoring of adult, pediatric and neonate. User may select different parameter configurations according to different requirements. It displays real-time data and waveform by 8'' TFT color LCD, and up to 8-channel waveform and all monitoring parameters can be displayed simultaneously. 48mm thermal printer is optional. In addition, it can be connected to the central monitoring system via wired/wireless network so as to form a network monitoring system.
This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual- channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for patient moving.
Functions:
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
1)ECG Heart rate(HR)
ECG waveform
Arrhythmia and ST-segment analysis
2)RESP Respiration rate(RR)
Respiration waveform
3)SpO2 Oxygen saturation(SpO2)
Plethysmogram(PLETH) waveform
Pulse rate(PR)
Bar graph
4)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
5)TEMP T1, T2, TD
It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.
Features:
1)8'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech).
2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
3)All-round monitor for adult, pediatric and neonate.
4)With standard interface, OxyCRG, trend chard, big character interface and view bed, convenient to observe.
5)Waveform, parameter color and location can be set optionally.
6)Operation mode: keys and buttons.
7)Display up to 8-channel waveform on one screen.
8)Display 7-lead ECG waveform on one screen, and with ECG step function.
9)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
10)HRV analysis function.
11)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
12)Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
13)Drug concentration calculation and titration table functions.
14)Print trend table data with one-key.
15)Connect to Central Monitoring System by 3G, WiFi or wired mode.
16)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
17)Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).
CMS6000-VET Veterinary Animals Patient Monitor The monitor has abundant monitoring functions and is used for monitoring of adult, pediatric and neonate. User may select different parameter configurations according to different requirements. It displays real-time data and waveform by 8'' TFT color LCD, and up to 8-channel waveform and all monitoring parameters can be displayed simultaneously. 48mm thermal printer is optional. In addition, it can be connected to the central monitoring system via wired/wireless network so as to form a network monitoring system.
This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual- channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for patient moving.
Functions:
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
1)ECG Heart rate(HR)
ECG waveform
Arrhythmia and ST-segment analysis
2)RESP Respiration rate(RR)
Respiration waveform
3)SpO2 Oxygen saturation(SpO2)
Plethysmogram(PLETH) waveform
Pulse rate(PR)
Bar graph
4)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
5)TEMP T1, T2, TD
It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.
Features:
1)8'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech).
2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
3)All-round monitor for adult, pediatric and neonate.
4)With standard interface, OxyCRG, trend chard, big character interface and view bed, convenient to observe.
5)Waveform, parameter color and location can be set optionally.
6)Operation mode: keys and buttons.
7)Display up to 8-channel waveform on one screen.
8)Display 7-lead ECG waveform on one screen, and with ECG step function.
9)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
10)HRV analysis function.
11)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
12)Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
13)Drug concentration calculation and titration table functions.
14)Print trend table data with one-key.
15)Connect to Central Monitoring System by 3G, WiFi or wired mode.
16)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
17)Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).
Other products
CMS8000-VET(Patient Monitor)
SH-509i VET (Infusion pump)
SE508-VET (ECG Machine)
Performance
▲ECG
Lead mode: 3-lead or 5-lead
Lead selection: I, II, III, aVR, aVL, aVF, V
Waveform: 5-lead, 2-channel
3-lead, 1-channel
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s
HR:
Measurement and alarm range: 15~350bpm
Accuracy: ±1% or ±1bpm, whichever is greater
Alarm accuracy: ± 2 bpm
Resolution: 1 bpm
ST-segment monitoring:
Measurement and alarm range: -2.0mV~+2.0mV
Accuracy: -0.8mV~+0.8mV ±0.04mv or ±10%, whichever is greater
Other range: unspecified
Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
Pacemaker: yes
RESPIRATION
Method: R-F(RA-LL) Impedance
Respiration rate:
Measurement and alarm range: 0~150rpm
Resolution: 1 rpm
Measurement accuracy: ±2 rpm
Alarm accuracy: ±3 rpm
Apnea alarm: 10~40s
Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s
▲NIBP
Method: Oscillometry
Mode: Manual/AUTO/STAT
Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes
Measurement period in STAT mode: 5 minutes
Measurement and alarm range: 10 ~ 270 mmHg
Resolution: 1 mmHg
Cuff pressure accuracy: ±3 mmHg
Measurement accuracy:
Maximal mean deviation: ±5 mmHg
Maximal standard deviation: 8mmHg
Over-pressure protection:
Adult mode: 297±3 mmHg
Pediatric mode: 240±3 mmHg
Neonatal mode: 147±3 mmHg
▲SpO2
Measurement and alarm range: 0 ~ 100%
Resolution: 1%
Measurement accuracy: 70%~100%: ±2%;
0%~69%: unspecified
PR
Measurement and alarm range: 30 ~ 250 bpm
Measurement accuracy: ±2 bpm or ±2%, whichever is greater
TEMP
Channel: dual-channel
Measurement and alarm range: 0 ~ 50℃
Resolution: 0.1 ℃
Accuracy: ±0.1 ℃
▲EtCO2
Method: Sidestream or Mainstream
Measurement range for CO2: 0 ~ 150mmHg
Resolution for CO2:
0.1 mm Hg: 0 ~ 69 mm Hg
0.25 mm Hg: 70 ~ 150 mm Hg
Accuracy for CO2:
0 ~ 40 mm Hg: ±2 mm Hg
41 ~ 70 mm Hg: ±5%
71 ~ 100 mm Hg: ±8%
101 ~ 150 mm Hg: ±10%
AwRR range: 2~150 rpm
AwRR accuracy: ±1 rpm
Apnea alarm: yes
IBP
Channel: dual-channel
Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measurement and alarm range: -10~300 mm Hg
Resolution: 1 mmHg
Accuracy: ±2% or 1mm Hg, whichever is greater
Power supply:100-240V~, 50/60Hz
Safety classification: Class I, type CF defibrillation-proof applied part
Physical characteristic：
Dimension: 235 mm(L) × 141 mm(W) × 222 mm(H)
Weight: 2.5 Kg
Lead mode: 3-lead or 5-lead
Lead selection: I, II, III, aVR, aVL, aVF, V
Waveform: 5-lead, 2-channel
3-lead, 1-channel
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s
HR:
Measurement and alarm range: 15~350bpm
Accuracy: ±1% or ±1bpm, whichever is greater
Alarm accuracy: ± 2 bpm
Resolution: 1 bpm
ST-segment monitoring:
Measurement and alarm range: -2.0mV~+2.0mV
Accuracy: -0.8mV~+0.8mV ±0.04mv or ±10%, whichever is greater
Other range: unspecified
Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
Pacemaker: yes
RESPIRATION
Method: R-F(RA-LL) Impedance
Respiration rate:
Measurement and alarm range: 0~150rpm
Resolution: 1 rpm
Measurement accuracy: ±2 rpm
Alarm accuracy: ±3 rpm
Apnea alarm: 10~40s
Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s
▲NIBP
Method: Oscillometry
Mode: Manual/AUTO/STAT
Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes
Measurement period in STAT mode: 5 minutes
Measurement and alarm range: 10 ~ 270 mmHg
Resolution: 1 mmHg
Cuff pressure accuracy: ±3 mmHg
Measurement accuracy:
Maximal mean deviation: ±5 mmHg
Maximal standard deviation: 8mmHg
Over-pressure protection:
Adult mode: 297±3 mmHg
Pediatric mode: 240±3 mmHg
Neonatal mode: 147±3 mmHg
▲SpO2
Measurement and alarm range: 0 ~ 100%
Resolution: 1%
Measurement accuracy: 70%~100%: ±2%;
0%~69%: unspecified
PR
Measurement and alarm range: 30 ~ 250 bpm
Measurement accuracy: ±2 bpm or ±2%, whichever is greater
TEMP
Channel: dual-channel
Measurement and alarm range: 0 ~ 50℃
Resolution: 0.1 ℃
Accuracy: ±0.1 ℃
▲EtCO2
Method: Sidestream or Mainstream
Measurement range for CO2: 0 ~ 150mmHg
Resolution for CO2:
0.1 mm Hg: 0 ~ 69 mm Hg
0.25 mm Hg: 70 ~ 150 mm Hg
Accuracy for CO2:
0 ~ 40 mm Hg: ±2 mm Hg
41 ~ 70 mm Hg: ±5%
71 ~ 100 mm Hg: ±8%
101 ~ 150 mm Hg: ±10%
AwRR range: 2~150 rpm
AwRR accuracy: ±1 rpm
Apnea alarm: yes
IBP
Channel: dual-channel
Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measurement and alarm range: -10~300 mm Hg
Resolution: 1 mmHg
Accuracy: ±2% or 1mm Hg, whichever is greater
Power supply:100-240V~, 50/60Hz
Safety classification: Class I, type CF defibrillation-proof applied part
Physical characteristic：
Dimension: 235 mm(L) × 141 mm(W) × 222 mm(H)
Weight: 2.5 Kg
Packing & Delivery

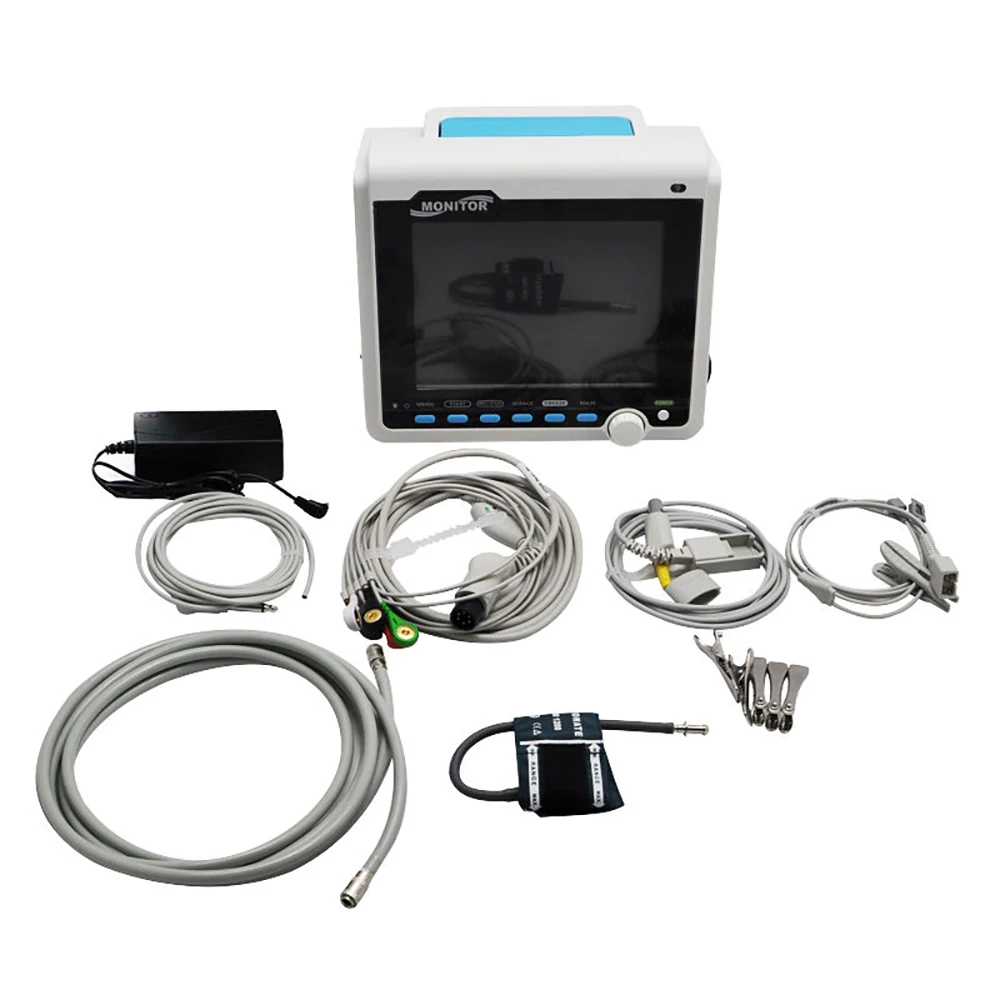

Package included:
1X CMS6000 Veterinary Animals Patient Monitor
1X VET SpO2 probe
1X 6-11CM Neonate/VET NIBP cuff
1X NIBP extension tube
1X ECG lead cable
1X ECG electrode
1X Temperature probe
1X Power adapter
1X Power cord
1X User Manual
1X CMS6000 Veterinary Animals Patient Monitor
1X VET SpO2 probe
1X 6-11CM Neonate/VET NIBP cuff
1X NIBP extension tube
1X ECG lead cable
1X ECG electrode
1X Temperature probe
1X Power adapter
1X Power cord
1X User Manual
Company Profie
Exhibition
FAQ
1.Who we are? Where we are from? Where we service?
3.What items we could provide for you?
SINO-HERO business activities focus on product lines below: 1) A wide range of versatile Patient Monitors suitable for all
hospital setting, including OR, ER, Recovery Room, General Patient ward 2)Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe 3) ECG machine and its accessories 4) Infusion pump and Syringe Pump system 5)
Obstetrical product: Fetal Doppler, Colposcope 6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System 7)
A wide range of compatible ultrasound probes and repairable ultrasound probes.
4. Why should you buy from us not from other suppliers?
SINHERO’s products are installed in over 50 countries, including US, UK, Germany, France, Italy, Spain, etc. and the percentage of total sales from Europe has been growing fast. The main competitive advantages of SINOHERO’s products: a. quality
We are Sino-Hero (Shenzhen) Bio-Medical Electronics Co., Ltd, founded in 2003, is one of the leading manufactures for medical devices and medical accessories in China. We are based in Shenzhen,Guangdong, China, start from 2004, WE service more than 100 country： Northern Europe(10.00%),Western Europe(10.00%),EasternAsia(10.00%),South Asia(10.00%),Southern Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%),Mid East(5.00%),Africa(5.00%). There are total about 11-50 people in our office.
2.What we have? How can we guarantee quality?
We are professional in medical more than 16 Years,We have TUV CE a& ISO13485 Certifications for our products.
All of our items Always a pre-production sample before mass production;
We are professional in medical more than 16 Years,We have TUV CE a& ISO13485 Certifications for our products.
All of our items Always a pre-production sample before mass production;
All items get 100% checking before in our stock;
Always final Inspection before shipment.
3.What items we could provide for you?
SINO-HERO business activities focus on product lines below: 1) A wide range of versatile Patient Monitors suitable for all
hospital setting, including OR, ER, Recovery Room, General Patient ward 2)Monitoring Accessories maximal compatibility for all major brands (GE, Philips, Schiller, Collin, CSI, Critikon, Nihon Kohden, etc.): including, Reusable Spo2 Sensor & Ext-Cable, ECG cable, EKG cable, NIBP cuff, Air-hose, Temp probe 3) ECG machine and its accessories 4) Infusion pump and Syringe Pump system 5)
Obstetrical product: Fetal Doppler, Colposcope 6) Medical Imaging Systems:Color Ultrasound Scanner, Portable Ultrasound System 7)
A wide range of compatible ultrasound probes and repairable ultrasound probes.
4. Why should you buy from us not from other suppliers?
SINHERO’s products are installed in over 50 countries, including US, UK, Germany, France, Italy, Spain, etc. and the percentage of total sales from Europe has been growing fast. The main competitive advantages of SINOHERO’s products: a. quality
b. functionality
c. easy maintenance and easy to operate
c. easy maintenance and easy to operate
d. spare parts and consumables at low cost
e. on-time delivery
f. strong after sales technical support
5. What services we Can provide for you?
We could provide items with Ready to ship,we also could do OEM,ODM orders,we also welcome you to be our Brand Sinohero Agent to work together with us;
5. What services we Can provide for you?
We could provide items with Ready to ship,we also could do OEM,ODM orders,we also welcome you to be our Brand Sinohero Agent to work together with us;
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow; Language
Spoken: English,Chinese,Spanish,German,French,Russian
Spoken: English,Chinese,Spanish,German,French,Russian
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
