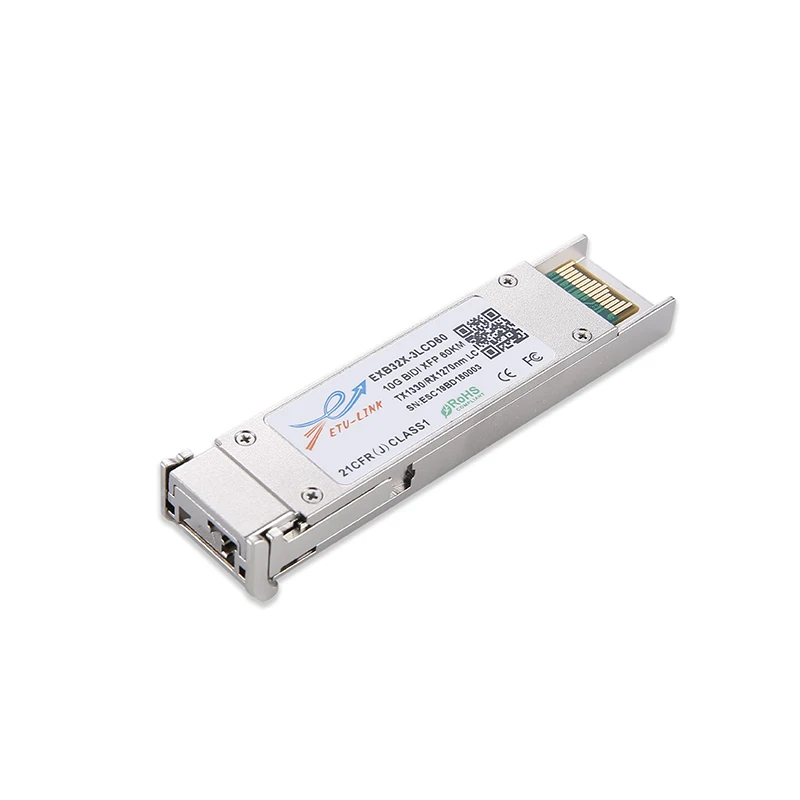

ETU Link Free Technical Support 10G BiDi XFP 1330nm/1270nm DDM 60KM LC Bidirectional Fiber Optical Transceiver SFP Modules
- Category: >>>
- Supplier: ETU-Link Technology Co. Ltd.
Share on (1600819702265):
Product Overview
Description
Product Parameters
Product series | Optical transceiver | ETU-Link Number | EXB32X-3LCD60 | |||
Type | XFP | Data Rate | Up to 10 Gb/s | |||
Wavelength | Tx1330nm/Rx1270nm | Fiber Type | SMF | |||
Max Distance | 60KM | Optical Components | DFB+PIN | |||
Transmit Power | 2~6dBm | Receiver Sensitivity | < -20dBm | |||
Connector | LC | Operating Voltage | 3.3V | |||
DDM | Yes | Hot-pluggable | Yes | |||
Operating Temp | 0℃ - 70℃ （Commercial） | Package | Paper box/Plastic tray/Static bag | |||
Application | Optical fiber switches Optical fiber routers Optical network cards Optical fiber server | Compliance | I10GBASE-ER 10G Ethernet 10GBASE-EW 10G Ethernet 1200-SM-LL-L 1-0G Fiber Channe RoHS | |||
Products Description
