Liquid Aerosol Generator

Product Overview

Description

Product Overview

The liquid aerosol generator is a two-fluid atomizer, which can produce uniform and stable aerosol with an aerosol particle size distribution of 1-4μ m, meeting the inhalation requirements.



Application Field

01.The invention is applied to aerosol generation of liquid and soluble substances, and the generated aerosol particle size meets the requirements in the fields of inhalation infection, inhalation toxicants, inhalation immunity and the like.

02.It is suitable for aerosol generation of rare samples or samples difficult to obtain in large quantities.

03.It is suitable for the occurrence of microbial aerosol with little damage to microorganisms, and can be applied to the study of animal inhalation infection models, etc.

04.It is applied to the preparation of standard particles and the calibration of aerosol detection instruments.



Performance Characteristics

01. Aerosol particle size distribution mm ad1-4um; GSD1.5-3, meeting OECD 403 and other inhalation standards;

02. Impact atomization is adopted, so that heat is not generated, and the liquid sample can be generated into uniform and stable aerosol;

03. Suitable for all kinds of water-soluble, oil-soluble and some fine particle stable suspension liquid samples;

04.The whole body is made of 316L medical grade stainless steel, polytetrafluoroethylene and high borosilicate glass. It is corrosion resistant and can be autoclaved.

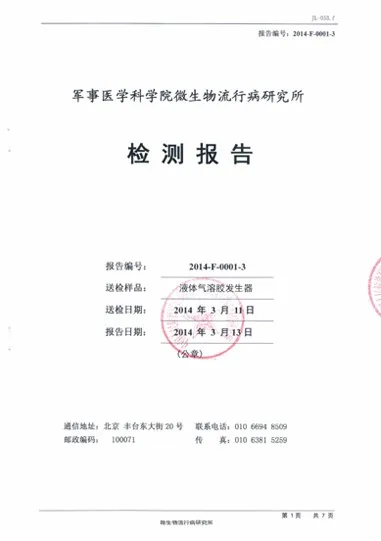

Test Repor





Specification Model

Product Name	Specifications	Model
Liquid aerosol generator	lype l	TOEWAGl
Liquid aerosol generator	Type 3	TOEWAG3
Liquid aerosol generator	lype 6	TOEWAG6
Liquid aerosol generator	Type 12	TOEWAG12
Liquid aerosol generator	Type 24	TOEWAG24



Typical Users

Nankai University	Beijing University of Chemical
Institute of Electrical Engineering Chinese Academy of Sciences	Yunnan Xinsheng Ling Yu Instrument Co., Ltd.
Troop 62041	The 718th Research lnstitute of China Shipbuilding Industry Corporation
Beijing Bachuan Schwab Technology Co.,Ltd.	Beijing Institute of Metrology
eijing Huifenglong Economic Technological Development Co.,Ltd.
