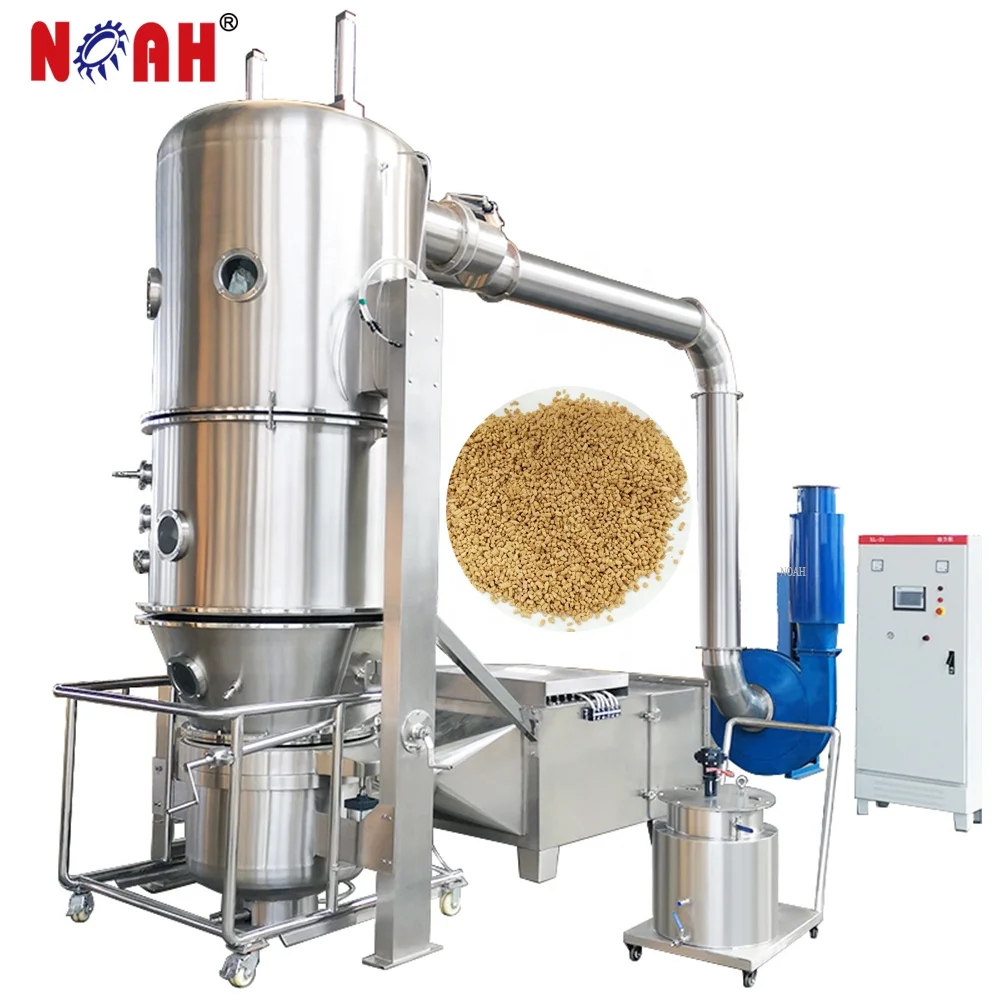

FL 120 Pharmaceutical Fluid Bed Pepper Flavoring granules making machine Food Spry Drying Granulator
- Category: >>>
- Supplier: Shenzhen Nuoya Pharmaceutical Equipment Co. Ltd.
Share on (1600819744435):
Product Overview
Description
FL-120 Pharmaceutical Fluid Bed Pepper Flavoring granules making machine Food Spry Drying Granulator
Products Description
Item | specification | ||||||||||
Name | Unit | 3 | 5 | 15 | 30 | ||||||
Container Volume | L | 12 | 22 | 45 | 100 | ||||||
Diameter | mm | 350 | 500 | 550 | 700 | ||||||
Capacity | kg/batch | 3 | 5 | 15 | 30 | ||||||
Steam | Pressure | Mpa | 0.4-0.6 | ||||||||
Consumption | kg/h | 15 | 18 | 35 | 60 | ||||||
Power of fan | kw | 2.2 | 3 | 5.5 | 7.5 | ||||||
Power of supply liquid motor | kw | 0.37 | |||||||||
Compressed air | Pressure | Mpa | 0.4-0.6 | ||||||||
Consumption | m 3 /min | 0.3 | 0.3 | 0.6 | 0.9 | ||||||
Item | specification | ||||||||||||||
Name | Unit | 60 | 120 | 200 | 300 | 500 | 800-1000 | ||||||||
Container Volume | L | 220 | 420 | 670 | 1000 | 1500 | By client | ||||||||
Diameter | mm | 1000 | 1200 | 1400 | 1600 | 1800 | |||||||||
Capacity | kg/batch | 60 | 120 | 200 | 300 | 500 | |||||||||
Steam | Pressure | Mpa | |||||||||||||
Consumption | kg/h | 120 | 140 | 180 | 310 | 400 | |||||||||
Power of fan | kw | 11 | 18.5 | 22 | 30 | 45 | |||||||||
Power of supply liquid motor | kw | ||||||||||||||
Compressed air | Pressure | Mpa | |||||||||||||
Consumption | m 3 /min | 0.9 | 0.9 | 1.1 | 1.1 | 1.5 | |||||||||

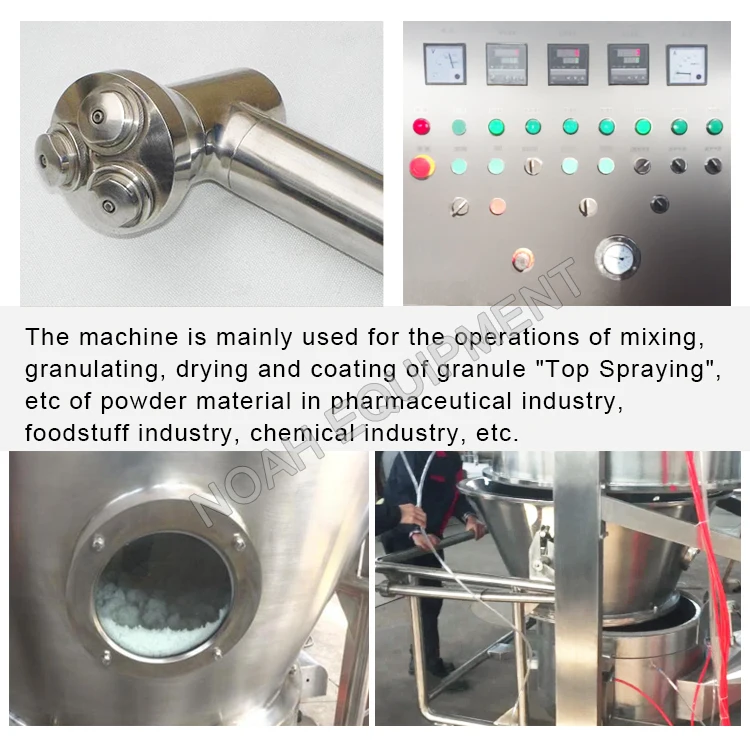

The FL-120 Pharmaceutical Fluid Bed Pepper Flavoring granules making machine Food Spry Drying Granulator is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
Characteristic
1, Mixing-granulating-drying in one-step.
2, Adopting double chamber filtering bags system, removing dust completely.

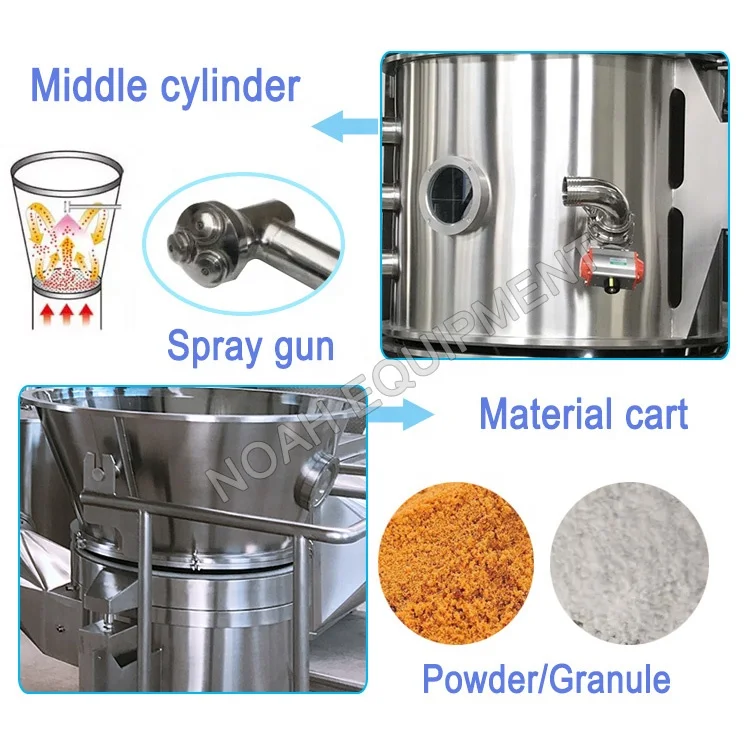

3, Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is low.
4, Can choose 2 bar explosion-proof design
5, Designed, manufactured and laid out by GMP
Characteristic
1, Mixing-granulating-drying in one-step.
2, Adopting double chamber filtering bags system, removing dust completely.
3, Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is low.
4, Can choose 2 bar explosion-proof design
5, Designed, manufactured and laid out by GMP
Details Images
Product packaging
