NTC temperature sensor B3950 thermistor 10K air conditioning probe 5*25MM 5m 10m 15m
- Category: >>>
- Supplier: Shenzhen Smart Electronics Co. Ltd
Share on (1600819745680):
Product Overview
Description
Products Description
Product Name | Cylinder Temperature Probe, Air Conditioning Temperature Sensor |

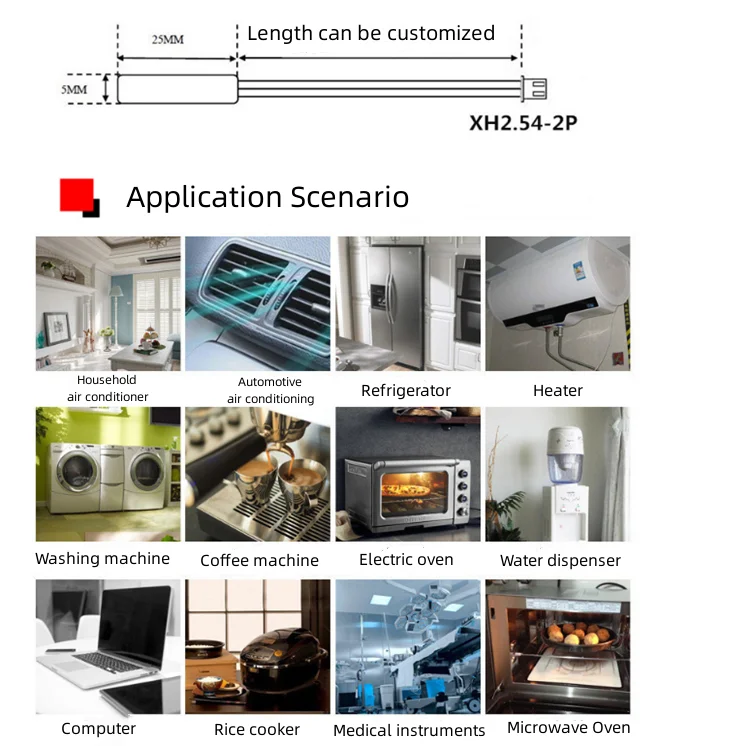

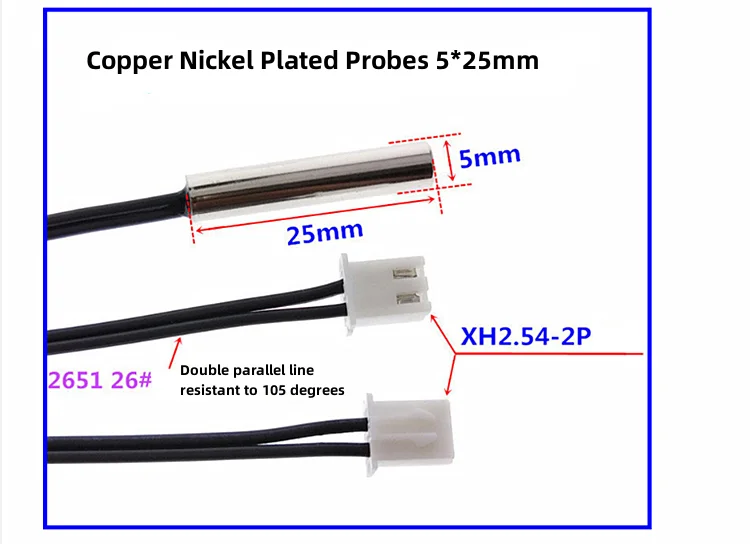

Shell specification | Copper nickel plated 5MM × 25MM cylinder |
Resistance value | 10K Ω |
Resistance accuracy | ± 1% |
Resistance B value | 3950K Ω ± 1% |
Wire specification | UL265126AWG black double parallel wire |
Wire length | 5 meters, 10 meters, 15 meters |
Wire tail | with XH254-2P terminal |
Temperature measurement range | -30 ° C-105 ℃ |
Specifications:
default NTC 10k accuracy ±1% 3950, PVC double-pin cable, also supports other cables and terminals
Features:
High sensitivity and rapid response
Small structure, easy installation, good waterproof
Wide operating temperature zone, good stability and high reliability
Can provide products with different R and B values, strong interchangeability and high precision
High sensitivity and rapid response
Small structure, easy installation, good waterproof
Wide operating temperature zone, good stability and high reliability
Can provide products with different R and B values, strong interchangeability and high precision
Usage
Mainly used in battery packs. Battery cookers, air conditioners, home appliances, machinery, air conditioners, refrigerators, freezers, soymilk machines, bread machines, water dispensers and other household appliances, medical instruments, temperature control instruments, electronic gifts, electronic thermometers and hygrometers; automotive temperature measurement, electronic calendars , Charger battery pack and charger, induction cooker, electric pressure cooker, rice cooker, electric oven, disinfection cabinet, water dispenser, microwave oven, electric heater, industrial, medical, environmental protection, meteorology, food processing equipment and other household appliances temperature control and temperature detection and Office automation equipment (such as copiers, printers), instrument coils, integrated circuits, quartz crystal oscillators and thermocouples, etc. temperature detection and temperature compensation.
Mainly used in battery packs. Battery cookers, air conditioners, home appliances, machinery, air conditioners, refrigerators, freezers, soymilk machines, bread machines, water dispensers and other household appliances, medical instruments, temperature control instruments, electronic gifts, electronic thermometers and hygrometers; automotive temperature measurement, electronic calendars , Charger battery pack and charger, induction cooker, electric pressure cooker, rice cooker, electric oven, disinfection cabinet, water dispenser, microwave oven, electric heater, industrial, medical, environmental protection, meteorology, food processing equipment and other household appliances temperature control and temperature detection and Office automation equipment (such as copiers, printers), instrument coils, integrated circuits, quartz crystal oscillators and thermocouples, etc. temperature detection and temperature compensation.
About Customization:
Other parameters and wire length can be customized according to customer needs.
Commonly used resistance values 5K, 10K, 15K, 20K, 50K, 100K
Commonly used resistance B values are 3950 and 3435 and 3470, 3380, etc.
Accuracy is 1%, 3%, 5%
If you need customization, please contact us and tell us your requirements!
Other parameters and wire length can be customized according to customer needs.
Commonly used resistance values 5K, 10K, 15K, 20K, 50K, 100K
Commonly used resistance B values are 3950 and 3435 and 3470, 3380, etc.
Accuracy is 1%, 3%, 5%
If you need customization, please contact us and tell us your requirements!
