Price:$2.00 - $2.50

Quantity:


Product Overview

Description

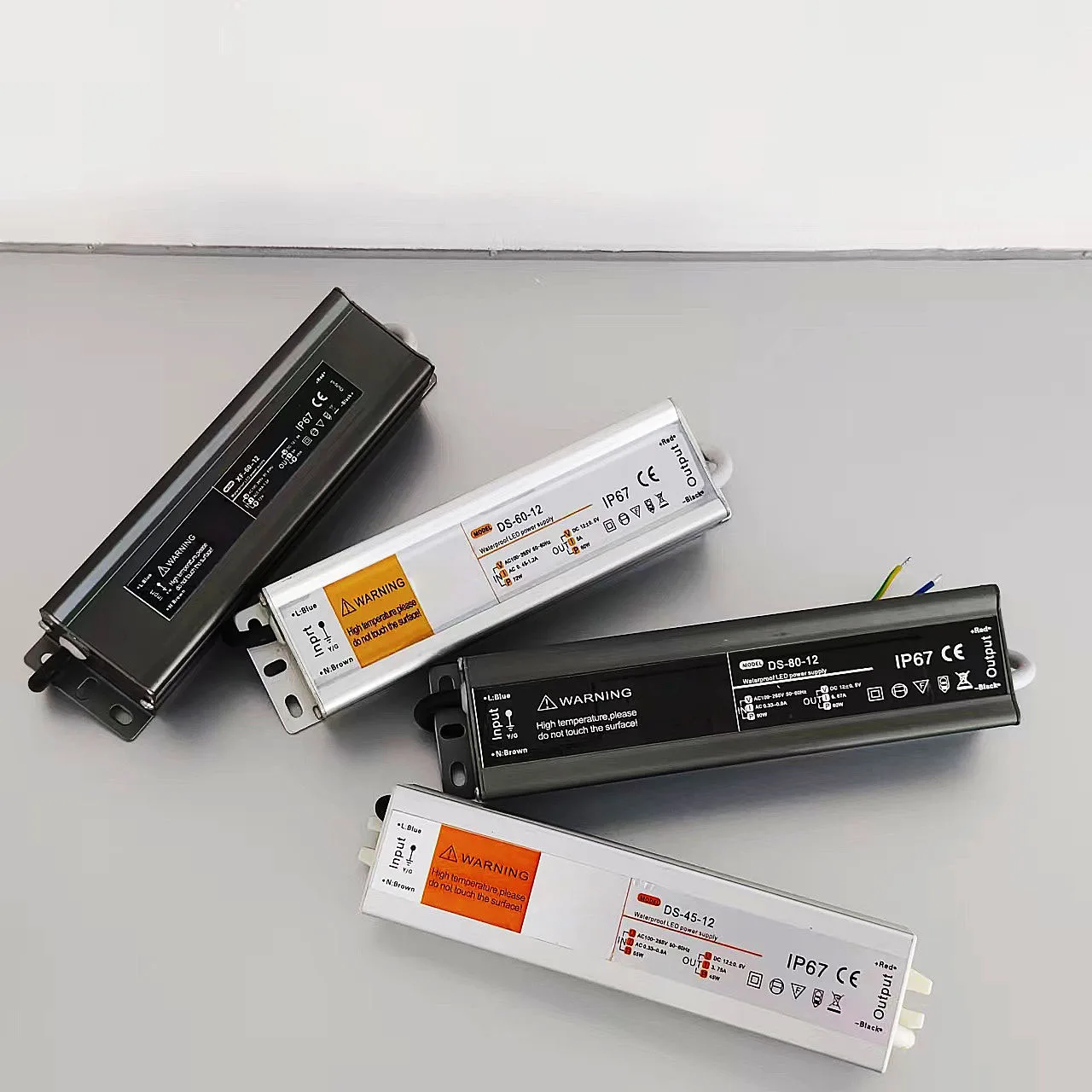

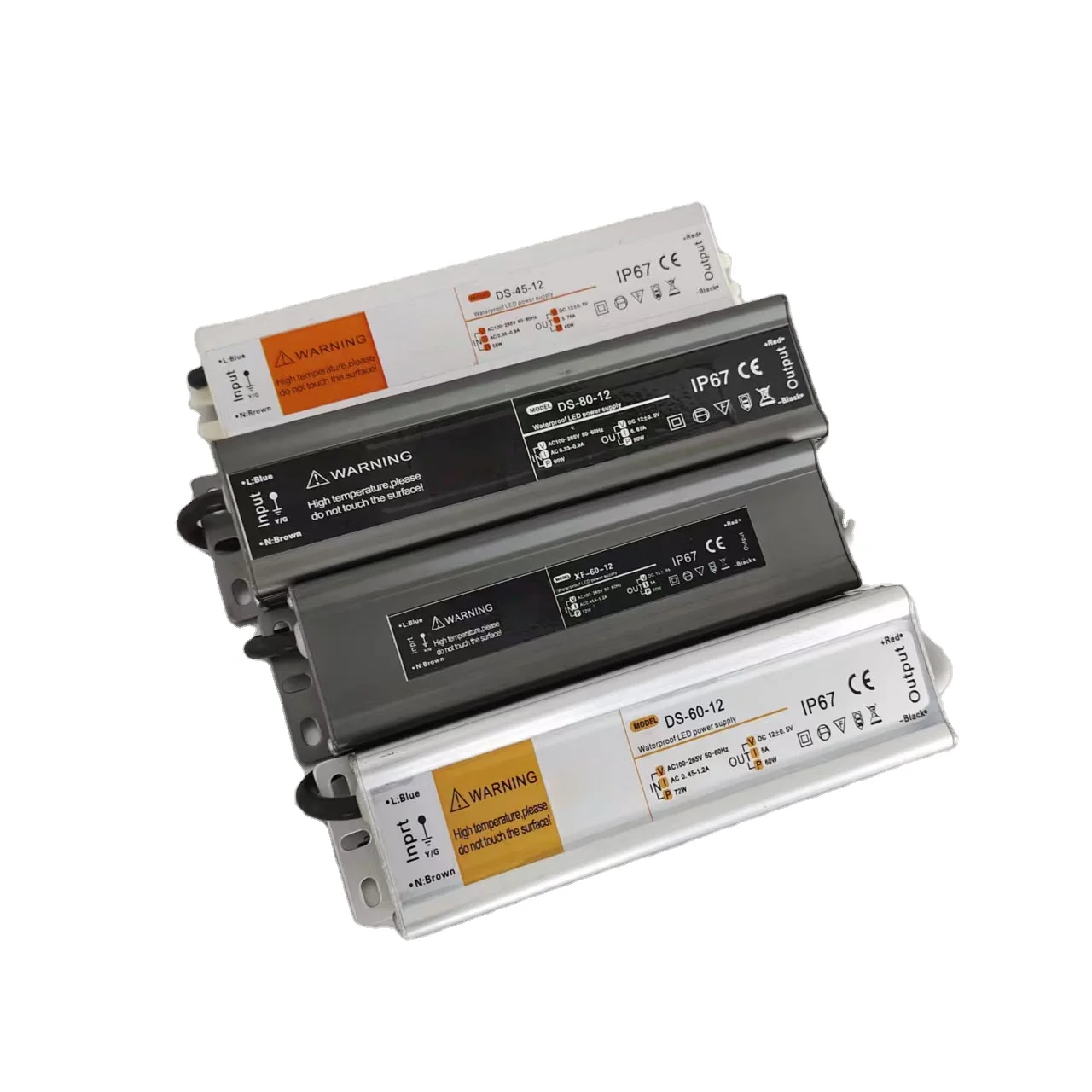

DC 12V 24V Power 5A 8A 10A 15A 20A Power Supply Outdoor Rainproof LED Driver 12 24 V Power Supply Adapter Lighting Transformers


Advantage
1. Two factories, one 14000 square meters ,another 12000 square meters ;
2. Free sample for you ;
3. ISO9001 factory audit passed
4. 6 production lines and 15 testing equipment
5. 600 workers , 8 engineers with 20 years experience ; 200 workers with 15 years of experience .
6. 30 categories of patented designs ,welcome customized
7. 10 raw materials suppliers and have owned fan factory which can provide stable supply and guarantee the delivery time .8. CCC, UL, CE , RoHs ,FCC, LVD , KC , SAA certification which comply with your request for all countries.
9. 7*24 hours per-sale, after-sale and in-sale services and promise to solve or find the solutions for your problems within 24 hours.
10. 1500000 monthly production ; within 7 days for customized samples


Product Description

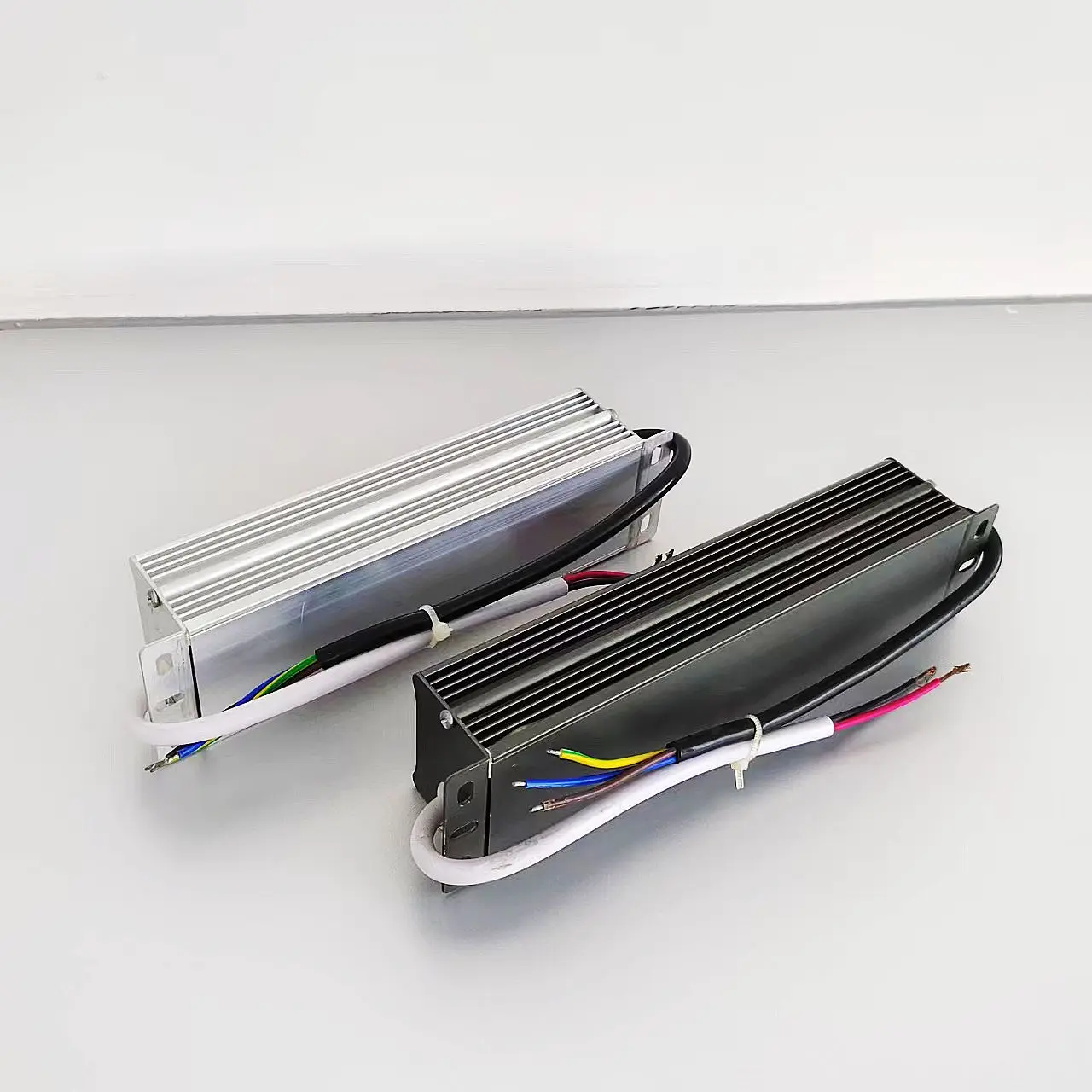

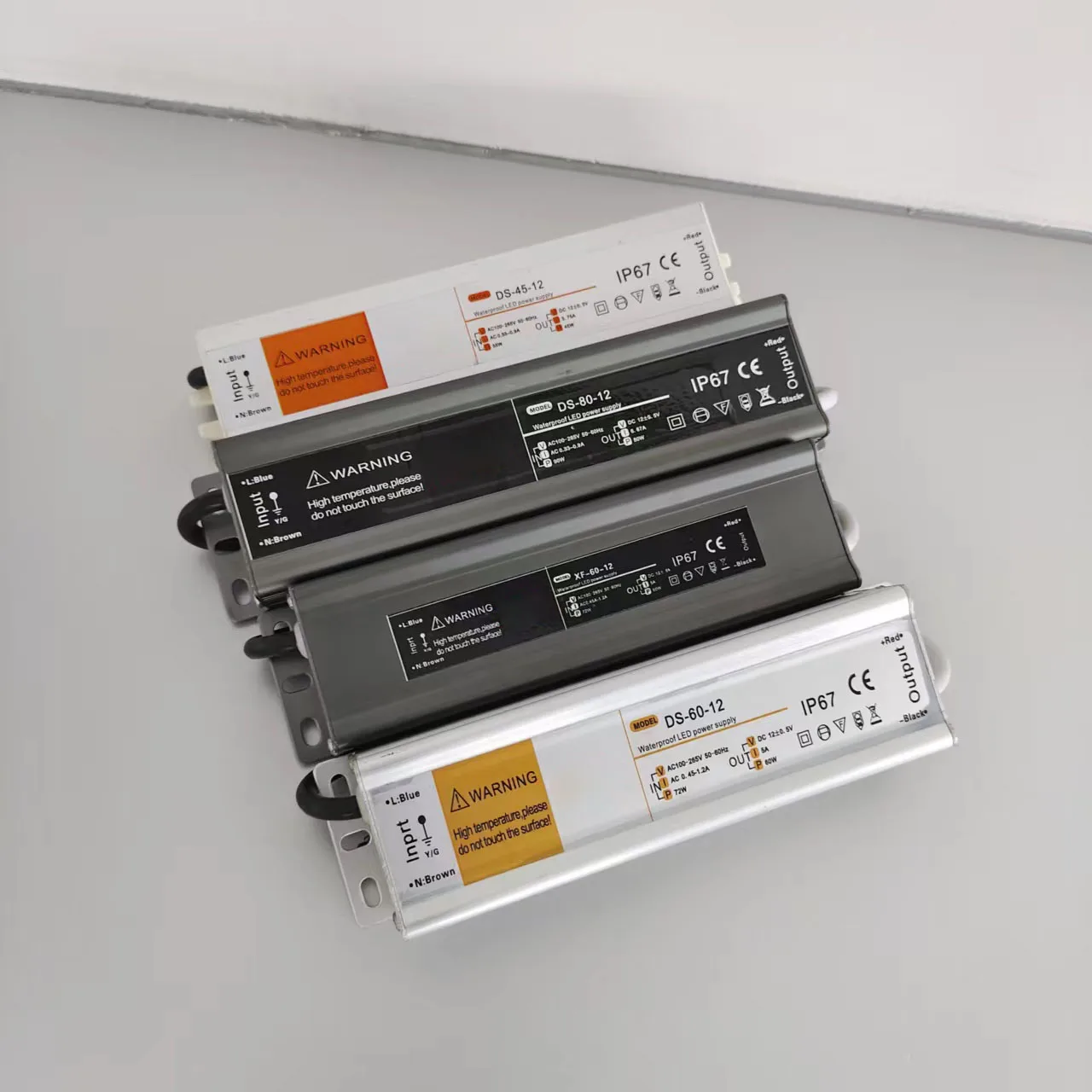

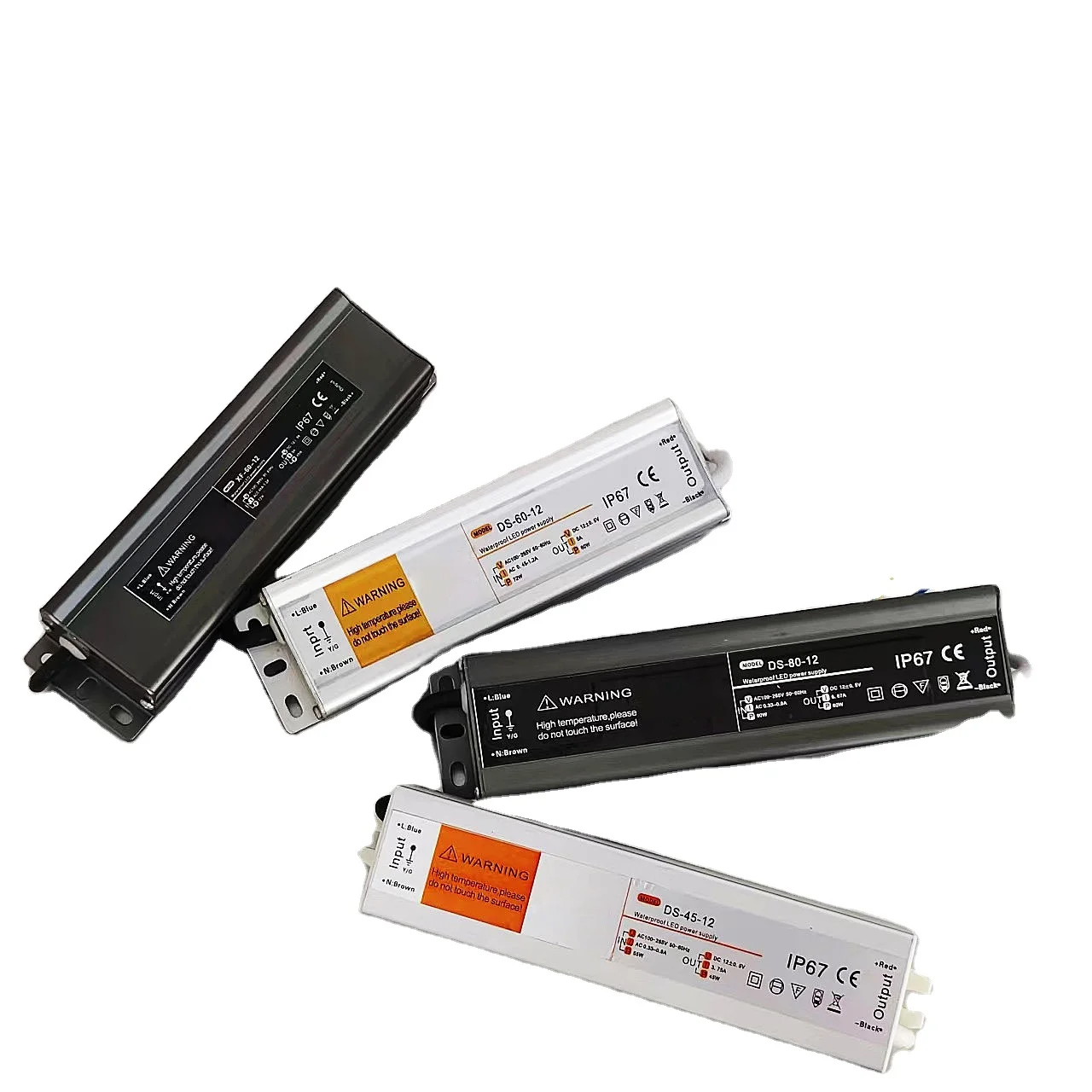

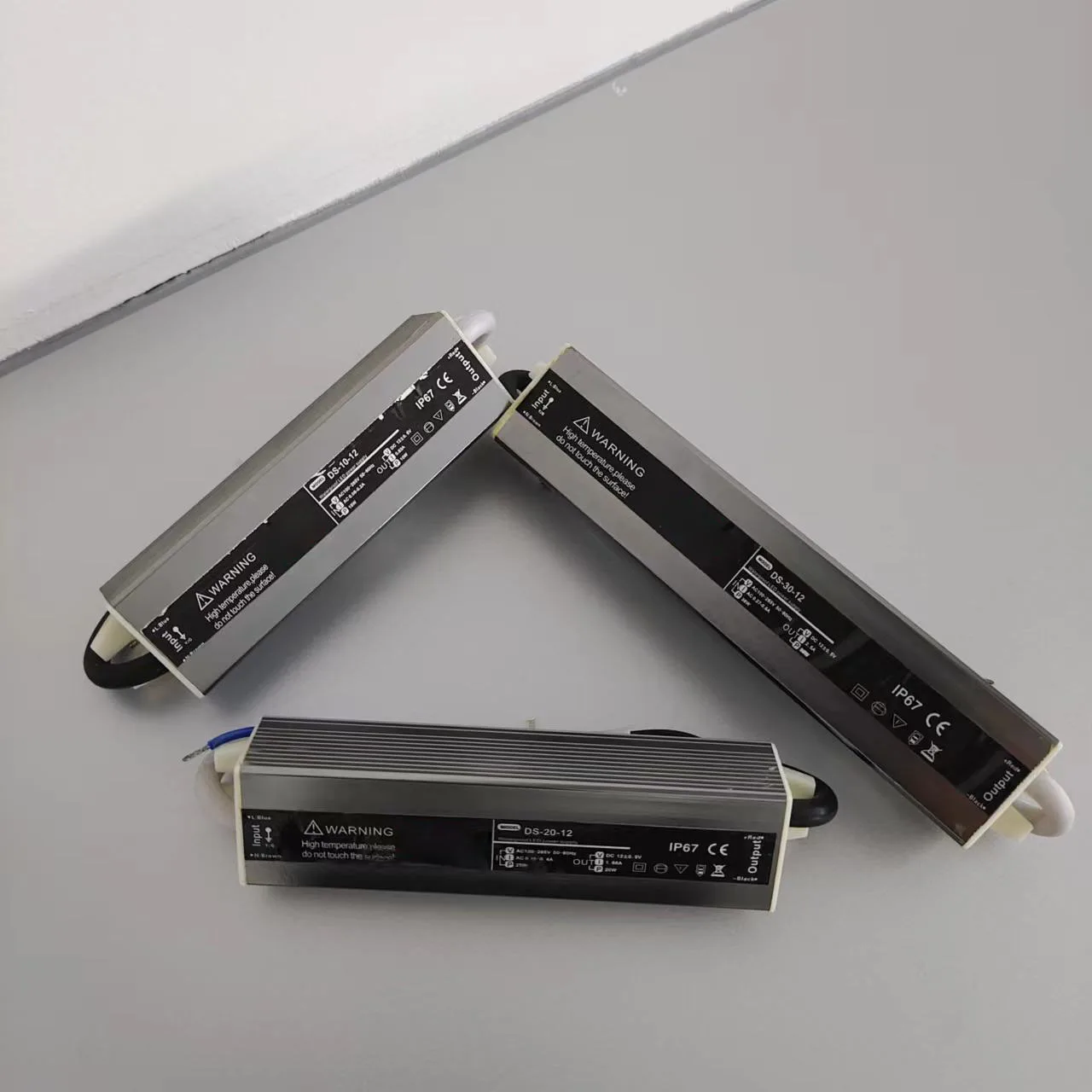

Enclosed Constant Voltage Power Supply
Features:
1.International universal AC input range
2.Protection type: short circuit/over current/over voltage
3.With active PFC function
4.Natural air cooling
5. Class 2 power supply
6. The output current value is adjustable
7. 100% full load aging test
8. High reliability
9. Suitable for applications such as LED lighting and electronic subtitle screens
10. 2 years warranty
11. 12V-12.5A


Output
DC Voltage
12V
24V
Rated Current
1A 2A 3.2A 5A 8.5A 10A 12.5A 15A 20A 30A 40A 50A
1A 2A 3A 5A 7.5A 10A 15A 20A 25A
Rated Power
60W-400W
30W-200W
Ripple & Noise
80mVp-p
Voltage Adj. Range
±1%
Voltage Tolerance
±1%
LINE REGULATION
±1%
LOAD REGULATION
±1%
Setup, Rise Time
200ms,50ms
Hold Up Time
20ms/230VAC
Input
Voltage Range
85~264VAC
FREQUENCY RANGE
47~63Hz
AC Current
0.86/115V 0.4A/230V
Efficiency
85%-95%
Inrush Current
20A/115V 40A/230V
Protection
Over Load
105%~150% rated output power
Protection type: Constant current limiting,recovers
automatically after fault condition is removed
Over Voltage
Protection type : Shut down o/p voltage, re-power on to recover
Protection type : Shut down o/p voltage, recovers
automatically after temperature goes down
Environment
Working Temp.,
-10°C~+60°C; (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
Storage Temp., Humidity
-20°C~+60°C; 10%~95%RH
Safety
Withstand Voltage
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation Resistance
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH

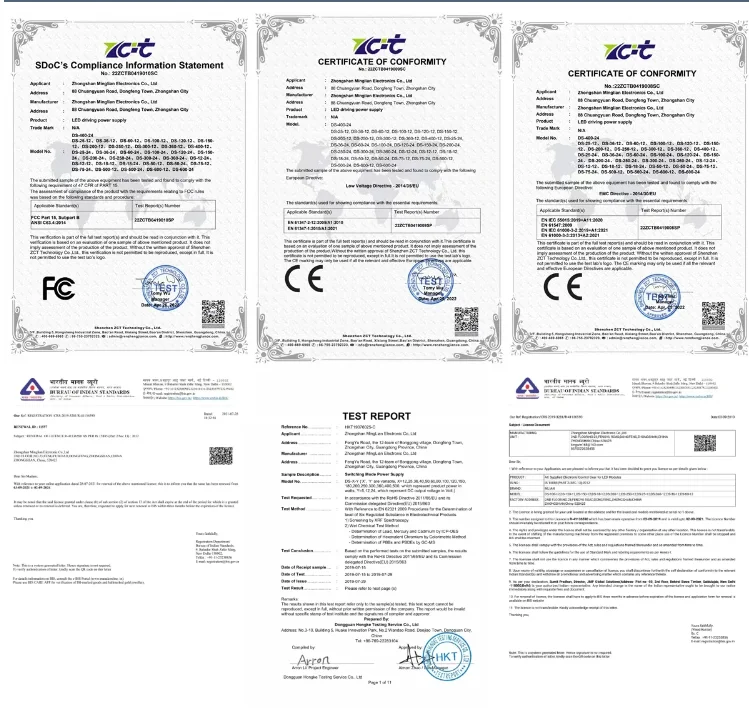

Certificate
IEC 62321-1: 2013/IEC 62321-2: 2013
IEC 62321-3-1: 2013
IEC 62321-4:2013+A1:2017
IEC 62321-5: 2013
IEC 62321-6: 2015
IEC 62321-7-1: 2015
IEC 62321-7-2: 2017
IEC 62321-8: 2017
EN 55032: 2015+A11: 2020
EN 55035: 2017+A11: 2020
EN 61000-3-2: 2019
ΕN 61000-3-3: 2013+A1:2019
EN 62368-1:2020+A11:2020

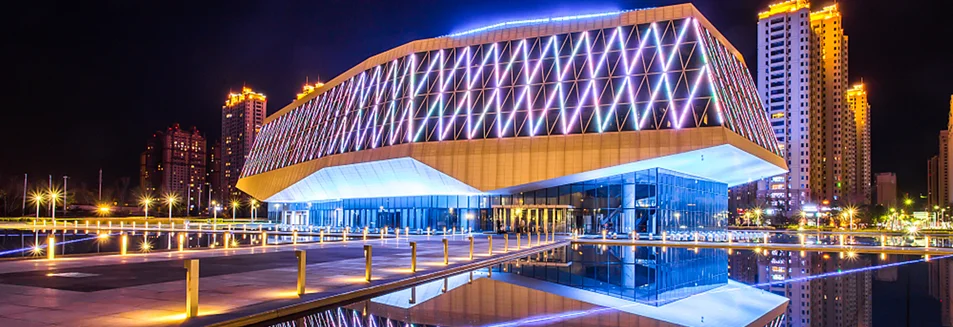

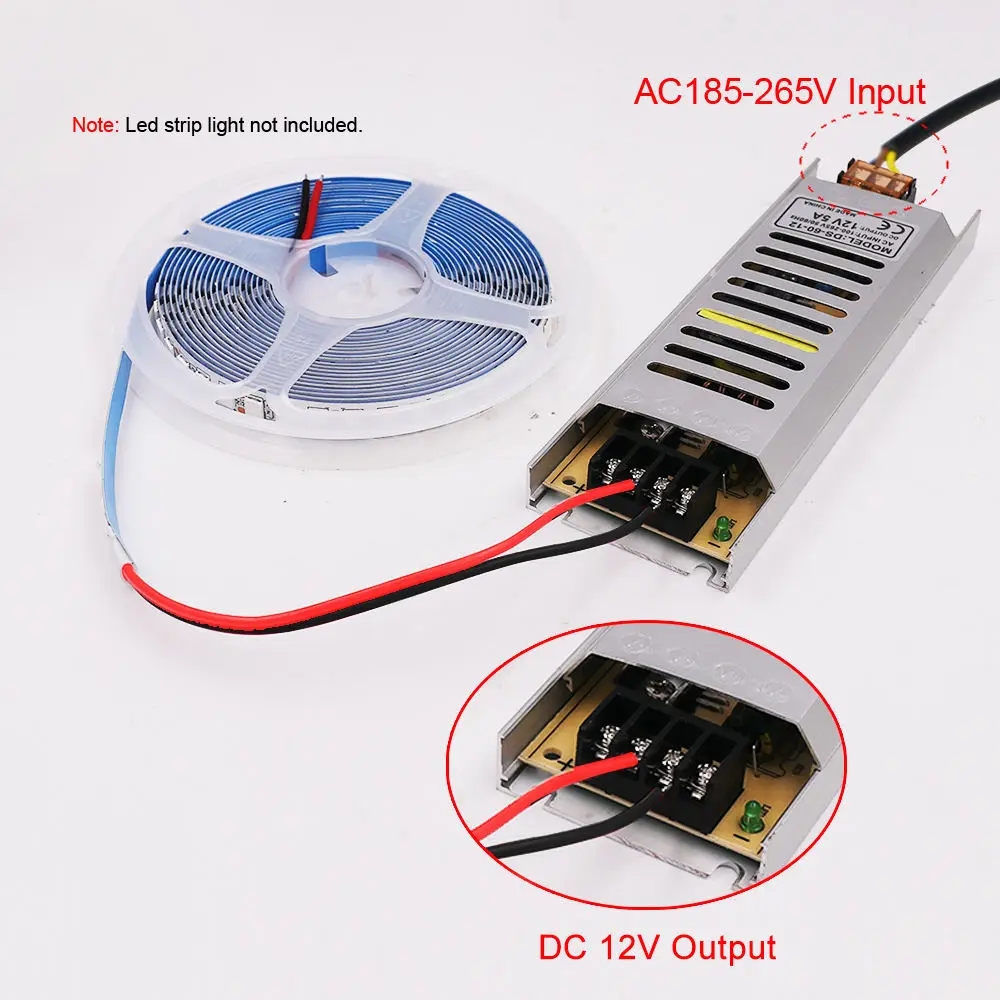

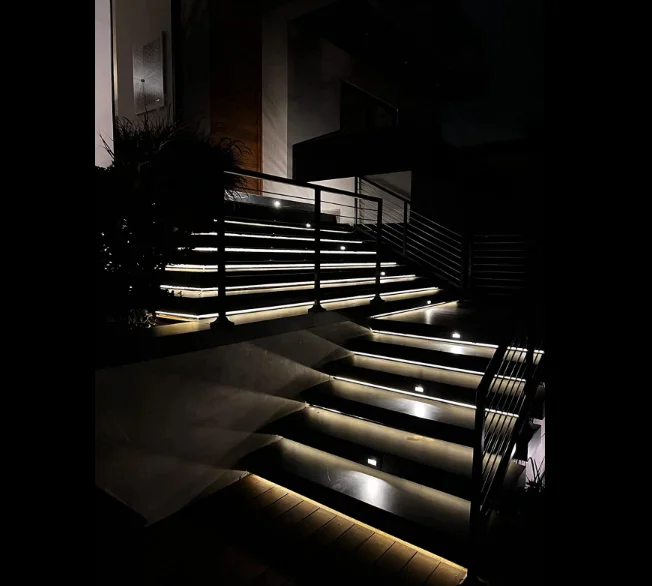

Application








Certificate






Recommend Products

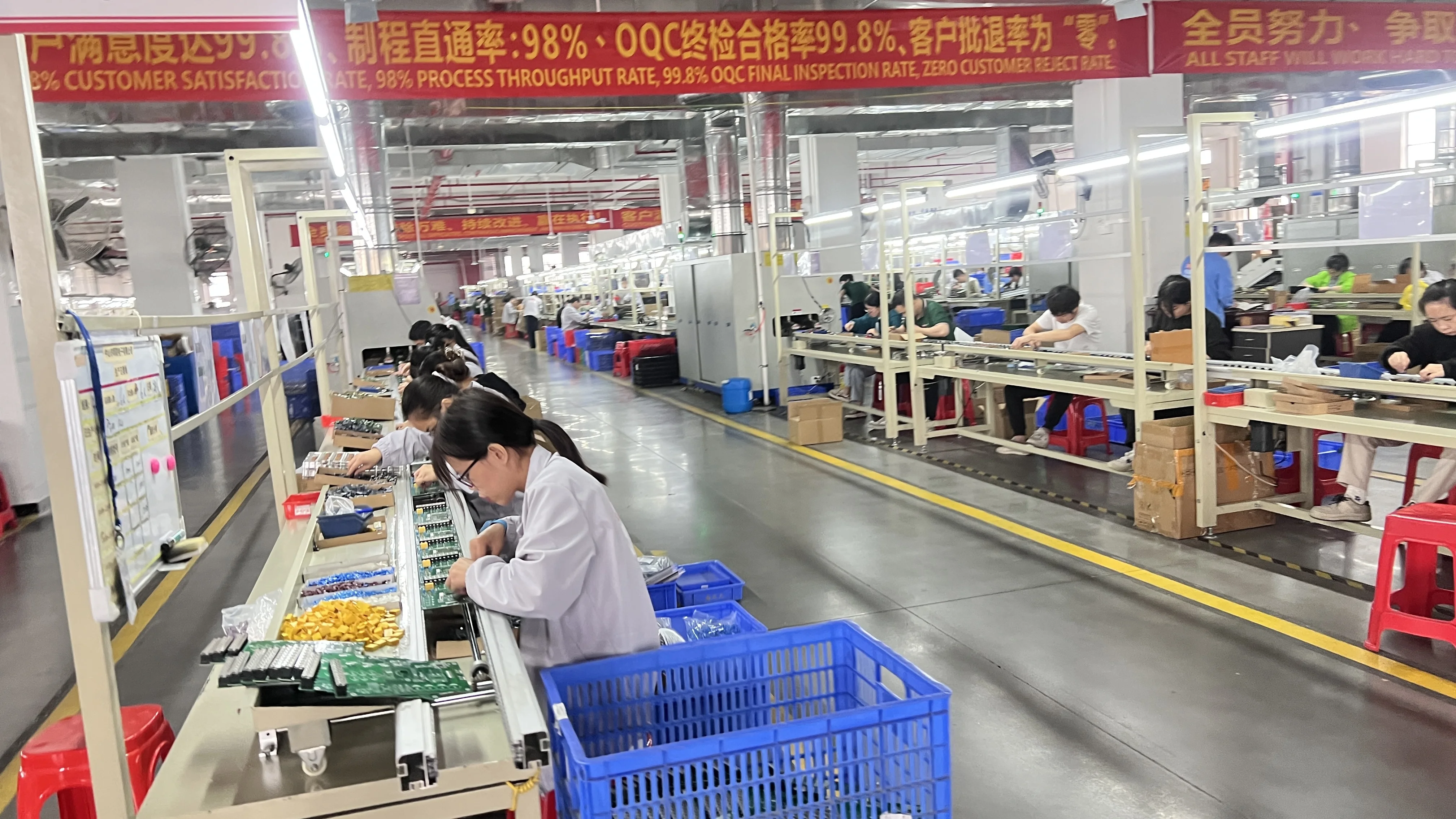

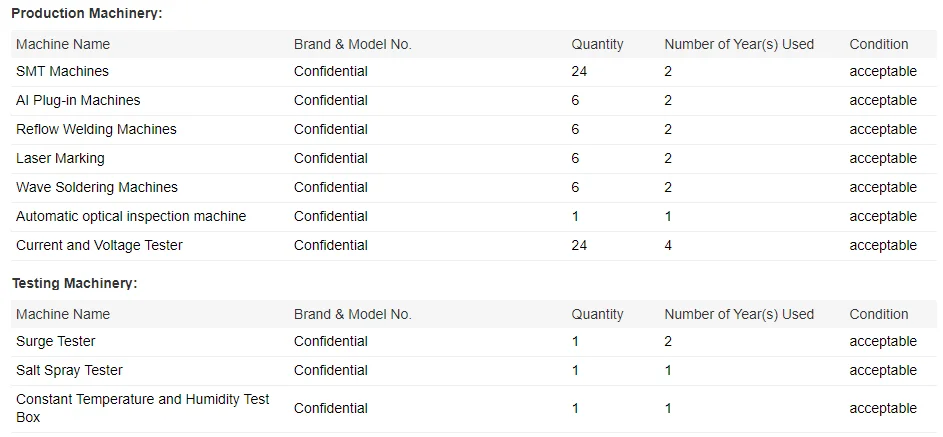

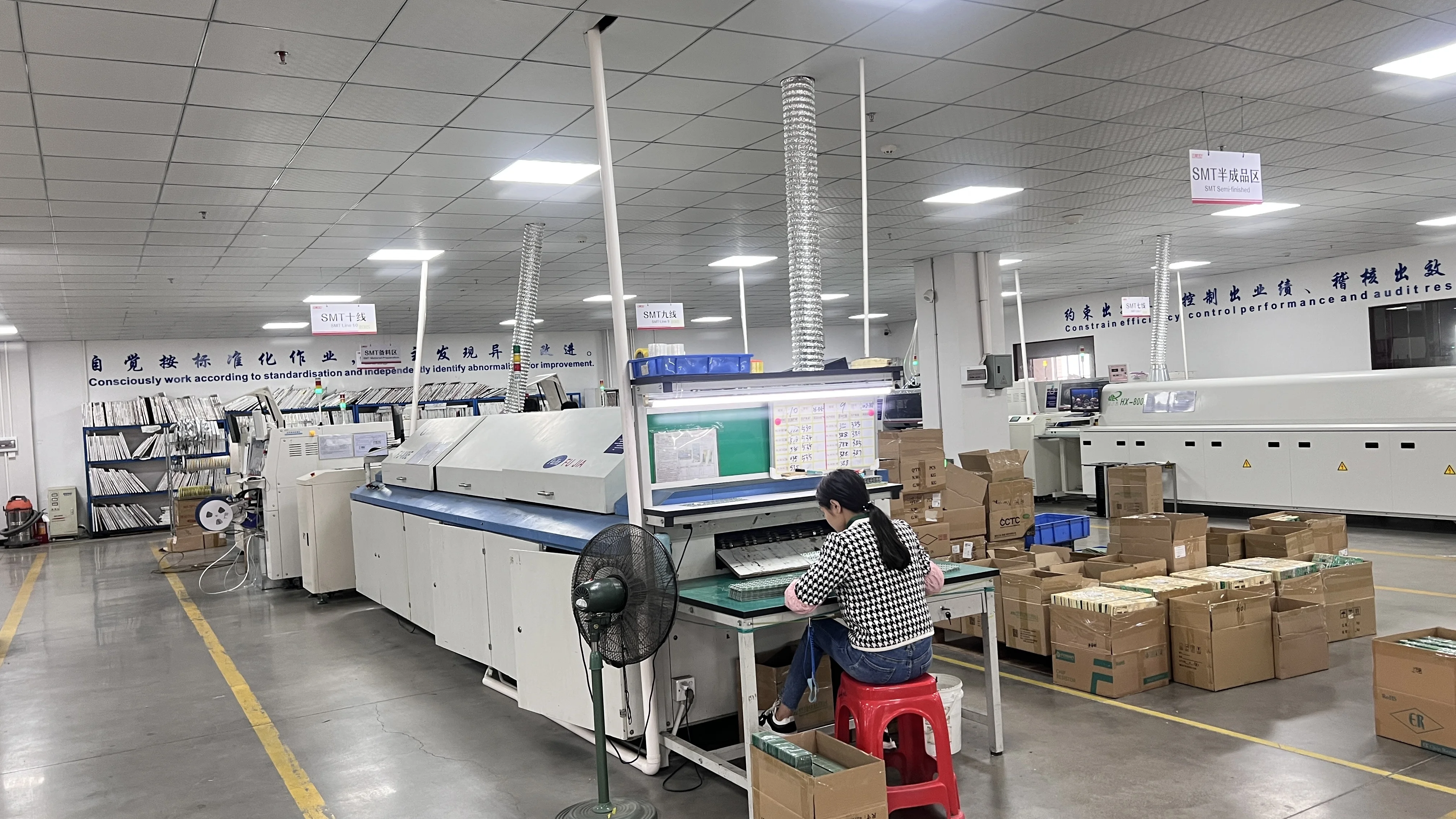

Company Introduction

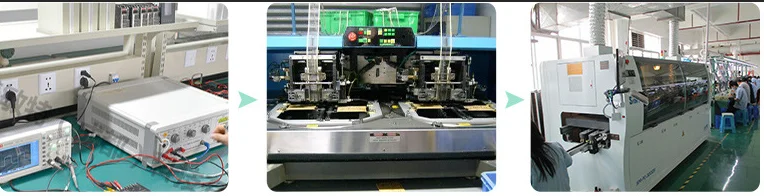

RAW MATERIAL TESTING
AI plugin

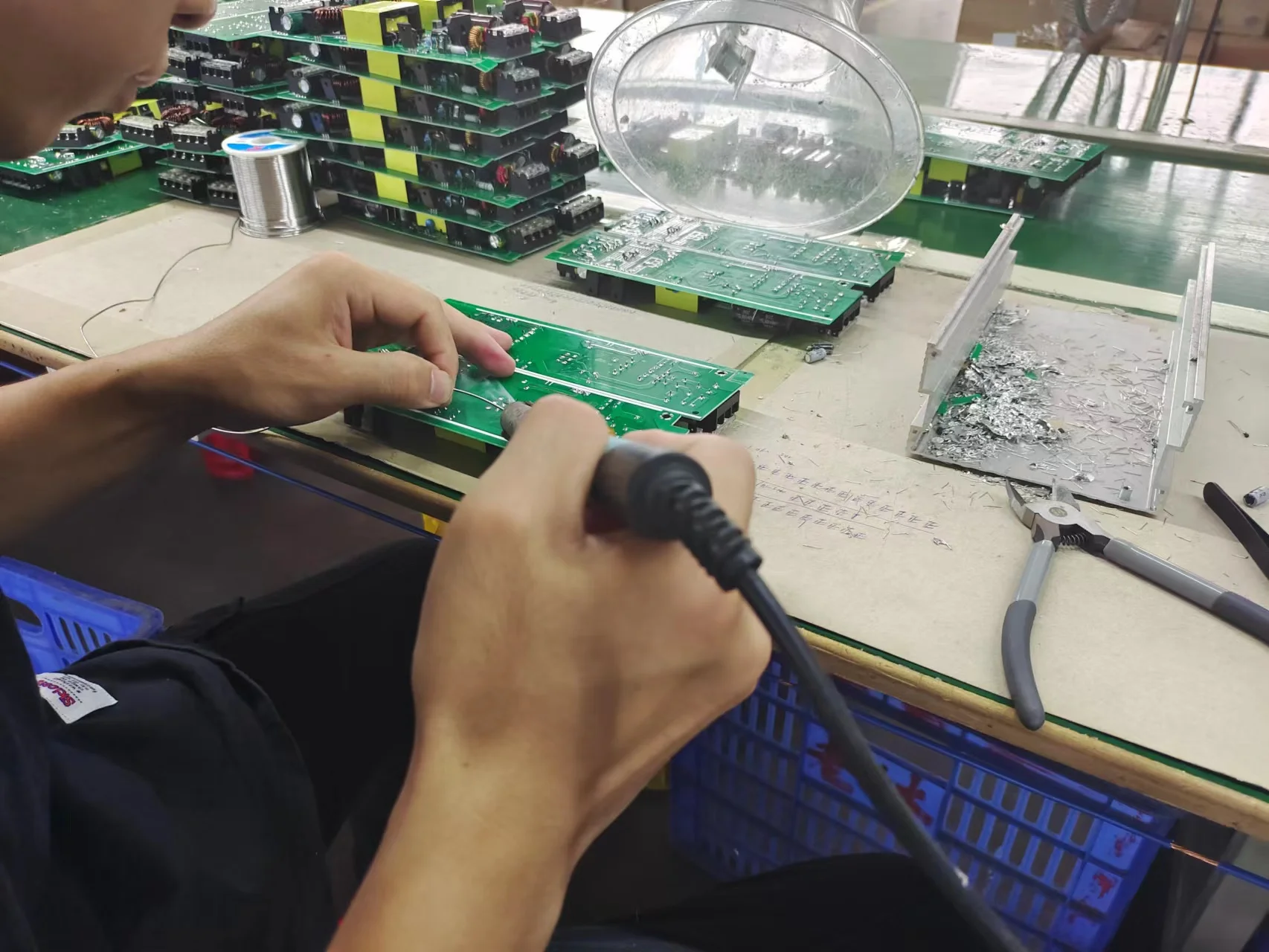

Lead-free wave soldering

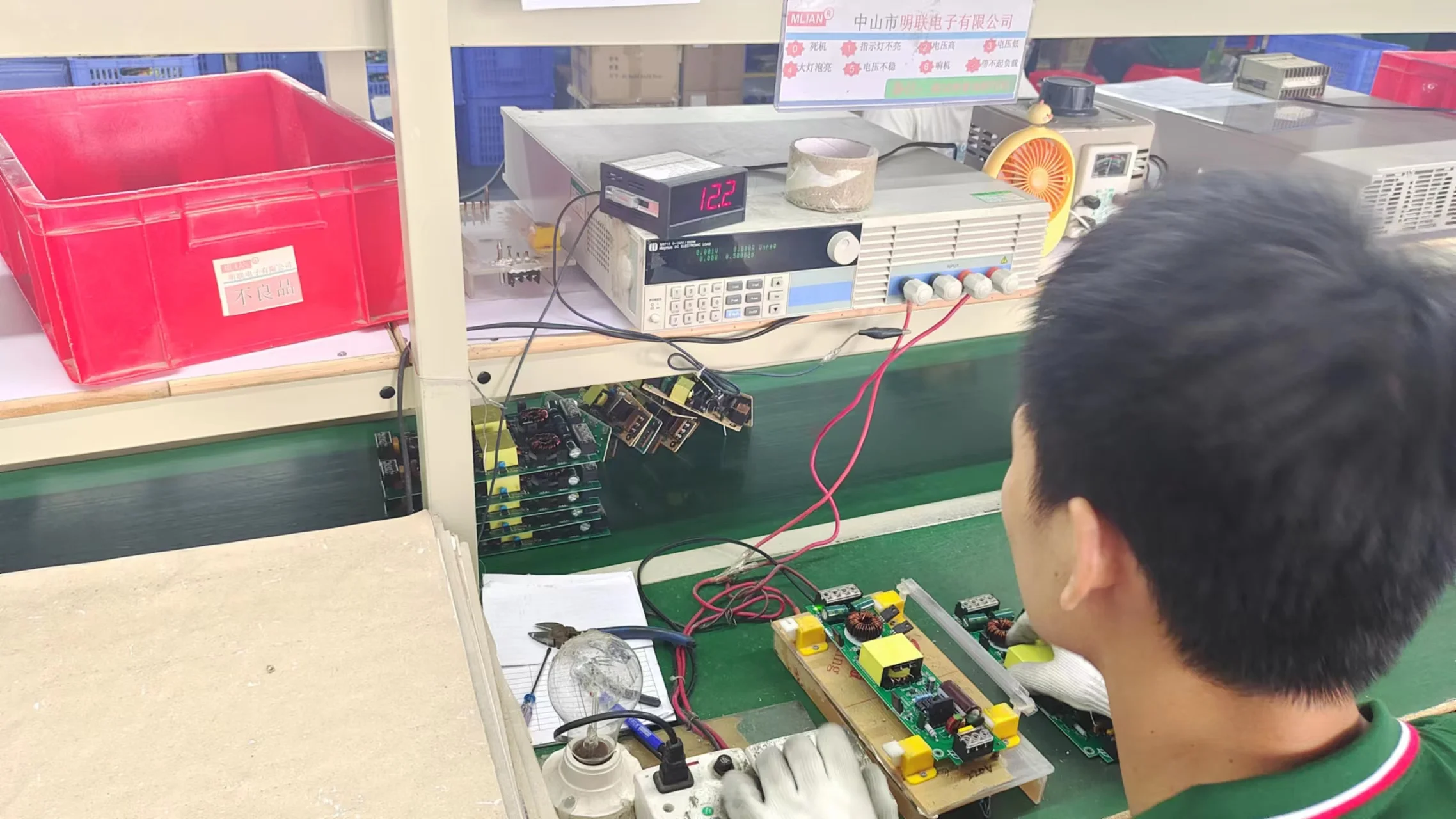

test

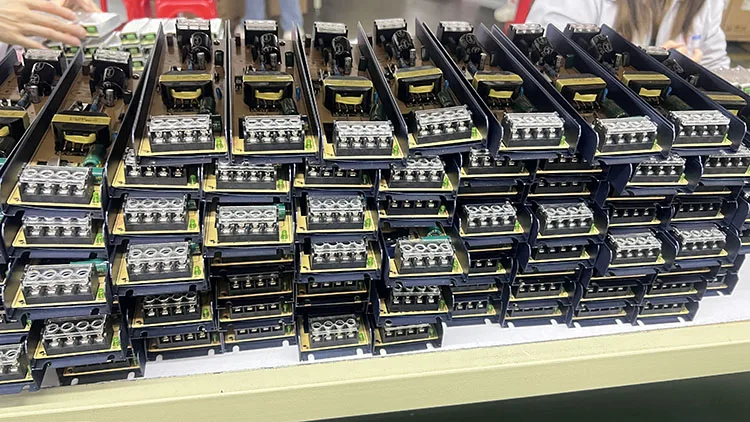

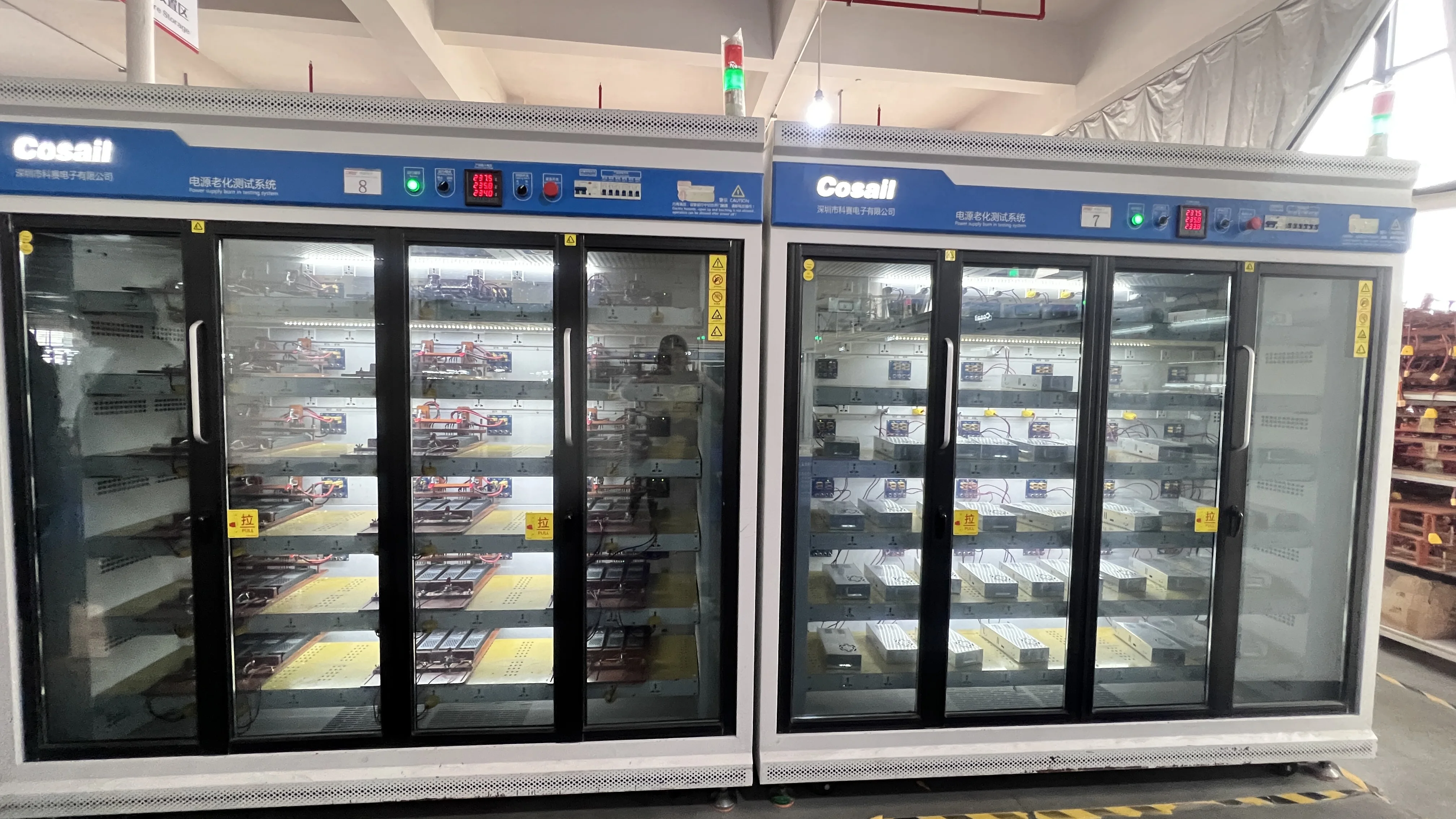

full load aging testing
Semi-finished product test

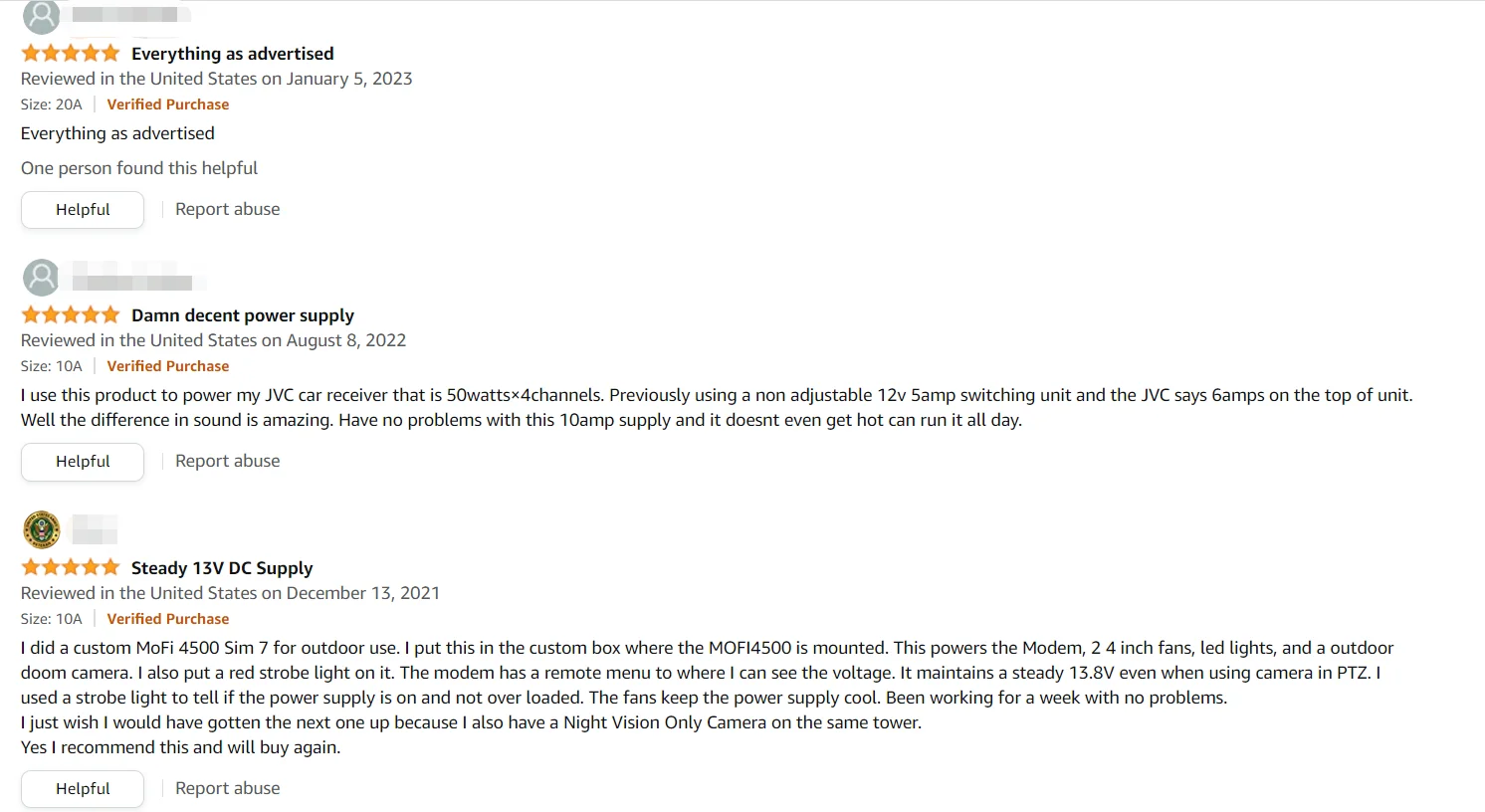

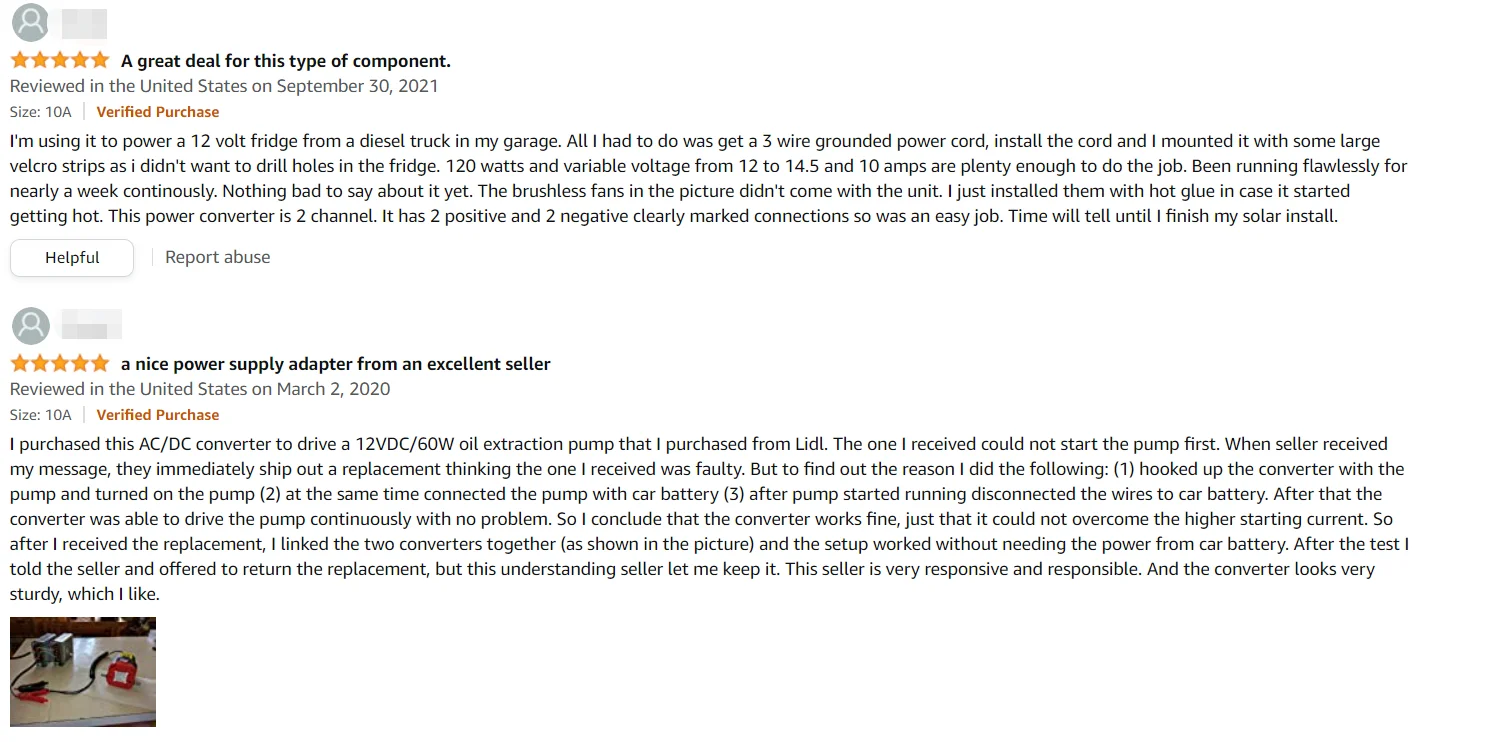

Customer feedback






FAQ


1. Can I get sample?
Sure, If you need sample, pls tell me your spec need, or tell me your led light info, then i will recommend you suitable led
driver with good price, after confirm details, we will arrange the samples for you to test. Welcome sample order to test and check quality.

2. how can we guarantee quality?
We have advanced equipment for production, using high quality new electronic raw materials, to ensure the quality of products.
Each product goes through 4 hours full load aging test, and the final shipment is also subject to spot inspection. Ensure the best quality to customers.

3.what can you buy from us?
LED Switch Power Supply,Ultra Thin LED Power Supply,Slim LED Power Suppply,Oxidation LED Power Supply,Waterproof LED Power Supply，Rain proof LED power supply，Cabinet power supply,Magnetic LED power supply.

4. why should you buy from us not from other suppliers?
Our company's advanced equipment and efficient management team can provide you with high-quality products and fast delivery. The new products developed by the R&D team are recommended to customers at the first time, allowing you to seize the first
opportunity!

5. what services can we provide?
The experienced salesperson answers your questions, the product's super long after-sales warranty, and your customized service.
