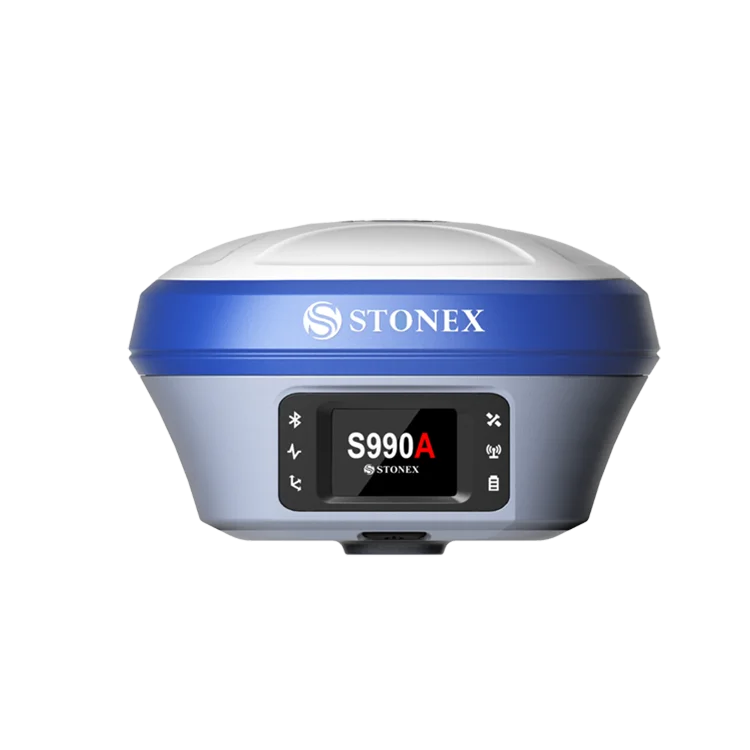

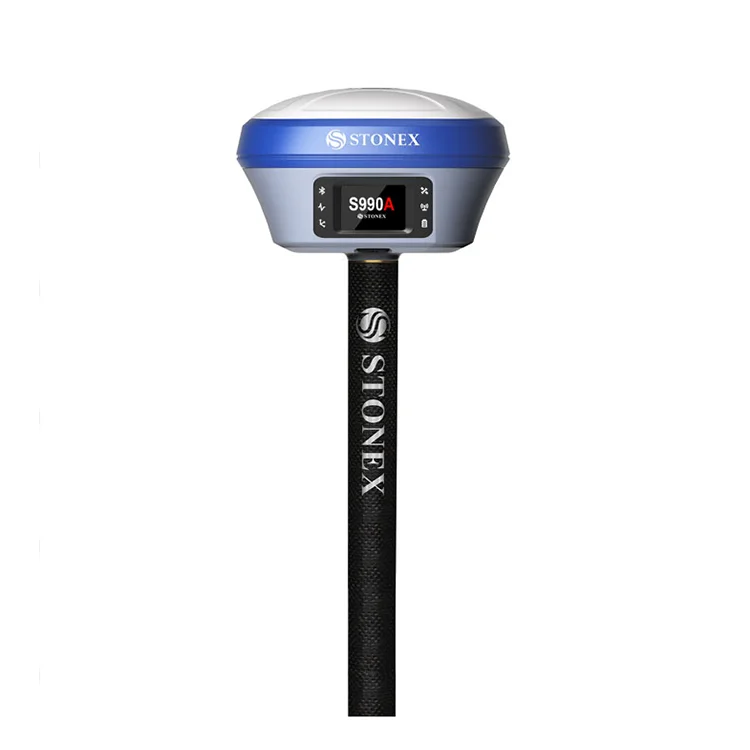

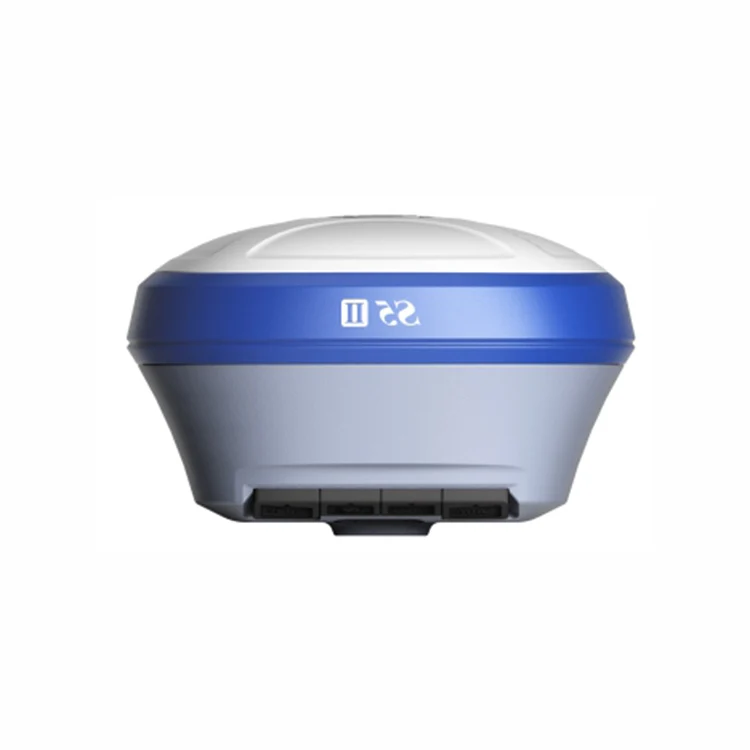

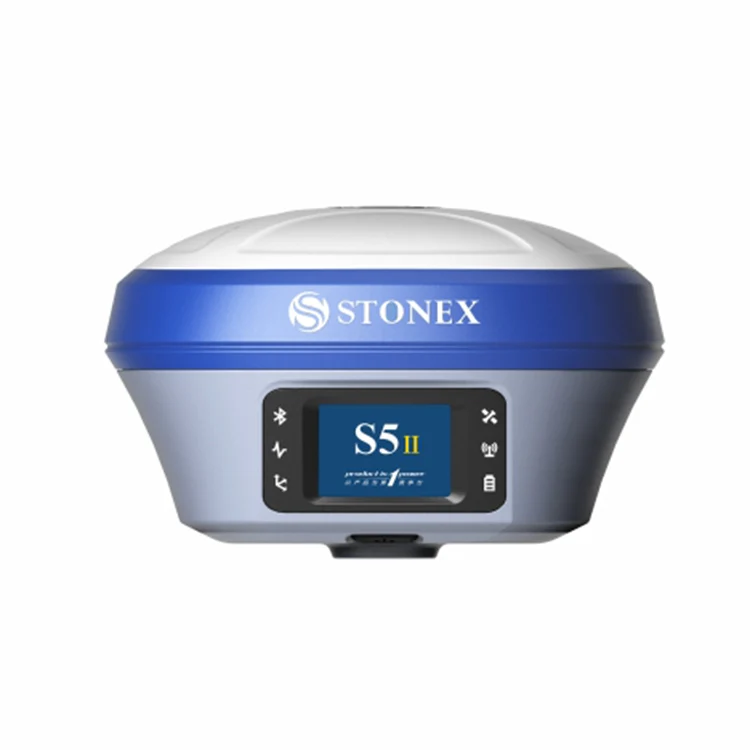

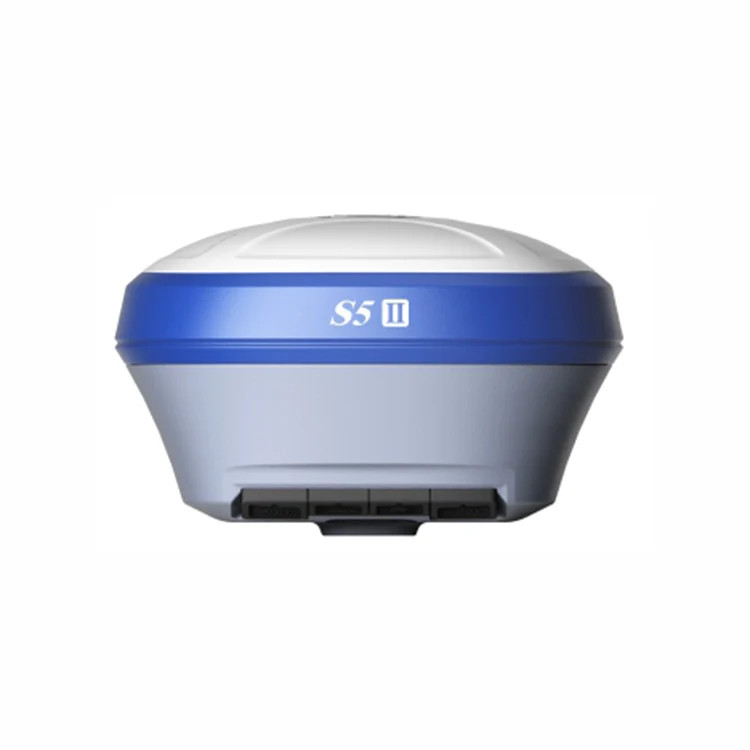

Stonex S990A/S5II Free Software Trimble Mainboard Surveying Gnss Gps Receiver Dual Frequency RTK
- Category: >>>
- Supplier: Jiangxi Xin Mainland Surveying Co. Ltd.
Share on (1600819790166):
Product Overview
Description
Stonex S990A/S5II Base And Rover Land Measuring Instrument High Accuracy Survey Equipmens Rtk Gps
Original Hi target Software Can Be Updated At Any Time
| project | subproject | describe |
| GNSS | number of channels | 800 |
| performance | tracking feature | BDS-2: B1, B2, B3 |
| BDS-3: B1C, B2a, B2b, ACEBOC | ||
| GPS: L1C/A, L1C, L1P, L2C, L2P, L5 | ||
| GLONASS: G1,G2,G3 | ||
| Galileo: E1, E5a, E5b, AltBOC, E6 | ||
| QZSS:L1C/A,L1C, L2C, L5, LEX | ||
| data output | NMEA0183, NMEA2000, Crescent binary | |
| Differential output | RTCM SC-104(SBAS/Beacon) has its own differential format ROX, | |
| RTCM2.x, RTCM3.x, CMR, CMR+ | ||
| Accuracy Index | Static measurement | Level: ±(2.5+0.5×10-6D) mm |
| Vertical: ±(5+0.5×10-6D) mm | ||
| RTK measurement | Level: ±(8+1×10-6D) mm | |
| Vertical: ±(15+1×10-6D) mm | ||
| Inertial navigation measurement (need to be activated separately) | Compensation accuracy | 8mm+0.3mm/°tilt (<2cm within 30°) |
| Compensation position | 0~70° | |
| Inertial navigation update rate | 200Hz | |
| System platform | operating system | Linux |
| Built-in storage | Onboard 8G | |
| Bluetooth | V2.1+EDR / V4.0 Dual Mode, Class2 | |
| Wi-Fi | 802.11 b/g/n | |
| Global Radio | Protocol | TrimTalk, TrimMaskⅢ, SOUTH, PCCEOT, |
| Geotalk, Hitarget | ||
| frequency | 410-470MHz | |
| number of channels | 7+2400 (7 fixed channels, 2400 customizable channels) | |
| external radio | 5W/35W adjustable | |
| Electrical properties | Battery | Built-in smart lithium battery, 6800mAh, 7.2V |
| Input voltage | 9~28V DC | |
| Human-computer interaction | button | The power button is used to turn the host on and off. |
| Short press once to broadcast the current working mode and status. | ||
| Data interface | TNC interface | Connecting the built-in radio antenna |
| 5-pin interface | Used to connect external power supply and external radio. | |
| Type-C | For direct charging, data transfer. | |
| physical index | size | 140mm×140mm×71mm |
| weight | 1100g | |
| Environmental performance | Operating temperature | -30℃~+70℃ |
| storage temperature | -40℃~+80℃ | |
| Waterproof and dustproof | IP68 | |
| Anti-drop | 2 meters drop with the pole (concrete hard ground) | |
| humidity | Resist 99% condensation | |
| project | subproject | describe |
| Handbook basic parameters | model | P9Ⅲ |
| operating system | Android 9 | |
| processor | Qualcomm octa-core 64-bit | |
| RAM+ROM | 2GB high-speed DDR3+16GB | |
| external storage | Maximum support 512GB SD expansion | |
| sensor | Electronic Compass, Electronic Bubble, Gravity Sensor | |
| Camera | 13 million autofocus camera | |
| mobile network | Mobile, Telecom, Unicom 4G full Netcom | |
| WiFi/Bluetooth | 802.11b/g/n,Bluetooth4.1+Bluetooth LE | |
| Built-in battery | 6000mAh, 3.8V, 22.8Wh | |
| Protection class | IP67 | |
| fall | Withstands a 1.2-meter drop from a hard floor | |
| operating temperature | -30℃~+60℃ | |
| storage temperature | -40℃~+80℃ | |
 |
