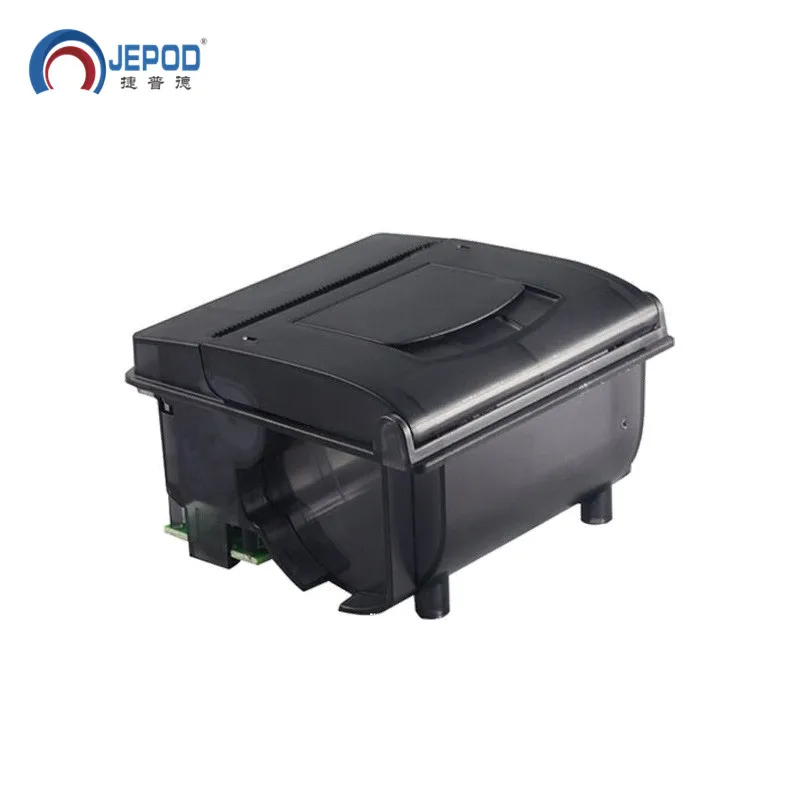

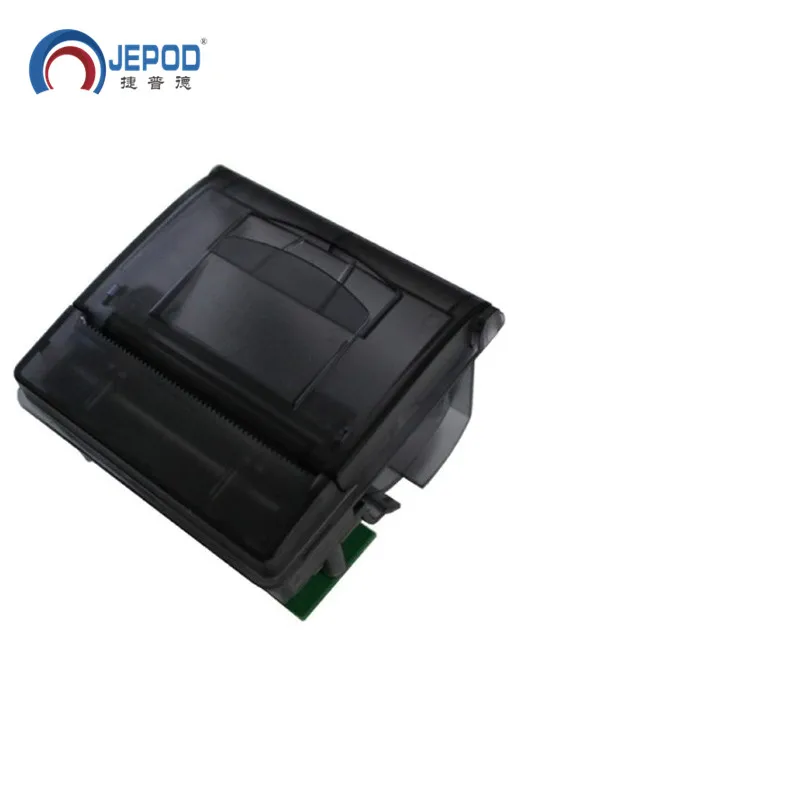

JEPOD JP QR205 58mm BT TTL RS232 Thermal Receipt Printer POS58 Panel Printer Mini Embedded Panel Printer for Taximeter Printing
- Category: >>>
- Supplier: Guangzhou Jepod Electronic Technology Co. Ltd.
Share on (1600819791141):
Product Overview
Description
Product Description

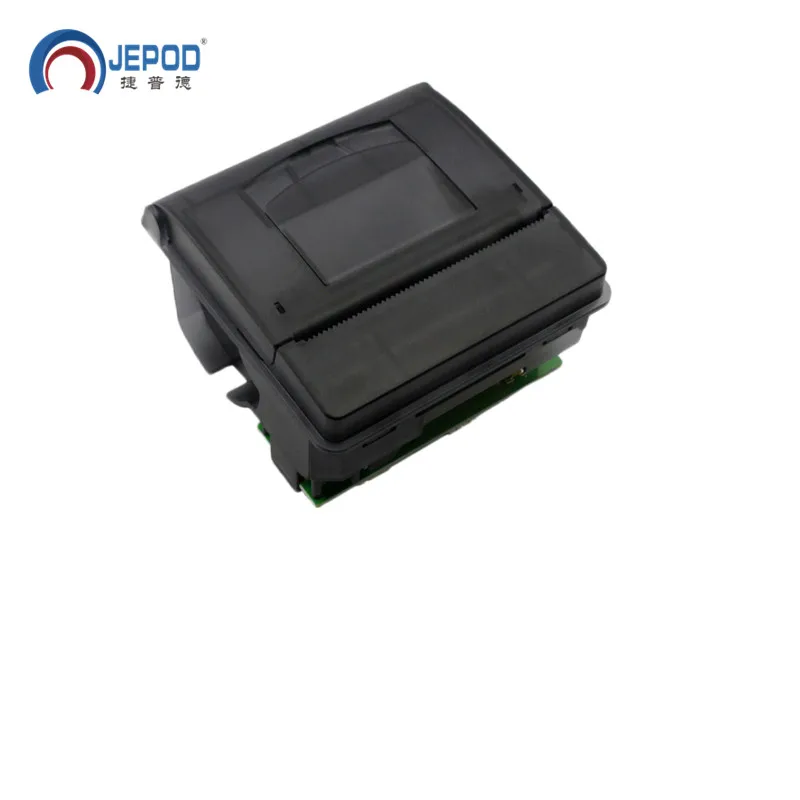

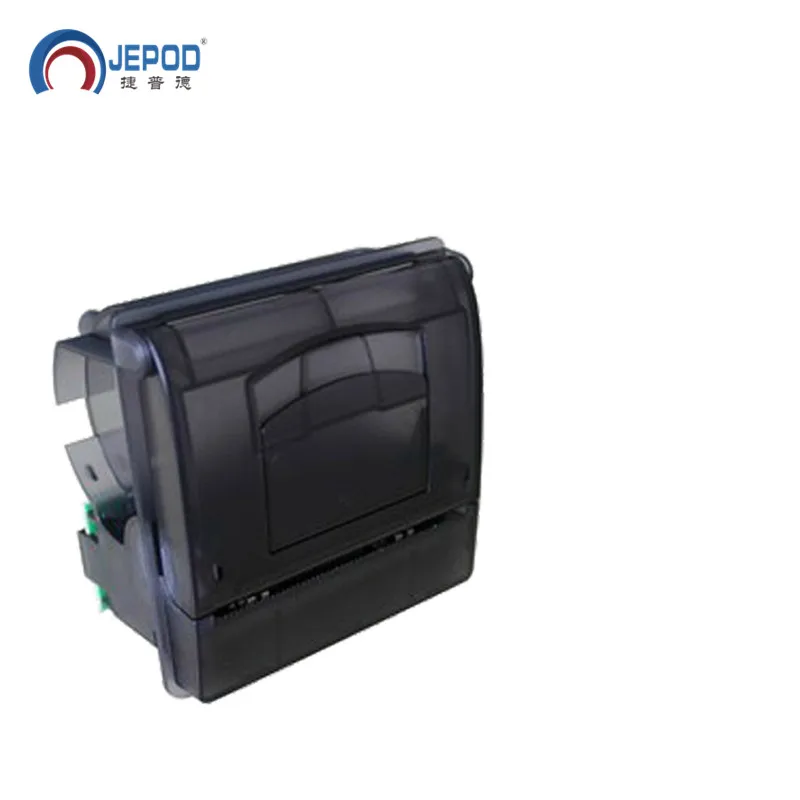

JEPOD JP-QR205 58mm Thermal Receipt Printer POS58 Panel Printer Mini Embedded Panel Printer for Taximeter Printing

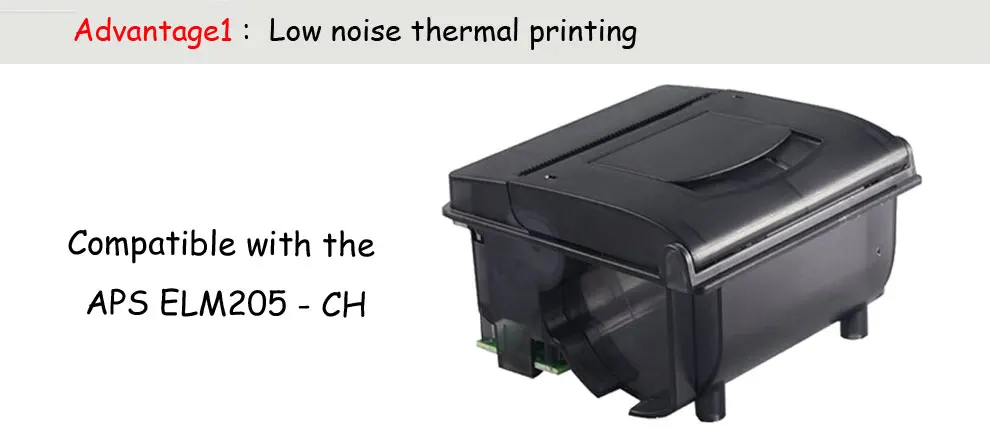

Compatible with the APS ELM205 - CH

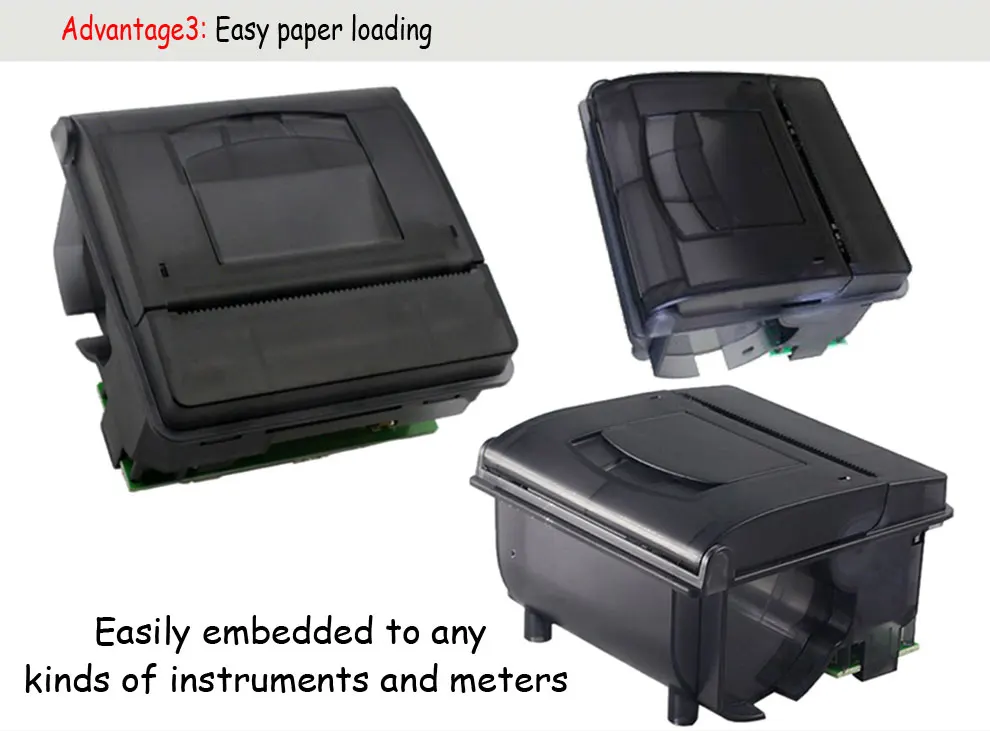

Easy paper loadingEasily embedded in various instruments and meters With the control panel
Low noise, thermal printer
Optional different interfaces
Application: Taximeter, Recorder, Self-service equipment, Ticket machine, Medical instrument
Weighing apparatus, Electronic instrument, Test instrument
Printing Method: Thermal Line
Printing Speed: 50-80mm/s
Resolution : 8 dots/mm, 384 dots/line
Effective Printing Width:48mm
Character
Character Set: ASCII,GB2312-80(Chinese)
Print Font: ANK:(8x16,9x17,9x24,12×24), Chinese: 24×24
Paper Spec
Paper Type: Thermal paper
Paper Width: 57.5± 0.5mm
Paper Roll Diameter: Max: 40mm
Reliability
MCBF:5 million lines

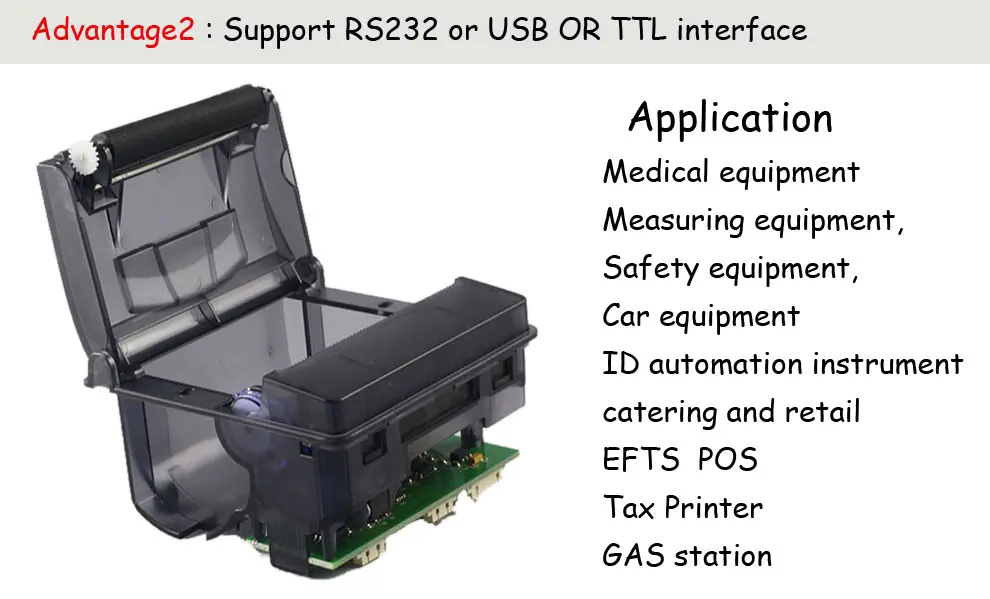

Interface: RS-232/TTL+USB(BT optional)
Insert Depth: 34.65mm
Power Supply (Adapter): DC5V-9V/12V
Physical
Installation Port Size: 72.8 x 73.26mm
Color: Black/White
Environment
Operating Temp: 5°C ~ 50°C
Operating Humidity: 10% ~ 80%
Storage Temp: -20°C ~ 60°C
Storage Humidity: 10% ~ 90%

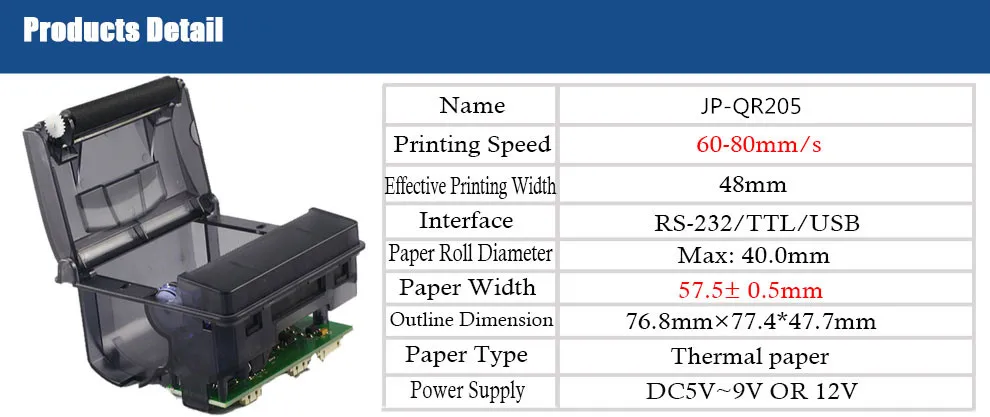

Product Name | JP- QR205 |
Printing Method | Thermal Line |
Resolution | 8 dots/mm, 384 dots/line |
Effective Printing Width | 48mm |
Printing Speed | 60-80mm/s |
Character Set | GB2312,ASCII |
Print Font | 8×16,16×16,12×24, 9×24,16×24, 24×24 |
Self-defined Character | Yes |
Graphic | Support bitmap downloading |
Paper End Sensor | Yes |
Overheating Protection | Yes |

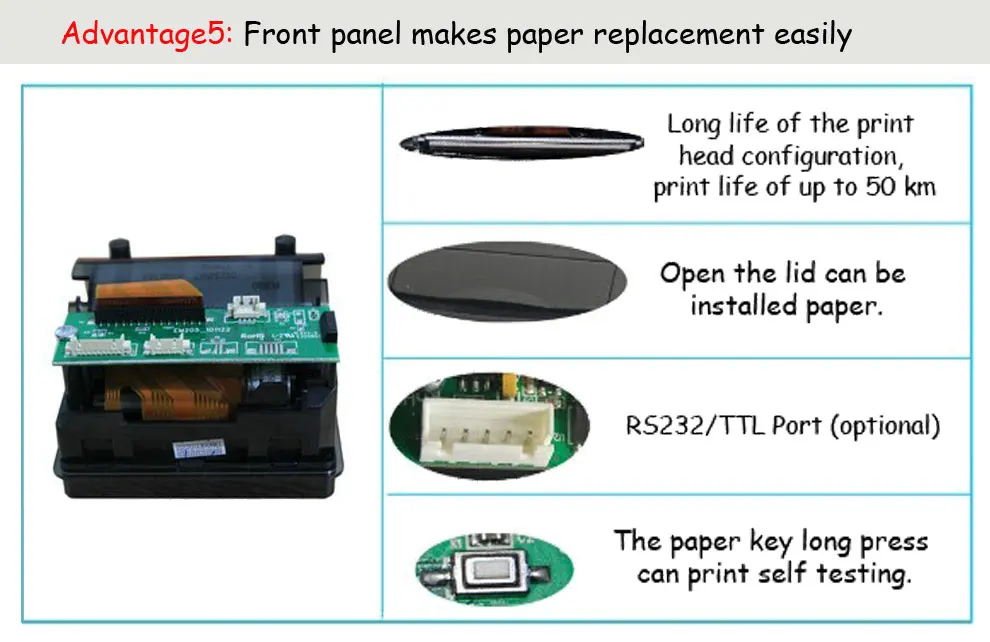

Interface | RS-232/TTL/USB |
Power Supply | DC5V~9V OR 12V |
TPH | 50km |
Paper Type | Thermal paper |
Paper Width | 57.5± 0.5mm |
Paper Thickness | 0.06 to 0.08mm |
Paper Roll Diameter | Max: 40.0mm |
Paper Supply Method | Drop-in Easy Loading |
Paper Cutting Method | Manual |
Operating Temp/Humidity | 0-50°C/10%-80% |
Storage Temp/Humidity | -20-60°C / 10%-90% |
Installation Port Size | 72.8x73.26 mm |
insert depth | 34.65mm |
Color | Black and beige(Customizable) |
Outline Dimension (LxWxH) | 76.8mm×77.4*47.7mm |
