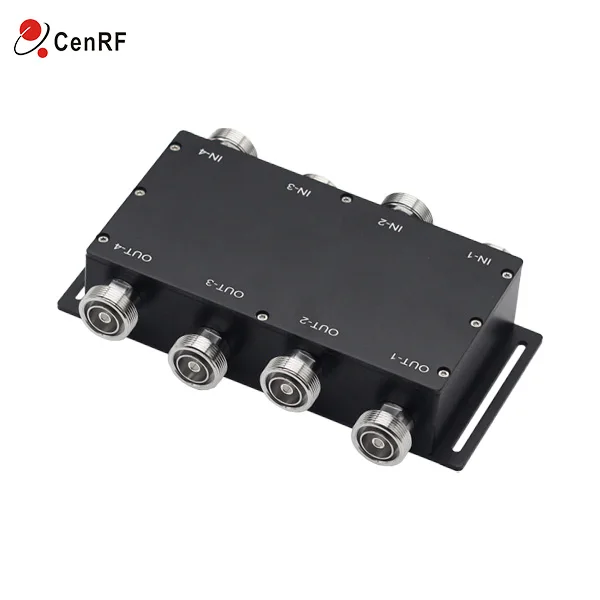

698 3800MHz 4G 5G N/4.3 10/DIN Connector 200W 4 in 4 out Triplexer Hybrid Combiner 4x4 Low PIM Hybrid Coupler
- Category: >>>
- Supplier: Hangzhou Shengtong Technology Co. Ltd.
Share on (1600819860105):
Product Overview
Description

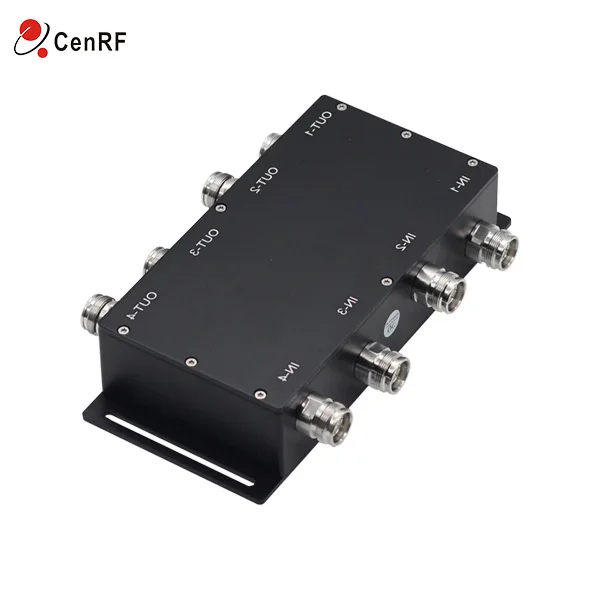

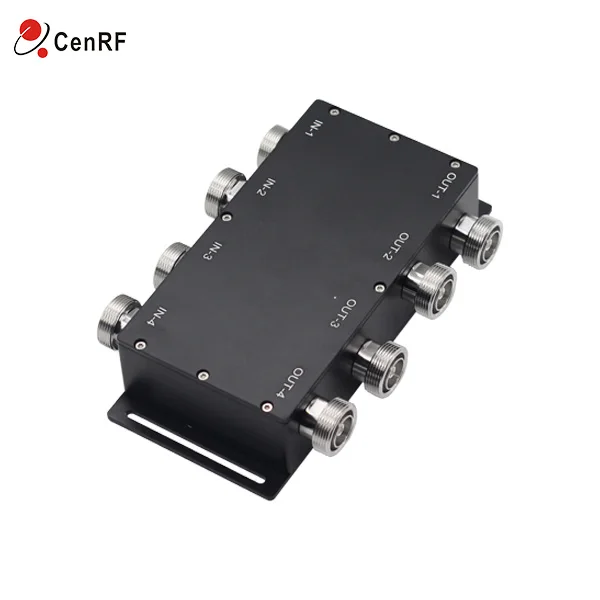

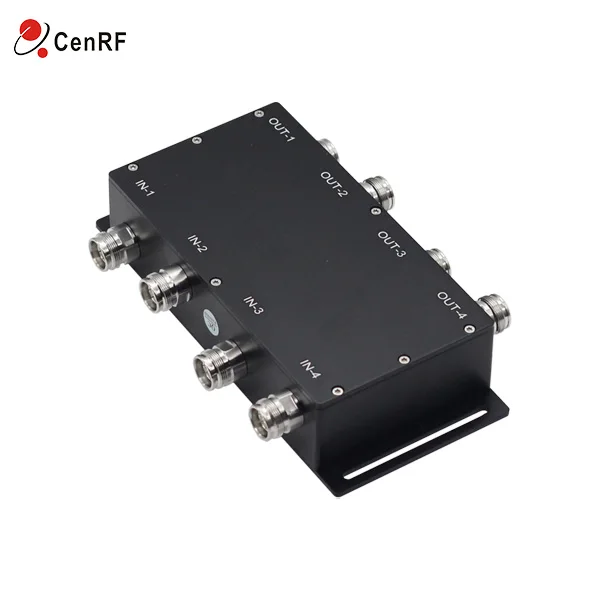

Product Show
Specfications
Electrical Specifications | ||
Frequency Range | 698-3800 MHz | |
Insertion Loss | ≤ 6.2 dB | |
Fluctuation | ≤ ±1.0dB | |
Isolation | ≥ 25 dB | |
VSWR | ≤1.25 | |
Impedance | 50 Ω | |
PIM (IMD3) | ≤ -153 dBc @ 2 x 43dBm | |
Power Handling | 250 W / Input port, (Total power 500 W) | |
Environmental Specifications | ||
Operating Temperature | -20 ℃ to +65 ℃ | |
Storage Temperature | -40 ℃ to +85 ℃ | |
Relative Humidity | 0 to 95% | |
Applied Environment | Indoor or Outdoor / IP 65 | |
Mechanical Specifications | ||
Connectors Type | DIN Female,4310,Customized | |
Materials | Cavity aluminum silver-plated; Connector: Copper | |

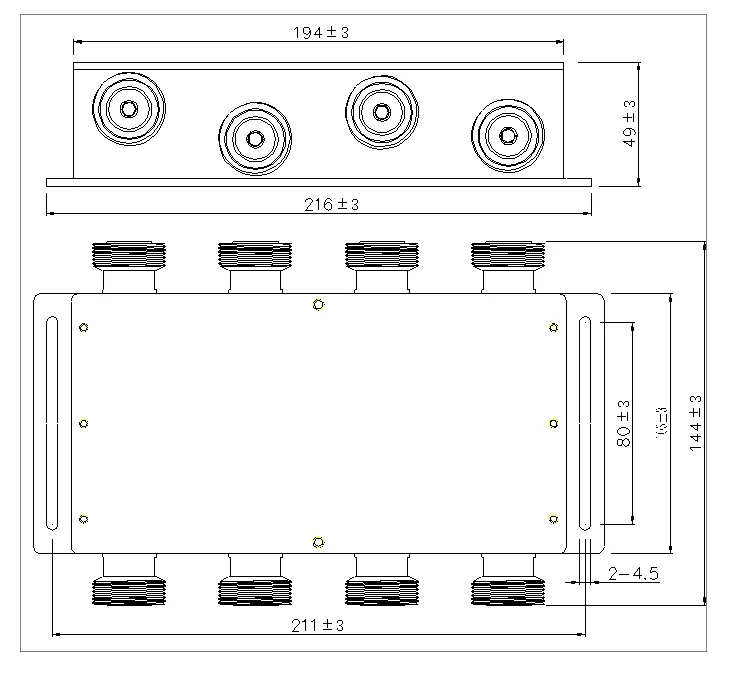

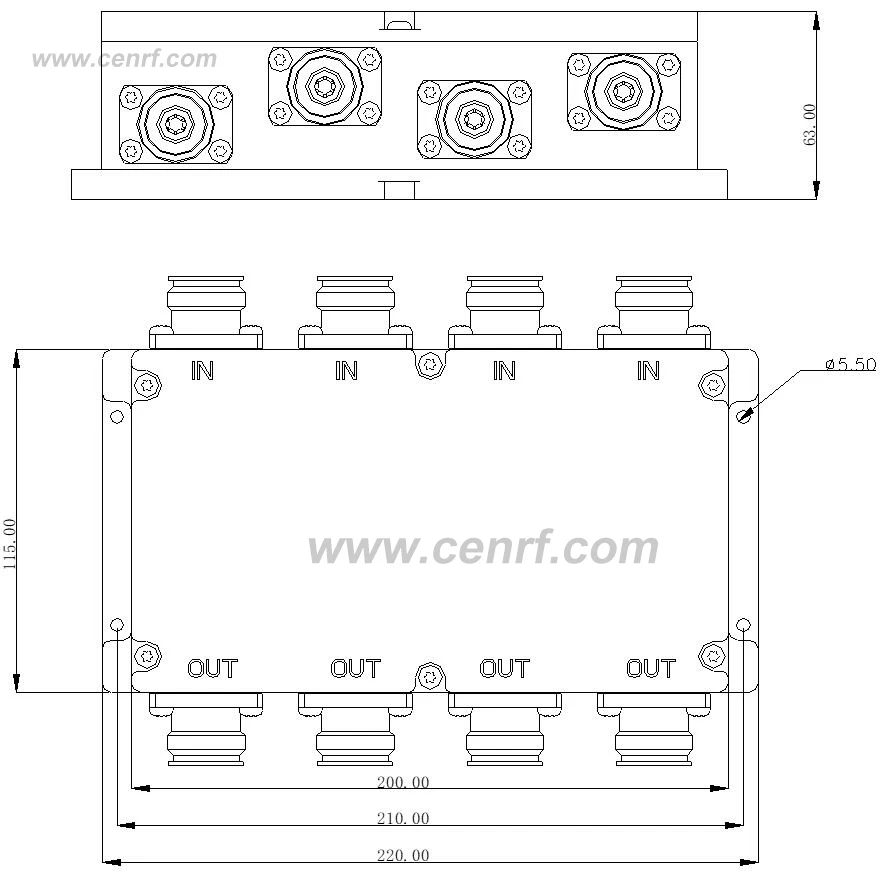

Dimensions | 216 x 104 x 63 mm (Not included connector) | |
Net Weight | 2.8 Kg | |
