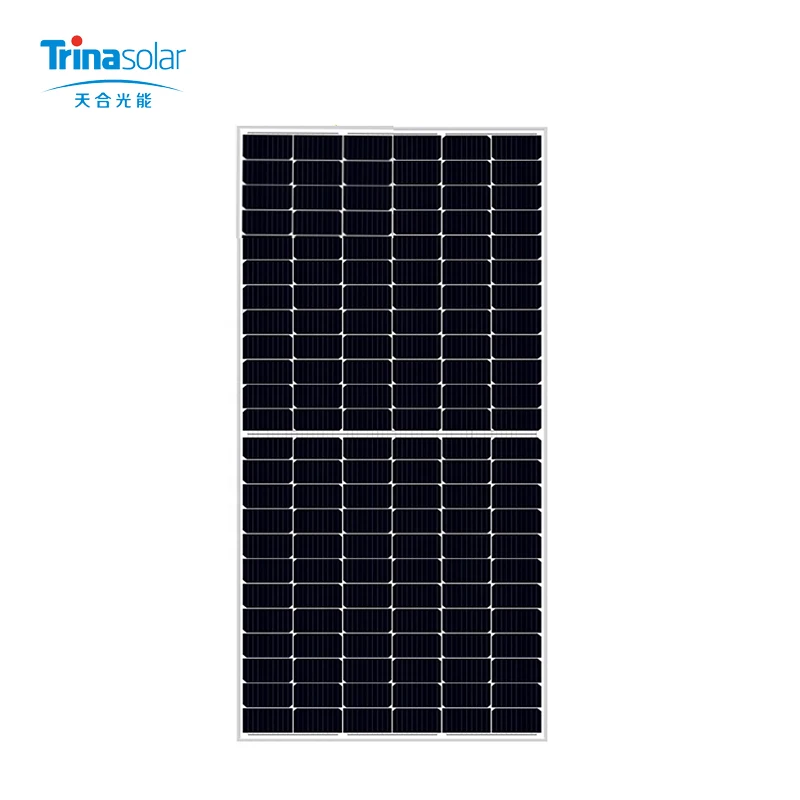

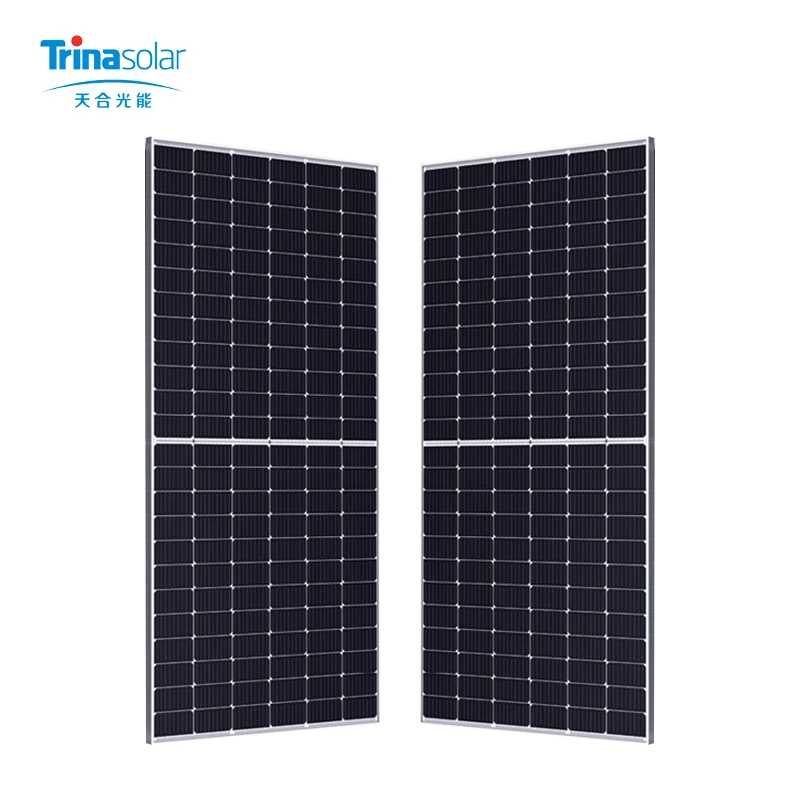

Trina solar Vertex 210mm 144 solar cells solar panel mono PERC solar panels price 495W 500W 505W panel solar with CE TUV
Trina solar Vertex 210mm 144 solar cells solar panel mono PERC solar panels price 495W 500W 505W panel solar with CE TUV
Trina solar Vertex 210mm 144 solar cells solar panel mono PERC solar panels price 495W 500W 505W panel solar with CE TUV
Trina solar Vertex 210mm 144 solar cells solar panel mono PERC solar panels price 495W 500W 505W panel solar with CE TUV
Trina solar Vertex 210mm 144 solar cells solar panel mono PERC solar panels price 495W 500W 505W panel solar with CE TUV
Trina solar Vertex 210mm 144 solar cells solar panel mono PERC solar panels price 495W 500W 505W panel solar with CE TUV
Trina solar Vertex 210mm 144 solar cells solar panel mono PERC solar panels price 495W 500W 505W panel solar with CE TUV

Trina solar Vertex 210mm 144 solar cells solar panel mono PERC solar panels price 495W 500W 505W panel solar with CE TUV

Share on (1600819944400):


Price:$0.21 - $0.23

Quantity:


Product Overview

Description














Products Description
















Specifications














































































































































ELECTRICAL DATA (STC)
Peak Power Watts-Pmax(Wp)* 635 640 645 650 655 660 665 670
Power Tolerance-Pmax(W)
Maximum Power Voltage-Vmpp(V) 36.8 37.0 37.2 37.4 37.6 37.8 38.0 38.2
Maximum Power Current-Impp(A) 17.26 17.30 17.35 17.39 17.43 17.47 17.51 17.55
Open Circuit Voltage-Voc(V) 44.7 44.9 45.1 45.3 45.5 45.7 45.9 46.1
Short Circuit Current-Isc(A) 18.30 18.34 18.39 18.44 18.48 18.53 18.57 18.62
Module Efficiency η m(%) 20.4 20.6 20.8 20.9 21.1 21.2 21.4 21.6
STC: Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5. *Measuring tolerance: ±3%.
ELECTRICAL DATA (NOCT)
Maximum Power-PMAX (Wp) 481 485 488 492 496 500 504 508
Maximum Power Voltage-VMPP (V) 34.3 34.6 34.8 34.9 35.1 35.3 35.4 35.6
Maximum Power Current-IMPP (A) 13.97 14.01 14.05 14.09 14.13 14.17 14.22 14.26
Open Circuit Voltage-VOC (V) 42.1 42.3 42.5 42.7 42.9 43.0 43.2 43.4
Short Circuit Current-ISC (A) 14.75 14.78 14.82 14.86 14.89 14.93 14.96 15.012
NOCT: Irradiance at 800W/m2, Ambient Temperature 20°C, Wind Speed 1m/s.

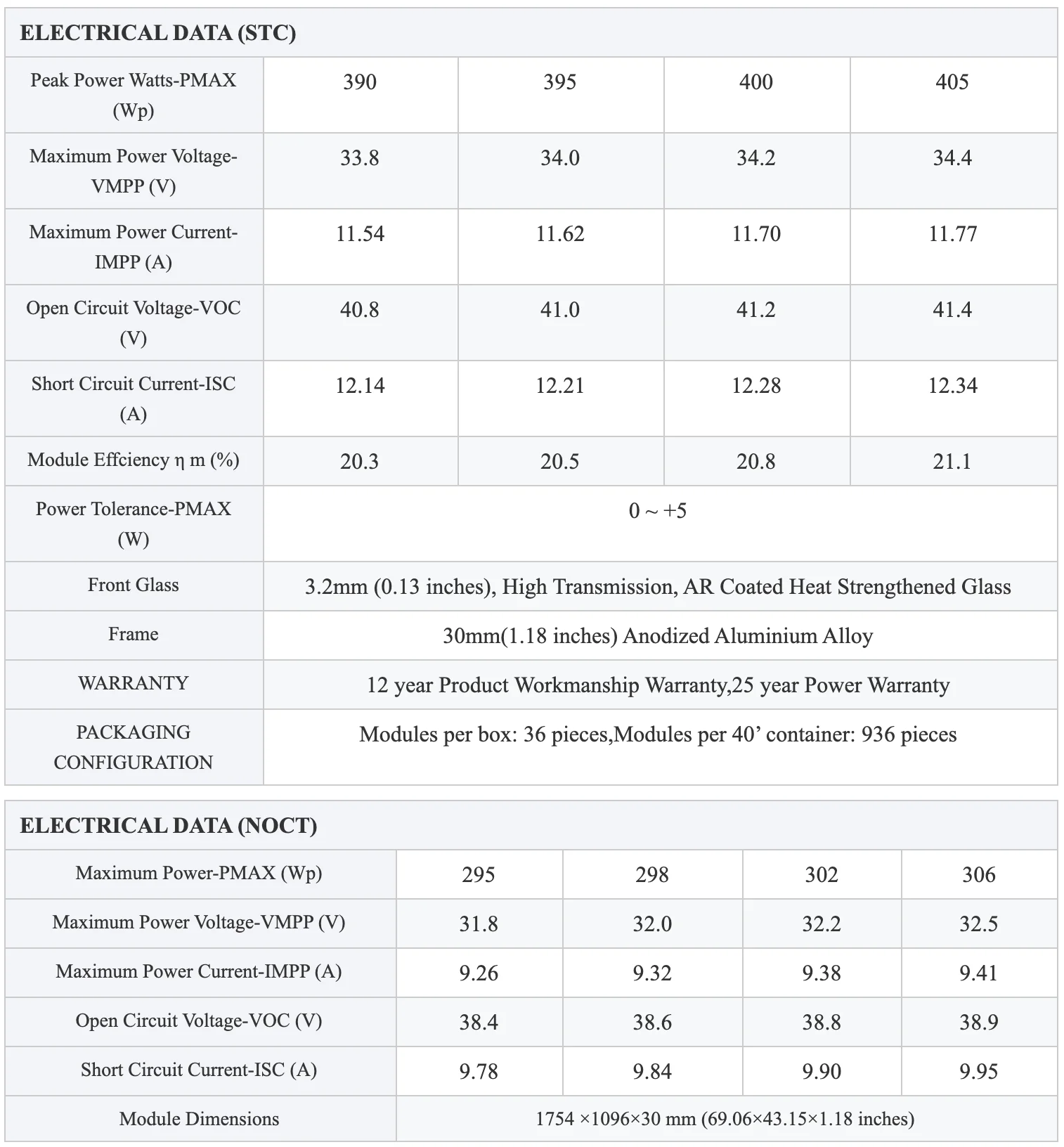

ELECTRICAL DATA (STC)
Peak Power Watts-Pmax(Wp)* 380 385 390 395
Power Tolerance-Pmax(W) 0 ~ +5
Maximum Power Voltage-Vmpp(V) 33.4 33.6 33.8 34.0
Maximum Power Current-Impp(A) 11.38 11.46 11.54 11.62
Open Circuit Voltage-Voc(V) 40.4 40.6 40.8 41.0
Short Circuit Current-Isc(A) 12.00 12.07 12.14 12.21
Module Efficiency η m(%) 19.8 20.0 20.3 20.5
STC: Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5.
ELECTRICAL DATA (NOCT)
Maximum Power-PMAX (Wp) 286 290 294 298
Maximum Power Voltage-VMPP (V) 31.4 31.6 31.8 31.9
Maximum Power Current-IMPP (A) 9.12 9.18 9.24 9.32
Open Circuit Voltage-VOC (V) 38.0 38.2 38.4 38.6
Short Circuit Current-ISC (A) 9.67 9.73 9.78 9.84
NOCT:  Irradiance at 800W/m2, Ambient Temperature 20°C, Wind Speed 1m/s.

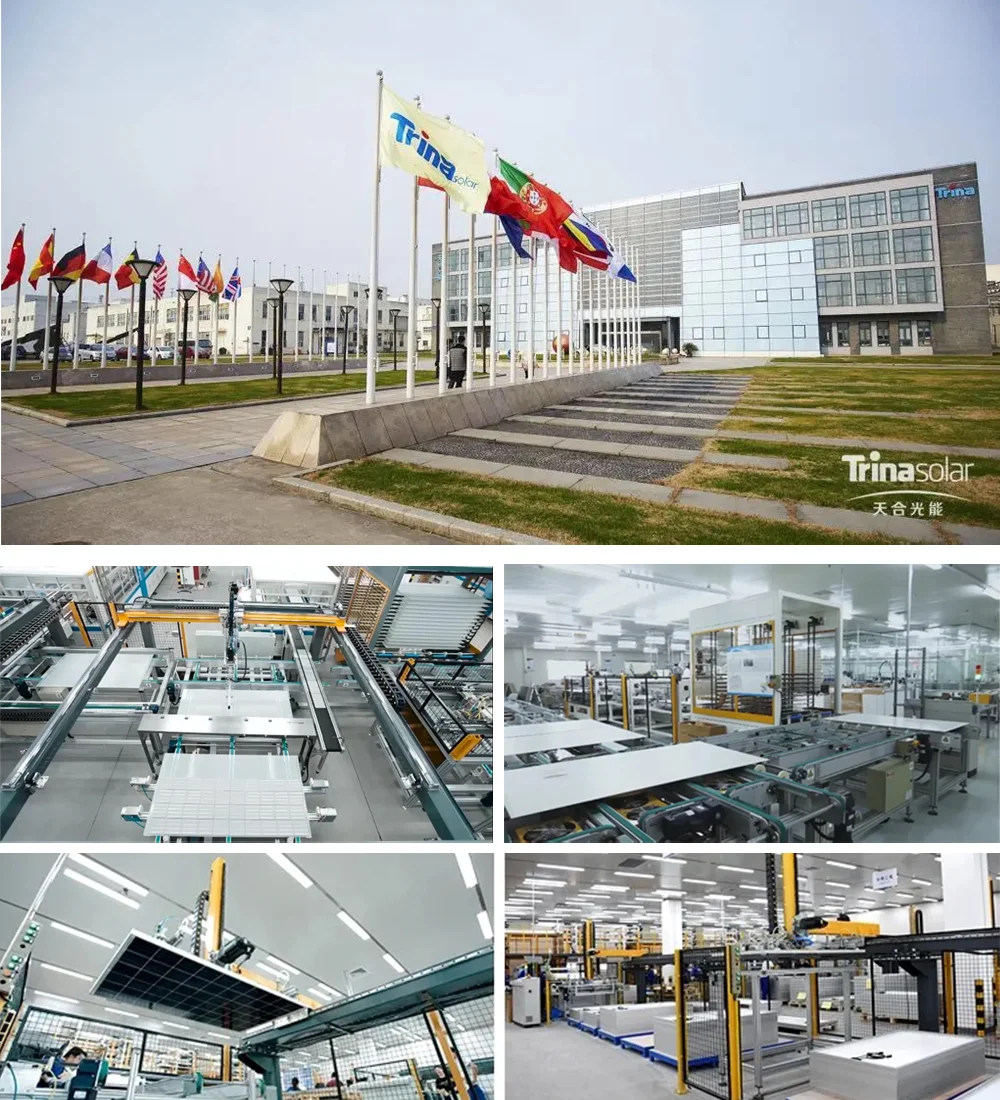

Trina Solar Factory

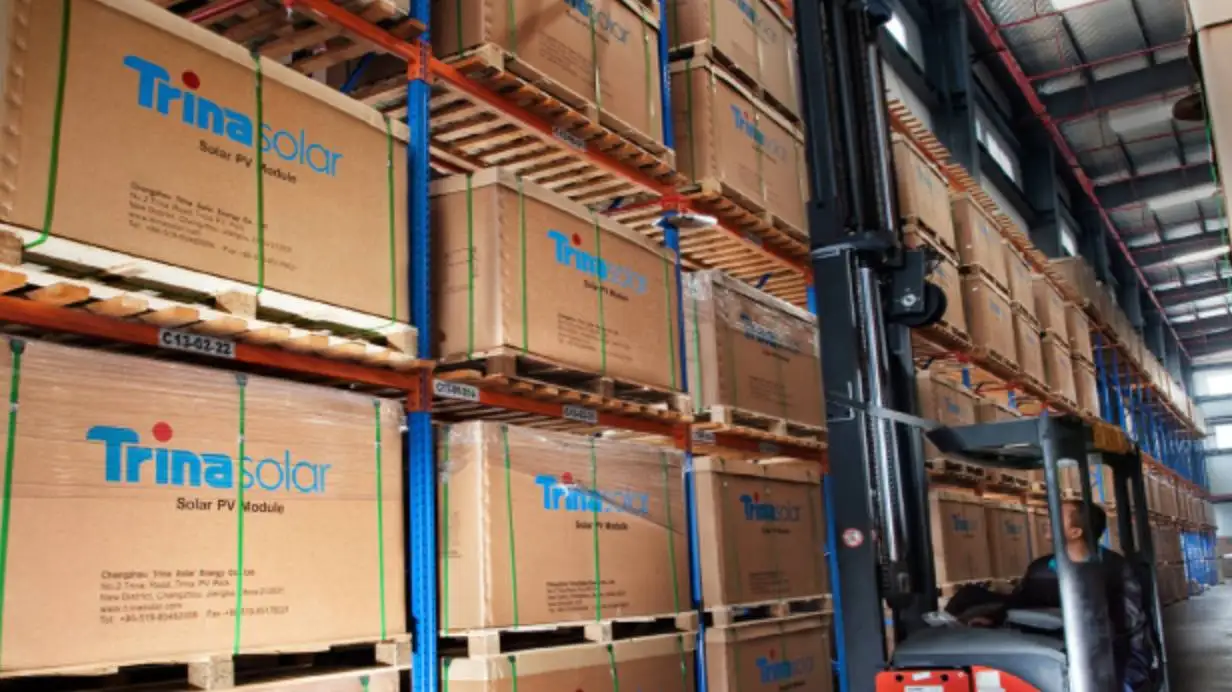

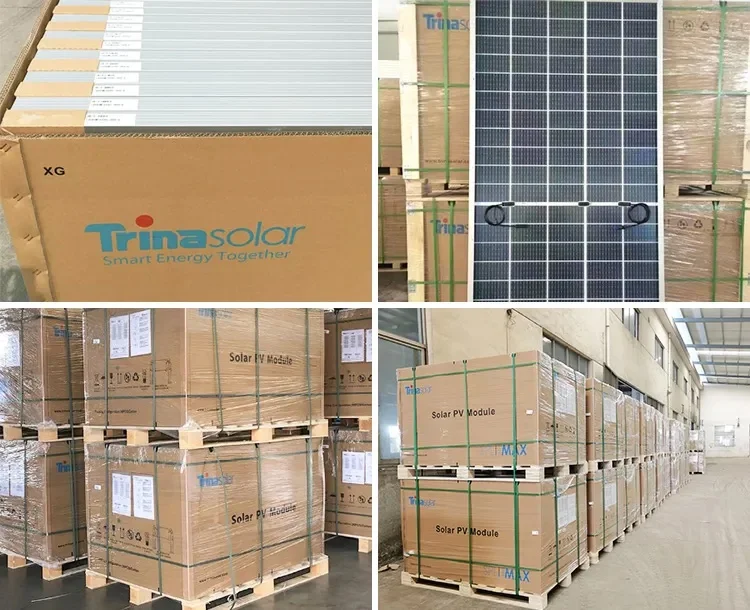

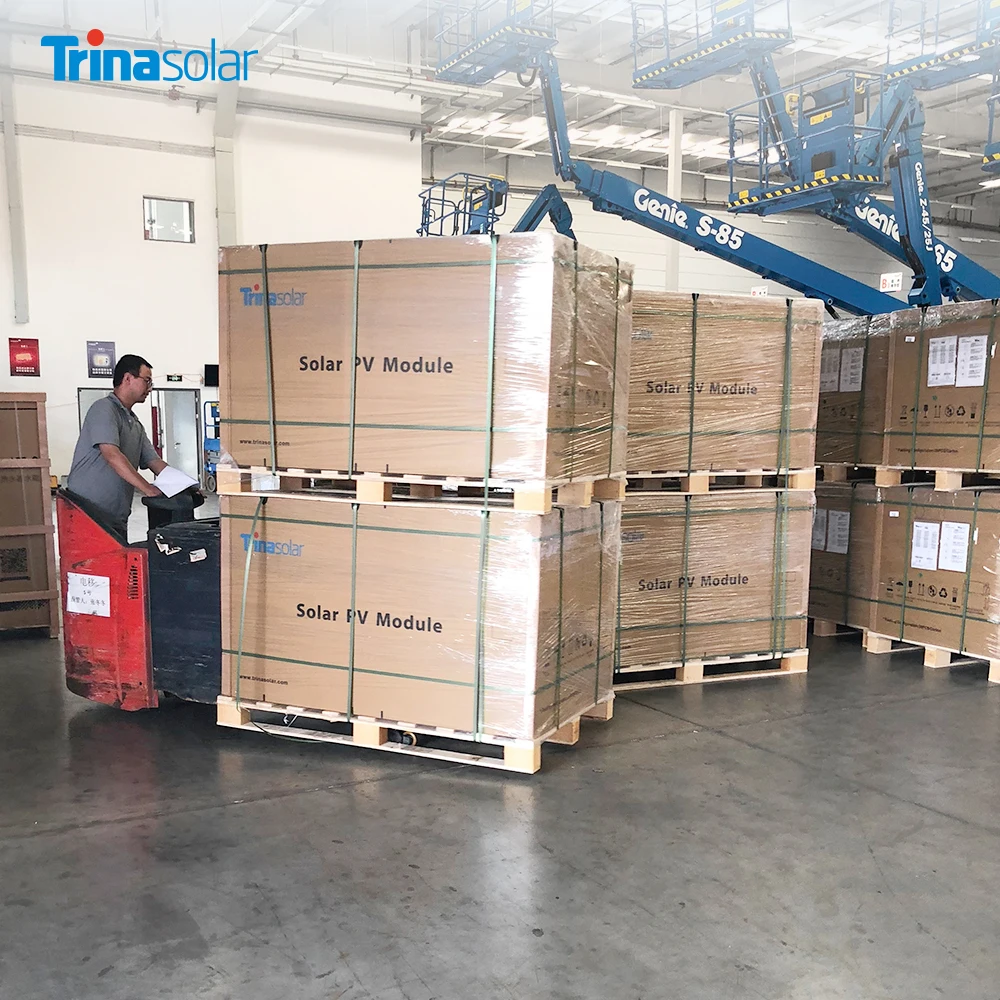

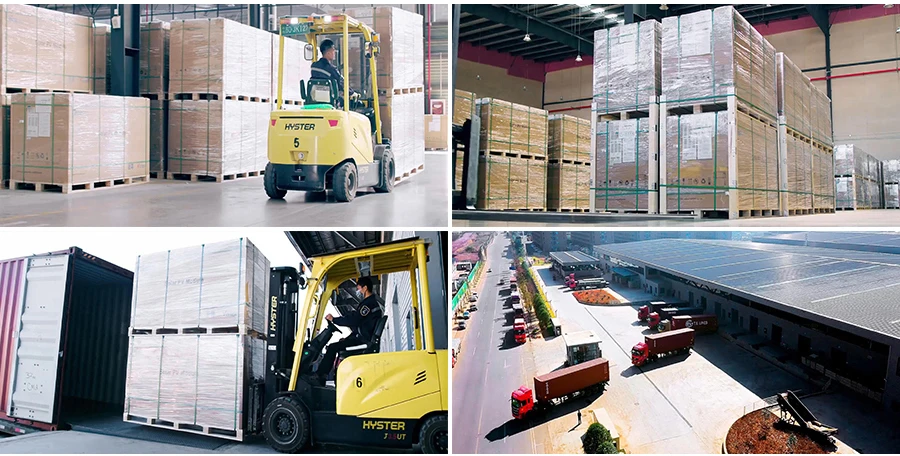

Product Packaging

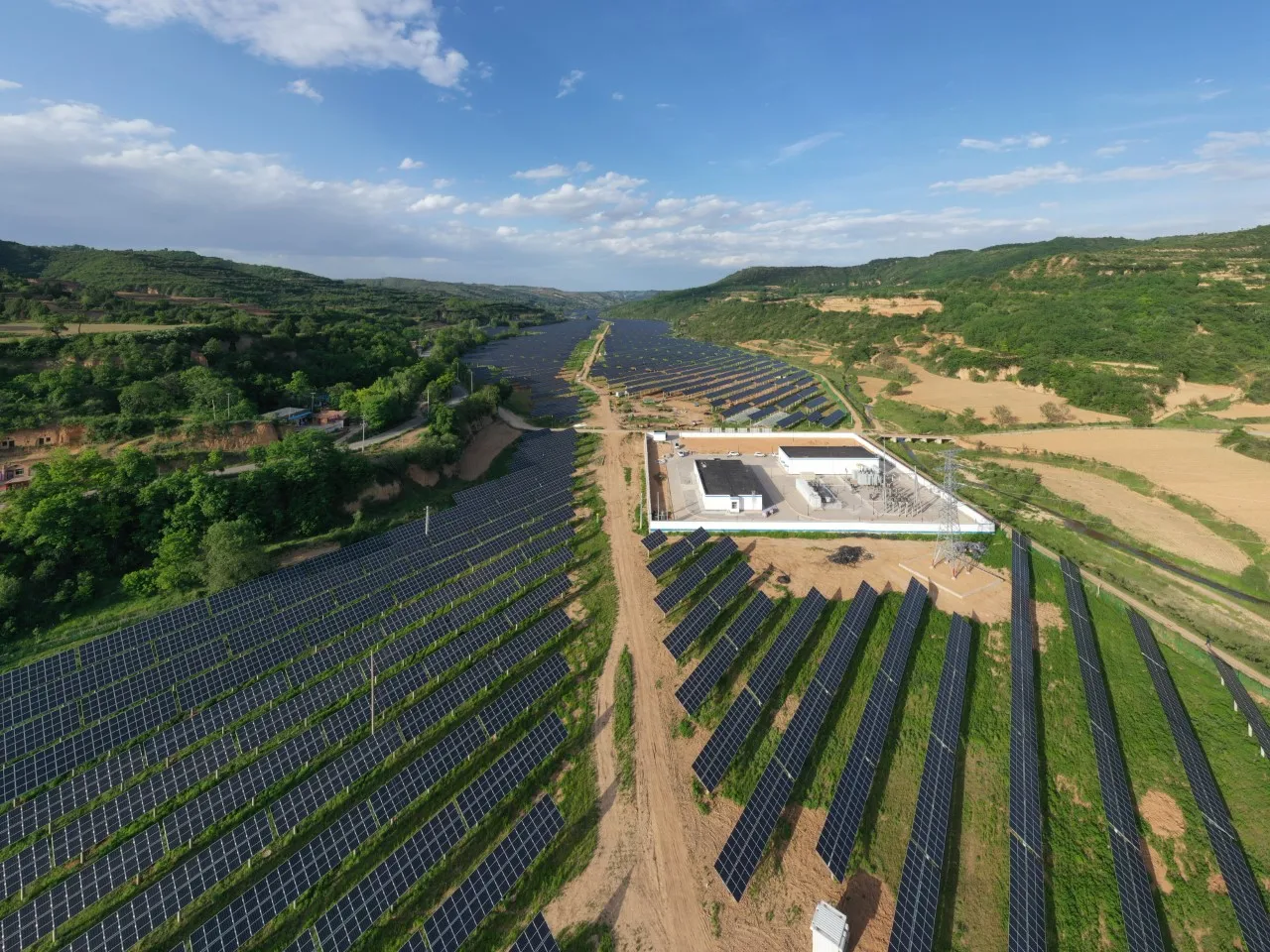

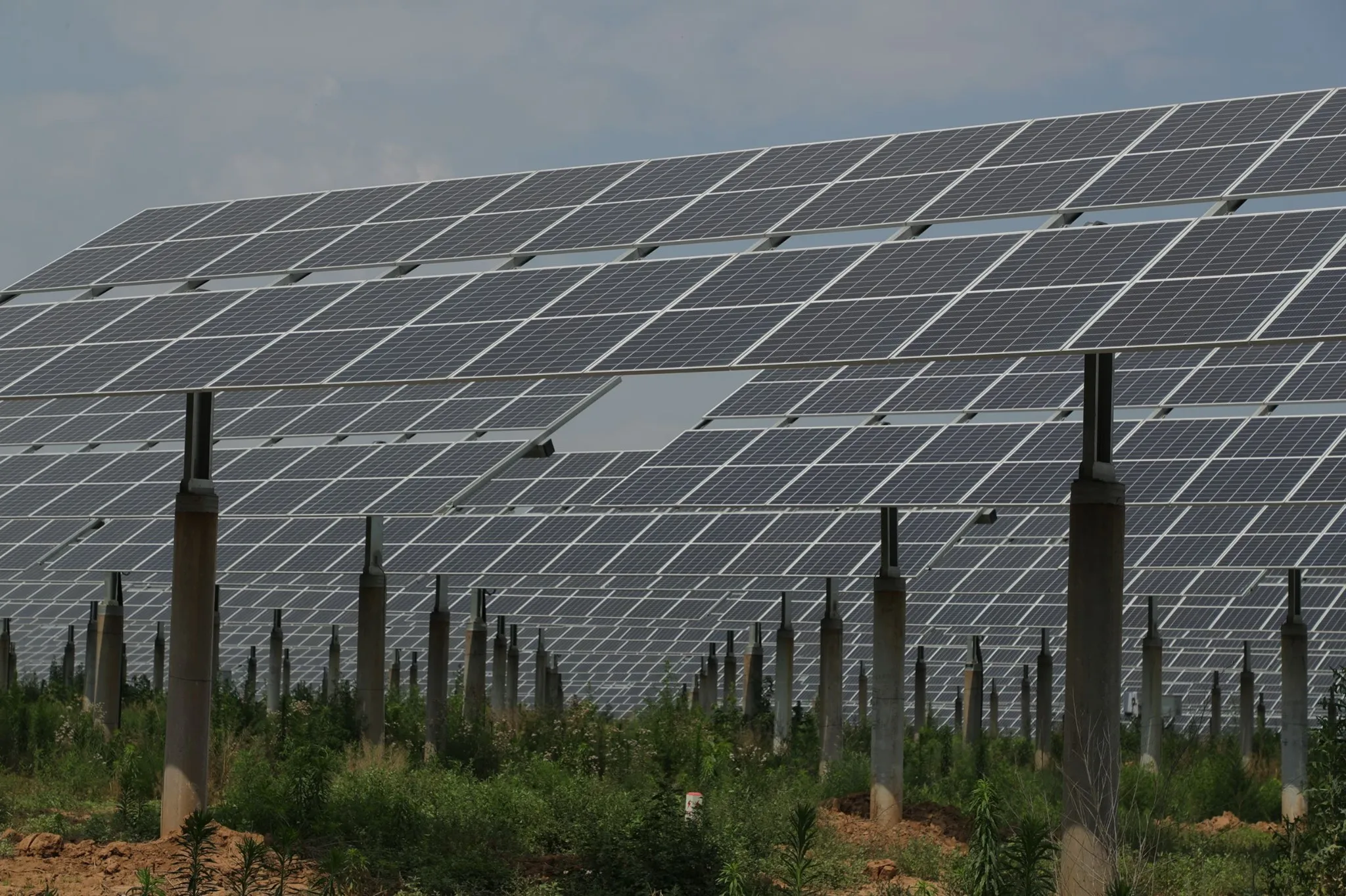

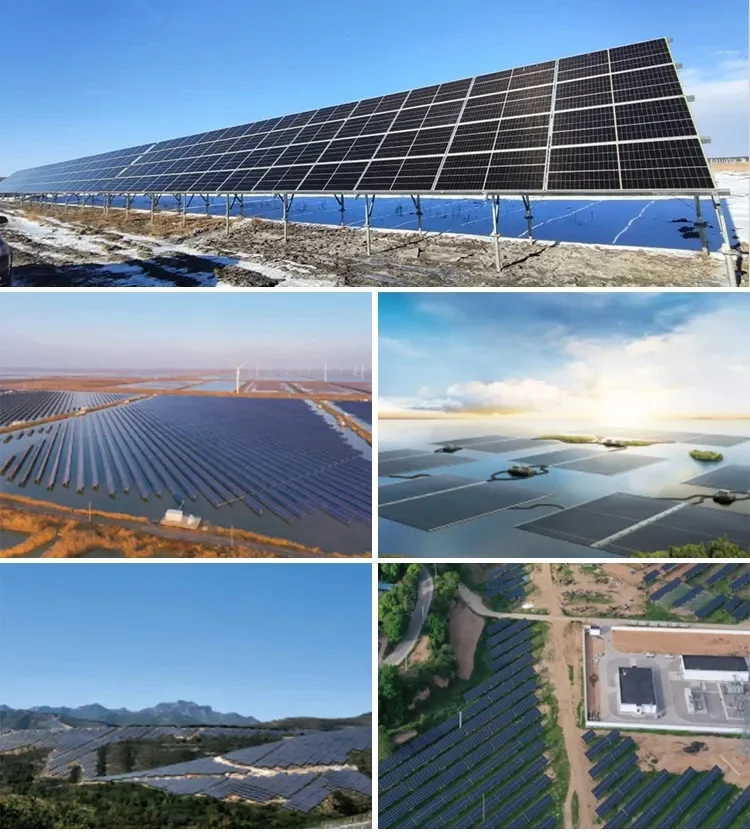

Project Case

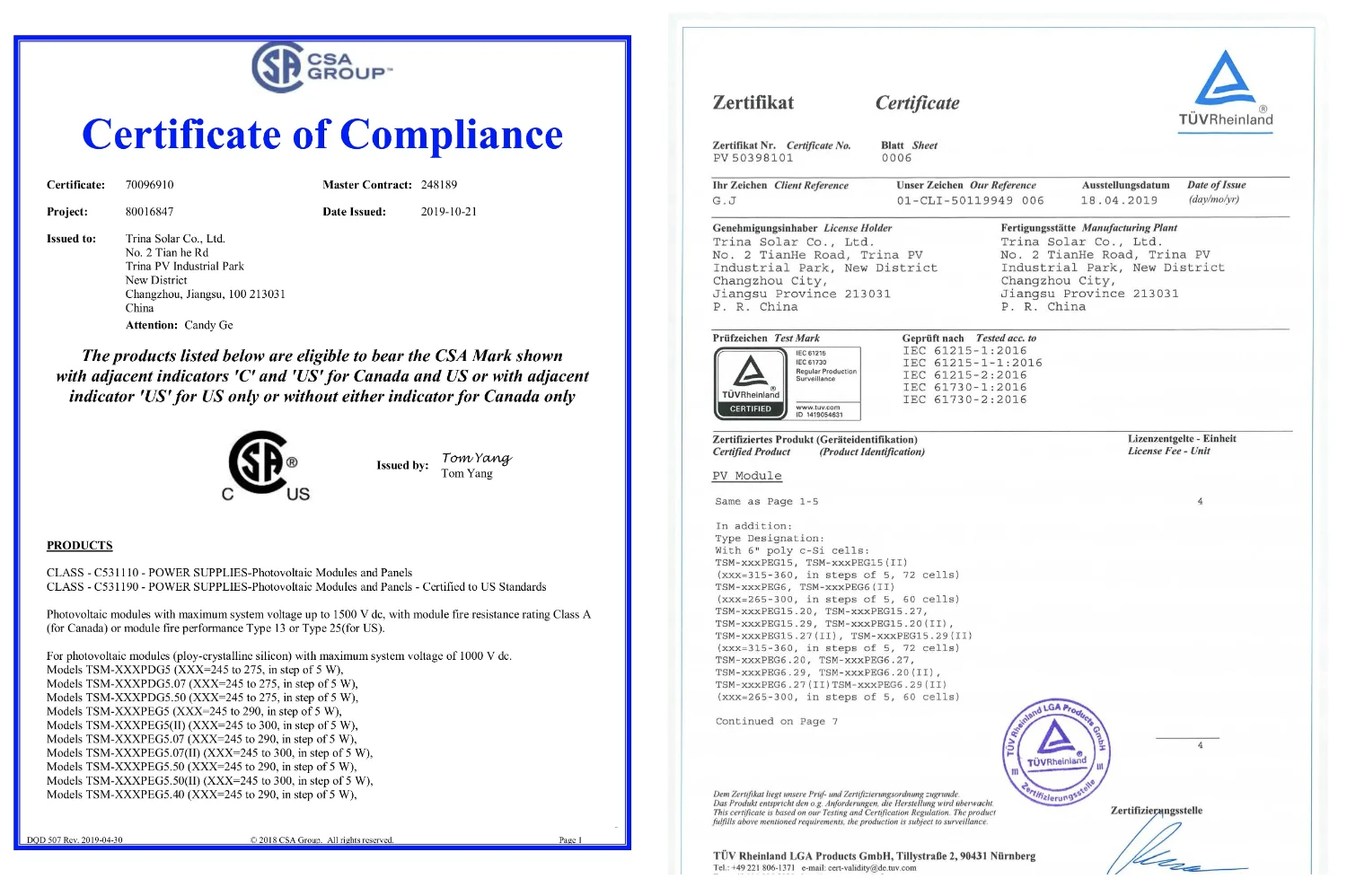

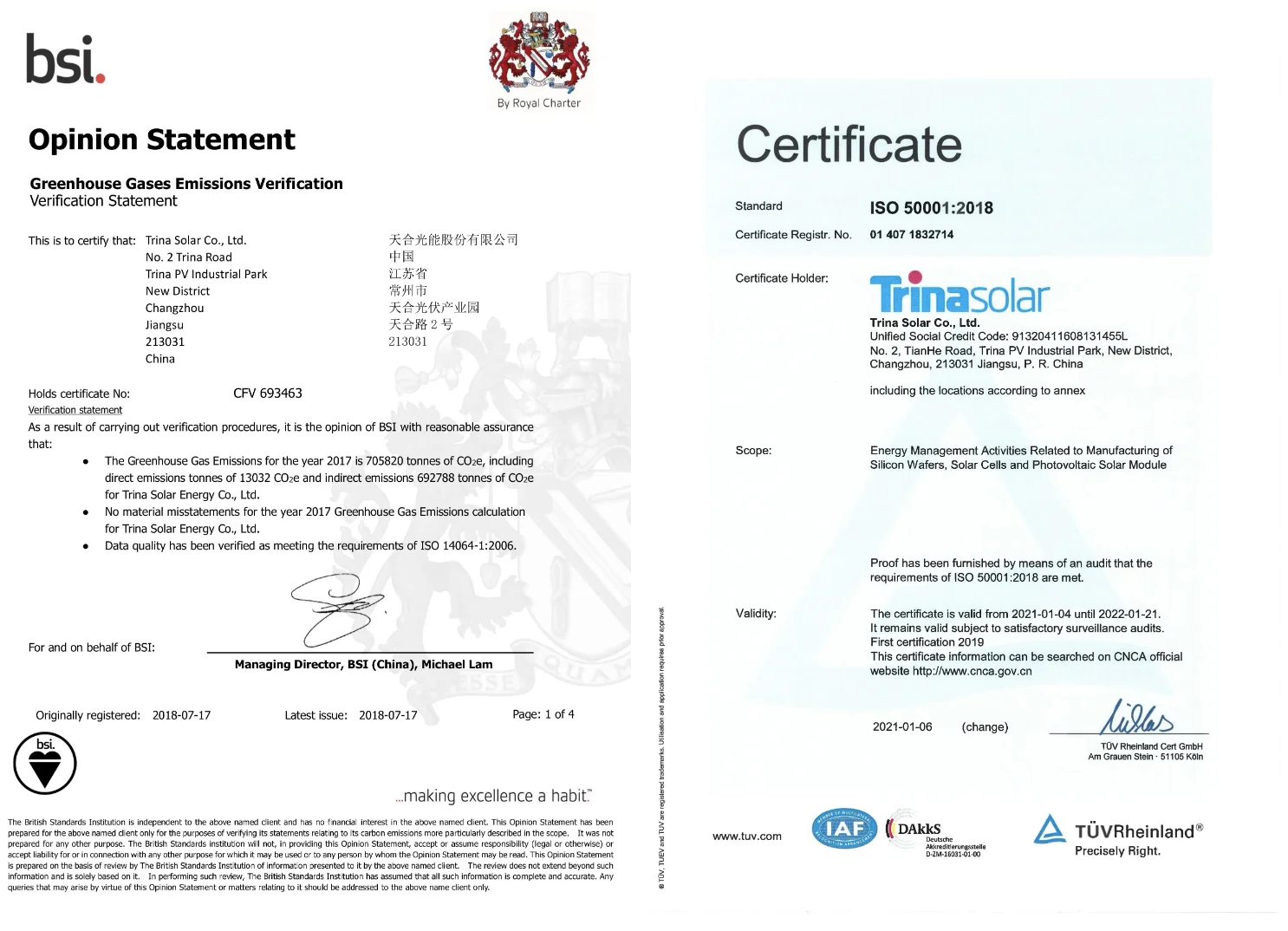

Certifications







FAQ


Q. What can we provide?


We can provide solar panel,solar inverter,solar energy system.


Q.Why choose us?


A.Higher power generation
B.Competitive price
C.High quality standard
D.Customized service


Q. What services can we provide?


Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type:
T/T,L/C,PayPal,Western Union,Cash.

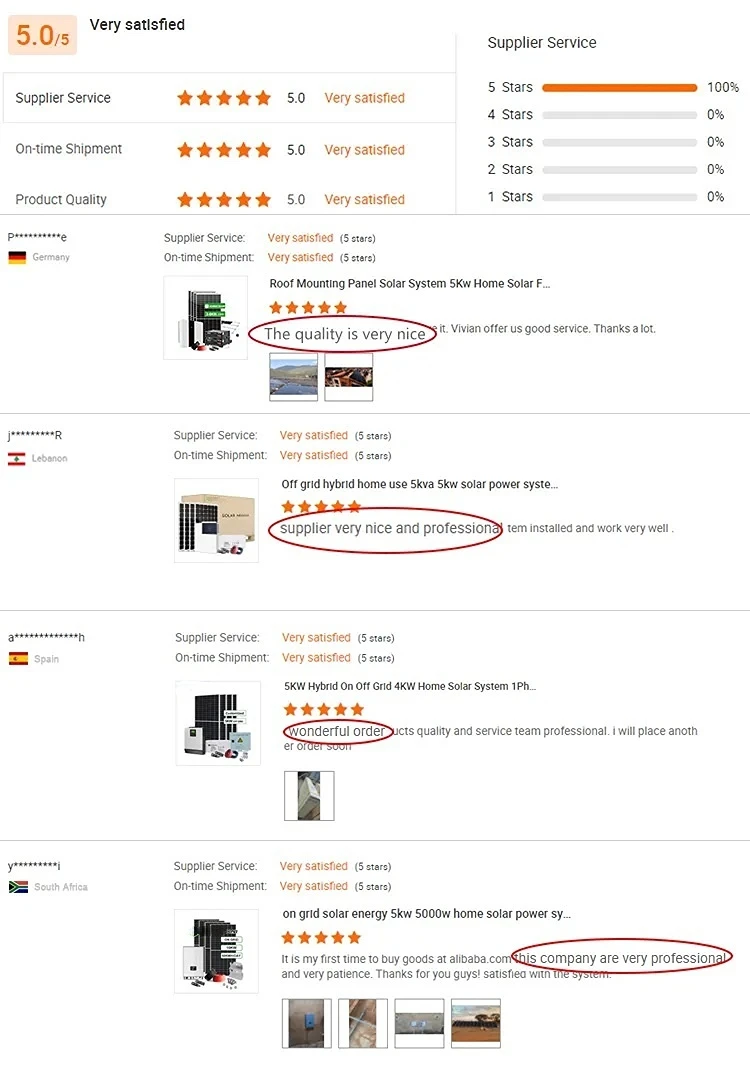

Feedback
