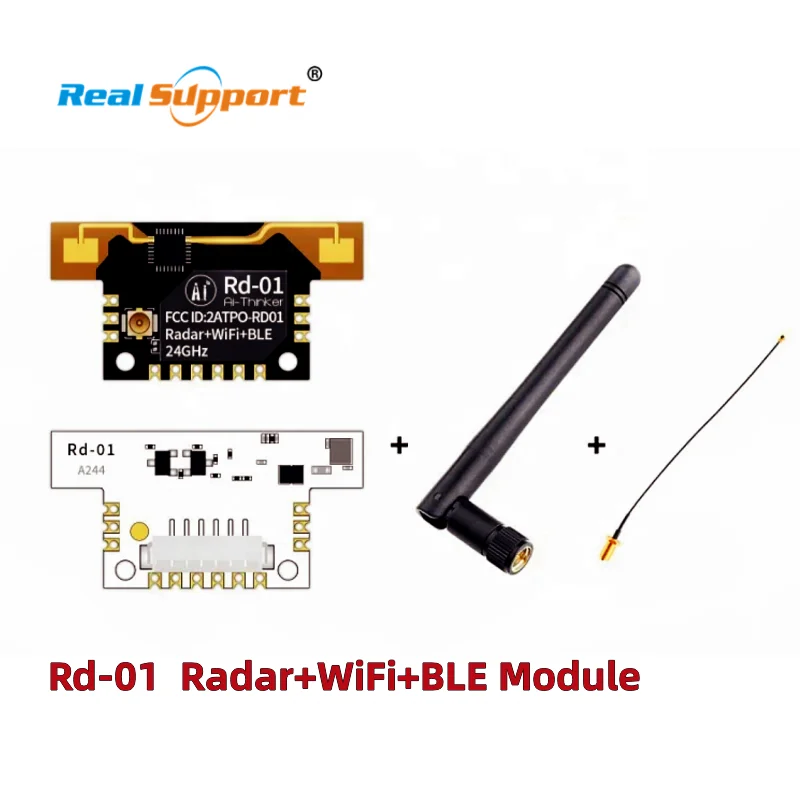

Original Rd 01 with Rod antenna 24GHz Radar WiFi BLE Module Millimeter Wave Sensor radar sensor for human detection
- Category: >>>
- Supplier: Real Support Electronic Co. Ltd.
Share on (1600819979146):
Product Overview
Description
Product Description
We are Ai-Thinker Authorized Distributors

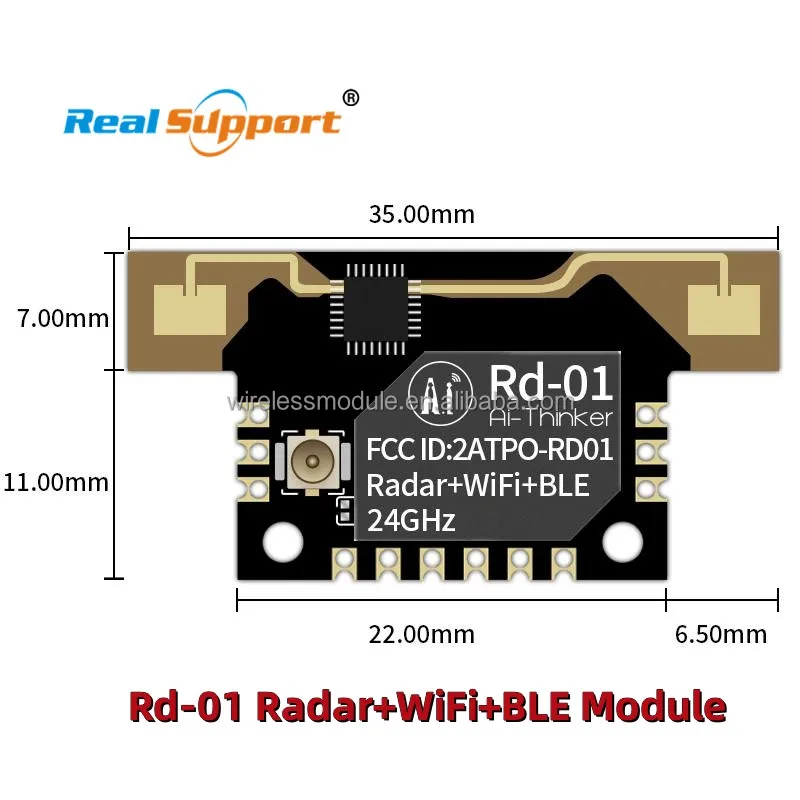

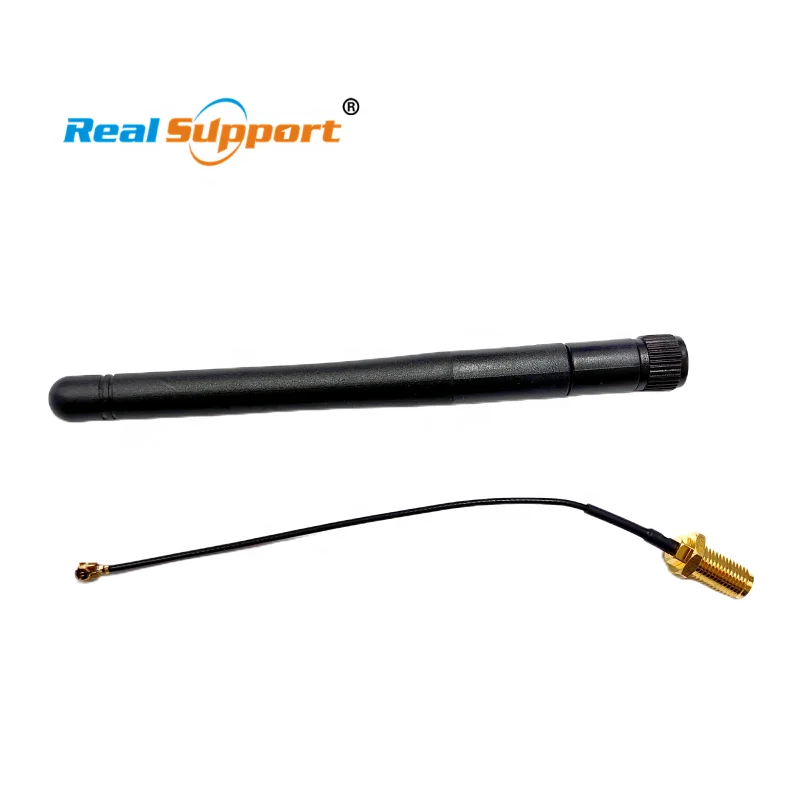

Product Name | Rd-01 with rod antenna |
Chip | BL602 chip + S3KM111L chip |
Package | SMD-12, compatible with various assembly methods such as patch/pin header/socket |
Antenna type | Radar onboard antenna; Wi-Fi&BLE IPEX seat |
Spectrum range | Radar 24 ~ 24.25GHz; Wi-Fi 2400 ~ 2483.5MHz |
Working temperature | -40℃ ~ 85℃ |
Storage environment | -40°C ~ 125°C, < 90%RH |
Power supply range | supply voltage 3.0V ~ 3.6V, supply current ≥500mA |
Support interface | UART/GPIO/ADC/PWM/I2C/SPI |
Available IO quantity | 8 |
Serial port rate | default 115200 bps |
Security | WPS/WEP/WPA/WPA2Personal/WPA2 Enterprise/WPA3 |
Flash | 2MByte by default |
Rd-01 is a radar module, which supports Wi-Fi&BLE. The radar part is equipped with S3KM111L chip. The S3KM111L is an integrated monolithic single-wavelength sensor SoC based on FMCW radar technology. Operates in the 24 GHz k-band with up to 1 GHz modulation bandwidth per frequency. Use FMCW frequency modulation continuous wave to detect the target in the set space. Combined with radar signal processing and precise human body sensing algorithm, it realizes high-sensitivity human body presence status sensing, and recognizes human body in motion and static state. The Wi-Fi&BLE part is equipped with BL602 chip as the core processor, which supports Wi-Fi 802.11b/g/n protocol and BLE5.0 protocol. The BL602 chip has a built-in low-power 32-bit RISC CPU, 276KB RAM and rich peripheral interfaces, including SPI, UART, I2C, PWM, ADC and GPIO, etc.
The Rd-01 module can sense whether there is movement or slight movement of the human body in the area, and transmit the detection results in real time through Wi-Fi&BLE. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc. At the same time, it supports Wi-Fi&BLE for wireless configuration of radar parameters, which greatly improves the efficiency of construction and operation and maintenance, and is convenient and fast.
The Rd-01 module can sense whether there is movement or slight movement of the human body in the area, and transmit the detection results in real time through Wi-Fi&BLE. Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc. At the same time, it supports Wi-Fi&BLE for wireless configuration of radar parameters, which greatly improves the efficiency of construction and operation and maintenance, and is convenient and fast.

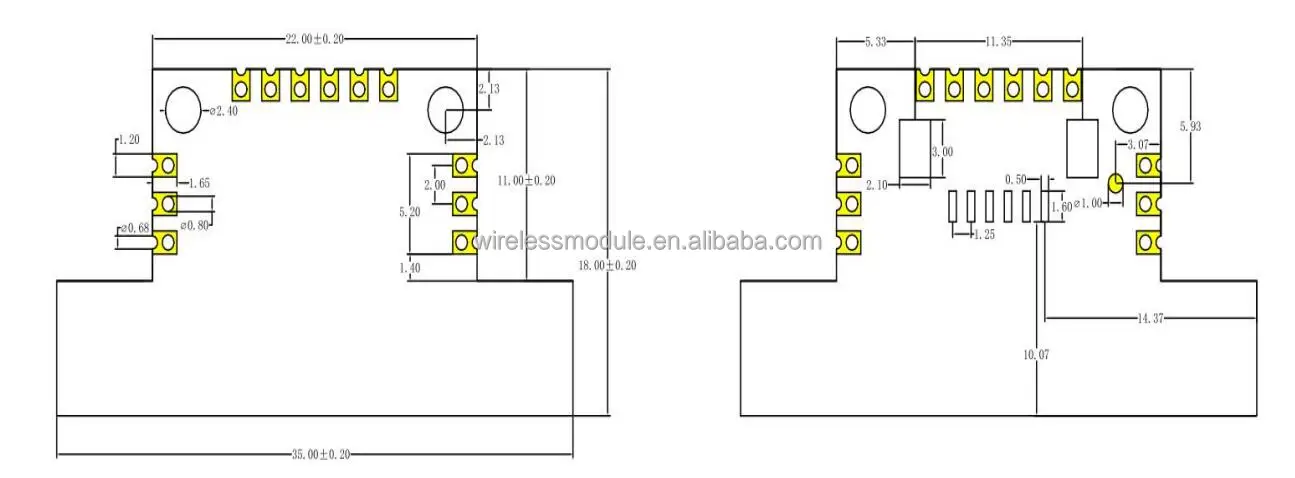

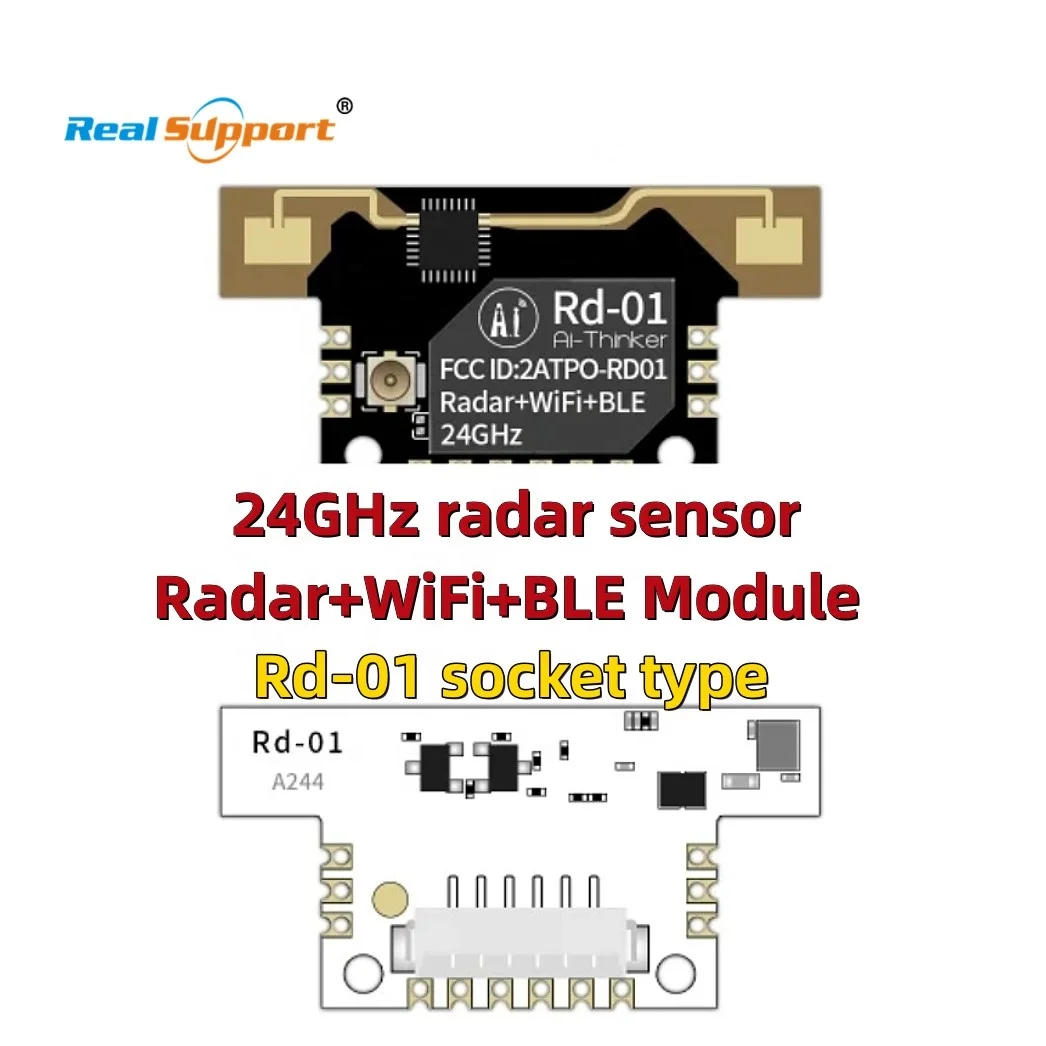

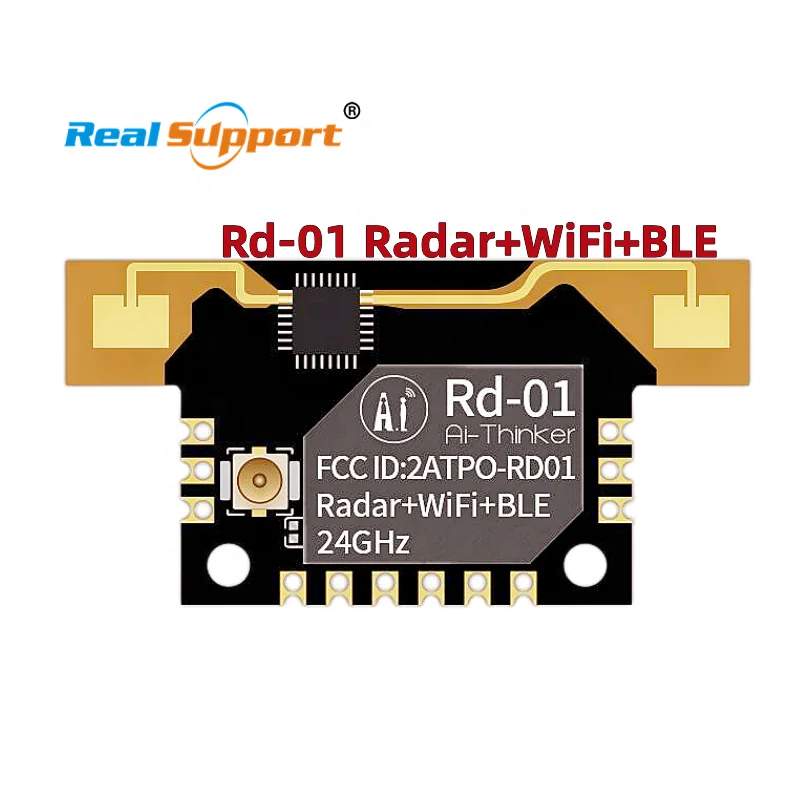

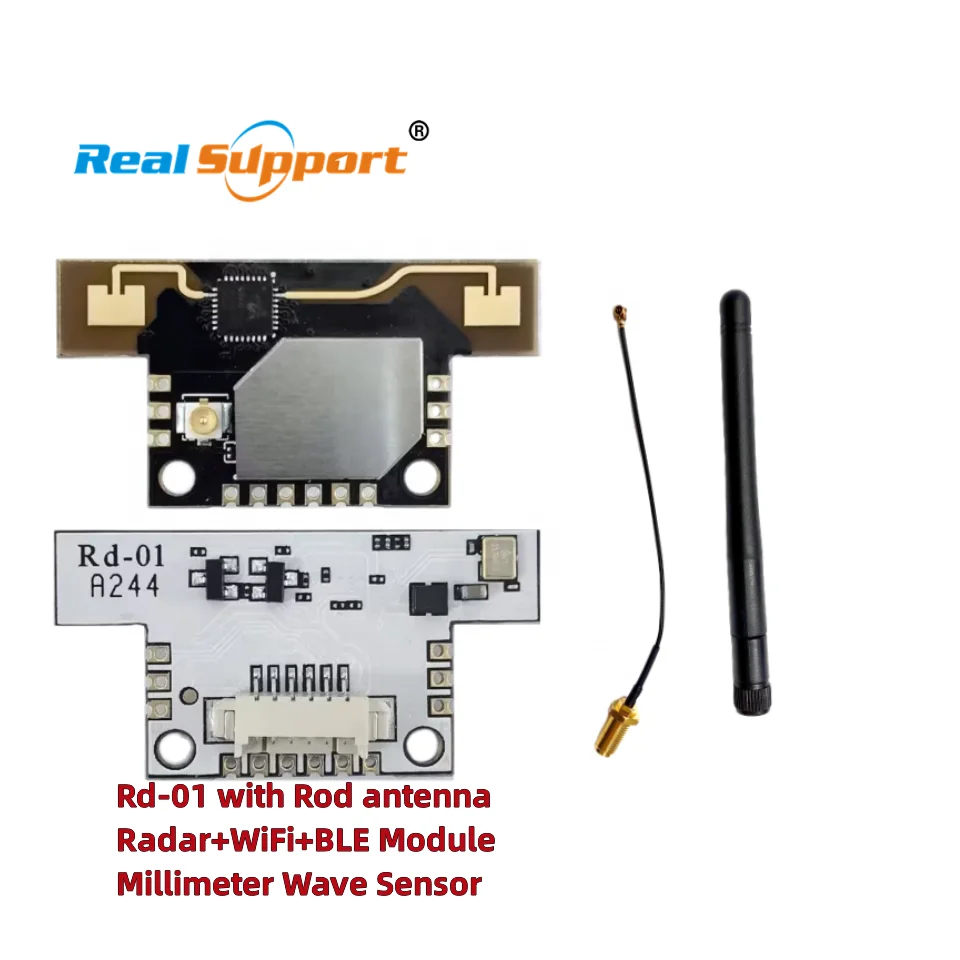

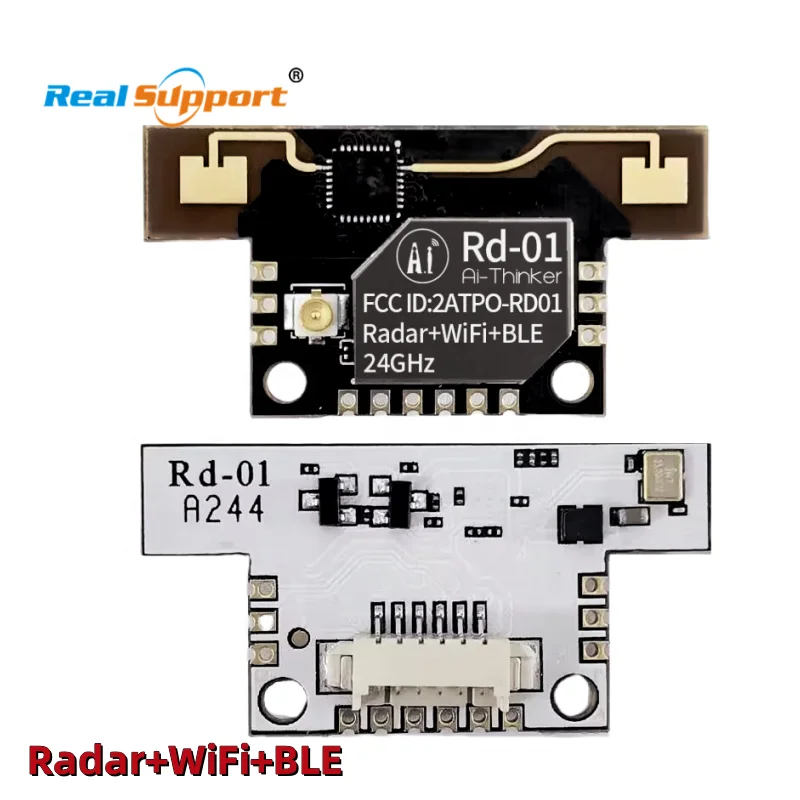

Details Images
Product Usage
Advantage：
1. WiFi+BLE+radar, with built-in data processing and wireless connection capabilities
2. Support human body presence, micro-movement and other status sensing, more accurate recognition
3. Small size and easy installation, plug and play
4. High sensitivity and wide detection range help users communicate quickly
5. Strong anti-interference ability, very cost-effective
6. Easily realize data upload, remote control, and more convenient operation
7. Multi-level intelligent parameter adjustment, wider application scenarios
2. Support human body presence, micro-movement and other status sensing, more accurate recognition
3. Small size and easy installation, plug and play
4. High sensitivity and wide detection range help users communicate quickly
5. Strong anti-interference ability, very cost-effective
6. Easily realize data upload, remote control, and more convenient operation
7. Multi-level intelligent parameter adjustment, wider application scenarios
Features：
1. SMD-12 package, compatible with standard socket or pin header
2. Radar supports 24GHz ISM frequency band
3. The longest sensing distance of the radar is up to 5 meters
4. Large radar detection angle, coverage up to ±60 degrees
5. Accurate identification within the radar interval, support for division of the sensing range, shielding interference outside the interval
6. Intelligent adjustment of radar parameters can be realized through BLE, which is convenient and quick

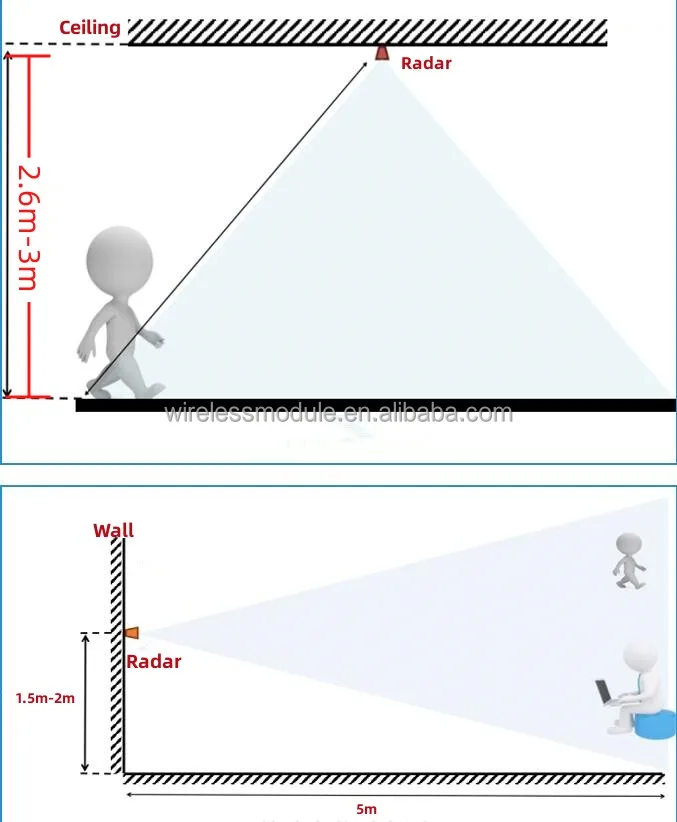

7. Support various installation methods such as ceiling and wall
8. Support IEEE 802.11 b/g/n protocol
9. Wi-Fi security supports WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
10. Support 20MHz bandwidth, the highest rate is 72.2 Mbps
11. Support Station + BLE mode, Station + SoftAP + BLE mode
2. Radar supports 24GHz ISM frequency band
3. The longest sensing distance of the radar is up to 5 meters
4. Large radar detection angle, coverage up to ±60 degrees
5. Accurate identification within the radar interval, support for division of the sensing range, shielding interference outside the interval
6. Intelligent adjustment of radar parameters can be realized through BLE, which is convenient and quick
7. Support various installation methods such as ceiling and wall
8. Support IEEE 802.11 b/g/n protocol
9. Wi-Fi security supports WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
10. Support 20MHz bandwidth, the highest rate is 72.2 Mbps
11. Support Station + BLE mode, Station + SoftAP + BLE mode
12. BLE 5.0, BLE Mesh
13. Support 32-bit RISC CPU, 276KB RAM
14. Secure boot, supports images signed with ECC-25615. Support QSPI/SPI Flash instant AES decryption (OTFAD), support AES 128 CTR mode
16. Support AES 128/192/256 bit encryption engine
17. Support SHA-1/224/256
18. Support True Random Number Generator (TRNG)
19. Public Key Accelerator (PKA), supports large number of basic operations, software provides signature, verification and other application programming interfaces
20. Support SPI, UART, I2C, PWM, ADC and GPIO etc.
21. Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
22. Support multiple sleep modes
23. Support secondary development, integrated Windows, Linux development environment
24. Flexible assembly methods, compatible with various methods such as patch/pin header/socket
1. Human sensor light control
Rd-01 radar module has the characteristics of high sensitivity and high reliability, and can quickly switch on and off incandescent lamps, fluorescent lamps, induction lamps, mirror lamps, etc. in public places or home lighting by sensing the distance of the human body.
2. Human body induction wake-up of equipment such as advertising screens
Rd-01 radar is suitable for all kinds of home appliance screens, commercial advertising screens, and access control panels to trigger and activate applications. In terms of installation, the Rd-01 radar is small in size and has a hidden design, which can penetrate the screen panel or the non-metallic casing of the electrical appliance without opening the panel. When a person appears in front of the screen, the advertising screen senses the human body to play the advertisement, and it will not stop playing because the person is still watching. When no one passes by, the advertising screen enters the off-screen state, which greatly improves the light pollution caused by the advertising screen, and also achieves environmental protection and power saving.
3. Smart appliances
The Rd-01 radar can detect the presence and static state of the human body. Therefore, when a person appears in front of the screen, the radar will trigger the lighting when it senses the human body, and immediately link with other smart home appliances. off, saving time and electricity.
The Rd-01 radar module can also be intelligentized for various space management scenarios such as offices and hotels. Put the human presence sensing product with Rd-01 in the conference room to manage the occupancy situation, control the lighting or power supply by human touch, and automatically cut off the power when there is no one, so as to achieve the purpose of energy saving. In building a smart hotel, Rd-01 can realize intelligent management of guest rooms. When the guest enters the room, the system can automatically turn on the lights, play music, etc., to improve the guest's experience; when the guest leaves the room, the system can automatically turn off the lights, air conditioners and other equipment to save energy
The Rd-01 radar module can also be intelligentized for various space management scenarios such as offices and hotels. Put the human presence sensing product with Rd-01 in the conference room to manage the occupancy situation, control the lighting or power supply by human touch, and automatically cut off the power when there is no one, so as to achieve the purpose of energy saving. In building a smart hotel, Rd-01 can realize intelligent management of guest rooms. When the guest enters the room, the system can automatically turn on the lights, play music, etc., to improve the guest's experience; when the guest leaves the room, the system can automatically turn off the lights, air conditioners and other equipment to save energy
4. Smart security
Human body presence sensing radar technology can be used to realize human body sensing alarm. When someone enters the monitored area, the device can automatically trigger an alarm, and realize App push and other linkage alarms through WiFi/BLE.
Rd-01 radar is an important technical equipment in the field of security, which can quickly detect and accurately intrude targets, and timely alarm and alert. The Rd-01 radar has powerful performance and small size, and has obvious advantages compared with other infrared sensor alarms. In terms of indoor security, the human body presence sensor radar recognizes personnel intrusion, and can cooperate with the camera to trigger the linkage application. If there is an abnormal situation, the linkage WiFi/BLE will transmit the data to the app of the owner's mobile phone, and send out an alarm prompt to improve residential safety.
