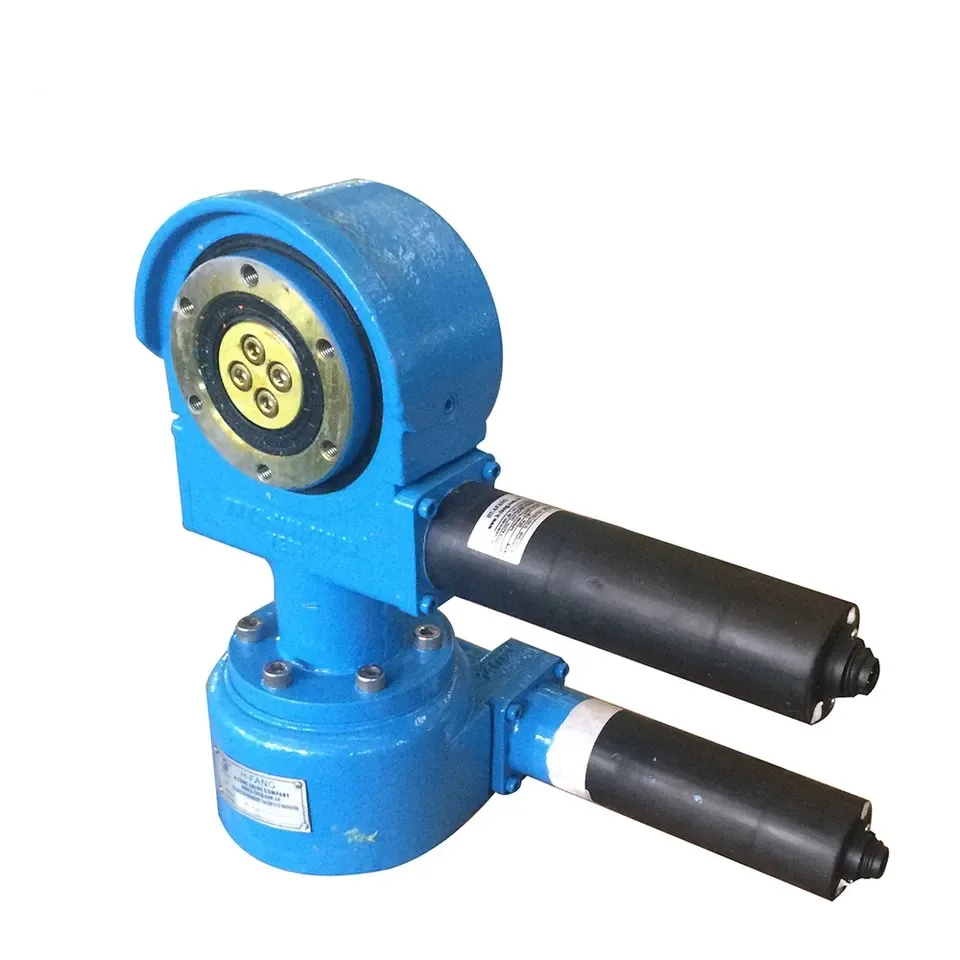

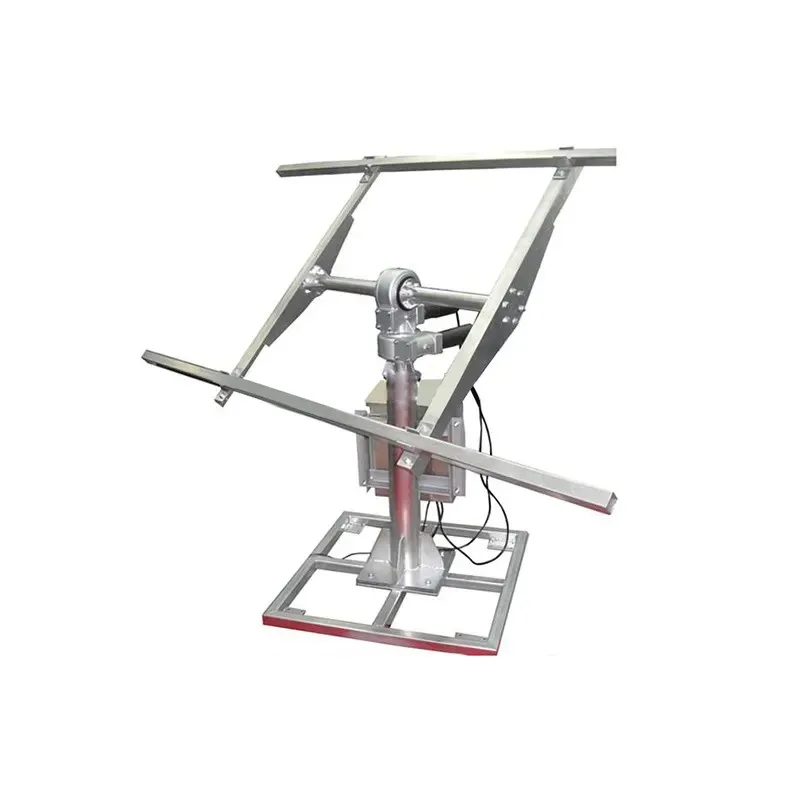

dual axis worm drive 24VDC motor Solar Tracker slewing drive slew bearing gear reducer
- Category: >>>
- Supplier: Changsha Chushitian Precision Machinery Co. Ltd.
Share on (1600820051212):
Product Overview
Description
Product Overview
Output Torque | 1500 N.m/1107 lbf.ft |
Tilting Moment Torque | 13500 N.m/9957 lbf.ft |
Holding Torque | 10400 N.m/7671 lbf.ft |
Static Axial Rating | 133 kN/29900 lbf |
Gear Ratio | 73:1 |
Tacking Precision | ≤0.2° |
Weight | 21kg |
Seal | Nitrile Rubber, Labyrinth |
Title goes here.
A slewing drive is also called slewing gear drive or slewing reducer, etc. It is typically used in aerospace area, solar power
systems, wind turbines, satellite broadcasting system, and engineering machinery like truck cranes, and man lifts, etc. Recently
years, it has been prosperously used in photovoltaic power generation systems.
When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar
panels. Broadly speaking, 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2 solar panel, 7 inch for
10-17 m2 solar panel, 9 inch for 18-30 m2, 12 inch for 31-45 m2, and 14 inch for 46-60 m2. These are provided for your reference.
For more specific and detailed information, please contact me directly.
A slewing drive is usually composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc.
While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary speed
reducer motor and AC speed reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic
motor to function as power driving system.
systems, wind turbines, satellite broadcasting system, and engineering machinery like truck cranes, and man lifts, etc. Recently
years, it has been prosperously used in photovoltaic power generation systems.
When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar
panels. Broadly speaking, 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2 solar panel, 7 inch for
10-17 m2 solar panel, 9 inch for 18-30 m2, 12 inch for 31-45 m2, and 14 inch for 46-60 m2. These are provided for your reference.
For more specific and detailed information, please contact me directly.
A slewing drive is usually composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc.
While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary speed
reducer motor and AC speed reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic
motor to function as power driving system.
FEATURES AT A GLANCE

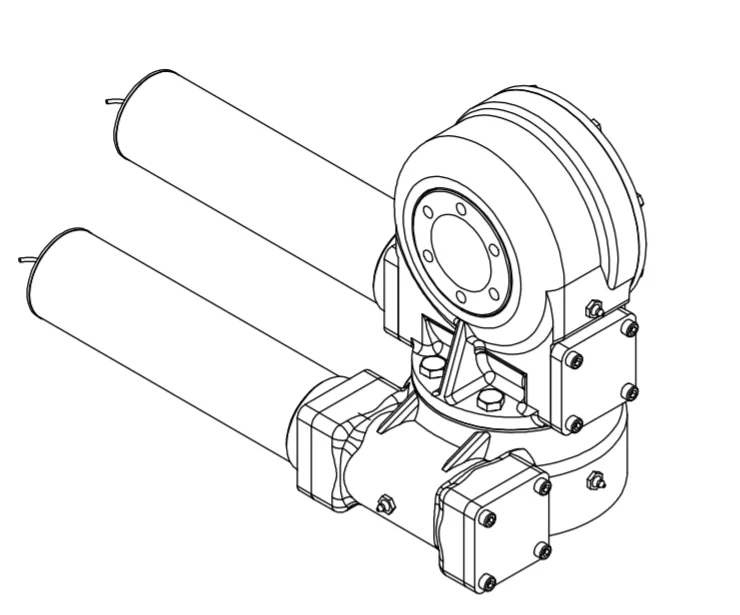

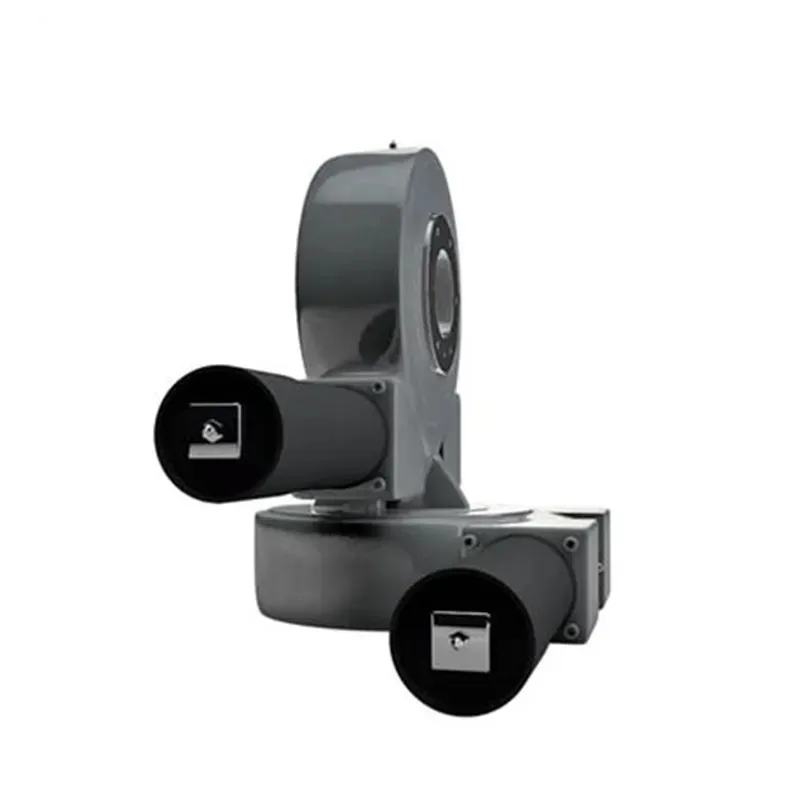

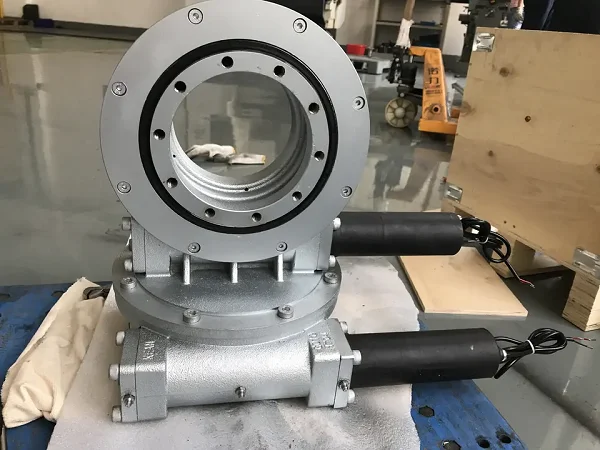

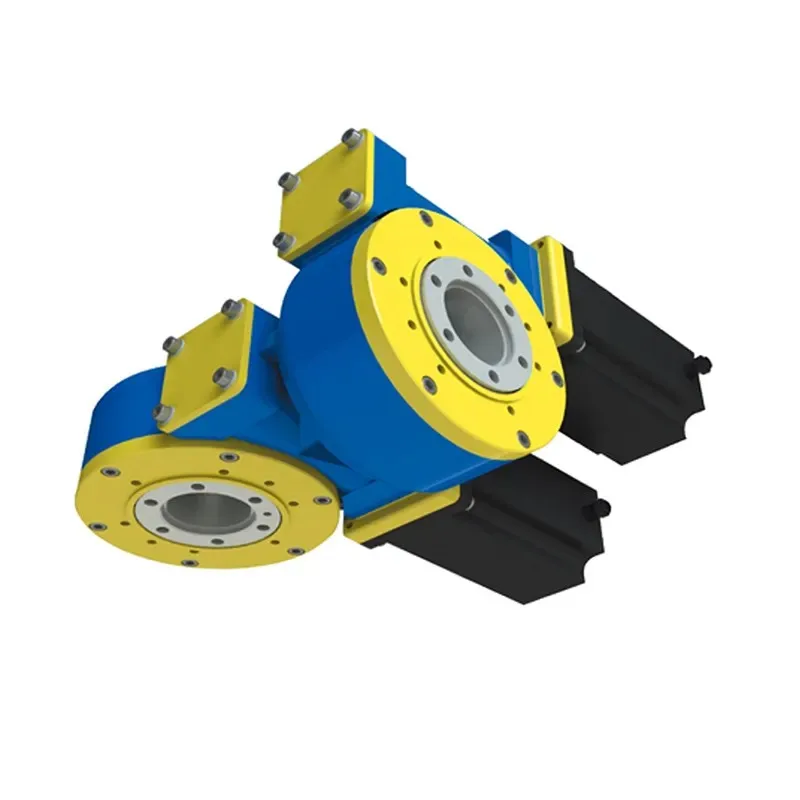

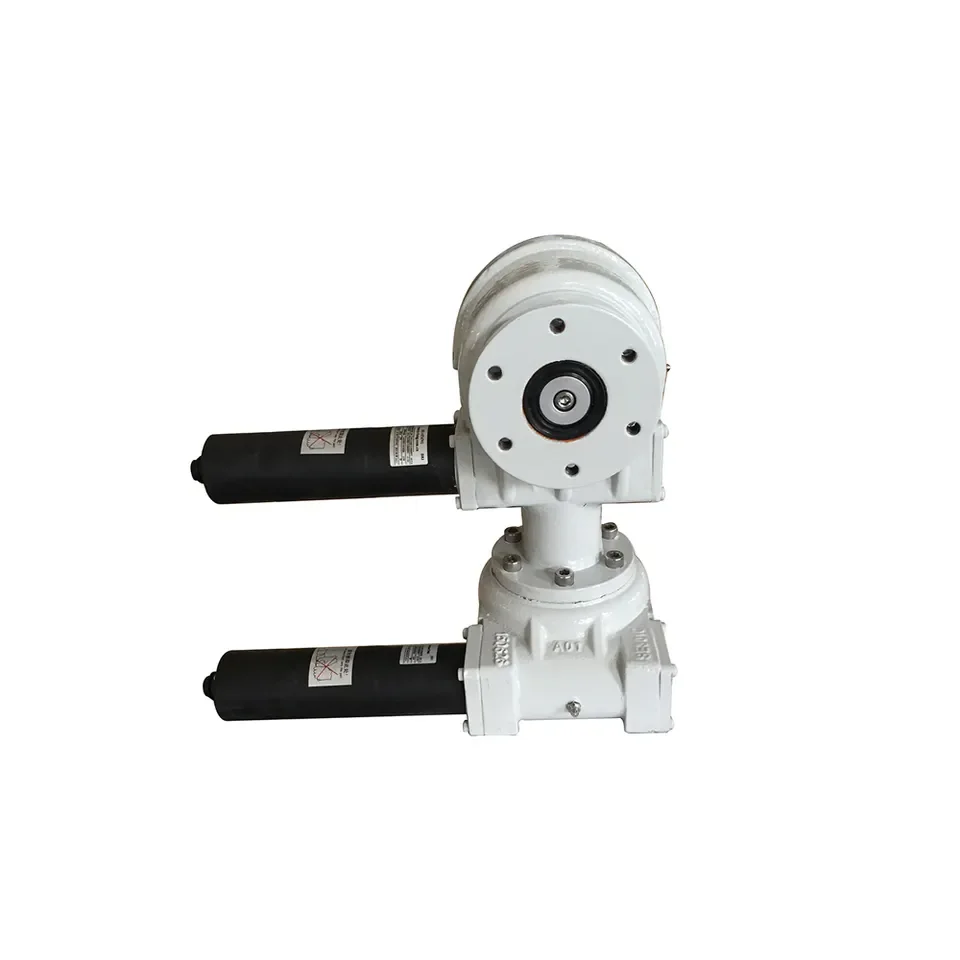

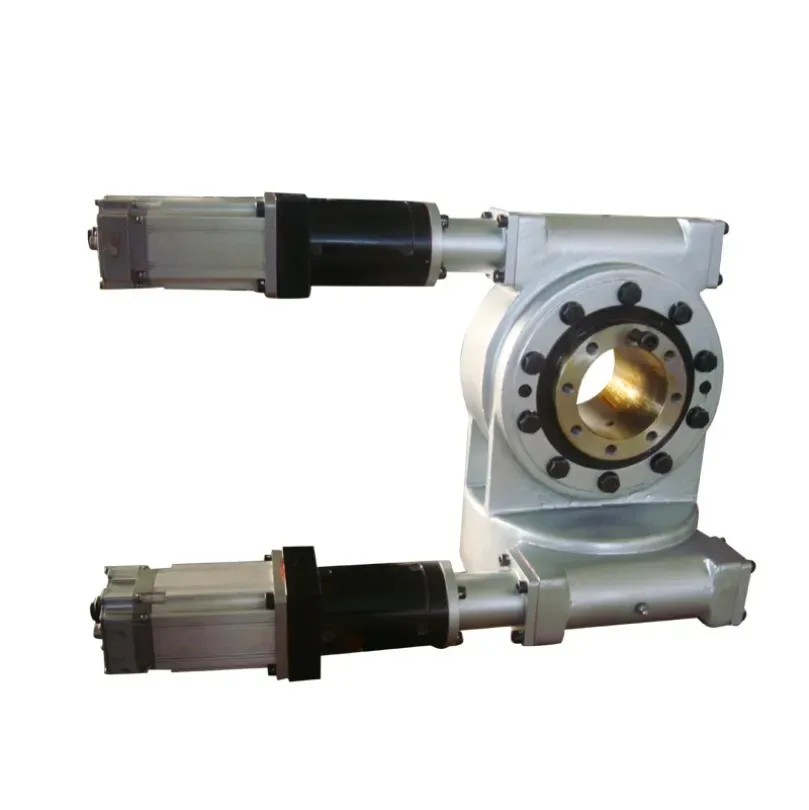

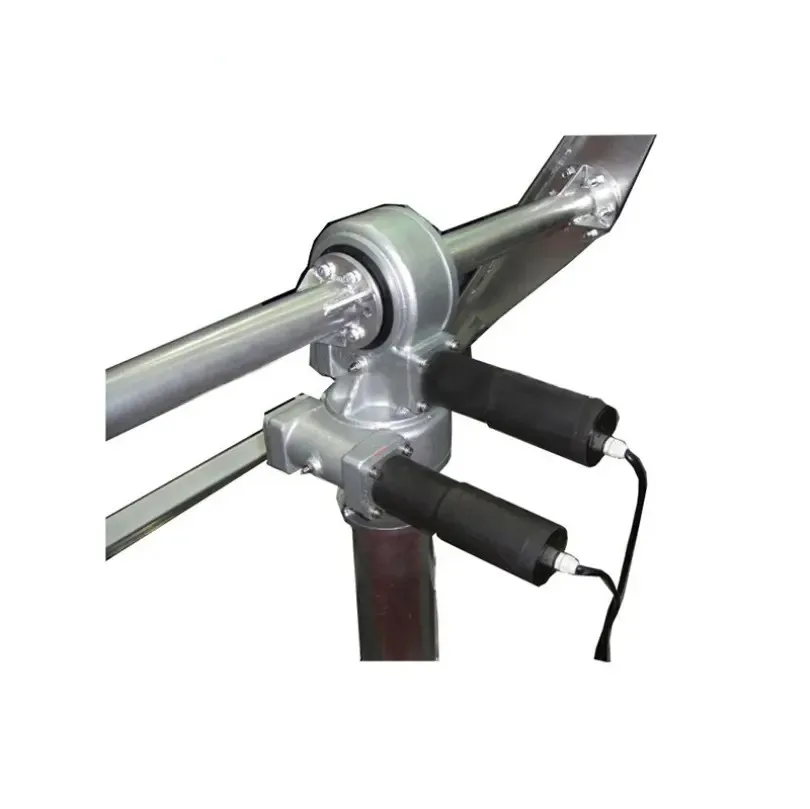

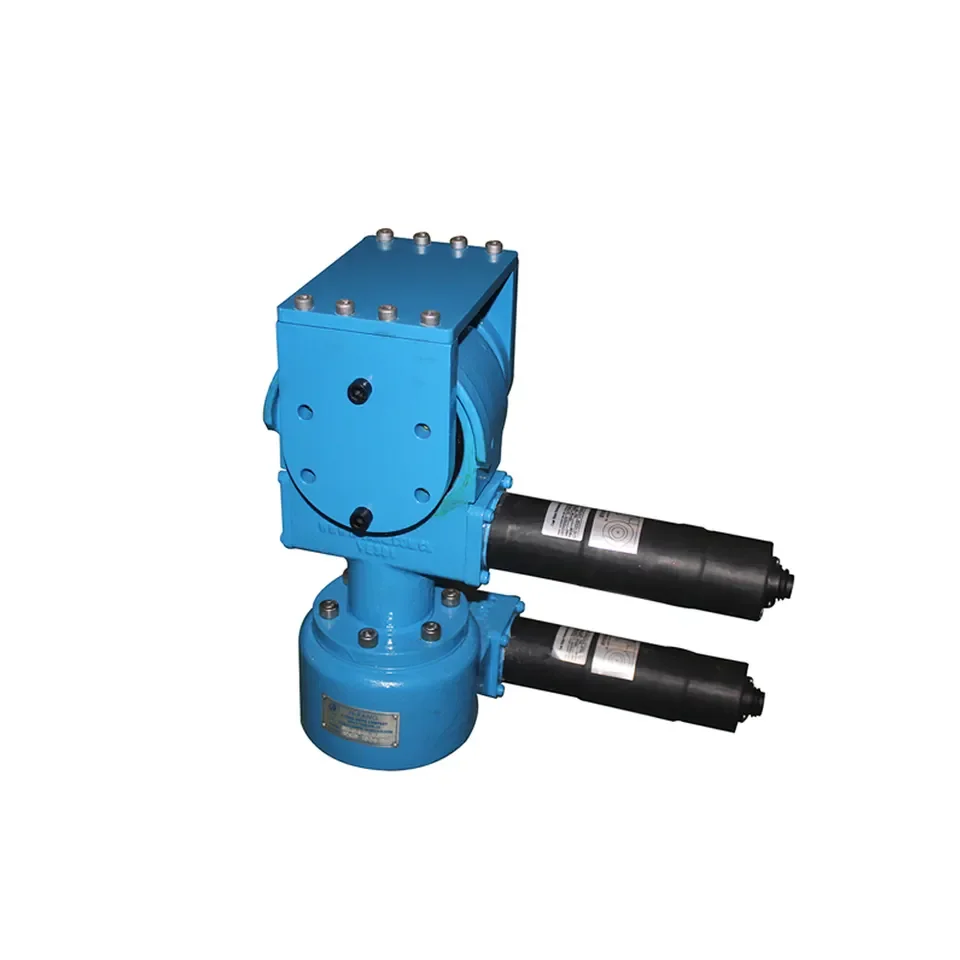

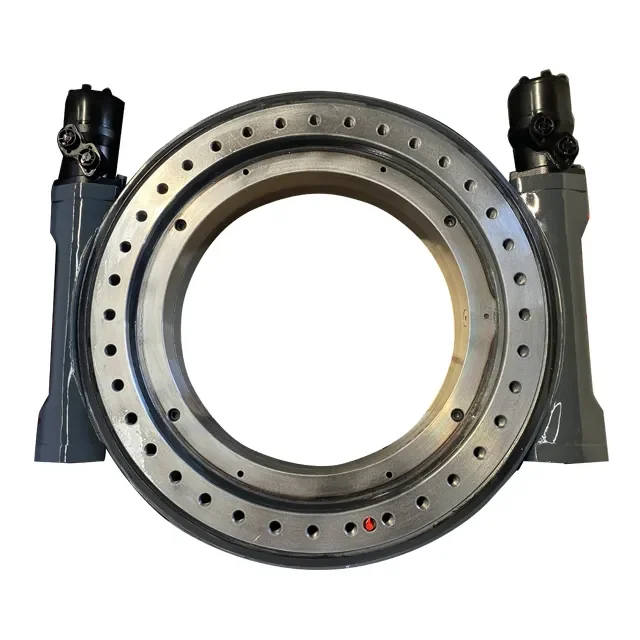

Double axis slewing drive
The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring,housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space.
Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts,turntables, port machinery, modular vehicles, small wind power systems and satellite communications.
Slewing drive are widely used in PV,CPV,STP solar tracking systems and construction applications including truck cranes, manlifts,turntables, port machinery, modular vehicles, small wind power systems and satellite communications.
Type Slewing Drive data | 3’’ | 5’’ | 7’’ | 9’’ | 12’’ | 14’’ | 17’’ | 21’’ | 25’’ |
Rated output torque/kN.m | 0.4 | 0.6 | 1 | 6.5 | 7.5 | 8 | 10 | 15 | 18 |
Tilting moment torque/kN.m | 1.1 | 1.8 | 13.5 | 33.9 | 54.3 | 67.8 | 135.6 | 203 | 271 |
Static load rating, axial/kN | 30 | 76 | 133 | 338 | 475 | 555 | 970 | 1598 | 2360 |
Static load rating, radial/kN | 16.6 | 22.6 | 53 | 135 | 190 | 222 | 390 | 640 | 945 |
Dynamic load rating, axial/kN | 9.6 | 13.8 | 32 | 81 | 114 | 133 | 235 | 385 | 590 |
Dynamic load rating, radial/kN | 8.4 | 11.8 | 28 | 71 | 100 | 117 | 205 | 335 | 470 |
Gear ratio | 62:1 | 62:1 | 73:1 | 61:1 | 78:1 | 85:1 | 102:1 | 125:1 | 150:1 |
Self-locking gears | yes | yes | yes | yes | yes | yes | yes | yes | yes |
Weight/ kg | 12 | 20 | 21 | 49 | 61 | 64 | 105 | 149 | 204 |
Suitable Panel Area/ m2 | 3-5 | 6-9 | 10-17 | 18-30 | 31-45 | 46-60 | 61-95 | 96-120 | 120-165 |
PRODUCT SPECIFICATIONS
SALES AND SERVICE NETWORK
Successful Project

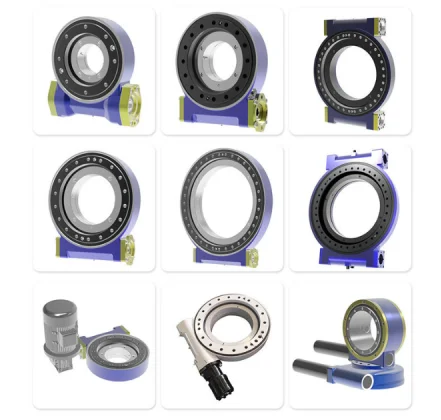

SIMILAR PRODUCTS
FAQ
1. Are you trading company or manufacturer ? -We are manufacturer. 2. What is the transportation?
-If small quantity, we suggest to send by express, such as DHL,UPS,TNT FEDEX. If large amount, by air or sea shipping.
3. Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your
logo will be customized on our products.
4. Could you tell me the delivery time of your goods?
- Depending on the difficulty and quantity of product processing, a reasonable arrival time will be given to you.
5. What about your after-sales service?
- Tell me your e-mail or other social accounts, I will show you the details.
-If small quantity, we suggest to send by express, such as DHL,UPS,TNT FEDEX. If large amount, by air or sea shipping.
3. Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your
logo will be customized on our products.
4. Could you tell me the delivery time of your goods?
- Depending on the difficulty and quantity of product processing, a reasonable arrival time will be given to you.
5. What about your after-sales service?
- Tell me your e-mail or other social accounts, I will show you the details.
