Manufacture RG179 50ohm RF Coaxial Cable Assembly with MCX R/A Plug to SMA or MCX R/A Plug Connector
- Category: >>>
- Supplier: Jiangsu Elesun Cable Co. Ltd.
Share on (1600820108089):
Product Overview
Description
Product Description
50ohm low loss Rg179 high temperature Coaxial Cable with PTFE Insulation for Communication
Description:
. Standard Mil-c-17
. Insulation Material:PTFE
. Impedance:75Ω±2
Jacket:FEP
.Color:Light Brown
Typical Application:The RG179 coax cable is widely used in GPS systems, PDAs, security equipment, hands-free voice-controlled devices, mobile phones, broadcast equipment, remote controls, and more.
Best Feature:

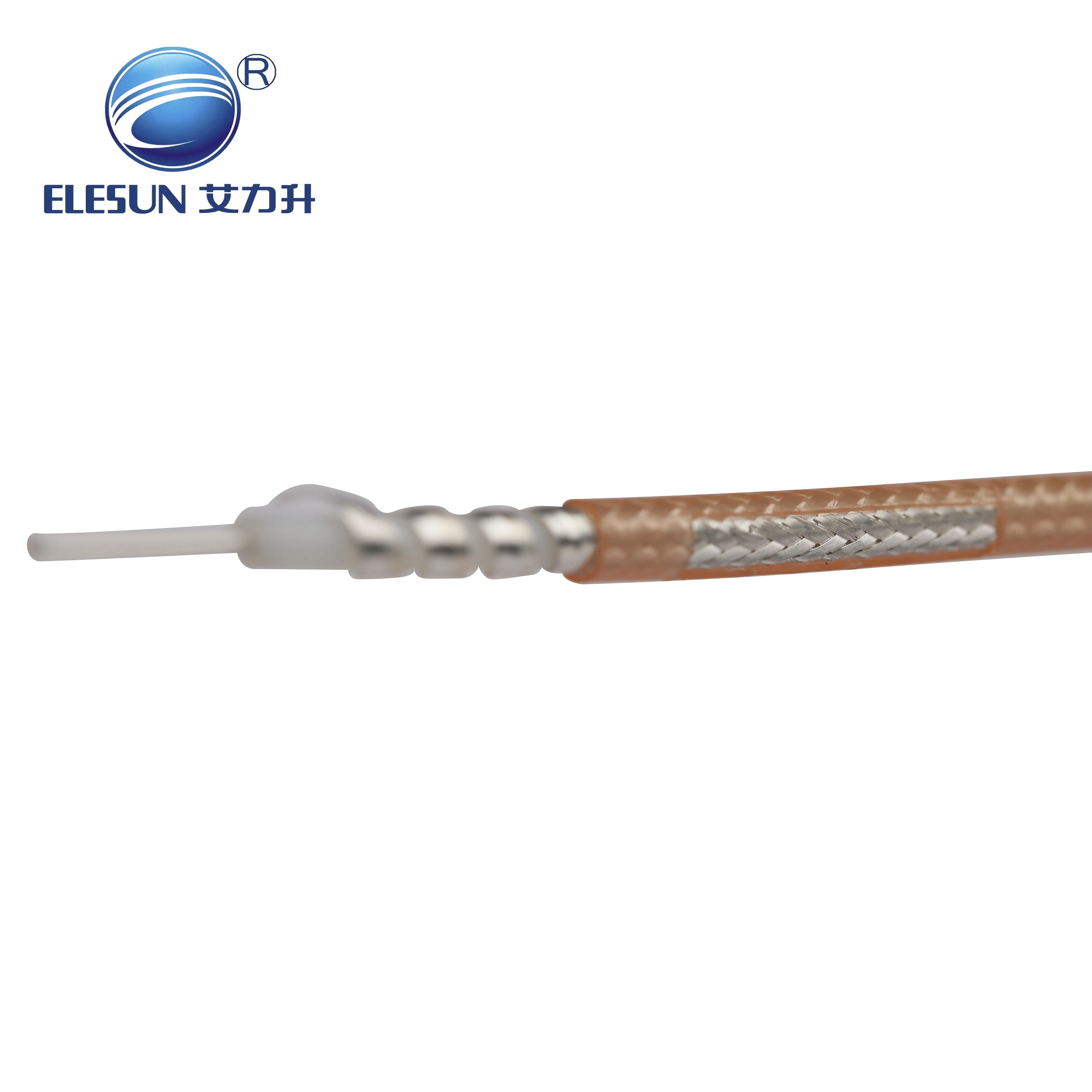

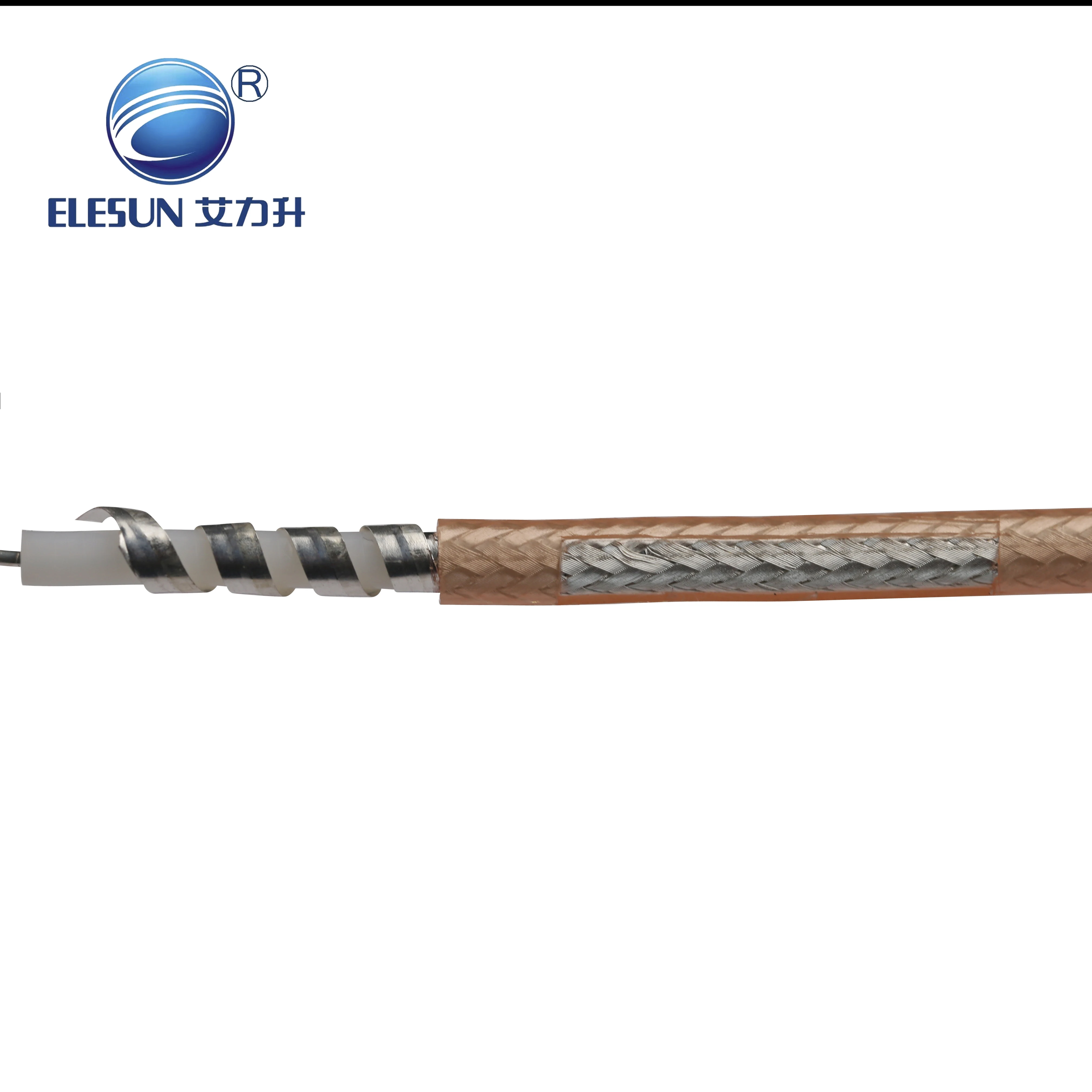

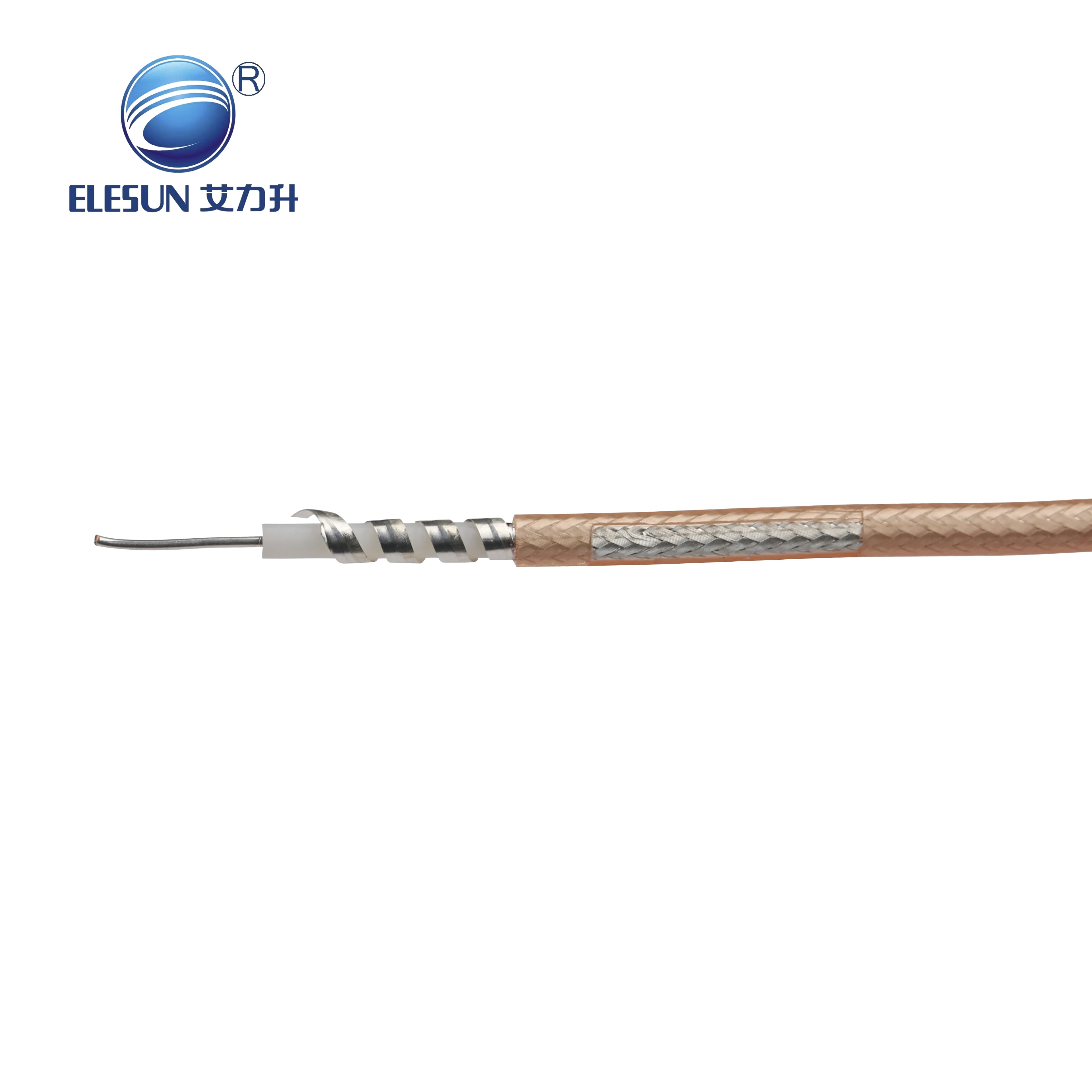

RG179 is made of silver plated copper conductor, PTFE insulation, and the shielding is silver copper wire braiding, the jacket is FEP. RG179 is generally used in high temperature since the it can endure max 200℃temperature.
Delivery: Normally 3~5 days for samples,it will depend on when you place the order and at that time if our production is busy or free. After all the sample confirmed, 7~15 days for the mass production.However,we'll do our best to speed up with good quality.
Description:
. Standard Mil-c-17
. Insulation Material:PTFE
. Impedance:75Ω±2
Jacket:FEP
.Color:Light Brown
Typical Application:The RG179 coax cable is widely used in GPS systems, PDAs, security equipment, hands-free voice-controlled devices, mobile phones, broadcast equipment, remote controls, and more.
Best Feature:
RG179 is made of silver plated copper conductor, PTFE insulation, and the shielding is silver copper wire braiding, the jacket is FEP. RG179 is generally used in high temperature since the it can endure max 200℃temperature.
Delivery: Normally 3~5 days for samples,it will depend on when you place the order and at that time if our production is busy or free. After all the sample confirmed, 7~15 days for the mass production.However,we'll do our best to speed up with good quality.
RG179/U coaxial cable specifications | ||
Material of Inner Conductor | Silver Copper | |
Structure of Inner Conductor | 7/0.10mm | |
Material of Insulation | PTFE | |
Diameter of Insulation | 1.50mm | |
Material of Braiding(Shielding) | Silver Copper | |
Structure of Braiding(Shielding) | 80*0.10mm | |
Material of Jacket | FEP | |
Diameter of Jacket | 2.53mm | |
Working temp | -55℃/200℃ | |
Impedance | 75Ω±3 | |
Voltage | 1200V | |
Company Profile
Packing & Delivery
Q1: Are you a manufacture or a trading company?
A:We are a professional cable manufacture with more than 20 years production experience.
Q2:What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Cable Assembly,Network cable,electric wire,Network Cable.
We also provide cable assembly according to customers requirement.
Q3:What's your MOQ? Can you offer free samples?
A: Our MOQ is 2KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q4: What's your delivery time?
A:Normally, our delivery time is 7-10 days after received deposit or payment,it base on the quantity of the order.
Q5: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q6:What's your trade term?
A: We accept FOB ShangHai or Ningbo,Guanghzou,Shenzhen,CFR,CIF,EXW term
Q7: Where is your factory located? How can I visit there?
A: Our factory is located in Zhenjiang City,Jiangsu Province,China.
1 hour drive from Nanjing Airport.
3 hours drive or 1 and a half hour by high speed rail to railway station from shanghai.
Q8:Do you accept OEM/ODM?
A:Sure.we accept.
Why choose us:
1.We have more than 20 years experience for communication cables and cable assembly.
2.We own R&D team more than 10 engineers,give you strongest support !
3.Fast delivery time ,we have big capacity with short production time.
4.Factory directly sale - Most Competitive price than average level .
5.We have very strict quality control system during the whole production process.We always inspect all the goods before shipment.
6.IATF 16949 /UL certification approved.
