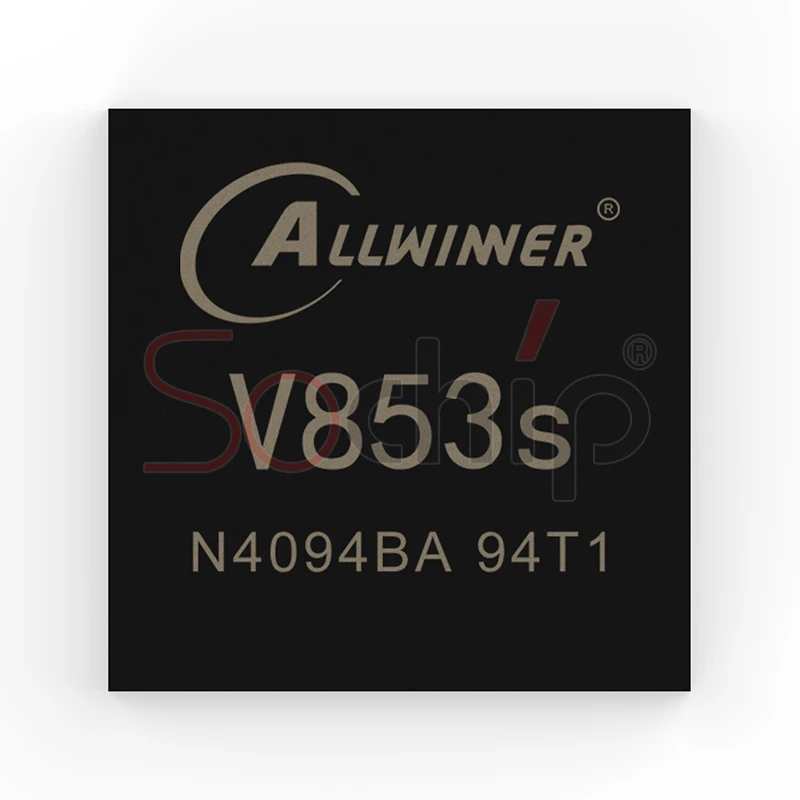

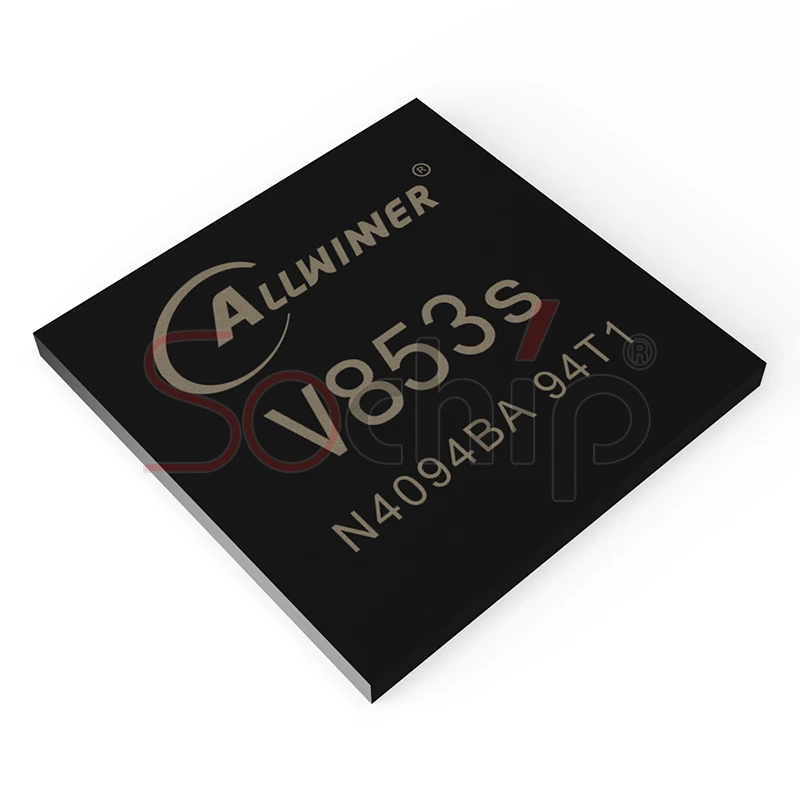

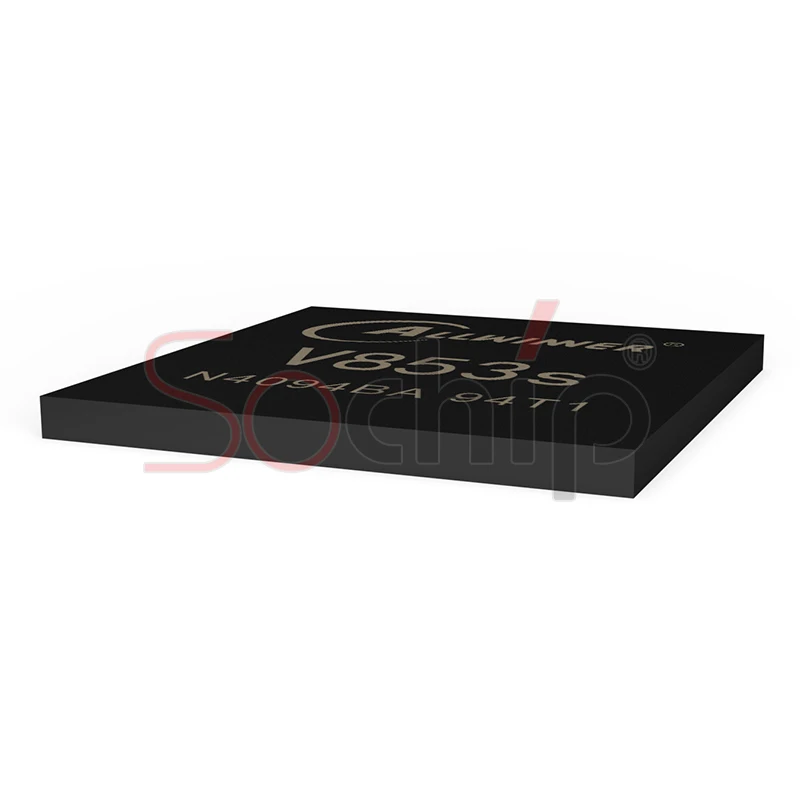

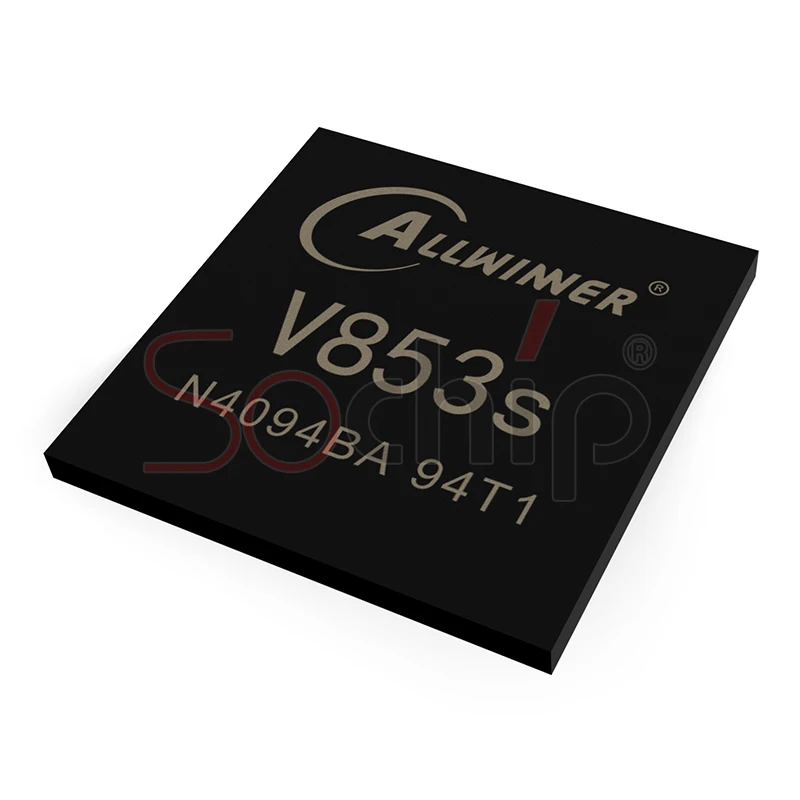

New arrival ALLWINNER V853S AXP2101 XR829 AI chip PMIC WIFI BLue booth sets linux sip 128MB DDR BGA package
- Category: >>>
- Supplier: Shenzhen Sochip Technology Co. Ltd.
Share on (1600820407549):
Product Overview
Description
Product Description
Dear Friends,
Allwinner V853s is now in mass production DEV board supply as well, please contact us for free.
Please contact us for full datasheet
Specification
Processor: A7 1.2H+RSIC-V 600Mhz
Memory: SIP 128MB DDR2/DDR3/External DDR
Enc/Dec: H.265/h.264 8M@15fps/5M@30fps
CSI: 2*2lane mipi/1*DVP 2lane/BT1120/BT656
AI:0.8T NPU 80+ operations
Display: RGB888/LVDS/MIPI-DSI/1080P@60
Others: SPI*4,TWI*5, UART*4,12*PWM,SDIP3
Package:
AXP2101(PMIC)
XR819S, 802.11n+BT4.2
XR871,802.11n+MCU
Processor: A7 1.2H+RSIC-V 600Mhz
Memory: SIP 128MB DDR2/DDR3/External DDR
Enc/Dec: H.265/h.264 8M@15fps/5M@30fps
CSI: 2*2lane mipi/1*DVP 2lane/BT1120/BT656
AI:0.8T NPU 80+ operations
Display: RGB888/LVDS/MIPI-DSI/1080P@60
Others: SPI*4,TWI*5, UART*4,12*PWM,SDIP3
Package:
AXP2101(PMIC)
XR819S, 802.11n+BT4.2
XR871,802.11n+MCU
Key features
Various Video Interface
Support 1*4lane MIPI/2/2lane MIPI/MIPI+DVP
Support BT601/BT656/BT1120, Support 4*1080p
ISP Support TDM mode, max performance is 5M@30fps
Support 3*RawData Sensor
Image Quality
Allwinner Newest ISP engine: isp600
Allwinner Newest Enc/Dec engine: VE230
AI Performance
0.8T NPU
80+operations
Inference Framework: AWNN2.0
Extreme Cost-performance SoC Design
Sip DDR/External DDR
QFN88 9*9/BGA 12*12 Package
Sip LDO
Various Video Interface
Support 1*4lane MIPI/2/2lane MIPI/MIPI+DVP
Support BT601/BT656/BT1120, Support 4*1080p
ISP Support TDM mode, max performance is 5M@30fps
Support 3*RawData Sensor
Image Quality
Allwinner Newest ISP engine: isp600
Allwinner Newest Enc/Dec engine: VE230
AI Performance
0.8T NPU
80+operations
Inference Framework: AWNN2.0
Extreme Cost-performance SoC Design
Sip DDR/External DDR
QFN88 9*9/BGA 12*12 Package
Sip LDO
Specification

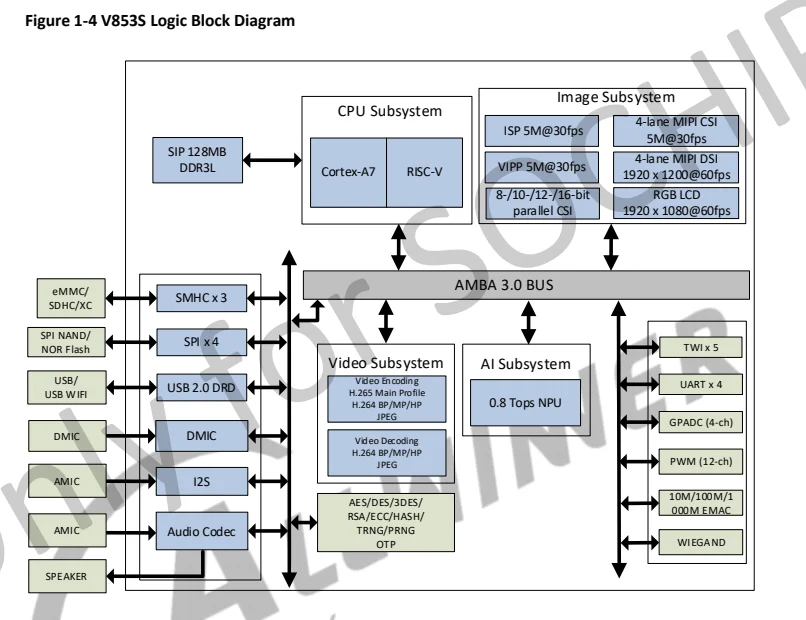

Overview
V853 is a new generation of high-performance and low-power processor SoC targeted for the field of intelligent vision.It can be widely used in intellectually upgraded industries such as intelligent door lock,intelligent attendance and access control,webcam,tachograph,and intelligent desk lamp.
V853 integrates the single Cortex-A7 core and RISC-V MCU.It is also designed with a new generation of high-performance ISP image processor and Allwinner Smart video engine with maximum 5M@25fps H.265/H.264 encoding and 5M@25fps H.264 decoding to achieve professional picture effect.It has built-in NPU with maximum 1Tcomputing power and supports INT8/INT16 hybrid operation and typical network models such as Tensor Flow/MXNet/PyTorch/Caffe.V853 has advanced 22nm technics to support product miniaturization
design.It also supports various special video input and output interfaces such as 1*4-lane MIPI-CSI/DVP/MIPI-DSI/RGB to meet the needs of all Al visual products.V853 supports 16-bit DDR3/LDDR3L to meet the requirements of various productson high bandwidth.In addition, Allwinner provides the stable and easy-to-use matching reference design for Linux SDK and software and hardware to assist clients in the rapid mass production of products.
V853 integrates the single Cortex-A7 core and RISC-V MCU.It is also designed with a new generation of high-performance ISP image processor and Allwinner Smart video engine with maximum 5M@25fps H.265/H.264 encoding and 5M@25fps H.264 decoding to achieve professional picture effect.It has built-in NPU with maximum 1Tcomputing power and supports INT8/INT16 hybrid operation and typical network models such as Tensor Flow/MXNet/PyTorch/Caffe.V853 has advanced 22nm technics to support product miniaturization
design.It also supports various special video input and output interfaces such as 1*4-lane MIPI-CSI/DVP/MIPI-DSI/RGB to meet the needs of all Al visual products.V853 supports 16-bit DDR3/LDDR3L to meet the requirements of various productson high bandwidth.In addition, Allwinner provides the stable and easy-to-use matching reference design for Linux SDK and software and hardware to assist clients in the rapid mass production of products.
Features
CPU
* Cortex-A7@1GHz CPU core,supporting 32 KB I-cache,32 KB D-cache,and 128 KB L2 cache
* RISC-V@600 MHz core,supporting 16 KB I-cache and 16 KB D-cache
NPU
* Maximum performance up to 1 Tops
* Embedded 128KB internal buffer
* Supports deep learning frameworks:TensorFlow,Caffe,Tflite,Pytorch,Onnx NN,and so on
Memory
* 16-bit DDR3/DDR3L interface,supporting maximum capacity of 1GB
* SD3.0/eMMC 5.1 interface
* SPI Nor/SPI Nand Flash
Video Engine
Video encoder
* H.264/H.265 up to 4K@15fps or 5M@25fps
* JPEG up to 1080p@60fps
Video decoder
* Supports H.264 BP/MP/HP,JPEG
* Realtime mutiple streams H.264 encoding capabiy
* JPEG snapshot performance of 1080p@60fps independently
Display Engine
* Allwinner SmartColor post processing for an excellent display experience
* Supports 2 video channels and 1 Ul channel
* Supports G2D hardware accelerator including rotate,mixer,scaler functions
Video Input
ISP
* Maximum performance of 5M@30fps and maximum resolution of 3072 x 1772
* Adjustable 3A functions(AE,AWB,and AF),and 3A parameters are adjustable
* Provides ISP tuning tools for the PC
VIPP
* Four VIPP YUV422 or YUV420 outputs
* Maximum performance of 5M@30fps and maximum resolution of 3072 x 1772
8-/10-/12-/16-bit parallel CSl interface
* Supports digital camera(DC), BT.601, BT.656, BT.1120 protocol
* Maximum video capture resolution up to 5M@30fps
1*4-lane MIPI CSI interface
* Suppor DOL WDR mode and splitting into 2*2-lane MIPI CSI
* Supports 4-ch VC de-interleaver function
* Maximum video capture resolution up to 5M@30fps
Video OUT
* RGB LCD output interface up to 1920 x 1080@60fps
* 1*4-lane MIPI DSI interface up to 1920 x 1200@60fps
Audio
* 1 DAC and 2 ADCs
* Analog audio interfaces:MICIN1P/N,MICIN2P/N,LINEOUTP/N
* Digital audio interfaces:12S/PCM x 2,DMIC
Security System
* AES,DES,3DES encryption and decryption algorithms
* RSA/ECC signature verification algorithm
* MD5/SHA and HMAC tamper proofing
* PRNG/TRNG hardware random number generator
* Integrated 2 Kbits OTP storage space
Connectivity
* USB2.0 DRD, SDIO 3.0, SPI x 4,UART x 4, TWI x 5, WIEGAND
* PWM (12-ch), GPADC (4-ch)
* 10/100/1000M EMAC with RMII and RGMII interfaces
Package
* LFBGA318,12mm x12mm body size,0.5 mm ball pitch
CPU
* Cortex-A7@1GHz CPU core,supporting 32 KB I-cache,32 KB D-cache,and 128 KB L2 cache
* RISC-V@600 MHz core,supporting 16 KB I-cache and 16 KB D-cache
NPU
* Maximum performance up to 1 Tops
* Embedded 128KB internal buffer
* Supports deep learning frameworks:TensorFlow,Caffe,Tflite,Pytorch,Onnx NN,and so on
Memory
* 16-bit DDR3/DDR3L interface,supporting maximum capacity of 1GB
* SD3.0/eMMC 5.1 interface
* SPI Nor/SPI Nand Flash
Video Engine
Video encoder
* H.264/H.265 up to 4K@15fps or 5M@25fps
* JPEG up to 1080p@60fps
Video decoder
* Supports H.264 BP/MP/HP,JPEG
* Realtime mutiple streams H.264 encoding capabiy
* JPEG snapshot performance of 1080p@60fps independently
Display Engine
* Allwinner SmartColor post processing for an excellent display experience
* Supports 2 video channels and 1 Ul channel
* Supports G2D hardware accelerator including rotate,mixer,scaler functions
Video Input
ISP
* Maximum performance of 5M@30fps and maximum resolution of 3072 x 1772
* Adjustable 3A functions(AE,AWB,and AF),and 3A parameters are adjustable
* Provides ISP tuning tools for the PC
VIPP
* Four VIPP YUV422 or YUV420 outputs
* Maximum performance of 5M@30fps and maximum resolution of 3072 x 1772
8-/10-/12-/16-bit parallel CSl interface
* Supports digital camera(DC), BT.601, BT.656, BT.1120 protocol
* Maximum video capture resolution up to 5M@30fps
1*4-lane MIPI CSI interface
* Suppor DOL WDR mode and splitting into 2*2-lane MIPI CSI
* Supports 4-ch VC de-interleaver function
* Maximum video capture resolution up to 5M@30fps
Video OUT
* RGB LCD output interface up to 1920 x 1080@60fps
* 1*4-lane MIPI DSI interface up to 1920 x 1200@60fps
Audio
* 1 DAC and 2 ADCs
* Analog audio interfaces:MICIN1P/N,MICIN2P/N,LINEOUTP/N
* Digital audio interfaces:12S/PCM x 2,DMIC
Security System
* AES,DES,3DES encryption and decryption algorithms
* RSA/ECC signature verification algorithm
* MD5/SHA and HMAC tamper proofing
* PRNG/TRNG hardware random number generator
* Integrated 2 Kbits OTP storage space
Connectivity
* USB2.0 DRD, SDIO 3.0, SPI x 4,UART x 4, TWI x 5, WIEGAND
* PWM (12-ch), GPADC (4-ch)
* 10/100/1000M EMAC with RMII and RGMII interfaces
Package
* LFBGA318,12mm x12mm body size,0.5 mm ball pitch
item | value |
Model Number | ALLWINNER V853S |
Type | integrated circuit |
Place of Origin | China |
Guangdong | |
Brand Name | Allwinner |
D/C | 2022+ |
Package | QFN88 9*9/BGA |
Description | V853S processor |

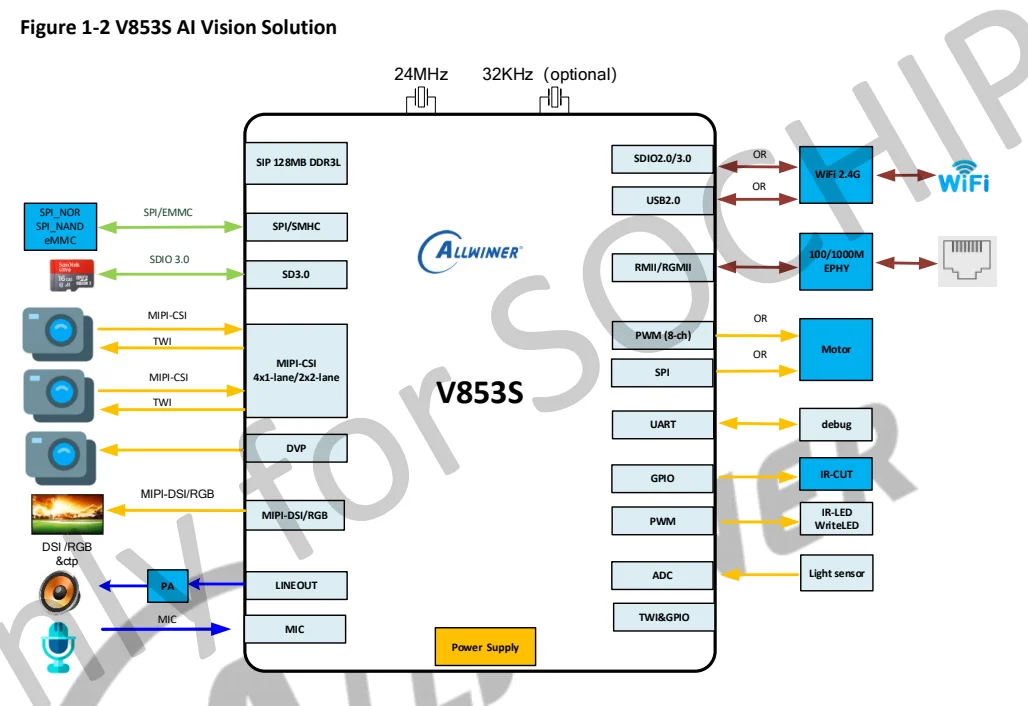

Application

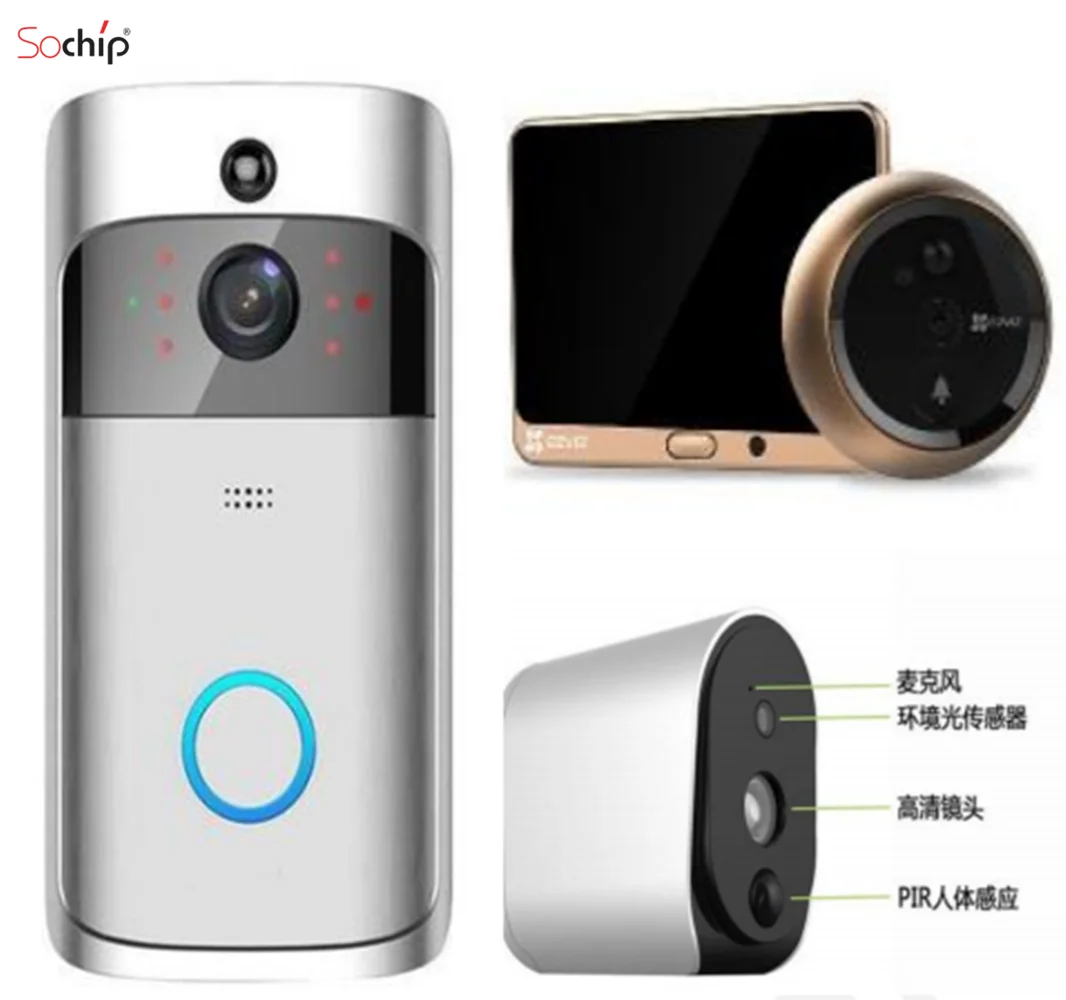

V853 Typical application-IPC
Features
Features
1. Fast Boot (Linux/RTOS)
First YUV to DRAM: 200ms(with Exposure/AWB Ready)
First I Frame to DRAM:300ms
2. Extreme Cost: Performance
Provide XR872 as package
3. Extreme low power consumption
V853 Soc Typical consumption<=450mW
XR872 2.4G mode consumption<=40mA (DC mode)
XR872 DTIM10<= 250μA
First YUV to DRAM: 200ms(with Exposure/AWB Ready)
First I Frame to DRAM:300ms
2. Extreme Cost: Performance
Provide XR872 as package
3. Extreme low power consumption
V853 Soc Typical consumption<=450mW
XR872 2.4G mode consumption<=40mA (DC mode)
XR872 DTIM10<= 250μA

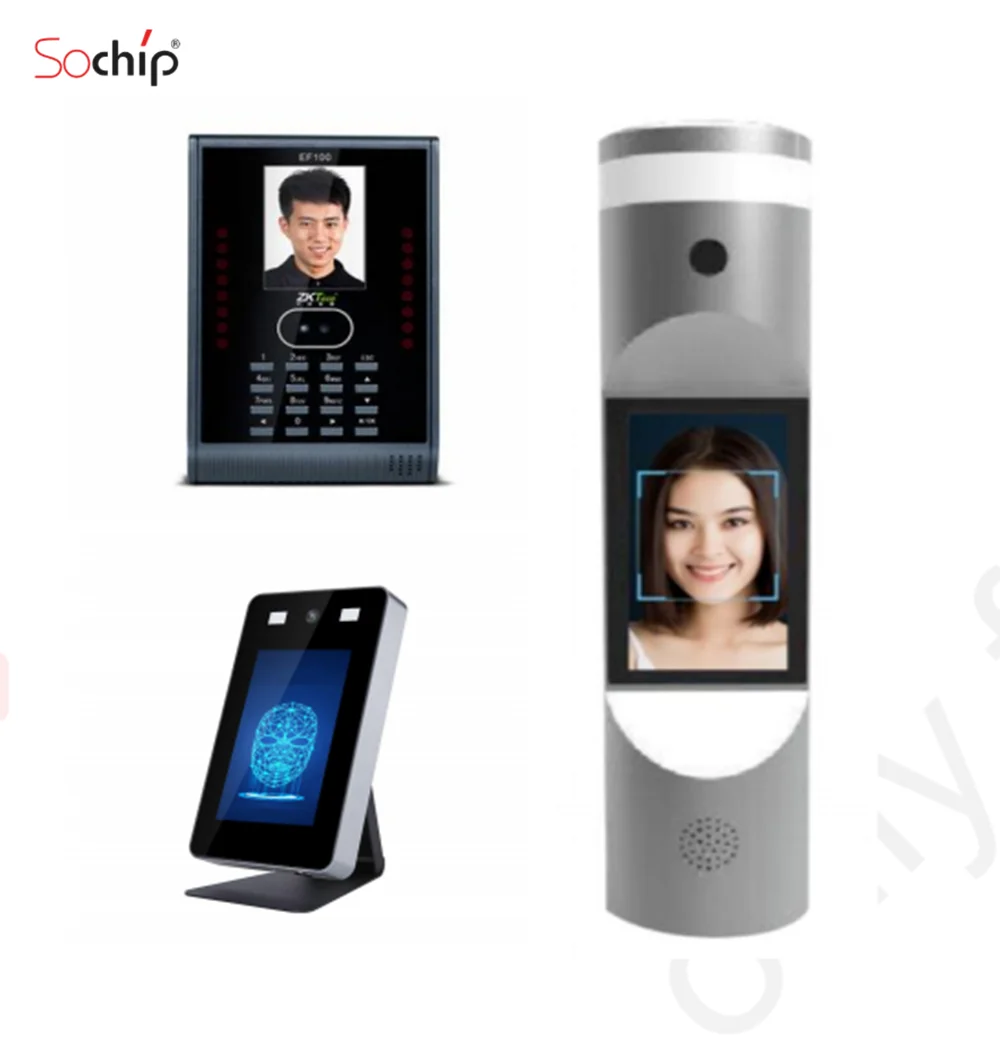

V853 Typical application-Face Detection /Recognition
Features
1. FD/FR
10000+Database, Recognition time<300ms, 99% accuracy rate
Support active body detection(with infrared sensor)
2. Various interface
Support 2*MIPI/MIPI+DVP
Support RGB888/MIPI DSI
Support SPI NAND/EMMC
3. Extreme Cost-Performance
AW WIFI XR819 (2.4G)/XR819S(2.4G/BT)
