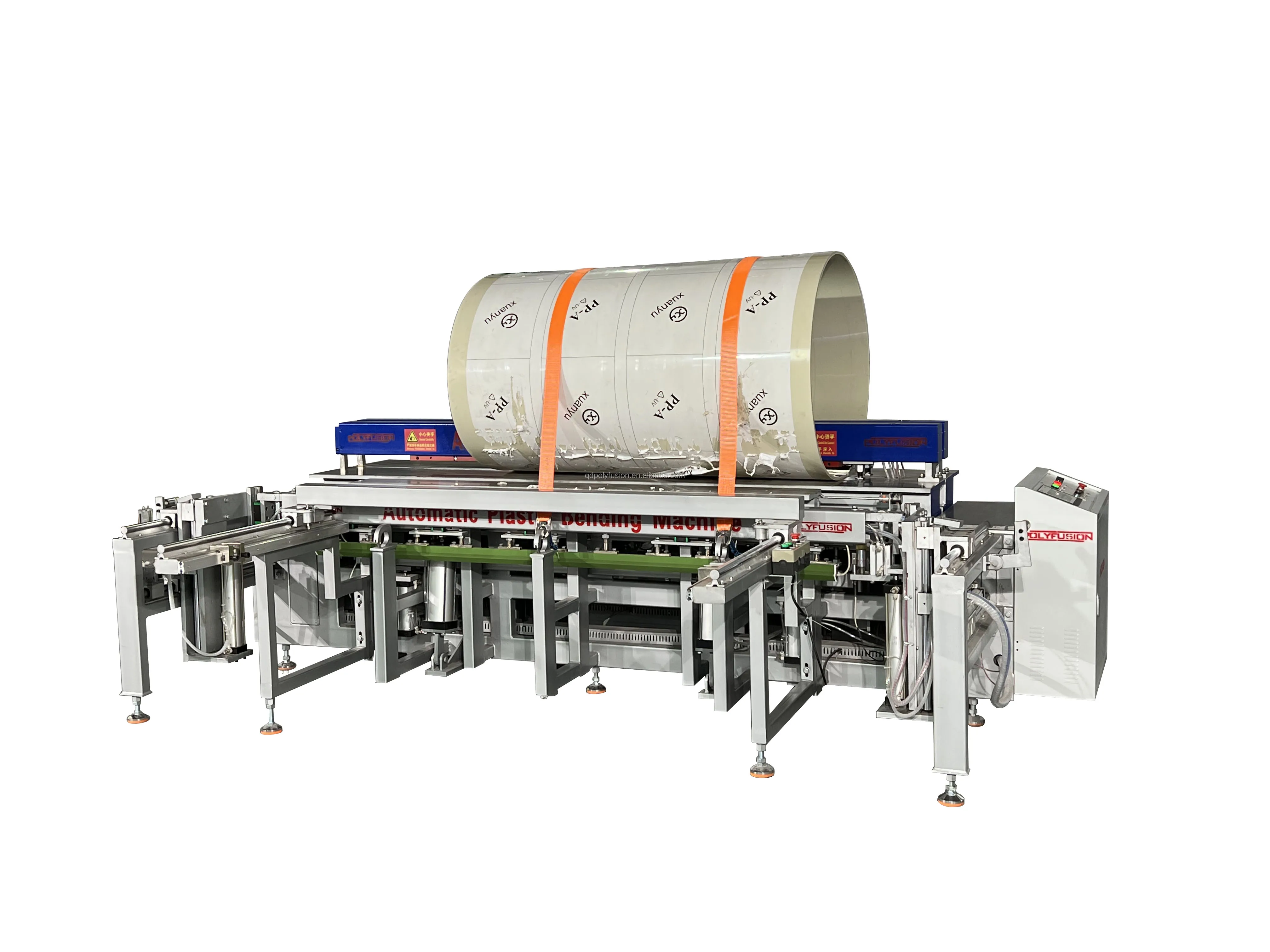

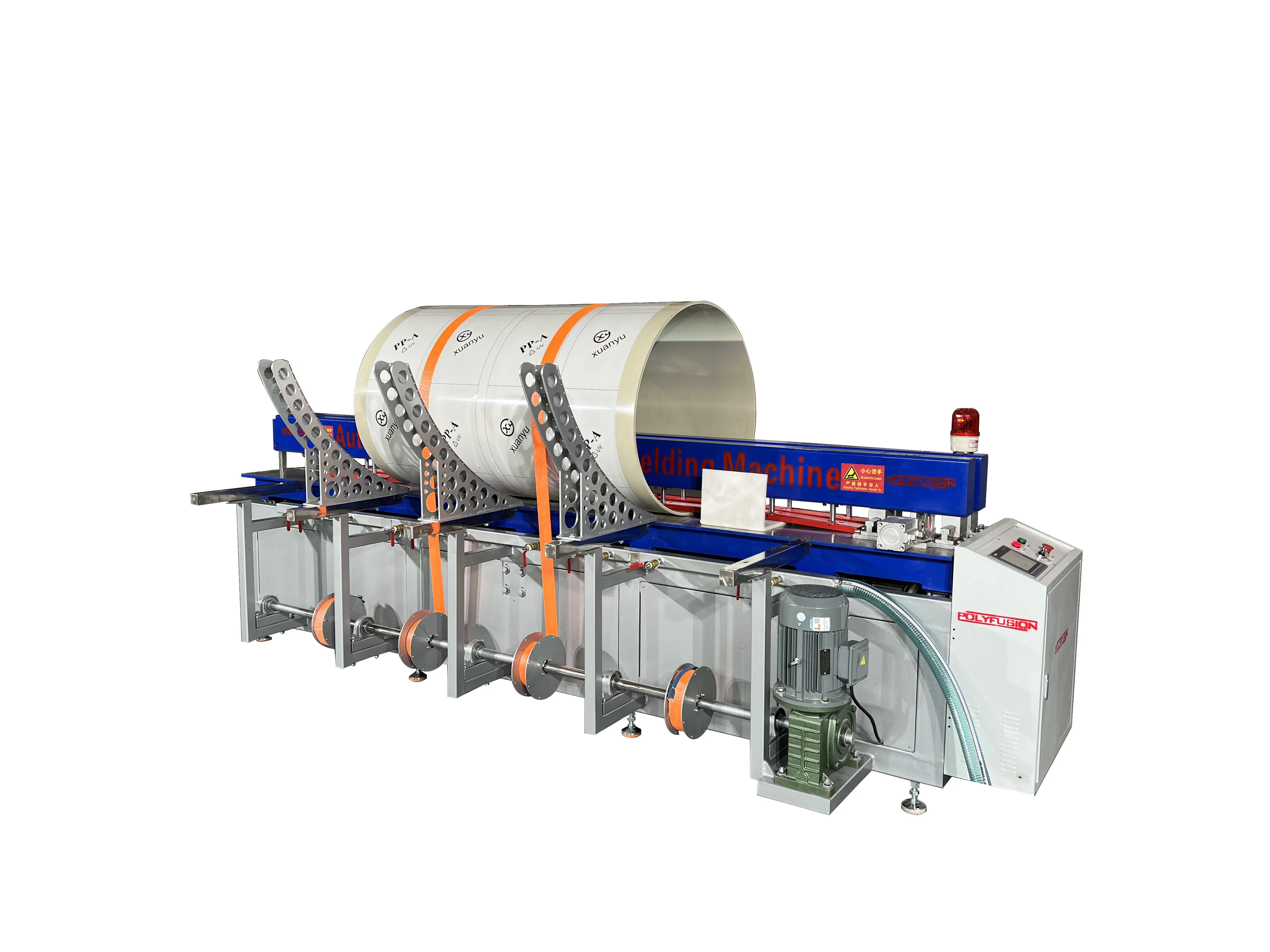

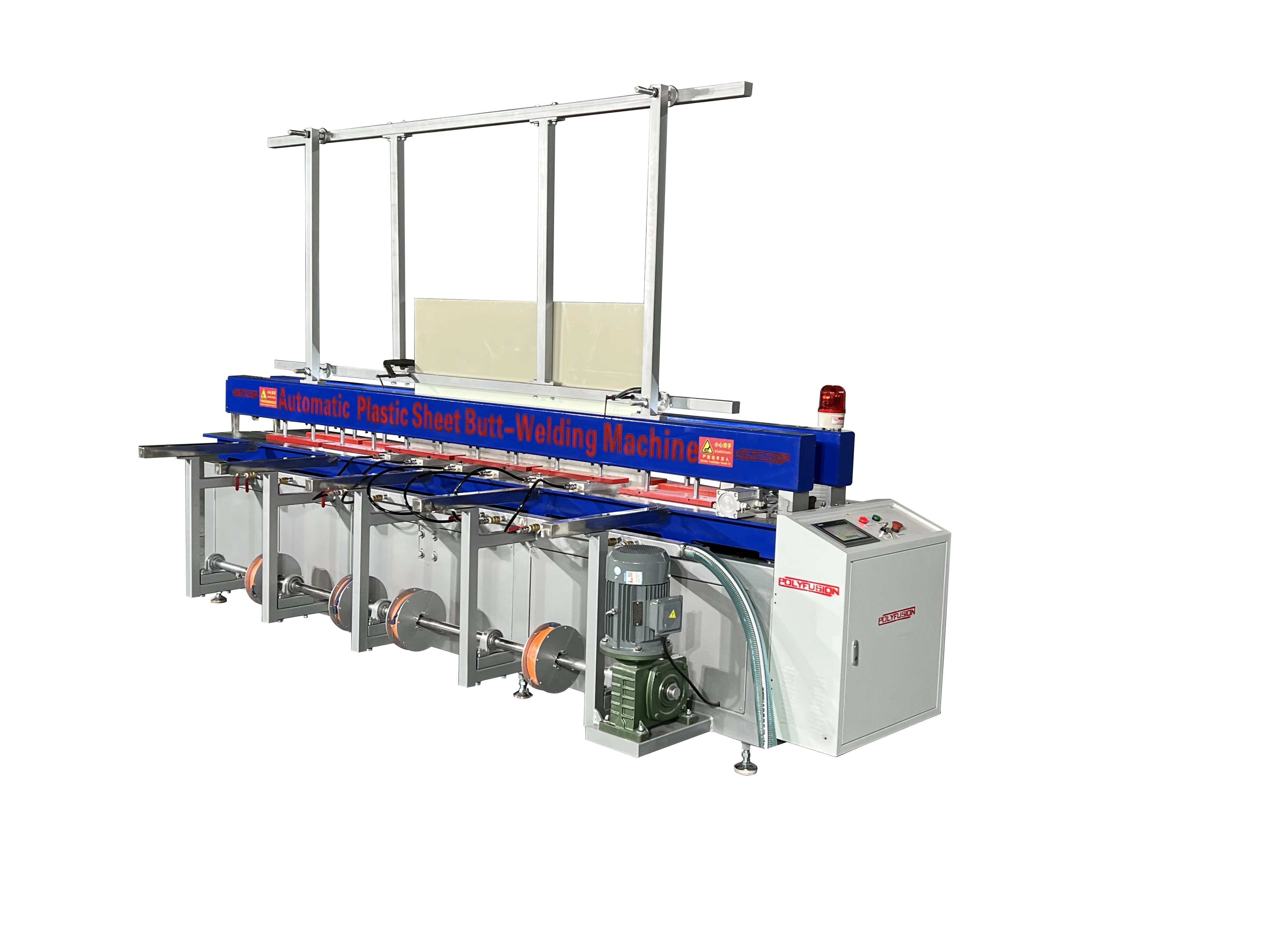

plastic welder PE/pp/pvc sheet HDPE sheet welding machine termofusion machine
- Category: >>>
- Supplier: Qingdao Polyfusion Machinery Co. Ltd.
Share on (1600820425537):
Product Overview
Description
Introduction
1.PLC touch-panel control system, capable of automatically adjusting the temperature. time and pressure according to the parameters of material under processing, suitable for welding, rolling and bending thermoplastic plates made of HDPE, PP,PVC, PVDF, PPN, PPH......

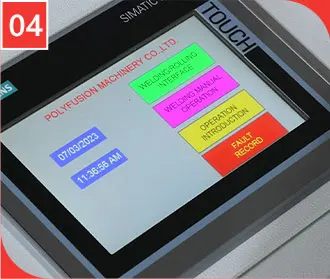

2.SIEMENS PLC with 7" SIEMENS-Touch screen
3.Process forces regulated via proportional valve.
4.Brand-new integrated frame, highly reliable transmission mechanism. stable in work and superior in performance.
5.2mm to 50mm plastic sheet thickness horizontal welding is common capabilities. 3mm to 30mm for bending 90*Angle Specialized anti-corrosive surface treatment technology making the surface coating always new as time goes by ntearated intensity of the rack. stable performance. trans. portation and installation are easier.
2.SIEMENS PLC with 7" SIEMENS-Touch screen
3.Process forces regulated via proportional valve.
4.Brand-new integrated frame, highly reliable transmission mechanism. stable in work and superior in performance.
5.2mm to 50mm plastic sheet thickness horizontal welding is common capabilities. 3mm to 30mm for bending 90*Angle Specialized anti-corrosive surface treatment technology making the surface coating always new as time goes by ntearated intensity of the rack. stable performance. trans. portation and installation are easier.
Specifications
model | DZA2000 | DZA3000 | DZA4000 | ||
processing length | 2000 | 3000 | 4000 | ||
butt fusion thickness(mm) | 3-50 | 3-50 | 3-50 | ||
rolling thickness(mm) | 3-30 | 3-30 | 3-30 | ||
range of rolling diameter(mm) | ≥360mm | ≥360mm | ≥450mm | ||
range of bend | 0-145° | 0-145° | 0-145° | ||
pressure of air supply | 6-8kg.f/cm² | 6-8kg.f/cm² | 6-8kg.f/cm² | ||
rated voltage | 220v | 220V/380V | 220V/380V | ||
heating plate power(weld) | 3.0kw | 4.5KW | 6.0KW | ||
heating plate power(bend) | 6.0kw | 9.0KW | 12.0KW | ||
power of rolling motor | 2.2kw | 4KW | 6KW | ||
dimension (mm) | 3700*3200*1100 | 4700*3200*1100 | 5770*3200*1200 | ||
application | plastic sheet/board made from HDPE ,PP,PVC,PVDF, PPS,PPN, PPH..... | ||||

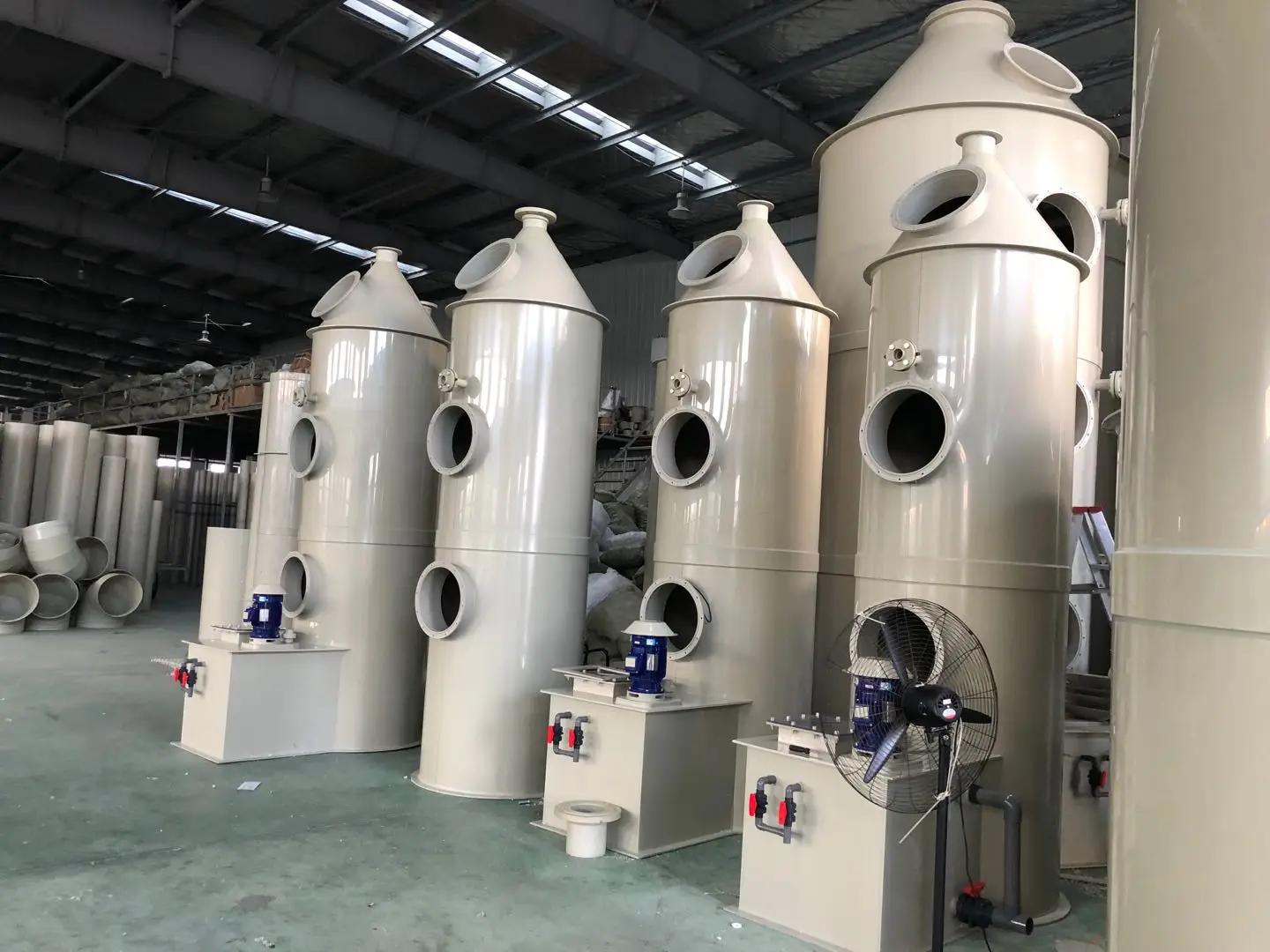

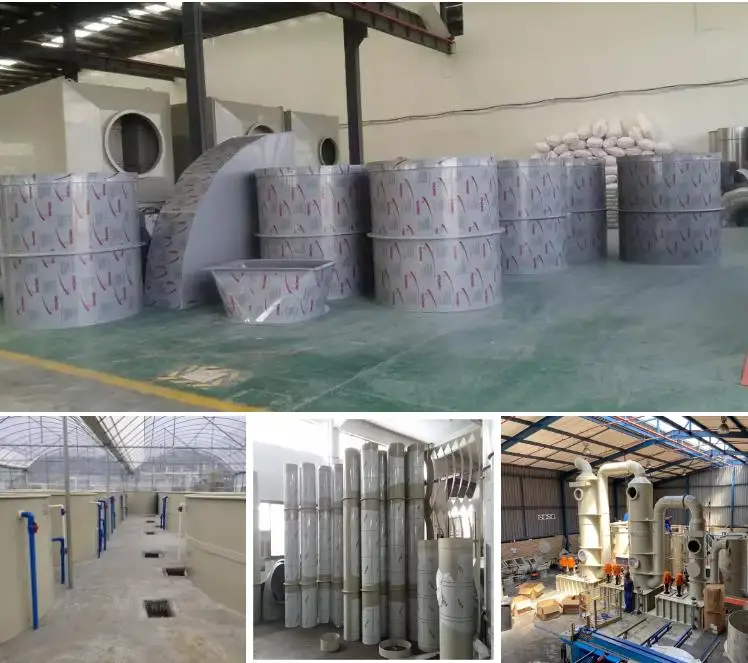

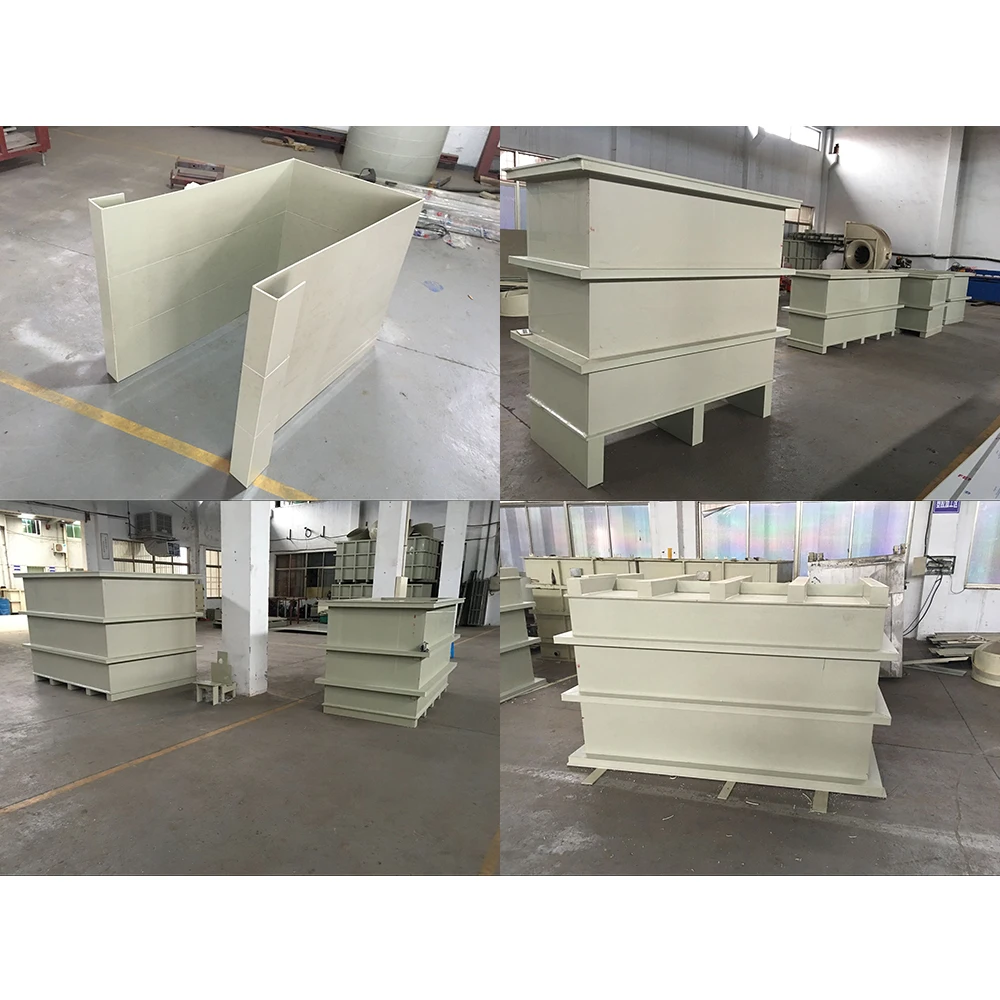

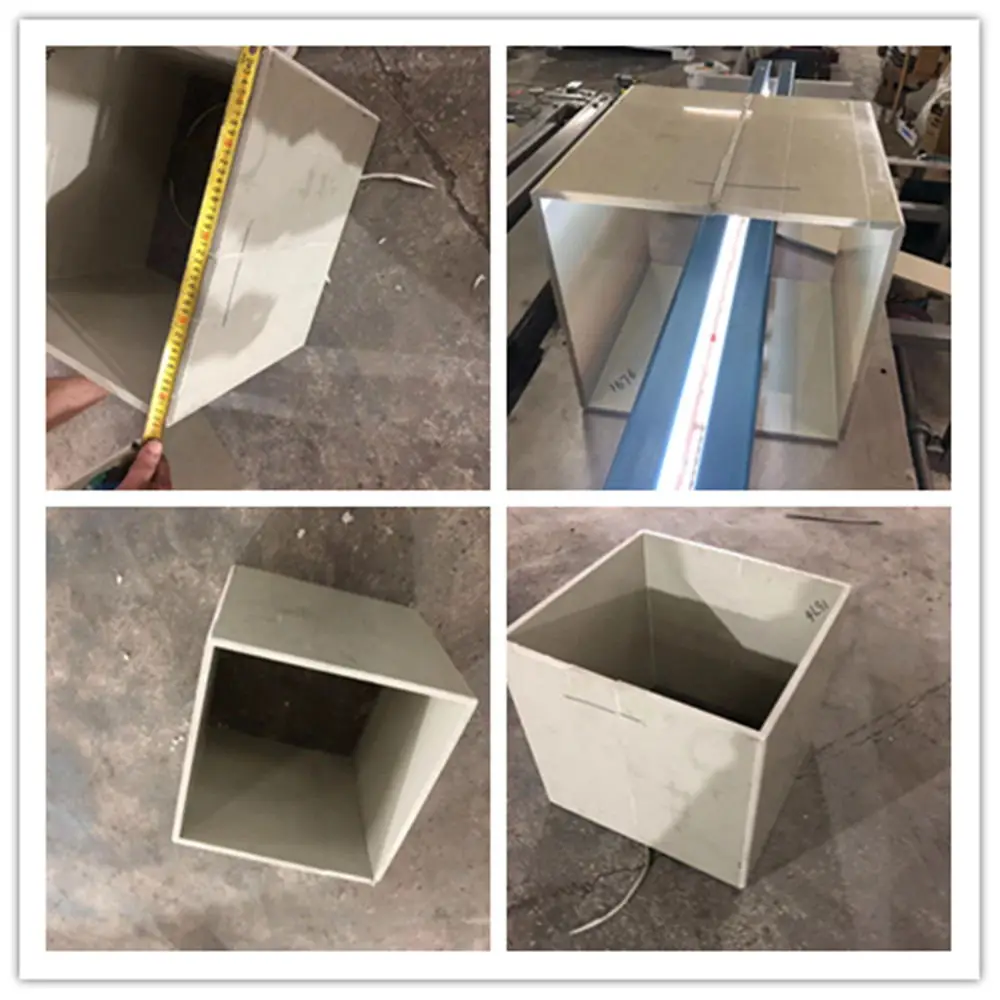

Application

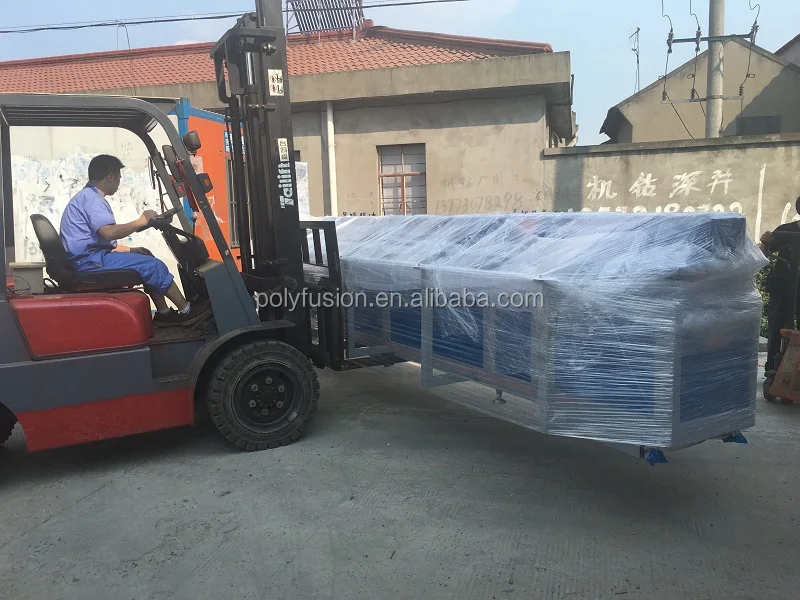

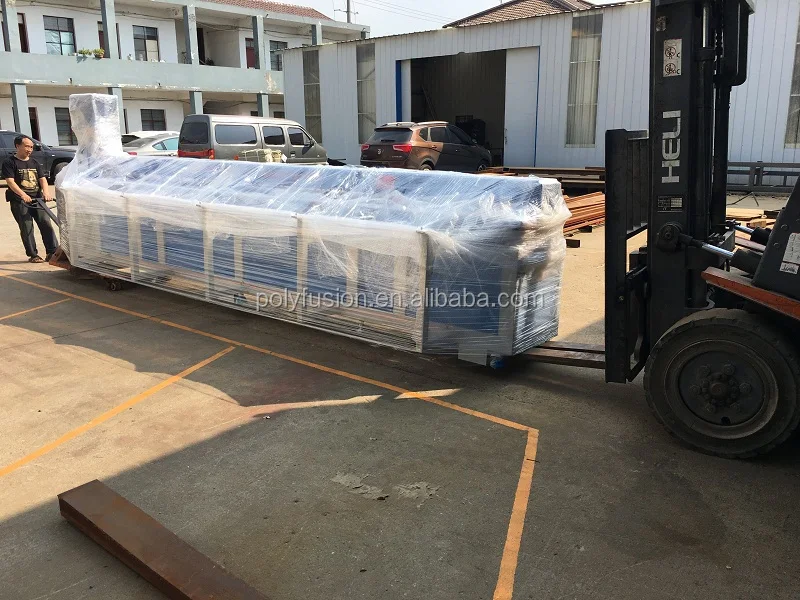

Packing and delivery

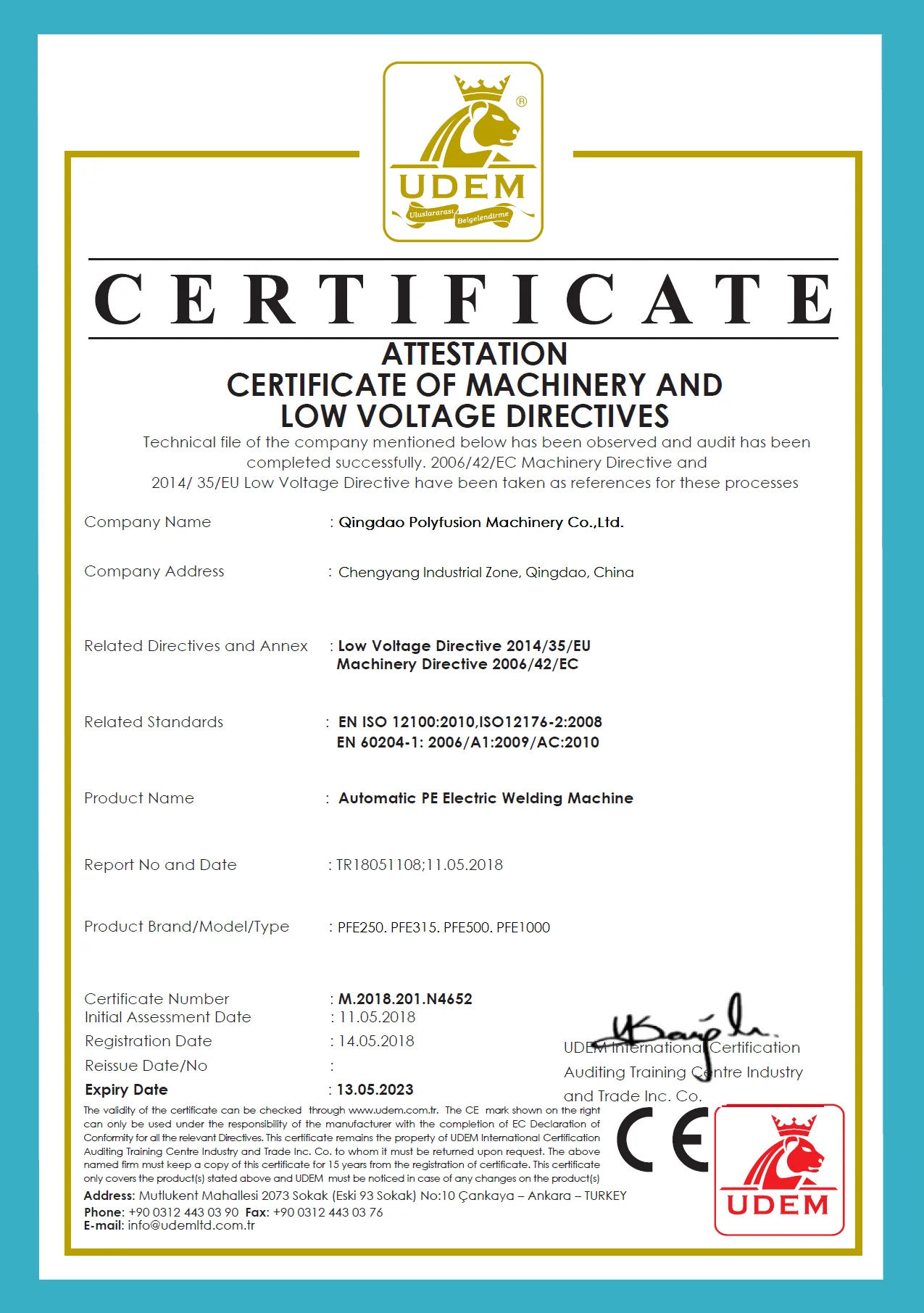

Certifications
FAQ
Q: I want to your products, how can I order?
A: 1) For custom product,you can contact any sales by trade manager or email or by telephone. Our sales will reply you as soon as
possible and let you know the procedure to order.
2) For RTS products,you can place an order directly through credit insurance.
Q: What's your minimum order quantity?
A: Our minimum order quantity is 1 set.
Q: The voltage in our country is 480V, 60HZ and 3phase. Can you adjust it according to our voltage?
A: The standard voltage of our welding machine is 220V, 50Hz, Single phase or 380V, 50Hz,3 phases.We can vary the voltage
according to the voltage requirements of different countries.
Q: I want the products to be with our company logo, is it possible?
A: Yes, but you should send us official authorization letter.
Q: How long time does it take to finish our order?
A: for the 1-2 sets small order or the machines in stock,the lead time is 1-2 workdays.and for the custom products, please confirm
with sales manager directly.
Q: What Payment terms can you accept?
A: By telegraphic transfer, western union, Paypal, money gram, Alibaba Insurance Credit Order.
Q: What Types of package do you use?
A: Usually carton boxes or plastic pallets based on goods.
Q: What's transport way?
A: We send goods by courier,by air or sea based on your goods.
A: 1) For custom product,you can contact any sales by trade manager or email or by telephone. Our sales will reply you as soon as
possible and let you know the procedure to order.
2) For RTS products,you can place an order directly through credit insurance.
Q: What's your minimum order quantity?
A: Our minimum order quantity is 1 set.
Q: The voltage in our country is 480V, 60HZ and 3phase. Can you adjust it according to our voltage?
A: The standard voltage of our welding machine is 220V, 50Hz, Single phase or 380V, 50Hz,3 phases.We can vary the voltage
according to the voltage requirements of different countries.
Q: I want the products to be with our company logo, is it possible?
A: Yes, but you should send us official authorization letter.
Q: How long time does it take to finish our order?
A: for the 1-2 sets small order or the machines in stock,the lead time is 1-2 workdays.and for the custom products, please confirm
with sales manager directly.
Q: What Payment terms can you accept?
A: By telegraphic transfer, western union, Paypal, money gram, Alibaba Insurance Credit Order.
Q: What Types of package do you use?
A: Usually carton boxes or plastic pallets based on goods.
Q: What's transport way?
A: We send goods by courier,by air or sea based on your goods.
