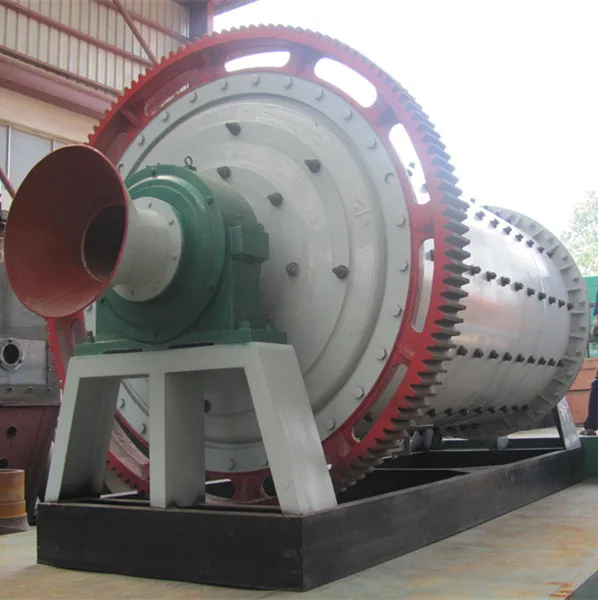

Energy Efficient High Performance Ball Mill 1500x3000mm 5% Off

Product Overview

Description

Ore Grinding Ball Mill  5% OFF



General description of Ball Mill:

Ball mill, also called grinding mill, ball grinding mill, is the key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, with medium hardness. They are manufactured with highest quality material and workmanship; deliver the most efficient, trouble free and economical combination of material ranging from (5-30mm) down to varying product sizes.

According to different milling modes, the ball mills can be divided into dry and wet types. Due to different dishcarging methods, there are two types of ball mills: into-lattice type and over-flow type, or center-discharging type and side-discharging type. According to the different kinds of support, they can be devided into two types: bearing mill and bushing mill. According to the different kinds of transmission, edge type and center type are available. Besides, the type of over-flow ball mills are normally used for most ball mill grinding applications and provide the most simple, trouble-free and economical method of grinding. Ball mills are usually matched with spiral-screen, configured for discharge trunnion, to provide material sizing and classification.



Application of Ball Mill:

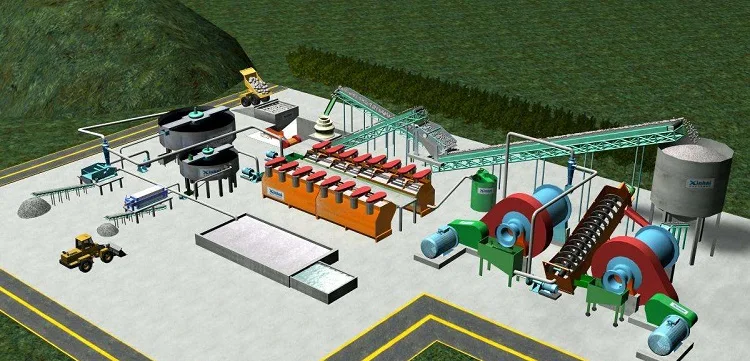

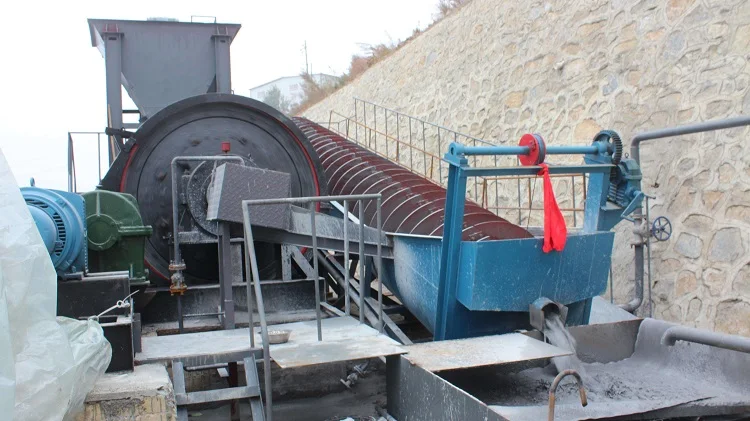

Ball mill is generally used to grind material from 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.



Features of Ball Mill:

1) It is an efficient equipment for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to different expelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.
11) Completely enclosed welded design in high-grade steel.
- Direct drive via bearing journal with top-mounted gearbox.
- Motor connected to gearbox via a V-belt drive.
- Product discharge via slots located around the periphery of the drum.



Working Principles of Ball Mill:

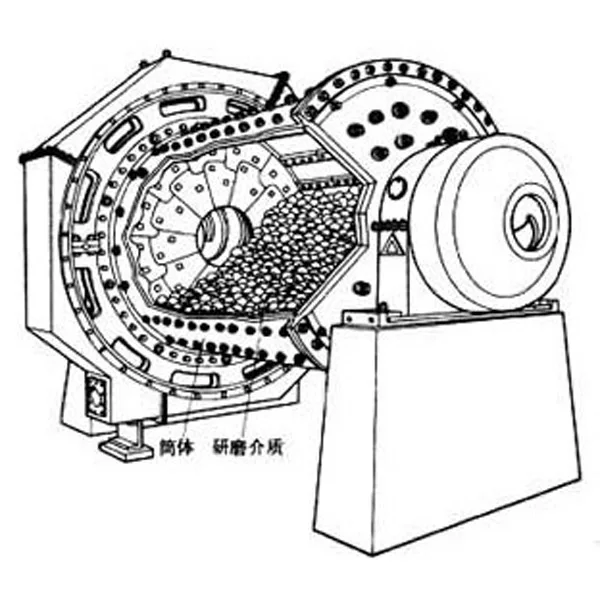

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Technical specification of Ball Mill:

Model	Speed (r/min)	Weight of balls (t)	Input size (mm)	Output size (mm)	Production capacity (t/h)	Power (kw)	Weight (T)
900×1800	38	1	≤25	0.075-0.89	0.5-1.8	18.5	4.6
900×3000	38	2.7	≤25	0.075-0.89	1.1-3.5	22	5.6
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	30	12.5
1200×3000	32	5	≤25	0.075-0.4	1.6-5	37	12.8
1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
1500×3000	27	8	≤25	0.075-0.4	2-5	75	17
1500×4500	27	14	≤25	0.075-0.4	3-6	90	21
1500×5700	27	15	≤25	0.075-0.4	3.5-6	130	24.7
1830×3000	24	11	≤25	0.075-0.4	4-10	130	28
1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	210	34
2100×3600	23.7	18	≤25	0.074-0.4	4.5-33	180	37
2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	42
2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	50
2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	48.5
2200×5000	21.5	30	≤25	0.074-0.4	10-50	320	49.7
2200×6500	21.7	35	≤25	0.075-0.4	14-26	370	52.8
2200×7500	21.7	35	≤25	0.075-0.4	16-29	380	56
2400×3000	21.6	25.8	≤25	0.075-0.4	7.8-18	245	59.2
2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	65
2700×4000	20.7	40	≤25	0.074-0.4	12-80	400	94
2700×4500	20.7	48	≤25	0.074-0.4	12-90	430	102
3200×4500	18	65	≤25	0.074-0.4	By design	800	137
