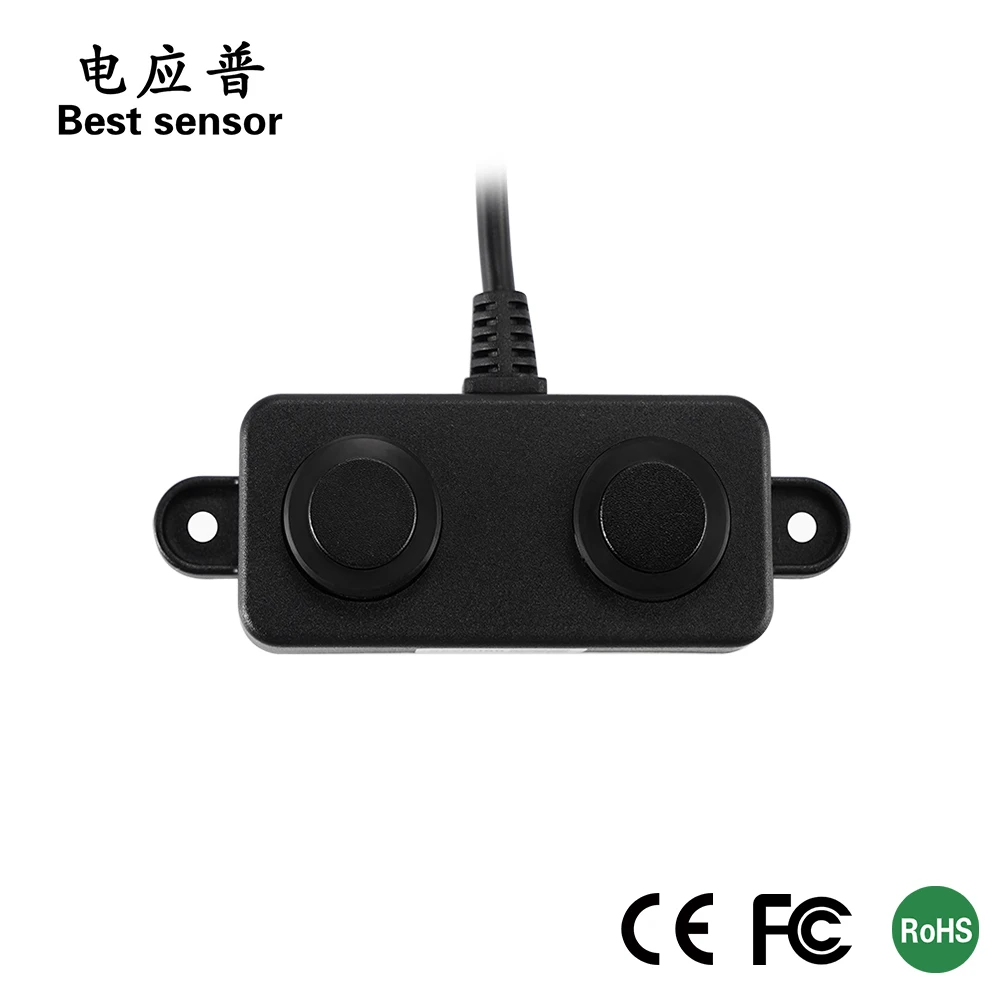

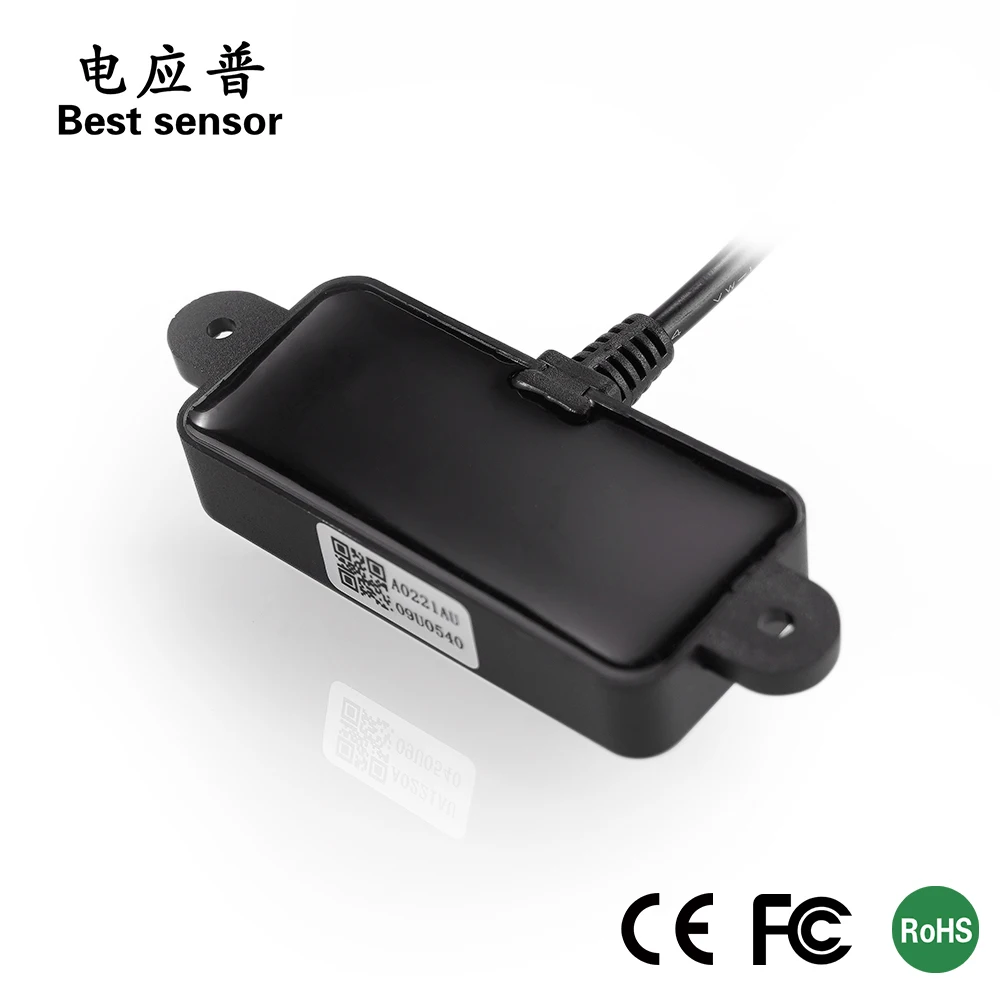

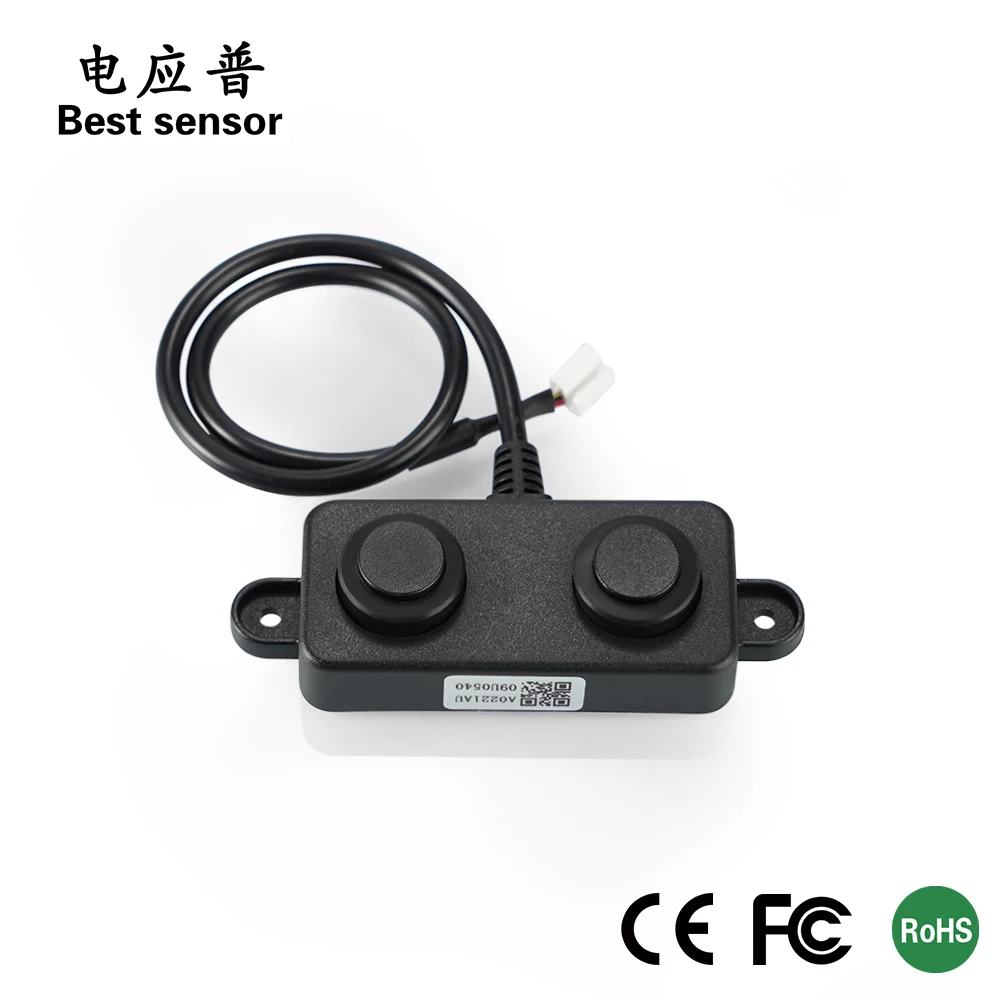

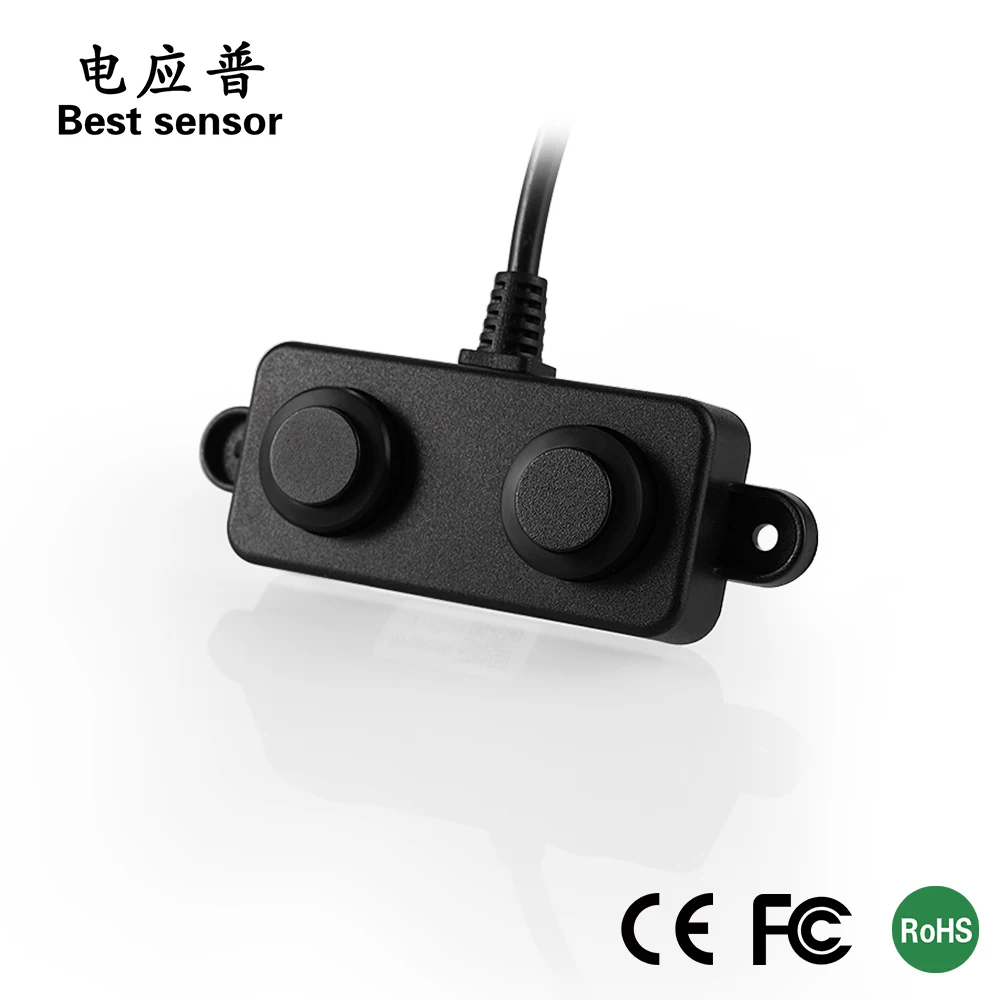

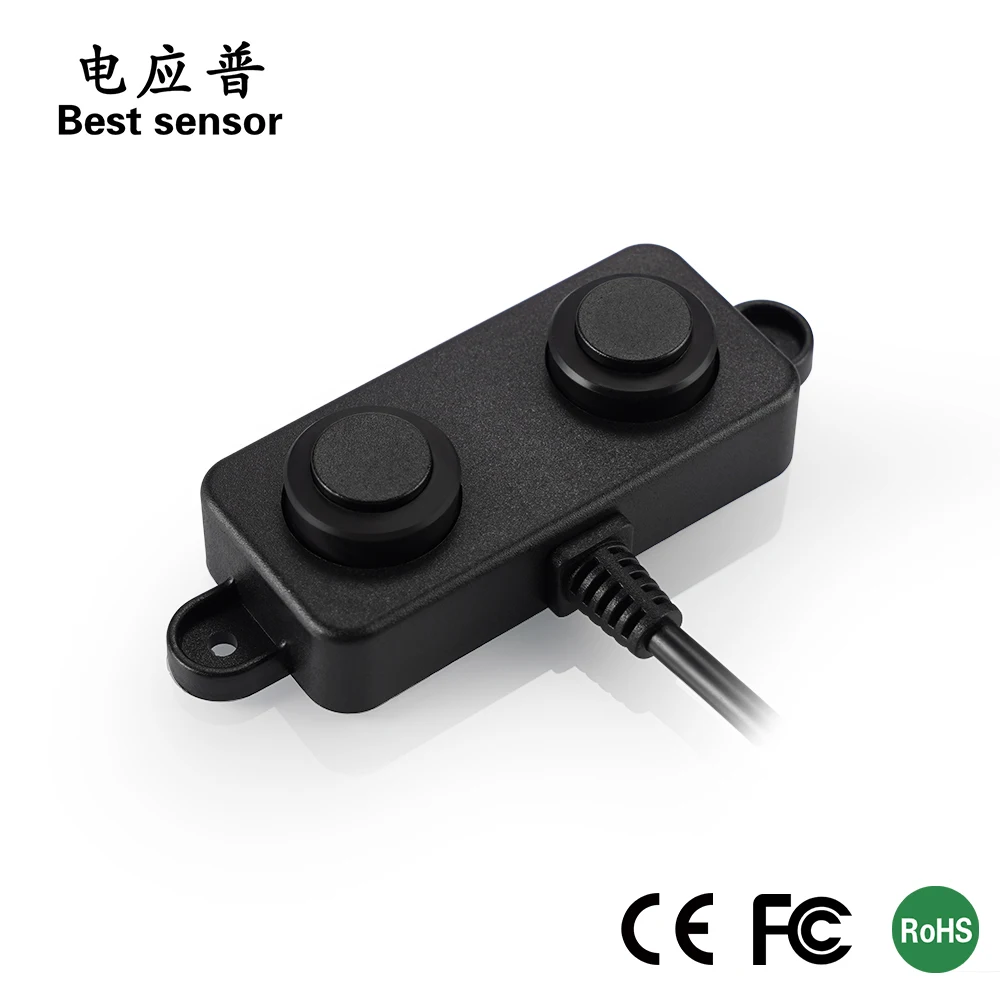

DYP A02 Range Finder 3cm Blind Spot Water Flow Liquid Robotics High Sensitivity Small Ultrasonic Sensor

Share on (1600820457409):


Price:$9.83 - $13.28

Quantity:


Product Overview

Description



Product Description


 _01





_03


_04

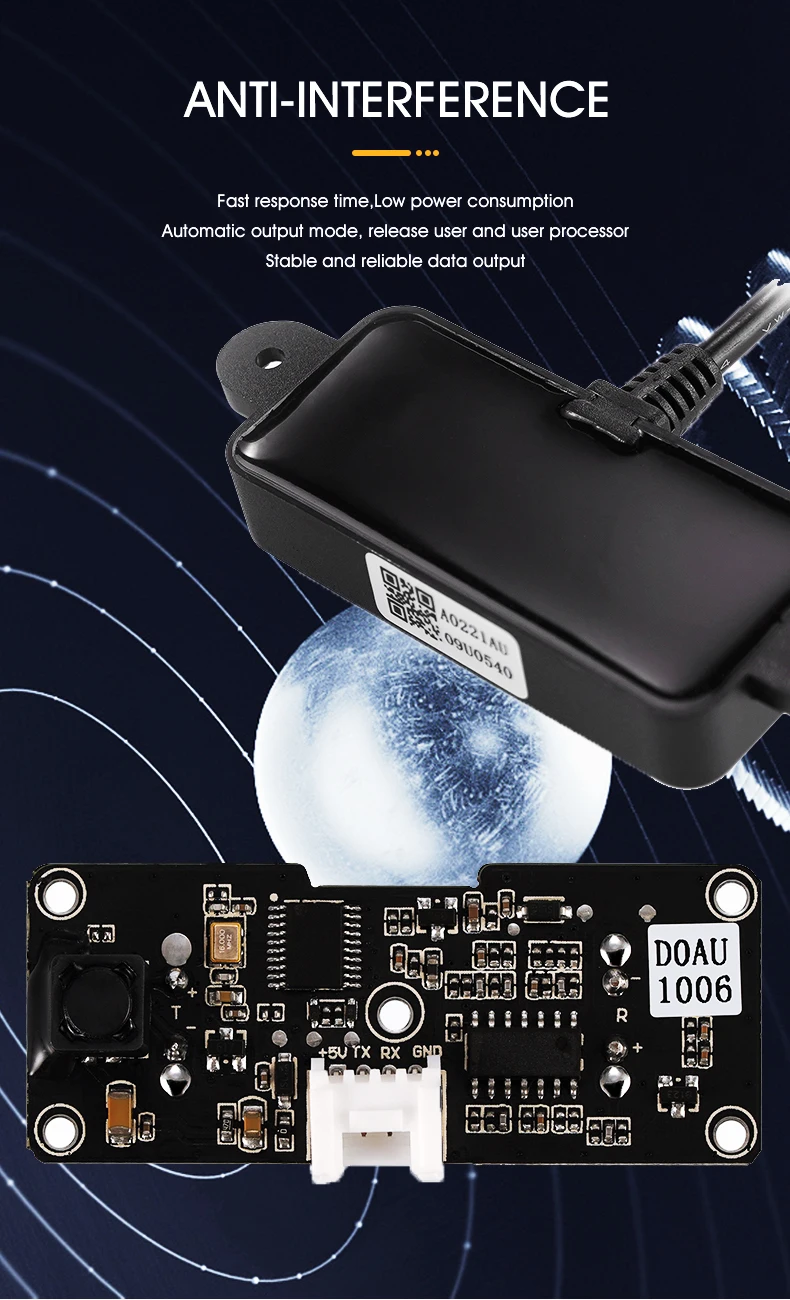

_05_04




































































































 Model No. DYP-A02YYU-V2.0 DYP-A02YYT-V2.0 DYP-A02YYGD-V2.0 DYP-A02YYM-V2.0
 Dead Band    3cm
 Measuring Range of Flat objects    3~450cm
 Beam Angle    ≈60°
 Response Time 300~500ms 45~60ms 300~500ms 10~17ms
 MTTF    26000Hrs
 Supply Voltage    3.3~5.0 DC
 Residual Ripple    <50mA
 Power Consumption    ≤5mA
 ConnectiontType UART automatic UART control Switch PWM
 Output Signal  TTL signal TTL signal Pulse width signal
 Measurement Accuracy   ±(1+S*0.3%)cm ±(1+S*0.5%)cm
 Signal Voltage    DC 3.3~5V
 Output Current - - <9mA -
 Time Delay before Availability    500ms
 Enclosure Rating    IP67
 Process Connection    HY2.0MM – 4P connector
 Housing Material    ABS
 Ambient Operating   Temperature    -15-60℃
 Ambient Temperature,   Storage -25-80℃




A02_08


_08_09





Our Advantages


 _11





Product Packaging


 _12_14





FAQ





1. Are you a manufacturer or trading company?


DYP is a manufacturer, our factory approved by ISO9001:2008, ISO14001:2004 standard.





2. Does your products can be ODM or OEM?


Yes, we provide ODM/OEM services, we can customize the product according to your requirement, after estimated by our R&D team, we can build the product you need on the basis of existing products, or build a brand new product.





3. What's warranty of your product?


We provide 1 year warranty, any defective items, please send back to us, we will repair/replace for you.





4. What is the terms of payment?


For the sample order, we suggest place order on alibaba directly. For the large order, we accept TT or LC.





5. Do you provide technical support?


Yes, we have our own R&D department, we can provide you technical support at any time. You can call us or write email to us.





6. How to choose the right ultrasonic sensor?


First of all, clarify the installation conditions:


   a. Medium to be measured;


   b. Installation location


   c. Measurement range;


   d. Measurement accuracy;


   e. Sensor resolution;


   f. potential interference;


   g. Whether vessels has pressure.


Select the corresponding series of products according to the medium, and then select the product suitable for the conditions according to the Range, Accuracy, Angle etc parameters. If there is no suitable one, we also provide OEM/ODM services, please contact us.
