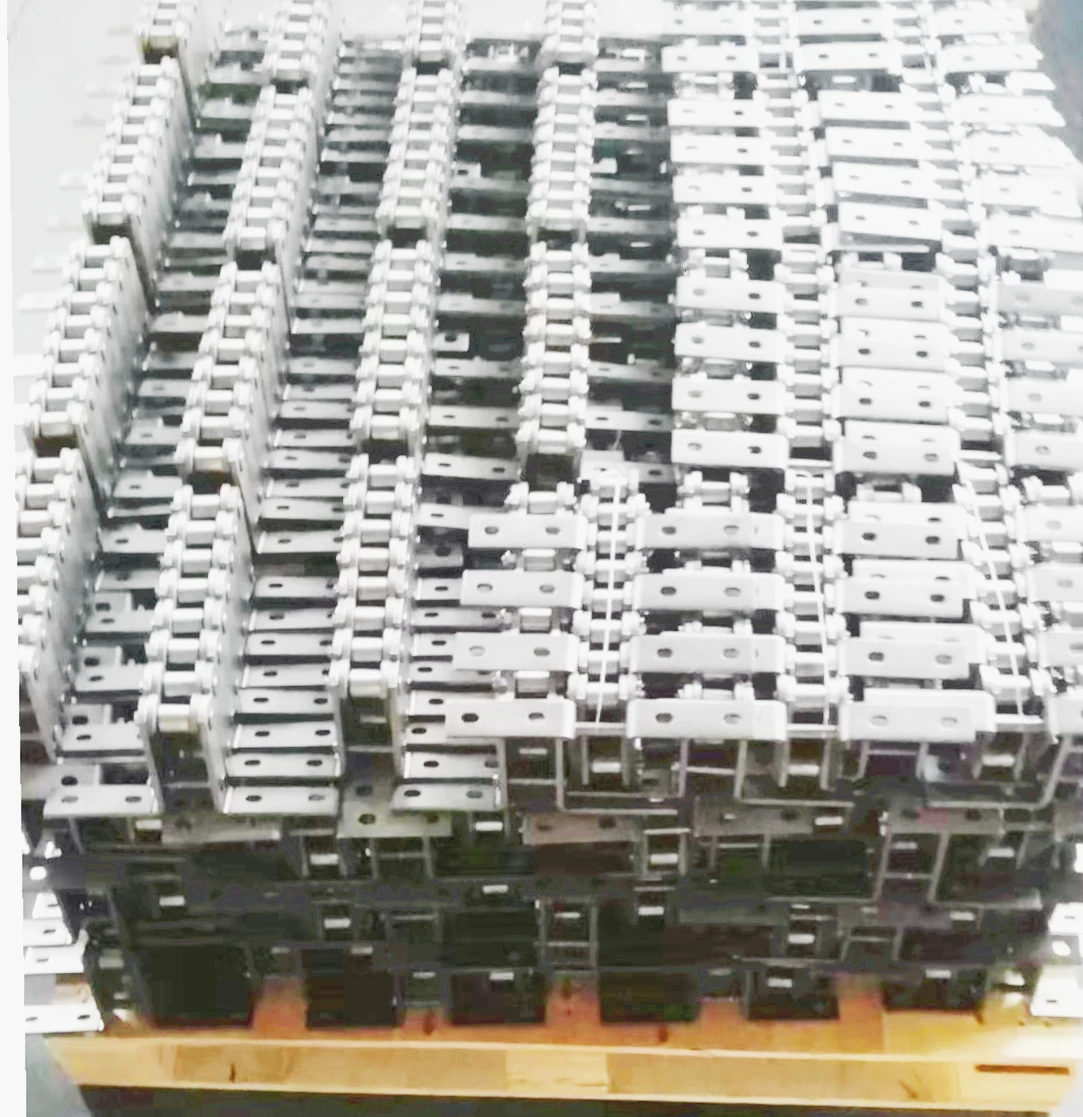

China manufacturer of high quality forged scraper chain for Agricultural conveyor
- Category: >>>
- Supplier: Jiangsu Jingwei Conveying Equipment Co. Ltd.
Share on (1600820463272):
Product Overview
Description
Product Description
Conveyor Chains

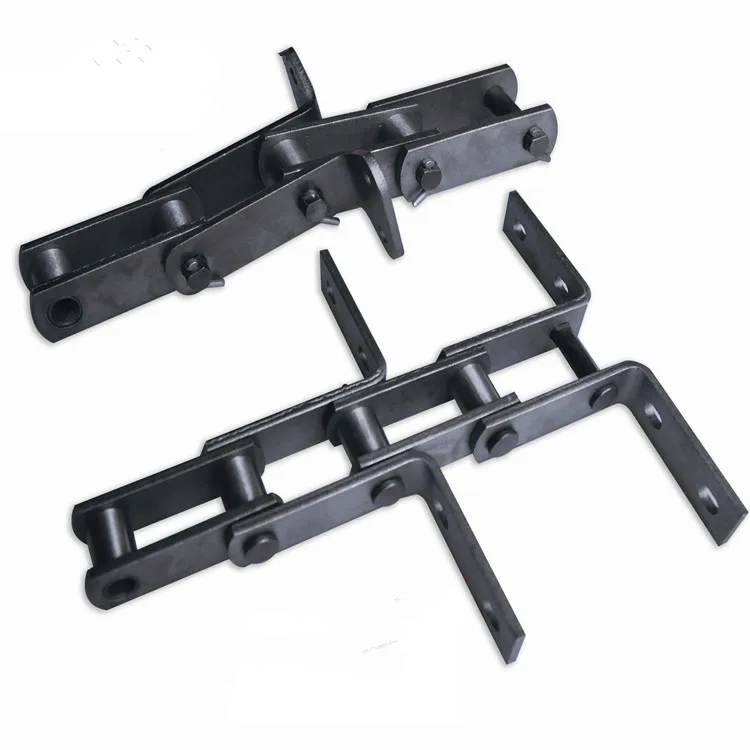

Bush roller chain used in U type scraper conveyor
Chains adopt high quality medium-carbon alloy steel, chain plate material is 40Mn, pin and roller material is 40Cr. High quality material and good heat treatment guarantee excellent anti-shearing force and tensile strength during working and have good looking.

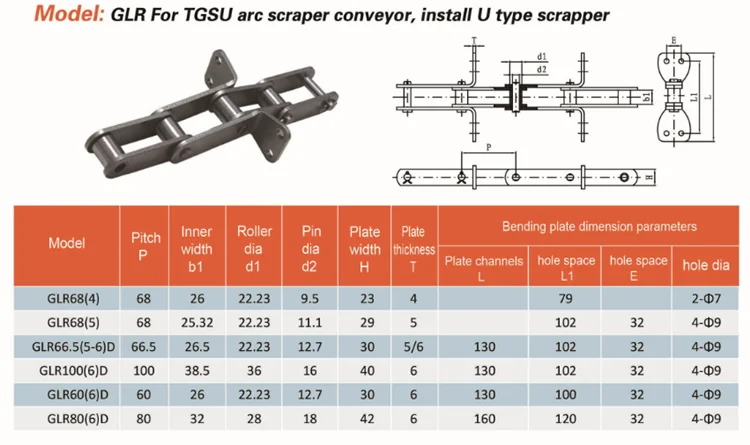

Model: GLR For TGSU arc scraper conveyor, install U type scrapper
Model | Pitch P | Inner width b1 | Roller dia. d1 | Pin dia. d2 | Plate width H | Plate thickness T |
GLR68(4) | 68 | 26 | 22.23 | 9.5 | 23 | 4 |
GLR68(5) | 68 | 25.32 | 22.23 | 11.1 | 29 | 5 |
GLR66.5(5-6)D | 66.5 | 26.5 | 22.23 | 12.7 | 30 | 5/6 |
GLR100(6)D | 100 | 38.5 | 36 | 16 | 40 | 6 |
GLR60(6)D | 60 | 26 | 22.23 | 12.7 | 30 | 6 |
GLR80(6)D | 80 | 32 | 28 | 18 | 42 | 6 |

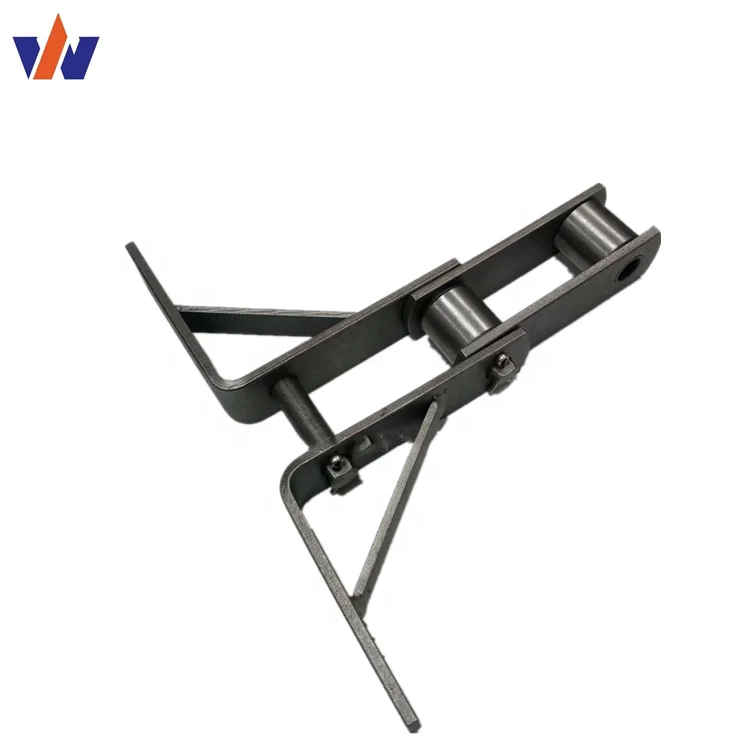

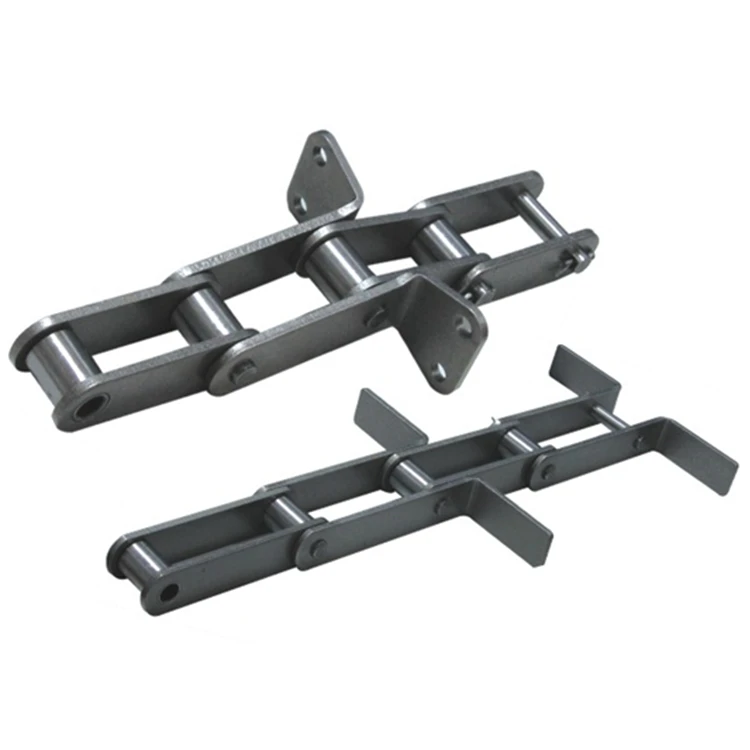

Bush roller chain used in horizontal scraper conveyor
Chains adopt high quality medium-carbon alloy steel, chain plate material is 40Mn, pin and roller material is 40Cr. High quality material and good heat treatment guarantee excellent anti-shearing force and tensile strength during working and have good looking.
Model: GLF For TGSS flat scraper conveyor, install flat scrapper
Model | Pitch P | Inner width b1 | Roller dia. d1 | Pin dia. d2 | Plate width H | Plate thickness T | Breaking load in KN |
GLF66.5(5-6)D | 66.5 | 26.5 | 22.23 | 12.7 | 30 | 5/6 | 130 |
GLF66.675(5-6)D | 66.675 | 26.5 | 22.23 | 12.7 | 30 | 5/6 | 130 |
GLF100(6) | 100 | 38.5 | 36 | 16 | 40 | 6 | 220 |
GLF125(6)D | 125 | 32.5 | 25 | 18 | 50 | 6 | 180 |
GLF160(8)D×385 | 160 | 36.5 | 36 | 17.8 | 50 | 8 | 200 |
GLF200(8)D×467 | 200 | 42.5 | 40 | 20 | 60 | 8 | 250 |
81X | 66.27 | 26.99 | 23.02 | 11.1 | 28.6 | 4 | 106.7 |
81XH | 32.3 | 6/8 | 152 | ||||
81XHH | 8 | 186.7 |

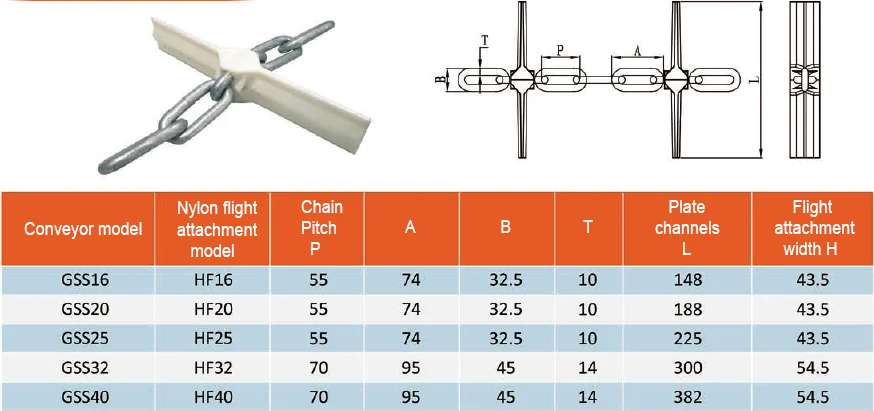

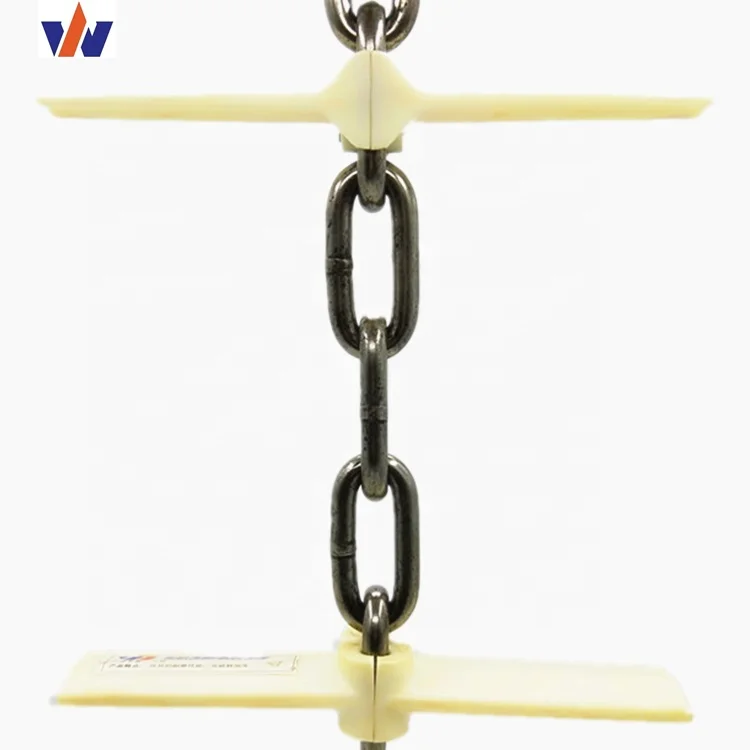

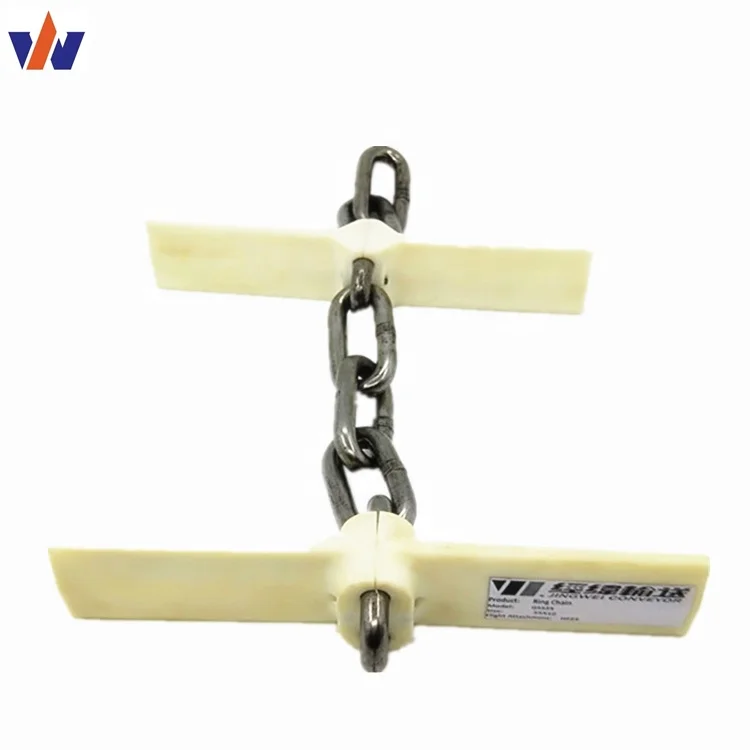

Ring Chain

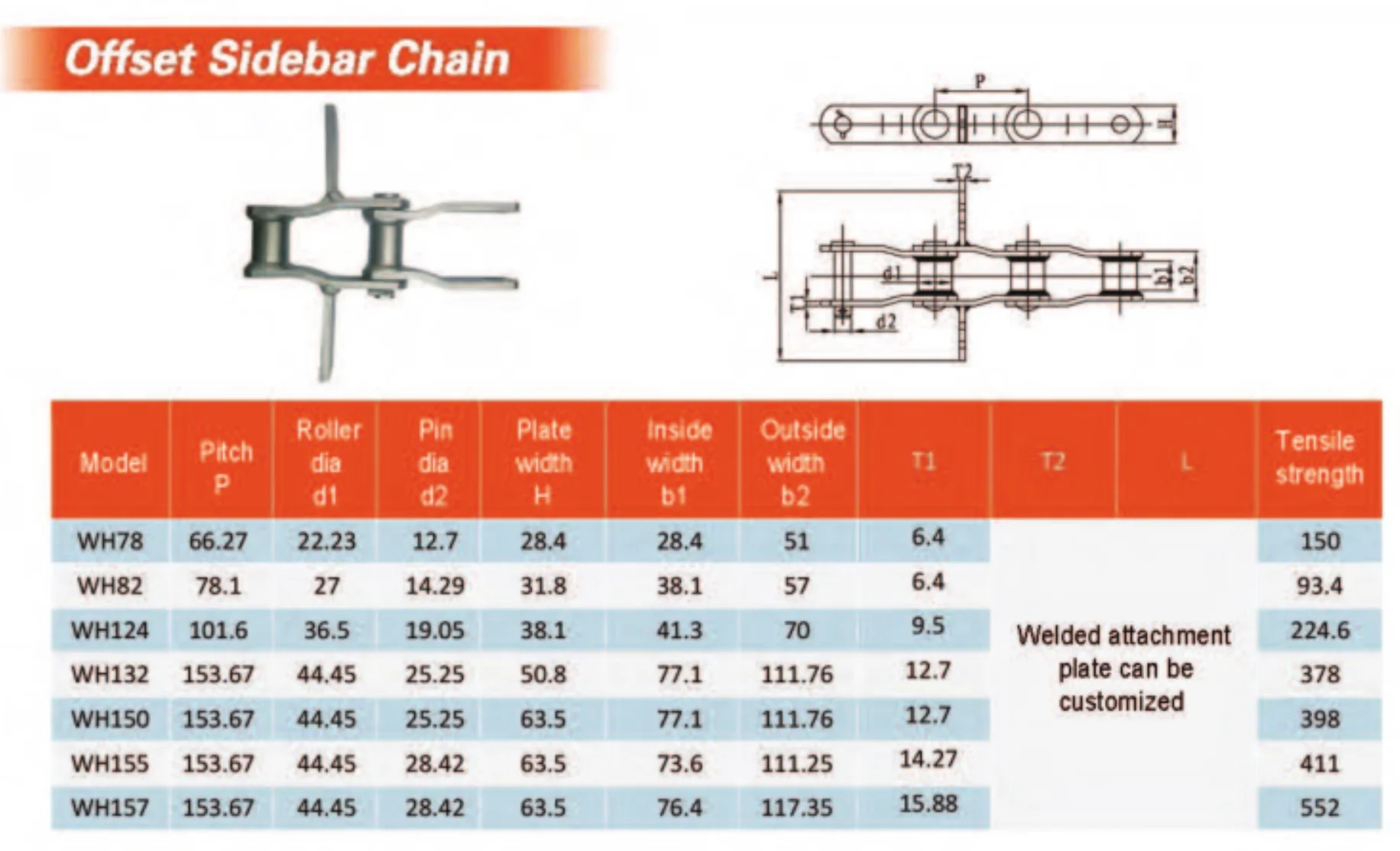

Offset Sidebar Chain

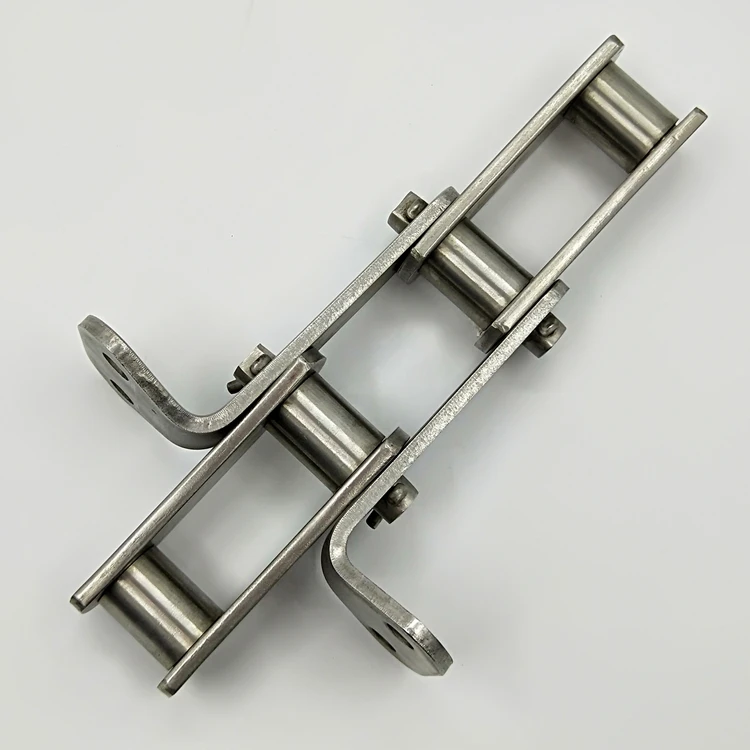

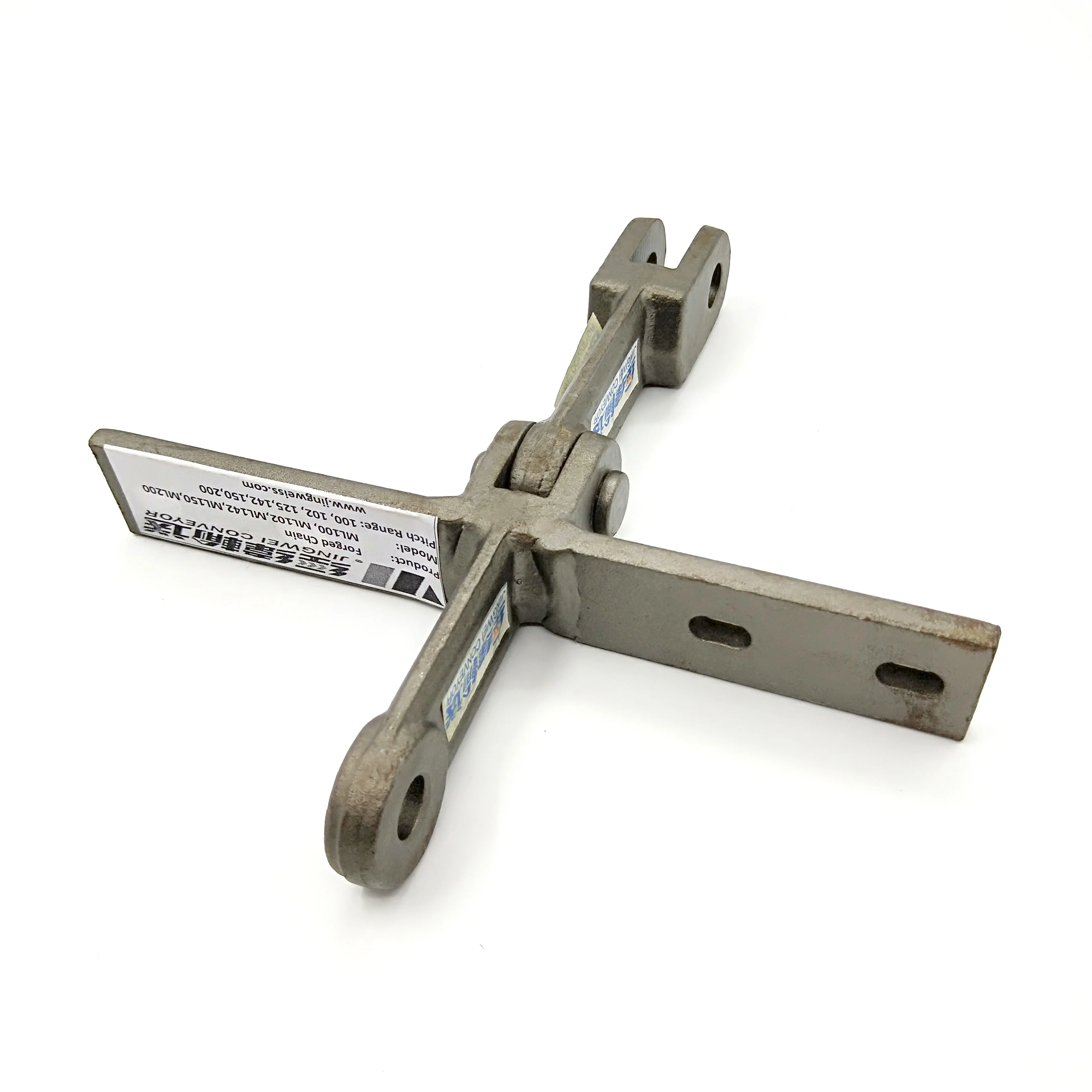

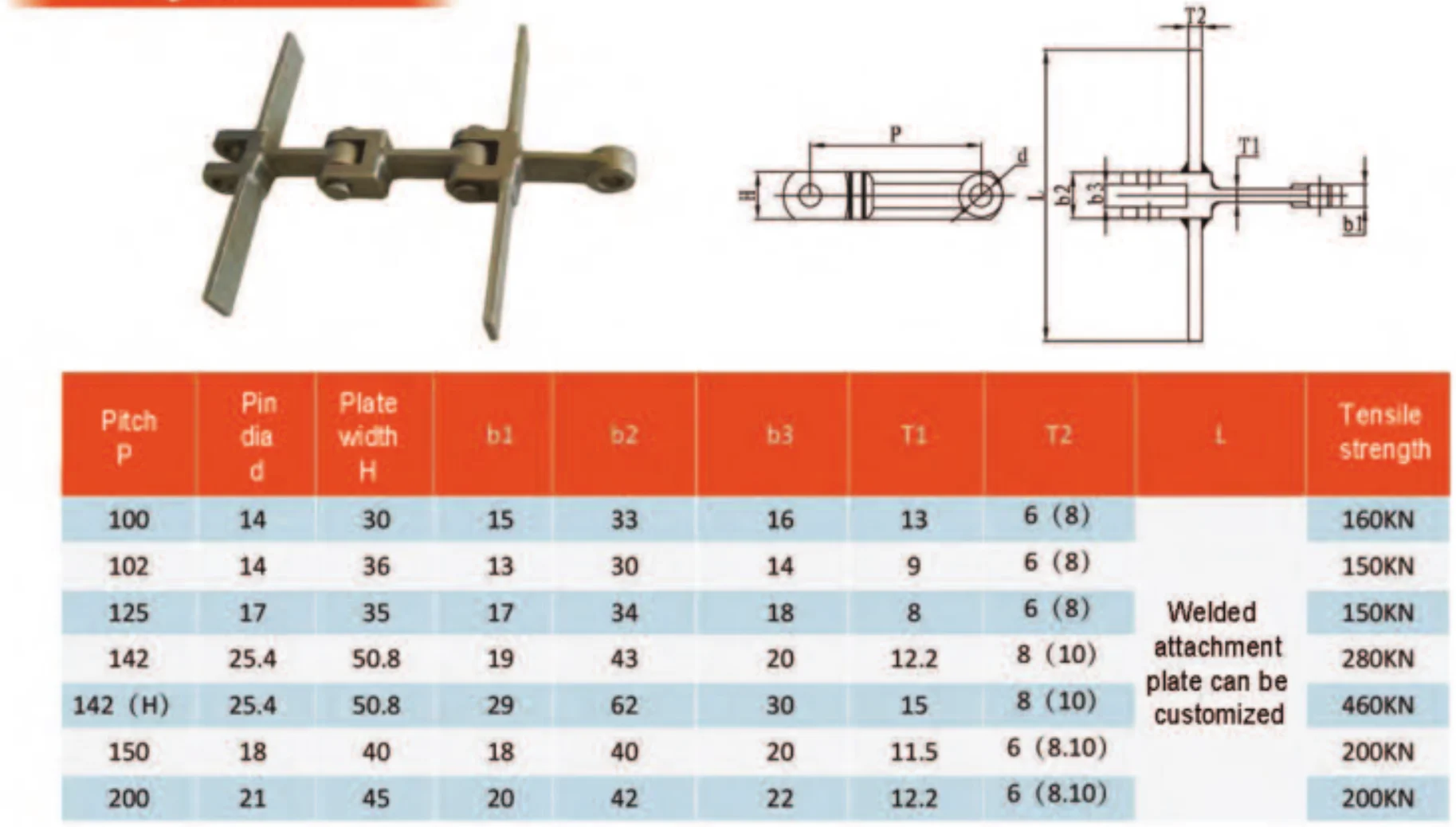

Forged Chain

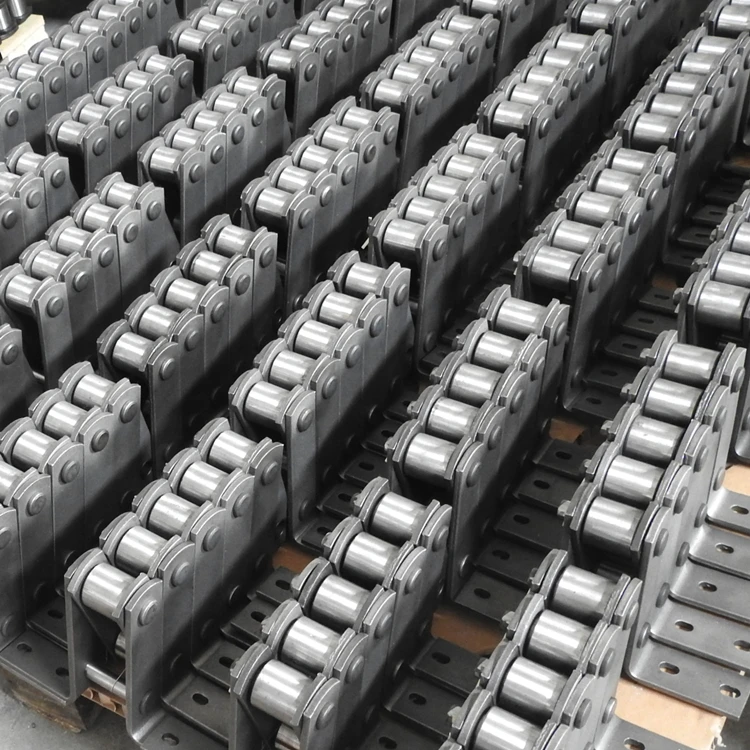

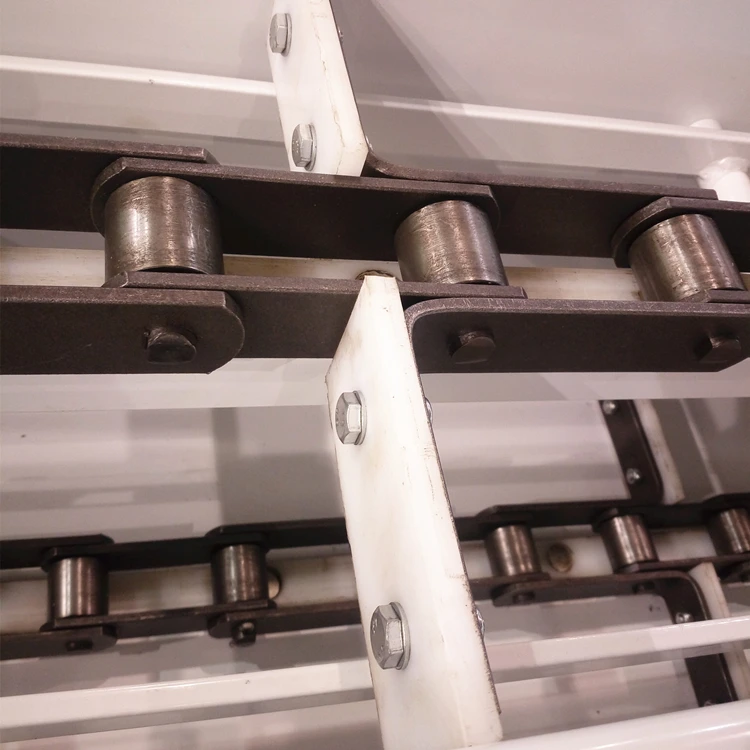

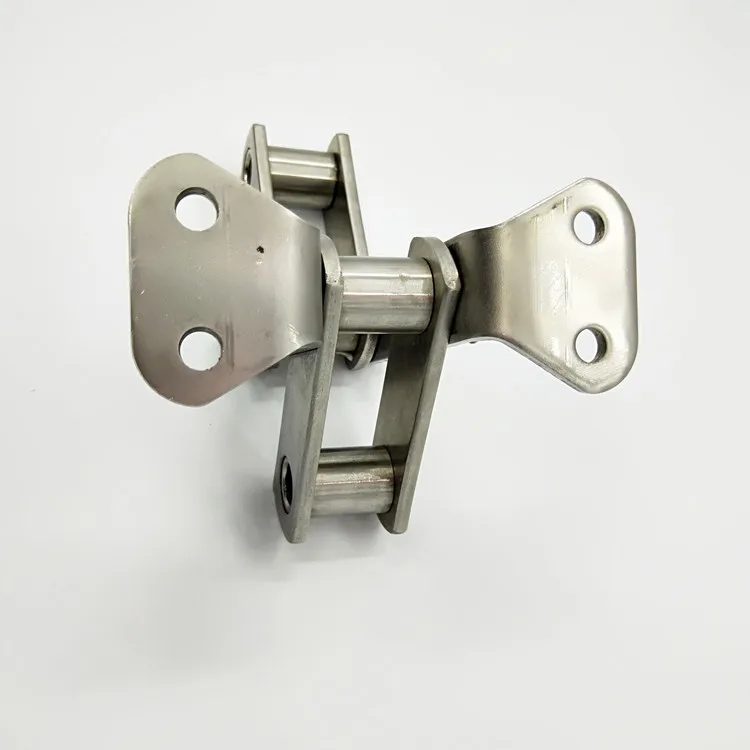

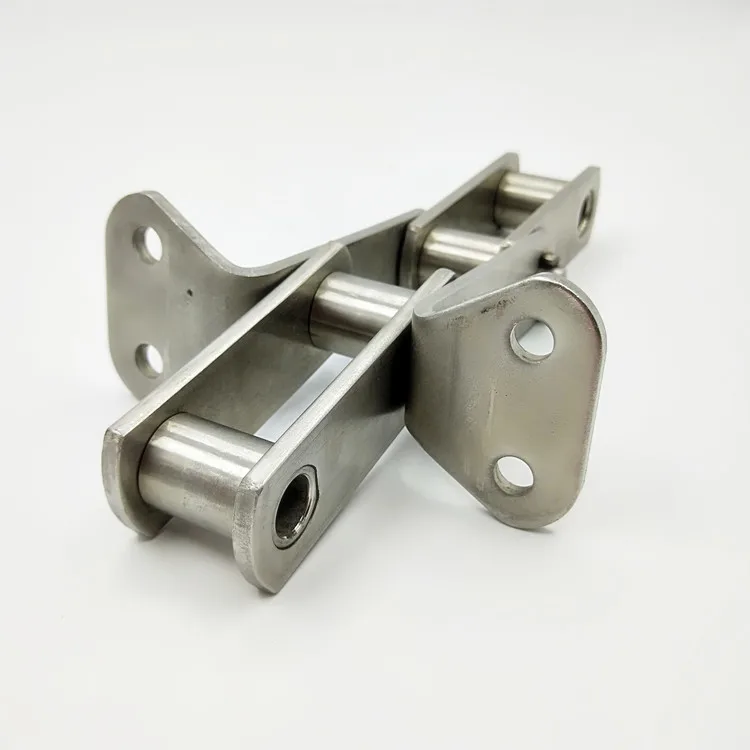

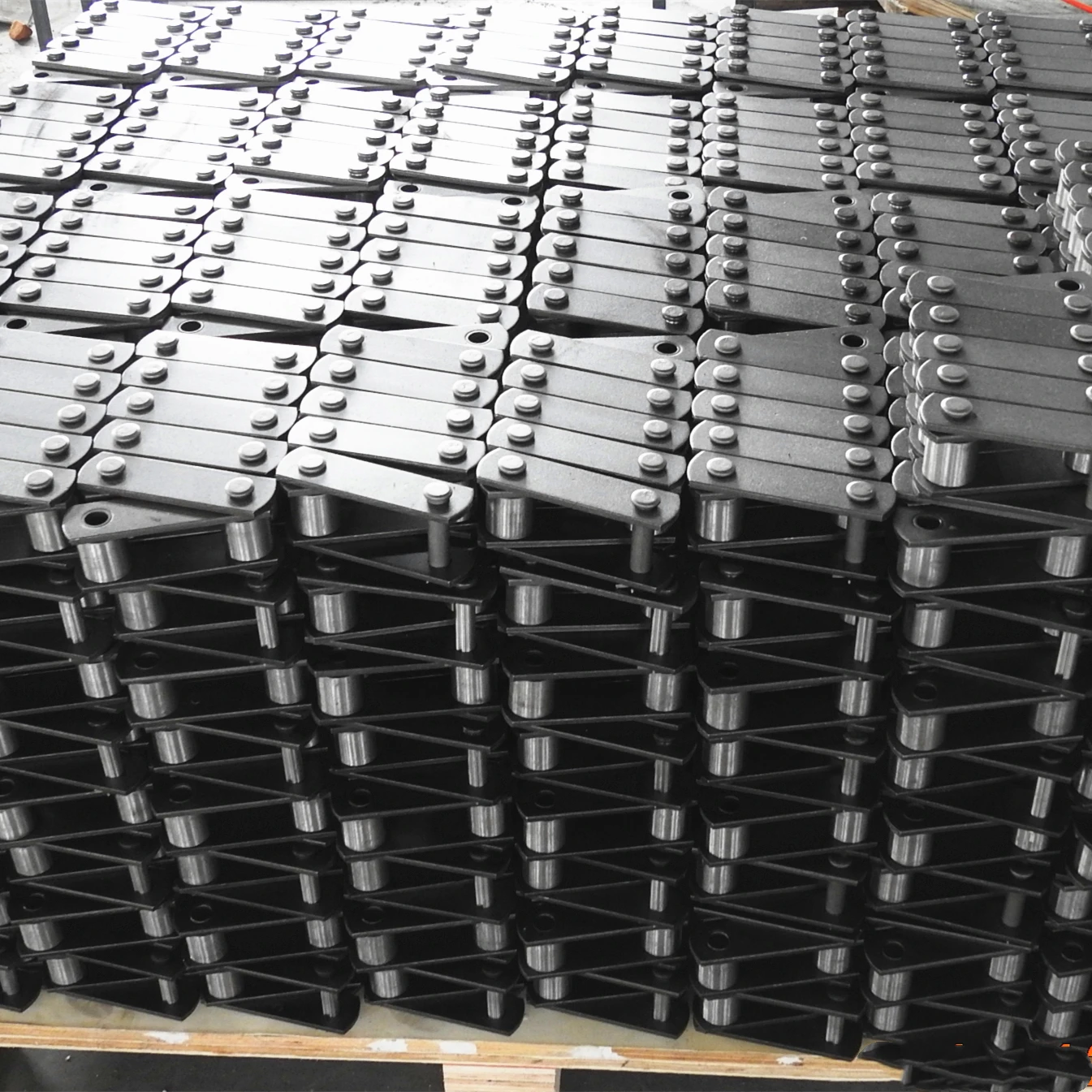

Detailed Images

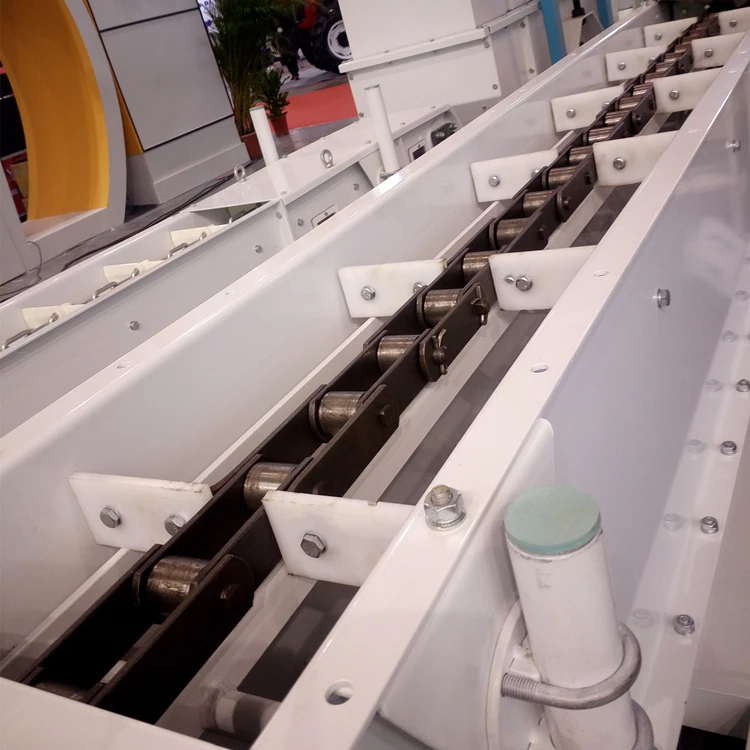

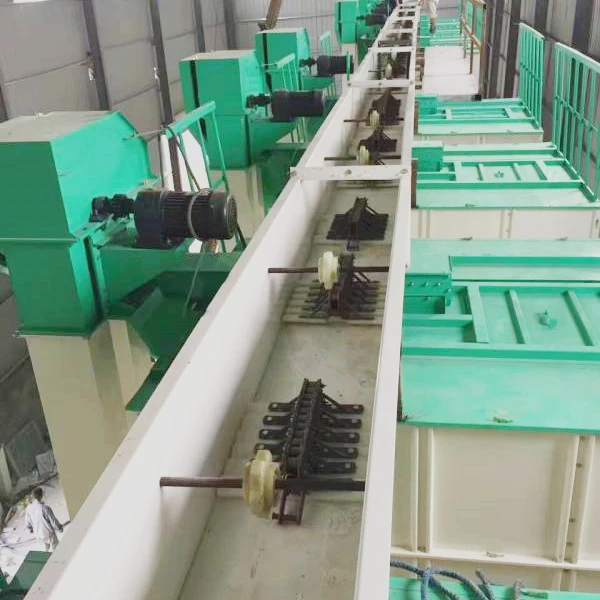

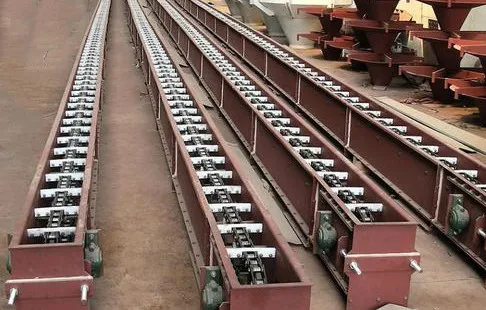

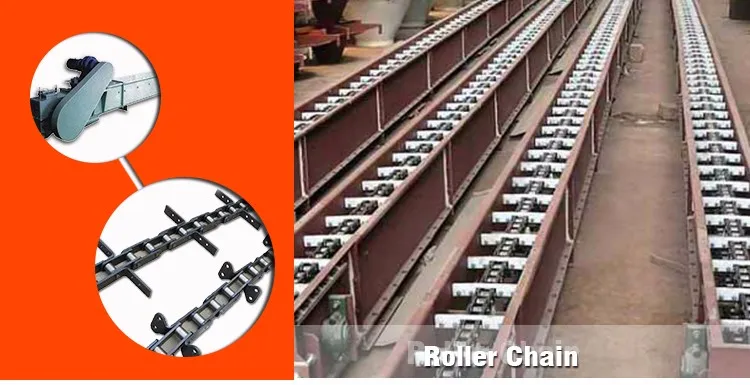

Application picture

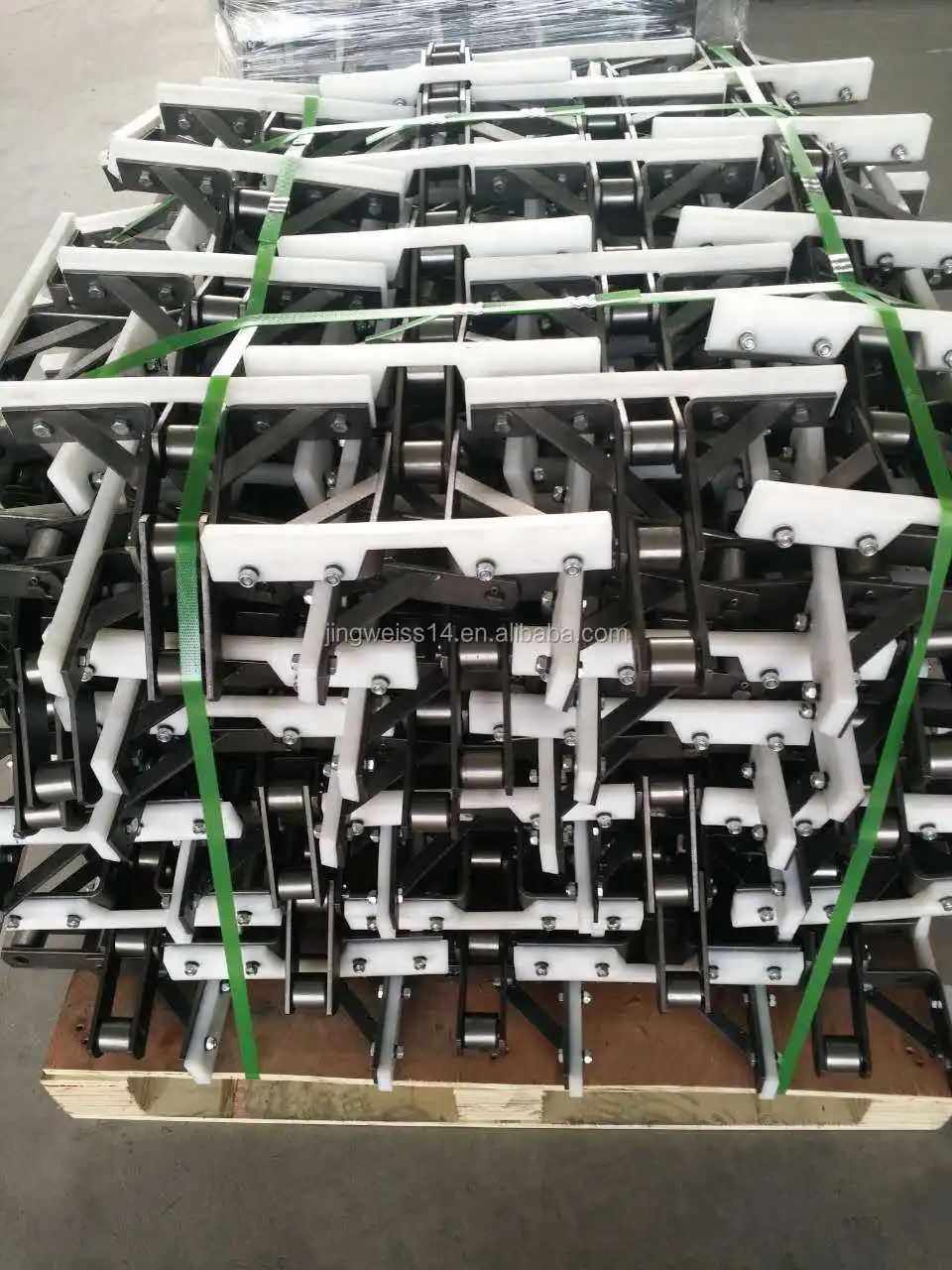

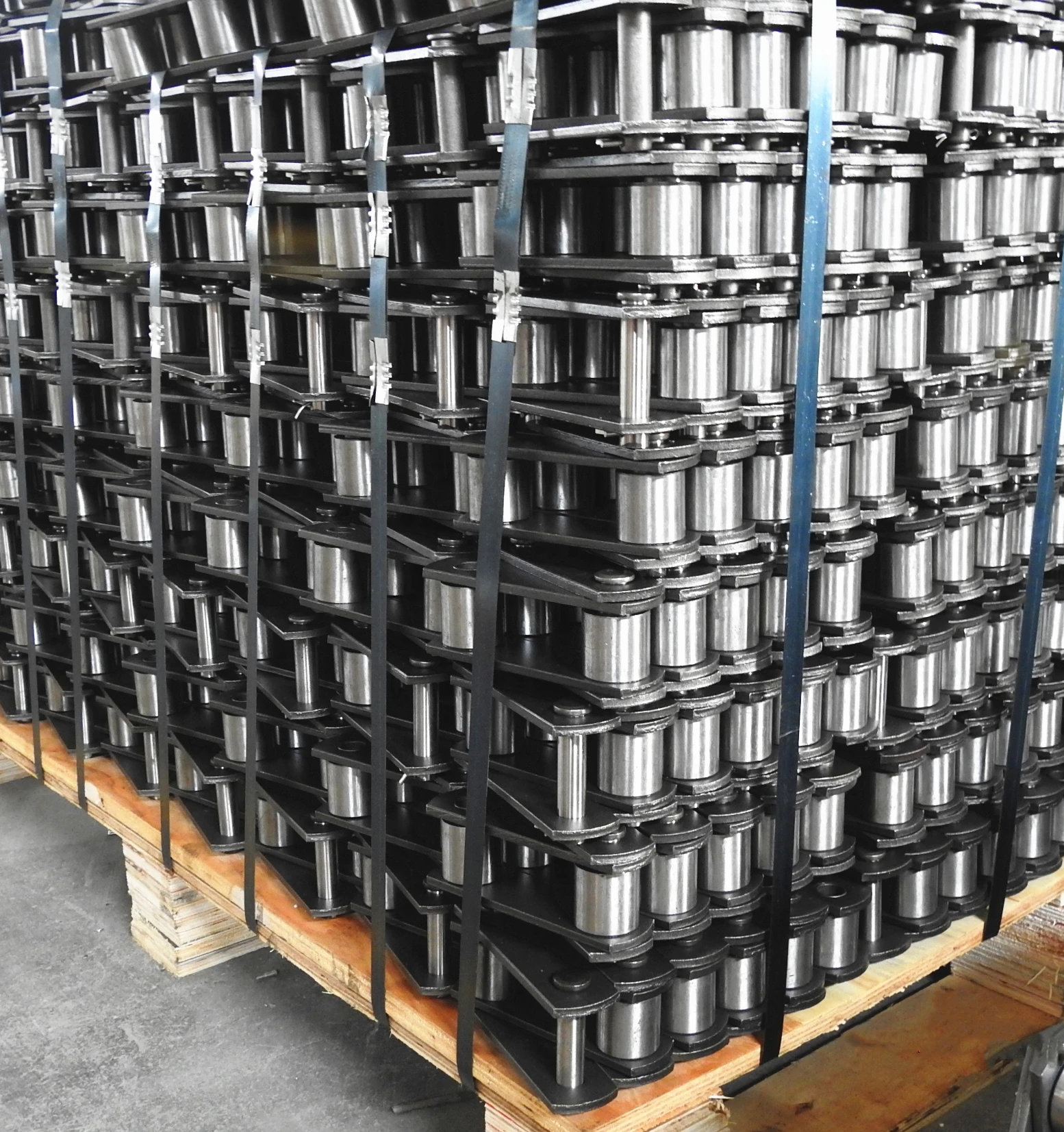

Packing & Delivery
Recommend Products

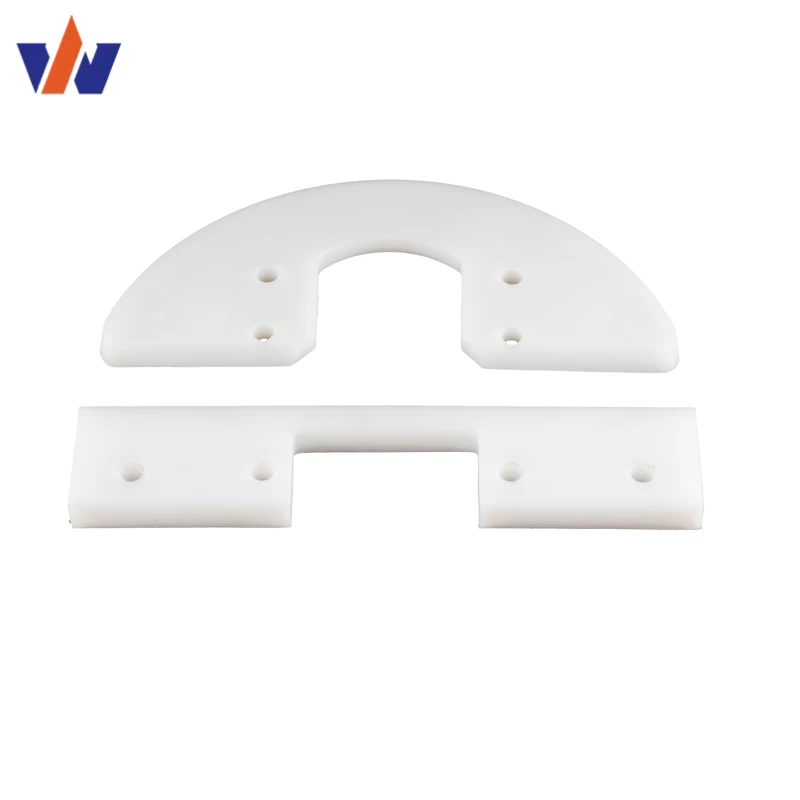

U type scraper

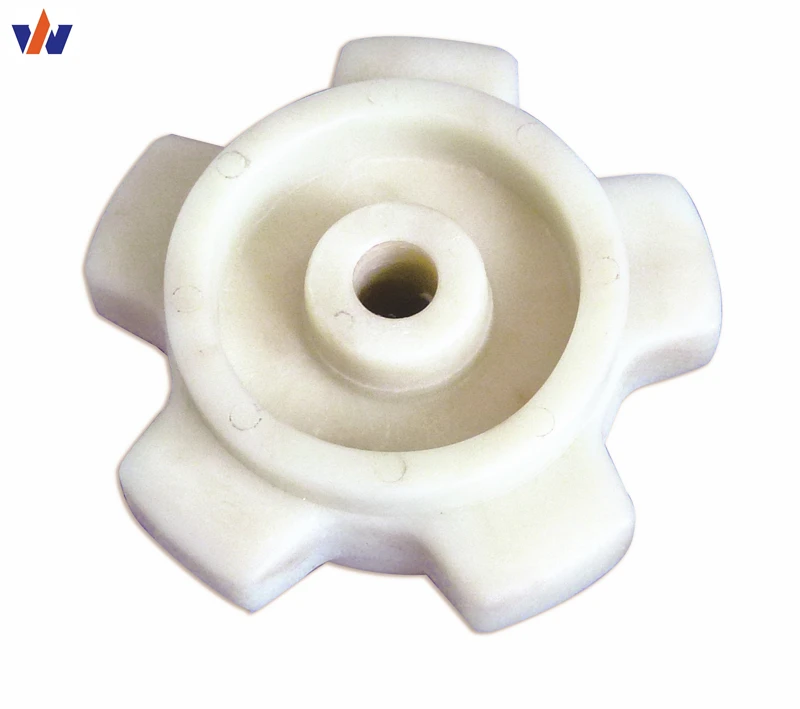

Gear wheel

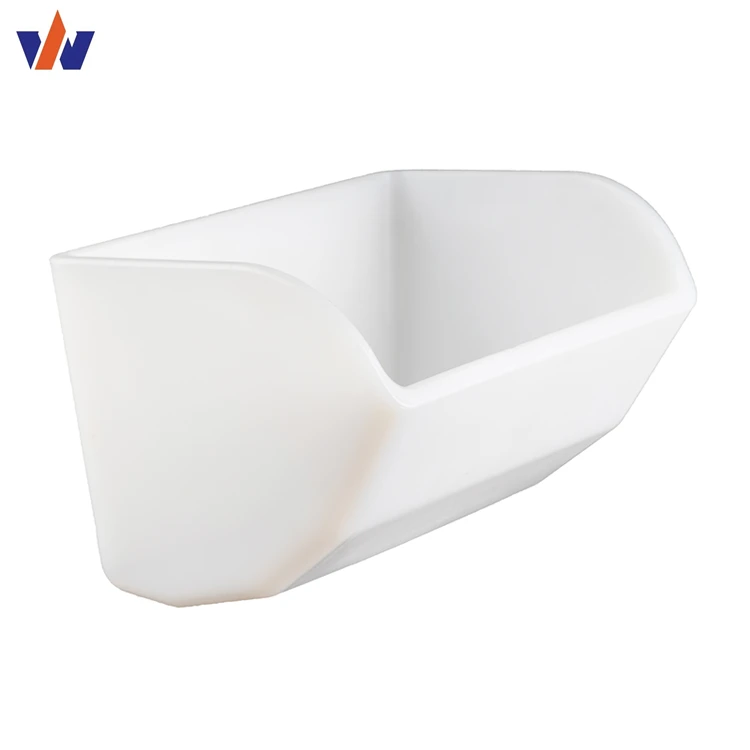

Elevator bucket
