ZICAR cnc melamine board cutting machine panel saw digital display auto loading beam saw for cabinte door production
- Category: >>>
- Supplier: Jaya International Co. Ltd.
Share on (1600820468331):
Product Overview
Description

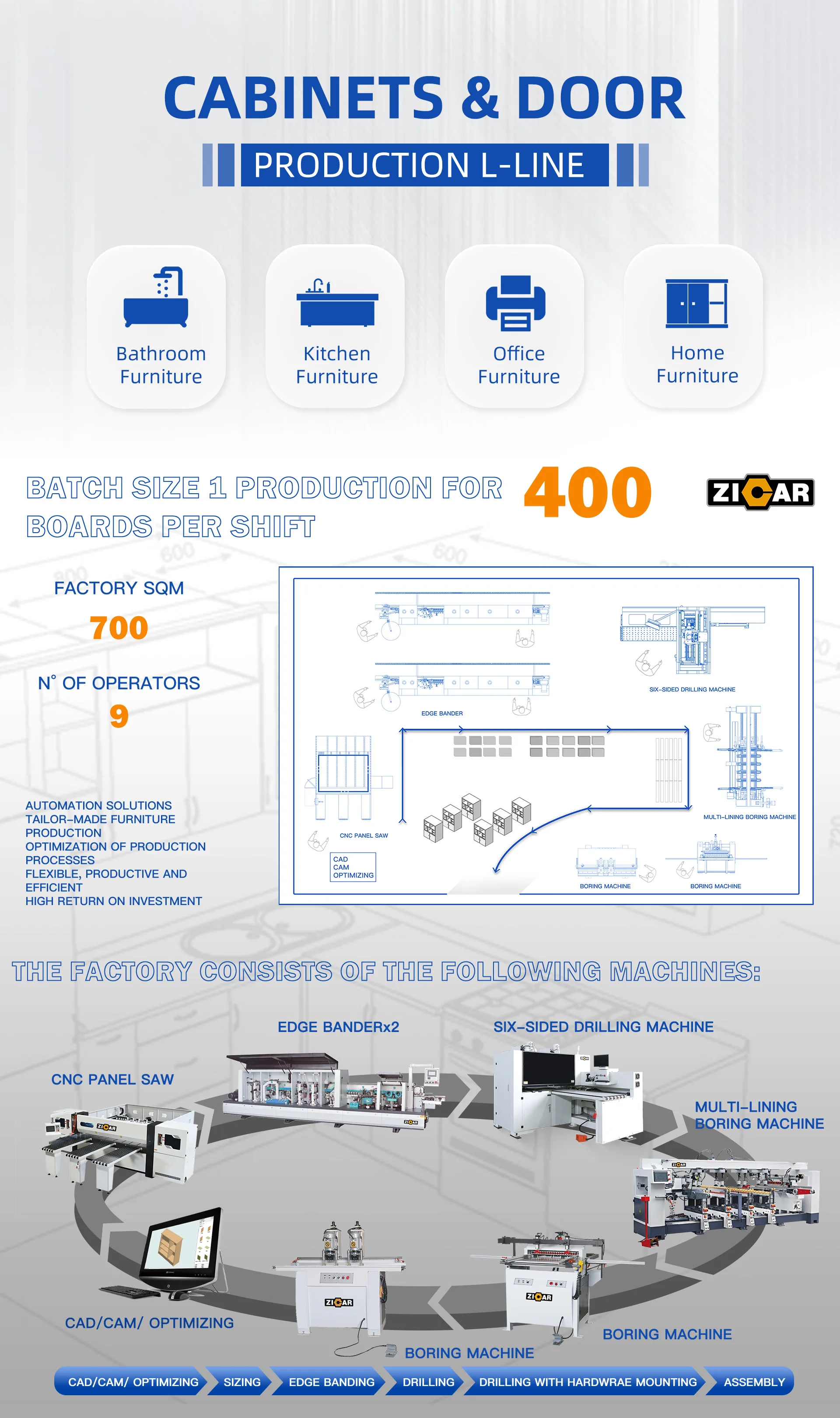

●This production line suitable for large-scale batch furniture enterprises.
●Space requirement is about 35(Width)x20(Length)square meters, about 700 ㎡.
●This production line can reach up to 350-400 pieces standard size board(1220*1440 mm)within 8 hours, which could improve working efficiency.
●Optimize the software to improve the utilization rate of plate and save cost.
●9-10 workers are needed, saving labor costs, reduce the dependence of the technical workers.
●Save both time and labor for complicated workpiece processing.
●Used in kitchen furniture, office furniture and other furniture.

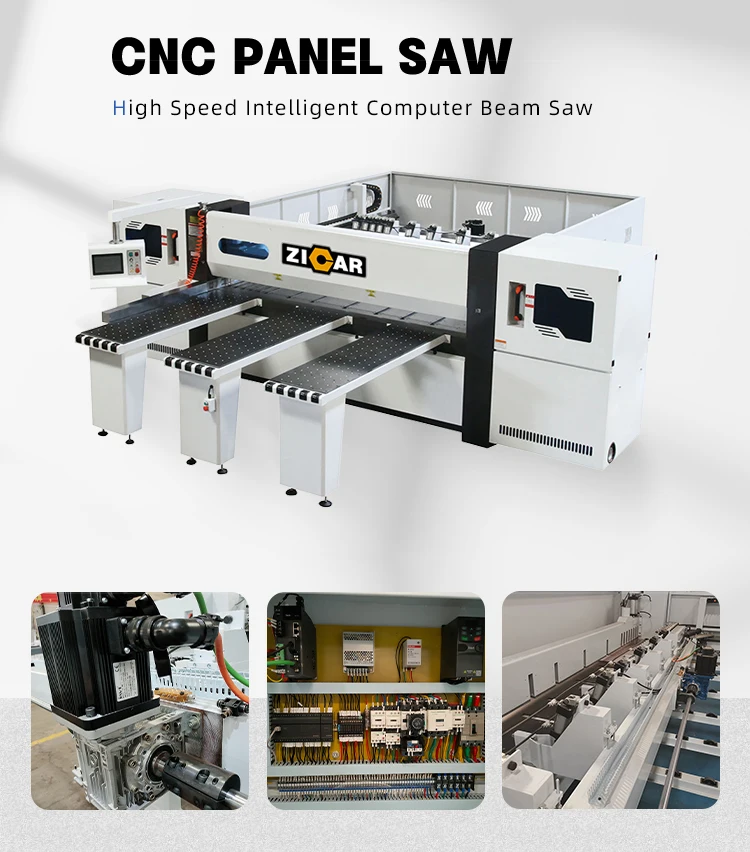

SMART CUTTING DETAILS
● Perfect combination of rack and pinion transmission and reducer control achieve ±0.15 accuracy.
● Bar coder which can read common files, MPR,DXF,JPG and others.● Air floating loading table, avoiding board scratching and assuring smoother board movement,suit for heavy and big type wood panel.
●Feeding gripper Equip 13 pcs pneumatic holding grippers, can gripe the panel steadily, highly reduce labor intensity, and greatly improve production efficiency, Min holding panel size 45 mm.

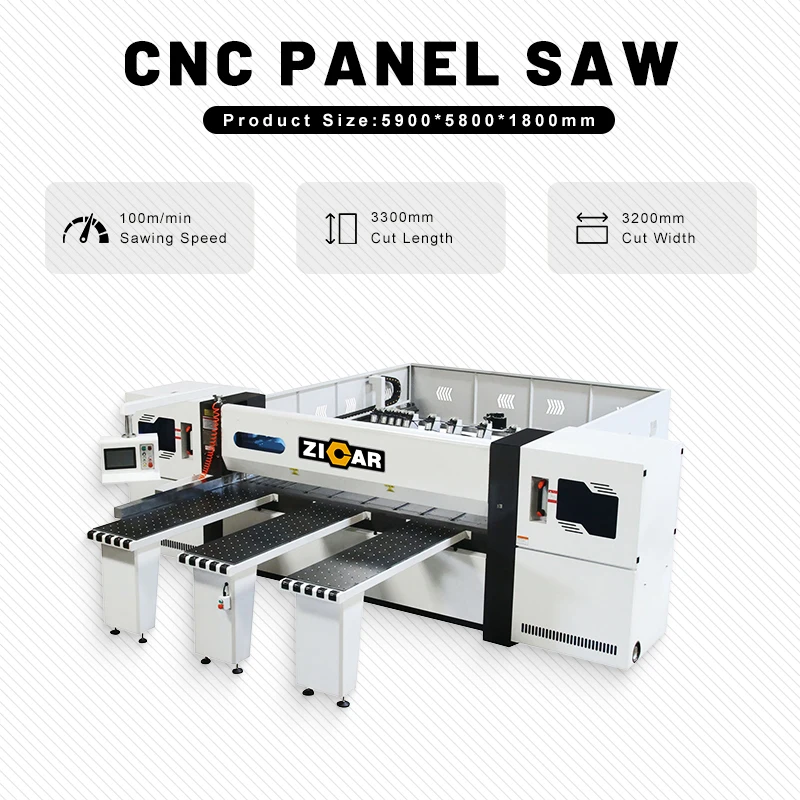

Cut Length | 3300mm |
Cut Width | 3200mm |
Cut Thickness | 100mm |
Positioning Method | Automatic |
Servo Positioning Accuracy | ±0.02mm |
Sawing Precision | ±0.15mm |
Main Saw Motor Power | 15kw |
Main Saw Speed | 4800r/min |
Feeding Speed | 0-80m/min |
Sawing Speed | 0-100m/min |
Return Speed | 0-120m/min |
Air Pressure | 0.6-0.8mpa |
Motor Power | 22.5kw |
Control Panel Size | 10 inches |
Overall Size | 5900*5800*1800mm |

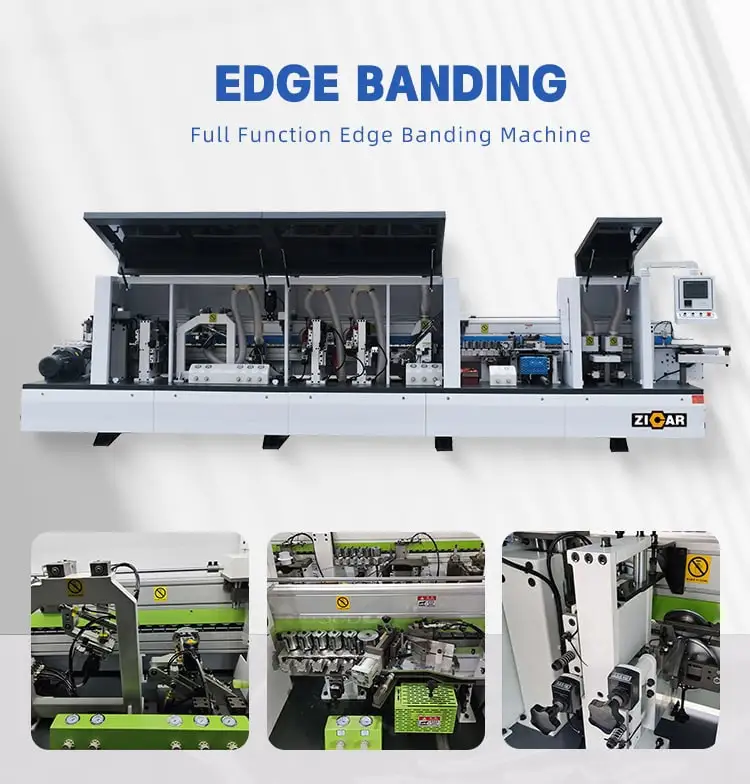

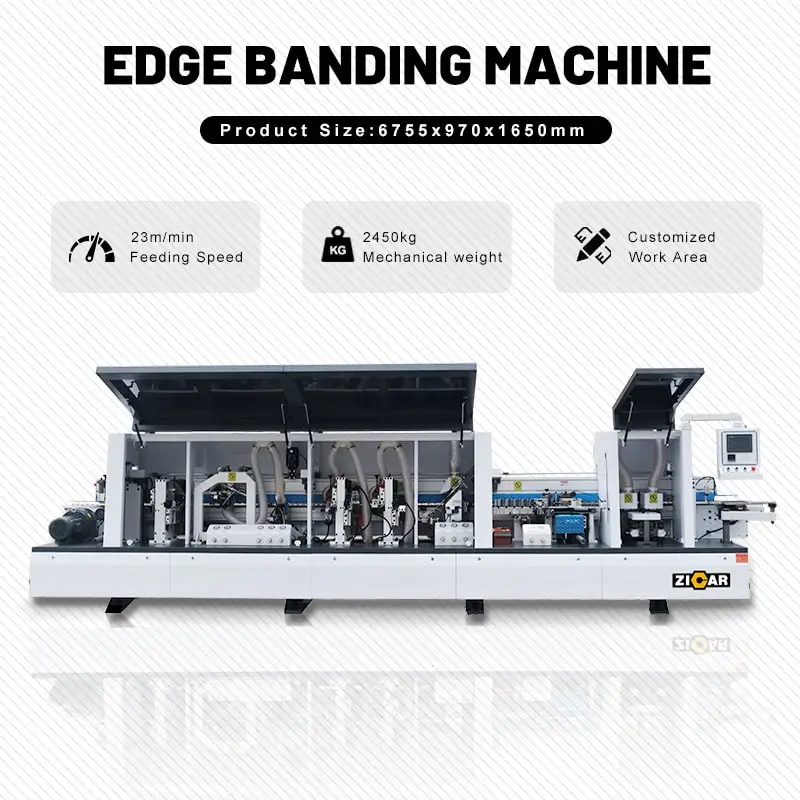

HIGH SPEED EDGE BANDING DETAILS

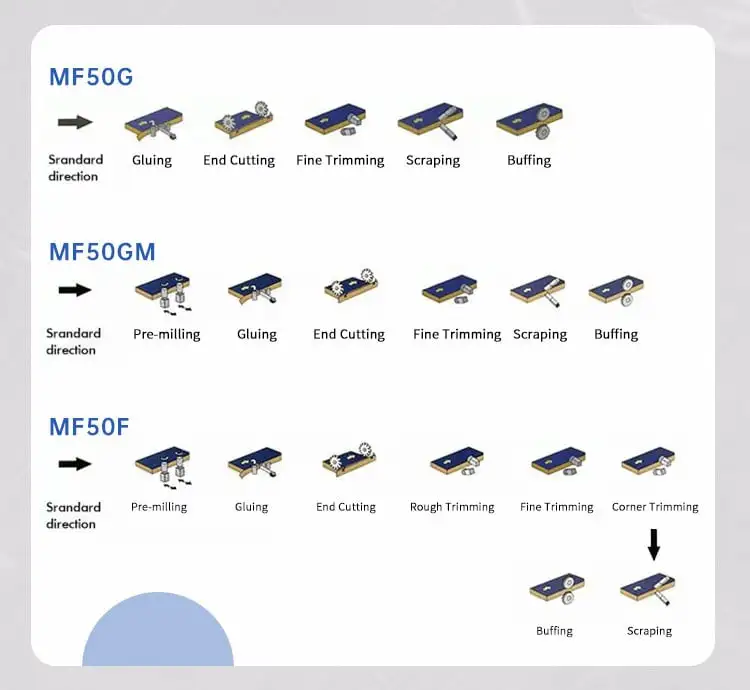

● MF50G (5 functions): Gluing, End Cutting, Fine Trimming, Scraping, Buffing.
● MF50GM (6 functions): Pre-milling, Gluing, End Cutting, Fine Trimming, Scraping, Buffing.
● MF50F (8 functions): Pre-milling, Gluing, End Cutting, Rough Trimming, Fine Trimming, Corner Trimming, Scraping, Buffing.
Model | MF50F (8 functions) |
Panel Length | Min.150mm |
Panel Width | Min. 80mm |
Panel Thickness | 10-60mm |
Edge Thickness | 0.4-3mm |
Feeding Speed | 15~23m/min |
Working Pressure | 0.6mpa |
Net Weight | 2450kg |
Total Power | 16.5kw |
Overall Size | 6755x970x1650mm |

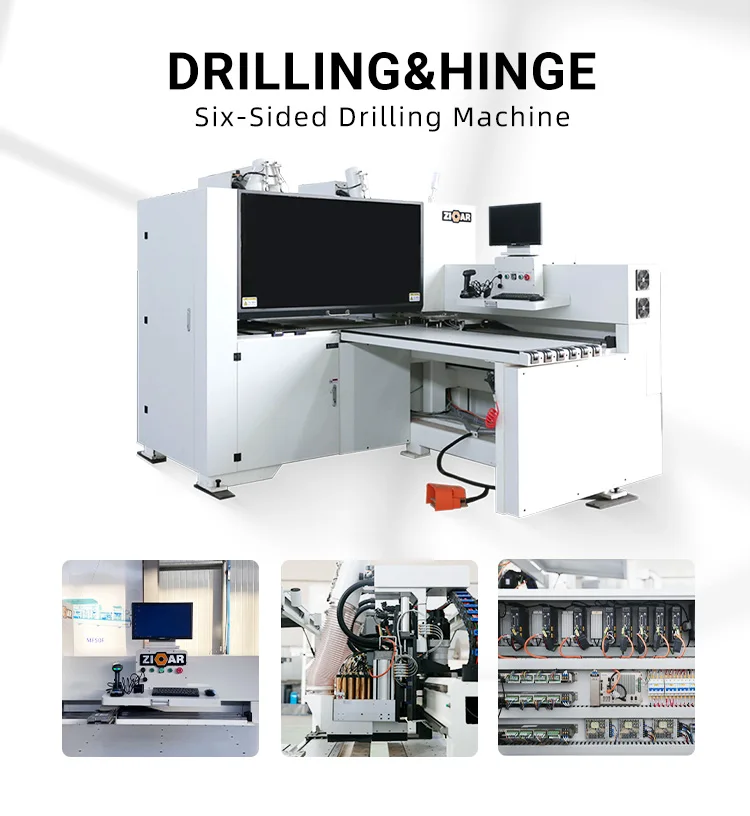

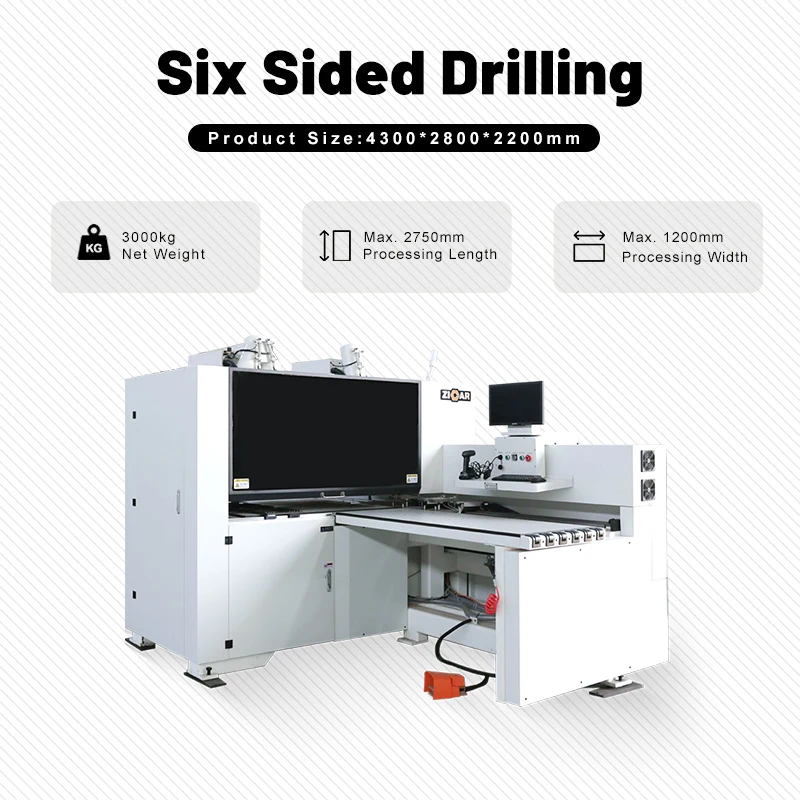

CNC DRILLING DETAILS
● One time completing the workpiece drilled in six sides, and front or back grooved.
● Multi-shift production and easy operation, production efficiency up to 1.3-1.8 slices/min. And 8 hourly capacities up to 190 sqm.(Unfolded area) – 230 sqm. (Unfolded area).
● 90% efficiency in double row drilling, 30%-45% increase in production efficiency.
Processing Length | 70mm-2750mm |
Processing Width | 35mm-1200mm |
Processing Thickness | 12-50mm |
Door Reaming Processing Method | Add Drilling Package |
Six-Sided Drill Grip (Fixed or Not) | Intelligent Three-Stage Lift Function |
Number of Drill | Drill Package Integrated with 12 Built-In |
Spindles | 3.5kw spindle *2 |
Program Docking | Mpr/Xml/Dxf/Ban |
Working Pressure | 0.8mpa/m2 |
Control System | LNC/NC STUDIO |
APPLIED INDUSTRIES
Sign Making
Door Making
Furniture Making
Cabinet Making
ABOUT ZICAR

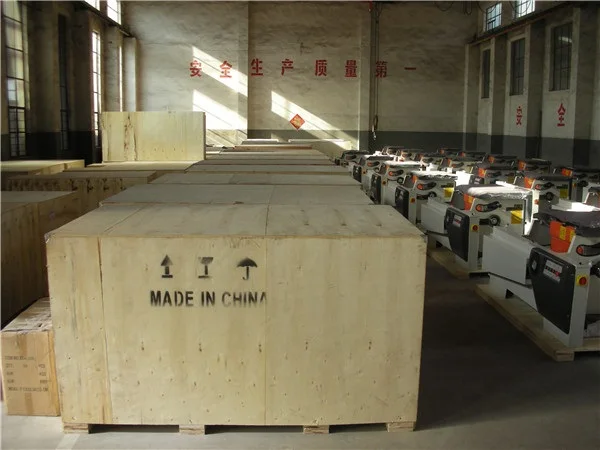

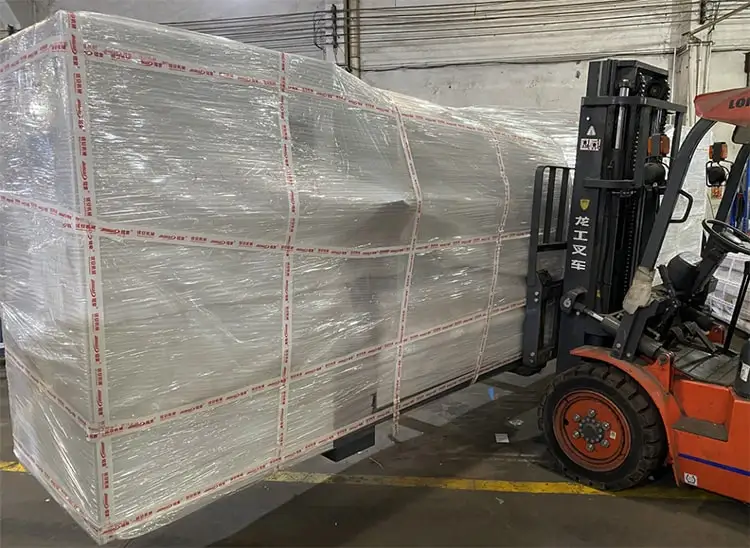

PACKING&SHIPPING
FAQ
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other.so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our Services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other.so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our Services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.
