15 inch black aluminum alloy desktop stand resolution 1024 x768 capacitive pos system touch screen monitors
- Category: >>>
- Supplier: Leadingtouch Technology Co. Ltd.
Share on (1600820472253):
Product Overview
Description
Product Description
LeadingTouch TM-1572 is 15inch 10point multitouch project capacitive desktop touch monitor; cost-effective touch solution which is designed for kiosk, ATM, Gaming, Casino, Interactive digital, Industrial, Education, Transportation etc., is easily connected and integrated by user.
Zero-bezel design with multi-touch functionality
Wall Mount or Desktop VESA mount

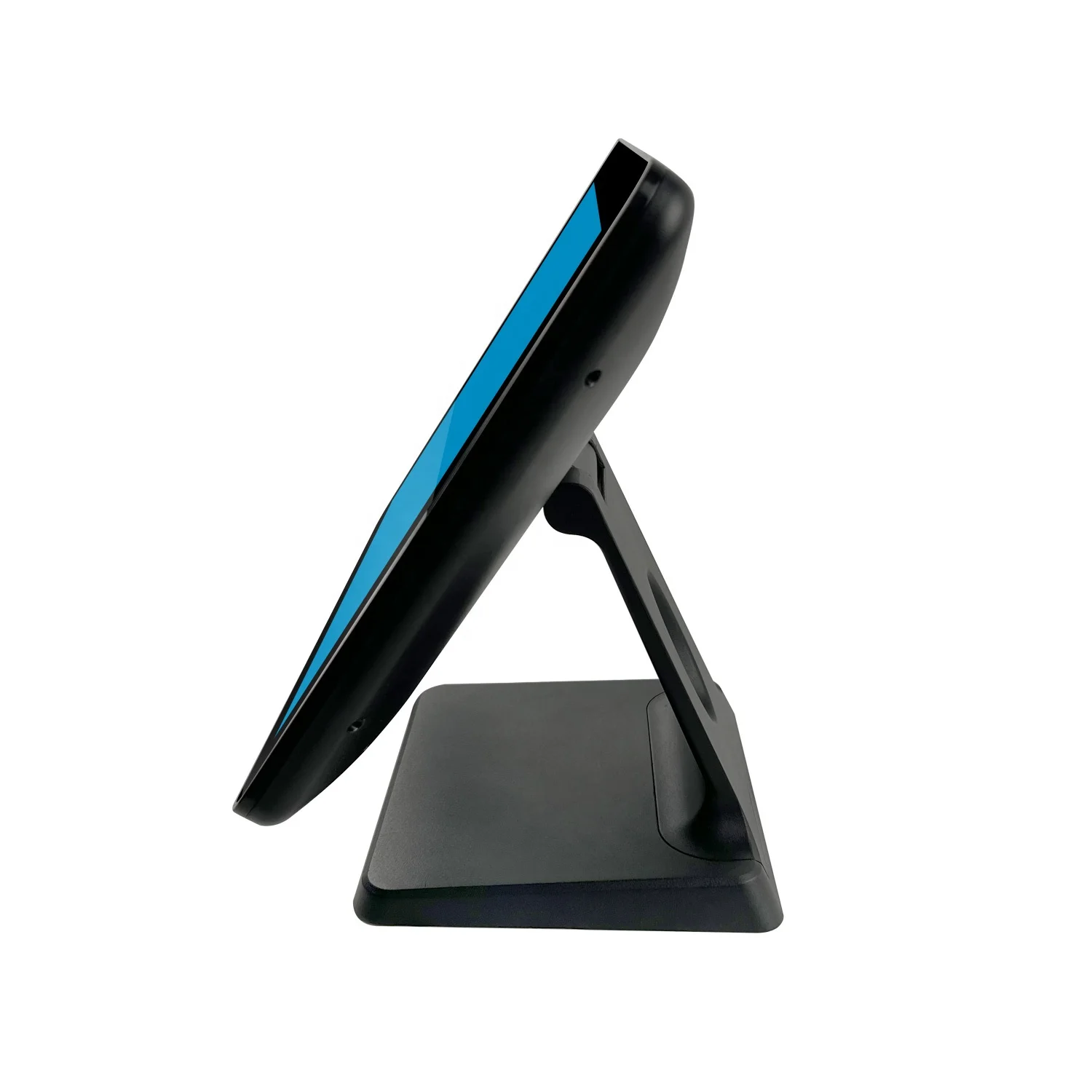

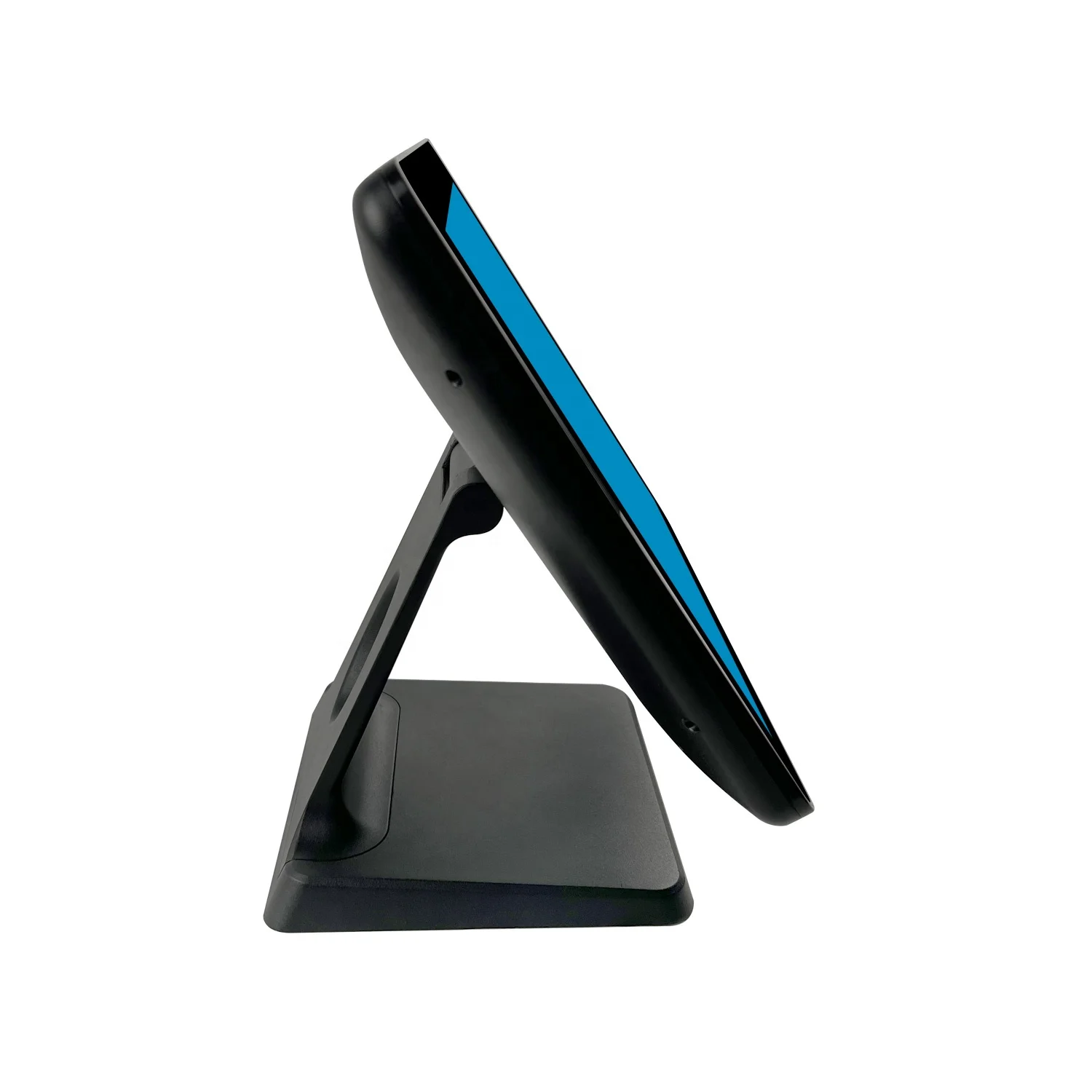

Stand - Dual position with high/low settings and tilt functionality
15" Project Capacitive Multitouch Open Frame Touch Monitor | ||
Products Model | TM-1572 | |
Description | 15” Multitouch Capacitive Flat Desktop Touch Monitor | |
Case/Bezel Color | Steel/Plastic/Black | |
Display Size | 15inch 4:3 Active Matrix TFT LCD | |
Useful Screen Area | 306mm x 229mm | |
Optimal Resolution | 1024 x 768 | |
Color Depth | 8bit,16.7 Million colors | |
Brightness | LCD panel 350cd/m², with PCAP touch 300cd/m² | |
Contrast Ratio | 700:1 (Typical) | |
Viewing Angle(CR≥10) | Right/Left 85º/85º Up/Down 80º/80º | |
Video Input Format | VGA,HDMI Option | |
Input Video Signal Connector | VGA,HDMI Option | |
On Screen Display(OSD) | Controls(back):On/Off, Menu, Left, Right, Auto | |
Backlight Lamp Life | 50000hrs | |
Touch Technology | PCAP (Project Capacitive) Multitouch Touch Technology | |
Touch Point | Standard 10point, Max 40point(option) | |
Touch Port Interface | USB interface | |
Touch Cover_Glass | 3mm Physical Tempered Anti-vandal Glass(AR, AG option) | |
Support OS | HID-Mode: Windows7/8/10, Linux, Android, Mac etc. | |

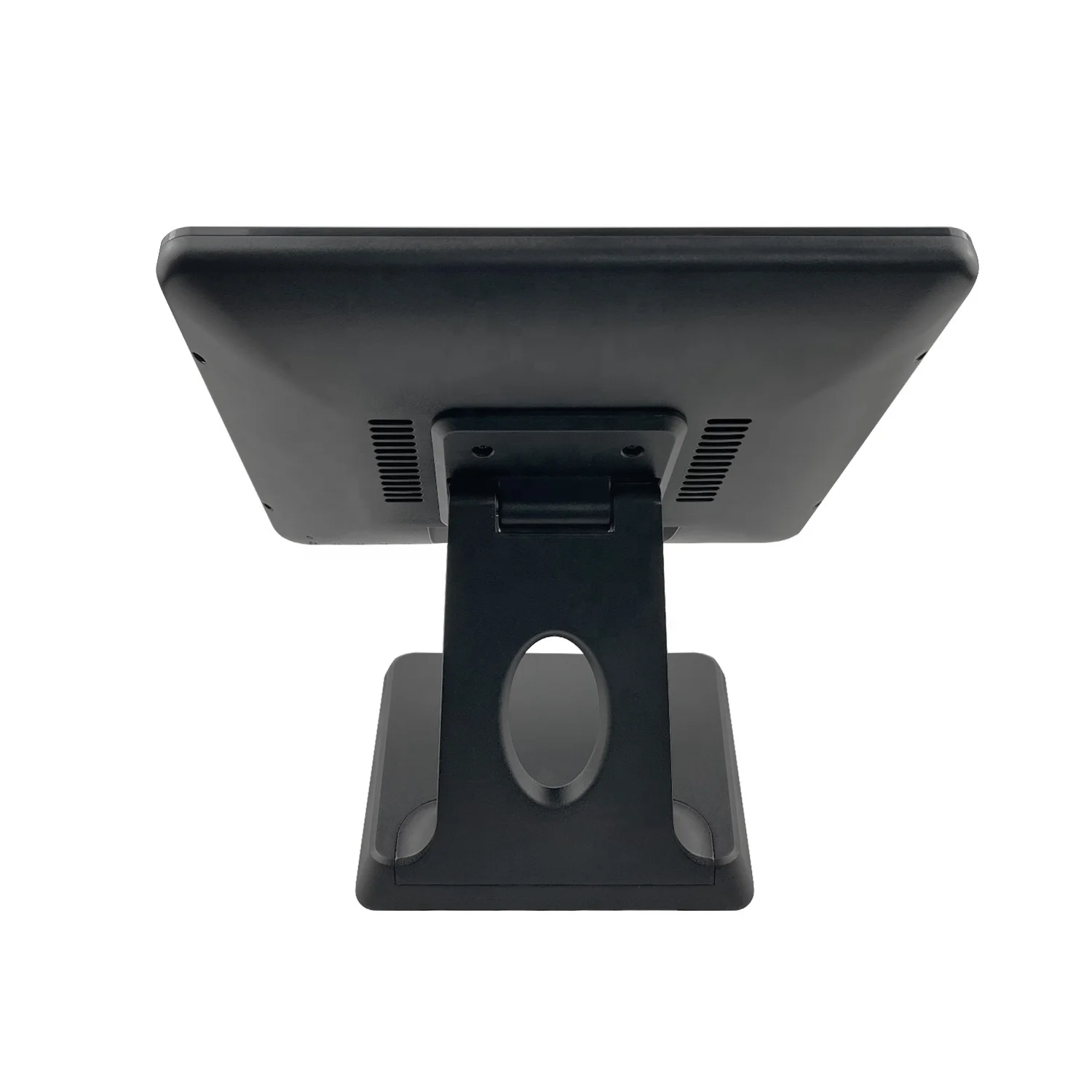

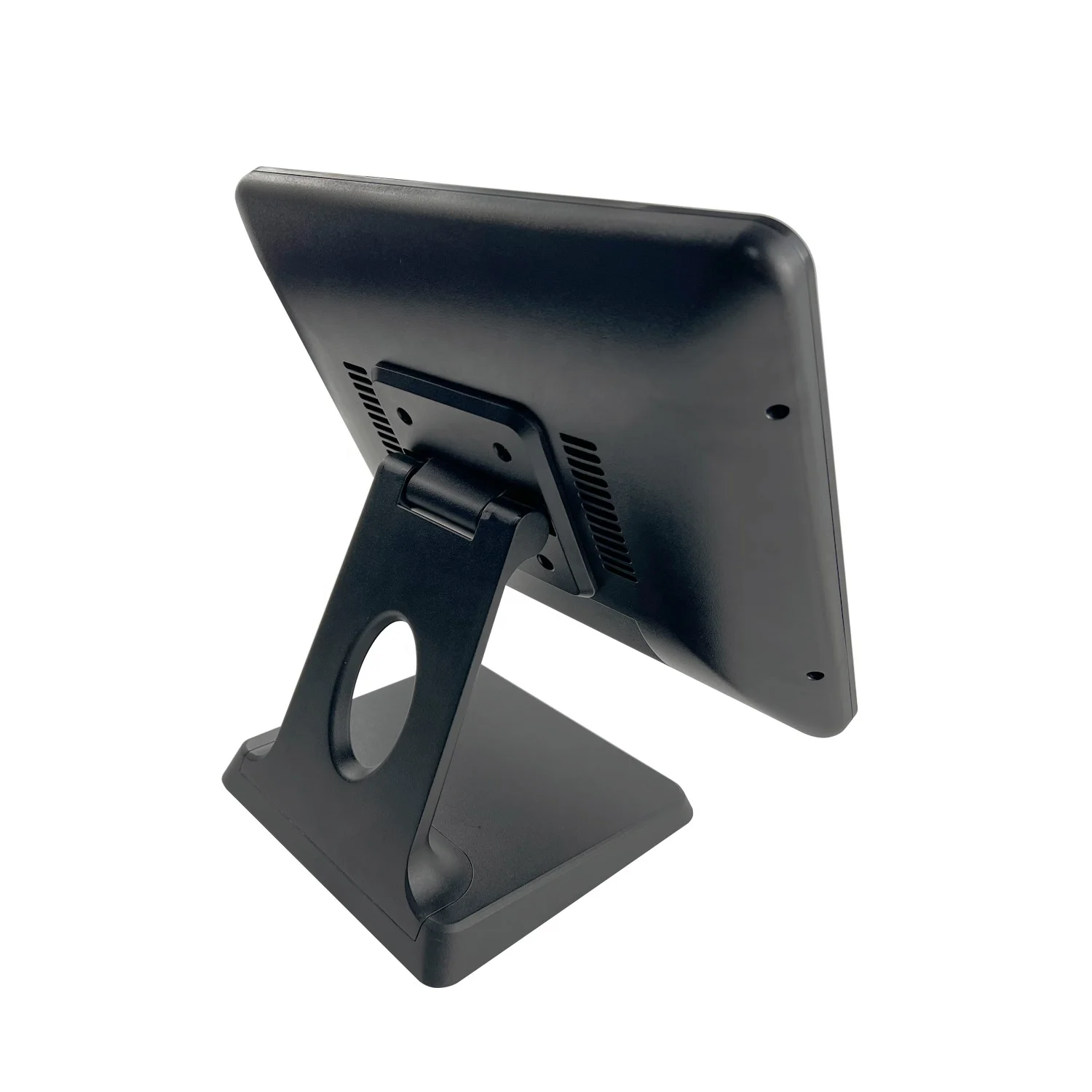

Mounting Options | VESA Mount 100x100 Aluminum alloy desktop stand, and the angle can be adjusted, very stable | |
Power Supply | External Adapter: 100-240VAC, 50-60Hz | |
Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ | |
Humidity Range(no condensing) | Operating: 20%-80%; Storage: 10%-90% | |
Dimension | 352 mm x 280 mm | |
Warranty | 1 year | |
Agency Approvals | CCC, FCC, CE, RoHS | |
Details Images
10 Point Multitouch Projected Capacitive Touch screen
Customized High Brightness for outdoor Application
Anti Glass Glass optional
Full Front Bezel meet IP65 Waterproof
3MM Anti-vandal cover glass meet UL60950
Full flat, zero bezel, pure touch screen monitor appearance
VGA, HDMI connection ports
Customized ports optional
Packing & Delivery
Related Products
Our Company
Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Bank, Hospital, Transportation, Office Automation, and Gaming.
Certifications
FAQ
Q1: What is your main size for your PCAP capacitive desktop touch screen monitor? | ||||||||
A1: 15" 17" 19" 21.5" 23.8" etc. | ||||||||
Q2: Is it waterproof? Vandal proof? | ||||||||
A2: Yes, the front panel is waterproof. It is anti-vandal. | ||||||||
Q3: Is it anti-glare? | ||||||||
A3: If you need anti-glare one, pls tell us before make order. | ||||||||
Q4: Is the monitor IPS? Do you have 2K or 4K monitor? | ||||||||
A4: Yes, we have IPS, 2K, 4K different type, any requirement pls contact us get confirm. | ||||||||
Q5: Whether LeadingTouch PCAP capacitive touch screen monitor support OEM? | ||||||||
A5: Yes, we support customization with size, brightness, function, appearance, resolution, etc. | ||||||||
Q6: What is your capacitive touch monitor application? | ||||||||
A6: Desktop touchmonitors, Open Frame Touchmonitors, Interactive Digital Signage, Point-of-information kiosks, Point-of-sale (POS) terminals, Gaming and lottery terminals, Self-service/Self-automation Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc. | ||||||||
Q7: What is your payment method? | ||||||||
A7: T/T, Paypal, Credit card, secure payment on alibaba. | ||||||||
Q8: What is your guarantee period? | ||||||||
A8: 1 Year. If you have any requirement, pls contact us. | ||||||||
