China Manufacturers Sensor Measuring Direct Selling Economic Safety Light Curtain Sensor Door Detector
- Category: >>>
- Supplier: Nanjing KJT Electric Co. Ltd.
Share on (1600820482174):
Product Overview
Description
Products Description
Product Paramenters
Optical axis spacing | 10mm/ 20mm/30mm/40mm | ||||||
Grating type | Universal safety grating | ||||||
Product color | yellow | ||||||
Protection grade | IP65/IP67 (optional) | ||||||
Power supply voltage | DC24V±10% | ||||||
Response time | ≤10MS | ||||||
Signal output | NPN/PNP/relay | ||||||
Synchronization type | Line synchronization/optical synchronization (optional) | ||||||
Number of optical axes | 8-292 beams/6-148/4-98 beams/4-74 beams | ||||||
Protection height | 70mm-2994mm | ||||||
Protection distance | 0.1-3 meters/0.1-10 meters/0.1-20 meters | ||||||
Light curtain form | through-beam type | ||||||
Anti-interference ability | 10000Lux | ||||||
Appearance material | aluminum alloy | ||||||
circuit protection | Reverse connection protection/output short circuit protection | ||||||
Power consumption | 3-8W | ||||||
Working temperature | -15℃+65℃ | ||||||
Ambient temperature | 20℃ RH≤85% | ||||||
Maximum load current | 200mA | ||||||

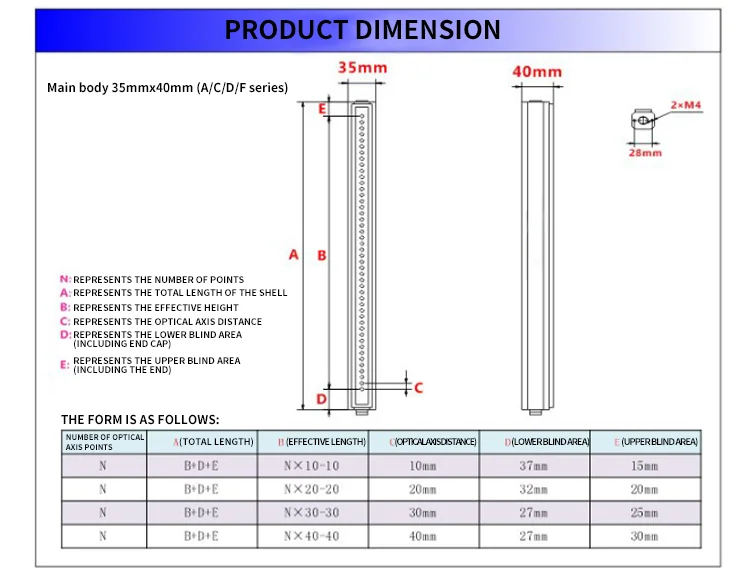

Product Dimensions

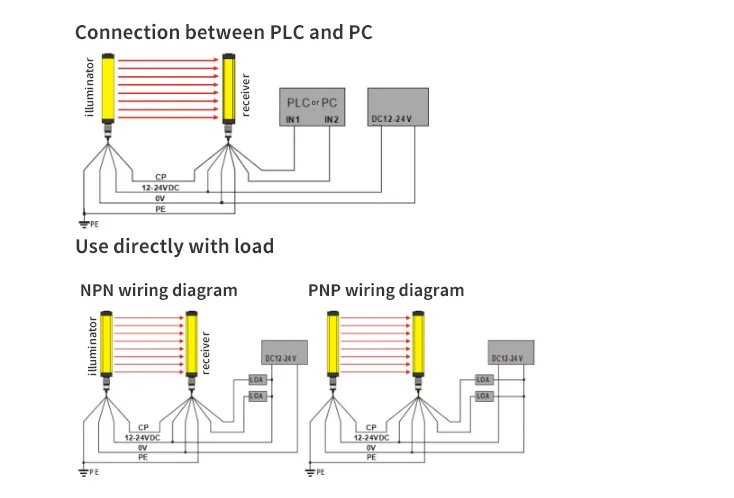

Product Wiring Diagram

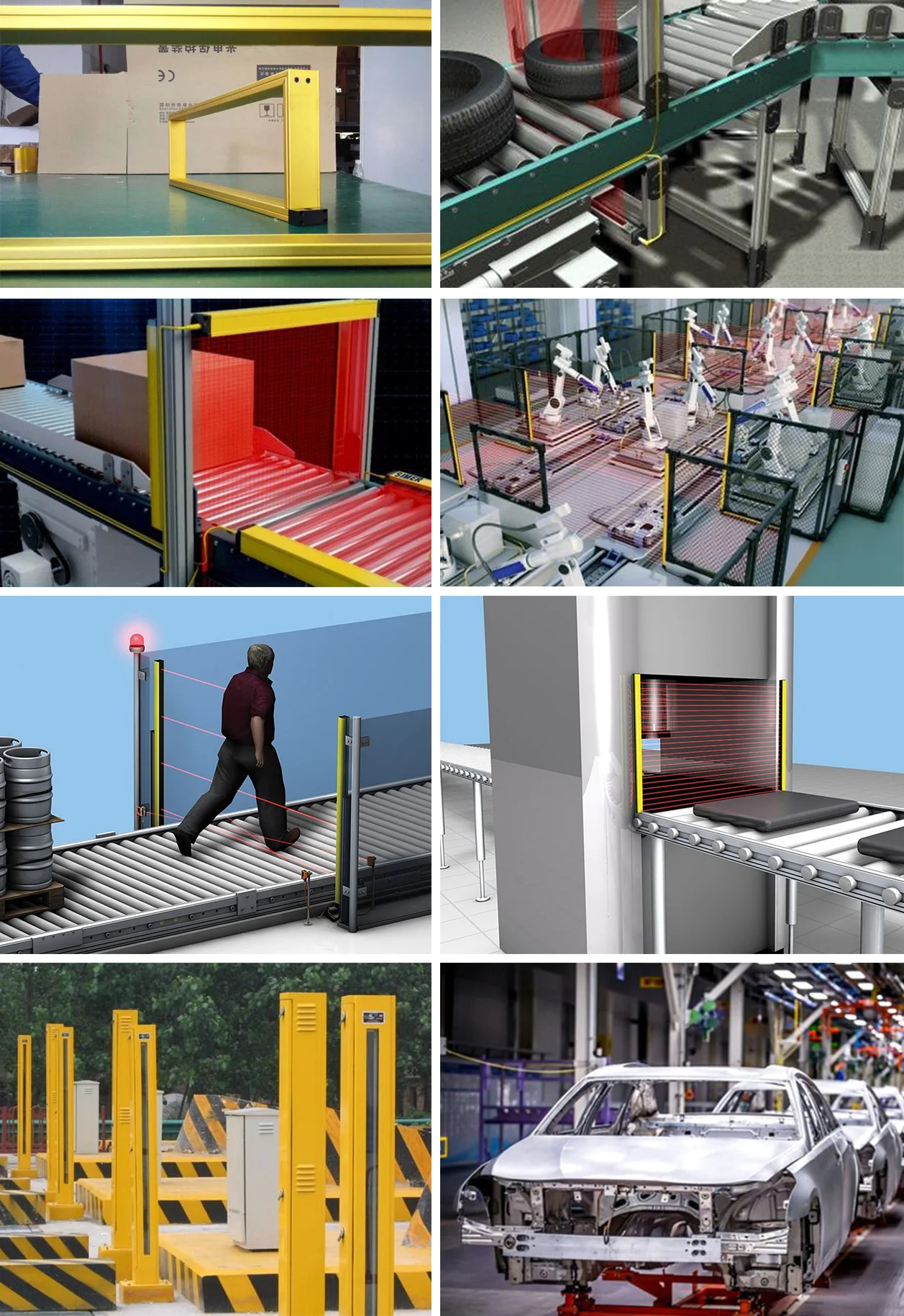

PRODUCT APPLICATION
FAQ
Q1. Are you a trader or a manufacturer?
A: KJT electric is a manufacturing enterprise. We have more than 12 years of experience in R&D and production.
Q2: Can you send a sample for us to test ?
A: For proximity sensors ,it is available to send samples .
Q3: What is the minimum order quantity(MOQ)?
A: Small quantity is also available.MOQ can be negotiated for customized products.
Q4. Does your company accept customization?
A: Yes, we welcome OEM&ODM and label customization according to your requirements.
Q5 : How about the quality guarantee period ?
A : Our warranty period is 18-month since from shipping date.
Q6 : What's your leadtime?
A : 1-3 working days shipping guarantee for stock item , for non-stock items, our delivery date will be determined according to
the quantity you order. If your need is urgent, we will try our best to shorten the delivery time.
Q7 : What's your payment term?
A : We accept T/T, Credit card , Paypal and Western Union.
Q8: What is your shipping way?
A: We support DHL, UPS, FedEx, TNT, EMS express and so on.
