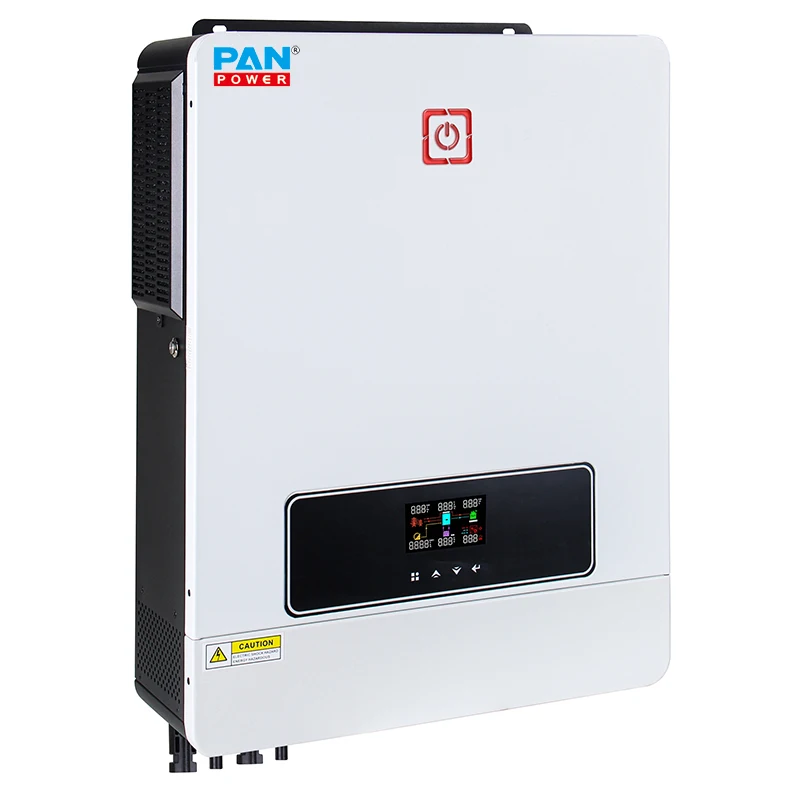

High efficient pure sine wave 8000 watt 10KW off grid on grid hybrid inverter with 160A MPPT controller charging
- Category: >>>
- Supplier: Guangdong Panpower Power Supply Co. Ltd.
Share on (1600820516231):

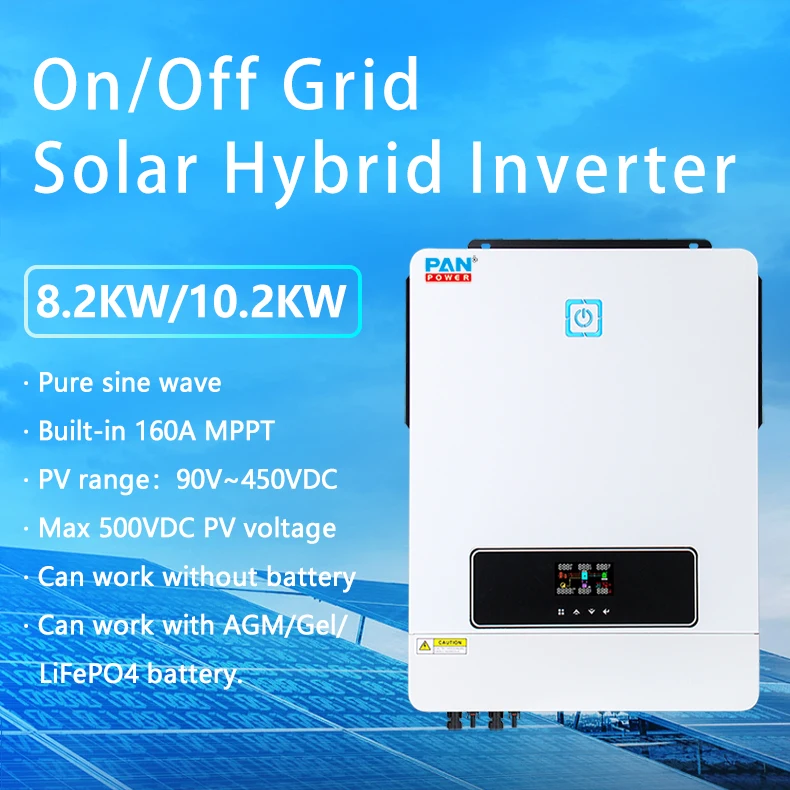

Product Overview
Description
Main Features
* Pure sine wave solar inverter
* Output power factor 1.0
* WIFI available for IOS and Android
* Inverter running without battery
* One-key restoration to factory Settings
* Built-in Lithium battery automatic activation
* Built-in 160A MPPT solar charger
* High PV input VOLTAGE RANGE(90~450VDC)
* Built-in anti-dusk kit for harsh environment
* Smart battery charge design to optimize battery life
* Dual output
* Touch button
System Diagram
Technical Parameters
Model | VICTOR MAX-8.2KW | VICTOR MAX-10.2KW | ||
Phase | 1-phase | |||
Maximum PV Input Power | 8200W/8200VA | 10200W/10200VA | ||
Maximum Solar Charging Current | 160A | |||
AC INPUT | ||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAV/180VAC | |||
Acceptable Input Voltage Range | 90V~280VAC or 170V~280VAC | |||
Maximum AC Input Current | 40A | 50A | ||
Normal operating frequency | 50/60Hz | |||
Surge power | 16400W | 20400W | ||
PV INPUT(DC) | ||||
Maximum DC Voltage | 500VDC | |||
MPPT Voltage Range | 90VDC~450VDC | |||
Number of MPPT Trackers/Maximum Input Current | 1/27A | |||
BATTERY MODE OUTPUT(AC) | ||||
Output Voltage | 220V/230V/240VAC | |||
Output Waveform | Pure sine wave | |||
Efficiency(DC to AC) | 94% | |||
BATTERY & CHARGER | ||||
DC Voltage | 48VDC | |||
Maximum Solar Charging Current | 160A | |||
Maximum AC Charging Current | 140A | |||
PHYSICAL | ||||
Dimension, D*W*H(mm) | 420*310*110 | |||
Cartoon Dimension, D*W*H(mm) | 588*463*205 | |||
Net Weight(kgs) | 14.2 | 14.5 | ||
Gross Weight(kgs) | 15.7 | 16 | ||
INTERFACE | ||||
Communication Port | RS232/WIFI/Remove LCD/GPRS | |||
ENVIRONMENT | ||||
Operating Temperature | -10℃~50℃ | |||
Product Description

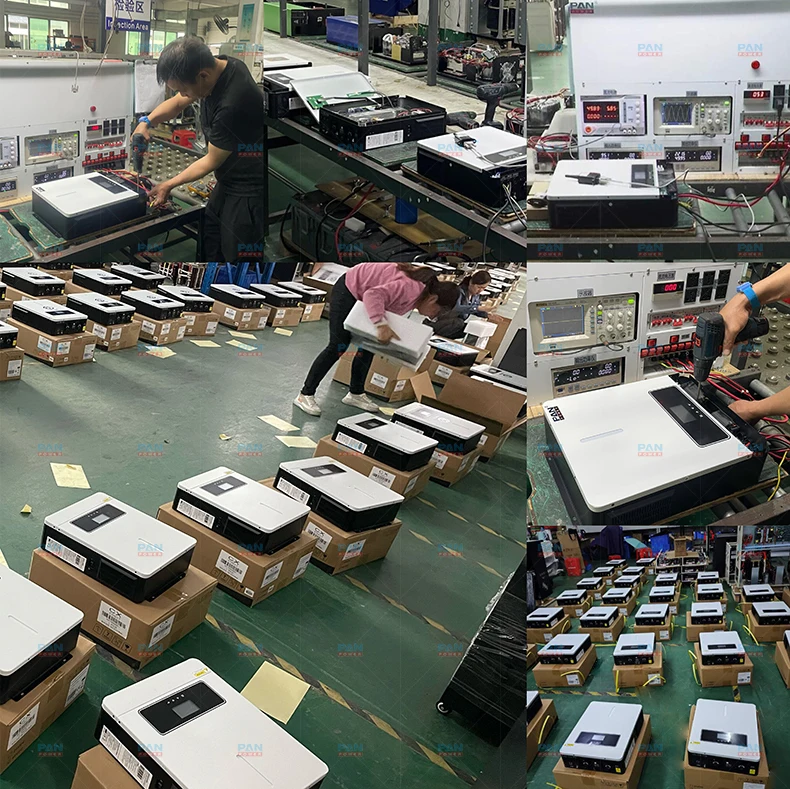

Company Profile
Product packaging
FAQ
Q: What’s the payment term?
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: What is the inverter big function.
A: Parallel function--- such as you can use two inverter parallel connect to 10KW inverter.
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: What is the inverter big function.
A: Parallel function--- such as you can use two inverter parallel connect to 10KW inverter.
This function can make usage more flexible.
