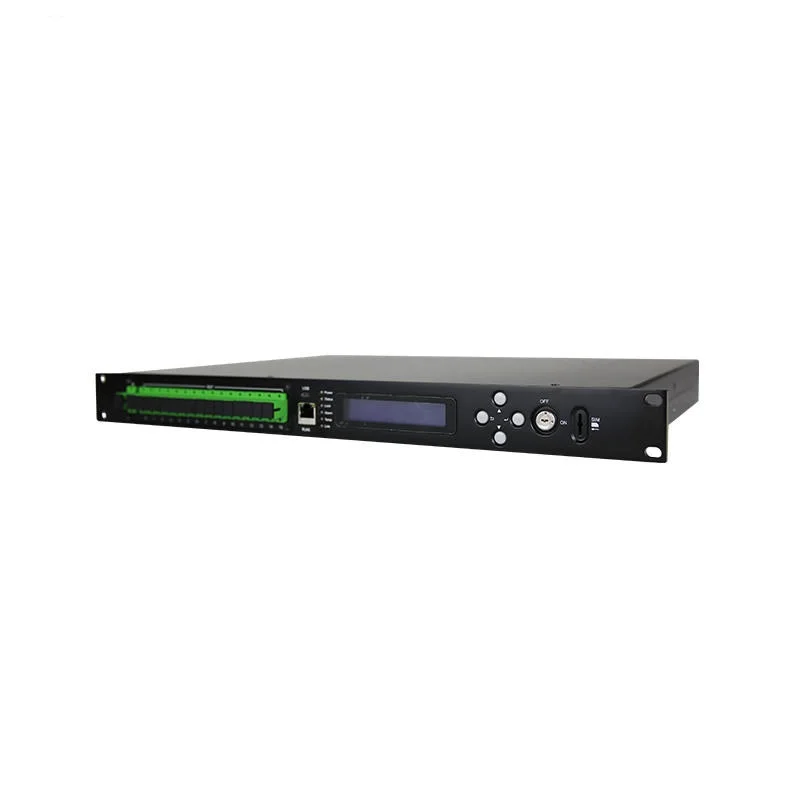

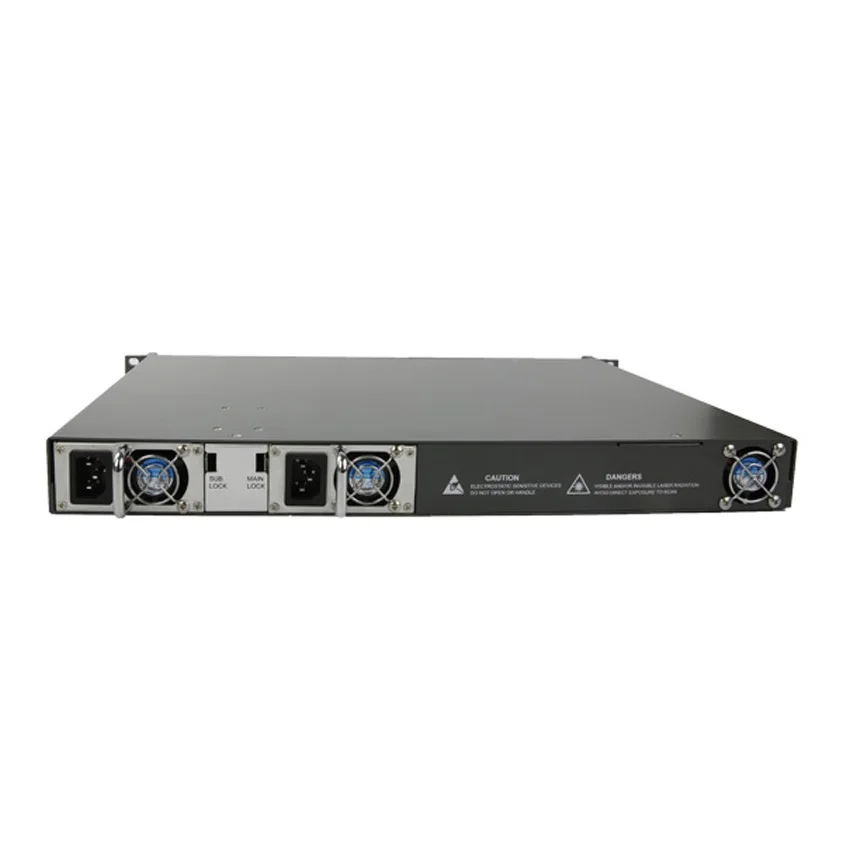

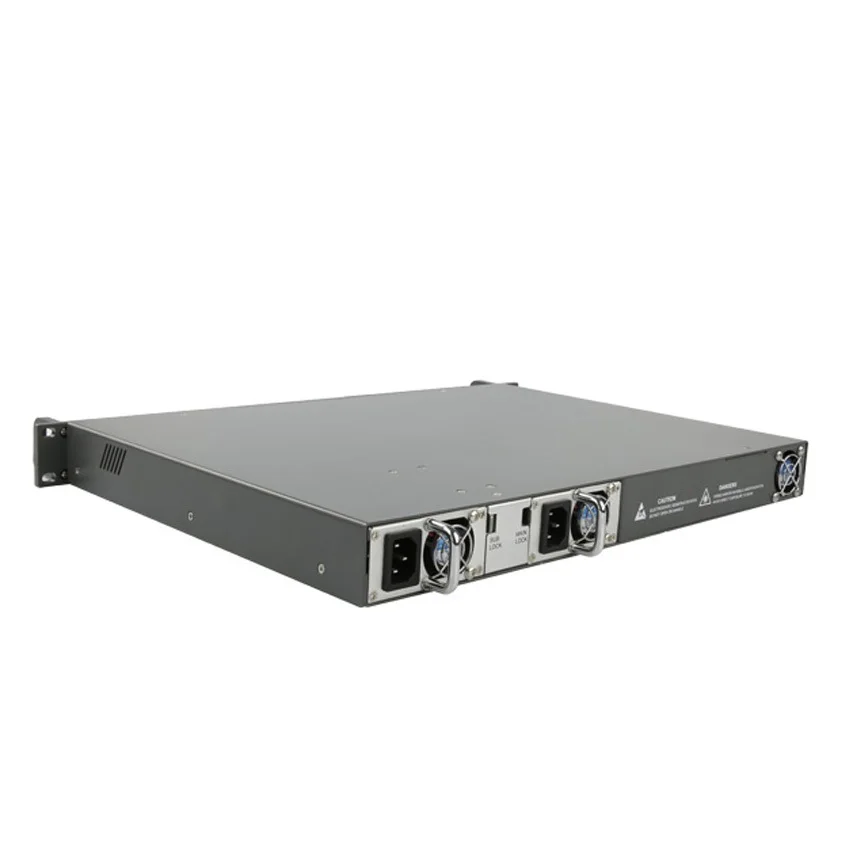

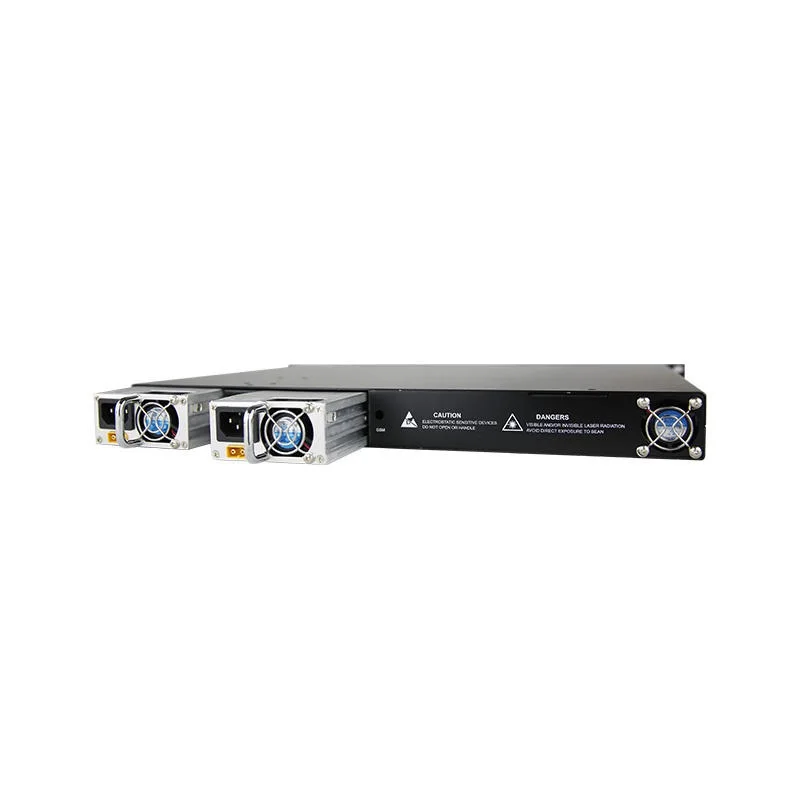

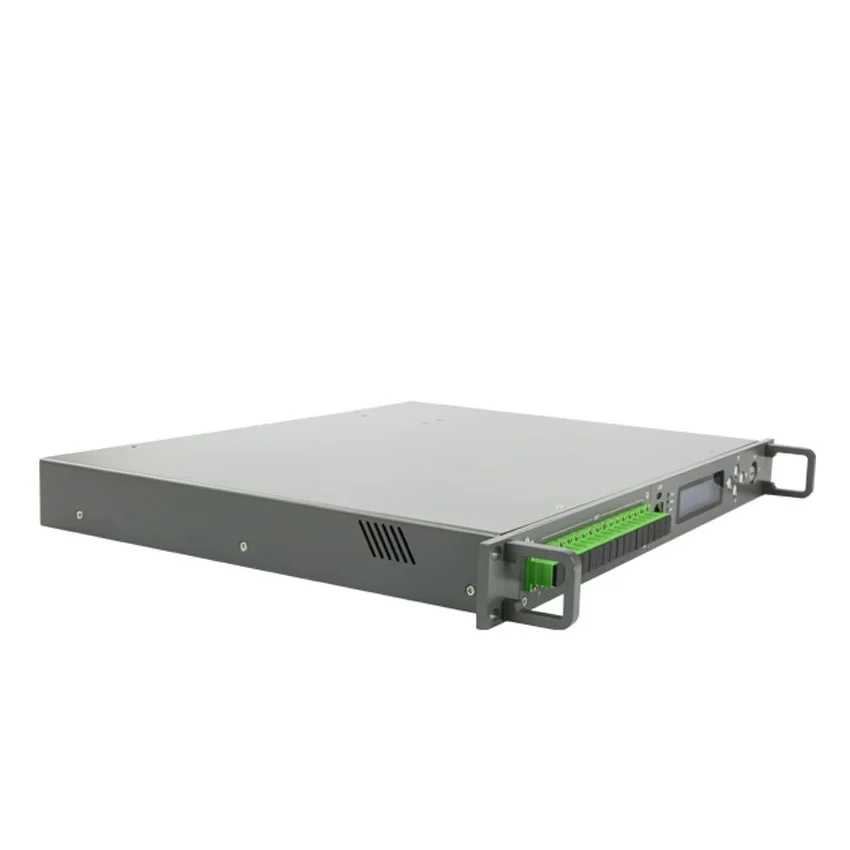

Hot Sale GPON 1550nm WDM EDFA 16 Ports 22dbm 23dbm CATV EDFA WS 56EYA Fiber Optical Amplifier
- Category: >>>
- Supplier: Shandong Wanshuo Optoelectronic Equipment Co Ltd.
Share on (1600820545004):
Product Overview
Description
FTTH CATV GPON 1550nm WDM EDFA 16 Port 19dBm 33dBm Fiber Optical Amplifier EDFA
Product Description
Technical Index
| Technical Parameters | WS-56EYA1U |
| Wavelength | 1535-1565nm |
| Input power range | -5dBm~+10dBm(normal input -2dBm~+5dBm) |
| Output optical power | 26dBm~37dBm |
| Optical power stability | ±0.1dBm |
| Noise figure | ≤ 5.0dB(Pin=0dB) |
| Input return loss | ≥ 45dB |
| Output return loss | ≥ 45dB |
| C/N | ≥ 50dB |
| C/CTB | ≥ 63dB |
| C/CSO | ≥ 63dB |
| Optical connector | SC/APC;SC/PC;LC/APC;LC/PC |
| Supply voltage | AC220V(160V ~ 265V) /AC110V(90 ~130V)/DC48V(38 ~ 58V) |
| Consumption | ≤ 50w |
| Working temperature | -5℃ ~+42℃ |
| Storage temperature | -30℃ ~ +70℃ |
| Maximum working relative humidity | Max 95% non-condensing |
| Size | 380(W)*482(L)*44(H)mm |
| Weight | 6.5kg/pc |

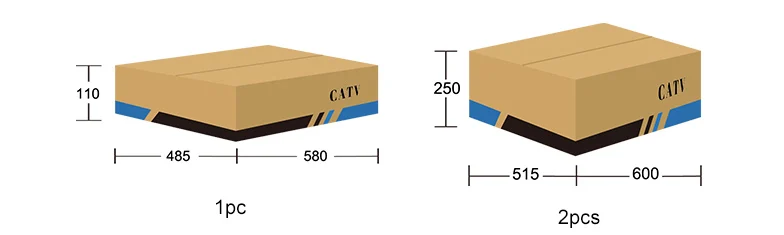

| Package size(1pc) | 580(W)*485(L)*110(H)mm |
| Package size(2pcs) | 600(W)*515(L)*250(H)mm |
High-power multi-port output fiber optical amplifier with a gain spectrum bandwidth of 1535~1565nm. It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities. Can build CATV large Medium-sized optical fiber transmission network .
Related Products

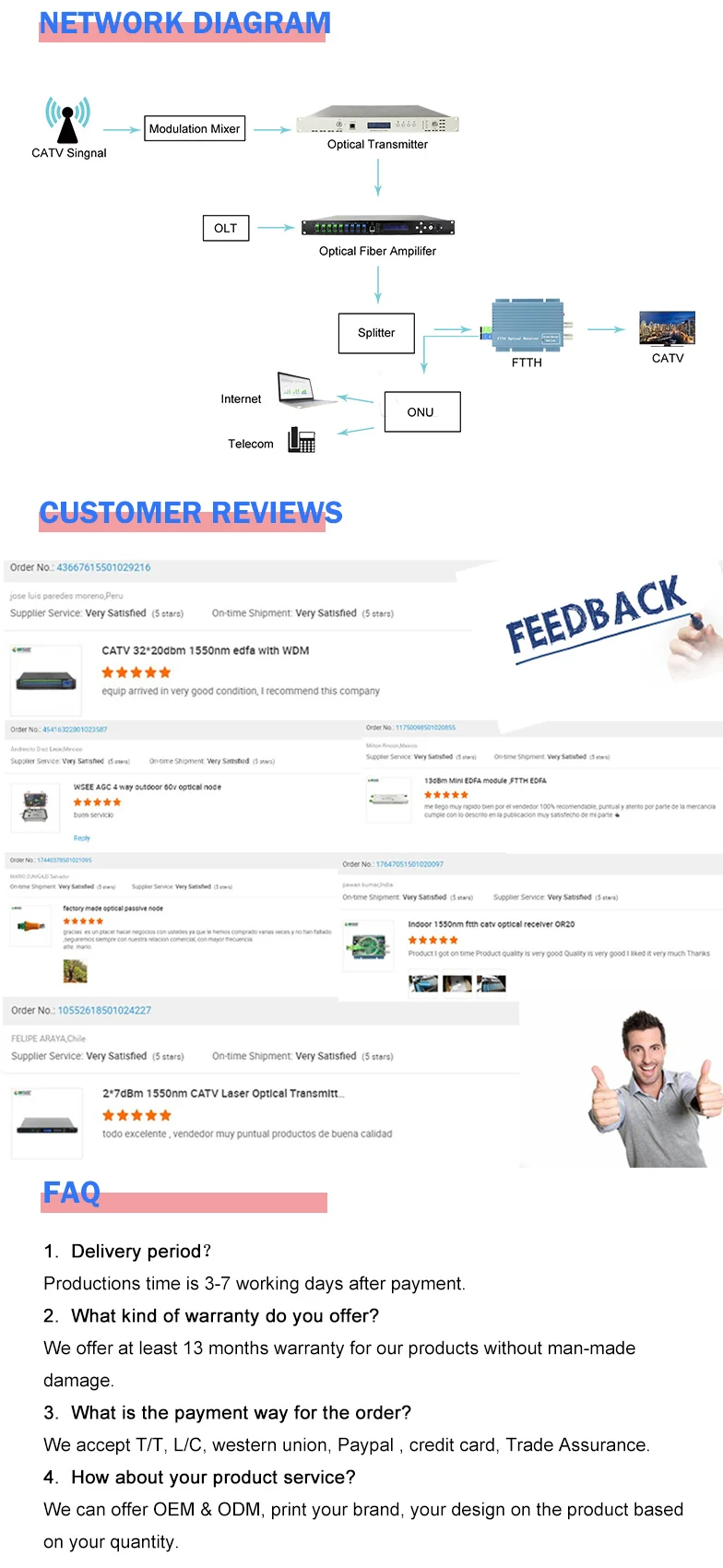

FAQ
